Qualcomm Snapdragon 8cx Gen 3

Qualcomm SD 8cx Gen 3

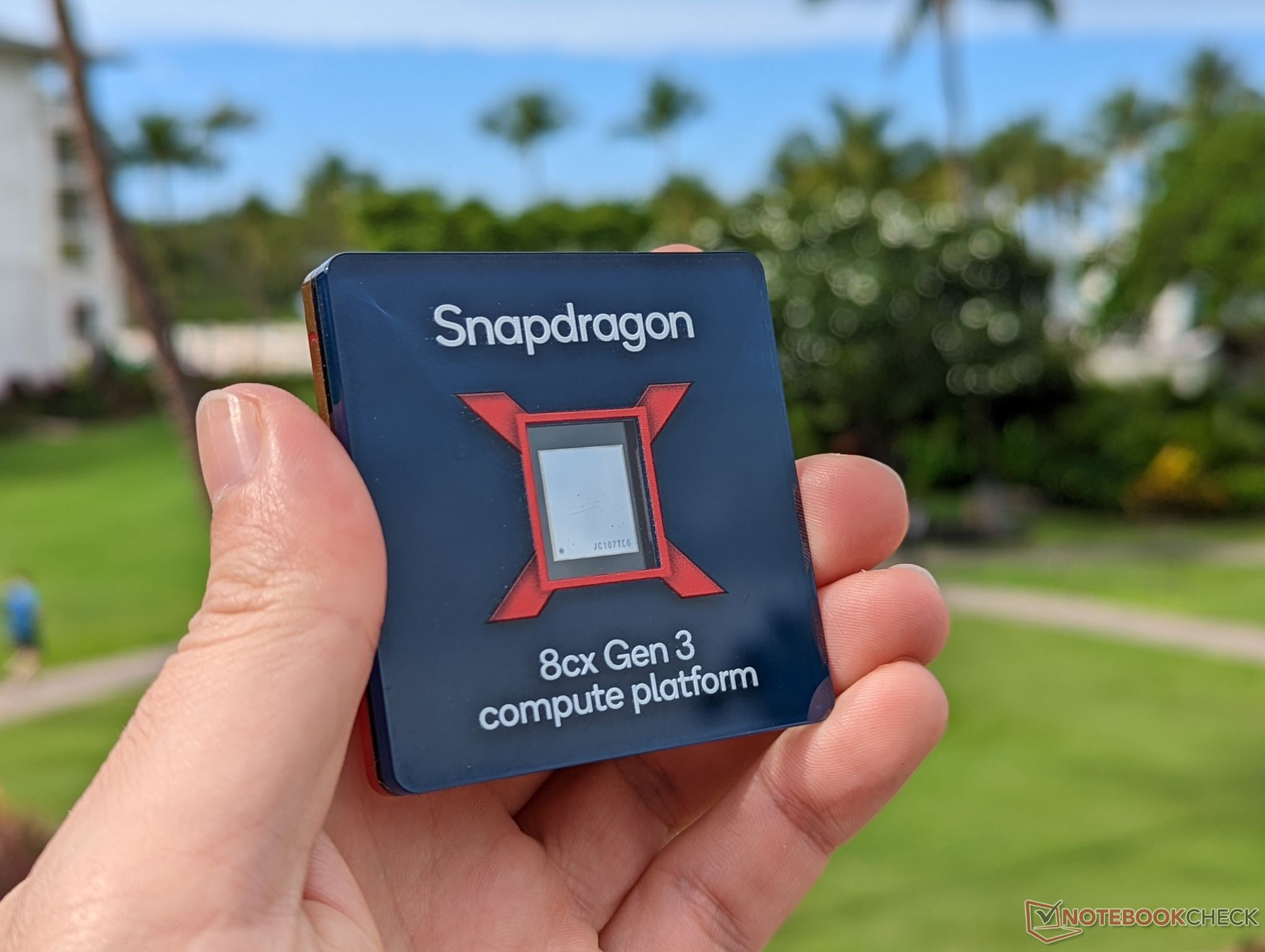

Het Qualcomm Snapdragon 8cx Gen 3 computing platform is een ARM-gebaseerde SoC voor Windows-laptops. Het bevat vier grote ARM Cortex-X1 prestatiekernen (tot 3 GHz) en vier kleinere ARM Cortex-A78 kernen tot 2,4 GHz.

Het computerplatform beschikt ook over een Snapdragon X62 5G-modem met een download tot 10 Gbps en een upload tot 316 Mbps. De geïntegreerde WLAN-modem ondersteunt 6E (2x2) Wi-Fi en het satellietplaatsbepalingssysteem ondersteunt BeiDou, Galileo, GLONASS, GPS, QZSS en SBAS. De ingebouwde video-engine ondersteunt H.264, H.265 en VP9-decodering bij 4K 120fps.

De prestaties zijn naar verwachting ongeveer 85% sneller voor de CPU en 60% sneller voor de GPU in vergelijking met de vorige generatie (Snapdragon 8cx Gen 2).

De chip wordt geproduceerd in het moderne 5nm-proces bij Samsung (5LPE) en is ontworpen voor ventilatorloze laptops (TDP-bereik 7-9 watt).

SerieQualcomm Snapdragon
CodenaamCortex-X1 / A78
Kloksnelheid2400 - 2995 MHz
Level 1 Cache768 KB
Level 2 Cache6 MB
Level 3 Cache8 MB
Aantal Cores / Threads8 / 8
Stroomverbruik (TDP = Thermal Design Power)7 Watt
Productietechnologie5 nm
FeaturesFastConnect 6900 2x2 Wi-Fi, Adreno 690 GPU
GPUQualcomm Adreno 690
64-Bit64-Bit-ondersteuning
ArchitectureARM
Aankondigingsdatum02-12-2021
Productlink (extern)www.qualcomm.com

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
22.5 pt (37%)
2.31 -90%
...
20.7 -8%
20.9 -7%
21 -7%
21.3 -5%
21.5 -4%
21.7 -4%
21.9 -3%
22.2 -1%
22.3 -1%
Qualcomm Snapdragon 8cx Gen 3
22.5
22.8 1%
Intel Core i7-2860QM
23.2 3%
23.3 4%
Intel Core i7-8500Y
23.5 4%
AMD Ryzen 3 3300U
23.5 4%
23.7 5%
AMD Ryzen Embedded V1605B
23.8 6%
23.9 6%
Intel Core i3-8109U
24.1 7%
...
47.4 111%
max:
60.1 167%
0%
100%
Cinebench R23 - Cinebench R23 Multi Core
min: 3534     gem: 3603     mediaan: 3567 (3%)     max: 3709 Points
202 -94%
...
Intel Core i5-8260U
3028 -16%
3038 -16%
3094 -14%
3108 -14%
AMD Ryzen Embedded V1605B
3160 -12%
3321 -8%
3434 -5%
Intel Core i5-8265U
3500 -3%
3571 -1%
Qualcomm Snapdragon 8cx Gen 3
3603
Intel Core i7-1065G7
3615 0%
Intel Core i5-8259U
3792 5%
Intel Core i5-1035G4
3800 5%
3866 7%
3897 8%
3930 9%
3984 11%
Intel Core i5-1035G1
4027 12%
4033 12%
...
32782 810%
max:
107681 2889%
0%
100%
Cinebench R23 - Cinebench R23 Single Core
min: 559     gem: 588     mediaan: 598 (25%)     max: 608 Points
74.4 -87%
...
452 -23%
481 -18%
Intel Core i3-5005U
499 -15%
513 -13%
529 -10%
539 -8%
567 -4%
576 -2%
584 -1%
Qualcomm Snapdragon 8cx Gen 3
588
603 3%
604 3%
608 3%
618 5%
619 5%
624 6%
Intel Core i5-8260U
629 7%
Intel Core m3-7Y32
637 8%
Intel Core i3-6157U
638 9%
...
2269 286%
max:
Intel Core Ultra 9 285K
2348 299%
0%
100%
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 199     gem: 208.7     mediaan: 205 (23%)     max: 222 Points
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 810     gem: 1105     mediaan: 1248 (3%)     max: 1258 Points
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 723     gem: 749     mediaan: 748.5 (5%)     max: 774 Points
31 -96%
...
Intel Core i7-7700HQ
727 -3%
Intel Xeon E3-1505M v6
728 -3%
Intel Core i5-1230U
734 -2%
Intel Core i7-6920HQ
735 -2%
736 -2%
Intel Core i7-6820HK
739 -1%
743 -1%
Intel Xeon E3-1535M v5
746 0%
748 0%
Qualcomm Snapdragon 8cx Gen 3
749
Intel Core i5-8279U
750 0%
Intel Core i5-8400H
762 2%
Intel Core i7-8705G
763 2%
Intel Core i5-1038NG7
768 3%
773 3%
Intel Core i7-8706G
781 4%
784 5%
Intel Xeon E3-1535M v6
784 5%
AMD Ryzen 7 3780U
788 5%
...
5600 648%
max:
15842 2015%
0%
100%
04080120160200240280320360400440480520560600640680720760Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 119     gem: 119.1     mediaan: 119.1 (33%)     max: 119.1 Points
19 -84%
...
117 -2%
Intel Core i5-6260U
117 -2%
Intel Core i5-6198DU
117 -2%
117.5 -1%
118 -1%
118.1 -1%
Intel Core i5-6300U
118.3 -1%
118.4 -1%
119 0%
Qualcomm Snapdragon 8cx Gen 3
119.1
Intel Core m3-7Y32
120 1%
121.5 2%
Intel Core i7-4712HQ
121.5 2%
Intel Core i5-5257U
121.7 2%
122 2%
122.2 3%
123 3%
123 3%
Intel Core i7-2860QM
123 3%
...
311 161%
max:
Intel Core Ultra 9 285K
355.5 198%
0%
100%
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
9.2 Points (12%)
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
1.4 Points (33%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
2481 punten (15%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
13940 punten (10%)
wPrime 2.10 - wPrime 2.0 1024m *
305.3 s (4%)
wPrime 2.10 - wPrime 2.0 32m *
8.7 s (2%)
WinRAR - WinRAR 4.0
4046 punten (6%)
7-Zip 18.03 - 7-Zip 18.03 Multi Thread 4 runs
min: 16223     gem: 21572     mediaan: 23989 (14%)     max: 24505 MIPS
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
min: 3874     gem: 3912     mediaan: 3915 (46%)     max: 3946 MIPS
X264 HD Benchmark 4.0 - x264 Pass 2
33.2 fps (11%)
X264 HD Benchmark 4.0 - x264 Pass 1
146.9 fps (34%)
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
min: 1.5     gem: 2.2     mediaan: 2.5 (4%)     max: 2.68 fps
00.20.50.711.21.41.71.92.12.42.62.93.13.33.63.844.34.5Tooltip
Blender - Blender 3.3 Classroom CPU *
min: 1153     gem: 1626     mediaan: 1625.5 (21%)     max: 2098 Seconds
Blender - Blender 2.79 BMW27 CPU *
min: 1059     gem: 1246     mediaan: 1080 (8%)     max: 1600 Seconds
R Benchmark 2.5 - R Benchmark 2.5 *
min: 1.011     gem: 1     mediaan: 1 (22%)     max: 1.013 sec
3DMark 06 - CPU - 3DMark 06 - CPU
3876 Points (8%)
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
17.5 s (4%)
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
37.4 s (2%)
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
848 s (4%)
3DMark 11 - 3DM11 Performance Physics
min: 7084     gem: 7306     mediaan: 7333 (19%)     max: 7500 Points
3DMark - 3DMark Ice Storm Physics
18857 Points (15%)
3DMark - 3DMark Cloud Gate Physics
min: 2899     gem: 4704     mediaan: 4704 (12%)     max: 6509 Points
3DMark - 3DMark Fire Strike Standard Physics
min: 9533     gem: 9637     mediaan: 9637 (17%)     max: 9741 Points
3DMark - 3DMark Time Spy CPU
2939 Points (12%)
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
min: 1486     gem: 1588     mediaan: 1588 (62%)     max: 1690 punten
125 -92%
...
1553 -2%
1562 -2%
1564 -2%
Intel Core i5-11500B
1566 -1%
1568 -1%
1569 -1%
1569 -1%
1573 -1%
1587 0%
Qualcomm Snapdragon 8cx Gen 3
1588
1589 0%
Intel Core i5-1240U
1596 1%
1599 1%
1611 1%
1622 2%
1625 2%
1629 3%
1634 3%
1635 3%
...
2331 47%
max:
2544 60%
0%
100%
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
min: 4457     gem: 5990     mediaan: 5989.5 (11%)     max: 7522 punten
Geekbench 5.0 - Geekbench 5.0 64 Bit Single-Core
min: 663     gem: 665     mediaan: 665 (3%)     max: 667 punten
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
min: 3749     gem: 3797     mediaan: 3796.5 (12%)     max: 3844 punten
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
3460 punten (35%)
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Multi-Core
15240 punten (15%)
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 1913     gem: 1925     mediaan: 1915 (2%)     max: 1946 ms
Octane V2 - Octane V2 Total Score
49893 Points (42%)
WebXPRT 4 - WebXPRT 4 Score
min: 64.2     gem: 66.2     mediaan: 67.2 (19%)     max: 67.2 Points
WebXPRT 3 - WebXPRT 3 Score
min: 84.7     gem: 90.5     mediaan: 90.5 (17%)     max: 96.2 Points
CrossMark - CrossMark Overall
min: 627     gem: 673     mediaan: 672.5 (26%)     max: 718 Points
Power Consumption - Prime95 Power Consumption - external Monitor *
min: 26.9     gem: 33.5     mediaan: 35.7 (6%)     max: 37.9 Watt
051015202530354045Tooltip
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
min: 32.7     gem: 33     mediaan: 33 (6%)     max: 33.2 Watt
05101520253035Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
min: 3.21     gem: 3.4     mediaan: 3.2 (2%)     max: 3.6 Watt
00.20.50.70.91.21.41.61.82.12.32.52.833.23.53.73.94.14.4Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
min: 3.5     gem: 3.7     mediaan: 3.7 (4%)     max: 3.9 Watt
012345Tooltip
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
min: 22.1     gem: 22.7     mediaan: 22.7 (17%)     max: 23.3 Points per Watt
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
