NVIDIA Quadro FX 3800M

NVIDIA Quadro FX 3800M

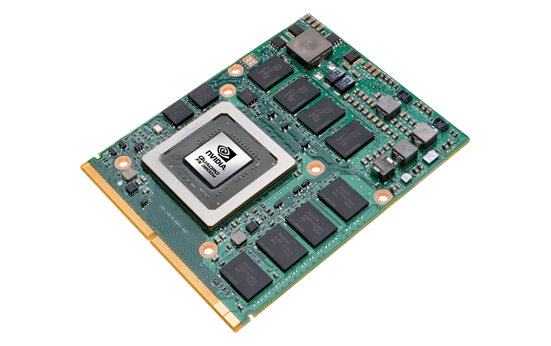

De nVidia Quadro FX 3800M is een mobiele videokaart voor workstation laptops. Hij is gebaseerd op de GeForce GTX 280M core (G92 core) en heeft 128 CUDA cores (unified shaders).

Vergeleken met de Quadro FX 3700M heeft de Quadro FX 3800M een hogere kloksnelheid en is hij geproduceerd op 55nm (de 3700M op 65nm). De FX3800M is ook sneller geklokt dan de GeForce GTX 280M en presteert ook beter.

De Quadro FX reeksen zijn geoptimaliseerd voor professionele applicaties zoals CAD of DCC. Zeker de OpenGL prestaties zijn merkbaar beter dan met de consumer GeForce kaarten.

Bij aankondiging (12-2009) is de FX 3800M de snelste workstation videokaart voor laptops.

Quadro FX Serie

Quadro FX 3800M 128 @ 0.68 GHz256 bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 bit @ 350 MHz
CodenaamN10E-GLM4
ArchitectuurG9x
Pipelines128 - verenigd
Core-snelheid675 MHz
Shader-snelheid1688 MHz
Geheugensnelheid1000 MHz
Geheugenbusbreedte256 bit
GeheugentypeGDDR3
Max. hoeveelheid geheugen1024 MB
Gedeeld geheugennee
APIDirectX 10, Shader 4.0
Stroomverbruik100 Watt
Aantal Transistoren754 miljoen
technologie55 nm
FaciliteitenOpenGL 2.1, CUDA, PowerMizer 8.0
Laptop Groottegroot
Aangekondigde datum20.12.2009
Link naar fabrikantwww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 6584     gem: 6951     mediaan: 6779 (2%)     max: 7491 Points
+ 3 Meer details   + Toon vergelijkingstabel
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 5758     gem: 5926     mediaan: 6002 (3%)     max: 6019 Points
+ 3 Meer details   - Verberg vergelijkingstabel
3DMark 2001SE - 3DMark 2001 - Standard
min: 32886     gem: 34790     mediaan: 34790 (36%)     max: 36694 Points
+ 2 Meer details   + Toon vergelijkingstabel
3DMark 03 - 3DMark 03 - Standard
min: 33146     gem: 37082     mediaan: 38191 (20%)     max: 39909 Points
+ 3 Meer details   + Toon vergelijkingstabel
3DMark 05 - 3DMark 05 - Standard
min: 16593     gem: 18199     mediaan: 18043 (20%)     max: 19960 Points
+ 3 Meer details   - Verberg vergelijkingstabel
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
13232 punten (17%)
+ 1 Meer details   + Toon vergelijkingstabel
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 12050     gem: 12765     mediaan: 12923 (17%)     max: 13323 Points
+ 3 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
32.8 punten (68%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
45.8 punten (96%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
47.4 punten (100%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
59.7 punten (32%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
51.1 punten (100%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
59.7 punten (88%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
38.5 punten (100%)
+ 1 Meer details   + Toon vergelijkingstabel
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
35.3 punten (72%)
+ 1 Meer details   + Toon vergelijkingstabel
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
18.8 fps (11%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
18.7 fps (11%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
30.6 fps (23%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
6.9 fps (8%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
16.6 fps (12%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
38.4 fps (41%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
16.2 fps (8%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
23.4 fps (12%)
+ 1 Meer details   + Toon vergelijkingstabel
Windows 7 Experience Index - Win7 Gaming graphics
6.9 Points (87%)
+ 1 Meer details   + Toon vergelijkingstabel
Windows 7 Experience Index - Win7 Graphics
6.9 Points (87%)
+ 1 Meer details   + Toon vergelijkingstabel
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4429     gem: 4928     mediaan: 4928 (4%)     max: 5427 punten
+ 2 Meer details   + Toon vergelijkingstabel
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 32.07     gem: 32.7     mediaan: 32.7 (11%)     max: 33.29 fps
+ 2 Meer details   + Toon vergelijkingstabel
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie

Game Benchmarks

De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

Fifa 11

Fifa 11

2010
gem. 1024x768
230.6  fps    + Vergelijk
hoge 1360x768
124.2  fps    + Vergelijk
» Met alle geteste laptops speelbaar met hoge instellingen.
Risen

Risen

2009
gem. 1024x768
64.9  fps    + Vergelijk
ultra 1920x1080
31.8  fps    + Vergelijk
» Met alle geteste laptops speelbaar met gem. instellingen.
Need for Speed Shift

Need for Speed Shift

2009
gem. 1024x768
78.5  fps    + Vergelijk
ultra 1920x1080
40.9  fps    + Vergelijk
» Met alle geteste laptops speelbaar met ultra instellingen.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
lage 800x600
97  fps    + Vergelijk
gem. 1024x768
82  fps    + Vergelijk
ultra 1920x1080
29.9  fps    + Vergelijk
» Met alle geteste laptops speelbaar met gem. instellingen.
Anno 1404

Anno 1404

2009
lage 1024x768
142.8  fps    + Vergelijk
ultra 1280x1024
61.9  fps    + Vergelijk
» Met alle geteste laptops speelbaar met ultra instellingen.
lagegem.hogeultraQHD4K
Fifa 11230.6124.2
Risen64.931.8
Need for Speed Shift78.540.9
Colin McRae: DIRT 2978229.9
Anno 1404142.861.9
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

1
1

3
1


1		1
2
1






Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
