NVIDIA Quadro FX 1800M

NVIDIA Quadro FX 1800M

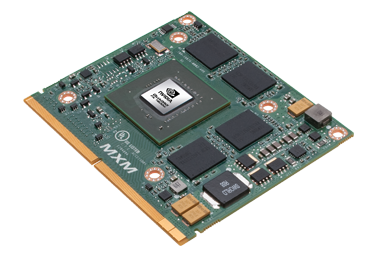

De nVidia Quadro FX 1800M is een mid-range professionele videokaart voor mobiele workstations met een 15” scherm. Hij is gebaseerd op dezelfde chip als de GeForce GT 335M maar kan ook uitgerust worden met snel GDDR5 videogeheugen. De FX1800M wordt geleverd met professionele drivers en een special BIOS die de prestaties en stabiliteit verbeteren in CAD en DCC toepassingen.

De gecertificeerde drives garanderen probleemloze werking met professionele applicaties zoals Premiere, Photoshop, After Effect, 3ds Max, trueSpace, Blender, Catia, IronCAD, Cinema 4D, Lightwave 3D, Softimage, Mathematica,.. Vergeleken met GeForce kaarten, hebben de Quadro FX kaarten duidelijk betere prestaties, zeker bij OpenGL toepassingen.

De gaming prestaties van deze kaart liggen dicht bij die van de GeForce GT 335M, al kiezen gamers beter voor een GeForce videokaart door de geoptimaliseerde driver ondersteuning (die tot betere prestaties en minder problemen in games leidt). Alle moderne games uit 2009 zullen echter perfect op medium details kunnen draaien (zie de GeForce GT335M pagina voor meer gaming resultaten).

De chip is geproduceerd op 40nm en heeft 72 1-dimensionale unified shaders. Deze kunnen vergeleken worden met 300-400 5-dimensionale shaders in videokaarten van AMD. Deze processing cores kunnen ook gebruikt worden door CUDA, OpenCL en DirectCompute om de rekenkracht van de videokaart te gebruiken voor andere doeleinden dan het verwerken van beelden (bijvoorbeeld voor het coderen van video’s).

De Quadro FX 1800M ondersteund PureVideo HD met de nieuwe VideoProcessor (VP4) om HD video’s met de videokaart te decoderen. Hierdoor wordt de CPU ontlast en gaat de batterij langer mee.

De Quadro FX 1800M heeft ondersteuning om automatisch tussen de geïntegreerde videokaart en de dedicated (FX 1800M) videokaart te switchen, gebruikmakend van Optimus. De eerste mobiele workstations ondersteunen dit niet, omdat het ontwikkelproces van deze laptops erg lang zijn.

Quadro FX Serie

Quadro FX 3800M 128 @ 0.68 GHz256 bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 bit @ 350 MHz
ArchitectuurGT2xx
Pipelines72 - verenigd
Core-snelheid560 MHz
Shader-snelheid1125 MHz
Geheugensnelheid1100 MHz
Geheugenbusbreedte128 bit
GeheugentypeDDR3, GDDR5
Max. hoeveelheid geheugen1024 MB
Gedeeld geheugennee
APIDirectX 10.1, Shader 4.1
Stroomverbruik45 Watt
technologie40 nm
FaciliteitenPowerMizer 9.0, EnergyStar (3.8W), 16x FSAA Support, CUDA, NVIEW, OpenGL 3.2
Laptop Groottegemiddeld formaat
Aangekondigde datum01.02.2010
Link naar fabrikantwww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 3444     gem: 3452     mediaan: 3451.5 (1%)     max: 3459 Points
+ 2 Meer details   + Toon vergelijkingstabel
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 2774     gem: 2801     mediaan: 2800.5 (2%)     max: 2827 Points
+ 2 Meer details   - Verberg vergelijkingstabel
3DMark 05 - 3DMark 05 - Standard
15249 Points (17%)
+ 1 Meer details   - Verberg vergelijkingstabel
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA GeForce GT 640M LE
14777 -3%
AMD Radeon HD 6570M
14855 -3%
NVIDIA GeForce 9800M GT
14869 -2%
AMD Radeon R7 M260
14924 -2%
ATI Mobility Radeon HD 4830
14938 -2%
NVIDIA GeForce 8800M GTX
14952 -2%
AMD Radeon HD 6750M
15011 -2%
Intel HD Graphics 4600
15058 -1%
NVIDIA NVS 5200M
15064 -1%
NVIDIA Quadro FX 1800M
15249
NVIDIA GeForce GT 540M
15284 0%
ATI Mobility Radeon HD 5850
15365 1%
ATI Mobility Radeon HD 4850
15419 1%
AMD Radeon HD 6770M
15484 2%
AMD Radeon HD 6730M
15492 2%
AMD Radeon R7 M340
15629 2%
NVIDIA Quadro FX 3700M
15759 3%
AMD Radeon RX Vega 3
15885 4%
NVIDIA Quadro K2000M
16020 5%
...
AMD Radeon RX 7600M XT
68166 347%
max:
NVIDIA GeForce RTX 4080 Super
87172 472%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 7416     gem: 7573     mediaan: 7572.5 (10%)     max: 7729 Points
+ 2 Meer details   + Toon vergelijkingstabel
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
12.4 fps (7%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
13 fps (7%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
28.1 fps (21%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
7.5 fps (9%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
16.6 fps (13%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
39 fps (42%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
12.3 fps (6%)
+ 1 Meer details   + Toon vergelijkingstabel
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
17.5 fps (9%)
+ 1 Meer details   + Toon vergelijkingstabel
Windows 7 Experience Index - Win7 Gaming graphics
6.6 Points (84%)
+ 1 Meer details   + Toon vergelijkingstabel
Windows 7 Experience Index - Win7 Graphics
5 Points (63%)
+ 1 Meer details   + Toon vergelijkingstabel
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
20 fps (7%)
+ 1 Meer details   + Toon vergelijkingstabel
- Benchmarkresultaten voor deze videokaart
red legend - Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie

Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
