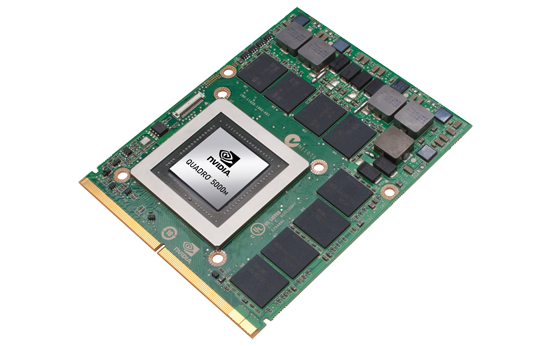

NVIDIA Quadro 5000M

NVIDIA Quadro 5000M

De NVIDIA Quadro 5000M is een professionele workstation grafische kaart gebaseerd op de Fermi-architectuur. De 5000M lijkt dan ook op de GF100-gebaseerde GeForce GTX 480M voor consumenten, welke over meer CUDA cores beschikt. De Quadro is de eerste mobiele GPU die ECC RAM en double-precision floating point cores aanbiedt.

De Quadro-serie biedt gecertificeerde drivers die geoptimaliseerd zijn voor stabiliteit en prestaties in professionele toepassingen zoals CAD, DCC, medicijn- of visualisatie-gebieden. De OpenGL prestaties zouden bijvoorbeeld aanzienlijk beter moeten zijn dan vergelijkbaar uitgeruste GeForce grafische kaarten.

De shader / CUDA cores kunnen gebruikt worden met DirectX 11 en OpenGL 4.1 voor grafische rendering en DirectCompute, OpenCL, AXE en CUDA voor algemene berekeningen. Dankzij de nieuwe Fermi-core, zou de 5000M hogere prestaties moeten bieden in algemene berekeningen.

Verder is de NVIDIA Quadro 5000M compatibel met de nieuwe stereoscopische oplossing van NVIDIA genaamd: NVIDIA 3D Vision Pro.

Net als de GeForce GTX 480M, is de Quadro 5000M gespecificeerd op een 100 Watt TDP en daarom zullen enkel grote laptops zoals de Clevo D901F plaats kunnen bieden aan deze high-end kaart.

Op het moment van lancering (midden 2010), is de Quadro 5000M de snelste professionele workstation grafische kaart voor laptops en de opvolger van de oudere Quadro FX 3800M (G92b core). Vergeleken met desktop Quadro kaarten, biedt de desktop Quadro 5000 meer shader cores en waarschijnlijk een hogere kloksnelheid.

Quadro M Serie

Quadro M5500 2048 @ 1.14 - 1.14 GHz256 bit @ 6606 MHz
Quadro M5000M 1536 @ 0.96 - 1.05 GHz256 bit @ 5000 MHz
Quadro M4000M 1280 @ 0.98 - 1.01 GHz256 bit @ 5012 MHz
Quadro M3000M 1024 @ 1.05 GHz256 bit @ 5000 MHz
Quadro M2200 1024 @ 0.69 - 1.04 GHz128 bit @ 5508 MHz
Quadro M1200 640 @ 0.99 - 1.15 GHz128 bit @ 5000 MHz
Quadro M2000M 640 @ 1.04 - 1.2 GHz128 bit @ 5000 MHz
Quadro M1000M 512 @ 0.99 - 1.07 GHz128 bit @ 5000 MHz
Quadro M620 512 @ 1.02 GHz128 bit @ 5012 MHz
Quadro 5010M 384 @ 0.45 GHz256 bit @ 1300 MHz
Quadro 4000M 336 @ 0.48 GHz256 bit @ 1200 MHz
Quadro M520 384 @ 0.76 - 1.02 GHz64 bit
Quadro M600M 384 @ 0.84 - 0.88 GHz128 bit @ 5012 MHz
Quadro M500M 384 @ 1.03 - 1.12 GHz64 bit @ 4004 MHz
Quadro 5000M 320 @ 0.41 GHz256 bit @ 1200 MHz
Quadro 3000M 240 @ 0.45 GHz256 bit @ 625 MHz
Quadro 2000M 192 @ 0.55 GHz128 bit @ 900 MHz
Quadro 1000M 96 @ 0.7 GHz128 bit @ 900 MHz
CodenaamFermi
ArchitectuurFermi
Pipelines320 - verenigd
Core-snelheid405 MHz
Shader-snelheid810 MHz
Geheugensnelheid1200 MHz
Geheugenbusbreedte256 bit
GeheugentypeGDDR5
Max. hoeveelheid geheugen2048 MB
Gedeeld geheugennee
APIDirectX 11, Shader 5.0
Stroomverbruik100 Watt
Aantal Transistoren3 Billion
technologie40 nm
FaciliteitenOpenGL 4.1, DirectX 11, DirectCompute, OpenCL, CUDA, AXE, Error-Correction-Codes (ECC)-Memory, IEEE-Double-Precision-Floating-Point, PowerMizer 9.0
Laptop Groottegroot
Aangekondigde datum27.07.2010
Link naar fabrikantwww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 7700     gem: 7767     mediaan: 7766.5 (2%)     max: 7833 Points
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
7015 Points (4%)
62 -99%
...
6578 -6%
6661 -5%
6665 -5%
6673 -5%
NVIDIA GeForce GTX 460M
6763 -4%
6770 -3%
6846 -2%
AMD Radeon R7 M260X
6931 -1%
6943 -1%
NVIDIA Quadro 5000M
7015
7078 1%
7119 1%
AMD Radeon 610M
7128 2%
7155 2%
7181 2%
AMD Radeon R8 M365DX
7243 3%
NVIDIA Quadro K620M
7268 4%
7362 5%
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
7387 5%
...
132443 1788%
max:
170928 2337%
0%
100%
3DMark 03 - 3DMark 03 - Standard
41650 Points (22%)
3DMark 05 - 3DMark 05 - Standard
18903 Points (21%)
133.4 -99%
...
17784 -6%
18044 -5%
18136 -4%
18199 -4%
18199 -4%
18414 -3%
18466 -2%
18522 -2%
18829 0%
NVIDIA Quadro 5000M
18903
18965 0%
19079 1%
19100 1%
19187 2%
19268 2%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
19383 3%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
19694 4%
19971 6%
NVIDIA GeForce GTX 460M
20171 7%
...
68064 260%
max:
87172 361%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
12967 Points (17%)
3DMark 06 - Standard 1280x768 +
3DMark 06
13127 Points (17%)
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 28.13     gem: 28.6     mediaan: 28.6 (17%)     max: 29 fps
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 25.96     gem: 26.4     mediaan: 26.4 (15%)     max: 26.82 fps
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 29.99     gem: 30.1     mediaan: 30.1 (23%)     max: 30.2 fps
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 6.4     gem: 6.6     mediaan: 6.6 (8%)     max: 6.71 fps
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 43.9     gem: 44.6     mediaan: 44.6 (34%)     max: 45.2 fps
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 31.9     gem: 33.3     mediaan: 33.3 (36%)     max: 34.7 fps
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 28.6     gem: 29     mediaan: 29 (14%)     max: 29.3 fps
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 25.1     gem: 26.9     mediaan: 26.9 (14%)     max: 28.7 fps
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
