Gigabyte GeForce RTX 4080 Super Gaming OC 16G Review: Ruilt klappen uit met de RX 7900 XTX voor US$200 minder dan de RTX 4080 niet-Super
Intel Core i9-13900K | NVIDIA GeForce RTX 4080 Super

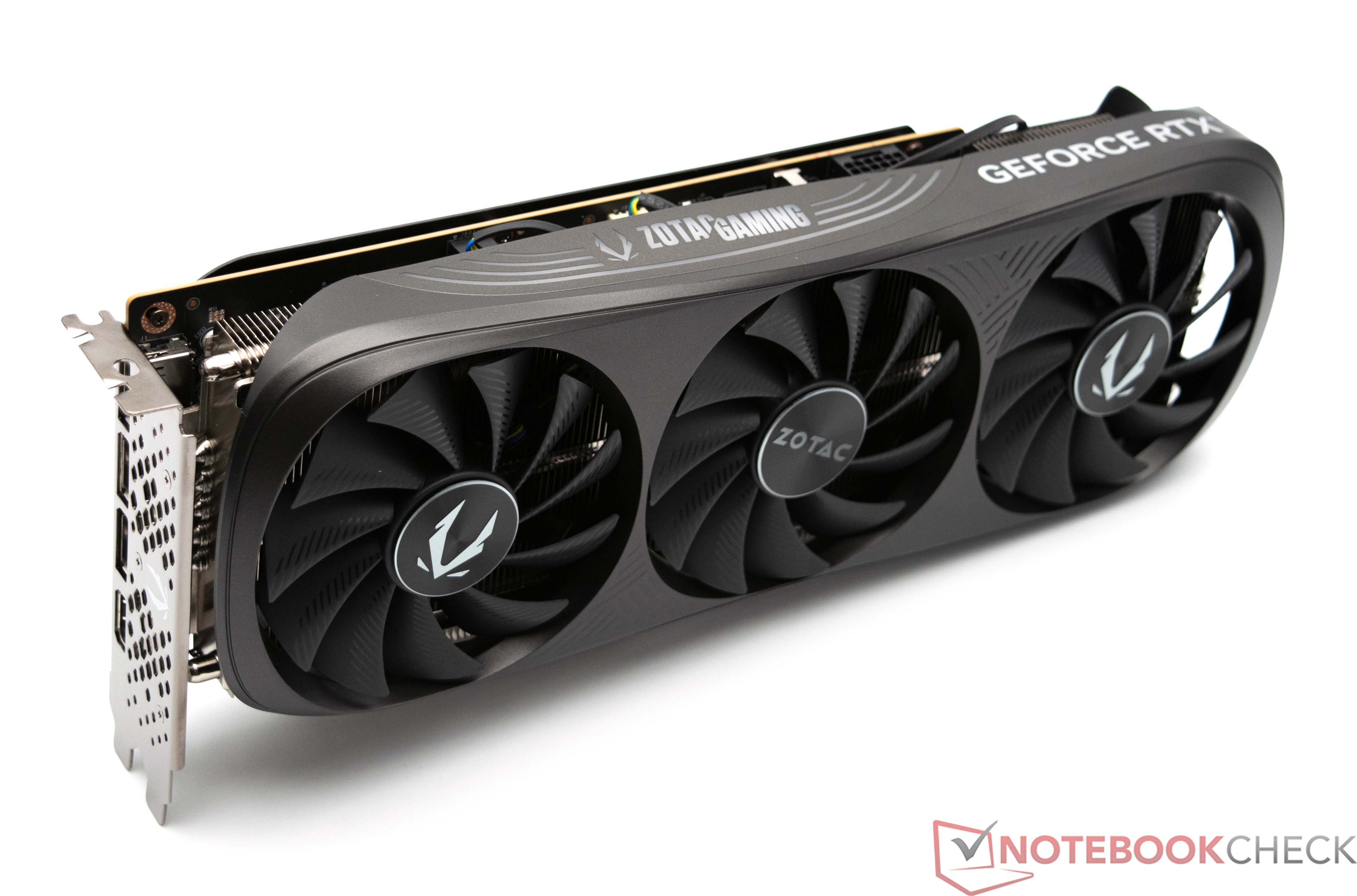

De Nvidia GeForce RTX 4080 Super is een high-end desktop grafische kaart gebaseerd op de Ada Lovelace architectuur. Het gebruikt de AD103 chip in volledige configuratie met 10.240 cores en 16 GB GDDR6X grafisch geheugen (256-bit bus met 23 Gbits).
De ray tracing prestaties zijn uitstekend dankzij 76 speciale cores en de 320 Tensor cores kunnen worden gebruikt voor DLSS 3.
De gamingprestaties zonder DLSS zijn ideaal voor 4k met ongeveer 60 fps en 2k met hogere framerates in veeleisende games zonder ray tracing-effecten (bijv. F1 22 of Cyberpunk 2077). Met ray tracing wordt het gebruik van DLSS aanbevolen. Vergeleken met de concurrentie zijn de prestaties zonder DLSS en ray tracing iets beter dan de aanzienlijk goedkopere AMD Radeon RX 7900 XT.
De momenteel verkrijgbare RTX 4080-kaarten zijn erg groot (2,5 of 3 slots) en gebruiken de nieuwe 12VHPWR-connector (die enkele problemen met adapters heeft veroorzaakt).
De AD103 chip wordt geproduceerd bij TSMC in 5nm (4N met EUV) en wordt gespecificeerd met een TGP (Total Graphics Power) van 320 watt (Nvidia raadt minstens een 750 watt voeding aan).
GeForce RTX 4000 Serie
| |||||||||||||||||||||||||||||||
Codenaam | AD103-400-A1 | ||||||||||||||||||||||||||||||
Architectuur | Ada Lovelace | ||||||||||||||||||||||||||||||
Pipelines | 10240 - verenigd | ||||||||||||||||||||||||||||||
TMUs | 320 | ||||||||||||||||||||||||||||||
ROPs | 112 | ||||||||||||||||||||||||||||||
Raytracing Cores | 80 | ||||||||||||||||||||||||||||||
Tensor / AI Cores | 320 | ||||||||||||||||||||||||||||||
Core-snelheid | 2295 - 2550 (Boost) MHz | ||||||||||||||||||||||||||||||
Theoretical Performance | 52.22 TFLOPS FP16, 52.22 TFLOPS FP32, 816 TFLOPS FP64 | ||||||||||||||||||||||||||||||
Cache | L2: 64 MB | ||||||||||||||||||||||||||||||
Geheugensnelheid | 23000 effective = 1438 MHz | ||||||||||||||||||||||||||||||
Geheugenbusbreedte | 256 bit | ||||||||||||||||||||||||||||||
Geheugentype | GDDR6X | ||||||||||||||||||||||||||||||
Max. hoeveelheid geheugen | 16 GB | ||||||||||||||||||||||||||||||
Gedeeld geheugen | nee | ||||||||||||||||||||||||||||||
Memory Bandwidth | 736.3 GB/s | ||||||||||||||||||||||||||||||
API | DirectX 12 Ultimate (12_2), Shader 6.7, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3 | ||||||||||||||||||||||||||||||
Stroomverbruik | 320 Watt | ||||||||||||||||||||||||||||||
Aantal Transistoren | 45.900 miljoen | ||||||||||||||||||||||||||||||
Matrijsgrootte | 379 mm² | ||||||||||||||||||||||||||||||
technologie | 5 nm | ||||||||||||||||||||||||||||||
PCIe | PCIe 4.0 x16 | ||||||||||||||||||||||||||||||
Displays | 4 Displays (max.), HDMI 2.1, DisplayPort 1.4a | ||||||||||||||||||||||||||||||
Aangekondigde datum | 31.01.2024 |
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.
lage | gem. | hoge | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
Skull & Bones | 205 | 172 | 137 | 114 | 78 | |
Helldivers 2 | 214 | 202 | 199.1 | 196.7 | 165.8 | 99.4 |
Enshrouded | 181 | 162 | 140 | 121 | 97 | 61 |
Palworld | 240 | 238 | 226 | 224 | 181 | 104 |
Prince of Persia The Lost Crown | 359 | 359 | 359 | 359 | 358 | |
Ready or Not | 451 | 394 | 372 | 329 | 216 | 98 |
The Finals | 426 | 387 | 384 | 321 | 213 | 103 |
Avatar Frontiers of Pandora | 213 | 196 | 167 | 134 | 92 | 49 |
Call of Duty Modern Warfare 3 2023 | 367 | 325 | 269 | 252 | 195 | 133 |
EA Sports WRC | 300 | 205 | 191 | 185 | 158 | 91 |
Alan Wake 2 | 165 | 150 | 140 | 101 | 57 | |
Lords of the Fallen | 203 | 173 | 136 | 103 | 74 | 40 |
Total War Pharaoh | 636 | 411 | 286 | 232 | 213 | 120 |
Assassin's Creed Mirage | 279 | 259 | 245 | 198 | 162 | 102 |
Counter-Strike 2 | 351 | 344 | 341 | 336 | 274 | 152.4 |
Cyberpunk 2077 2.2 Phantom Liberty | 231 | 227 | 205 | 185 | 125 | 58 |
Baldur's Gate 3 | 276 | 254 | 243 | 239 | 187 | 101 |
Lies of P | 406 | 376 | 336 | 310 | 234 | 122 |
Starfield | 161 | 155 | 132 | 122 | 103 | 68 |
Armored Core 6 | 119.7 | 119.9 | 119.8 | 119.9 | 114.1 | 110.2 |
Immortals of Aveum | 148 | 133 | 121 | 91 | 54 | |
Atlas Fallen | 200 | 200 | 200 | 200 | 199 | 122 |
Ratchet & Clank Rift Apart | 231 | 229 | 194 | 170 | 144 | 92 |
F1 23 | 462 | 495 | 428 | 169 | 110 | 55 |
Diablo 4 | 400 | 400 | 399 | 394 | 295 | 151 |
Star Wars Jedi Survivor | 189 | 184 | 174 | 170 | 117 | 58 |
Dead Island 2 | 368 | 353 | 314 | 279 | 229 | 123 |
The Last of Us | 229 | 204 | 190 | 172 | 121 | 61 |
Resident Evil 4 Remake | 347 | 292 | 277 | 195 | 154 | 89 |
Company of Heroes 3 | 379 | 343 | 291 | 290 | 238 | 150 |
Sons of the Forest | 145 | 141 | 137 | 135 | 132 | 103 |
Atomic Heart | 300 | 280 | 217 | 177 | 138 | 82 |
Returnal | 227 | 224 | 205 | 180 | 141 | 87 |
Hogwarts Legacy | 205 | 185 | 166 | 154 | 111 | 68 |
Dead Space Remake | 235 | 227 | 199 | 198 | 138 | 68 |
The Witcher 3 v4.00 | 363 | 314 | 280 | 265 | 231 | 118 |
High On Life | 466 | 405 | 325 | 279 | 179 | 76 |
The Callisto Protocol | 292 | 270 | 261 | 207 | 168 | 111 |
Need for Speed Unbound | 283 | 273 | 245 | 232 | 179 | 102 |
Spider-Man Miles Morales | 218 | 210 | 190 | 191 | 185 | 117 |
Uncharted Legacy of Thieves Collection | 161 | 159 | 156 | 156 | 132 | 81 |
A Plague Tale Requiem | 249 | 214 | 169 | 135 | 101 | 58 |
The Quarry | 384 | 294 | 254 | 209 | 149 | 83 |
F1 22 | 456 | 461 | 396 | 173 | 117 | 60 |
Ghostwire Tokyo | 318 | 313 | 307 | 303 | 267 | 126 |
Tiny Tina's Wonderlands | 489 | 412 | 305 | 242 | 172 | 92 |
Cyberpunk 2077 1.6 | 236 | 233 | 225 | 202 | 128 | 62 |
GRID Legends | 278 | 250 | 232 | 222 | 209 | 164 |
Dying Light 2 | 217 | 165.9 | 123.7 | 65 | ||
God of War | 278 | 274 | 234 | 166 | 139 | 101 |
Forza Horizon 5 | 404 | 308 | 285 | 195 | 175 | 131 |
Guardians of the Galaxy | 250 | 250 | 249 | 241 | 239 | 147 |
Far Cry 6 | 258 | 225 | 202 | 182 | 178 | 109 |
F1 2021 | 731 | 689 | 584 | 304 | 253 | 147 |
Assassin´s Creed Valhalla | 347 | 281 | 237 | 209 | 165 | 99 |
Dirt 5 | 279 | 221 | 169 | 150 | 149 | 144 |
Watch Dogs Legion | 149 | 144.5 | 127 | 80.5 | ||
Mafia Definitive Edition | 248 | 232 | 202 | 111.4 | ||
Horizon Zero Dawn | 307 | 277 | 259 | 245 | 212 | 120 |
Death Stranding | 240 | 240 | 240 | 240 | 239 | 154 |
F1 2020 | 610 | 503 | 499 | 425 | 345 | 206 |
Borderlands 3 | 260 | 230 | 203 | 194 | 168 | 98 |
Control | 238 | 232 | 226 | 160 | 82 | |
Anno 1800 | 202 | 192.9 | 160.2 | 86.7 | 82.7 | 64.3 |
Far Cry New Dawn | 228 | 198 | 191 | 172 | 171 | 142 |
Metro Exodus | 278 | 272 | 219 | 182 | 157 | 103 |
Assassin´s Creed Odyssey | 241 | 235 | 212 | 158 | 135 | 96 |
Forza Horizon 4 | 369 | 344 | 342 | 322 | 306 | 305 |
Shadow of the Tomb Raider | 328 | 311 | 297 | 287 | 242 | 133 |
Strange Brigade | 716 | 583 | 546 | 512 | 396 | 200 |
Far Cry 5 | 274 | 240 | 222 | 216 | 206 | 142 |
X-Plane 11.11 | 246 | 215 | 161 | 137 | ||
Final Fantasy XV Benchmark | 235 | 234 | 228 | 200 | 120 | |
Assassin´s Creed Origins | 263 | 246 | 234 | 208 | 174 | 118 |
Dota 2 Reborn | 289 | 261 | 251 | 233 | 227 | |
The Witcher 3 | 791 | 731 | 522 | 258 | 213 | 199 |
GTA V | 188 | 188 | 187 | 170 | 168 | 179 |
< 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 71 | 1 74 | 1 76 | 3 68 | 14 61 | 8 41 28 |
Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
* Benaderende positie van de videokaart
