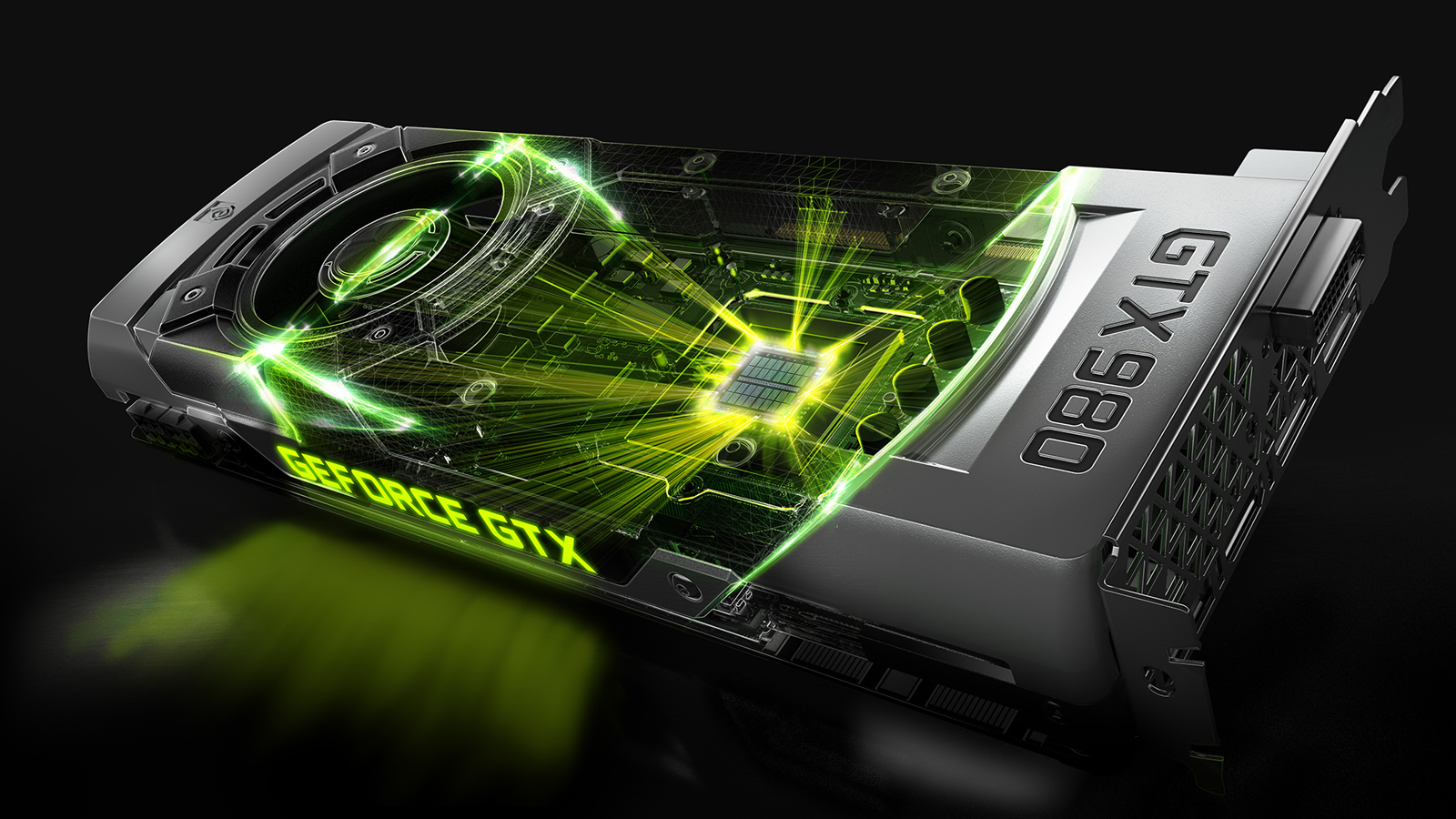

NVIDIA GeForce GTX 980
De Nvidia GeForce GTX 980 is een high-end desktop-GPU gebaseerd op de Maxwell-architectuur. De gebruikte GM204-chip is gefabriceerd in 28nm bij TSMC. Vergeleken met de oudere GeForce GTX 780Ti biedt de 980 vergelijkbare prestaties, maar met een veel lager gemiddeld stroomverbruik. De vergelijkbaar genaamde laptop-GPU Nvidia GeForce GTX 980M is gebaseerd op dezelfde chip maar maakt gebruik van minder shader cores en lagere kloksnelheden, waardoor de kaart duidelijk trager is.
De GeForce GTX 980 ondersteunt een gamma aan unieke features zoals CUDA, 3D Vision, PhysX, GeForce Experience, GameStream, GPU Boost 3.0, Adaptive Vertical Sync / G-Sync, SLI, DSR, MFAA en Virtual Reality latency-verbeteringen.
GeForce GTX 900 Serie
| ||||||||||||||||||||||
Codenaam | GM204 | |||||||||||||||||||||
Architectuur | Maxwell | |||||||||||||||||||||
Pipelines | 2048 - verenigd | |||||||||||||||||||||
Core-snelheid | 1126 - 1216 (Boost) MHz | |||||||||||||||||||||
Geheugensnelheid | 3500 MHz | |||||||||||||||||||||
Geheugenbusbreedte | 256 bit | |||||||||||||||||||||
Geheugentype | GDDR5 | |||||||||||||||||||||
Max. hoeveelheid geheugen | 4 GB | |||||||||||||||||||||
Gedeeld geheugen | nee | |||||||||||||||||||||
API | DirectX 12_1, OpenGL 4.5 | |||||||||||||||||||||
Stroomverbruik | 165 Watt | |||||||||||||||||||||
Aantal Transistoren | 5.2 Billion | |||||||||||||||||||||
technologie | 28 nm | |||||||||||||||||||||
Faciliteiten | CUDA, 3D Vision, PhysX, GeForce Experience, Surround, GameStream, GPU Boost 2.0, Adaptive Vertical Sync, G-SYNC, SLI | |||||||||||||||||||||
Aangekondigde datum | 19.09.2014 | |||||||||||||||||||||
Link naar fabrikant | www.nvidia.de |
Benchmarks
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 323076 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 256207 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 18386 | |
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 24891 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 84129 |
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 86619 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Alienware Amplifier | 4210U | GeForce GTX 980 1126 / 3500 MHz 4 GB | 8 GB | 6453 |
Alienware Amplifier | 5500U | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 7746 |
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 10345 | |
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 10450 |
Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 11229 |
Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 11408 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Alienware Amplifier | 4210U | GeForce GTX 980 1126 / 3500 MHz 4 GB | 8 GB | 11349 |
Alienware Amplifier | 5500U | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 11390 |
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 12590 |
Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 13286 |
Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 13386 |
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 13510 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 275316 | |
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 361442 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 12348 | |
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 13768 |
Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 14570 |
Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 15325 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 16838 |
Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 17512 |
Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 17697 |
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 17811 |
3DM Vant. Perf. total +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 37997 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 44693 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Alienware Amplifier | 4210U | GeForce GTX 980 1126 / 3500 MHz 4 GB | 8 GB | 109.1 |
Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 150.2 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 6831 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 62.9 |
Cinebench R15 OpenGL 64 Bit +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 109.6 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 99.6 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | 6700K | GeForce GTX 980 1126 / 3500 MHz 4 GB | 16 GB | 209.1 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 9554 |
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.
Just Cause 4
2018Darksiders III
2018Battlefield V
2018Farming Simulator 19
2018Fallout 76
2018Hitman 2
2018Forza Horizon 4
2018FIFA 19
2018F1 2018
2018Monster Hunter World
2018The Crew 2
2018Far Cry 5
2018Fortnite
2018Call of Duty WWII
2017Destiny 2
2017ELEX
2017The Evil Within 2
2017FIFA 18
2017Ark Survival Evolved
2017F1 2017
2017Dirt 4
2017Rocket League
2017Prey
2017For Honor
2017Resident Evil 7
2017Watch Dogs 2
2016Dishonored 2
2016Titanfall 2
2016Farming Simulator 17
2016Battlefield 1
2016Civilization VI
2016Mafia 3
2016FIFA 17
2016No Man's Sky
2016Overwatch
2016Doom
2016Need for Speed 2016
2016Hitman 2016
2016The Division
2016Far Cry Primal
2016XCOM 2
2016Rainbow Six Siege
2015Just Cause 3
2015Fallout 4
2015Anno 2205
2015FIFA 16
2015World of Warships
2015Metal Gear Solid V
2015Mad Max
2015The Witcher 3
2015Dirt Rally
2015GTA V
2015Battlefield Hardline
2015Evolve
2015The Crew
2014Far Cry 4
2014F1 2014
2014The Evil Within
2014Ryse: Son of Rome
2014Alien: Isolation
2014Fifa 15
2014Sims 4
2014Risen 3: Titan Lords
2014GRID: Autosport
2014Watch Dogs
2014Thief
2014Call of Duty: Ghosts
2013Battlefield 4
2013Saints Row IV
2013Metro: Last Light
2013BioShock Infinite
2013Tomb Raider
2013Crysis 3
2013Far Cry 3
2012Hitman: Absolution
2012Guild Wars 2
2012Sleeping Dogs
2012lage | gem. | hoge | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
Just Cause 4 | 109 | 77.1 | 66.6 | 61.8 | 43.9 | 23.5 |
Darksiders III | 236 | 112 | 91 | 79 | 48.3 | 23.7 |
Battlefield V | 188 | 109 | 90.2 | 81.9 | 61.5 | 32 |
Farming Simulator 19 | 311 | 210 | 135 | 102 | 68.8 | 35.9 |
Fallout 76 | 60 | 60 | 59.9 | 59.9 | 57.4 | 30.9 |
Hitman 2 | 84.9 | 75.2 | 68.9 | 67 | 46.7 | 22.3 |
Call of Duty Black Ops 4 | 158 | 85.7 | 77.1 | 70 | 46.5 | 22.4 |
Assassin´s Creed Odyssey | 96 | 69 | 58 | 35 | 27 | 14 |
Forza Horizon 4 | 145 | 90 | 83 | 59 | 48 | 34 |
FIFA 19 | 305 | 253 | 230 | 208 | 147 | 75.8 |
Shadow of the Tomb Raider | 132 | 66 | 59 | 51 | 34 | 17 |
F1 2018 | 204 | 130 | 103 | 70 | 54 | 32 |
Monster Hunter World | 104 | 68.5 | 59.9 | 50.1 | 31.5 | 15.8 |
The Crew 2 | 60 | 60 | 60 | 60 | 44.5 | 23.6 |
Far Cry 5 | 126 | 80 | 73 | 69 | 48 | 24 |
Kingdom Come: Deliverance | 145 | 84.1 | 69.4 | 50.1 | 33.4 | 16.1 |
Final Fantasy XV Benchmark | 121 | 63 | 44.6 | 17.1 | ||
Fortnite | 316 | 242 | 116 | 91.4 | 53.1 | 25.3 |
Star Wars Battlefront 2 | 212 | 95.7 | 84.2 | 69.8 | 44.4 | 8.6 |
Need for Speed Payback | 161 | 107 | 93.8 | 87.2 | 58.7 | 29.8 |
Call of Duty WWII | 249 | 212 | 105 | 80.1 | 63.8 | 37.2 |
Wolfenstein II: The New Colossus | 154 | 97.5 | 85.5 | 69.4 | 48.7 | 28.1 |
Assassin´s Creed Origins | 103 | 70 | 64 | 54 | 34 | 19 |
Destiny 2 | 166 | 122 | 109 | 88.1 | 43.4 | 22.6 |
ELEX | 122 | 94.8 | 76.6 | 58.3 | 38.7 | 19.6 |
The Evil Within 2 | 92.8 | 58.4 | 55.4 | 53.1 | 20.5 | |
Middle-earth: Shadow of War | 167 | 103 | 78 | 53 | 21 | |
FIFA 18 | 361 | 329 | 285 | 251 | 113 | |
Ark Survival Evolved | 118 | 57.2 | 39.7 | 26.7 | 9.4 | |
F1 2017 | 230 | 143 | 117 | 75 | 34 | |
Playerunknown's Battlegrounds (PUBG) | 129 | 92.9 | 79.4 | 55.8 | 19.8 | |
Dirt 4 | 332 | 163 | 105 | 69.1 | 38.3 | |
Rocket League | 250 | 231 | 156 | 70.1 | ||
Prey | 144 | 143 | 135 | 131 | 41 | |
Warhammer 40.000: Dawn of War III | 168 | 68.2 | 46.6 | 41 | 14.5 | |
Mass Effect Andromeda | 160 | 93.9 | 63.3 | 55.8 | 24.2 | |
Ghost Recon Wildlands | 144 | 76.4 | 70.4 | 38.8 | 25.7 | |
For Honor | 279 | 121 | 115 | 83.1 | 35.3 | |
Resident Evil 7 | 395 | 201 | 126 | 104 | 34.4 | |
Watch Dogs 2 | 143 | 127 | 72.1 | 45.2 | 26.4 | |
Dishonored 2 | 104 | 98.2 | 67.8 | 61.8 | 32.1 | |
Call of Duty Infinite Warfare | 125 | 124 | 106 | 90.2 | 46.9 | |
Titanfall 2 | 144 | 144 | 101 | 90.9 | 34.3 | |
Farming Simulator 17 | 311 | 269 | 246 | 196 | 106 | |
Battlefield 1 | 199 | 194 | 105 | 96.9 | 39.2 | |
Civilization VI | 89.9 | 73.5 | 66.2 | 64.1 | 61.3 | |
Mafia 3 | 94.2 | 66.6 | 36.5 | 15.4 | ||
FIFA 17 | 429 | 401 | 308 | 296 | 124 | |
Deus Ex Mankind Divided | 129 | 99.8 | 57 | 32.4 | 18 | |
No Man's Sky | 149 | 129 | 80.4 | 36.1 | 33.9 | |
Mirror's Edge Catalyst | 198 | 156 | 83.4 | 76.4 | 28.3 | |
Overwatch | 299 | 298 | 197 | 117 | 62.3 | |
Doom | 177 | 172 | 104 | 97.5 | 34.4 | |
Need for Speed 2016 | 136 | 133 | 99.6 | 74.6 | 34 | |
Hitman 2016 | 85.2 | 83.7 | 60.9 | 57.8 | 26.2 | |
The Division | 185 | 143 | 72.7 | 57.7 | 27.7 | |
Far Cry Primal | 135 | 99 | 88 | 63 | 29 | |
XCOM 2 | 124 | 87.3 | 65.4 | 31.3 | 18.7 | |
Rise of the Tomb Raider | 205 | 135 | 80.5 | 73 | 27.9 | |
Rainbow Six Siege | 347.2 | 256.4 | 149.6 | 107.6 | 50.1 | |
Just Cause 3 | 147.1 | 135.9 | 94.9 | 84.2 | 36.6 | |
Star Wars Battlefront | 200 | 199.9 | 119.2 | 104.1 | 40.4 | |
Assassin's Creed Syndicate | 123.2 | 113.7 | 80.8 | 33.5 | 27.6 | |
Fallout 4 | 148.9 | 140.8 | 95.6 | 80 | 33.8 | |
Call of Duty: Black Ops 3 | 123 | 120.4 | 98.5 | 77.4 | 30.3 | |
Anno 2205 | 156.4 | 145.4 | 84.3 | 31.6 | 34.2 | |
FIFA 16 | 265.6 | 241.3 | 243.5 | 123.5 | ||
World of Warships | 161.2 | 134.9 | 118 | 114.4 | 60.2 | |
Metal Gear Solid V | 60 | 60 | 59.9 | 60 | 52 | |
Mad Max | 225.6 | 140.5 | 138.3 | 46.6 | ||
Batman: Arkham Knight | 104 | 96 | 81 | 61 | 33 | |
The Witcher 3 | 214 | 147 | 85 | 46 | 29 | |
Dirt Rally | 419.4 | 163.8 | 132.1 | 96.4 | 84 | |
GTA V | 139.7 | 131.8 | 99.3 | 45.4 | 59.4 | |
Battlefield Hardline | 182.5 | 167.4 | 129.7 | 92.9 | ||
Evolve | 104.3 | 97.8 | 97.6 | 87.1 | ||
The Crew | 60 | 60 | 60 | 60 | ||
Dragon Age: Inquisition | 126.8 | 119 | 77 | 56 | ||
Far Cry 4 | 102.4 | 101.4 | 66 | 60 | ||
Assassin's Creed Unity | 78.4 | 70 | 51 | 38 | ||
Call of Duty: Advanced Warfare | 179.2 | 135.2 | 83 | 62 | ||
Civilization: Beyond Earth | 150.9 | 149 | 117 | 109 | ||
F1 2014 | 133 | 130 | 127 | 116 | ||
The Evil Within | 65 | 65 | 63.8 | |||
Ryse: Son of Rome | 86.6 | 84.5 | 72 | 69 | ||
Alien: Isolation | 245.3 | 229.8 | 140 | 113 | ||
Middle-earth: Shadow of Mordor | 218.7 | 193.3 | 110.1 | 89 | ||
Fifa 15 | 306.4 | 245.6 | 244.6 | 167.9 | ||
Sims 4 | 199.3 | 150.4 | 114 | 106 | ||
Risen 3: Titan Lords | 57.6 | 68.1 | 79.7 | 90.2 | ||
GRID: Autosport | 297.4 | 154.3 | 102 | 87 | ||
Watch Dogs | 94.9 | 82.3 | 47 | 38 | ||
Wolfenstein: The New Order | 60 | 60 | 60 | 60 | ||
Thief | 101.6 | 98.6 | 98 | 81 | ||
Call of Duty: Ghosts | 182.6 | 165.6 | 115.4 | 77.1 | ||
Battlefield 4 | 179.7 | 162.7 | 157.4 | 93.4 | 51 | |
Saints Row IV | 104.3 | 92.4 | 83.2 | 82.8 | ||
Dota 2 | 120 | 119.1 | 117.5 | |||
Metro: Last Light | 146.3 | 141 | 129.5 | 86 | ||
BioShock Infinite | 286.4 | 241.7 | 225 | 116 | ||
Tomb Raider | 491.4 | 402.4 | 323.6 | 151 | ||
Crysis 3 | 147.4 | 134.5 | 105.7 | 58.3 | ||
Far Cry 3 | 132.8 | 122.8 | 102.7 | 66.4 | ||
Hitman: Absolution | 105.4 | 99.3 | 89.7 | 68.3 | ||
Guild Wars 2 | 133.7 | 78.4 | 67 | |||
Sleeping Dogs | 84.3 | |||||
< 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 26 77 | 2 48 52 | 13 70 21 | 1 28 64 9 | 1 19 3 1 | 36 29 8 3 |
Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_1 needed +0.021s ... 0.022s
#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.022s
#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.023s
#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.023s
#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.023s
#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.023s
#10 composed specs +0s ... 0.023s
#11 did output specs +0s ... 0.023s
#12 start showIntegratedCPUs +0s ... 0.023s
#13 getting avg benchmarks for device 5986 +0.024s ... 0.047s
#14 got single benchmarks 5986 +0.021s ... 0.068s
#15 got avg benchmarks for devices +0s ... 0.068s
#16 min, max, avg, median took s +0.41s ... 0.478s
#17 before gaming benchmark output +0s ... 0.478s
#18 Got 571 rows for game benchmarks. +0.011s ... 0.489s
#19 composed SQL query for gamebenchmarks +0s ... 0.489s
#20 got data and put it in $dataArray +0.069s ... 0.558s
#21 benchmarks composed for output. +3.903s ... 4.462s
#22 no comparison url found in template nbc.compare_page_1 needed +0.008s ... 4.47s
#23 return log +0s ... 4.47s
Geen testrapporten gevonden voor deze grafische kaart.
