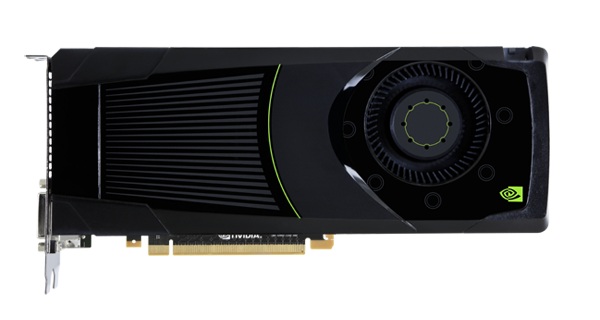

NVIDIA GeForce GTX 680
De Nvidia GeForce GTX 680 is een high-end DirectX 11 grafische kaart voor desktops. Hij is gebaseerd op de GK104 chip en gefabriceerd op 28nm bij TSMC. De kloksnelheid kan geboost worden tot 1058 MHz (1006 basis kloksnelheid) en het geheugen is geklokt op 3004 MHz (GDDR5).
De vergelijkbaar genaamde mobiele GeForce GTX 680M is ook gebaseerd op de GK104 chip maar beschikt slechts over 1344 shaders en is met een basis kloksnelheid van 720 MHz ook langzamer.
Het verbruik van de GTX 680 desktop kaart is 195 watt en waardoor er twee 6-pin connectors nodig zijn om de kaart van stroom te voorzien.
GeForce GTX 600 Serie
| |||||||
Codenaam | GK104 | ||||||
Architectuur | Kepler | ||||||
Pipelines | 1536 - verenigd | ||||||
Core-snelheid | 1006 - 1058 (Boost) MHz | ||||||
Geheugensnelheid | 6000 MHz | ||||||
Geheugenbusbreedte | 256 bit | ||||||
Geheugentype | GDDR5 | ||||||
Max. hoeveelheid geheugen | 2048 MB | ||||||
Gedeeld geheugen | nee | ||||||
API | DirectX 11, Shader 5.1, OpenGL 4.2 | ||||||
Stroomverbruik | 195 Watt | ||||||
Aantal Transistoren | 3.5 Billion | ||||||
technologie | 28 nm | ||||||
Faciliteiten | SLI, PhysX, CUDA, 3D Vision, GPU Boost | ||||||
Aangekondigde datum | 22.03.2012 | ||||||
Link naar fabrikant | www.geforce.com |
Benchmarks
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 2332 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 2068 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 215624 | |
Desktop GTX 680, Intel Core i7-2600K | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 278989 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 177730 | |
Desktop GTX 680, Intel Core i7-2600K | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 227768 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 19275 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 27025 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 46869 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 47391 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 6119 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 7603 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 6904 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 8270 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 190182 | |
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 280833 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 9255 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 10745 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 9861 |
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 10572 |
3DM Vant. Perf. total +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 29702 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 33025 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 52955 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 84572 | |
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 98716 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 24071 | |
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 31001 |
Model | CPU | GPU | RAM | waarde | |
---|---|---|---|---|---|
3DMark 06 - Standard 1280x1024 | |||||
Desktop PC (3DMark 06 - Standard 1280x1024) | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 21143 | ||
Desktop GTX 680 (3DMark 06 - Standard 1280x1024) | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 24660 | |
(3DMark 06 - Standard 1280x1024) | 4770K | GeForce GTX 680 | 8 GB | 28391 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop PC | GeForce GTX 680 1069 / 3104 MHz 2 GB | 64 GB | 45.1 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 139.4 |
Cinebench R15 OpenGL 64 Bit +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 78.2 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 99.6 |
GFXBench T-Rex HD Offscreen C24Z16 +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
4770K | GeForce GTX 680 | 8 GB | 652 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 284 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 626 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop GTX 680 | 2600K | GeForce GTX 680 1059 / 1502 MHz 2 GB | 8 GB | 5790 |
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.
No Man's Sky
2016Overwatch
2016Doom
2016Hitman 2016
2016The Division
2016Far Cry Primal
2016XCOM 2
2016Rainbow Six Siege
2015Just Cause 3
2015Fallout 4
2015Anno 2205
2015FIFA 16
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 152 fps, max: 190 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 77 fps, max: 90 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 64 fps, max: 124 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 54 fps, max: 108 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 15 fps, max: 72 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 7 fps, max: 42 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 8 fps, max: 24 fps
The Witcher 3
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 76 fps, max: 121 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 55 fps, max: 78 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 28 fps, max: 47 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 16 fps, max: 25 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 12 fps, max: 17 fps
Dirt Rally
2015GTA V
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 45 fps, max: 206 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 26 fps, max: 198 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 21 fps, max: 122 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 1 fps, max: 119 fps
Battlefield Hardline
2015Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 161 fps, max: 185 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 140 fps, max: 169 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 78 fps, max: 94 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 47 fps, max: 62 fps
Far Cry 4
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 33 fps, max: 59 fps
Sims 4
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 155 fps, max: 201 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 72 fps, max: 200 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 50 fps, max: 164 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 46 fps, max: 174 fps
Risen 3: Titan Lords
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 60 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 60 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 59 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 57 fps, max: 67 fps
GRID: Autosport
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 97 fps, max: 157 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 70 fps, max: 109 fps
Watch Dogs
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 66 fps, max: 107 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 56 fps, max: 87 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 38 fps, max: 56 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 12 fps, max: 39 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 56 fps, max: 62 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 88 fps, max: 100 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 83 fps, max: 100 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 70 fps, max: 100 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 47 fps, max: 91 fps
Titanfall
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 47 fps, max: 61 fps
Thief
2014Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 49 fps, max: 153 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 48 fps, max: 121 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 35 fps, max: 112 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 22.4 fps, max: 67 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 48 fps, max: 63 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 46 fps, max: 63 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 44 fps, max: 63 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 34 fps, max: 49 fps
X-Plane 10.25
2013Call of Duty: Ghosts
2013Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 54 fps, max: 186 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 50 fps, max: 177 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 45 fps, max: 106 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 27 fps, max: 73 fps
Battlefield 4
2013Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 80 fps, max: 190 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 67 fps, max: 128 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 60 fps, max: 114 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 41 fps, max: 69 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 64 fps, max: 252 fps
Intel Core i7-2600K 3.4GHz
GeForce GTX 680
min: 45 fps, max: 139 fps
F1 2013
2013Fifa 14
2013Total War: Rome II
2013Saints Row IV
2013Company of Heroes 2
2013Metro: Last Light
2013BioShock Infinite
2013SimCity
2013Tomb Raider
2013Crysis 3
2013Dead Space 3
2013Far Cry 3
2012Assassin´s Creed III
2012Hitman: Absolution
2012Dishonored
2012World of Tanks v8
2012Fifa 13
2012F1 2012
2012Borderlands 2
2012Guild Wars 2
2012Counter-Strike: GO
2012Darksiders II
2012Sleeping Dogs
2012The Secret World
2012Max Payne 3
2012Dirt Showdown
2012Diablo III
2012Risen 2: Dark Waters
2012Mass Effect 3
2012Alan Wake
2012Anno 2070
2011Battlefield 3
2011Batman: Arkham City
2011Fifa 12
2011F1 2011
2011Intel Core i7-2600K 3.4GHz
GeForce GTX 680
Probleem tijdens benchmarking opgetreden: videos stutter at 1fps
Crysis 2
2011Mafia 2
2010StarCraft 2
2010Metro 2033
2010CoD Modern Warfare 2
2009Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Sat, 07 Dec 2024 05:31:35 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_1 needed +0.028s ... 0.029s
#5 composed specs +0s ... 0.029s
#6 did output specs +0s ... 0.029s
#7 start showIntegratedCPUs +0s ... 0.029s
#8 getting avg benchmarks for device 3270 +0.029s ... 0.058s
#9 got single benchmarks 3270 +0.018s ... 0.076s
#10 got avg benchmarks for devices +0s ... 0.076s
#11 min, max, avg, median took s +0.616s ... 0.692s
#12 before gaming benchmark output +0s ... 0.692s
#13 Got 394 rows for game benchmarks. +0.009s ... 0.701s
#14 composed SQL query for gamebenchmarks +0s ... 0.701s
#15 got data and put it in $dataArray +0.067s ... 0.767s
#16 benchmarks composed for output. +3.395s ... 4.163s
#17 no comparison url found in template nbc.compare_page_1 needed +0.007s ... 4.169s
#18 return log +0s ... 4.169s
Geen testrapporten gevonden voor deze grafische kaart.
