Morefine M600 desktop PC review: Moderne mini PC met AMD Ryzen 9 6900HX, 32 GB DDR5 en USB4

Goed apparaat voor dagelijks gebruik!

De Morefine M600, met een AMD Ryzen 9 6900HX, is gebaseerd op AMD's up-to-date Rembrandt SoC. We namen het model onder de loep en vergeleken zijn prestaties met die van zijn concurrenten, die deels over vergelijkbare hardware beschikken. De winnaar van de race kun je achterhalen door deze gedetailleerde review te lezen, met een reeks benchmarks en metingen.

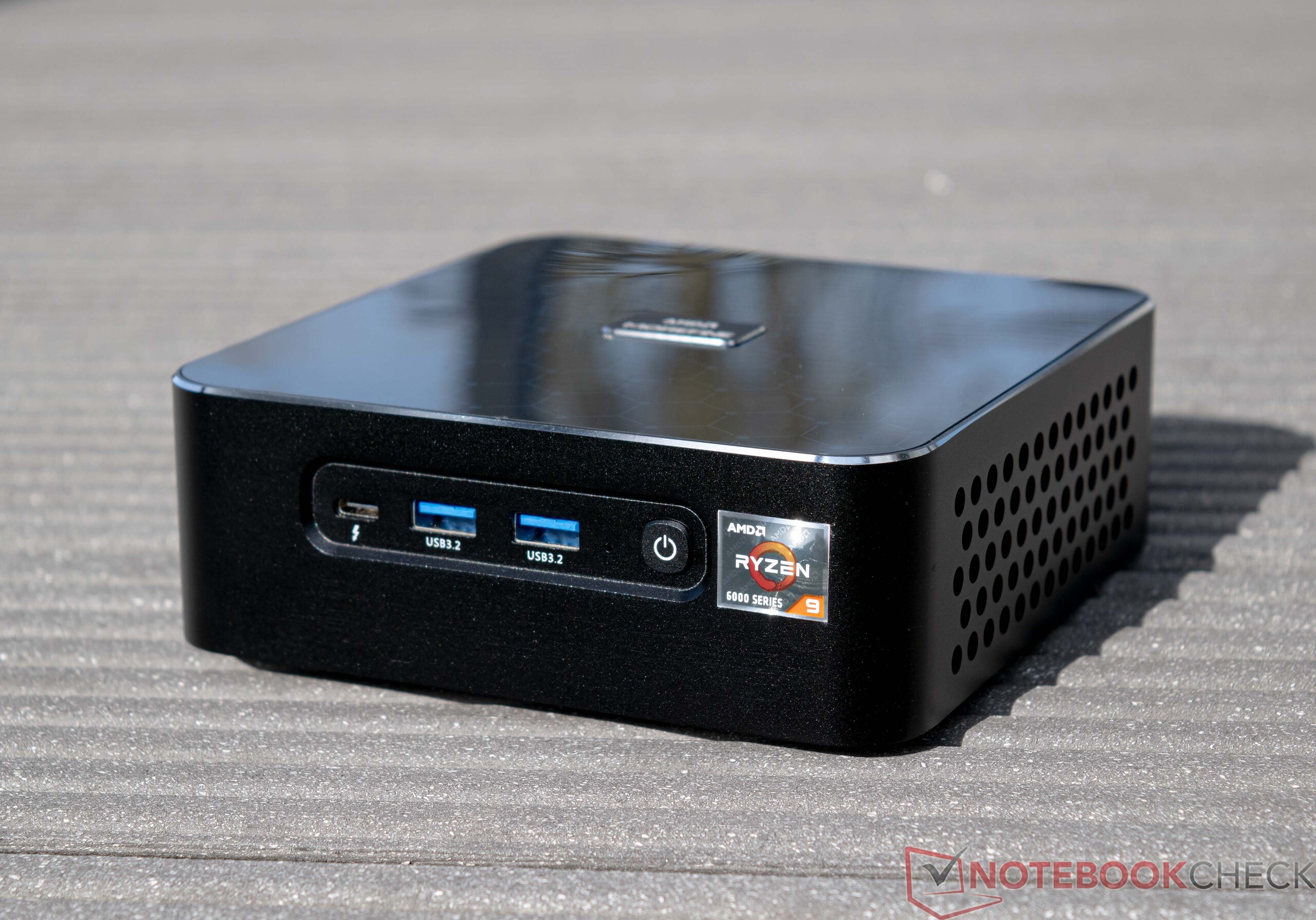

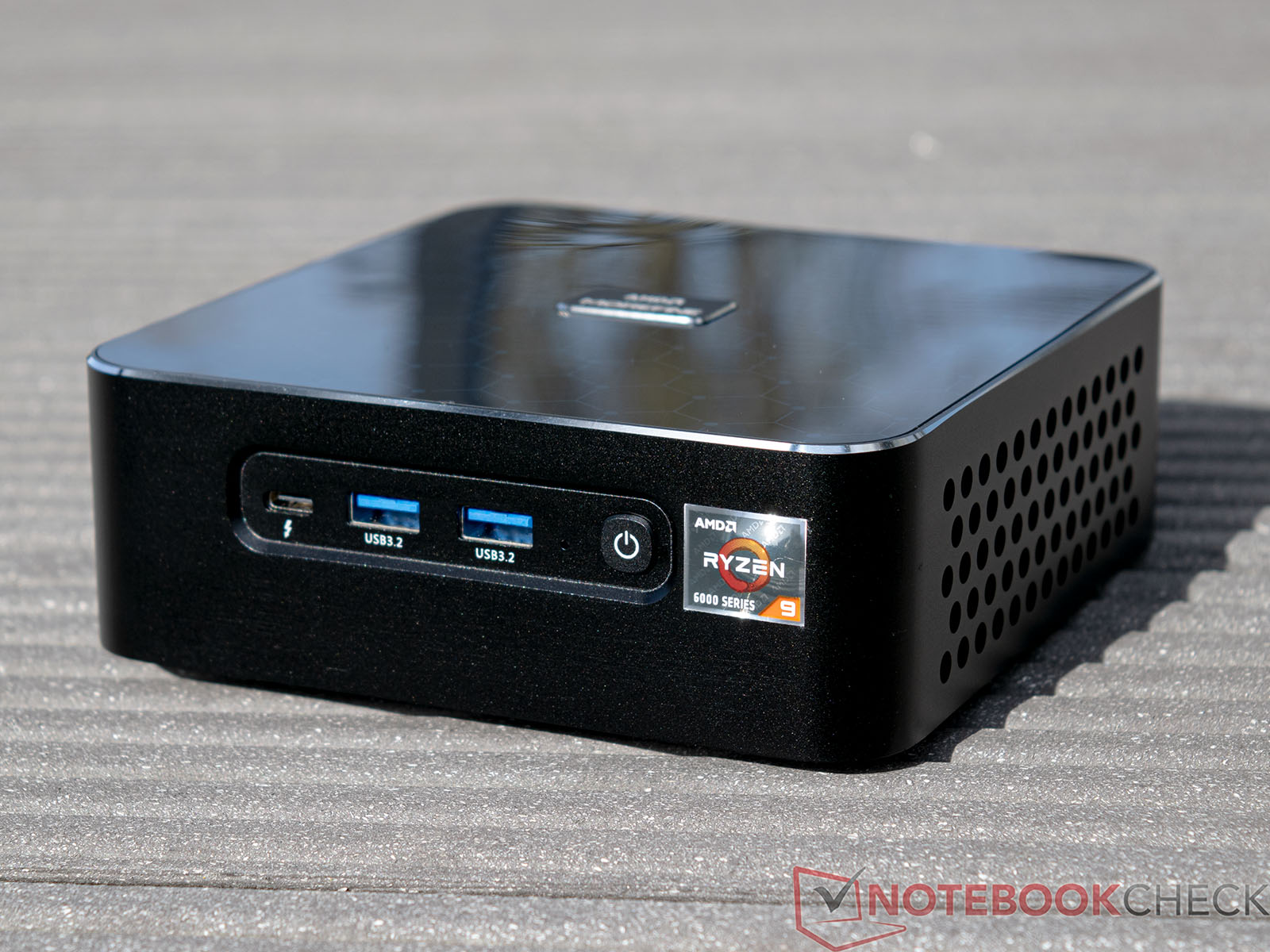

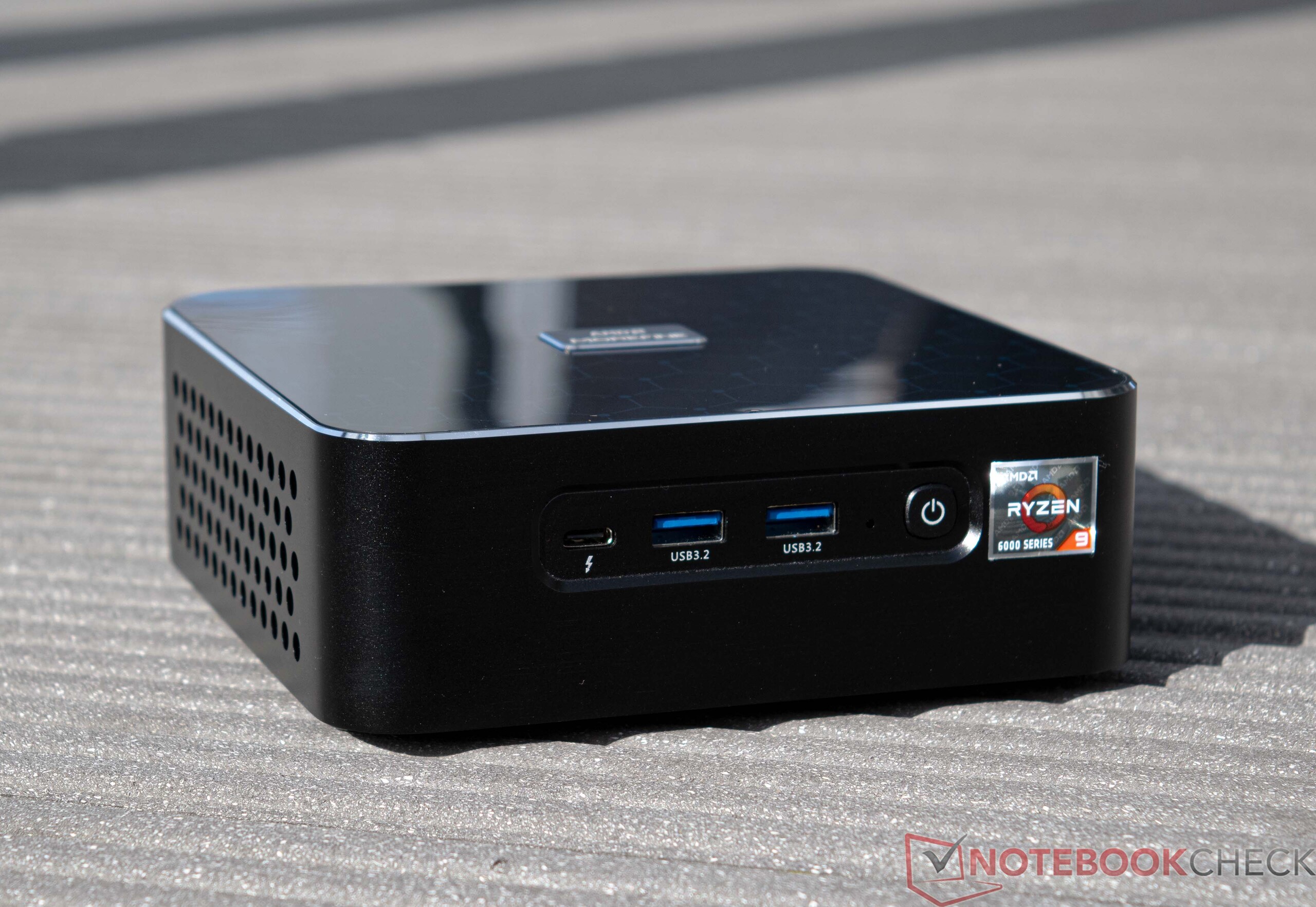

Morefine M600
Morefine M600

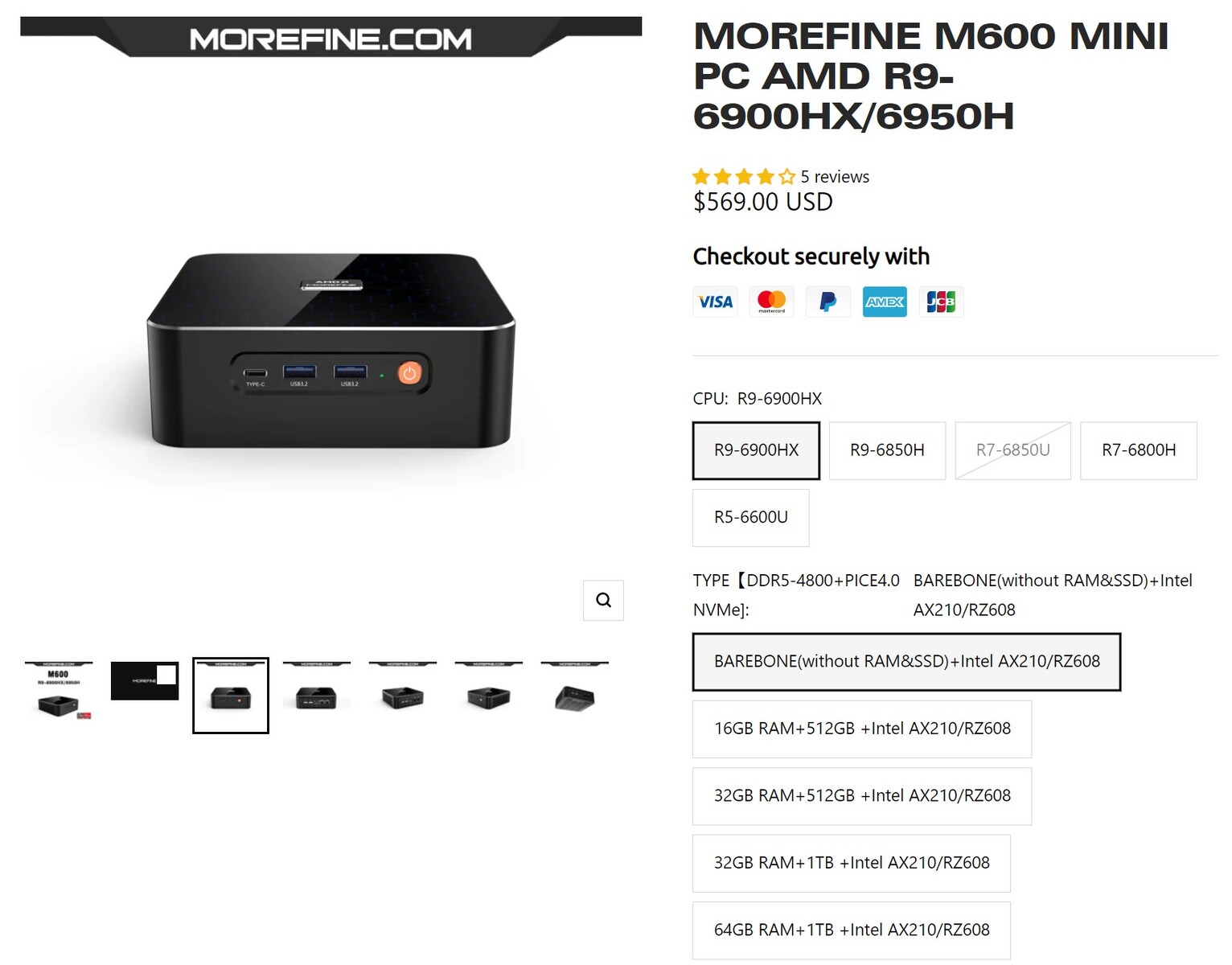

Morefine M600 configuraties (bron: Morefine)
Morefine M600 configuraties (bron: Morefine)

Na de Morefine S600 Apex Engineer, heeft de Chinese fabrikant nu ook een versie van het systeem uitgebracht met up-to-date AMD SoC's. Het goedkopere model met een AMD Ryzen 5-6600U begint bij 388 dollar voor een barebone versie. Het topmodel met een AMD Ryzen 9 6900HX kon op het moment van testen worden gekocht voor ongeveer 569 dollar. Het apparaat kan ook worden uitgerust met RAM en SSD - dit brengt ons testsysteem op een totaal van 809 dollar, inclusief 32 GB DDR5 RAM, een 1 TB SSD en Windows 11 Professional.

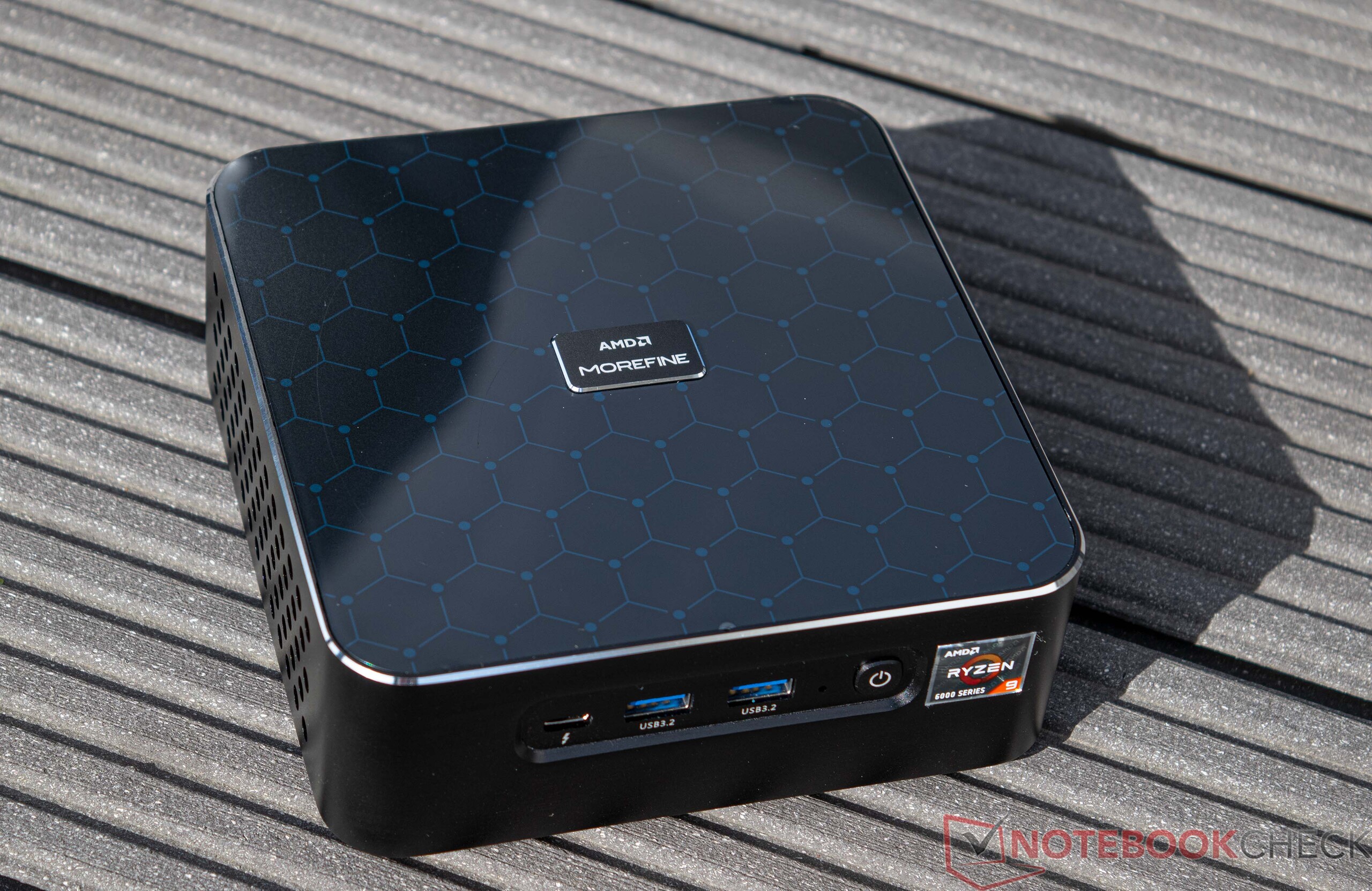

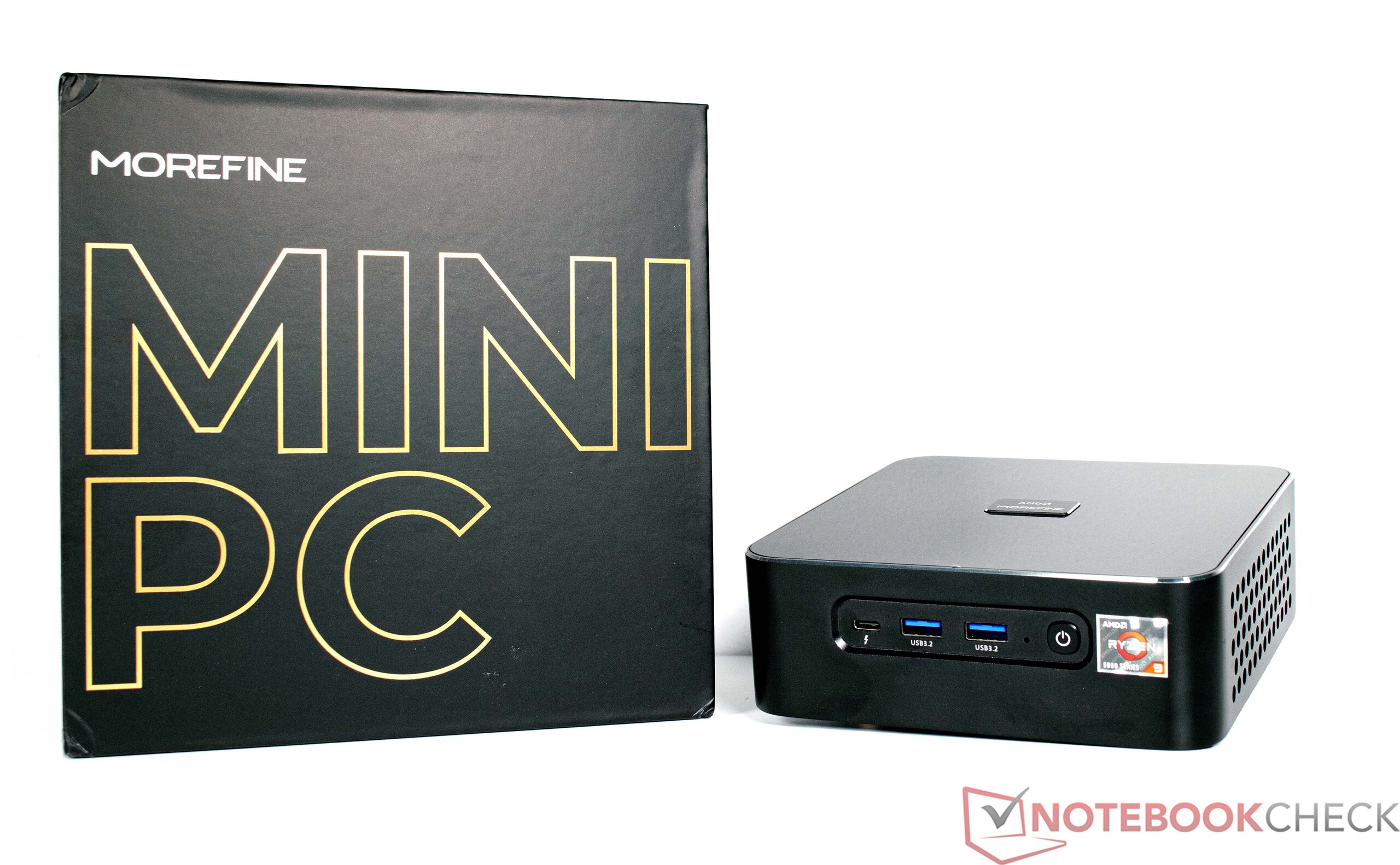

De Morefine M600 wordt geleverd in een esthetisch aantrekkelijke en stabiele doos, compleet met alle benodigde accessoires, dus je PC is direct klaar voor gebruik. Bovendien bevat de doos een VESA-bevestiging waarmee je de PC aan een externe monitor kunt bevestigen - intern kan de PC worden uitgerust met maximaal drie SSD's. In deze review nemen we het met de Morefine M600 op tegen apparaten zoals de Minisforum Venus Series UM690deMinisforum Neptune Series NAD9en de voorganger van de Morefine M600. Een volledige lijst van al deze apparaten vindt u in de volgende tabel.

Morefine M600, 6900HX
Processor
AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 45 W PL2 / Short Burst, 45 W PL1 / Sustained, Rembrandt-H (Zen 3+)
Grafische kaart
AMD Radeon 680M, Adrenalin 23.3.1
Geheugen
32 GB
, DDR5-4800 MT/s, 2 of 2 installed, max. 64 GB
Moederbord
AMD Promontory/Bixby FCH
Opslag
Kingston KC3000 2048G SKC3000D2048G, 2048 GB
, M.2 2280, NVMe, 920 GB beschikbaar
Geluidskaart
AMD Zen - Audio Processor - HD Audio Controller
Verbindingen
2 USB 2.0, 4 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, Audio Verbindingen: 3.5 mm jack, Realtek RTL8125 2.5 GBe Family Ethernet Controller
Netwerkmogelijkheden
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Afmetingen
hoogte x breedte x diepte (in mm): 40.6 x 147.3 x 144.7
Besturingssysteem
Microsoft Windows 11 Pro
Bijkomende functionaliteiten
120 watt power adapter, 24 Maanden Garantie
Gewicht
779 g, Voeding: 372 g
Prijs
809 USD
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



Potentiële concurrenten in vergelijking

Evaluatie
Datum
Model
Gewicht
Hoogte
Beste prijs
85.5 %
v7 (old)
03-2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 g40.6 mm

v (old)
01-2022
Morefine S500+
R9 5900HX, Vega 8
697 g40 mm

v (old)
06-2022
Minisforum EliteMini B550
R7 5700G, Vega 8
1.1 kg67 mm

v7 (old)
09-2022
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
586 g53 mm

v7 (old)
10-2022
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
795 g63.5 mm
85.1 %
v7 (old)
01-2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
78.9 %
v7 (old)
11-2022
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
511 g37 mm
86.1 %
v7 (old)
02-2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 g48 mm

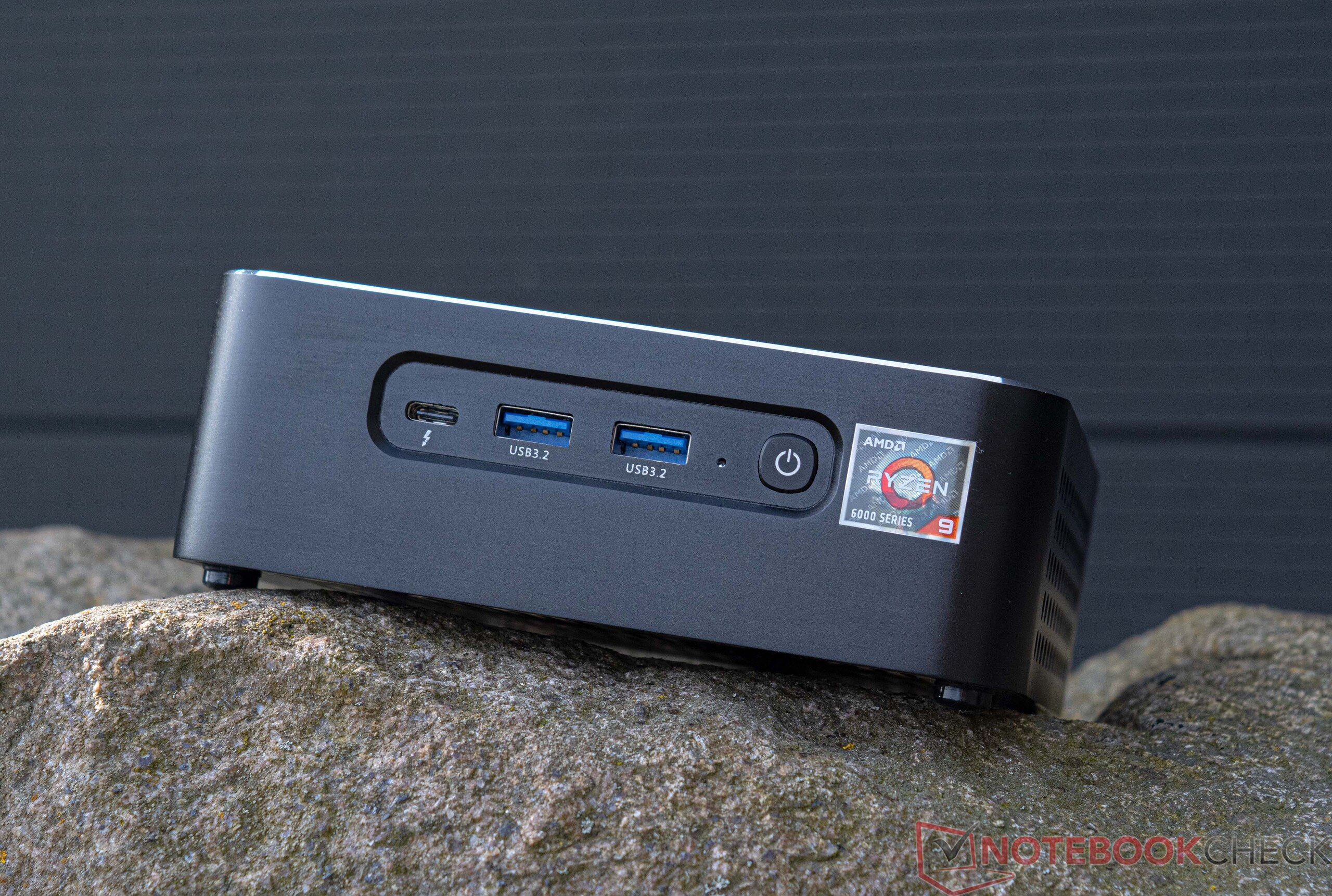

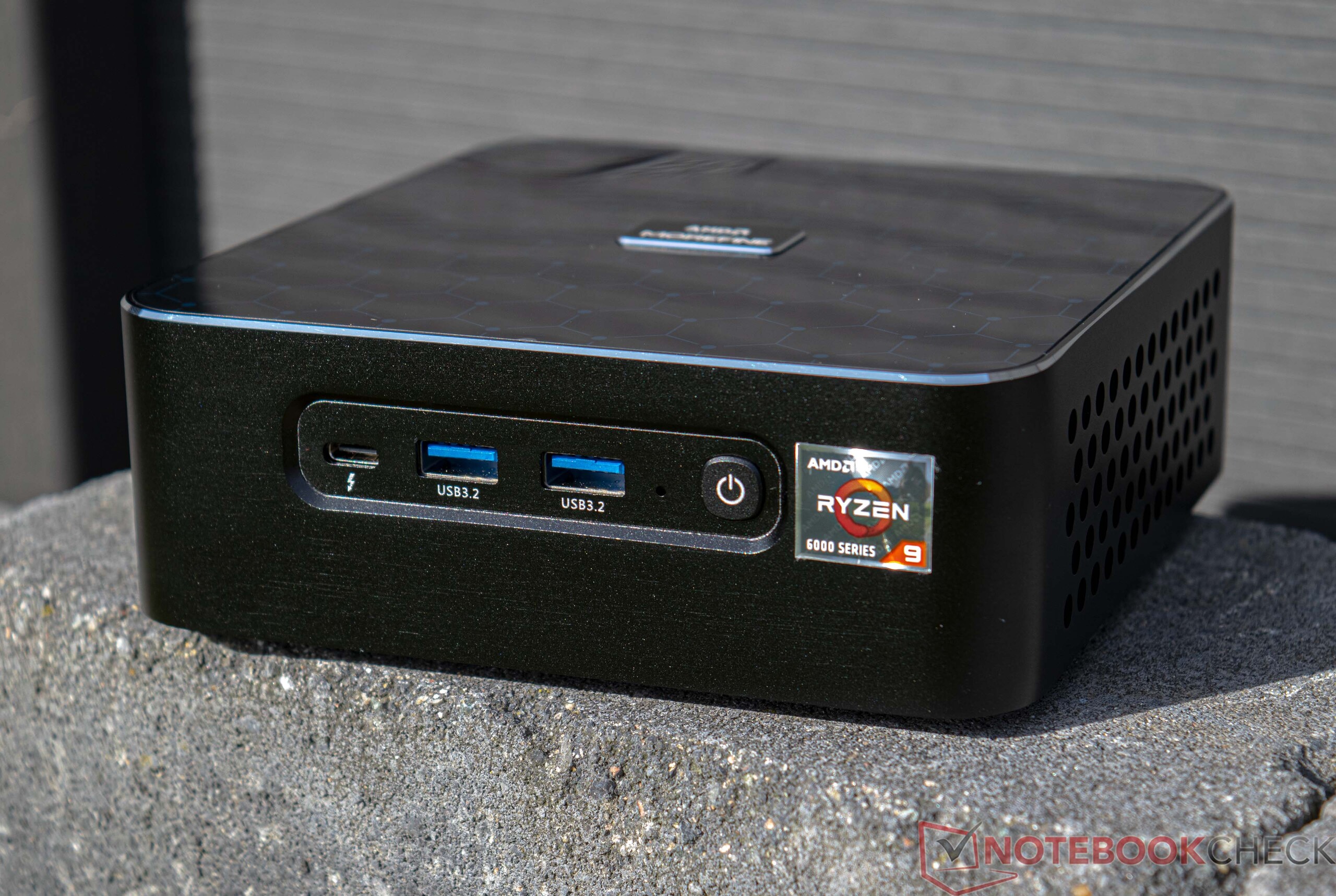

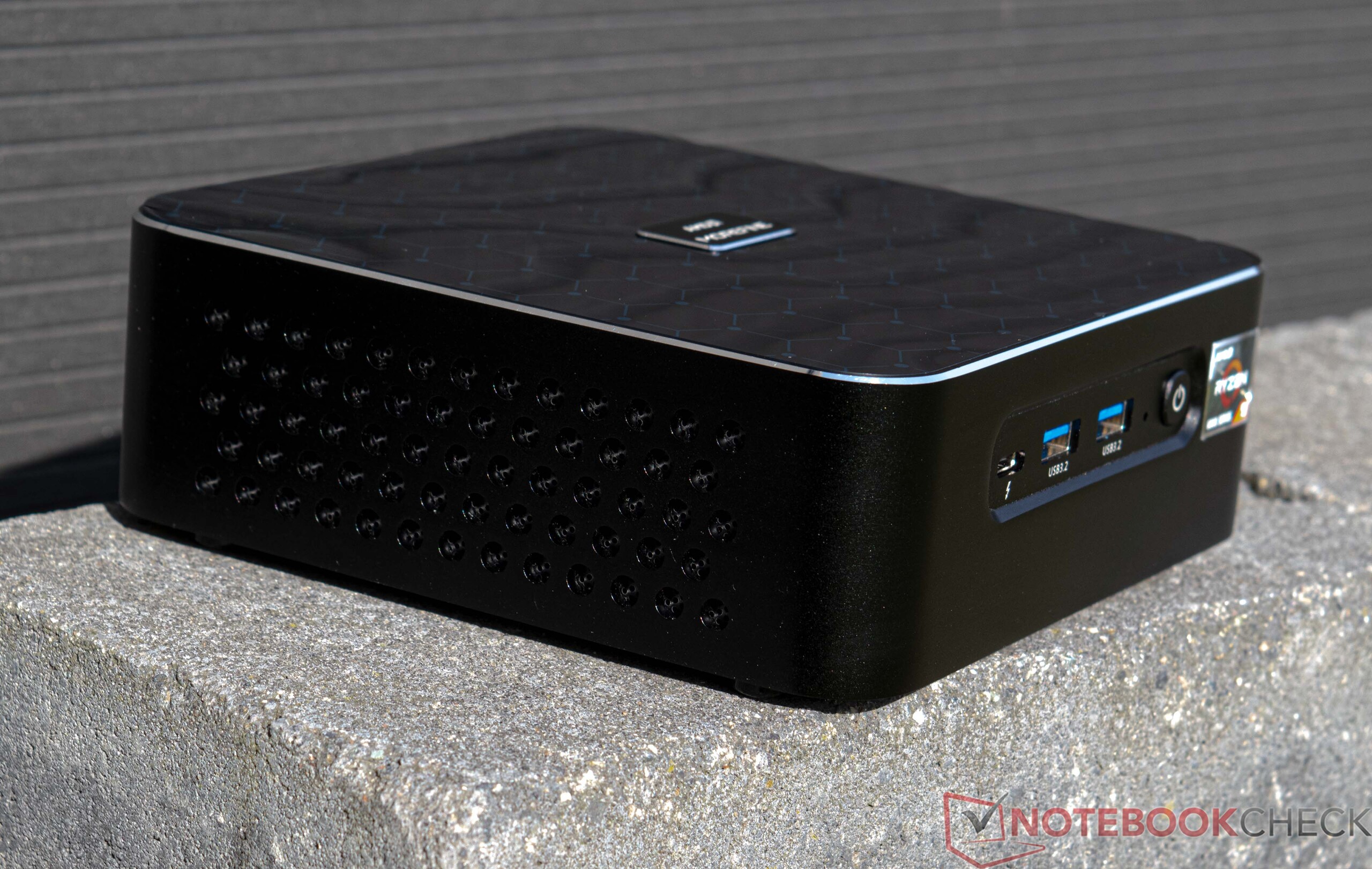

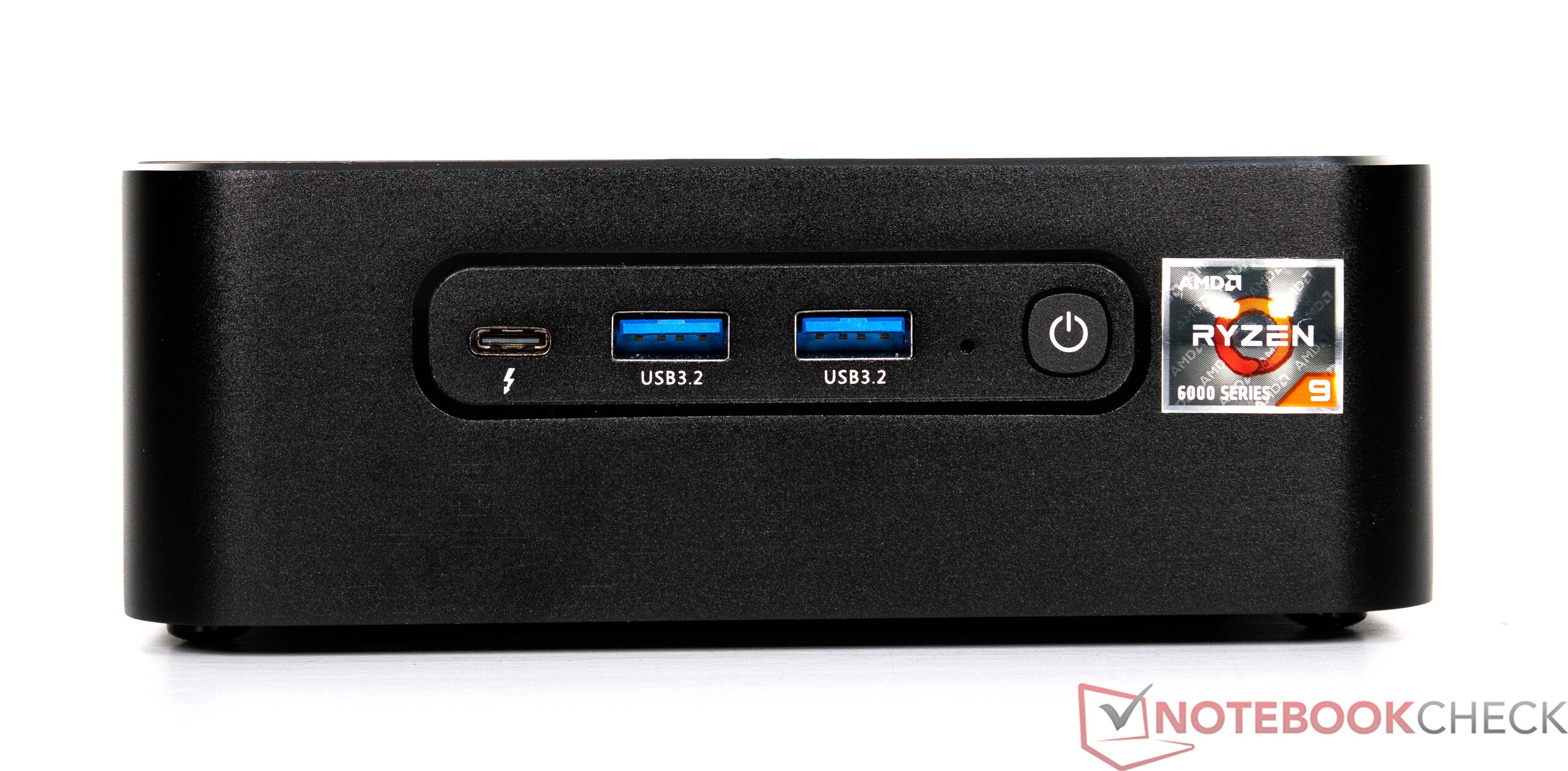

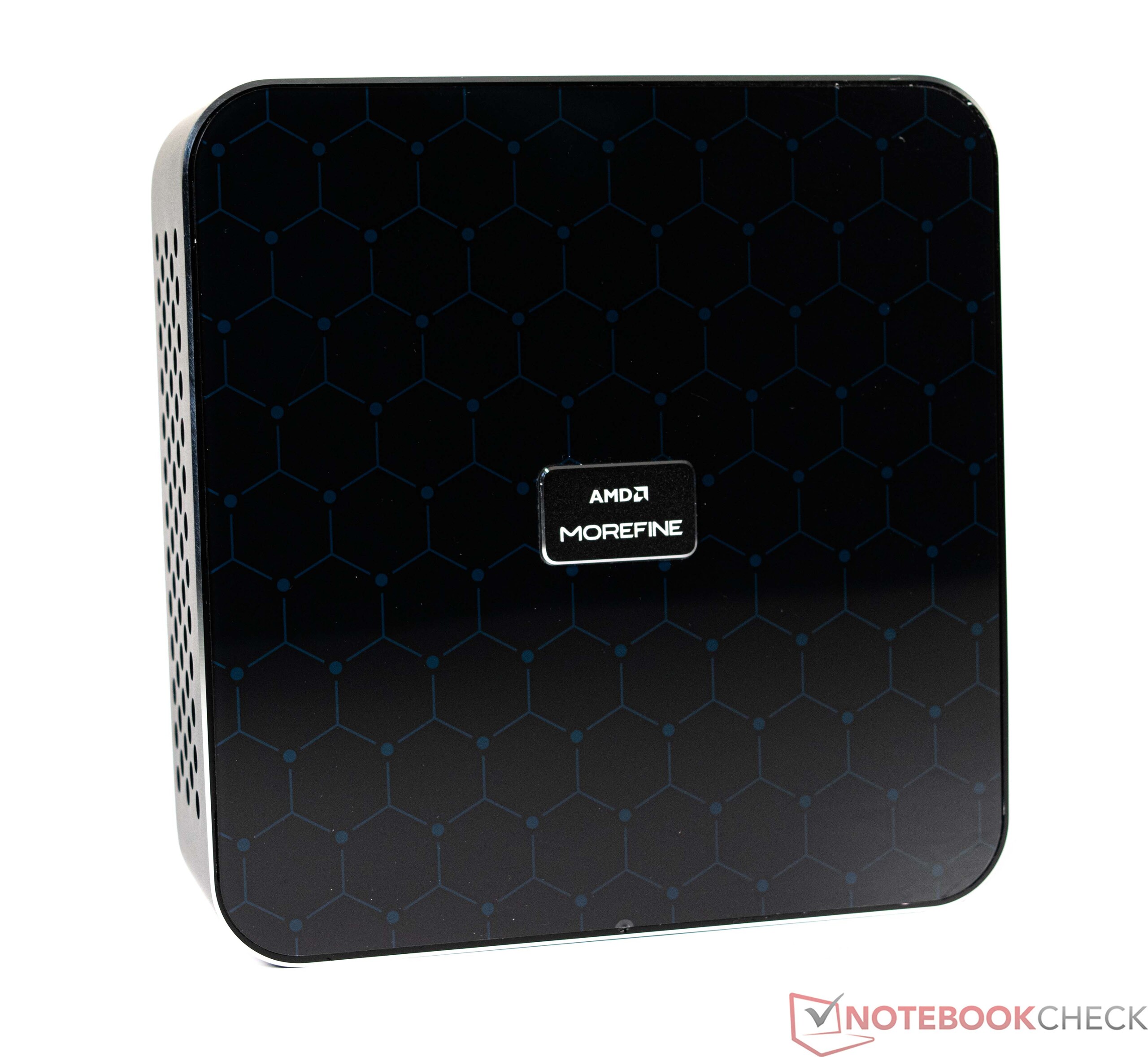

Morefine M600 in detail

Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600
Morefine M600

Zaak

Qua uiterlijk is de Morefine M600 te vergelijken met zijn Intel tegenhanger, deMorefine S600 Apex Engineerde behuizing is grotendeels gemaakt van een aluminium-magnesium legering, waardoor het apparaat uitstekend stabiel is en hoogwaardig aanvoelt. De bovenkant van de behuizing bestaat uit een met metaal versterkt plastic deksel met een gegraveerd patroon. Helaas is dit gevoelig voor krassen door het glanzende oppervlak.

Qua formaat zit ons testexemplaar ergens in het midden en neemt het niet al te veel ruimte in op een bureau. De Morefine M600 is ook vrij licht, met een gewicht van slechts 779 gram. Vergeleken met de Morefine S600 Apex Engineer is de voedingsadapter van deze PC aanzienlijk kleiner. In ons testexemplaar woog de 120-watt adapter slechts 372 gram.

Vergelijking grootte

208 mm 180 mm 66 mm 1.2 kg158 mm 166 mm 67 mm 1.1 kg144 mm 149 mm 63.5 mm 795 g138 mm 138 mm 53 mm 586 g147.3 mm 144.7 mm 40.6 mm 779 g145 mm 149 mm 40 mm 697 g129 mm 126 mm 48 mm 621 g117 mm 112 mm 37 mm 511 g297 mm 210 mm 1 mm 5.7 g

Connectiviteit

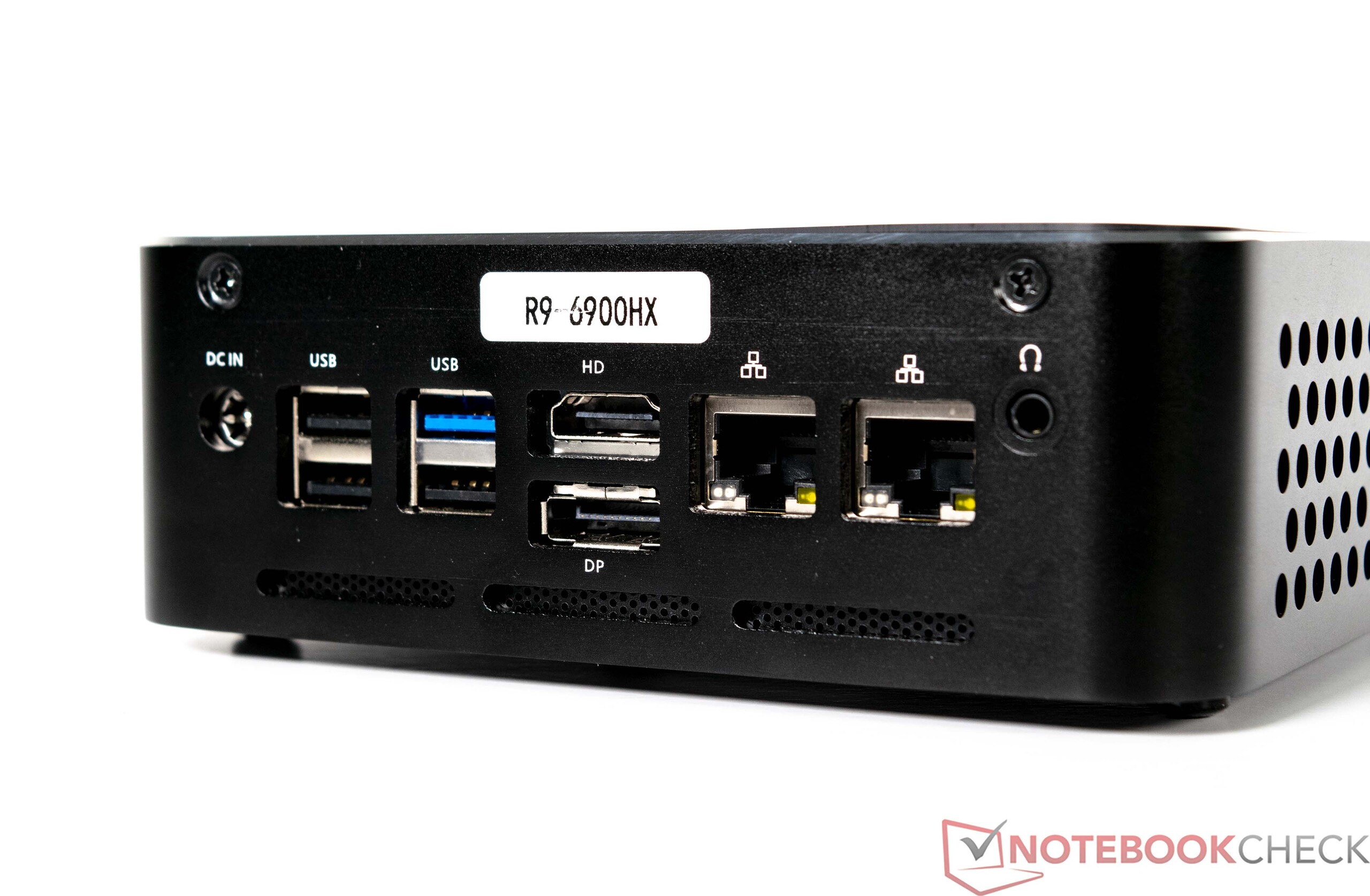

Ondanks zijn compacte ontwerp heeft de Morefine M600 een verrassend goed aantal poorten. Met in totaal 6 USB-poorten zullen de meeste gebruikers meer dan tevreden zijn. Hetzelfde aantal poorten is te zien in de Minisforum Venus Series UM690. Aan de voorkant van de compacte pc is er ook een USB-C aansluiting met Thunderbolt ondersteuning, wat de gebruiksmogelijkheden massaal verbreedt. In totaal kunnen drie monitoren tegelijkertijd op de Morefine M600 worden aangesloten - via HDMI, DisplayPort of USB-C.

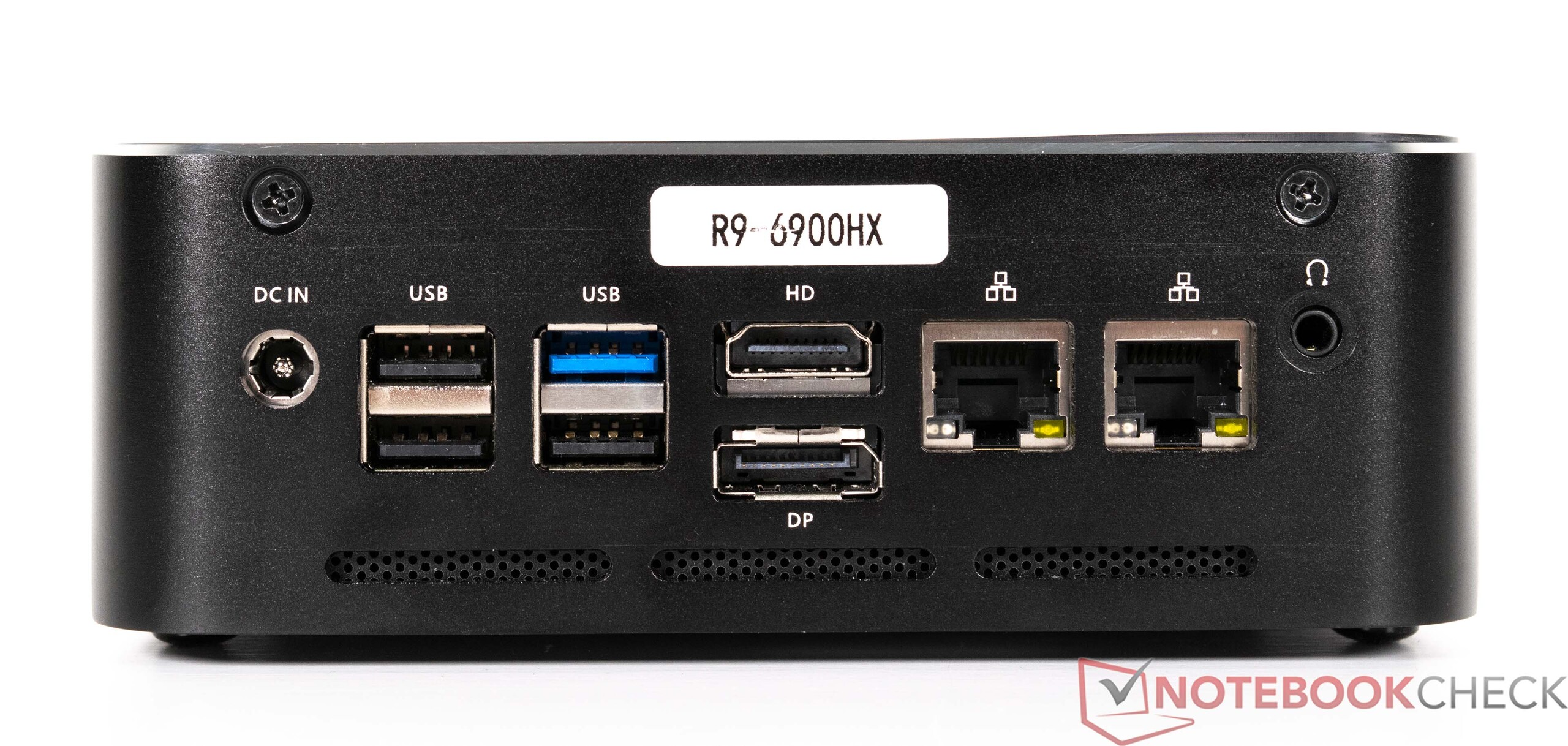

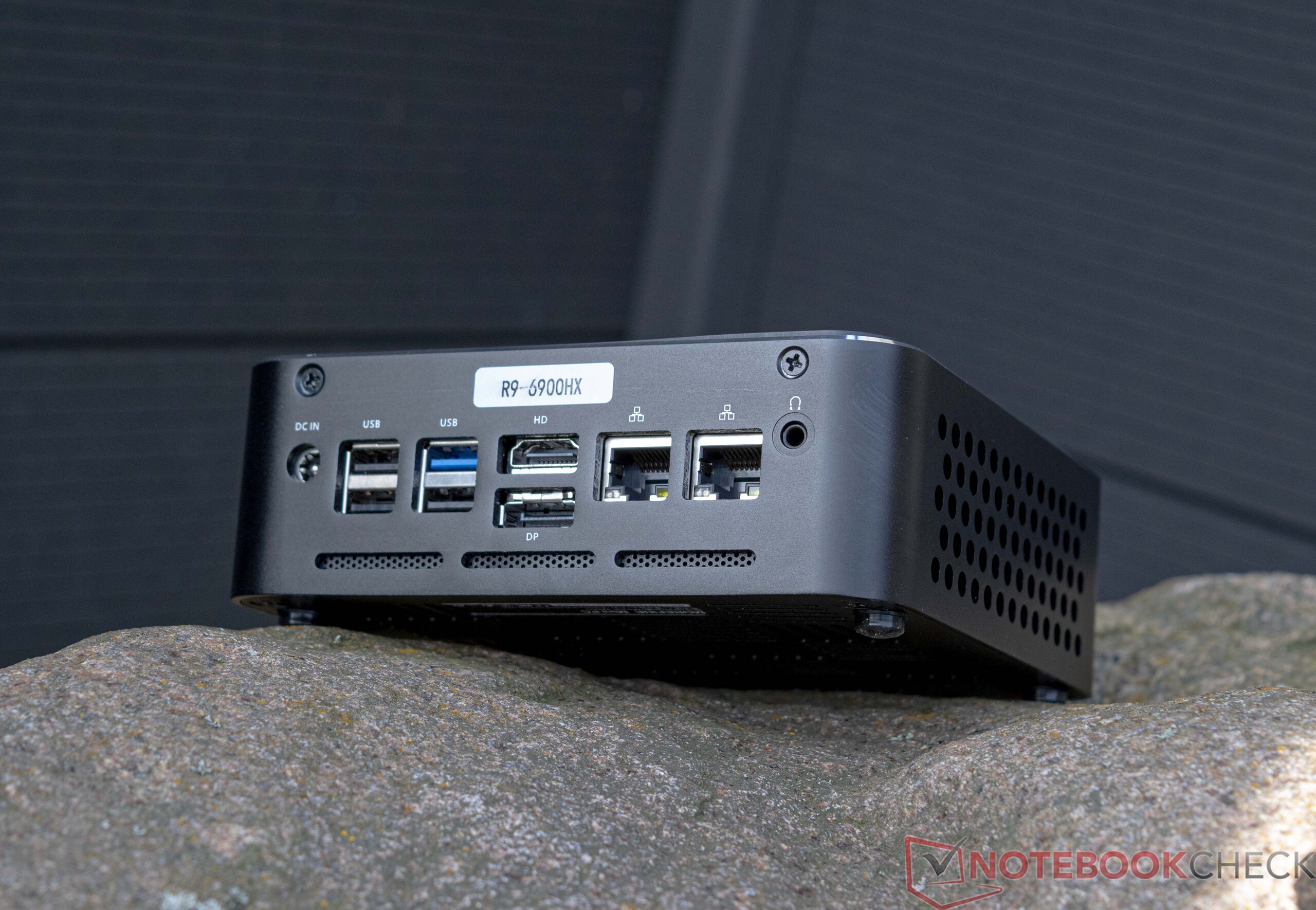

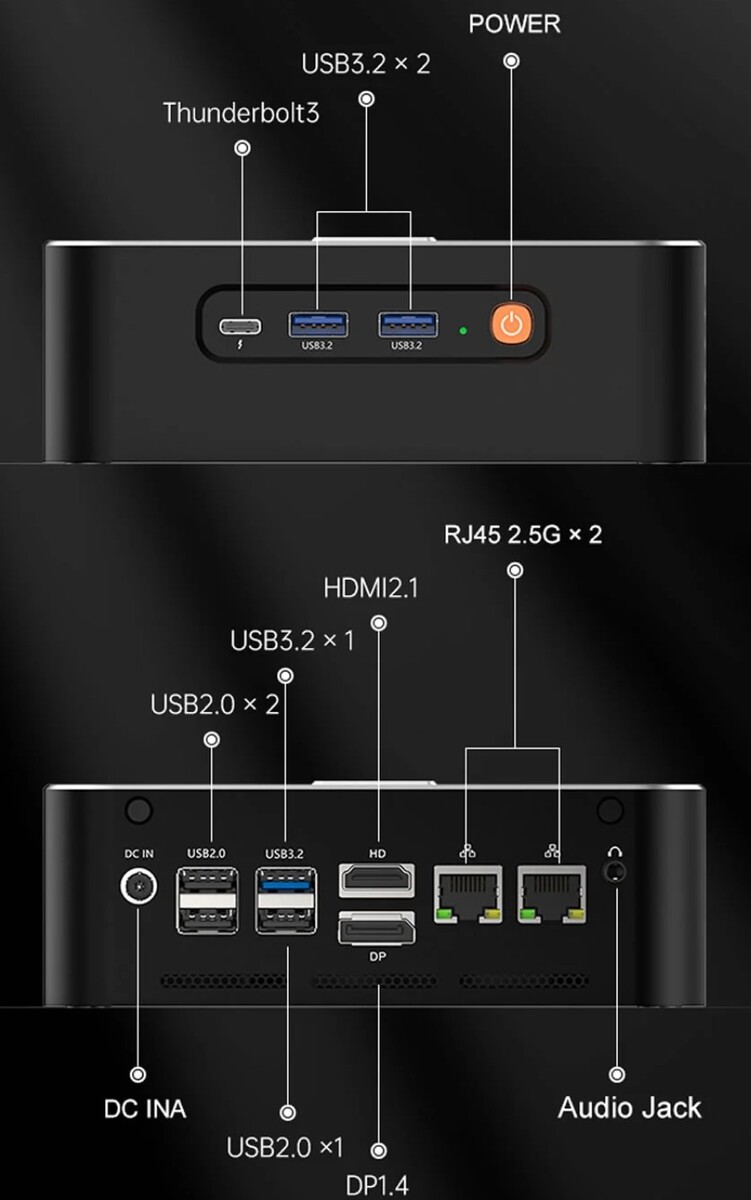

Externe poorten van de Morefine M600 (bron: Morefine)
Externe poorten van de Morefine M600 (bron: Morefine)

Communicatie

WLAN-module in de Morefine M600
WLAN-module in de Morefine M600

De Morefine M600 beschikt over een Wi-Fi 6E module van Mediatek. In onze praktijktest, waarbij we onze ROG Rapture GT-AXE11000 router van Asus als testrouter gebruikten, leverde de Morefine M600 bovengemiddeld stabiele en consistente overdrachtssnelheden. Vergeleken met deMinisforum Neptune Series NAD9met een Intel Wi-Fi 6E AX210, was de Morefine M600 aanzienlijk langzamer. Bij dagelijks gebruik zouden we subjectief niet al te veel verschil merken tussen de twee. Als u op zoek bent naar snellere gegevensoverdracht, is de PC ook uitgerust met twee LAN-aansluitingen, die elk snelheden tot 2,5 Gbit/s leveren.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +42%
Gemiddelde van klas Mini PC
  (192.9 - 1796, n=113, laatste 2 jaar)
932 MBit/s 0%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s
Gemiddeld MediaTek RZ608
  (430 - 975, n=20)
886 MBit/s -5%
Minisforum EliteMini B550
MediaTek RZ608
430 MBit/s -54%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 MBit/s -58%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +37%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s
Gemiddelde van klas Mini PC
  (184.1 - 1776, n=113, laatste 2 jaar)
864 MBit/s -10%
Gemiddeld MediaTek RZ608
  (572 - 979, n=20)
860 MBit/s -11%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 MBit/s -23%
Minisforum EliteMini B550
MediaTek RZ608
572 MBit/s -41%
050100150200250300350400450500550600650700750800850900950Tooltip
Morefine M600, 6900HX; iperf3 receive AXE11000; iperf 3.1.3: Ø929 (874-946)
Morefine M600, 6900HX; iperf3 transmit AXE11000; iperf 3.1.3: Ø964 (924-990)

Accessoires

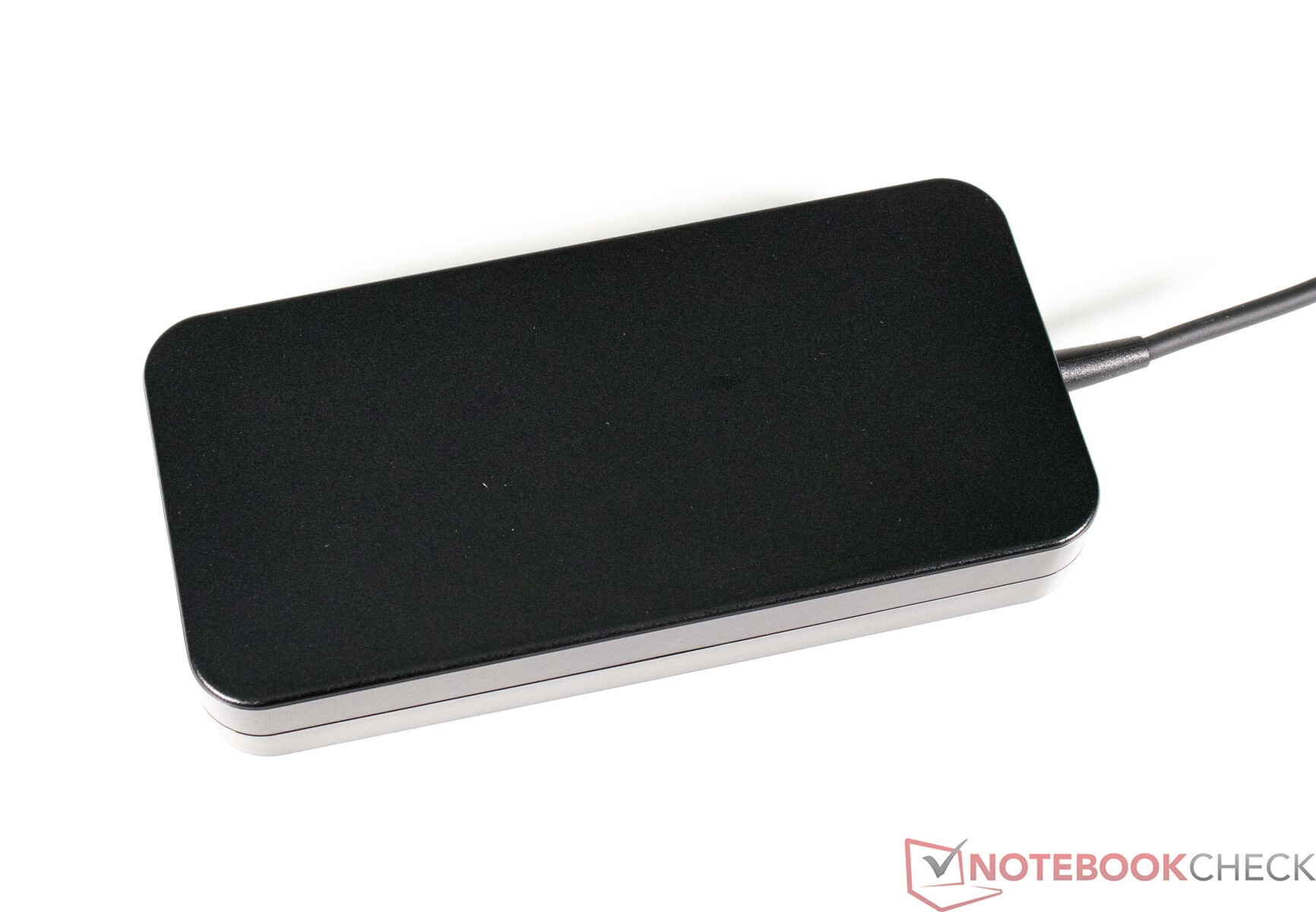

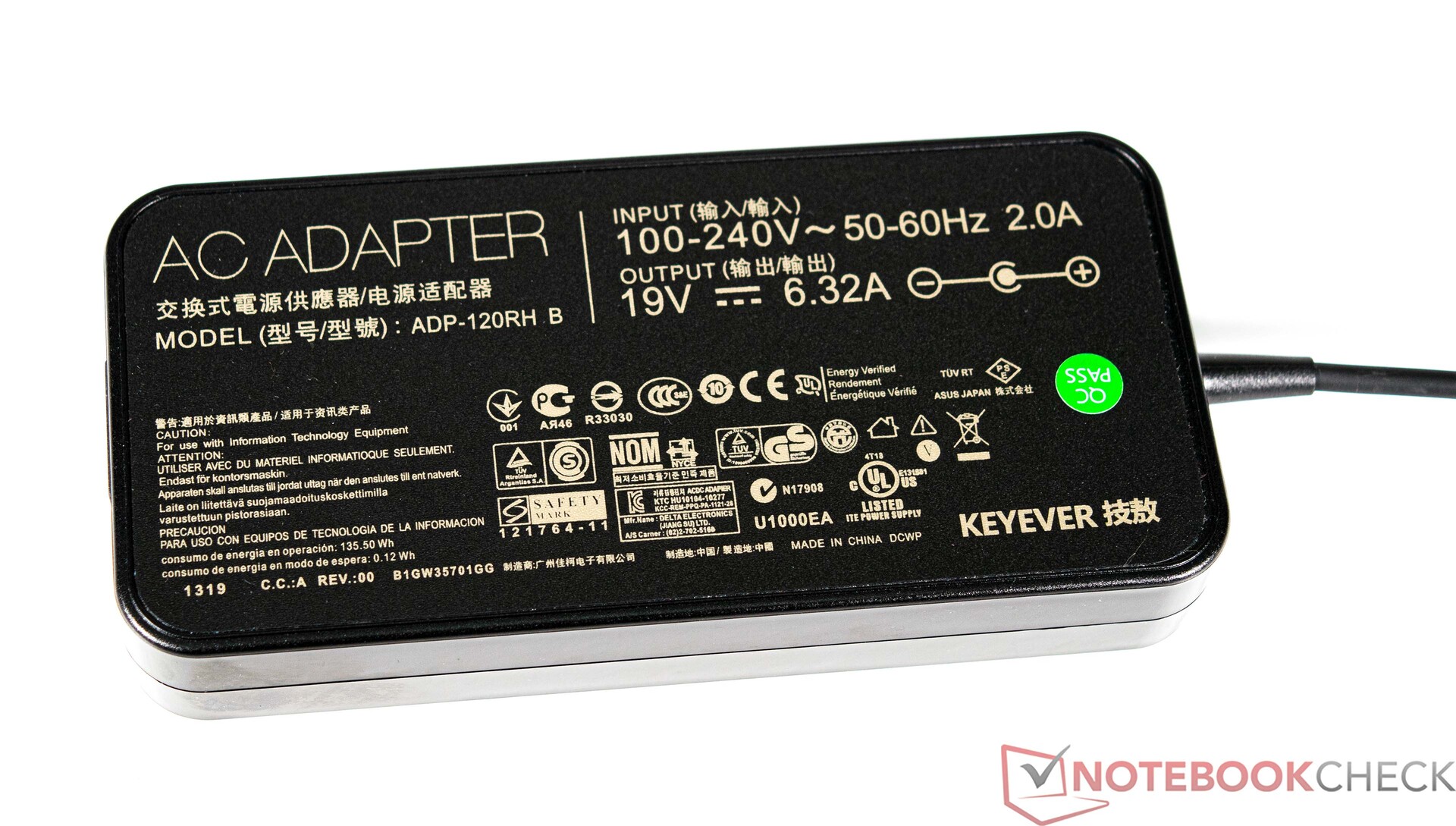

De pc wordt ook geleverd met een 120-watt stroomadapter en een VESA-bevestiging waarmee het apparaat rechtstreeks op een monitor kan worden bevestigd. Daarnaast levert de fabrikant een HMDI-kabel en een aansluitkabel voor een 2,5-inch schijf mee.

Onderhoud

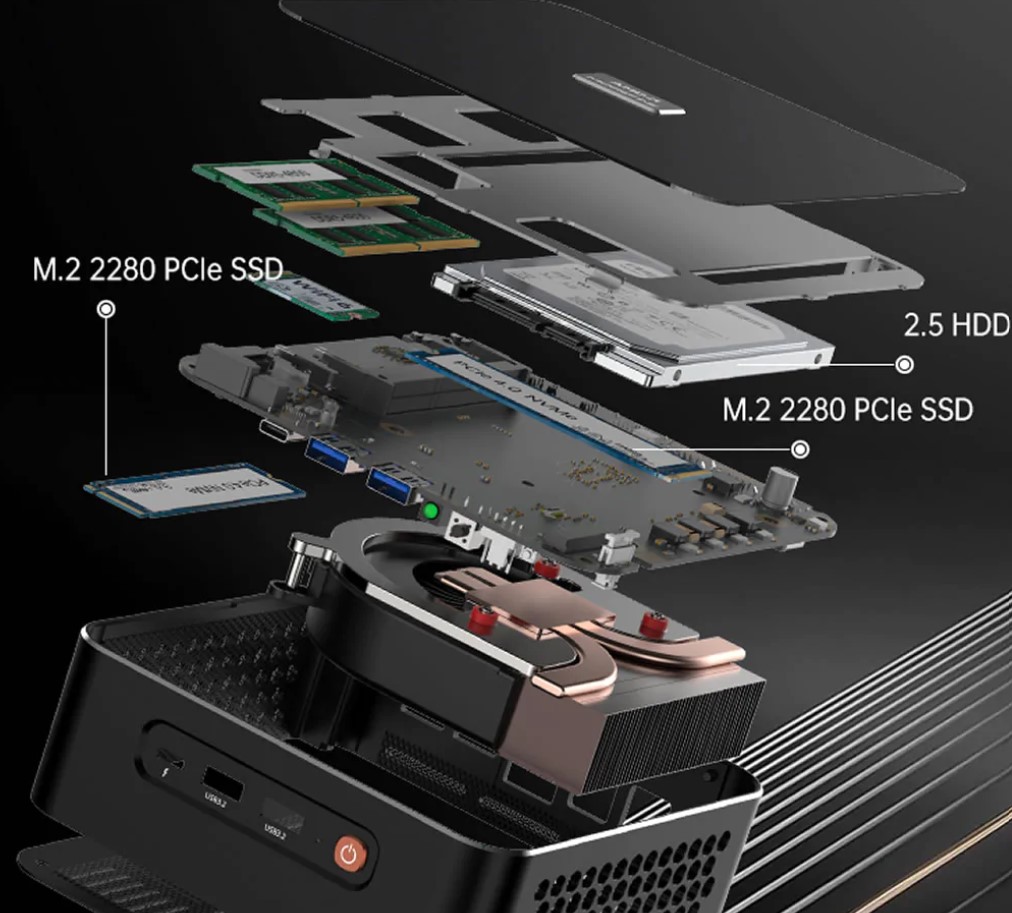

Vergelijkbaar met de Morefine S600 Apex Engineerkan de Morefine M600 gemakkelijk worden geopend. De bovenkant is verbonden met twee schroeven die gemakkelijk toegankelijk zijn vanaf de achterkant. Aan de onderkant zijn de schroeven verborgen onder de vastzittende voetjes van het apparaat. Dit is een beetje onhandig als je ooit de onderkant van de PC uit elkaar moet halen. Daar vind je de ventilator en een M.2 slot, waar in ons testsysteem al een SSD in zat.

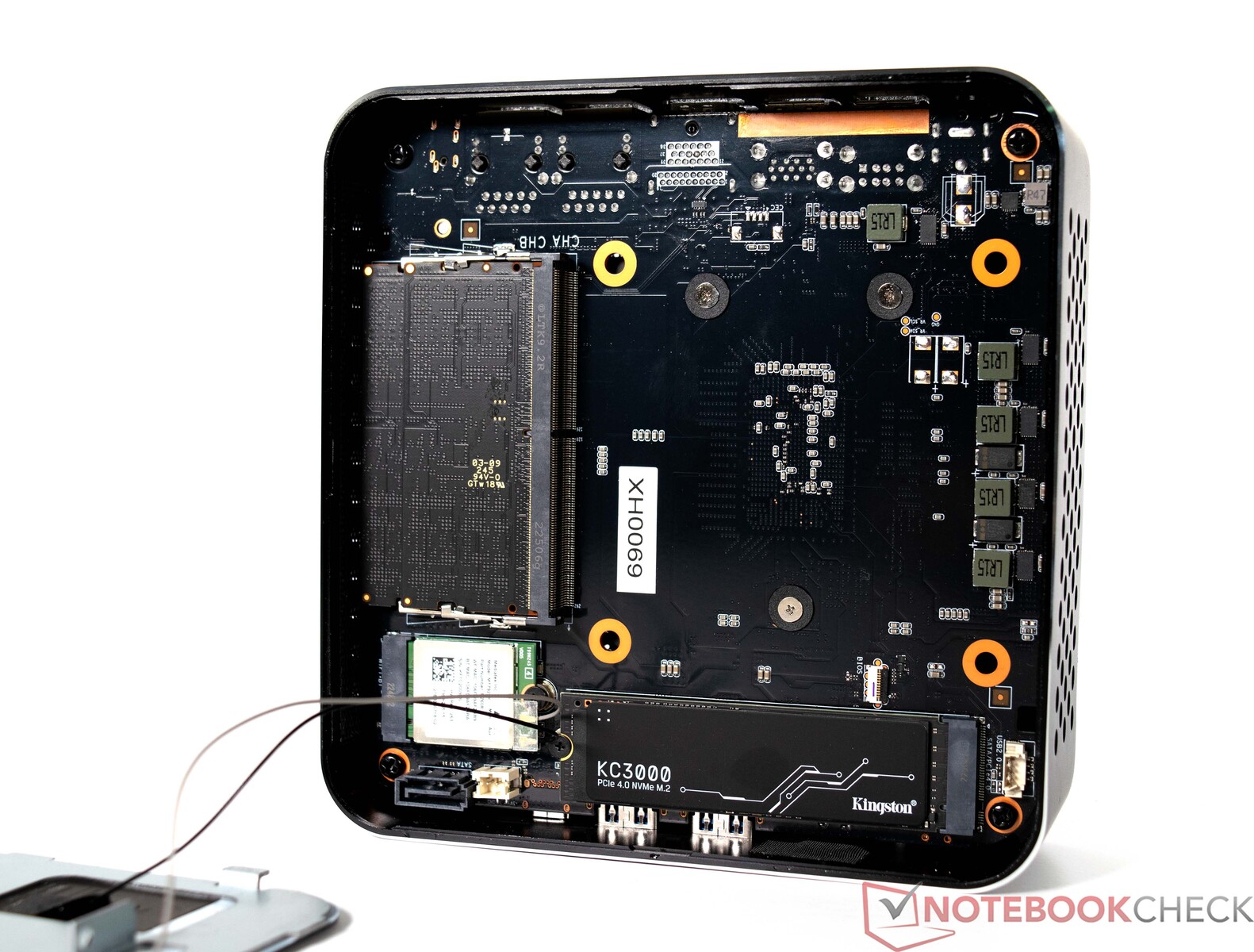

Morefine M600 met geopende koffer - bovenkant
Morefine M600 met geopende koffer - bovenkant

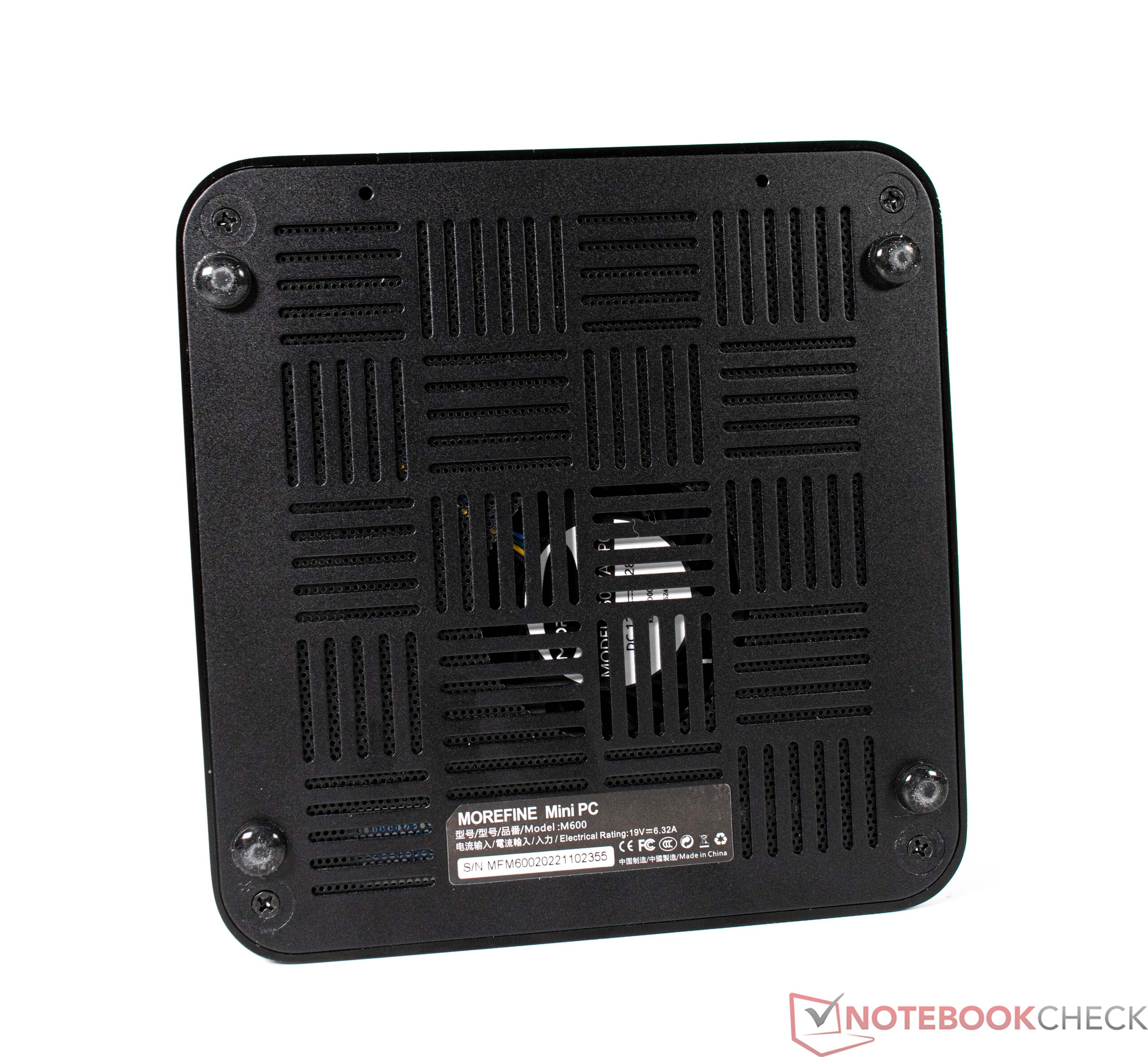

Morefine M600 met geopende koffer - bodem
Morefine M600 met geopende koffer - bodem

Prestaties - AMD Rembrandt SoC levert aanvaardbare prestaties

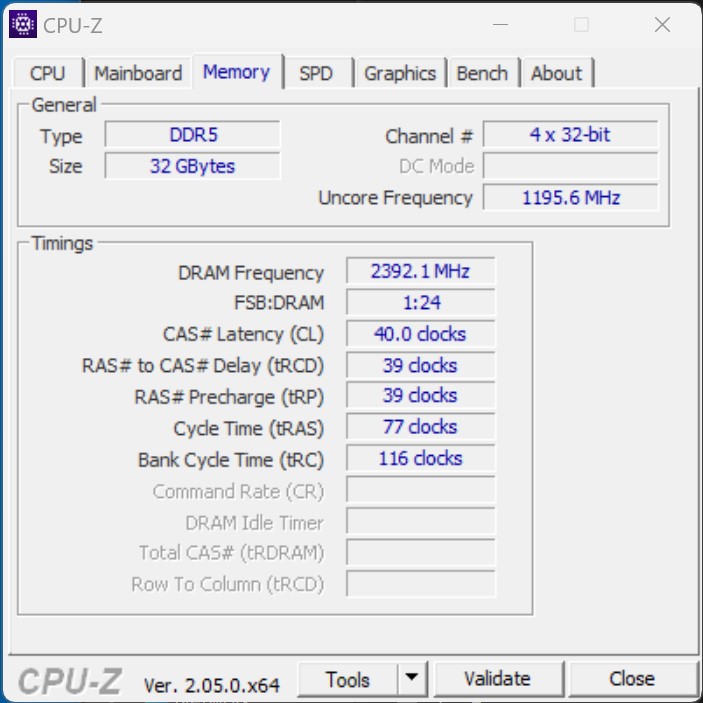

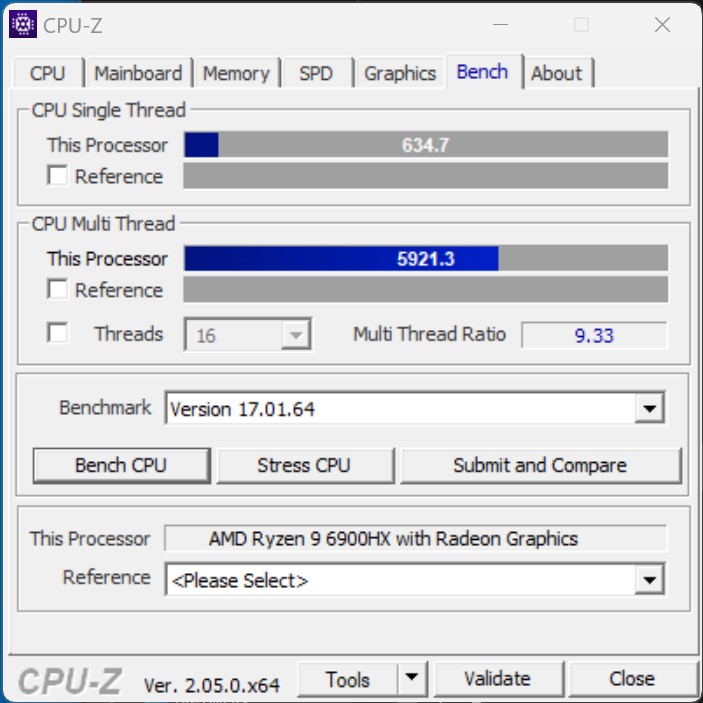

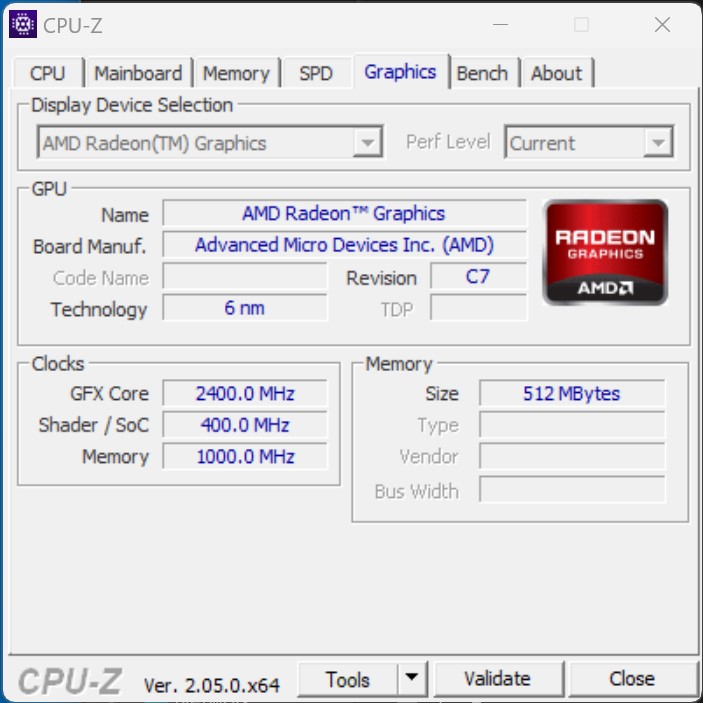

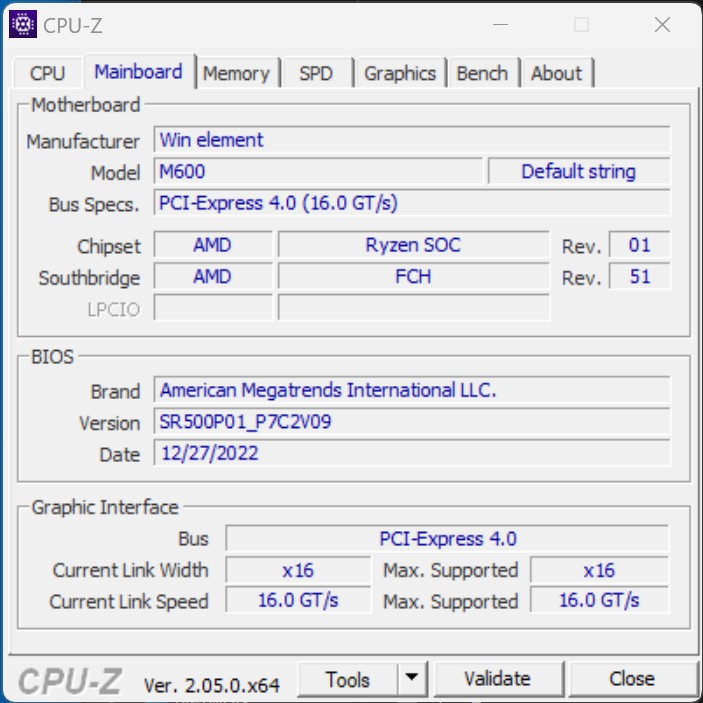

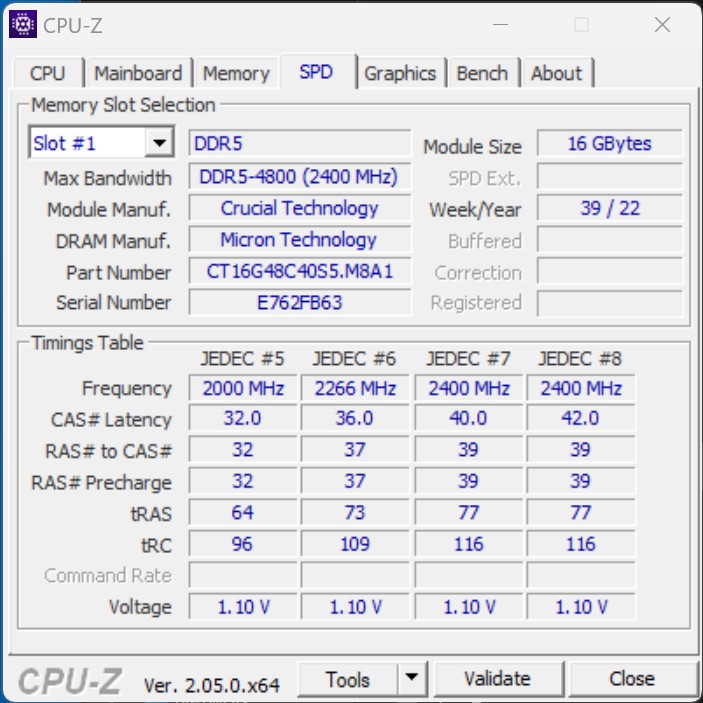

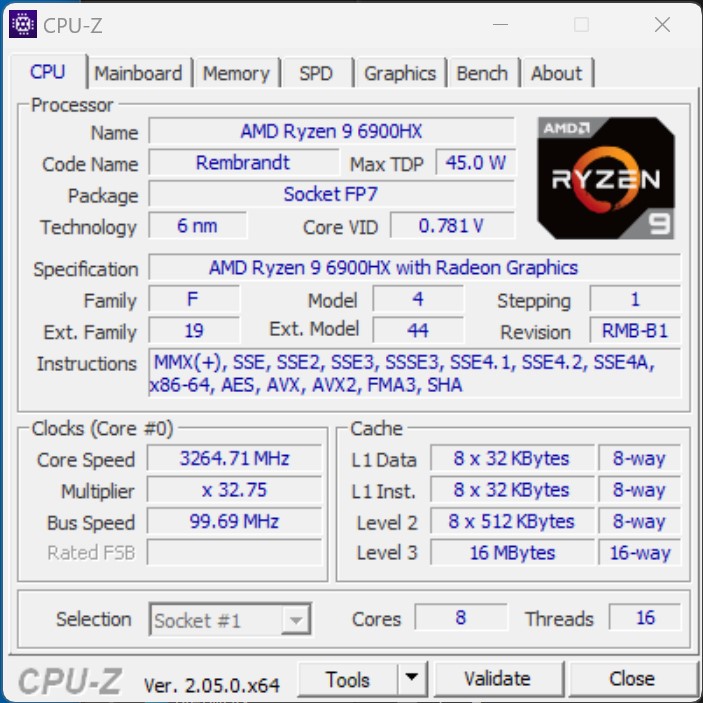

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

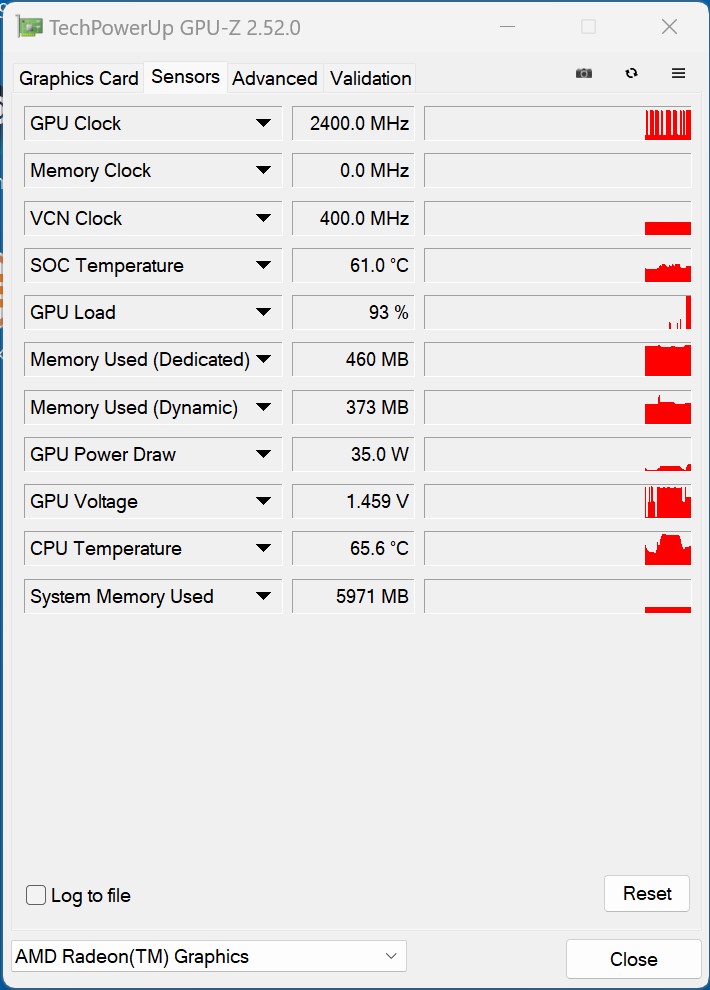

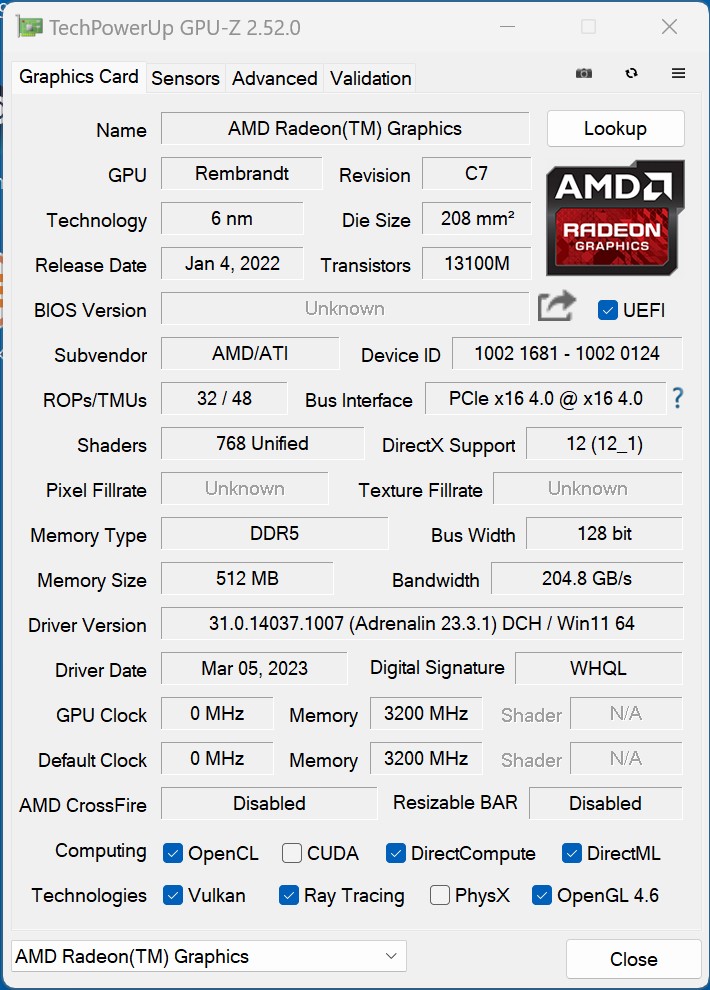

GPU-Z
GPU-Z

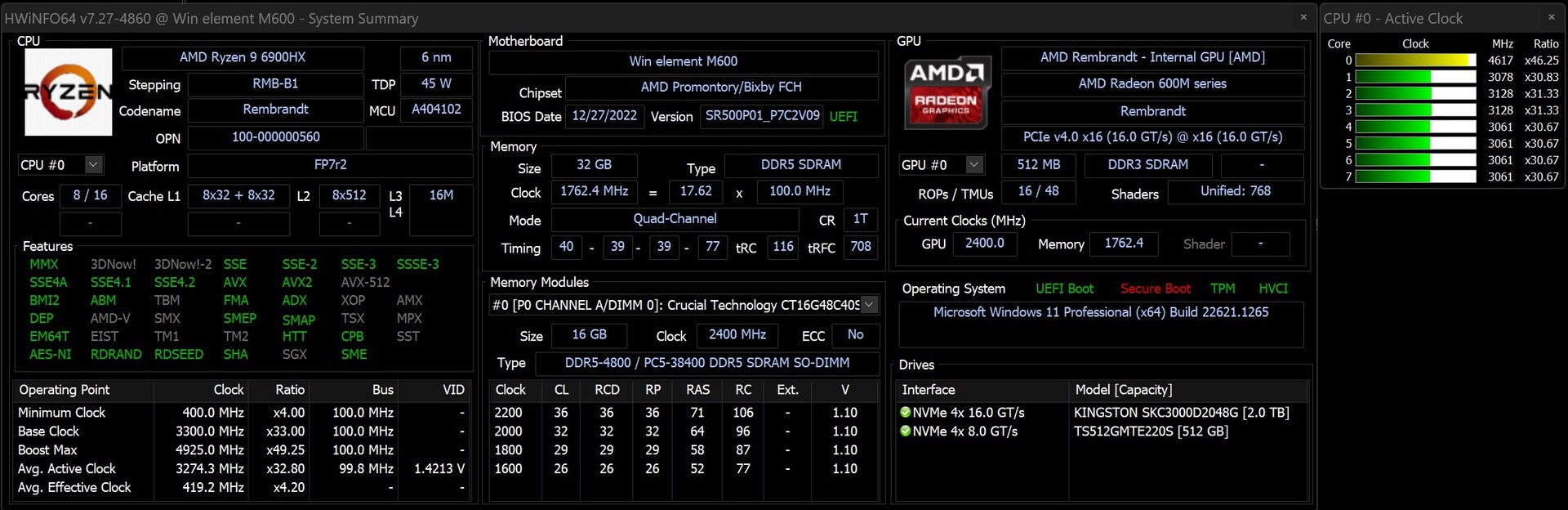

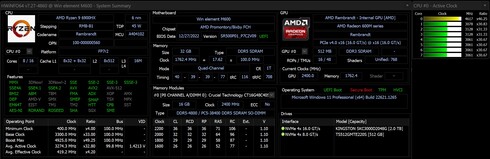

HWiNFO

Testomstandigheden

In alle prestatietests die met dit apparaat zijn uitgevoerd, hebben wij het energieprofiel met de hoogste prestaties gebruikt. Alleen bij de metingen van het stroomverbruik en de geluidsemissie werd afgeweken in overeenstemming met onze testcriteria. De prestaties van de CPU en het koelsysteem bleven ongewijzigd in het BIOS. Daar kunnen de prestaties van de SoC worden verhoogd tot 54 watt.

Processor

DeAMD Ryzen 9 6900HXis een Rembrandt serie 8-core processor met 16 threads, gebaseerd op een Zen3 architectuur chip. Bij belasting vertoonde de Morefine M600 korte pieken van 65 watt voordat de pc zich stabiliseerde op zijn 45 watt grens. Dit was al te zien bij deMinisforum Venus Series UM690. Vergeleken met zijn vergelijkbaar uitgeruste concurrenten verloor de Morefine M600 het in alle CPU benchmarks - maar slechts met 4 procentpunten. De Morefine S600 Apex Engineerwas iets sneller, wat kan worden toegeschreven aan zijn Intel Core i9-12900HK. Het heeft 14 kernen en 20 threads, wat betekent dat het betere multi-core prestaties behaalde dan de AMD Ryzen 9 6900HXtoch was het verschil tussen beide vrij klein. Met uitzondering van de Ace Magician TK11-A0lagen de resultaten van al onze testmonsters vrij dicht bij elkaar.

U kunt meer processorbenchmarks vindenhier.

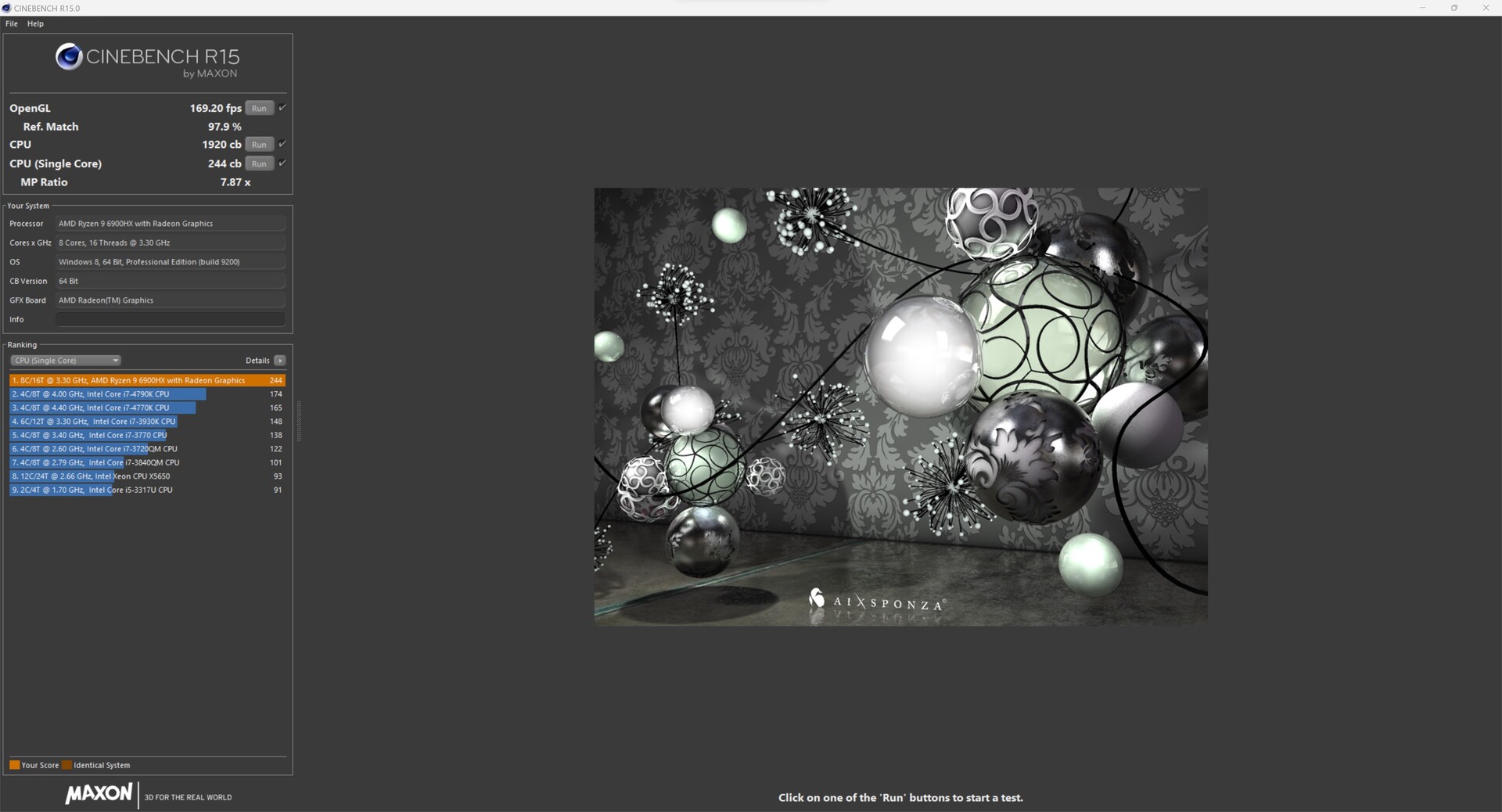

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20

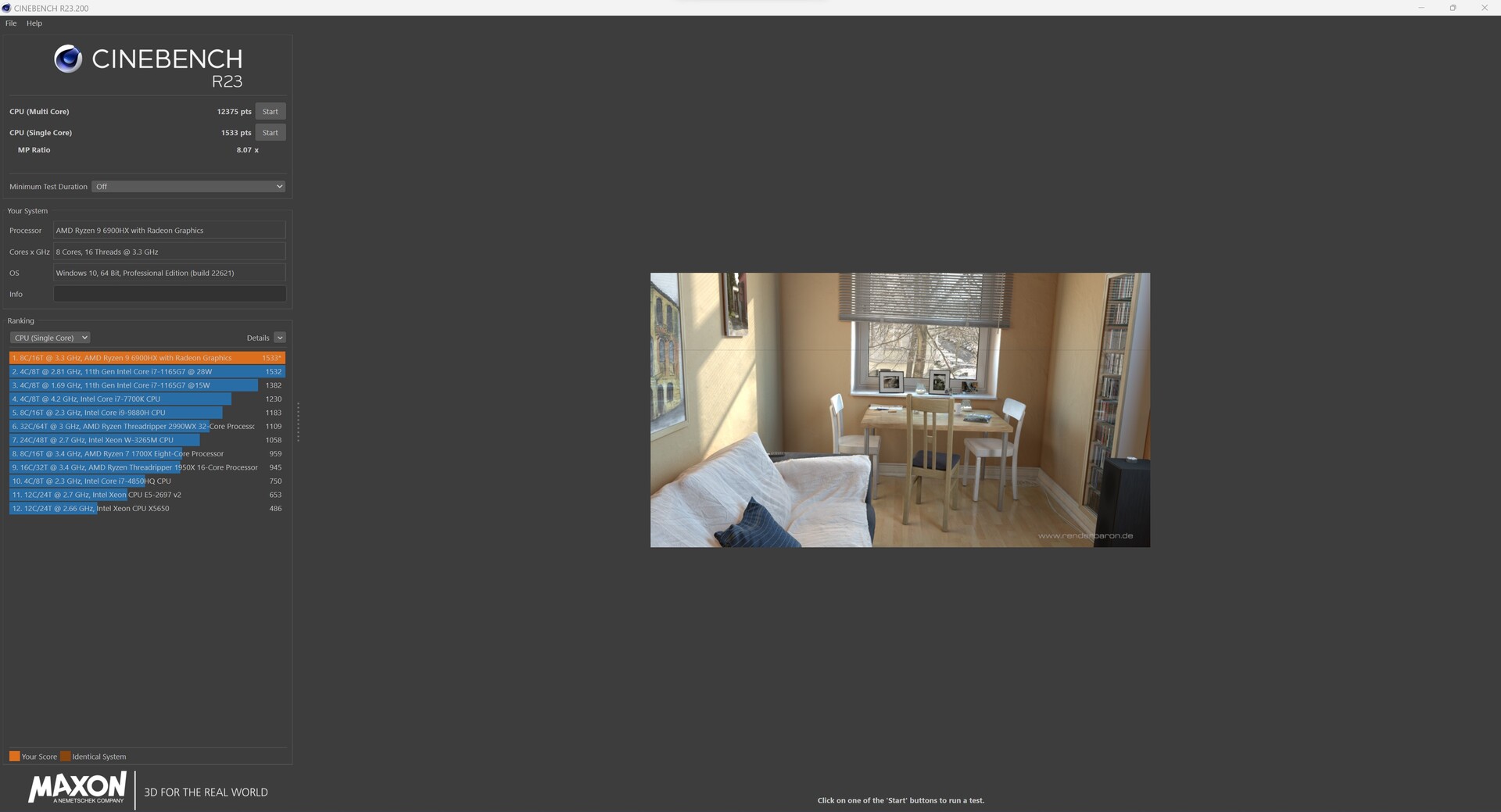

Cinebench R23
Cinebench R23
Performance Rating - Percent
Morefine S600-Apex Engineer -6!
Intel Core i9-12900HK, 1800 MHz
51.9 pt
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
50.6 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
50.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
49.4 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
48.4 pt
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
47.6 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
47.3 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
35.8 pt
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
261 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
260 Points +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points +1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
243 Points 0%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
240 Points -2%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
226 Points -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
197 Points -19%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
2231 Points +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +8%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1980 Points +3%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
1975 Points +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1879 Points -2%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
560 Points -71%

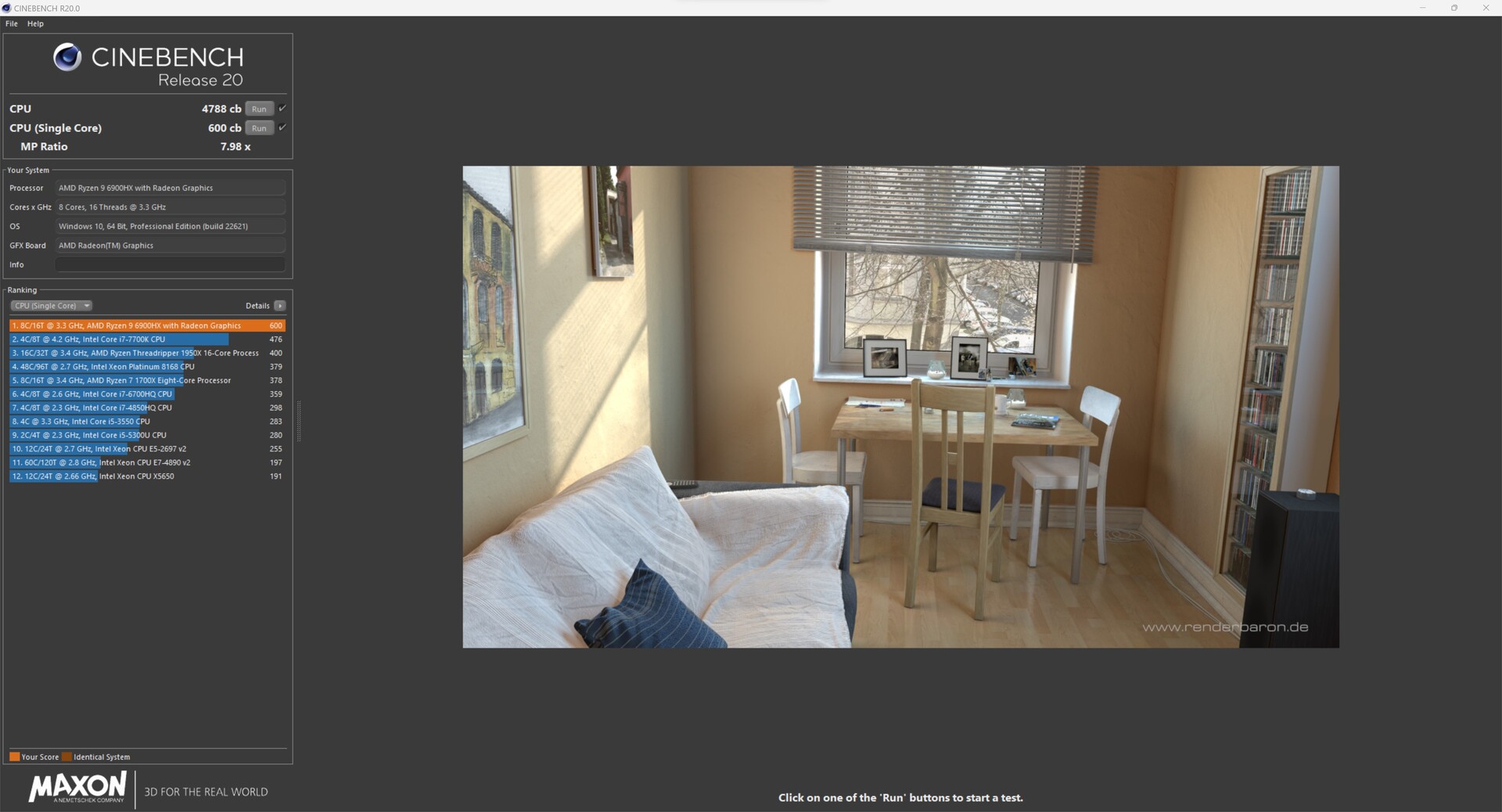

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
698 Points +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points +14%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
629 Points +5%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
608 Points +1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
585 Points -2%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
567 Points -5%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
517 Points -14%
CPU (Multi Core)
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
5328 Points +11%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
5168 Points +8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
4660 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
4578 Points -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
4495 Points -6%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1440 Points -70%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.15 Points +9%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.07 Points +7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
2.87 Points 0%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points -1%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
2.8 Points -3%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
2.69 Points -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2.31 Points -20%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
26.35 Points +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
23.6 Points 0%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
23.44 Points -1%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
22.79 Points -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
22 Points -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.37 Points -73%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
14504 Points +19%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
12943 Points +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points +5%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
12378 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
12113 Points -1%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
11811 Points -3%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
10395 Points -15%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
76758 Points +10%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
75223 Points +8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
73492 Points +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
66237 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
64320 Points -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
24499 Points -65%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
750 Seconds * -225%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
280 Seconds * -21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * -18%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
265 Seconds * -15%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
252.1 Seconds * -9%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
234 Seconds * -1%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
232 Seconds * -0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds *
wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.799 s * -87%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
4.4 s * -21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.641 s * -0%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
3.595 s * +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.461 s * +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +6%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
3.375 s * +7%
1024m
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
286.835 s * -178%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
235.874 s * -129%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
201.062 s * -95%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * -83%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
106.7 s * -3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s *
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
98.635 s * +4%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
93.19 s * +10%
X264 HD Benchmark 4.0
Pass 1
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
276.5 (274min - 278max) fps +7%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
276 (273min - 294max) fps +7%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
266 (264min - 271max) fps +3%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
263.5 (262min - 266max) fps +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
262.5 (262min - 266max) fps +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps -5%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
165.55 (163.6min - 204max) fps -36%
Pass 2
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
127.8 (127.3min - 129.1max) fps +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +10%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
116.8 (116.8min - 117.3max) fps +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
113.7 (113.5min - 122.2max) fps 0%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
112 (112min - 112max) fps -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
110.5 (101.7min - 125.3max) fps -3%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
36.7 (36.7min - 37.6max) fps -68%
WinRAR - Result
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +17%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7722 KB/s +14%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
7387 KB/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7200 KB/s +6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6960 KB/s +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6882 KB/s +1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4185 KB/s -38%
TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
14.1 GB/s +17%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
13.4 GB/s +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11.6 GB/s -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
10.8 GB/s -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -29%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7.6 GB/s -37%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.3 GB/s -56%
Twofish Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
2.3 GB/s +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +25%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.9 GB/s +19%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.8 GB/s +13%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1.6 GB/s 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1.5 GB/s -6%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.755 GB/s -53%
Serpent Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
1.3 GB/s +18%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.2 GB/s +9%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1.1 GB/s 0%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1.1 GB/s 0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.1 GB/s 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s -11%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.448 GB/s -59%
Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points +9%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +6%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7855 Points -14%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7818 Points -15%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4898 Points -46%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points +6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1560 Points +1%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1552 Points 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1391 Points -10%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points -6%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
7847 Points -23%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7806 Points -24%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4841 Points -53%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points +9%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
1518 Points -3%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
1504 Points -3%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1385 Points -11%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points +13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
6517 Points -3%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
6434 Points -4%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5911 Points -12%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points -8%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
31835 Points -20%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
31724 Points -20%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
19288 Points -52%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points +16%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
18277 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
18044 Points +14%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
17378 Points +10%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
16783 Points +6%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
14277 Points -10%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
7792 Points -51%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
61401 MIPS +8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
56455 MIPS -1%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
55046 MIPS -3%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
54998 MIPS -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS -10%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
47064 MIPS -17%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
17636 MIPS -69%
7z b 4 -mmt1
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6067 MIPS +9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS +8%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
5905 MIPS +6%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
5809 MIPS +4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
5738 MIPS +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
5347 MIPS -4%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4788 MIPS -14%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
17.1 fps +11%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
15.7 fps +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
14.8 fps -4%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
14.5 fps -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
13.2 fps -14%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.26 fps -66%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.639 sec * -31%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
0.4997 sec * -2%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
0.4975 sec * -2%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
0.493 sec * -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
0.4787 sec * +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
0.4757 sec * +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * +5%
LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s *
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
52 s * +3%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
50.7 s * +5%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
50.4 s * +6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
48.8 s * +9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
45 s * +16%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
41.9 s * +22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +29%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
287 Points -2%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
285 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
285 Points -2%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
284 Points -3%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
274 Points -6%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
236 Points -19%
Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
724 ms * -20%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms *
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
604 ms * -0%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
602 ms * -0%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
582 ms * +4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * +5%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
571 ms * +6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
534 ms * +12%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25456 Points +13%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
23939 Points +7%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
23269 Points +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
22101 Points -2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
19357 Points -14%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9561 Points -57%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25915 Points +16%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
25160 Points +12%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
23903 Points +7%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
23308 Points +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
20684 Points -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9354 Points -58%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +22%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
9449 Points +10%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9354 Points +8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
8393 Points -3%
Morefine S500+
AMD Ryzen 9 5900HX, 3300 MHz
8191 Points -5%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, 3800 MHz
7087 Points -18%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2867 Points -67%

* ... kleiner is beter

Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.2 pt
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85.9 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
85.8 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
85.8 pt
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
76.1 pt
Gemiddelde van klas Mini PC

74.9 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
69.2 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
41.4 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
13631 KRay/s -1%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
13460 KRay/s -2%
Gemiddelde van klas Mini PC
  (561 - 51004, n=119, laatste 2 jaar)
12449 KRay/s -10%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
12208 KRay/s -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
10351 KRay/s -25%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s -59%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points +13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
86825 Points -1%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85294 Points -3%
Gemiddelde van klas Mini PC
  (3604 - 214250, n=119, laatste 2 jaar)
62645 Points -29%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
61600 Points -30%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -37%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
52136 Points -41%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points -72%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s +18%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
2953 MB/s +1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
2924 MB/s 0%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
2844 MB/s -3%
Gemiddelde van klas Mini PC
  (225 - 9399, n=119, laatste 2 jaar)
2760 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
2590 MB/s -12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s -13%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s -44%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
97720 Points -3%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
95602 Points -5%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
94655 Points -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points -15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
82493 Points -18%
Gemiddelde van klas Mini PC
  (8172 - 184747, n=119, laatste 2 jaar)
77998 Points -22%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points -53%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points +6%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
12202 Points -2%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
11929 Points -4%
Gemiddelde van klas Mini PC
  (408 - 29064, n=119, laatste 2 jaar)
8538 Points -31%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
8213 Points -34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points -39%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
6728 Points -46%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points -68%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points +18%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
47597 Points +7%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
47010 Points +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points
Gemiddelde van klas Mini PC
  (1958 - 113499, n=119, laatste 2 jaar)
32689 Points -27%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
30804 Points -31%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points -37%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
25996 Points -42%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points -67%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s +143%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
119844 MB/s +113%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
115382 MB/s +105%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +77%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92356 MB/s +64%
Gemiddelde van klas Mini PC
  (3691 - 325960, n=119, laatste 2 jaar)
85358 MB/s +52%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
59882 MB/s +7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s +16%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
828 MB/s +11%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
774 MB/s +4%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
747 MB/s 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
722 MB/s -3%
Gemiddelde van klas Mini PC
  (74.8 - 2039, n=119, laatste 2 jaar)
714 MB/s -4%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s -64%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s +9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
7193 KRay/s -1%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
7184 KRay/s -1%
Gemiddelde van klas Mini PC
  (308 - 26952, n=119, laatste 2 jaar)
6658 KRay/s -9%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
6612 KRay/s -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -21%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
5613 KRay/s -23%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s -59%
AIDA64 / CPU PhotoWorxx
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
30098 MPixel/s +1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
28377 MPixel/s -5%
Gemiddelde van klas Mini PC
  (4408 - 50500, n=119, laatste 2 jaar)
27805 MPixel/s -7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s -7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s -18%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
19885 MPixel/s -33%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
14810 MPixel/s -50%

Morefine M600 in de Cinebench R15 Multi Loop

De Cinebench R15 continue loop gaf ons onze eerste blik op hoe goed het geïntegreerde koelsysteem van het toestel presteerde. Over het geheel genomen is de AMD Ryzen 9 6900HXeen relatief stabiele prestatie van 1.900 punten na 50 cycli.

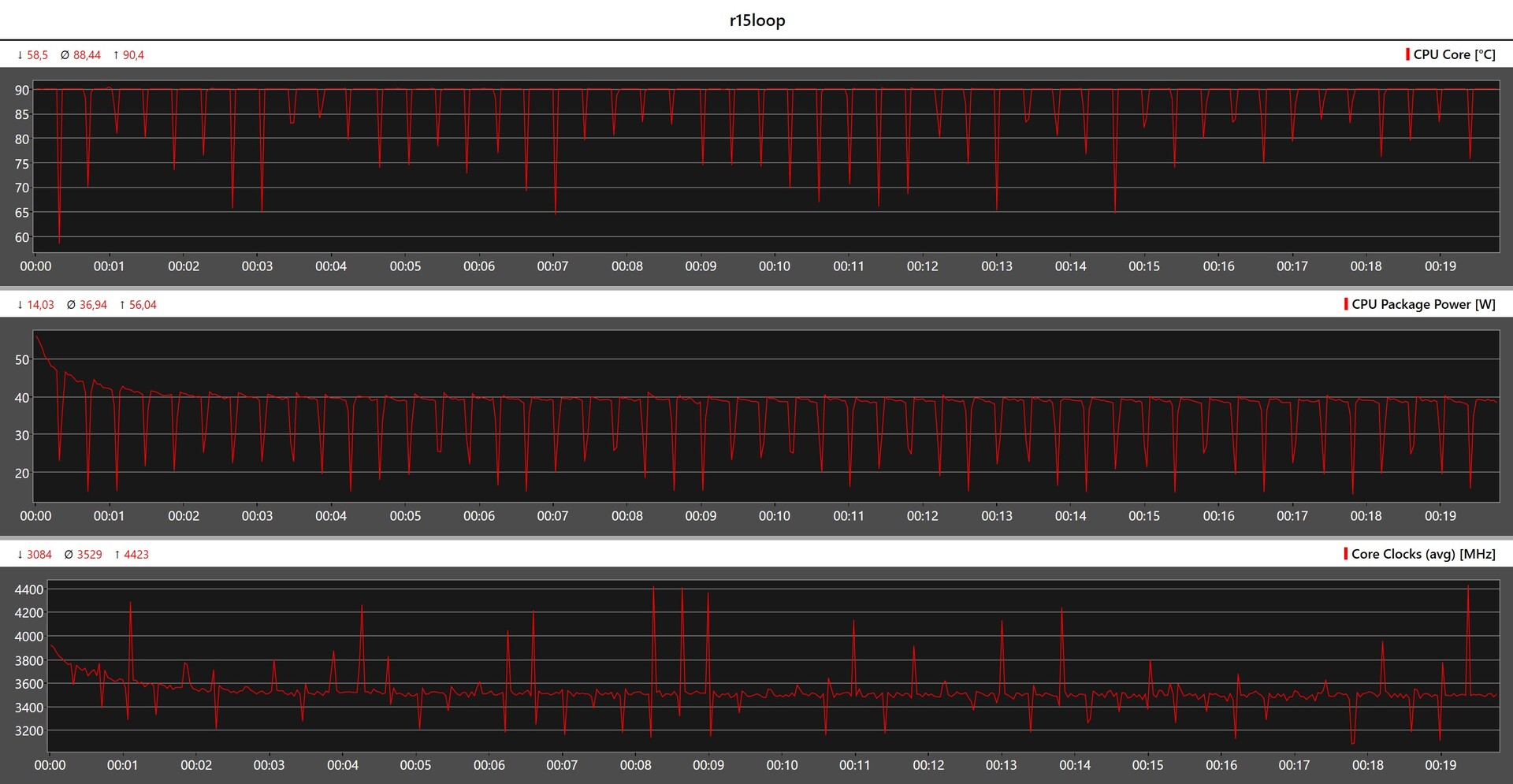

CPU statistieken tijdens de Cinebench R15 loop
CPU statistieken tijdens de Cinebench R15 loop
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Systeemprestaties

De Morefine M600 presteerde goed in de PCMark 10 systeem benchmark. Het behaalde slechts gemiddelde resultaten in de Crossmark test, hoewel we goede resultaten hebben gemeten in de RAM tests. Hier eindigde ons testexemplaar zelfs op de eerste plaats. In het dagelijks gebruik presteert de Morefine M600 goed en kan vergeleken worden met alle andere apparaten in onze test.

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
6290 Points -5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
6214 Points -7%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points -7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
5915 Points -11%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
5658 Points -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
4521 Points -32%
PCMark 10 / Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points +4%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
10700 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
10661 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
10148 Points -2%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
10087 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
8910 Points -14%
PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points +2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
9941 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
9856 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -22%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
7626 Points -22%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
7041 Points -28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
6357 Points -35%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +25%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1804 Points +19%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1679 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1424 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1245 Points -18%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +29%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1740 Points +17%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1649 Points +11%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1453 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1306 Points -12%
CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1867 Points +13%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1448 Points -12%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1193 Points -28%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +71%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1811 Points +46%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1476 Points +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1271 Points +3%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1224 Points -1%
AIDA64 / Memory Copy
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s -5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s -9%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
44965 MB/s -10%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
44661 MB/s -11%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
41969 MB/s -16%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
37840 MB/s -25%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
35423 MB/s -29%
AIDA64 / Memory Read
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s -2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s -3%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
46906 MB/s -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46644 MB/s -9%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
44775 MB/s -12%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
42996 MB/s -16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40348 MB/s -21%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s -1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s -15%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
46454 MB/s -16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46223 MB/s -16%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
41806 MB/s -24%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
39154 MB/s -29%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
35371 MB/s -36%
AIDA64 / Memory Latency
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
101.5 ns * -10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92.7 ns * -0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns *
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * +10%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
74.2 ns * +20%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
73.5 ns * +20%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
69 ns * +25%

* ... kleiner is beter

DPC latentie

Met de tool LatencyMon maten we al licht verhoogde latenties bij het openen van meerdere browsertabbladen. Het afspelen van 4K-video en het gebruik van Prime95 resulteerde niet in verdere verhogingen.

Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-video
Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-video
Maximale latentie na 10 seconden Prime95
Maximale latentie na 10 seconden Prime95
Bestuurders gerangschikt volgens langste uitvoeringsduur
Bestuurders gerangschikt volgens langste uitvoeringsduur
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1
1867 μs * -42%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
1625 μs * -23%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1488 μs * -13%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1317 μs *
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1113.9 μs * +15%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
961.5 μs * +27%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
779 μs * +41%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
659.1 μs * +50%

* ... kleiner is beter

Opslagapparaten

Morefine M600 (bron: Morefine)
Morefine M600 (bron: Morefine)

Ons Morefine M600 monster was uitgerust met een 1-TB SSD van Crucial, met name de Crucial P3 Plus. Oplettende lezers zullen merken dat we onze benchmarks eigenlijk met een andere SSD hebben uitgevoerd. Tijdens onze test haperde de ingebouwde SSD, waardoor we een ander model moesten gebruiken. De Kingston KC3000 is ook een PCle 4.0 NMVe SSD. We maten goede overdrachtssnelheden in onze test met een paar zwakke punten als het ging om continue uitvoer.

De Morefine M600 kan worden uitgerust met maximaal 3 SSD's en je kunt zelfs een 2,5-inch schijf onder het deksel van de pc aansluiten - de schijf mag echter niet hoger zijn dan 9 millimeter. Zoals eerder vermeld wordt de kabel die hiervoor nodig is meegeleverd.

Bekijk voor meer vergelijkingen en benchmarks onze vergelijkingstabel.

Crucial P3 Plus met 1 TB (vooraan)
Crucial P3 Plus met 1 TB (vooraan)
Crucial P3 Plus met 1 TB (achterkant)
Crucial P3 Plus met 1 TB (achterkant)
AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Kingston KC3000 2048G SKC3000D2048G
Sequential Read: 4492 MB/s
Sequential Write: 489.5 MB/s
512K Read: 1075 MB/s
512K Write: 488.4 MB/s
4K Read: 70.5 MB/s
4K Write: 222 MB/s
4K QD32 Read: 492.6 MB/s
4K QD32 Write: 336 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
86.2 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
82.1 pt
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.9 pt
Gemiddelde van klas Mini PC

52.6 pt
Morefine S600-Apex Engineer -8!
Crucial P1 SSD CT1000P1SSD8
47.8 pt
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
41.8 pt
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
40 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
34.9 pt
Morefine S500+
ADATA XPG Gammix S11L 1024GB
31.2 pt
DiskSpd
seq read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s +172%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +139%
Gemiddelde van klas Mini PC
  (233 - 4357, n=119, laatste 2 jaar)
2288 MB/s +95%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2184 (2176.42min - 2183.52max) MB/s +86%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2034 (2023.33min - 2033.61max) MB/s +73%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1790 (1744.2min - 1789.7max) MB/s +52%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1713 (1703.57min - 1712.81max) MB/s +46%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1176 (1169.13min - 1175.87max) MB/s
seq write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s +131%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s +122%
Gemiddelde van klas Mini PC
  (222 - 5595, n=119, laatste 2 jaar)
2448 MB/s +60%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1681.49min - 1789.9max) MB/s +17%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1530 (603.77min - 1530.08max) MB/s
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1277 (1270.04min - 1277.38max) MB/s -17%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1185 (1181.38min - 1184.95max) MB/s -23%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
984 (154.77min - 984.48max) MB/s -36%
seq q8 t1 read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s +143%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s +142%
Gemiddelde van klas Mini PC
  (236 - 8430, n=119, laatste 2 jaar)
3706 MB/s +87%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2525 (2269.25min - 2525.2max) MB/s +27%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2378 (2126.78min - 2378.31max) MB/s +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
2273 (1501.91min - 2273.31max) MB/s +14%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2167 (2086.44min - 2166.57max) MB/s +9%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1987 (1409.4min - 1987.27max) MB/s
seq q8 t1 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3536 (3475.82min - 3536.01max) MB/s +226%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s +214%
Gemiddelde van klas Mini PC
  (228 - 6669, n=119, laatste 2 jaar)
2743 MB/s +153%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1687.16min - 1790.13max) MB/s +65%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1758 (161.06min - 1758.04max) MB/s +62%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1316 (1309.25min - 1315.54max) MB/s +21%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1200 (1191.05min - 1200.08max) MB/s +11%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1084 (553.02min - 1084.16max) MB/s
4k q1 t1 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s +69%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
70.8 (63.28min - 70.81max) MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
63 (57.2min - 63.02max) MB/s +30%
Gemiddelde van klas Mini PC
  (5.67 - 86.6, n=119, laatste 2 jaar)
54.7 MB/s +13%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
48.5 (48.27min - 48.47max) MB/s
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
45.1 (43.96min - 45.09max) MB/s -7%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
44.4 (44.23min - 44.37max) MB/s -8%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
29.5 (29.27min - 29.48max) MB/s -39%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +93%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
288 (287.39min - 288.47max) MB/s +31%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
220 (212.2min - 220.15max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
199.5 (150.75min - 199.48max) MB/s -9%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
196.3 (179.94min - 196.31max) MB/s -11%
Gemiddelde van klas Mini PC
  (30.4 - 435, n=119, laatste 2 jaar)
194.7 MB/s -11%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
160 (158.59min - 159.95max) MB/s -27%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
138 (136.12min - 137.6max) MB/s -37%
4k q32 t16 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1944 (1936.89min - 1943.53max) MB/s +449%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1933 (1926.8min - 1932.75max) MB/s +446%
Gemiddelde van klas Mini PC
  (26.1 - 4158, n=119, laatste 2 jaar)
1360 MB/s +284%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1063 (1053.81min - 1062.87max) MB/s +200%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1005 (1003.31min - 1005.12max) MB/s +184%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
803 (785.8min - 802.75max) MB/s +127%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
354 (11.43min - 353.56max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
350 (213.46min - 349.65max) MB/s -1%
4k q32 t16 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3331 (2068.43min - 3331.41max) MB/s +273%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2396 (2376.28min - 2396.46max) MB/s +168%
Gemiddelde van klas Mini PC
  (30.2 - 4288, n=119, laatste 2 jaar)
1287 MB/s +44%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1032 (1014.5min - 1032.27max) MB/s +16%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
893 (601.78min - 892.97max) MB/s
Morefine S500+
ADATA XPG Gammix S11L 1024GB
890 (860.72min - 889.72max) MB/s 0%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
774 (725.33min - 774.03max) MB/s -13%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
561 (408.83min - 561.15max) MB/s -37%
AS SSD
Score Total
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
9030 Points
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
7134 Points -21%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
6665 Points -26%
Gemiddelde van klas Mini PC
  (181.5 - 10021, n=117, laatste 2 jaar)
4121 Points -54%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
4023 Points -55%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2887 Points -68%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2722 Points -70%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2248 Points -75%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1340 Points -85%
Score Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3635 Points
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2391 Points -34%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2352 Points -35%
Gemiddelde van klas Mini PC
  (61 - 3741, n=117, laatste 2 jaar)
1534 Points -58%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1365 Points -62%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1152 Points -68%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1000 Points -72%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
855 Points -76%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
655 Points -82%
Score Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3615 Points
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3538 Points -2%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3145 Points -13%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1959 Points -46%
Gemiddelde van klas Mini PC
  (88 - 4371, n=117, laatste 2 jaar)
1851 Points -49%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1251 Points -65%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1169 Points -68%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
992 Points -73%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
406 Points -89%
Seq Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
5338 MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4147 MB/s -22%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4050 MB/s -24%
Gemiddelde van klas Mini PC
  (291 - 6620, n=117, laatste 2 jaar)
3161 MB/s -41%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
2723 MB/s -49%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
2303.9 MB/s -57%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2204 MB/s -59%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
2133 MB/s -60%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2048 MB/s -62%
Seq Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3927 MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3292 MB/s -16%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3025 MB/s -23%
Gemiddelde van klas Mini PC
  (240 - 5783, n=117, laatste 2 jaar)
2212 MB/s -44%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1699 MB/s -57%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1603 MB/s -59%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1405 MB/s -64%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1254 MB/s -68%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
1145 MB/s -71%
4K Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
103.66 MB/s +56%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.05 MB/s +29%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
77.46 MB/s +16%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.6 MB/s
Gemiddelde van klas Mini PC
  (6.08 - 104.3, n=117, laatste 2 jaar)
58.9 MB/s -12%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
57.87 MB/s -13%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
39.71 MB/s -40%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
34.41 MB/s -48%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
27.6 MB/s -59%
4K Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
365.87 MB/s +75%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
247.2 MB/s +18%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
240.66 MB/s +15%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
209 MB/s
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
185.32 MB/s -11%
Gemiddelde van klas Mini PC
  (30.9 - 366, n=117, laatste 2 jaar)
175.1 MB/s -16%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
152.35 MB/s -27%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
121.3 MB/s -42%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
100.35 MB/s -52%
4K-64 Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3035 MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1872.82 MB/s -38%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1860.96 MB/s -39%
Gemiddelde van klas Mini PC
  (23.4 - 3220, n=117, laatste 2 jaar)
1159 MB/s -62%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1073.73 MB/s -65%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
891.59 MB/s -71%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
711.88 MB/s -77%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
622 MB/s -80%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
348.68 MB/s -89%
4K-64 Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3013 MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2842.9 MB/s -6%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2602.12 MB/s -14%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
1541.66 MB/s -49%
Gemiddelde van klas Mini PC
  (32.8 - 3731, n=117, laatste 2 jaar)
1455 MB/s -52%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
984.11 MB/s -67%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
823.51 MB/s -73%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
745 MB/s -75%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
164.61 MB/s -95%
Access Time Read
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.154 ms * -133%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
0.154 ms * -133%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
0.105 ms * -59%
Gemiddelde van klas Mini PC
  (0.022 - 0.489, n=117, laatste 2 jaar)
0.09726 ms * -47%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
0.084 ms * -27%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.074 ms * -12%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.066 ms *
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.065 ms * +2%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.06 ms * +9%
Access Time Write
Gemiddelde van klas Mini PC
  (0.014 - 0.765, n=117, laatste 2 jaar)
0.1153 ms * -541%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.103 ms * -472%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.103 ms * -472%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
0.035 ms * -94%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.031 ms * -72%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.031 ms * -72%
Minisforum EliteMini B550
Kingston OM8PDP3512B-AI1
0.029 ms * -61%
Morefine S600-Apex Engineer
Crucial P1 SSD CT1000P1SSD8
0.026 ms * -44%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.018 ms *

* ... kleiner is beter

Reading continuous output: DiskSpd Read Loop, Queue Depth 8

0245490735980122514701715196022052450269529403185343036753920416544104655Tooltip
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)
Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S: Ø2242 (1995.64-2278.98)
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Grafische kaart

AMD Radeon 680M (bron: Morefine)
AMD Radeon 680M (bron: Morefine)

De andere tests hebben al een beeld geschetst van deAMD Radeon 680Mals een Rembrandt-SoC iGPU. Met de Morefine M600 zagen we ook een grote prestatiewinst ten opzichte van de Morefine S500+met een oudere AMD Radeon RX Vega 8. In vergelijking met de Minisforum Neptune Series NAD9maakt duidelijk dat dit hard nodig was.

Vanwege de Thunderbolt-poort hebben we de prestaties bekeken in combinatie met de Razer Core X en een Nvidia GeForce RTX 3060 Ti. Door de mindere PCI Express-connectiviteit van de desktop grafische kaart waren de prestaties echter enigszins beperkt. Toch namen de 3D-prestaties van de iGPU aanzienlijk toe. Onze synthetische tests lieten vergelijkbare resultaten zien als de concurrenten van de Morefine M600. Alleen de Ace Magician TK11-A0 bleef wat achter door zijn tragere CPU.

Je kunt meer AMD Radeon 680M benchmarks vindenhier.

AMD Radeon 680M

3DMark Performance Rating - Percent
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
99.1 pt
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
98 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
72.5 pt
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
71.9 pt
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
64.3 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
63.8 pt
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
51.6 pt
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
50.7 pt
3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
11055 Points
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
10845 Points -2%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
7122 Points -36%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
7057 Points -36%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6840 Points -38%
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
6687 Points -40%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
5777 Points -48%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
5565 Points -50%
3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
43275 Points +5%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
41124 Points
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
32899 Points -20%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
30434 Points -26%
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
30433 Points -26%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
26183 Points -36%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
21114 Points -49%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
20432 Points -50%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
6679 Points +1%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
6644 Points
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
5543 Points -17%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5526 Points -17%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4883 Points -27%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
4369 Points -34%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
3725 Points -44%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
3379 Points -49%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
2408 Points
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
2351 Points -2%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1658 Points -31%
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
1633 Points -32%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1630 Points -32%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1412 Points -41%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
1150 Points -52%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
1109 Points -54%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
3206 Points +5%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
3066 Points
Morefine S600-Apex Engineer
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
2498 Points -19%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
2455 Points -20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
2161 Points -30%
Morefine S500+
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1823 Points -41%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
1735 Points -43%
Minisforum EliteMini B550
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G
1509 Points -51%
Performance Rating - Percent
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
98.4 pt
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
91.6 pt
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
64.4 pt
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
61.2 pt
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
61.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 -2!
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
59.2 pt
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
50.8 pt
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
47.6 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
34.6 fps +3%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
33.6 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
24.1 fps -28%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
23.3 fps -31%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
22.2 fps -34%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
19.6 fps -42%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
17.3 fps -49%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
14.9 fps -56%
Extreme Preset DX11
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
33.4 fps +4%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
32.2 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
24.7 fps -23%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
24 fps -25%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
22.5 fps -30%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
21.4 fps -34%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
17.7 fps -45%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
16.8 fps -48%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
21 fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
18.8 fps -10%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
15.5 fps -26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
14.3 fps -32%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
14.2 fps -32%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
13.6 fps -35%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
11.5 fps -45%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
10.6 fps -50%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
22.8 fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
21.3 fps -7%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
16.4 fps -28%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
16.2 fps -29%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
15.2 fps -33%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
13.7 fps -40%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
12.8 fps -44%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
9.2 fps -60%
Unigine Superposition
1920x1080 1080p High
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
3187 Points +9%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
2916 Points
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
2191 Points -25%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
2095 Points -28%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1926 Points -34%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1579 Points -46%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
1530 Points -48%
1920x1080 1080p Extreme
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1481 Points +9%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1358 Points
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1076 Points -21%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
1041 Points -23%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
868 Points -36%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
776 Points -43%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
736 Points -46%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
7111 Points +22%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
5813 Points
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
4148 Points -29%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
3843 Points -34%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
3535 Points -39%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
3390 Points -42%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
3343 Points -42%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
2693 Points -54%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
400 Points +8%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
371 Points
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
298 Points -20%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
276 Points -26%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
235 Points -37%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
234 Points -37%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
224 Points -40%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
186 Points -50%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
404 Points +10%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
367 Points
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
286 Points -22%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
272 Points -26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
249 Points -32%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
242 Points -34%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
220 Points -40%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
204 Points -44%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2030 Points +21%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1677 Points
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1280 Points -24%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1217 Points -27%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
891 Points -47%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
851 Points -49%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
808 Points -52%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
558 Points -67%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2332 Points +21%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1924 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
1303 Points -32%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
1205 Points -37%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1191 Points -38%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
1123 Points -42%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
1115 Points -42%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
994 Points -48%

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
99.9 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
98.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
97.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
95.9 pt
3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
33425 Points +202%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
32915 Points +198%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
32726 Points +196%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
32630 Points +195%

11055 Points
3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
121918 Points +196%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
118686 Points +189%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
116516 Points +183%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
112625 Points +174%

41124 Points
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
25071 Points +277%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
24905 Points +275%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
24360 Points +267%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
24193 Points +264%

6644 Points
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
11032 Points +358%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
10777 Points +348%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
10717 Points +345%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
10530 Points +337%

2408 Points
Fire Strike Extreme Graphics
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
13299 Points +334%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
13264 Points +333%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
13007 Points +324%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
12943 Points +322%

3066 Points
Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
169.6 fps +405%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
167.3 fps +398%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
167.3 fps +398%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
142.1 fps +323%

33.6 fps
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
164.4 fps +411%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
154.5 fps +380%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
154.3 fps +379%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
135.3 fps +320%

32.2 fps
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
141.6 fps +574%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
134.2 fps +539%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
131.7 fps +527%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
93.6 fps +346%

21 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
127.2 fps +458%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
122.7 fps +438%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
122.2 fps +436%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
91.6 fps +302%

22.8 fps
Unigine Superposition
1920x1080 1080p High
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
14751 Points +406%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
14698 Points +404%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
8142 Points +179%

2916 Points
1920x1080 1080p Extreme
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
7036 Points +418%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
7035 Points +418%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
, i5-1135G7, Future Path FPE220M8SSD512G
4171 Points +207%

1358 Points
ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
27847 Points +379%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
27847 Points +379%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
27740 Points +377%

5813 Points
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
2698 Points +627%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
2691 Points +625%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
2679 Points +622%

371 Points
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
2629 Points +616%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
2622 Points +614%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
2619 Points +614%

367 Points
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
5711 Points +241%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
5689 Points +239%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
5655 Points +237%

1677 Points
1024x600 Normal, QJuliaRayTrace
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
10539 Points +448%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
10536 Points +448%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, i7-1260P
10532 Points +447%

1924 Points

Spelprestaties

Vergeleken met deAMD Radeon RX Vega 8is de nieuwe AMD Radeon 680Meen grote toename in prestaties laten zien. Met een paar beperkingen in detail liepen sommige huidige games soepel - maar niet altijd. Bij het spelen van Borderlands 3 met gemiddelde detailniveaus wisten we slechts 35 FPS te halen. De gaming prestaties waren goed in vergelijking met die van de concurrenten, hoewel de Minisforum Venus Series UM690het iets beter deed in onze tests. Vergeleken met concurrenten die de huidige Intel iGPU's gebruiken, is de AMD Radeon 680Mzijn mannetje kunnen staan en soms zelfs de leiding nemen.

Net als in onze synthetische tests hebben we de gaming prestaties van de PC bekeken in combinatie met de Razer Core X en een Nvidia GeForce RTX 3060 Ti. Zijn 3D-prestaties namen aanzienlijk toe door het gebruik van Thunderbolt en de bijbehorende accessoires. In vergelijking met zijn concurrenten, die we op dezelfde manier hebben getest, deed ons testexemplaar het uitstekend. De Intel NUC 12 Pro was in staat om betere prestaties te bereiken dankzij zijn snelle CPU. Daardoor konden de 3D prestaties van de geteste games met 153 procent worden verbeterd ten opzichte van de Morefine M600 op basis van de iGPU.

Kijk voor verdere vergelijkingen en benchmarks naar onze GPU spellen lijst.

AMD Radeon 680M

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
131.8 fps +16%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
113.9 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
97.6 (8.8min, 27.5P0.1, 58.5P1) fps -14%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
97.2 fps -15%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
88.1 (3.39min, 21.4P0.1, 52.9P1) fps -23%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
84.5 (18.4min, 24P0.1, 61.8P1) fps -26%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
69 (13.2min, 36.3P0.1, 41.6P1) fps -39%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
65.9 (1.678min, 12.6P0.1, 39.7P1) fps -42%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
41.3 fps +5%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
39.4 fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
32.1 (3.28min, 14.8P0.1, 18.7P1) fps -19%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
32 fps -19%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
25.6 (19.1min, 20P0.1, 22.1P1) fps -35%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
23.7 (1.923min, 13.5P0.1, 19.7P1) fps -40%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
19.3 (2.25min, 2.26P0.1, 2.92P1) fps -51%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
15.2 (8.49min, 8.73P0.1, 9.27P1) fps -61%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
90.7 fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
82.1 fps -9%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
72.7 fps -20%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
61 fps -33%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
59.1 fps -35%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
55.5 fps -39%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
52.4 fps -42%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
33.9 fps -63%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
26.5 fps +10%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
24.1 fps
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
17.7 fps -27%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
16.2 fps -33%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
15.7 fps -35%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
15 fps -38%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
14.8 fps -39%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
10.5 fps -56%
GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
152.1 (2.73min, 100P1) fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
149.3 (5.43min, 100P1) fps -2%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
136 (6.37min, 90.9P1) fps -11%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
135.3 (26.7min, 90.9P1) fps -11%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
114.9 (9.31min, 76.9P1) fps -24%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
113.4 (25.6min, 76.9P1) fps -25%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
108.6 (21.4min, 71.4P1) fps -29%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
68.3 (18.7min, 45.5P1) fps -55%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
53.5 (3.46min, 38.5P1) fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
49.3 (7.78min, 34.5P1) fps -8%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
33.9 (11min, 24.4P1) fps -37%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
26.5 (10.4min, 18.9P1) fps -50%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
22.2 (5.57min, 17.5P1) fps -59%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
21 (8.15min, 16.1P1) fps -61%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
19.4 (8.25min, 15.2P1) fps -64%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
16.4 (5.82min, 11.9P1) fps -69%
Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
75 (60min) fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
71 (39min) fps -5%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
62 (57min) fps -17%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
59 (53min) fps -21%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57 (49min) fps -24%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
52 (45min) fps -31%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
44 (19min) fps -41%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
25 (19min) fps -67%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
39 (34min) fps +15%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
34 (30min) fps
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
28 (25min) fps -18%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
27 (24min) fps -21%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
27 (24min) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
25 (23min) fps -26%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
20 (10min) fps -41%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
16 (13min) fps -53%
Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
66 (50min) fps
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
65 (50min) fps -2%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
56 (43min) fps -15%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
53 (31min) fps -20%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
52 (31min) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
47 (30min) fps -29%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
42 (33min) fps -36%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
29 (19min) fps -56%
1920x1080 High Preset
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
37 (17min) fps 0%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
37 (29min) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
28 (21min) fps -24%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
27 (21min) fps -27%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
26 (21min) fps -30%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
26 (19min) fps -30%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
19 (6min) fps -49%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
15 (12min) fps -59%
Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
143 (124.5min) fps +7%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
141 (113.7min) fps +6%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
137.4 (117.3min) fps +3%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
136.9 (106.8min) fps +3%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
133.4 (119min) fps
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
124.2 (110.5min) fps -7%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
116.4 (93.7min) fps -13%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
79.1 (53.9min) fps -41%
1920x1080 high (2/3)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
84.3 (74.6min) fps +3%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
82.2 (71.4min) fps
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
68 (62.7min) fps -17%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
67 (61.5min) fps -18%
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
66.7 (61min) fps -19%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
63.1 (57.2min) fps -23%
Minisforum EliteMini B550
Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1
51.7 (47.2min) fps -37%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
43.4 (31.3min) fps -47%
lagegem.hogeultra
GTA V (2015) 152.1 140.4 53.5 24.1
The Witcher 3 (2015) 113.9 72.7 39.4 25
Dota 2 Reborn (2015) 133.4 110.4 82.2 71.8
Final Fantasy XV Benchmark (2018) 59.5 31 23.4
X-Plane 11.11 (2018) 63.5 50.7 41.3
Far Cry 5 (2018) 75 41 34 36
Strange Brigade (2018) 140.4 57.8 47.9 41.3
Shadow of the Tomb Raider (2018) 92 39.8 35.4 29.9
Far Cry New Dawn (2019) 66 39 37 34
Metro Exodus (2019) 65.8 27.2 20.2 16.4
Borderlands 3 (2019) 90.7 34.8 24.1 19.6
F1 2020 (2020) 166.9 80.9 63.7 43.9
F1 2021 (2021) 175.3 82.1 63.5 26.6
Far Cry 6 (2021) 78.4 38.7 33.1 28.6
GRID Legends (2022) 84.5 62.9 48 38
Cyberpunk 2077 1.6 (2022) 50.6 41.8 33.6 18.9
Tiny Tina's Wonderlands (2022) 44.7 35.3 23.5 18.7
F1 22 (2022) 74.3 65.4 48.4 12.2

Nvidia GeForce RTX 3060 Ti via Thunderbolt 3

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
97.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
85.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
84.7 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
73.8 pt
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
33.5 pt
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
90.5 (15.8min, 62.5P1 - 187.2max) fps +276%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
89.5 (16.6min, 58.8P1 - 175.8max) fps +271%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
85.1 (17.4min, 52.6P1 - 186.7max) fps +253%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
56.1 (15.7min, 38.5P1 - 119.1max) fps +133%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
24.1 (2.82min, 16.9P1 - 72.5max) fps
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
75.3 (40.5min, 52.6P0.1, 59.5P1 - 173.3max) fps +201%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
60.8 (40.3min, 43P0.1, 46.6P1 - 140.7max) fps +143%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
57.9 fps +132%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
56.3 fps +125%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
25 fps
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
134.5 (115.1min) fps +87%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
113.3 (94.8min) fps +58%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
111.7 (92.8min) fps +56%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
92.8 (79.9min) fps +29%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
71.8 (61.8min) fps
Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
97.6 fps +317%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
92.2 fps +294%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
91.5 fps +291%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
79 fps +238%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
23.4 fps
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
148.8 (78.4min, 90.6P1 - 285max) fps +260%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
131.1 (68.1min, 78.3P1 - 270max) fps +217%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
127.4 (45.3min, 77.9P1 - 260max) fps +208%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
114.7 (58.8min, 72.4P1 - 210max) fps +178%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
41.3 (30.4min, 32.8P1 - 70max) fps
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
120 (92min - 158max) fps +233%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
107 (72min - 143max) fps +197%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
104 (77min - 138max) fps +189%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
60 (46min - 78max) fps +67%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
36 (32min - 44max) fps
Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
101 (74min - 147max) fps +197%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
88 (63min - 132max) fps +159%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
87 (62min - 135max) fps +156%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
54 (39min - 85max) fps +59%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
34 (26min - 42max) fps
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
102.7 (53min - 145max) fps +134%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
86.7 (48min - 122max) fps +97%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
82.4 (39min - 117max) fps +88%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
81.5 (43min - 107max) fps +86%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
43.9 (34min - 54max) fps
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
65.4 (47min, 47P1 - 73max) fps +146%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
51.7 (34min, 24P1 - 59max) fps +94%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
44 (9min, 20P1 - 52max) fps +65%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
43.5 (10min, 19P1 - 51max) fps +64%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
26.6 (19min, 19P1 - 30max) fps
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
83.6 fps +327%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
76.4 fps +290%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
71.3 fps +264%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
69.8 fps +256%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
19.6 fps
lagegem.hogeultraQHD4K
GTA V (2015) 174.2 169.1 151.9 89.5 58.5 96.9
The Witcher 3 (2015) 210.1 143.7 108.7 56.3 60.9
Dota 2 Reborn (2015) 140.6 126.4 120 111.7 96.5
Final Fantasy XV Benchmark (2018) 174.9 132.2 92.2 73.6 46.5
X-Plane 11.11 (2018) 106.7 94 76 66.3
Far Cry 5 (2018) 132 115 111 104 90 56
Strange Brigade (2018) 173 134.5 132.9 131.1 119.6 79.5
Shadow of the Tomb Raider (2018) 117.6 91.6 89.4 86.8 77.3 51.4
Far Cry New Dawn (2019) 114 101 98 87 81 57
Metro Exodus (2019) 113.9 76.7 58.6 44 39.2 30
Borderlands 3 (2019) 87.2 96.2 84.3 69.8 55.1 32.8
F1 2020 (2020) 174.6 95.9 106.1 86.7 74.9 53.1
F1 2021 (2021) 117.5 91.1 57.6 44 38.9 34.5
Far Cry 6 (2021) 62.6 53.3 44.1 37.8 37.2 0.8
GRID Legends (2022) 98.7 83.7 69.1 59.3 53.1 43.9
Cyberpunk 2077 1.6 (2022) 82.8 80.7 72.9 60.7 43 23.1
Tiny Tina's Wonderlands (2022) 154.1 125.5 92.2 74.8 58.2 35
F1 22 (2022) 49.4 44.9 35.2 20.5 22 16.9

Emissies - zuinig, maar nog steeds hoorbaar

Geluidsemissies

Zoals gezien in deMorefine S600 Apex Engineerbeschikt de Morefine M600 over een vergelijkbaar koelsysteem, dat dankzij de zuinige SoC relatief stil kan werken. In onbelaste toestand is het apparaat zeer stil en we hebben 37,5 dB(A) gemeten bij gemiddelde belasting. Dit maakt de geluidsemissies van de Morefine M600 hoorbaar, maar ze zijn volledig acceptabel in vergelijking met zijn concurrenten.

Geluidsniveau

Onbelast
30.9 / 31.5 / 31.5 dB (A)
Belasting
37.5 / 34.1 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm afstand)   omgevingslawaai: 30.4 dB(A)
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
Morefine S500+
R9 5900HX, Vega 8
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
Minisforum EliteMini B550
R7 5700G, Vega 8
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
Noise
1%
-16%
-9%
6%
-8%
4%
-3%
uit / omgeving *
30.4
30.5
-0%
29.6
3%
30.1
1%
30.2
1%
30.4
-0%
30.2
1%
30.28
-0%
Idle Minimum *
30.9
31.6
-2%
36.1
-17%
30.5
1%
33.1
-7%
30.5
1%
31.82
-3%
Idle Average *
31.5
31.6
-0%
37.6
-19%
33.15
-5%
30.5
3%
33.1
-5%
30.5
3%
32.27
-2%
Idle Maximum *
31.5
31.6
-0%
39.2
-24%
30.5
3%
33.1
-5%
30.5
3%
33.17
-5%
Load Average *
37.5
33.9
10%
42.6
-14%
30.5
19%
38.1
-2%
31.2
17%
35.82
4%
Load Maximum *
34.1
34.4
-1%
42.4
-24%
41.63
-22%
30.5
11%
43.6
-28%
35.1
-3%
37.1
-9%

* ... kleiner is beter

Temperatuur

De behuizing van de Morefine M600 warmt slechts licht op, wat betekent dat de warmte er effectief uit geleid wordt. In de AMD Ryzen 9 6900HX'stress test (die een extreem scenario simuleert), noteerden we een maximale temperatuur van 90,9 °C.

Stresstest Prime95, solo
Stresstest Prime95, solo
Stresstest FurMark, solo
Stresstest FurMark, solo
Stresstest Prime95 + FurMark
Stresstest Prime95 + FurMark
Morefine M600 tijdens stresstest
Morefine M600 tijdens stresstest
Morefine M600 tijdens stresstest
Morefine M600 tijdens stresstest
Morefine M600's stroomadapter tijdens stresstest
Morefine M600's stroomadapter tijdens stresstest

Stroomverbruik

Vergeleken met de prestaties van de Morefine M600 was het stroomverbruik zeer gering. Dit voordeel gold voor alle mini PC's in onze vergelijking. Vergeleken met de Morefine S600 Apex Engineerkon de fabrikant het stroomverbruik bij onbelaste toestand drastisch verbeteren. Met een verbruik van slechts 9,9 tot 11,2 watt zat ons exemplaar ongeveer op hetzelfde niveau als deMinisforum Venus Series UM690. Bij belasting had de Morefine M600 een iets hoger stroomverbruik dan zijn concurrenten. Naast deMinisforum Neptune Series NAD9en deMinisforum EliteMini B550overschreed hij even de grens van 100 watt.

Zijn 120-watt voedingsadapter had nooit moeite om de PC van voldoende stroom te voorzien.

120-watt stroomadapter (boven)
120-watt stroomadapter (boven)
120-watt stroomadapter (onderaan)
120-watt stroomadapter (onderaan)
Stroomgebruik
Uit / Standbydarklight 1.6 / 2.2 Watt
Inactiefdarkmidlight 9.9 / 11 / 11.2 Watt
Belasting midlight 74.2 / 103.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
Morefine S500+
R9 5900HX, Vega 8
Minisforum EliteMini B550
R7 5700G, Vega 8
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
Gemiddeld AMD Radeon 680M

Gemiddelde van klas Mini PC

Power Consumption
10%
-267%
-21%
-5%
20%
-3%
47%
24%
-1%
Idle Minimum *
9.9
8.7
12%
46.5
-370%
12.1
-22%
12.1
-22%
8.1
18%
8.9
10%
3.4
66%
Idle Average *
11
9.6
13%
63
-473%
13
-18%
12.2
-11%
8.4
24%
9.6
13%
5.7
48%
Idle Maximum *
11.2
10.5
6%
68.9
-515%
18.2
-63%
12.3
-10%
11.9
-6%
11.8
-5%
7
37%
Load Average *
74.2
65.8
11%
73.9
-0%
70.6
5%
64
14%
47.1
37%
98.9
-33%
36.5
51%
53.1 ?(20 - 77.7, n=32)
28%
Load Maximum *
103.2
94.5
8%
80.8
22%
113
-9%
98.8
4%
72.9
29%
101.8
1%
68
34%

* ... kleiner is beter

Power consumption with external monitor

0102030405060708090100Tooltip
Morefine M600, 6900HX; Prime95 V2810 Stress (external Monitor): Ø73.7 (67.6-103.2)
Morefine M600, 6900HX; Cinebench R15 Multi (external Monitor): Ø83.2 (76.2-92.8)
Morefine M600, 6900HX; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø80.2 (74-97.8)
Morefine M600, 6900HX; 1920x1080 The Witcher 3 ultra (external Monitor): Ø74.7 (71.8-85.8)
Morefine M600, 6900HX; Idle 1min (external Monitor): Ø11.2 (10.9-12)

Pro

+ robuuste en compacte behuizing met hoogwaardige materialen
+ mooi ontwerp
+ goede iPGU-prestaties
+ veel USB-poorten, waaronder Thunderbolt
+ tot 3 SSD's
+ gebruik tot 3 beeldschermen tegelijkertijd
+ dubbele LAN 2.5G

Contra

- geen SD-kaartlezer
- SoC prestaties niet beter dan zijn voorganger

Verdict - zeker geschikt voor het dagelijks leven

De Morefine M600 beoordeeld, beschikbaar gesteld door Morefine
De Morefine M600 beoordeeld, beschikbaar gesteld door Morefine

De Morefine M600 is een klassiek voorbeeld van een mini PC die je over de streep trekt dankzij zijn hoogwaardige afwerking en geweldige prestaties. Optisch biedt het volledig zwarte apparaat misschien niet veel hoogtepunten, maar dat geeft niet. Met zijn AMD Ryzen 9 6900HXkrijg je een zeer snelle 8-core SoC met goede iGPU prestaties - merkbaar beter dan die van de Morefine S500+er zijn zeker enkele actuele games die je vlot op de PC kunt spelen zonder te moeten beknibbelen op grafische details. Je moet de Morefine M600 echter niet zien als een volwaardige gaming PC. Zijn moderne connectiviteitsopties, waaronder Thunderbolt 4, maken het apparaat toekomstbestendig - zelfs als de CPU-prestaties stagneren in vergelijking met de Morefine S500+.

De Morefine M600 is een snelle mini PC met geweldige connectiviteitsopties. Dankzij zijn Thunderbolt 4-poort heeft hij veel mogelijkheden om tot zijn volle potentieel te worden gepusht.

Een klein nadeel van de pc is het ingebouwde koelsysteem - maar het overtreft nog steeds dat van deMorefine S600 Apex Engineerdit kan worden toegeschreven aan zijn iets zuinigere SoC. DeMinisforum Venus Series UM690die we eerder hebben getest, bleek een vergelijkbaar uitgeruste mini PC te zijn die uiteindelijk veel stiller draaide bij belasting.

Prijzen en beschikbaarheid

De Morefine M600 kan momenteel rechtstreeks bij de fabrikant worden gekochtprijzen beginnen bij $569voor de barebone versie met de AMD Ryzen 9 6900HX. Het goedkopere model met de Ryzen 5 begint bij $388.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Morefine M600, 6900HX - 25-03-2023 v7 (old)
Sebastian Bade

Behuizing
87 / 98 → 89%
Aansluitmogelijkheden
63 / 81 → 78%
Gewicht
79%
Gaming-performance
78%
Applicatie-performance
96%
Workstation
78%
Luidheid
85%
Gemiddelde
81%
86%
Mini PC - Gewogen Gemiddelde
Please share our article, every link counts!
Mail Logo
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Morefine M600 desktop PC review: Moderne mini PC met AMD Ryzen 9 6900HX, 32 GB DDR5 en USB4
Sebastian Bade, 2023-03-29 (Update: 2023-03-29)
