Lenovo ThinkPad W540 20BG001BGE

Laptopspecificaties

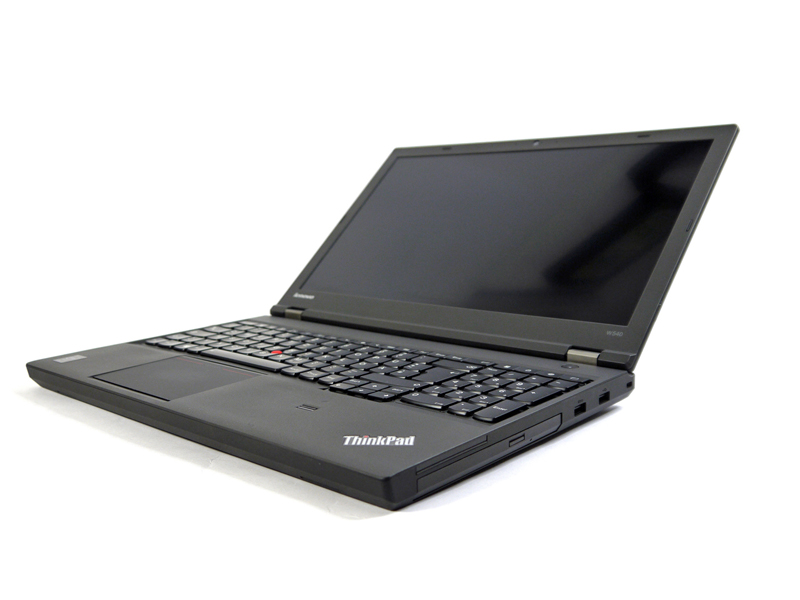

Lenovo ThinkPad W540 20BG001BGE
Lenovo ThinkPad W540 20BG001BGE (ThinkPad W540 Serie)
Processor
Intel Core i7-4800MQ 4 x 2.7 - 3.7 GHz, Haswell
Grafische kaart
NVIDIA Quadro K2100M - 2048 MB VRAM, Core: 666 MHz, Geheugen: 752 MHz, GDDR5, Forceware 312.69, Nvidia Optimus mit Intel HD Graphics 4600
Geheugen
8 GB
, 1 x 8 GB PC3-12800 DDR3L, Single Channel, 3 Steckplätze frei - max. 32 GB
Beeldscherm
15.60 inch 16:9, 1920 x 1080 pixel, B156HTN03.4, LEN40B4, TN LED, glimmend: nee
Moederbord
Intel QM87 (Lynx Point)
Opslag
Samsung SSD 840 250GB MZ7TD256HAFV, 250 GB
Geluidskaart
Intel Lynx Point PCH - High Definition Audio Controller
Verbindingen
1 Express Kaart 34mm, 2 USB 2.0, 2 USB 3.0, 1 Thunderbolt, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: kombinierter Ein- und Ausgang, Card Reader: SD, SDHC, SDXC, 1 Vingerafdruklezer, Sensoren: Schocksensor, Farbsensor
Netwerkmogelijkheden
Intel I217-LM Gigabit Network Connection (10/100/1000MBit/s), Intel Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optische drive
Matshita DVD-RAM UJ8E2
Afmetingen
hoogte x breedte x diepte (in mm): 35 x 376 x 269
Batterij
99 Wh Lithium-Ion
Besturingssysteem
Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)
Camera
Webcam: 720p
Bijkomende functionaliteiten
Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 36 Maanden Garantie, SSD nachgerüstet
Gewicht
2.61 kg, Voeding: 680 g
Prijs
1900 Euro



Price comparison

Gemiddelde Score: 84.5% - goed
Gemiddelde van 8 score (van 10 beoordelingen)
prijs: 84%, prestatie: 95%, functionaliteiten: 80%, beeldscherm: 76% mobiliteit: 75%, afwerking: 84%, ergonomie: 88%, emissies: 84%

Testrapporten voor de Lenovo ThinkPad W540 20BG001BGE

83% Review Update Lenovo ThinkPad W540 20BG001BGE Workstation | Notebookcheck
Enhanced transformation. We reviewed a Lenovo ThinkPad W540 model with rather weak hardware a few weeks ago. The second test model delivers many things we wished for. The impact of these differences will be illustrated in this review.
Lenovo ThinkPad W540 Mobile Workstation Review: Two steps forward...?
Bron: PC Perspective Engels EN→NL Archive.org version
In spite of its fairly-palatable price point of $1,499, the W540 is ultimately a few steps forward, a few steps backward. There’s still plenty to like, from a solid build that’s lighter than expected to a fantastic keyboard and sharp 3K screen. The performance is also perfectly suited for its intended audience; it handled everything we threw at it with relative ease across the spectrum of CPU, GPU, and storage benchmarks. It’s essentially a business-grade gaming PC in many respects, and its focus on power over portability accentuates that philosophy.
Enkel testrapport, online beschikbaar, Lang, Datum: 09-03-2015
85% The most powerful business laptop we've tested
Bron: Digital Trends Engels EN→NL Archive.org version
Looking at the machine’s hardware capability, its performance blows past all business laptops we’ve tested till December 2014. What’s particularly surprising and noteworthy is the laptop’s better-than-average loud and clear speakers for a pleasant audio experience.
Enkel testrapport, online beschikbaar, Zeer kort, Datum: 30-01-2015
Beoordeling: Totale score: 85%
90% Lenovo ThinkPad W540
Bron: Computer Shopper Engels EN→NL Archive.org version
Lenovo's ThinkPad W540 is an excellent laptop that most buyers should not consider—and that's what Lenovo intended. The ThinkPad W540 isn't for everyone, but graphics pros, architects, engineers, and others in the market for a portable workstation will be thrilled with its performance and features.
Enkel testrapport, online beschikbaar, Lang, Datum: 23-01-2015
Beoordeling: Totale score: 90%
Lenovo ThinkPad W540
Bron: Hot Hardware Engels EN→NL Archive.org version
You're going to want to cancel your gym membership once you've spent a few weeks lugging the Lenovo Thinkpad W520 around. However, you're getting a lot of performance for your sacrifice. While this laptop might be overkill for a person who just needs a general Windows device to carry around and surf the Web on, this is a great laptop for those looking for a real mobile workstation.
Enkel testrapport, online beschikbaar, Lang, Datum: 16-01-2015
Lenovo ThinkPad W540 Review – Old-School Pride
Bron: Slashgear Engels EN→NL Archive.org version
The machine has the hardware needed for tasks ranging from video work to animation, graphic design, and other activities beyond typing data sheets and compiling reports. The battery life is quite commendable given the specs, able to put out a few hours of run time even when demanding use is taking place, and even longer when one is simply browsing or reading. Despite all it has to offer, the machine is still light in comparison to competing models, ensuring you won't strain your shoulder lugging it around. For these reasons the W540 is definitely a laptop to consider if you're in the market for a business machine.
Enkel testrapport, online beschikbaar, Zeer kort, Datum: 30-10-2014
80% Lenovo ThinkPad W540
Bron: PC Mag Engels EN→NL Archive.org version
The Lenovo ThinkPad W540 has both beauty in its self-color-calibrating screen and brawn in its top-notch benchmark performance. Its battery life and performance exceed the expectations of most mobile workstation users, and aside from a quirky trackpad, the system looks and feels like a traditional Lenovo ThinkPad laptop. All of those traits, plus a slightly less-expensive price tag, are enough to help the ThinkPad W540 leapfrog over the HP ZBook 14 as our Editors' Choice for mobile workstations.
Enkel testrapport, online beschikbaar, Zeer kort, Datum: 30-10-2014
Beoordeling: Totale score: 80%
79% Lenovo ThinkPad W540 Mobile Workstation Review
Bron: Notebookreview.com Engels EN→NL Archive.org version
Lenovo’s ThinkPad W540 is a worthwhile addition to the mobile workstation market. We appreciated its good construction, the excellent picture quality of its optional 3K IPS display, powerful performance for professional applications, strong battery life, and good keyboard feel. The W540 is the first notebook we’ve tested with a built-in display calibrator, a notable advantage over competitors. Lastly it’s a good value at around $2,000, as configured; it’s a lot of performance for the money.
Enkel testrapport, online beschikbaar, Kort, Datum: 28-10-2014
Beoordeling: Totale score: 79%
80% A top-notch 3K workstation with a top-shelf price tag
Bron: Techradar Engels EN→NL Archive.org version
At $2,573 (about £1,606, AU$2,946) the Lenovo ThinkPad W540 is a costly business investment whether you're buying just one or multiple units for your employees. For this reason there are a lot of other machines to consider, especially if your line of work does not require a 2880 x 1620 display. There are also direct competitors such as the MacBook Pro 15 that offer a slightly higher fidelity Retina display for less money. The Dell Precision M4800 also offers up the same configuration with an even higher-resolution 3200 x 1800 display, all for a smaller equipment bill. If it were not for the enormous price tag we would wholeheartedly recommend the Lenovo ThinkPad W540, just be sure to check out the competition before you decide to foot the big bill.
Enkel testrapport, online beschikbaar, Gemiddeld, Datum: 07-10-2014
Beoordeling: Totale score: 80% prijs: 70% prestatie: 100% functionaliteiten: 60% afwerking: 70%
80% Lenovo ThinkPad W540
Bron: Laptop Mag Engels EN→NL Archive.org version
Demanding users who work in engineering, science or other professions that require tons of raw processing power can get similar performance levels from Dell, HP or Lenovo workstations, depending on which processor, graphics card and SSD they choose. However, the ThinkPad W540 stands out from this pricey crowd because of its durable design, industry-leading keyboard, bright screen and excellent low-light webcam.
Enkel testrapport, online beschikbaar, Gemiddeld, Datum: 13-08-2014
Beoordeling: Totale score: 80%
99% Lenovo ThinkPad W540 Mobile Workstation Laptop Review
Bron: Tweaktown Engels EN→NL Archive.org version
About the only complaint we have is the price. Yes, the W540 has a premium price tag attached to it, but if you want quality and performance, you have to pay for it. You do have some other choices; these amount to gaming laptops. These can cost a bundle also, generate far more heat, have extremely limited battery life, and weigh far more than the W540. It may be nitpicking a little bit here, but for the price of the W540, it would be nice if it came with the earbuds and perhaps the carrying case. The ThinkPad W540 mobile workstation is an excellent laptop that stands above the others in quality and performance.
Enkel testrapport, online beschikbaar, Zeer lang, Datum: 25-07-2014
Beoordeling: Totale score: 99% prijs: 98% prestatie: 100% functionaliteiten: 100% afwerking: 100%

Commentaar

NVIDIA Quadro K2100M: Workstation grafische kaart gebaseerd op de GK106 Kepler architectuur met 576 shaders en een 128-Bit geheugenbus.

Deze grafische kaarten zouden alle huidige spellen moeten kunnen draaien, maar de meeste spellen zullen alleen met gemiddelde of lage detail instellingen en lage resoluties goed werken. Oudere of minder veeleisende spellen kunnen nog wel met goede grafische instellingen gespeeld worden.


>> Meer informatie kan gevonden worden in ons Vergelijk van Mobiele Grafische Kaarten en de passende Benchmark Tabel.


4800MQ: Haswell quad-core processor met een kloksnelheid van 2.7 GHz, die dankzij Turbo Boost kan oplopen tot 3.7 GHz. Beschikt over een geïntegreerde HD Graphics 4600 GPU en dual-channel DDR3 memory controller.
>> Meer informatie kan gevonden worden in ons Vergelijk van Mobiele Processors.


15.60": 15-16 inch is een standaard schermgrootte voor laptops en dekt de grootste variëteit aan producten.
>>Om de fijnheid van het scherm te vinden, kijk in onze DPI-lijst.


2.61 kg: Dit gewicht is typisch voor laptops met een 14-16 inch schermdiagonaal.


Lenovo: Lenovo ("Le" uit de Engelse legende, novo (Latijn voor nieuw) werd in 1984 opgericht als Chinees handelsbedrijf in computers. In 2004 was het bedrijf de grootste laptopfabrikant in China en, na de overname van IBM's pc-divisie in 2005, de op drie na grootste ter wereld. Naast desktops en notebooks produceert het bedrijf monitoren, projectors, servers, enz. en is het gespecialiseerd in de ontwikkeling, productie en marketing van consumentenelektronica, pc's, software, bedrijfsoplossingen en aanverwante diensten.

In 2016 stond het bedrijf op de eerste plaats in de wereld wat betreft computerverkopen. Dit was in 2023 nog steeds het geval, met een wereldwijd marktaandeel van ongeveer 23%. Belangrijke productlijnen zijn Thinkpad, Legion en Ideapad.

In 2011 verwierf het een meerderheidsbelang in Medion AG, een Europese fabrikant van computerhardware. In 2014 werd Motorola Mobility gekocht, wat Lenovo een boost gaf op de smartphonemarkt.


84.5%: Deze score moet gezien worden als gemiddeld, omdat het aantal notebooks dat hoger scoort ongeveer gelijk is aan het aantal dat lager scoort.


>> De verdere informatie kan worden gevonden in onze hulp voor de aankoop van laptops.
