Kort testrapport Lenovo ThinkPad P51 (Xeon, 4K) Workstation

Name: Lenovo ThinkPad P51 20HH0016GE
Brand: Lenovo

Meer prestaties en een erg goed beeldscherm. Lenovo's ThinkPad P51 is een volwaardig mobiel werkstation met een 15-inch beeldscherm, krachtige Xeon quad-core processor en een professionele grafische kaart van nVidia. Met name het 4K beeldscherm overtuigd in de test.

Andreas Osthoff, 👁 Andreas Osthoff, ✓ Stefanie Voigt, Published 25-06-2017 🇺🇸 🇩🇪 ...

Business Geforce Kaby Lake Laptop / Notebook Windows Workstation

Testtoestel voorzien door Lapstars

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad P51 20HH0016GE (ThinkPad P51 Serie)

Processor

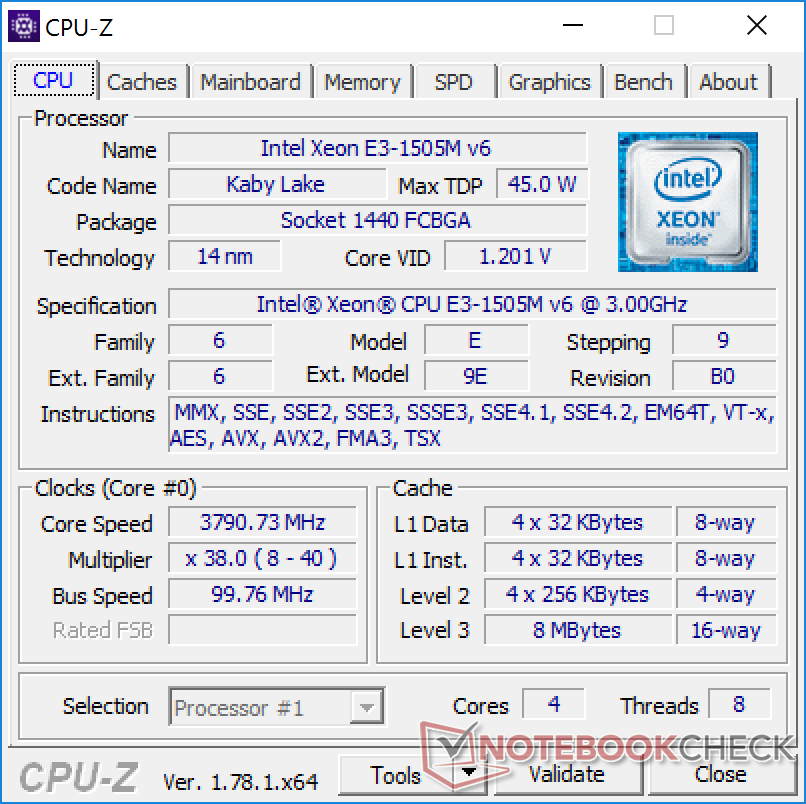

Intel Xeon E3-1505M v6 4 x 3 - 4 GHz, Kaby Lake

Grafische kaart

NVIDIA Quadro M2200 - 4 GB VRAM, Core: 1038 MHz, GDDR5, Optimus

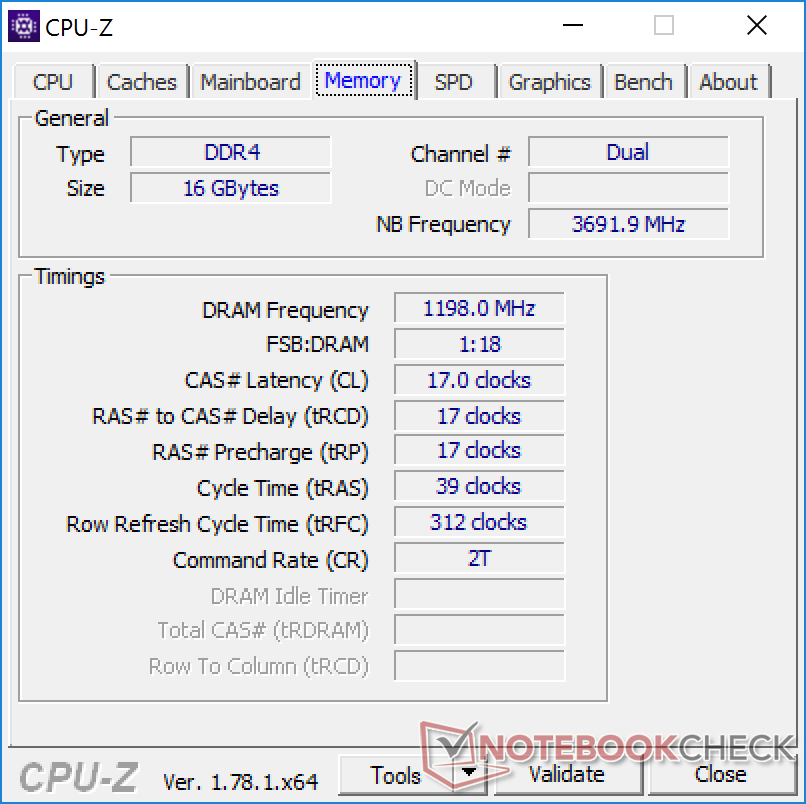

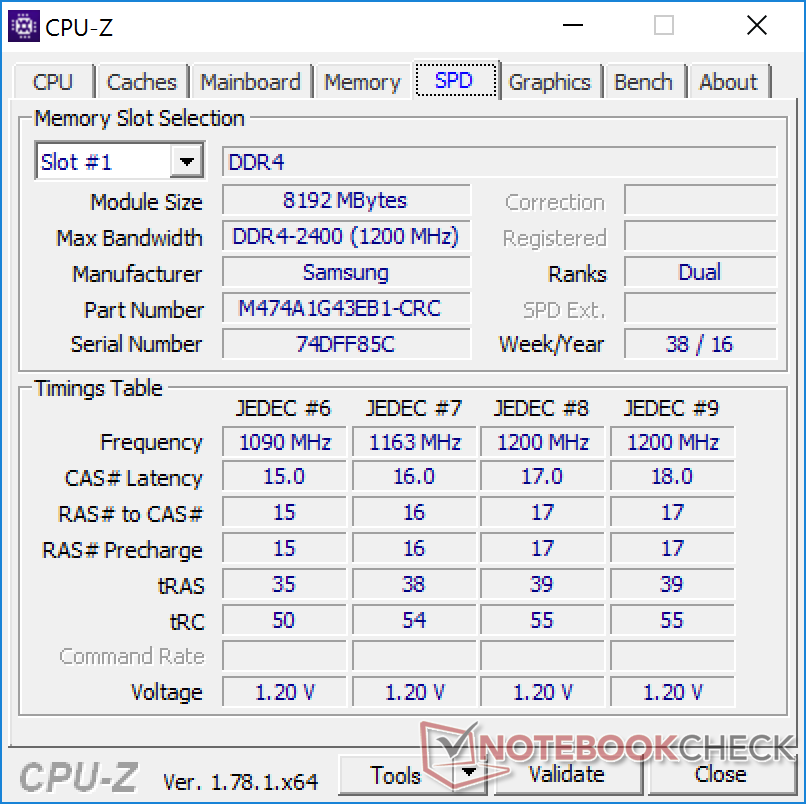

Geheugen

16 GB

, Dual-channel, DDR4-2400, max. 64 GB

Beeldscherm

15.60 inch 16:9, 3840 x 2160 pixel 282 PPI, LEN40BD, B156ZAN02.1, IPS, glimmend: nee

Moederbord

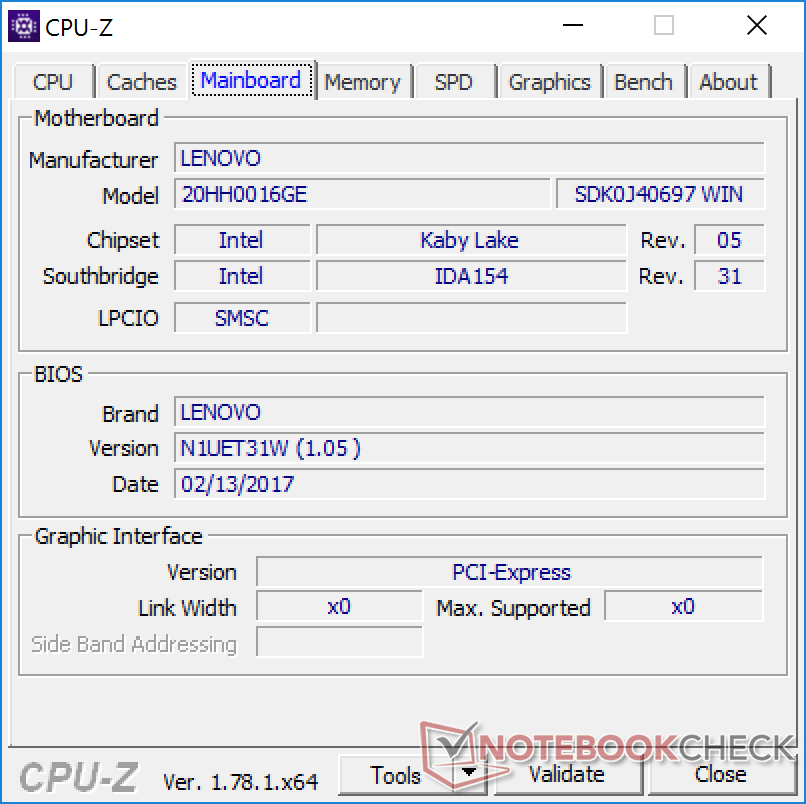

Intel CM238

Opslag

Samsung PM961 NVMe MZVLW512HMJP, 512 GB

Geluidskaart

Intel A171

Verbindingen

1 Express Kaart 34mm, 3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: 3.5 mm stereo jack, Card Reader: 4-in-1 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Vingerafdruklezer

Netwerkmogelijkheden

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1

Afmetingen

hoogte x breedte x diepte (in mm): 29.4 x 377.4 x 252.3

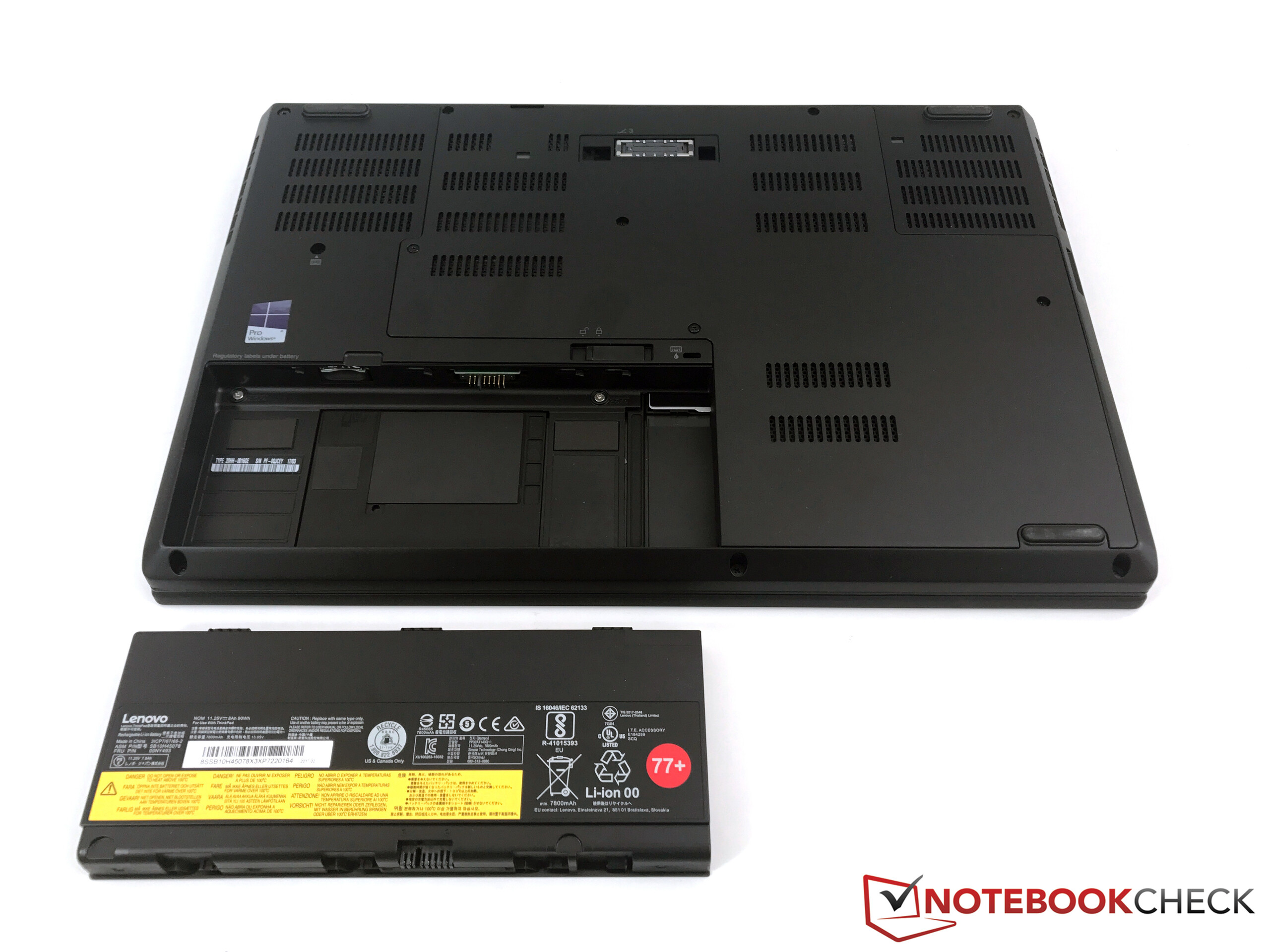

Batterij

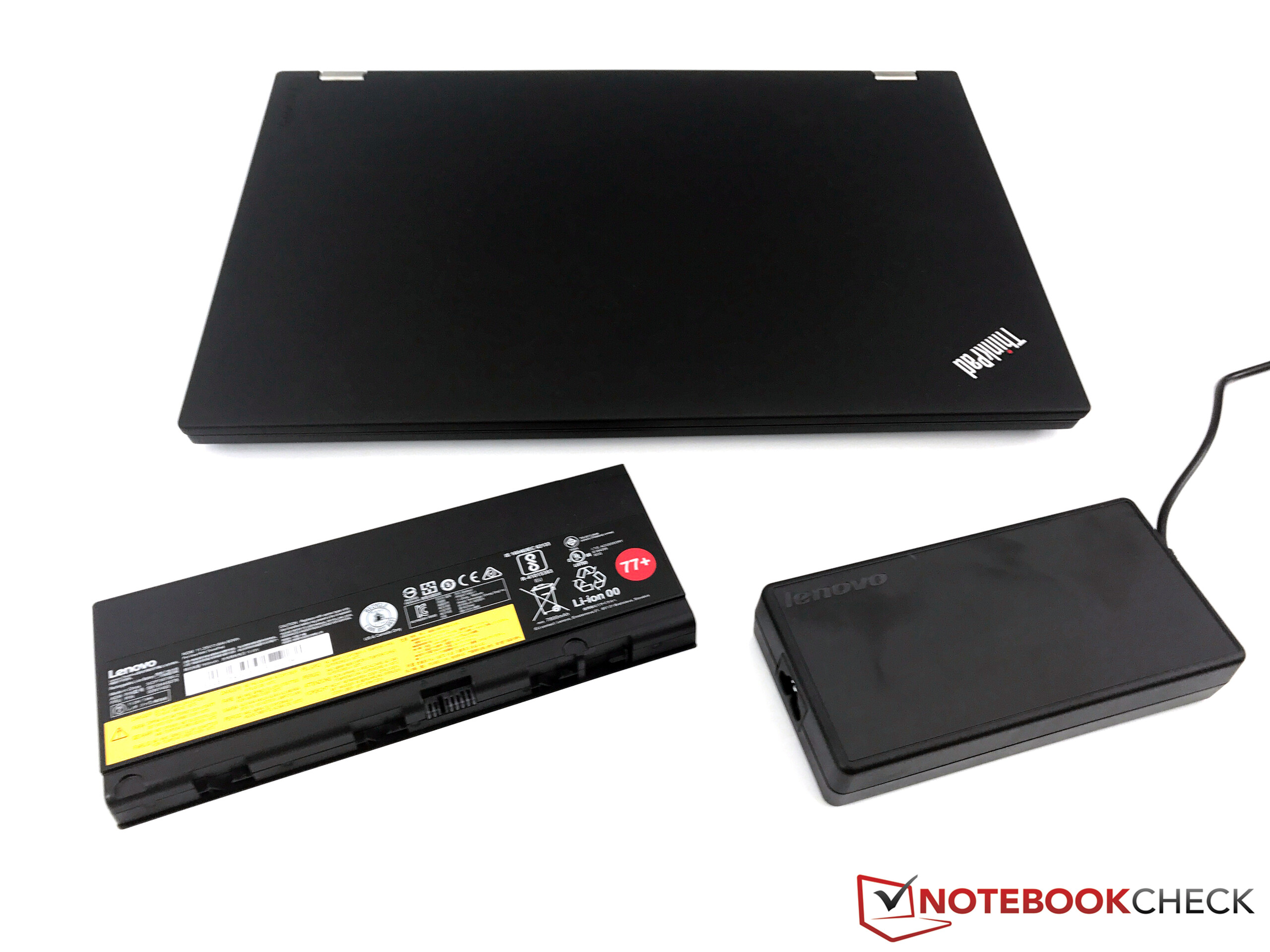

90 Wh Lithium-Polymer, verwijderbaar

Besturingssysteem

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 720p HD

Bijkomende functionaliteiten

Luidsprekers: Stereo (2x2 watts), Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 170-watt stroomadapter, snelstarthandleiding, garantieinformatie, Lenovo Settings App, Pantone Color Calibrator, Microsoft Office (trial), 36 Maanden Garantie

Gewicht

2.634 kg, Voeding: 689 g

Prijs

3300 Euro

Links

Lenovo startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

Size Comparison

Dell Precision 7510 (4K IGZO) HP ZBook 15 G3 Fujitsu Celsius H760 Lenovo ThinkPad P51 20HH0016GE Lenovo ThinkPad P50 Lenovo ThinkPad P51s 20HB000SGE Dell Precision 5520 UHD DIN A4 ❌

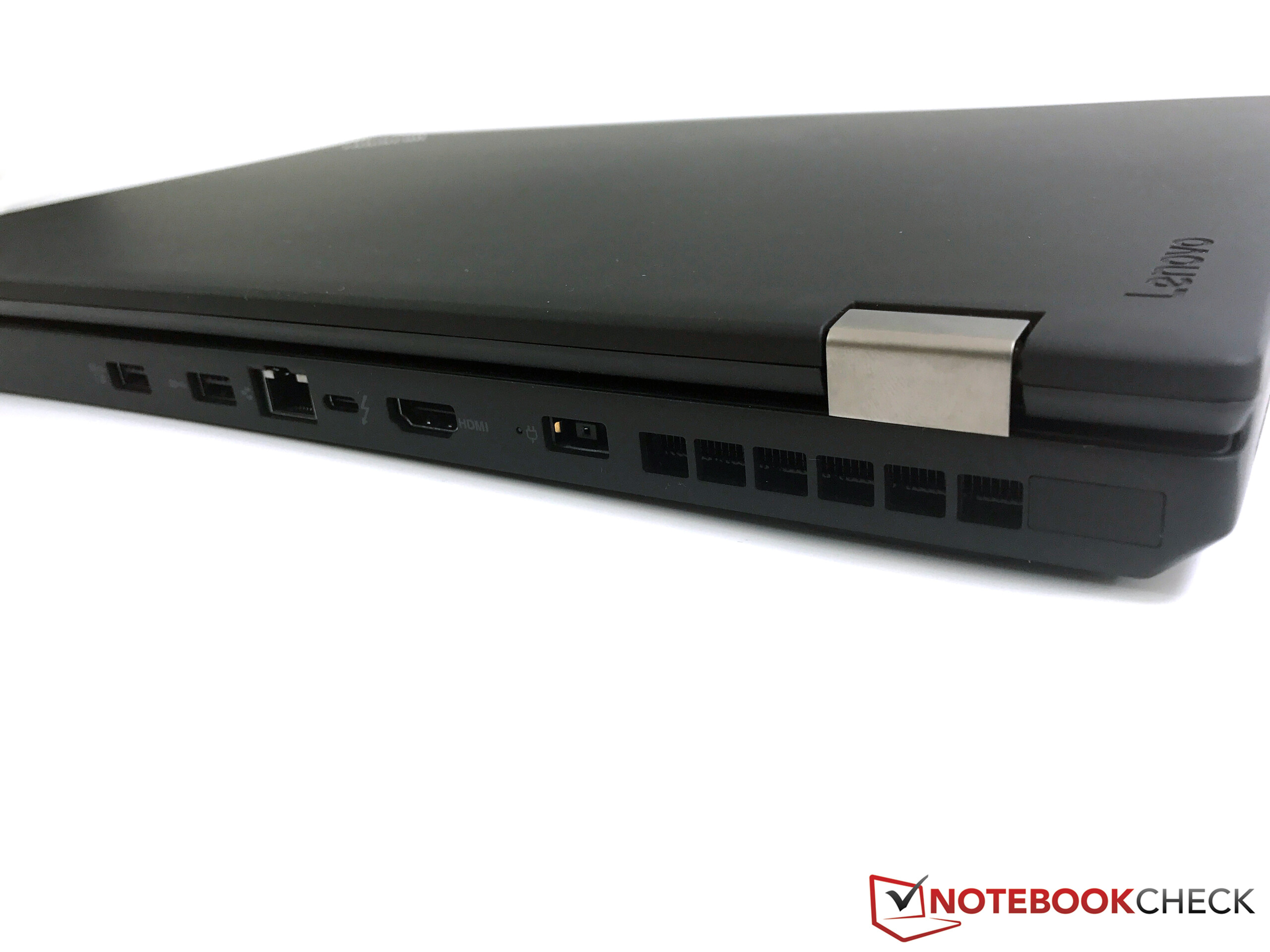

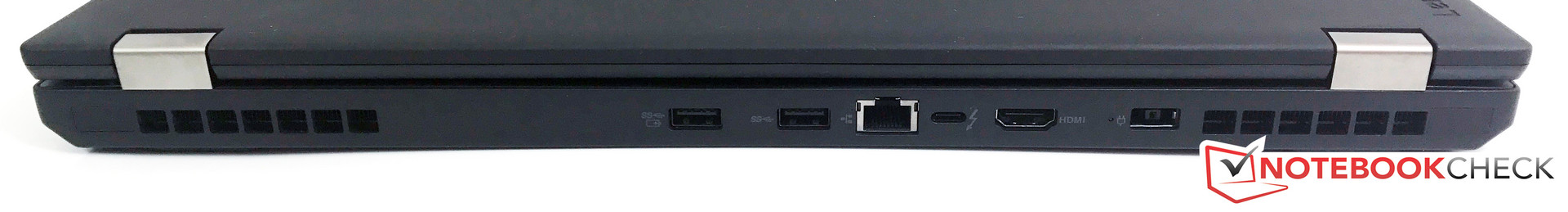

Rear: 2x USB 3.0 (1x Always-on), Gigabit Ethernet, USB 3.1 Type-C (Gen. 2)/Thunderbolt 3, HDMI 1.4b, power

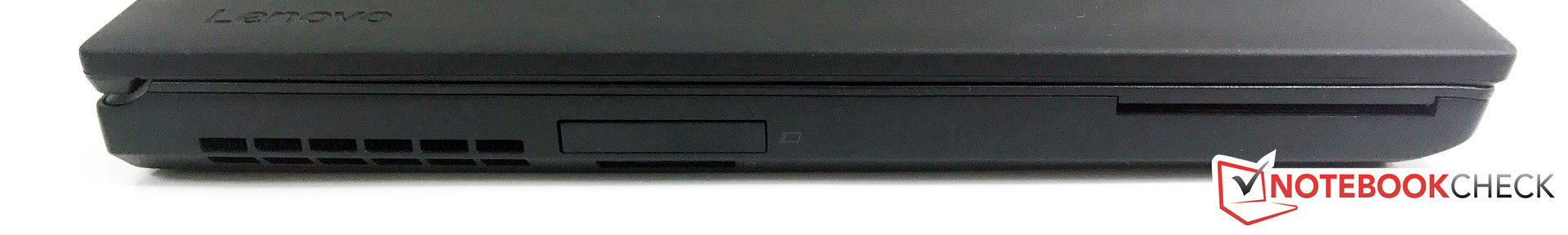

Left side: ExpressCard (34 mm), SmartCard reader

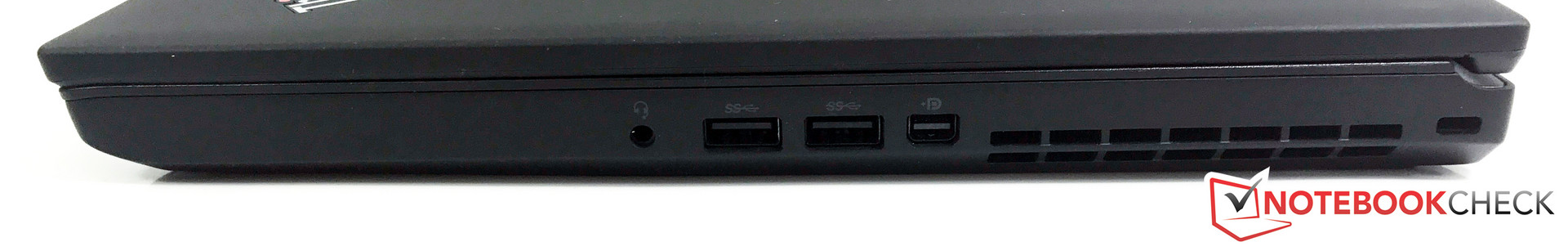

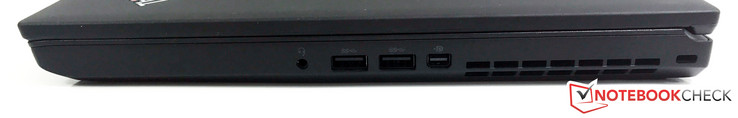

Right side: Stereo jack (combo), 2x USB 3.0, Mini-DisplayPort 1.2a

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Precision 5520 UHD	157.5 MB/s +2%
Lenovo ThinkPad P51 20HH0016GE	155 MB/s
HP ZBook 15 G3	123 MB/s -21%
Dell Precision 7510 (4K IGZO)	122.9 MB/s -21%
Lenovo ThinkPad P50	108 MB/s -30%
Fujitsu Celsius H760	84 MB/s -46%
Lenovo ThinkPad P51s 20HB000SGE	76.8 MB/s -50%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 5520 UHD	254.5 MB/s +18%
Lenovo ThinkPad P51 20HH0016GE	215 MB/s
HP ZBook 15 G3	206 MB/s -4%
Lenovo ThinkPad P50	197 MB/s -8%
Fujitsu Celsius H760	171 MB/s -20%
Lenovo ThinkPad P51s 20HB000SGE	89 MB/s -59%

Networking
iperf3 transmit AX12
Lenovo ThinkPad P51s 20HB000SGE Intel Dual Band Wireless-AC 8265	508 MBit/s 0%
Lenovo ThinkPad P51 20HH0016GE Intel Dual Band Wireless-AC 8265	508 MBit/s
Dell Precision 5520 UHD Intel Dual Band Wireless-AC 8265	506 (622^min) MBit/s 0%
iperf3 receive AX12
Lenovo ThinkPad P51s 20HB000SGE Intel Dual Band Wireless-AC 8265	672 MBit/s +5%
Lenovo ThinkPad P51 20HH0016GE Intel Dual Band Wireless-AC 8265	643 MBit/s
Dell Precision 5520 UHD Intel Dual Band Wireless-AC 8265	622 MBit/s -3%


295 cd/m²	298 cd/m²	302 cd/m²
313 cd/m²	317 cd/m²	330 cd/m²
322 cd/m²	299 cd/m²	307 cd/m²

Helderheidsverdeling

LEN40BD, B156ZAN02.1 tested with X-Rite i1Pro 2

Maximum: 330 cd/m² (Nits) Gemiddelde: 309.2 cd/m² Minimum: 3.8 cd/m²
Helderheidsverdeling: 89 %
Helderheid in Batterij-modus: 313 cd/m²
Contrast: 881:1 (Zwart: 0.36 cd/m²)
ΔE Color 2.7 | 0.5-29.43 Ø4.91
ΔE Greyscale 3 | 0.5-98 Ø5.2
99.5% sRGB (Argyll 1.6.3 3D)
87.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
99.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.5% sRGB (Argyll 2.2.0 3D)
86.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

Download ICC-profiel (X-Rite i1Pro 2)

	Lenovo ThinkPad P51 20HH0016GE LEN40BD, B156ZAN02.1, , 3840x2160, 15.6"	Lenovo ThinkPad P50 LQ156D1JW05, , 3840x2160, 15.6"	Lenovo ThinkPad P50 LP156WF6-SPK1, , 1920x1080, 15.6"	Lenovo ThinkPad P51s 20HB000SGE BOE NV156QUM-N44, , 3840x2160, 15.6"	HP ZBook 15 G3 Samsung SDC5344, , 1920x1080, 15.6"	Dell Precision 7510 (4K IGZO) Sharp LQ156D1, , 3840x2160, 15.6"	Dell Precision 5520 UHD SHP1476, , 3840x2160, 15.6"	Fujitsu Celsius H760 LGD046F LP156WF6-SPP1, , 1920x1080, 15.6"
Display		-1%	-52%	-20%	-19%	0%	-18%	-27%
Display P3 Coverage	86.3	85.8 -1%	39.13 -55%	69.7 -19%	66.8 -23%	86.2 0%	67.4 -22%	63.9 -26%
sRGB Coverage	99.5	98.6 -1%	58.5 -41%	91.2 -8%	95.5 -4%	99.7 0%	98.5 -1%	82.4 -17%
AdobeRGB 1998 Coverage	99.3	98.2 -1%	40.45 -59%	66.8 -33%	69 -31%	99 0%	68.9 -31%	60.3 -39%
Response Times		9%	-8%	4%	-37%	-5%	-55%	2%
Response Time Grey 50% / Grey 80% *	40.8 ?(20.8, 20)	39.2 ?(14.8, 24.4) 4%	46 ?(17, 29) -13%	38.4 ?(20.4, 18) 6%	54 ?(24.4, 29.6) -32%	40.4 ?(19.6, 20.8) 1%	59.2 ?(27.6, 31.6) -45%	38 ?(15, 23) 7%
Response Time Black / White *	25.2 ?(14, 11.2)	22 ?(7, 15) 13%	26 ?(9, 17) -3%	24.8 ?(13.6, 11.2) 2%	35.6 ?(11.6, 24) -41%	27.6 ?(6.8, 20.8) -10%	41.6 ?(26.8, 14.8) -65%	26 ?(7, 19) -3%
PWM Frequency		217		980 ?(90)	198 ?(95)	198.4 ?(29)
Screen		-38%	-17%	-16%	-42%	-11%	-9%	-21%
Brightness middle	317	250 -21%	263 -17%	317 0%	306 -3%	279.2 -12%	372.4 17%	341 8%
Brightness	309	250 -19%	236 -24%	290 -6%	289 -6%	271 -12%	368 19%	310 0%
Brightness Distribution	89	86 -3%	78 -12%	85 -4%	85 -4%	83 -7%	90 1%	82 -8%
Black Level *	0.36	0.31 14%	0.34 6%	0.32 11%	0.34 6%	0.266 26%	0.48 -33%	0.34 6%
Contrast	881	806 -9%	774 -12%	991 12%	900 2%	1050 19%	776 -12%	1003 14%
Colorchecker dE 2000 *	2.7	4.5 -67%	2.35 13%	3.6 -33%	5.1 -89%	4.14 -53%	2.6 4%	3.8 -41%
Colorchecker dE 2000 max. *	4.1	9.3 -127%		6.6 -61%	9.9 -141%	6.56 -60%	5.6 -37%	10.8 -163%
Greyscale dE 2000 *	3	7.2 -140%	3.33 -11%	4.2 -40%	7.4 -147%	3.26 -9%	3.7 -23%	2 33%
Gamma	2.27 ^97%	2.31 ^95%	2.38 ^92%	2.24 ^98%	2.37 ^93%	2.19 ^100%	2.14 ^103%	2.17 ^101%
CCT	6077 ^107%	6399 ^102%	6917 ^94%	6740 ^96%	7263 ^89%	6375 ^102%	7096 ^92%	6581 ^99%
Color Space (Percent of AdobeRGB 1998)	87.6	85 -3%	37 -58%	59.5 -32%	63 -28%	85.68 -2%	63 -28%	54 -38%
Color Space (Percent of sRGB)	99.5	98.6 -1%	58 -42%	91.1 -8%	95 -5%	99.72 0%	99 -1%	82.2 -17%
Totaal Gemiddelde (Programma / Instellingen)		-10% / -24%	-26% / -23%	-11% / -14%	-33% / -36%	-5% / -8%	-27% / -17%	-15% / -19%

* ... kleiner is beter

Responstijd Scherm

ℹ

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

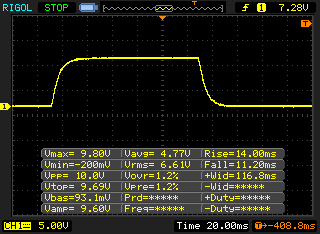

↔ Responstijd Zwart naar Wit
25.2 ms ... stijging ↗ en daling ↘ gecombineerd	↗ 14 ms stijging
25.2 ms ... stijging ↗ en daling ↘ gecombineerd	↘ 11.2 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games. Ter vergelijking: alle testtoestellen variëren van 0.1 (minimum) tot 240 (maximum) ms. » 57 % van alle toestellen zijn beter. Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (20.9 ms) van alle geteste toestellen.

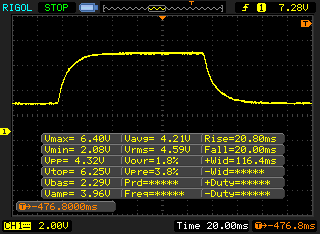

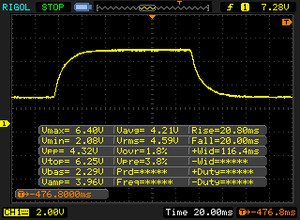

↔ Responstijd 50% Grijs naar 80% Grijs
40.8 ms ... stijging ↗ en daling ↘ gecombineerd	↗ 20.8 ms stijging
40.8 ms ... stijging ↗ en daling ↘ gecombineerd	↘ 20 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games. Ter vergelijking: alle testtoestellen variëren van 0.165 (minimum) tot 636 (maximum) ms. » 61 % van alle toestellen zijn beter. Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (32.8 ms) van alle geteste toestellen.

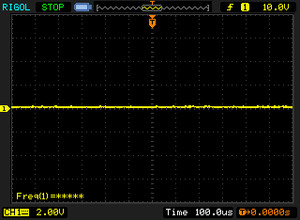

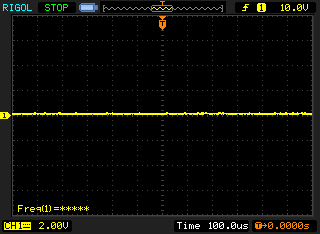

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.

Screen flickering / PWM niet waargenomen

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8705 (minimum: 5 - maximum: 343500) Hz waargenomen.

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad P51 20HH0016GE Intel Xeon E3-1505M v6	171 Points
Dell Precision 5520 UHD Intel Xeon E3-1505M v6	170 Points -1%
Dell Precision 7510 (4K IGZO) Intel Xeon E3-1535M v5	162 Points -5%
Lenovo ThinkPad P51s 20HB000SGE Intel Core i7-7600U	162 Points -5%
Dell Precision 3520 Intel Core i7-7820HQ	160 Points -6%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	158 Points -8%
Fujitsu Celsius H760 Intel Xeon E3-1505M v5	158 Points -8%
Lenovo ThinkPad P50 Intel Xeon E3-1505M v5	157 Points -8%
Acer Predator 17 G9-793-70PJ Intel Core i7-7700HQ	157 Points -8%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -32%
CPU Multi 64Bit
Lenovo ThinkPad P51 20HH0016GE Intel Xeon E3-1505M v6	792 Points
Dell Precision 7510 (4K IGZO) Intel Xeon E3-1535M v5	750 Points -5%
Dell Precision 3520 Intel Core i7-7820HQ	736 Points -7%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	732 Points -8%
Acer Predator 17 G9-793-70PJ Intel Core i7-7700HQ	732 Points -8%
Lenovo ThinkPad P50 Intel Xeon E3-1505M v5	729 Points -8%
Fujitsu Celsius H760 Intel Xeon E3-1505M v5	710 Points -10%
Dell Precision 5520 UHD Intel Xeon E3-1505M v6	654 Points -17%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points -25%
Lenovo ThinkPad P51s 20HB000SGE Intel Core i7-7600U	379 Points -52%

Cinebench R15 CPU Multi 64 Bit

Cinebench R10 Rendering Single 32Bit

6332

Cinebench R10 Rendering Multiple CPUs 32Bit

23780

Cinebench R11.5 CPU Single 64Bit

1.92 Points

Cinebench R11.5 CPU Multi 64Bit

8.61 Points

Cinebench R15 CPU Single 64Bit

171 Points

Cinebench R15 CPU Multi 64Bit

792 Points

Cinebench R15 OpenGL 64Bit

103.9 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Help

... in vergelijking

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2
Fujitsu Celsius H760 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512 m.2 PCI-e	4028 Points +11%
Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4023 Points +10%
Dell Precision 7510 (4K IGZO) Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4020 Points +10%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3959 Points +9%
Lenovo ThinkPad P51 20HH0016GE Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP	3641 Points
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	3504 Points -4%
Lenovo ThinkPad P51s 20HB000SGE Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	3232 Points -11%
Work Score Accelerated v2
Fujitsu Celsius H760 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512 m.2 PCI-e	5301 Points +25%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5221 Points +23%
Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4372 Points +3%
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	4291 Points +1%
Lenovo ThinkPad P51 20HH0016GE Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP	4256 Points
Dell Precision 7510 (4K IGZO) Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4246 Points 0%
Lenovo ThinkPad P51s 20HB000SGE Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	4193 Points -1%
Creative Score Accelerated v2
Lenovo ThinkPad P51 20HH0016GE Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP	6301 Points
Dell Precision 7510 (4K IGZO) Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	5537 Points -12%
Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	5086 Points -19%
Lenovo ThinkPad P51s 20HB000SGE Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	4640 Points -26%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	4392 Points -30%
Fujitsu Celsius H760 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512 m.2 PCI-e	4345 Points -31%
Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4291 Points -32%

PCMark 7 - Score
Lenovo ThinkPad P51 20HH0016GE Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP	6440 Points
Lenovo ThinkPad P51s 20HB000SGE Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	5568 Points -14%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5521 Points -14%
Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4979 Points -23%

PCMark 7 Score		6440 punten
PCMark 8 Home Score Accelerated v2		3641 punten
PCMark 8 Creative Score Accelerated v2		6301 punten
PCMark 8 Work Score Accelerated v2		4256 punten
Help

... in vergelijking

	Lenovo ThinkPad P51 20HH0016GE Samsung PM961 NVMe MZVLW512HMJP	Lenovo ThinkPad P51s 20HB000SGE Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	Lenovo ThinkPad P50 Samsung SM951 MZVPV256HDGL m.2 PCI-e	HP ZBook 15 G3 Samsung SM951 MZVPV512HDGL m.2 PCI-e	Dell Precision 7510 (4K IGZO) Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Dell Precision 5520 UHD Samsung SM961 MZVKW512HMJP m.2 PCI-e
CrystalDiskMark 3.0		-15%	11%	4%	-1%	-1%
Read Seq	1705	1189 -30%	1771 4%	1502 -12%	1648 -3%	2253 32%
Write Seq	1541	1138 -26%	1304 -15%	1538 0%	1575 2%	1662 8%
Read 512	1038	782 -25%	1364 31%	1164 12%	1155 11%	459.1 -56%
Write 512	1157	959 -17%	1291 12%	1432 24%	1561 35%	1611 39%
Read 4k	61.3	54.8 -11%	60.2 -2%	59.1 -4%	53 -14%	56.1 -8%
Write 4k	176	161.4 -8%	256.7 46%	207.3 18%	158.9 -10%	169.4 -4%
Read 4k QD32	664	642 -3%	953 44%	798 20%	623 -6%	633 -5%
Write 4k QD32	560	549 -2%	389.6 -30%	393.8 -30%	423 -24%	506 -10%

CrystalDiskMark 3.0

AS SSD

Samsung PM961 NVMe MZVLW512HMJP

Sequential Read: 1705 MB/s

Sequential Write: 1541 MB/s

512K Read: 1038 MB/s

512K Write: 1157 MB/s

4K Read: 61.3 MB/s

4K Write: 176 MB/s

4K QD32 Read: 664 MB/s

4K QD32 Write: 560 MB/s

3DMark 11 - 1280x720 Performance GPU
MSI GE72VR-6RF16H21 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	15019 Points +102%
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	11162 Points +50%
Nexoc G739 NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i7-7700HQ	10008 Points +35%
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	8391 Points +13%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	8313 Points +12%
MSI GL62M 7RD-077 NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ	8223 Points +11%
HP Omen 15-ax007ng NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	7919 Points +7%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	7425 Points
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	7319 Points -1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	5203 Points -30%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	5107 Points -31%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	5105 Points -31%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	5023 Points -32%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4997 Points -33%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	2658 Points -64%

3DMark
1280x720 Cloud Gate Standard Graphics
MSI GE72VR-6RF16H21 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	66406 Points +80%
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	61574 Points +67%
Nexoc G739 NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i7-7700HQ	51987 Points +41%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	50666 Points +37%
MSI GL62M 7RD-077 NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ	39824 Points +8%
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	38935 Points +6%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	37841 Points +3%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	36877 Points
HP Omen 15-ax007ng NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	36659 Points -1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	30495 Points -17%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	30236 Points -18%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	28254 Points -23%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	26869 Points -27%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	26669 Points -28%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	13394 Points -64%
1920x1080 Fire Strike Graphics
MSI GE72VR-6RF16H21 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	11617 Points +99%
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	9022 Points +54%
Nexoc G739 NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i7-7700HQ	8027 Points +37%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	6658 Points +14%
MSI GL62M 7RD-077 NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ	6382 Points +9%
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	6160 Points +5%
HP Omen 15-ax007ng NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	5904 Points +1%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	5869 Points 0%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	5850 Points
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	4193 Points -28%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	4165 Points -29%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	4126 Points -29%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4091 Points -30%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4071 Points -30%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	2342 Points -60%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	51.2 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	49.91 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	48.26 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	43.31 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	43.29 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	43.17 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	31.28 fps
1920x1080 Tcvis
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	56.3 fps
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	50.6 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	49.11 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	44.89 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	43.93 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	43.79 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	35.81 fps
1920x1080 SolidWorks
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	54.4 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	53 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	48.13 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	48.01 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	46.69 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	43.69 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	42.66 fps
1920x1080 Pro/ENGINEER
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	22.46 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	21.57 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	21.27 fps
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	19.51 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	17.54 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	16.84 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	16.23 fps
1920x1080 Maya
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	57.8 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	57.7 fps
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	57.6 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	57.3 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	56.9 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	56.6 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	50.8 fps
1920x1080 Lightwave
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	56.4 fps
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	56.3 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	52 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	51.9 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	48.34 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	48.27 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	47.95 fps
1920x1080 Ensight
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	59.3 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	59.1 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	55.7 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	46.68 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	46.43 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	45.8 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	24.78 fps
1920x1080 Catia
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	54.1 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	53.5 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	53.5 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	53.4 fps
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	50.3 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	48.49 fps
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	40.53 fps

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	107.3 fps +24%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	86.2 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	85.3 fps -1%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	84.8 fps -2%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	74.7 fps -13%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	71.7 fps -17%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	69 fps -20%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	68.7 fps -20%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	66 fps -23%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	45.9 fps -47%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	73.3 fps +27%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	65.8 fps +14%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	58.1 fps +1%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	57.7 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	35.87 fps -38%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	34.18 fps -41%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	33.95 fps -41%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	32.86 fps -43%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	32.41 fps -44%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	24.13 fps -58%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	54 fps +65%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	43.81 fps +34%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	32.8 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	32.77 fps 0%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	26.2 fps -20%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	23.86 fps -27%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	21.35 fps -35%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	21.15 fps -36%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	20.58 fps -37%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	11.8 fps -64%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	29.32 fps +14%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	25.66 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	22.34 fps -13%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	20.34 fps -21%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	18.19 fps -29%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	17.49 fps -32%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	15.03 fps -41%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	14.68 fps -43%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	14.43 fps -44%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	8.29 fps -68%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	64.6 fps +38%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	50.4 fps +7%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	46.94 fps 0%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	46.93 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	38.46 fps -18%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	37.15 fps -21%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	35.94 fps -23%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	35.55 fps -24%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	32.07 fps -32%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	19.51 fps -58%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	7.6 fps +44%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	5.26 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	4.85 fps -8%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	4.28 fps -19%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	3.98 fps -24%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	3.78 fps -28%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	3.29 fps -37%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	3.2 fps -39%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	3.13 fps -40%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	0.53 fps -90%
1900x1060 Creo (creo-01)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	85.6 fps +26%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	68.5 fps 0%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	68.2 fps
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	64.8 fps -5%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	46.12 fps -32%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	45 fps -34%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	40.61 fps -40%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	39.39 fps -42%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	38.95 fps -43%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	27.98 fps -59%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	92.3 fps +28%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	77.9 fps +8%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	73.2 fps +2%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	72 fps
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	47.08 fps -35%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	46.26 fps -36%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	45.75 fps -36%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	45.28 fps -37%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	44.98 fps -38%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	26.22 fps -64%
1900x1060 3ds Max (3dsmax-05)
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	19.73 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	53.8 fps +75%
Nexoc G739 NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i7-7700HQ	45 fps +47%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	30.7 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	29.5 fps -4%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	9.9 fps -68%
Extreme Preset DX11
MSI GE72VR-6RF16H21 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	75.7 fps +116%
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	59.3 fps +69%
Nexoc G739 NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i7-7700HQ	47.6 fps +36%
MSI GL62M 7RD-077 NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ	38.8 fps +11%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	35.1 fps 0%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	35.1 fps
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	33.9 fps -3%
HP Omen 15-ax007ng NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	31.8 fps -9%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	10.6 fps -70%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
MSI GE72VR-6RF16H21 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	81.7 fps +252%
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	50.9 fps +119%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	38.5 fps +66%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	28.1 fps +21%
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	27.1 fps +17%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	23.2 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	20.6 fps -11%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	20.4 fps -12%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	20.4 fps -12%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	11.4 fps -51%
1920x1080 Extreme HD Preset OpenGL AA:x8
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	40.5 fps +43%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	32.2 fps +14%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	28.3 fps
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	23.1 fps -18%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	18.3 fps -35%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	18.2 fps -36%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	13.2 fps -53%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	9.9 fps -65%

LuxMark v2.0 64Bit
Room GPUs-only
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	1824 Samples/s +38%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	1318 Samples/s
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	1288 Samples/s -2%
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	1204 Samples/s -9%
MSI GL62M 7RD-077 NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ	1027 Samples/s -22%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	979 Samples/s -26%
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	957 Samples/s -27%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	930 Samples/s -29%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	791 Samples/s -40%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	742 Samples/s -44%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	405 Samples/s -69%
Sala GPUs-only
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	3386 Samples/s +61%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	2288 Samples/s +9%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	2107 Samples/s
MSI WE72 7RJ NVIDIA Quadro M2200, Intel Core i7-7700HQ	2086 Samples/s -1%
MSI GE72 965M Ti NVIDIA GeForce GTX 965M, Intel Core i7-6700HQ	1908 Samples/s -9%
MSI GL62M 7RD-077 NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-7700HQ	1808 Samples/s -14%
Dell Precision 5520 UHD NVIDIA Quadro M1200, Intel Xeon E3-1505M v6	1562 Samples/s -26%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	1556 Samples/s -26%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	1426 Samples/s -32%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	1344 Samples/s -36%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	708 Samples/s -66%

SiSoft Sandra 2016
Image Processing
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	424.3 MPix/s +60%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	322.6 MPix/s +22%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	265.3 MPix/s
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	228.6 MPix/s -14%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	222.6 MPix/s -16%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	155.7 MPix/s -41%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	149.3 MPix/s -44%
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	17.82 GB/s +52%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	12.74 GB/s +9%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	12.28 GB/s +5%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	11.7 GB/s
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	9.82 GB/s -16%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	9.6 GB/s -18%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	4.86 GB/s -58%
GP Financial Analysis (FP High/Double Precision)
Lenovo ThinkPad P71-20HK0004GE NVIDIA Quadro P3000, Intel Core i7-7820HQ	47.27 KOPT/s +48%
HP ZBook 17 G3 TZV66eA NVIDIA Quadro M3000M, Intel Xeon E3-1535M v5	32.46 KOPT/s +2%
Lenovo ThinkPad P51 20HH0016GE NVIDIA Quadro M2200, Intel Xeon E3-1505M v6	31.9 KOPT/s
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	21.8 KOPT/s -32%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Core i7-6820HQ	21.75 KOPT/s -32%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	21.49 KOPT/s -33%
Lenovo ThinkPad P51s 20HB000SGE NVIDIA Quadro M520, Intel Core i7-7600U	14 KOPT/s -56%

3DMark 06 Standard Score		29465 punten
3DMark 11 Performance		7709 punten
3DMark Cloud Gate Standard Score		20644 punten
3DMark Fire Strike Score		5275 punten
3DMark Fire Strike Extreme Score		2665 punten
3DMark Time Spy Score		1920 punten
Help

... in vergelijking

	gem.	hoge	ultra	4K
The Witcher 3 (2015)	66.6	37.2	20	12.7
Rise of the Tomb Raider (2016)	71.6	41.6	35.2	13.7
For Honor (2017)	54.8	51.9	37.5	14.6

Geluidsniveau

Onbelast		29.6 / 29.6 / 29.6 dB (A)
Belasting		32.2 / 36.6 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Audix TM1, Arta (15 cm afstand) omgevingslawaai: 29.6 dB(A)

	Lenovo ThinkPad P51 20HH0016GE Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP	Lenovo ThinkPad P51s 20HB000SGE Quadro M520, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	Dell Precision 7510 (4K IGZO) Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Dell Precision 5520 UHD Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e	Fujitsu Celsius H760 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512 m.2 PCI-e
Noise		-4%	-8%	-14%	-9%	-10%	-10%
uit / omgeving *	29.6	29.2 1%	30 -1%	30 -1%	28.2 5%	28.7 3%	29 2%
Idle Minimum *	29.6	29.2 1%	30 -1%	30 -1%	29.8 -1%	28.7 3%	29 2%
Idle Average *	29.6	29.2 1%	30 -1%	30 -1%	29.8 -1%	32.1 -8%	29 2%
Idle Maximum *	29.6	31.1 -5%	30 -1%	30 -1%	31.2 -5%	32.1 -8%	29 2%
Load Average *	32.2	36.7 -14%	42.1 -31%	45.3 -41%	37.2 -16%	41.3 -28%	43.1 -34%
Load Maximum *	36.6	39.4 -8%	42.1 -15%	49.7 -36%	49.4 -35%	45.5 -24%	49.2 -34%
Witcher 3 ultra *						45.5

* ... kleiner is beter

Max. Belasting

Inactief


42.4 °C	41.2 °C	43 °C
38 °C	39.3 °C	39.6 °C
32.6 °C	36.1 °C	35.5 °C

Maximum: 43 °C
Gemiddelde: 38.6 °C


45.3 °C	52.2 °C	42.7 °C
41.9 °C	43.4 °C	42.6 °C
33.5 °C	35.9 °C	30.1 °C

Maximum: 52.2 °C
Gemiddelde: 40.8 °C

Stroomadapter (max.) 46.6 °C | Kamertemperatuur 21 °C | Voltcraft IR-900

(-) De gemiddelde temperatuur voor de bovenzijde bij maximale belasting bedraagt 38.6 °C / 101 F, vergeleken met het gemiddelde van 32 °C / ###class_avg_f## F voor de apparaten van de klasse Workstation.
(±) De maximumtemperatuur aan de bovenzijde bedraagt 43 °C / 109 F, vergeleken met het gemiddelde van 38.2 °C / 101 F, variërend van 22.2 tot 69.8 °C voor de klasse Workstation.
(-) De bodem warmt op tot een maximum van 52.2 °C / 126 F, vergeleken met een gemiddelde van 41.3 °C / 106 F
(+) Bij onbelast gebruik bedraagt de gemiddelde temperatuur voor de bovenzijde 26.2 °C / 79 F, vergeleken met het apparaatgemiddelde van 32 °C / 90 F.
(±) De palmsteunen en het touchpad kunnen zeer heet aanvoelen met een maximum van ###max## °C / 97 F.
(-) De gemiddelde temperatuur van de handpalmsteun van soortgelijke toestellen bedroeg 27.8 °C / 82 F (-8.3 °C / -15 F).

Lenovo ThinkPad P51 20HH0016GE audioanalyse

(-) | niet erg luide luidsprekers (64.5 dB)
Bas 100 - 315 Hz
(±) | verminderde zeebaars - gemiddeld 12.3% lager dan de mediaan
(±) | lineariteit van de lage tonen is gemiddeld (10.4% delta ten opzichte van de vorige frequentie)
Mids 400 - 2000 Hz
(+) | evenwichtige middens - slechts 3.9% verwijderd van de mediaan
(+) | de middentonen zijn lineair (6.4% delta ten opzichte van de vorige frequentie)
Hoog 2 - 16 kHz
(+) | evenwichtige hoogtepunten - slechts 2.7% verwijderd van de mediaan
(±) | lineariteit van de hoogtepunten is gemiddeld (13.3% delta ten opzichte van de vorige frequentie)
Algemeen 100 - 16.000 Hz
(±) | lineariteit van het totale geluid is gemiddeld (24.7% verschil met de mediaan)
Vergeleken met dezelfde klasse
» 84% van alle geteste apparaten in deze klasse waren beter, 2% vergelijkbaar, 14% slechter
» De beste had een delta van 7%, het gemiddelde was 18%, de slechtste was 35%
Vergeleken met alle geteste toestellen
» 72% van alle geteste apparaten waren beter, 6% gelijk, 22% slechter
» De beste had een delta van 4%, het gemiddelde was 25%, de slechtste was 134%

Lenovo ThinkPad P51s 20HB000SGE audioanalyse

(±) | luidspreker luidheid is gemiddeld maar goed (75.2 dB)
Bas 100 - 315 Hz
(±) | verminderde zeebaars - gemiddeld 10.7% lager dan de mediaan
(±) | lineariteit van de lage tonen is gemiddeld (11% delta ten opzichte van de vorige frequentie)
Mids 400 - 2000 Hz
(+) | evenwichtige middens - slechts 3.9% verwijderd van de mediaan
(±) | lineariteit van de middentonen is gemiddeld (10.5% delta ten opzichte van de vorige frequentie)
Hoog 2 - 16 kHz
(+) | evenwichtige hoogtepunten - slechts 3.1% verwijderd van de mediaan
(±) | lineariteit van de hoogtepunten is gemiddeld (7.1% delta ten opzichte van de vorige frequentie)
Algemeen 100 - 16.000 Hz
(±) | lineariteit van het totale geluid is gemiddeld (15.6% verschil met de mediaan)
Vergeleken met dezelfde klasse
» 31% van alle geteste apparaten in deze klasse waren beter, 10% vergelijkbaar, 59% slechter
» De beste had een delta van 7%, het gemiddelde was 18%, de slechtste was 35%
Vergeleken met alle geteste toestellen
» 21% van alle geteste apparaten waren beter, 4% gelijk, 75% slechter
» De beste had een delta van 4%, het gemiddelde was 25%, de slechtste was 134%

Stroomgebruik

Uit / Standby	0.35 / 1 Watt
Inactief	8.6 / 15.9 / 22.1 Watt
Belasting	84.4 / 130.6 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad P51 20HH0016GE E3-1505M v6, Quadro M2200, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6"	Lenovo ThinkPad P51s 20HB000SGE i7-7600U, Quadro M520, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), IPS, 3840x2160, 15.6"	Lenovo ThinkPad P50 E3-1505M v5, Quadro M2000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, IPS, 3840x2160, 15.6"	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e, UWVA-IPS, 1920x1080, 15.6"	Dell Precision 7510 (4K IGZO) E3-1535M v5, Quadro M2000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IGZO IPS, 3840x2160, 15.6"	Dell Precision 5520 UHD E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6"
Power Consumption		35%	0%	19%	-66%	6%
Idle Minimum *	8.6	5.8 33%	10.2 -19%	5.7 34%	23.9 -178%	8.9 -3%
Idle Average *	15.9	10.4 35%	17.8 -12%	12.2 23%	28.9 -82%	13.6 14%
Idle Maximum *	22.1	13.5 39%	18.3 17%	12.6 43%	30 -36%	14.1 36%
Load Average *	84.4	62.4 26%	76.9 9%	83.1 2%	95.2 -13%	100.3 -19%
Load Maximum *	130.6	73.1 44%	123.5 5%	138.2 -6%	157.1 -20%	126.3 3%
Witcher 3 ultra *						100.2

* ... kleiner is beter

Batterijduur

Inactief (zonder WLAN, minimale helderheid)		16h 21min
WiFi Websurfing (Edge 38.14393.1066.0)		6h 53min
Big Buck Bunny H.264 1080p		7h 35min
Belast (maximale helderheid)		1h 35min

	Lenovo ThinkPad P51 20HH0016GE E3-1505M v6, Quadro M2200, 90 Wh	Lenovo ThinkPad P51s 20HB000SGE i7-7600U, Quadro M520, 104 Wh	Lenovo ThinkPad P50 E3-1505M v5, Quadro M2000M, 90 Wh	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M, 90 Wh	Dell Precision 7510 (4K IGZO) E3-1535M v5, Quadro M2000M, 91 Wh	Dell Precision 5520 UHD E3-1505M v6, Quadro M1200, 97 Wh	Fujitsu Celsius H760 E3-1505M v5, Quadro M2000M, 72 Wh
Batterijduur		107%	-25%	-2%	-47%	-33%	-23%
Reader / Idle	981	1581 61%	539 -45%	822 -16%	268 -73%	724 -26%	557 -43%
H.264	455	700 54%	331 -27%	449 -1%			273 -40%
WiFi v1.3	413	712 72%	288 -30%	386 -7%	239 -42%	254 -38%	333 -19%
Load	95	323 240%	98 3%	110 16%	70 -26%	61 -36%	106 12%

Pro

+ erg goede bouwkwaliteit en stabiliteit

+ uitstekende invoerapparaten

+ erg hoge prestaties, zelf onder belasting

+ modern aanbod poorten

+ vele beveiligingsfuncties

+ snelle PCIe-SSD

+ stille koeling

+ kan geconfigureerd worden

+ 36 maanden garantie

+ mat 4K beeldscherm met breed kleurbereik en kleine kleurafwijkingen

+ goede theoretische uitbreidbaarheid (4x RAM, 3x harde schijf)...

Contra

- ... die onnodig complex is

- slechte luidsprekers

- op sommige plekken hoge oppervlakte temperaturen onder belasting

- hoorbare condensators

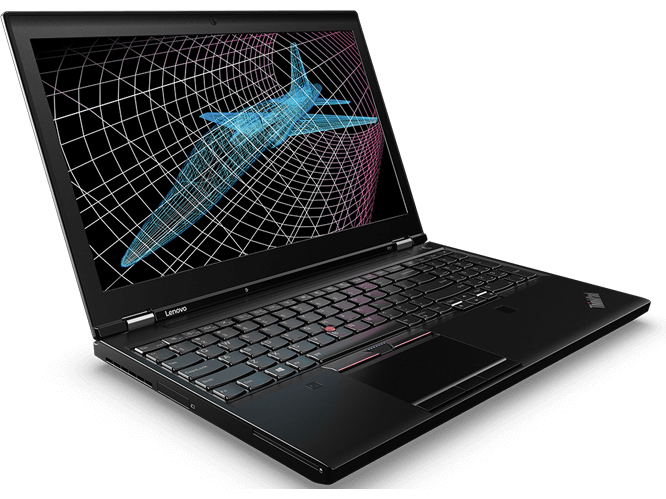

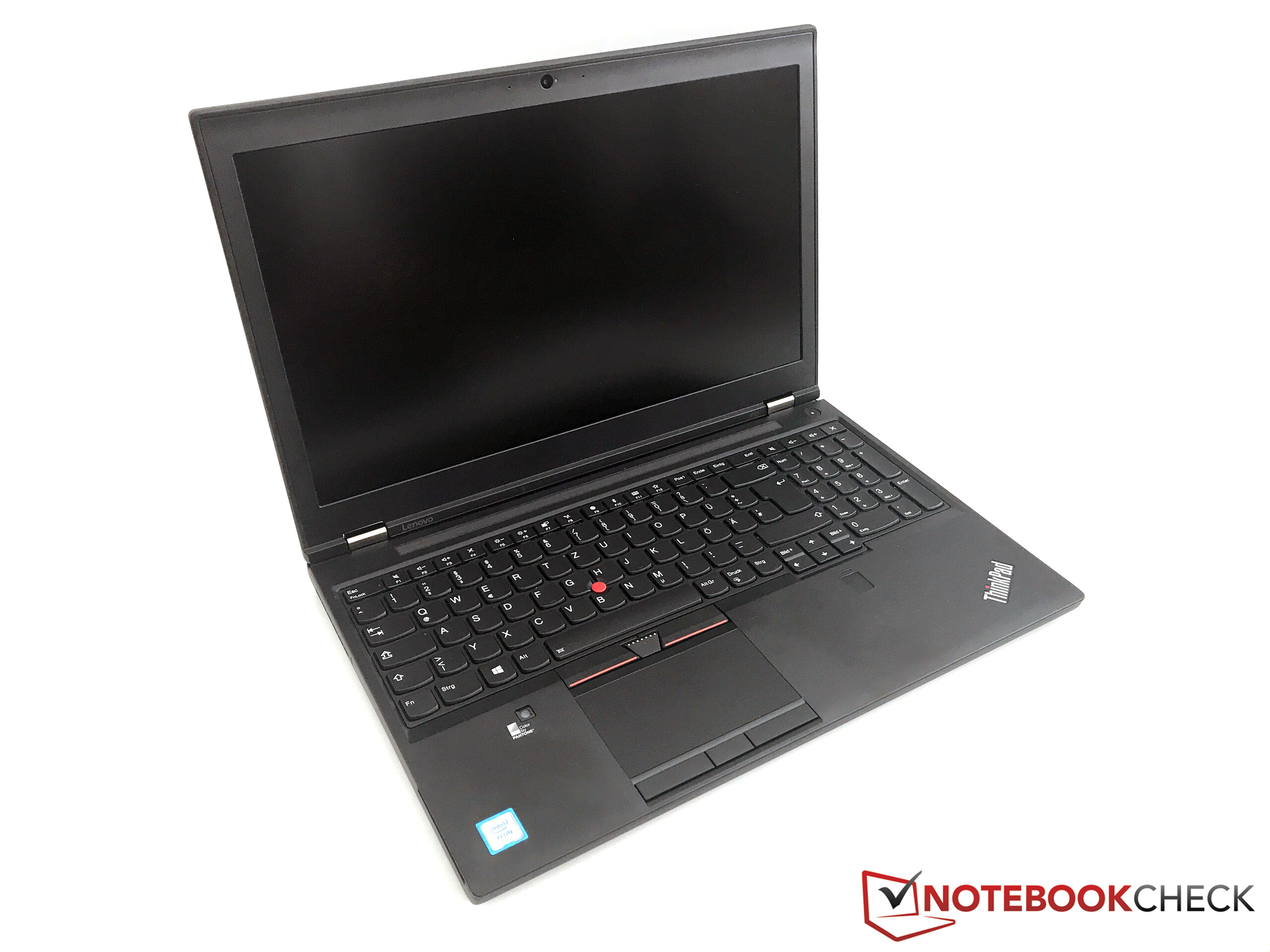

In review: Lenovo ThinkPad P51. Test model courtesy of Lapstars.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Lenovo's ThinkPad P50 van vorig jaar was een goed mobiel werkstation, maar er waren enkele problemen. Dit waren onder meer de twee beeldschermopties omdat beide niet aan onze verwachtingen konden voldoen wat betreft belichting en last hadden van PWM (4K). De nieuwe ThinkPad P51 is de Kaby Lake update en gebruikt een identieke behuizing.

We vinden dan ook wederom een erg stevig systeem met fantastische invoerapparaten en stille koeling. De prestaties zijn hoger dankzij de nieuwe componenten en Lenovo gebruikt eindelijk een erg goed 4K beeldscherm met een breed kleurbereik. De initiële problemen van de P50 (WWAN problemen, zwaar beperkte CPU prestaties bij gebruik op accu) zijn ook opgelost.

Hoge prestaties, goede behuizing en fantastisch beeldscherm - de nieuwe ThinkPad P51 is een erg goed mobiel werkstation. Toch zijn er nog wat details die verbeterd kunnen worden.

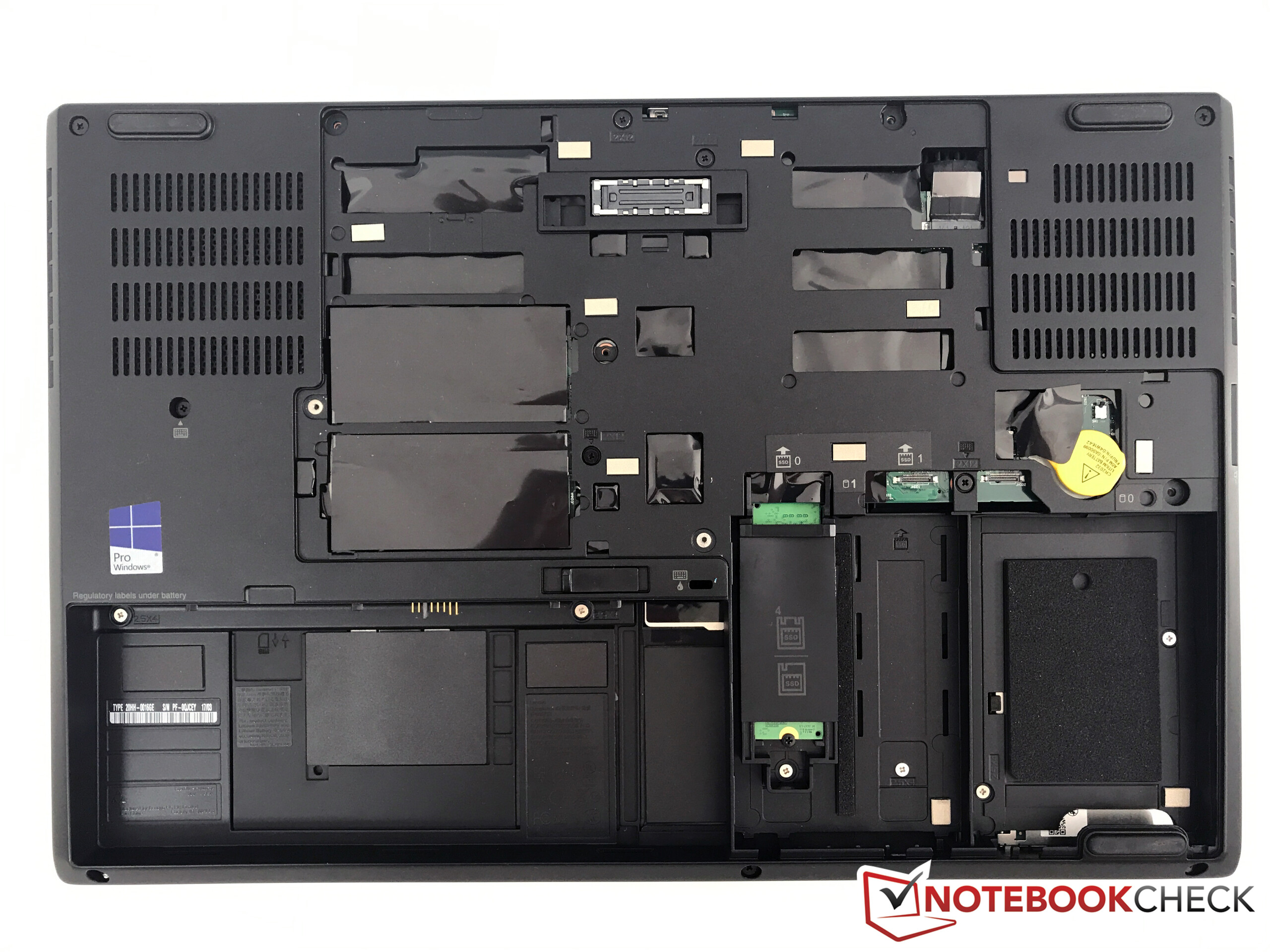

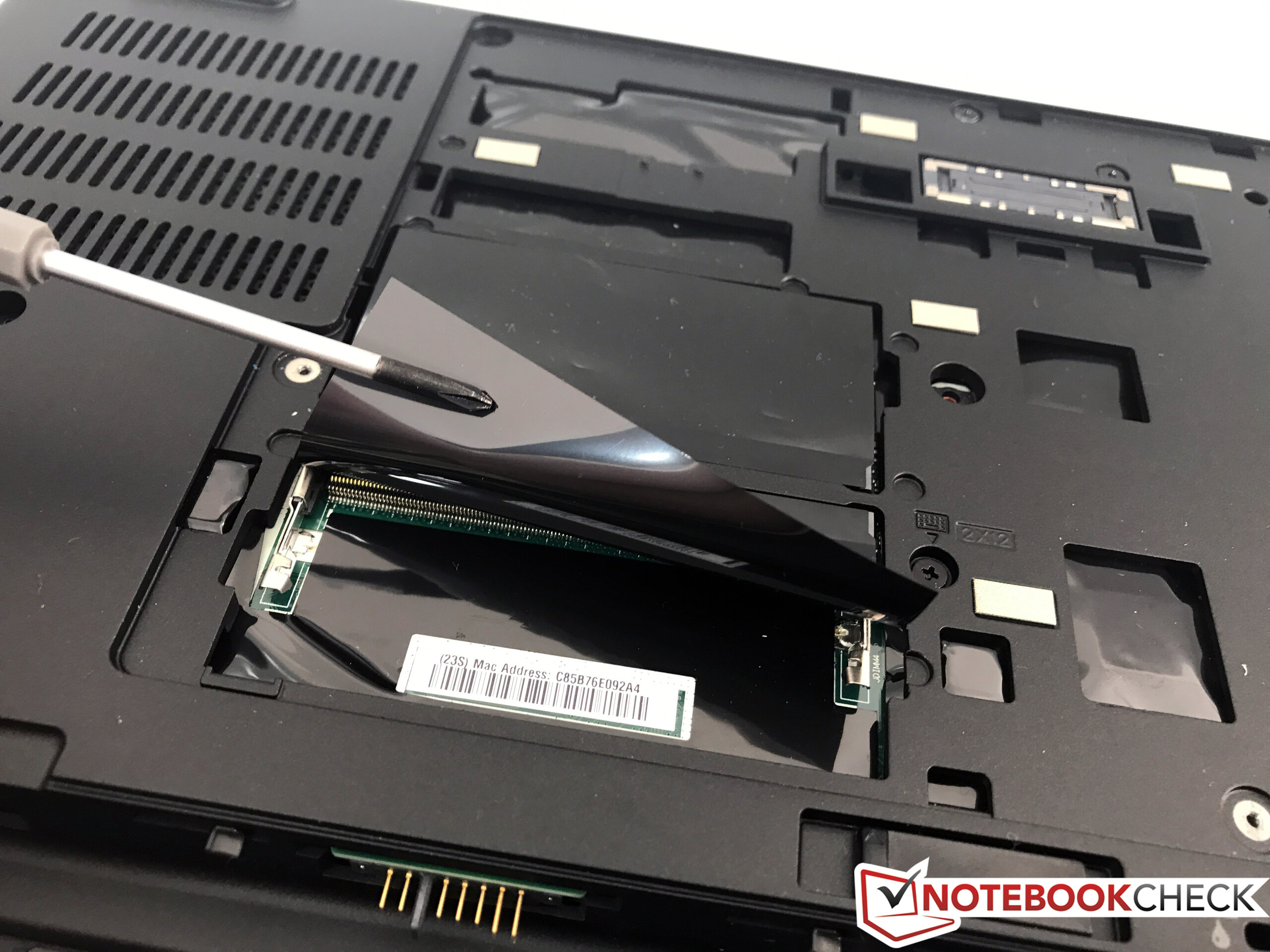

De ThinkPad P51 is echter niet perfect. Naast enkele kleine zaken (probleem met de rechter TrackPoint knop in ons testmodel, slechte luidsprekers, lastig onderhoud), werkt de geïntegreerde kalibratie wederom niet. Het koelsysteem bereikt ook zijn limit wanneer je beide componenten tegelijkertijd strest en je kunt niet het volle prestatie potentieel van de Xeon processor gebruiken. Zo nu en dan hoor op hinderlijke wijze de condensatoren fluiten. Dit valt nog meer op doordat de ventilatoren vaker op inactief komen.

Al met al biedt Lenovo een erg succesvol apparaat en de aankomende modellen van Dell & HP hebben er een stevige concurrent bij.

Lenovo ThinkPad P51 20HH0016GE - 18-06-2017 v6 ^(old)
Andreas Osthoff

Behuizing

86 / 98 → 88%

Toetsenbord

95%

Aanwijsapparaat

86%

Aansluitmogelijkheden

73 / 81 → 90%

Gewicht

59 / 10-66 → 87%
