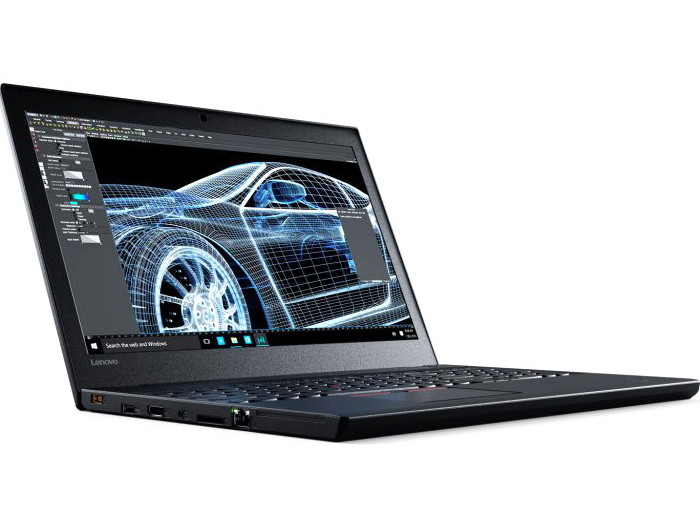

Kort testrapport Lenovo ThinkPad P50s-20FKS00400 Notebook

Name: Lenovo ThinkPad P50s-20FKS00400
Brand: Lenovo

Achterhaald? Lenovo’s nieuwe ThinkPad P50s is de opvolger van de ThinkPad W550s. Ondanks de compacte afmetingen belooft Lenovo goede prestaties. Echter, net zoals bij de voorganger, heeft de CPU te weinig rekenkracht en nu is er ook nog een sterke concurrent van Lenovo zelf.

Andreas Osthoff, ✓ Stefanie Voigt, Published 03-04-2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows Workstation

Testtoestel voorzien door notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad P50s-20FKS00400 (ThinkPad P1 Serie)

Processor

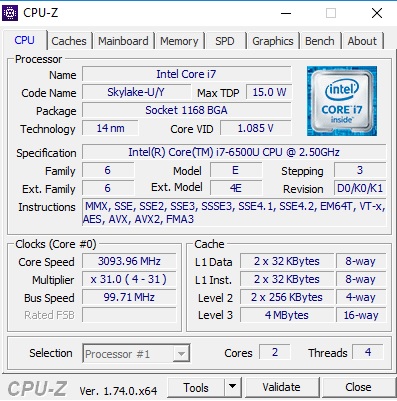

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Grafische kaart

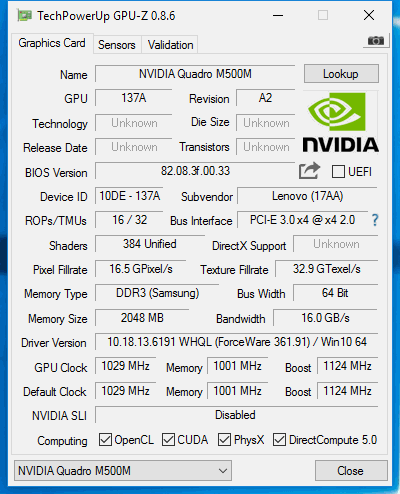

NVIDIA Quadro M500M - 2048 MB VRAM, Core: 1124 MHz, Geheugen: 1001 MHz, DDR3, 361.91, Optimus

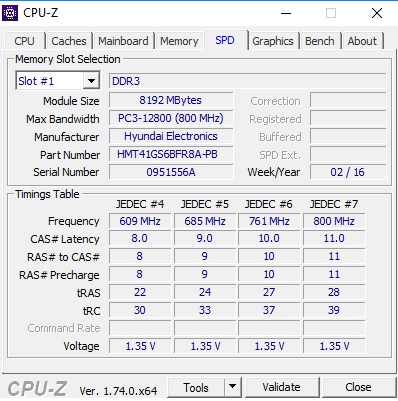

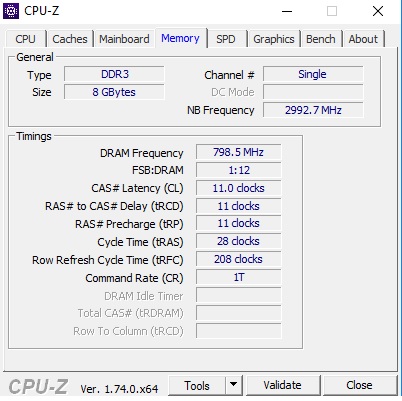

Geheugen

8 GB

, DDR3L-1600, Single-Channel, 1 van 2 slots vrij, maximaal 32 GB

Beeldscherm

15.50 inch 16:9, 2880 x 1620 pixel 213 PPI, WX16T028J00, LEN40B5, IPS, glimmend: nee

Moederbord

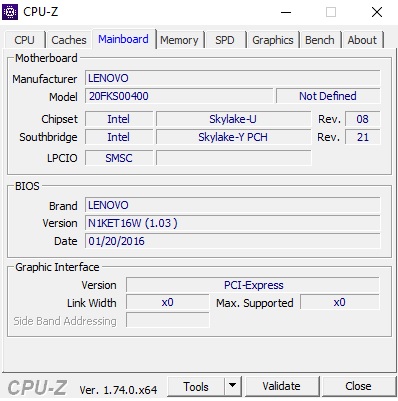

Intel Skylake-U Premium PCH

Opslag

Samsung PM871 MZYLN256HCHP, 256 GB

, 215 GB beschikbaar

Geluidskaart

Intel Skylake-U/Y PCH - High Definition Audio

Verbindingen

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: 3.5 mm Audio, Card Reader: 4-in-1 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Vingerafdruklezer

Netwerkmogelijkheden

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Afmetingen

hoogte x breedte x diepte (in mm): 22.45 x 380.6 x 258.2

Batterij

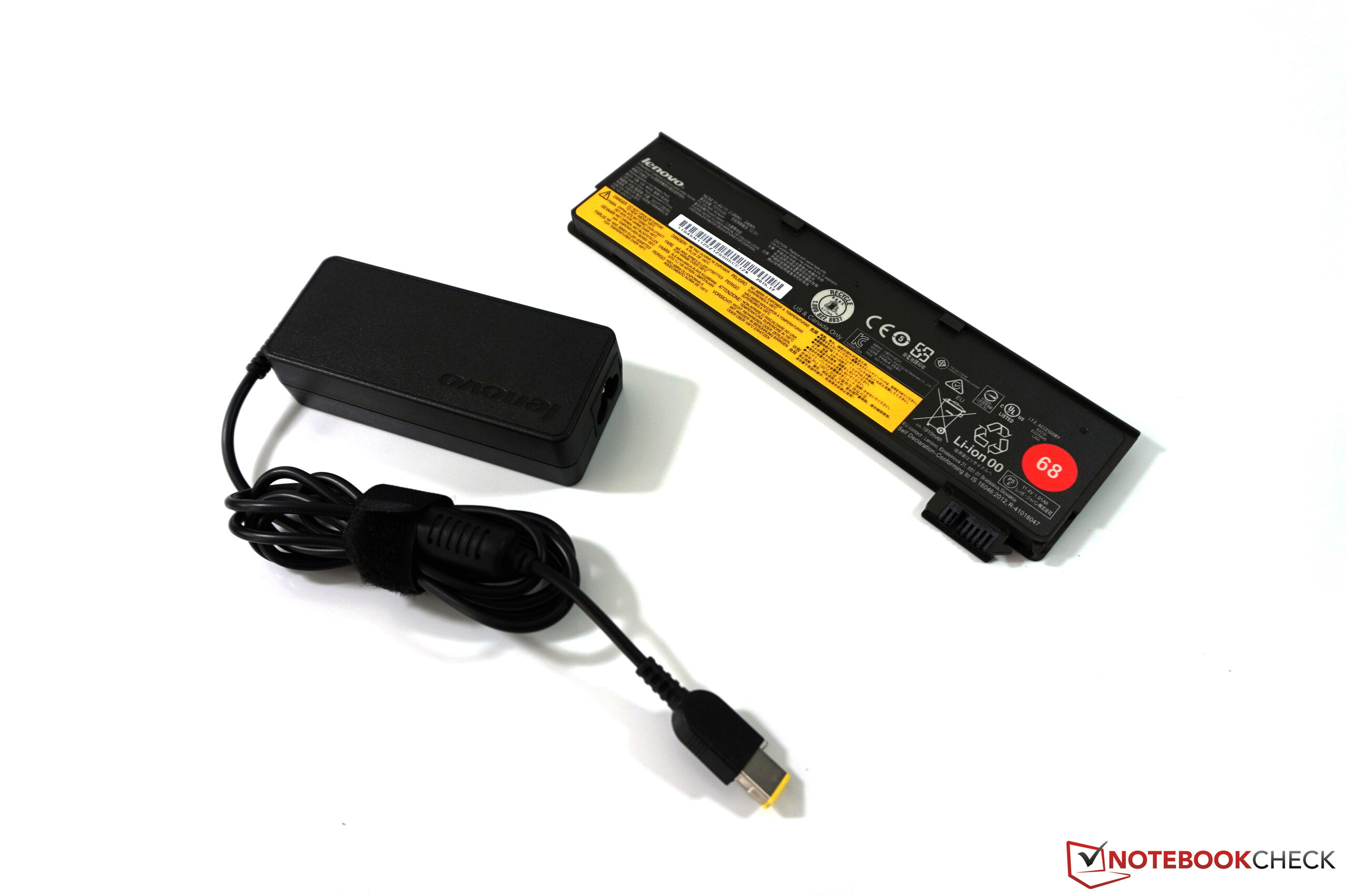

67 Wh Lithium-Ion, verwijderbaar, Batterijduur: 12 h

Camera

Webcam: HD Webcam (720p)

Bijkomende functionaliteiten

Luidsprekers: Stereo, 2x 1 Watt, Dolby Audio Software, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, Stroomadapter, snelstartgids, garantie informatie, 36 Maanden Garantie

Gewicht

2.219 kg, Voeding: 323 g

Prijs

1400 Euro

Links

Lenovo startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

MSI WS60-6QJE316H11 Lenovo ThinkPad P50 Lenovo ThinkPad P50s-20FKS00400 HP ZBook 15u G3 Dell Precision 5510 DIN A4 ❌

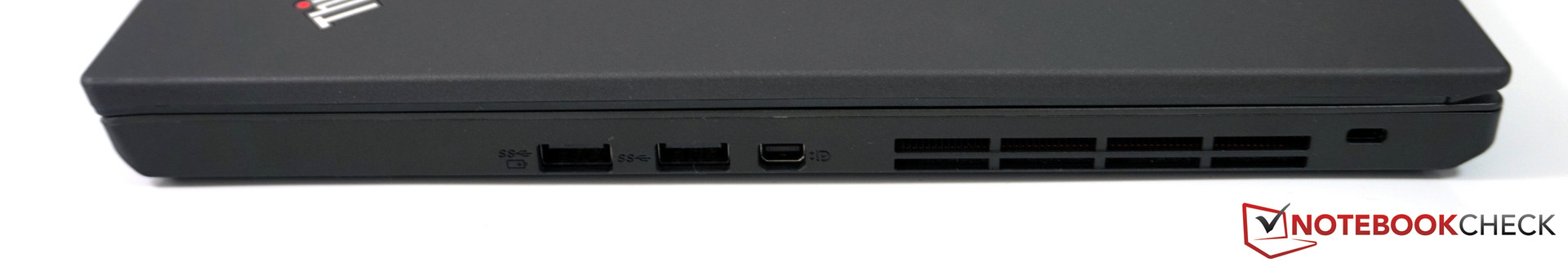

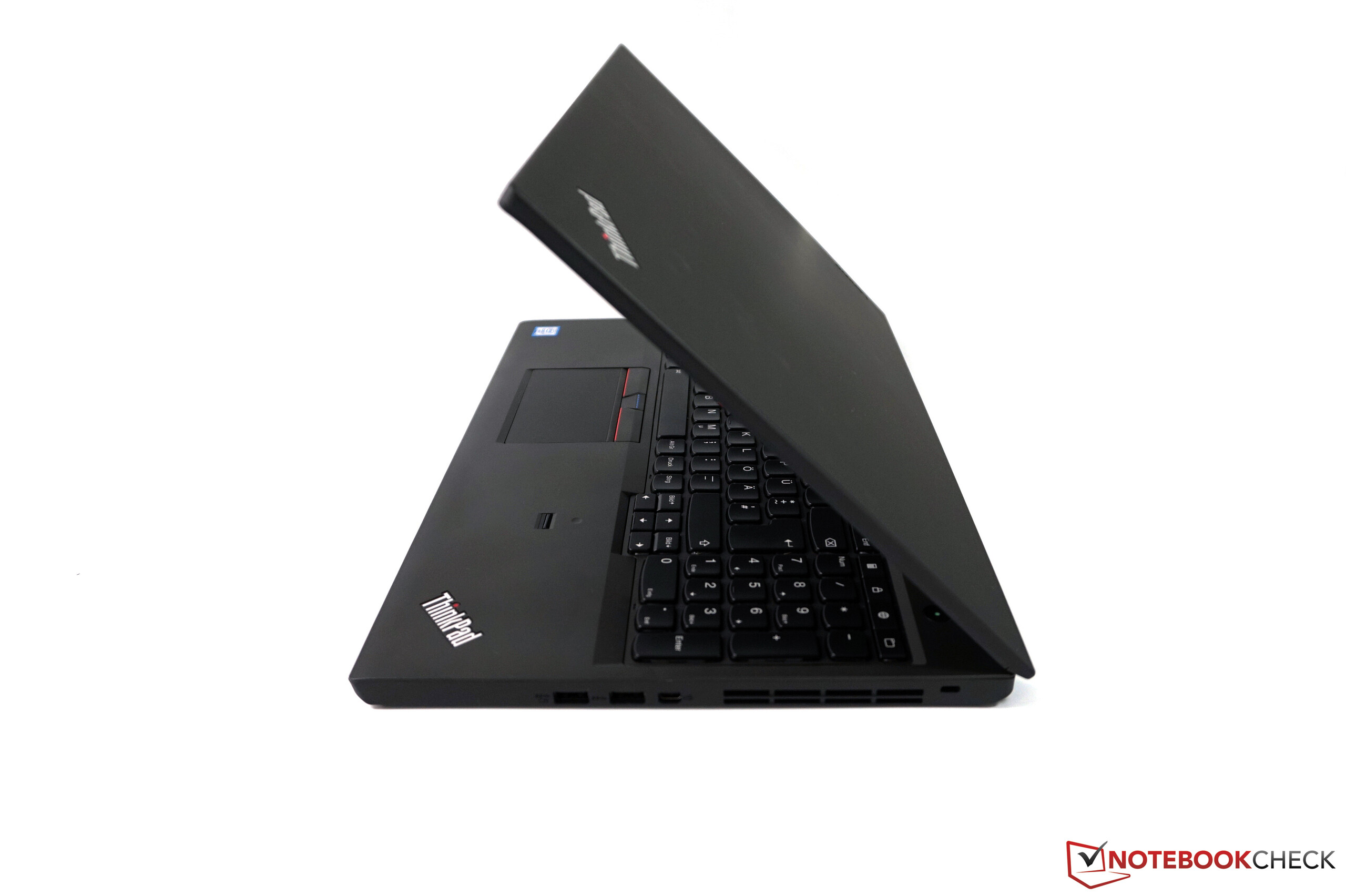

Rechts: 2x USB 3.0, Mini-DisplayPort, ventilator, Kensington lock slot

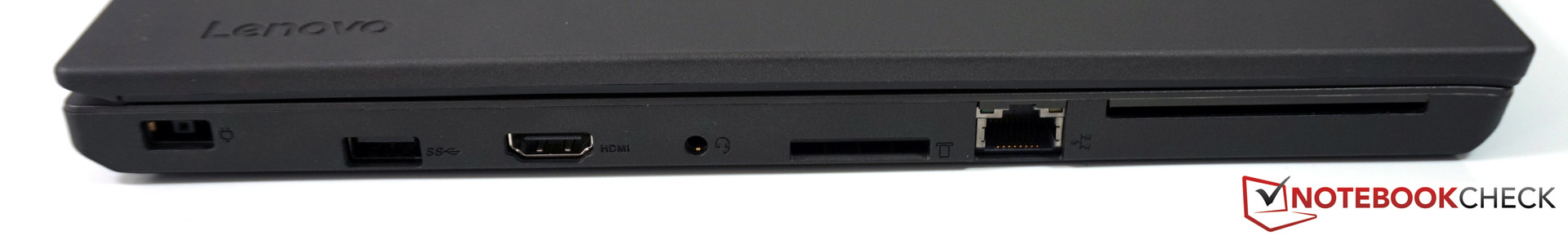

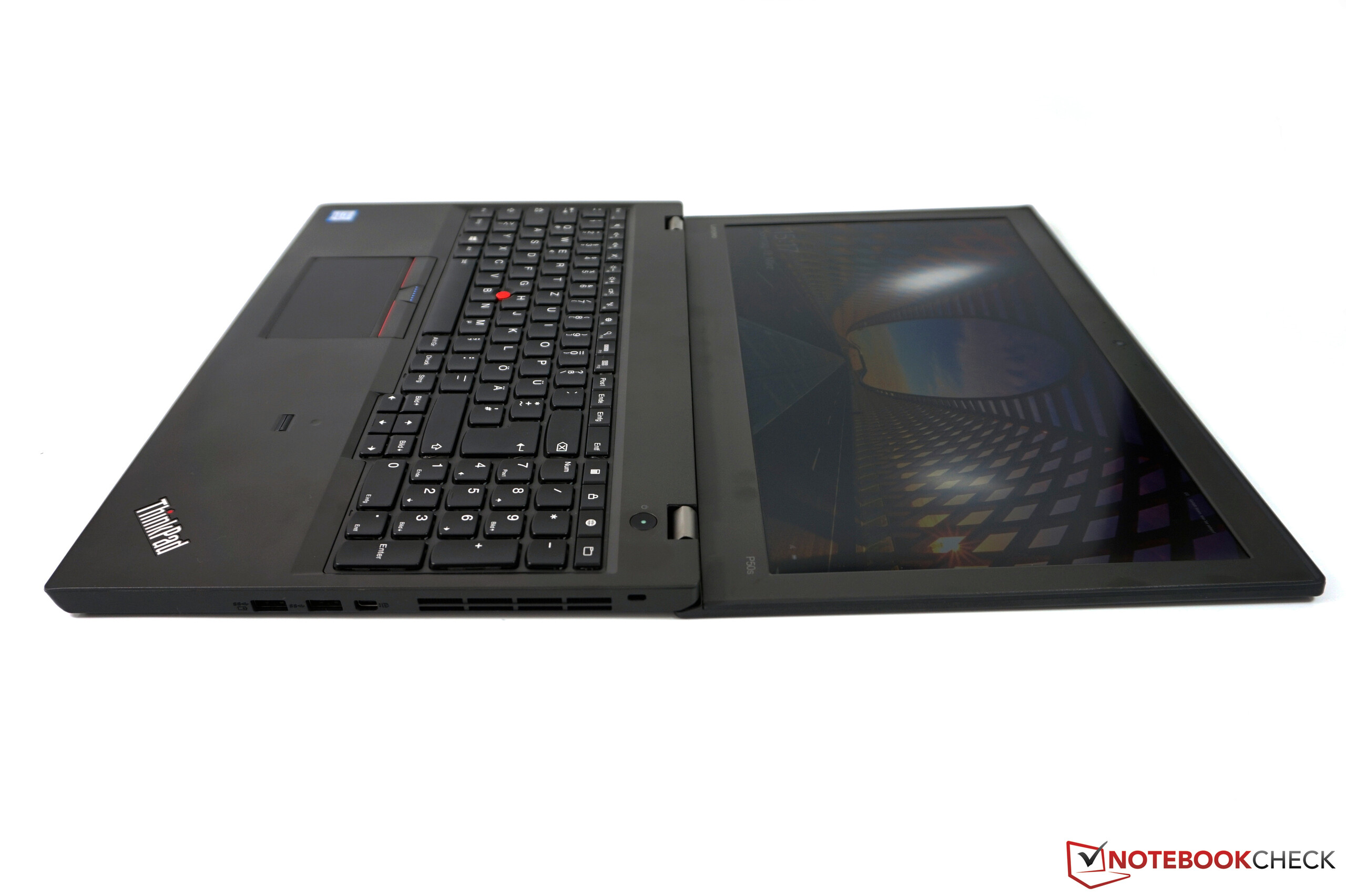

Links: stroomaansluiting, USB 3.0, HDMI, 3.5 mm audio, SD-kaartlezer, Gigabit Ethernet, SmartCard lezer


298 cd/m²	296 cd/m²	310 cd/m²
277 cd/m²	319 cd/m²	278 cd/m²
263 cd/m²	290 cd/m²	276 cd/m²

Helderheidsverdeling

WX16T028J00, LEN40B5 tested with X-Rite i1Pro 2

Maximum: 319 cd/m² (Nits) Gemiddelde: 289.7 cd/m²
Helderheidsverdeling: 82 %
Helderheid in Batterij-modus: 320 cd/m²
Contrast: 1029:1 (Zwart: 0.31 cd/m²)
ΔE Color 4.8 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.7 | 0.5-98 Ø5.2
87.4% sRGB (Argyll 1.6.3 3D)
56.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
63.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
87.6% sRGB (Argyll 2.2.0 3D)
63.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.07

Download ICC-profiel (X-Rite i1Pro 2)

	Lenovo ThinkPad P50s-20FKS00400 WX16T028J00, LEN40B5, IPS	Dell Precision 5510 SHP143E, 7PHPT_LQ156D1, IGZO LED	HP ZBook 15u G3 CMN15C3, TN LED	MSI WS60-6QJE316H11 SDC424B, IPS	Lenovo ThinkPad P50 LP156WF6-SPK1, IPS	Lenovo ThinkPad W550s 20E2-000PGE VVX16T028J00, IPS LED
Display		36%	-13%	-10%	-36%	-2%
Display P3 Coverage	63.7	88.4 39%	53.2 -16%	55.1 -14%	39.13 -39%	62.3 -2%
sRGB Coverage	87.6	100 14%	80.1 -9%	83 -5%	58.5 -33%	86.5 -1%
AdobeRGB 1998 Coverage	63.8	99.5 56%	54.9 -14%	56.9 -11%	40.45 -37%	62.6 -2%
Response Times		-33%	-16%	176%	-6%
Response Time Grey 50% / Grey 80% *	38 ?(15.2, 22.8)	56.4 ?(23.2, 33.2) -48%	45.6 ?(25.6, 20) -20%	34 ?(13, 21) 11%	46 ?(17, 29) -21%
Response Time Black / White *	28.8 ?(8.4, 20.4)	34 ?(11, 23) -18%	34.4 ?(16.4, 18) -19%	24 ?(9, 15) 17%	26 ?(9, 17) 10%
PWM Frequency	219 ?(90)		198.4 ?(90) -9%	1316 ?(40) 501%
Screen		15%	-49%	-5%	-6%	-1%
Brightness middle	319	391 23%	297.8 -7%	237 -26%	263 -18%	360 13%
Brightness	290	361 24%	284 -2%	208 -28%	236 -19%	323 11%
Brightness Distribution	82	87 6%	89 9%	77 -6%	78 -5%	81 -1%
Black Level *	0.31	0.4 -29%	0.849 -174%	0.26 16%	0.34 -10%	0.54 -74%
Contrast	1029	978 -5%	351 -66%	912 -11%	774 -25%	667 -35%
Colorchecker dE 2000 *	4.8	4.85 -1%	8.68 -81%	4.42 8%	2.35 51%	3.45 28%
Colorchecker dE 2000 max. *	7.8		14.98 -92%	8.54 -9%
Greyscale dE 2000 *	5.7	4.01 30%	9.3 -63%	4.43 22%	3.33 42%	2.98 48%
Gamma	2.07 ^106%	2.18 ^101%	2.27 ^97%	2.23 ^99%	2.38 ^92%	2.06 ^107%
CCT	6260 ^104%	7340 ^89%	10585 ^61%	6133 ^106%	6917 ^94%	6338 ^103%
Color Space (Percent of AdobeRGB 1998)	56.9	96 69%	50.99 -10%	52.5 -8%	37 -35%	56 -2%
Color Space (Percent of sRGB)	87.4	100 14%	80.42 -8%	82.9 -5%	58 -34%	86.3 -1%
Totaal Gemiddelde (Programma / Instellingen)		6% / 12%	-26% / -36%	54% / 28%	-16% / -12%	-2% / -2%

* ... kleiner is beter

Responstijd Scherm

ℹ

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

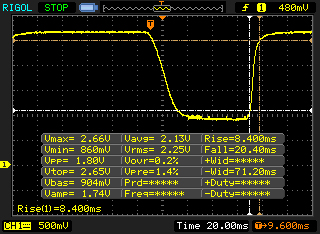

↔ Responstijd Zwart naar Wit
28.8 ms ... stijging ↗ en daling ↘ gecombineerd	↗ 8.4 ms stijging
28.8 ms ... stijging ↗ en daling ↘ gecombineerd	↘ 20.4 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games. Ter vergelijking: alle testtoestellen variëren van 0.1 (minimum) tot 240 (maximum) ms. » 73 % van alle toestellen zijn beter. Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (21 ms) van alle geteste toestellen.

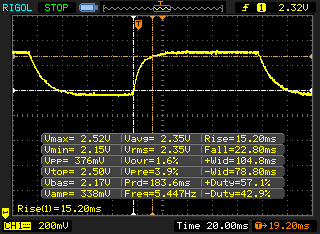

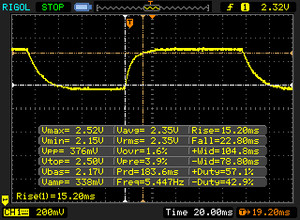

↔ Responstijd 50% Grijs naar 80% Grijs
38 ms ... stijging ↗ en daling ↘ gecombineerd	↗ 15.2 ms stijging
38 ms ... stijging ↗ en daling ↘ gecombineerd	↘ 22.8 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games. Ter vergelijking: alle testtoestellen variëren van 0.165 (minimum) tot 636 (maximum) ms. » 51 % van alle toestellen zijn beter. Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (32.9 ms) van alle geteste toestellen.

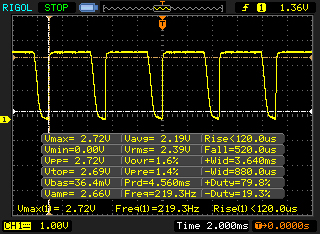

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.

Screen flickering / PWM waargenomen

219 Hz

≤ 90 % helderheid instelling

Het backlight van het scherm flikkert aan 219 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 90 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 219 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8774 (minimum: 5 - maximum: 343500) Hz waargenomen.

Cinebench R15 | Cinebench R11.5

Cinebench R15
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	732 Points +138%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	674 Points +120%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points +93%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	347 Points +13%
HP ZBook 15u G3 Intel Core i7-6600U	330 Points +7%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	307 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	260 Points -15%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	158 Points +22%
HP ZBook 15u G3 Intel Core i7-6600U	143 Points +11%
Dell Precision 5510 Intel Xeon E3-1505M v5	142 Points +10%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	141 Points +9%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	129 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	124 Points -4%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -9%

Cinebench R11.5
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	7.93 Points +130%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7.42 Points +115%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	6.48 Points +88%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	3.83 Points +11%
HP ZBook 15u G3 Intel Core i7-6600U	3.67 Points +6%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	3.45 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	2.85 Points -17%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	1.78 Points +19%
HP ZBook 15u G3 Intel Core i7-6600U	1.63 Points +9%
Dell Precision 5510 Intel Xeon E3-1505M v5	1.6 Points +7%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	1.57 Points +5%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	1.49 Points
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U	1.42 Points -5%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	1.32 Points -11%

Cinebench R10 Rendering Single CPUs 64Bit

6241 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14039 Points

Cinebench R10 Shading 64Bit

5472 Points

Cinebench R10 Shading 32Bit

5476

Cinebench R10 Rendering Multiple CPUs 32Bit

10447

Cinebench R10 Rendering Single 32Bit

4886

Cinebench R11.5 OpenGL 64Bit

39.77 fps

Cinebench R11.5 CPU Multi 64Bit

3.45 Points

Cinebench R11.5 CPU Single 64Bit

1.49 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

48.45 fps

Cinebench R15 CPU Multi 64Bit

307 Points

Cinebench R15 CPU Single 64Bit

129 Points

Help

... in vergelijking

PCMark Vantage Result		15876 punten
PCMark 7 Score		4992 punten
PCMark 8 Home Score Accelerated v2		2790 punten
PCMark 8 Work Score Accelerated v2		3744 punten
Help

... in vergelijking

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad P50	4213 Points +51%
HP ZBook 15u G3	3974 Points +42%
Dell Precision 5510	3941 Points +41%
Lenovo ThinkPad T460s-20FA003GGE	3542 Points +27%
MSI WS60-6QJE316H11	3134 Points +12%
Lenovo ThinkPad W550s 20E2-000PGE	3061 Points +10%
Lenovo ThinkPad P50s-20FKS00400	2790 Points
Work Score Accelerated v2
Dell Precision 5510	5100 Points +36%
HP ZBook 15u G3	4900 Points +31%
Lenovo ThinkPad P50	4677 Points +25%
Lenovo ThinkPad T460s-20FA003GGE	4442 Points +19%
Lenovo ThinkPad W550s 20E2-000PGE	4323 Points +15%
MSI WS60-6QJE316H11	4045 Points +8%
Lenovo ThinkPad P50s-20FKS00400	3744 Points

PCMark 7 - Score
HP ZBook 15u G3	5493 Points +10%
MSI WS60-6QJE316H11	5340 Points +7%
Dell Precision 5510	5317 Points +7%
Lenovo ThinkPad T460s-20FA003GGE	5190 Points +4%
Lenovo ThinkPad P50s-20FKS00400	4992 Points
Lenovo ThinkPad P50	4892 Points -2%
Lenovo ThinkPad W550s 20E2-000PGE	4474 Points -10%

Legende

Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M, Samsung PM871 MZYLN256HCHP

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Toshiba NVMe THNSN5128GP

Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M, Samsung SSD PM871 MZNLN256HCHP

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

CrystalDiskMark 3.0

AS SSD

Samsung PM871 MZYLN256HCHP

Sequential Read: 475.5 MB/s

Sequential Write: 304.7 MB/s

512K Read: 379.3 MB/s

512K Write: 303.4 MB/s

4K Read: 34.31 MB/s

4K Write: 89.4 MB/s

4K QD32 Read: 319.9 MB/s

4K QD32 Write: 279.4 MB/s

SPECviewperf 12 | SPECviewperf 11

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	71.7 fps +93%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	63 fps +69%
Dell Precision 5510 NVIDIA Quadro M1000M	62 fps +67%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	37.22 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	33.02 fps -11%
HP ZBook 15u G3 AMD FirePro W4190M	31.41 fps -16%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	22.64 fps -39%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	33.95 fps +77%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	32.52 fps +70%
Dell Precision 5510 NVIDIA Quadro M1000M	31 fps +62%
HP ZBook 15u G3 AMD FirePro W4190M	19.89 fps +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	19.13 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	17.1 fps -11%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	2.95 fps -85%
1900x1060 Showcase (showcase-01)
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	24.25 fps +299%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.35 fps +251%
Dell Precision 5510 NVIDIA Quadro M1000M	20 fps +229%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	6.32 fps +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.08 fps
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	6.05 fps 0%
HP ZBook 15u G3 AMD FirePro W4190M	4.98 fps -18%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	14.68 fps +54%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	14.4 fps +51%
Dell Precision 5510 NVIDIA Quadro M1000M	12 fps +26%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	9.51 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	7.05 fps -26%
HP ZBook 15u G3 AMD FirePro W4190M	6.09 fps -36%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	1.7 fps -82%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.46 fps +245%
Dell Precision 5510 NVIDIA Quadro M1000M	30 fps +169%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	29.89 fps +168%
HP ZBook 15u G3 AMD FirePro W4190M	16.38 fps +47%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	12.03 fps +8%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	11.14 fps
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	10.89 fps -2%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3.2 fps +504%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3.16 fps +496%
Dell Precision 5510 NVIDIA Quadro M1000M	0.69 fps +30%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	0.53 fps
HP ZBook 15u G3 AMD FirePro W4190M	0.41 fps -23%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	0.38 fps -28%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	0.06 fps -89%
1900x1060 Creo (creo-01)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.95 fps +89%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	37.48 fps +82%
Dell Precision 5510 NVIDIA Quadro M1000M	34 fps +65%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.62 fps
HP ZBook 15u G3 AMD FirePro W4190M	16.87 fps -18%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	16.28 fps -21%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	10.15 fps -51%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.26 fps +116%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	44.29 fps +107%
Dell Precision 5510 NVIDIA Quadro M1000M	37 fps +73%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21.42 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	18.72 fps -13%
HP ZBook 15u G3 AMD FirePro W4190M	18.62 fps -13%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	11.62 fps -46%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.31 fps +47%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.14 fps +43%
Dell Precision 5510 NVIDIA Quadro M1000M	41 fps +39%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	30.91 fps +5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	29.41 fps
1920x1080 Tcvis
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.93 fps +23%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.91 fps +20%
Dell Precision 5510 NVIDIA Quadro M1000M	40 fps +12%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	39.52 fps +11%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	35.63 fps
1920x1080 SolidWorks
Dell Precision 5510 NVIDIA Quadro M1000M	51 fps +29%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	47.71 fps +20%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.69 fps +18%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	41.78 fps +5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	39.63 fps
1920x1080 Pro/ENGINEER
Dell Precision 5510 NVIDIA Quadro M1000M	21 fps +41%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	17.54 fps +18%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	17.4 fps +17%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	15.68 fps +5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	14.87 fps
1920x1080 Maya
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	58.3 fps +24%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	56.9 fps +21%
Dell Precision 5510 NVIDIA Quadro M1000M	56 fps +19%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	49.5 fps +6%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.88 fps
1920x1080 Lightwave
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +15%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	52.5 fps +12%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	48.27 fps +3%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.9 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	46.82 fps 0%
1920x1080 Ensight
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.43 fps +127%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43.49 fps +113%
Dell Precision 5510 NVIDIA Quadro M1000M	39 fps +91%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	20.68 fps +1%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.44 fps
1920x1080 Catia
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +42%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	53.5 fps +40%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	48.98 fps +29%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	46.7 fps +23%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	38.08 fps

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	903 Samples/s +139%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	791 Samples/s +109%
Dell Precision 5510 NVIDIA Quadro M1000M	534 Samples/s +41%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	378 Samples/s
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	253 Samples/s -33%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	224 Samples/s -41%
Sala GPUs-only
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1434 Samples/s +52%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1426 Samples/s +51%
HP ZBook 15u G3 AMD FirePro W4190M	1034 Samples/s +9%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	945 Samples/s
Dell Precision 5510 NVIDIA Quadro M1000M	889 Samples/s -6%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	529 Samples/s -44%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	508 Samples/s -46%

SiSoft Sandra 2016
Image Processing
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	155.8 MPix/s +57%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	155.7 MPix/s +56%
Dell Precision 5510 NVIDIA Quadro M1000M	127.5 MPix/s +28%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	99.5 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	12.28 GB/s +129%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	9.28 GB/s +73%
Dell Precision 5510 NVIDIA Quadro M1000M	7.38 GB/s +37%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	5.37 GB/s
GP Financial Analysis (FP High/Double Precision)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.75 KOPT/s +70%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	21.63 KOPT/s +69%
Dell Precision 5510 NVIDIA Quadro M1000M	17 KOPT/s +33%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	12.82 KOPT/s

Unigine Heaven 3.0 | Unigine Valley 1.0 | 3DMark

Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
Dell Precision 5510 NVIDIA Quadro M1000M	43.4 fps +117%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	33.9 fps +70%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	32.4 fps +62%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	18.6 fps -7%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	53.4 fps +154%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	52.5 fps +150%
Dell Precision 5510 NVIDIA Quadro M1000M	44.9 fps +114%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	21.9 fps +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	20.4 fps +214%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	20.3 fps +212%
Dell Precision 5510 NVIDIA Quadro M1000M	18.7 fps +188%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.5 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Dell Precision 5510 NVIDIA Quadro M1000M	16.2 fps +138%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	13.8 fps +103%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	13.2 fps +94%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.8 fps

3DMark
1920x1080 Fire Strike Combined
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1628 Points +228%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1590 Points +221%
Dell Precision 5510 NVIDIA Quadro M1000M	1401 Points +182%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	496 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	483 Points -3%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	305 Points -39%
1920x1080 Fire Strike Physics
Dell Precision 5510 NVIDIA Quadro M1000M	10414 Points +113%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	10118 Points +107%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	8526 Points +74%
HP ZBook 15u G3 AMD FirePro W4190M	5401 Points +10%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	5291 Points +8%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	4893 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	4665 Points -5%
1920x1080 Fire Strike Graphics
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	4243 Points +164%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	4126 Points +156%
Dell Precision 5510 NVIDIA Quadro M1000M	3517 Points +118%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	1621 Points +1%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1610 Points
HP ZBook 15u G3 AMD FirePro W4190M	1588 Points -1%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	935 Points -42%
1920x1080 Fire Strike Score
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3952 Points +176%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3813 Points +166%
Dell Precision 5510 NVIDIA Quadro M1000M	3344 Points +134%
HP ZBook 15u G3 AMD FirePro W4190M	1517 Points +6%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1432 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	1424 Points -1%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	863 Points -40%
1280x720 Sky Diver Graphics
Dell Precision 5510 NVIDIA Quadro M1000M	11179 Points
1280x720 Sky Diver Score
Dell Precision 5510 NVIDIA Quadro M1000M	10951 Points
1280x720 Cloud Gate Standard Physics
Dell Precision 5510 NVIDIA Quadro M1000M	7641 Points +124%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	7312 Points +114%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	6224 Points +82%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	3681 Points +8%
HP ZBook 15u G3 AMD FirePro W4190M	3649 Points +7%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	3413 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	3359 Points -2%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	30495 Points +268%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	27157 Points +228%
Dell Precision 5510 NVIDIA Quadro M1000M	23777 Points +187%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	9092 Points +10%
HP ZBook 15u G3 AMD FirePro W4190M	8513 Points +3%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	8281 Points
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	7505 Points -9%
1280x720 Cloud Gate Standard Score
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	16940 Points +169%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	16337 Points +160%
Dell Precision 5510 NVIDIA Quadro M1000M	16180 Points +157%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	6591 Points +5%
HP ZBook 15u G3 AMD FirePro W4190M	6567 Points +4%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6287 Points
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	6097 Points -3%
1920x1080 Ice Storm Extreme Physics
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	38530 Points
1920x1080 Ice Storm Extreme Graphics
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	40401 Points
1920x1080 Ice Storm Extreme Score
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	39969 Points
1280x720 Ice Storm Standard Physics
HP ZBook 15u G3 AMD FirePro W4190M	44477 Points +65%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43922 Points +63%
Dell Precision 5510 NVIDIA Quadro M1000M	41557 Points +54%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	40867 Points +51%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	39650 Points +47%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	26992 Points
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	14821 Points -45%
1280x720 Ice Storm Standard Graphics
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	76826 Points +191%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	66190 Points +151%
Dell Precision 5510 NVIDIA Quadro M1000M	41161 Points +56%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	39220 Points +49%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	38601 Points +46%
HP ZBook 15u G3 AMD FirePro W4190M	35930 Points +36%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	26395 Points
1280x720 Ice Storm Standard Score
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	63578 Points +140%
Lenovo ThinkPad T460s-20FA003GGE Intel HD Graphics 520	58178 Points +119%
Dell Precision 5510 NVIDIA Quadro M1000M	41248 Points +56%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	40175 Points +51%
HP ZBook 15u G3 AMD FirePro W4190M	37532 Points +41%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	28455 Points +7%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	26525 Points

3DMark 06 Standard Score		12842 punten
3DMark Vantage P Result		7959 punten
3DMark 11 Performance		2350 punten
3DMark Ice Storm Standard Score		26525 punten
3DMark Cloud Gate Standard Score		6287 punten
3DMark Fire Strike Score		1432 punten
Help

... in vergelijking

Tomb Raider | Rise of the Tomb Raider | BioShock Infinite

Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	17.3 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	43 fps +149%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	51.5 fps +198%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	16.8 fps -3%
1366x768 High Preset AA:FX AF:8x (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	34.4 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	98 fps +185%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	107.3 fps +212%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	36 fps +5%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	35.4 fps +3%
1366x768 Normal Preset AA:FX AF:4x (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	62.7 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	144 fps +130%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	162.8 fps +160%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	66 fps +5%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	52.1 fps -17%
1024x768 Low Preset (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	137.8 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	279 fps +102%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	348.7 fps +153%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	134 fps -3%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	82.5 fps -40%

Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x (sorteer op waarde)
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	9.1 fps
1920x1080 Very High Preset AA:FX AF:16x (sorteer op waarde)
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	21.6 fps
1920x1080 High Preset AA:FX AF:4x (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	10.4 fps
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	8 fps -23%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	25.7 fps +147%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	10.84 fps +4%
1366x768 Medium Preset AF:2x (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	18.6 fps
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	14 fps -25%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	45.3 fps +144%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	18.28 fps -2%
1024x768 Lowest Preset (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	30.3 fps
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	22.74 fps -25%

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	14.7 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	38 fps +159%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	13.64 fps -7%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	39.5 fps +169%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	15 fps +2%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	20.86 fps +42%
1366x768 High Preset (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	43.8 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	100 fps +128%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	34.08 fps -22%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	112.9 fps +158%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	42 fps -4%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	42.27 fps -3%
1366x768 Medium Preset (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	54 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	111 fps +106%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	38.42 fps -29%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	128 fps +137%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	52 fps -4%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	51.4 fps -5%
1280x720 Very Low Preset (sorteer op waarde)
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	94.9 fps
Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	195 fps +105%
HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	85.2 fps -10%
Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	187.9 fps +98%
Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M	73 fps -23%
Acer Aspire V3-575G-5093 Intel Core i5-6200U, NVIDIA GeForce 940M	73.5 fps -23%

	lage	gem.	hoge	ultra
Tomb Raider (2013)	137.8	62.7	34.4	17.3
BioShock Infinite (2013)	94.9	54	43.8	14.7
Metro: Last Light (2013)	48.9	38.3	22.9	11.6
Thief (2014)	33.7	23.4	19.1	9.6
Dirt Rally (2015)	82.6	32.8	19.5	12.7
The Witcher 3 (2015)	30.5	18.9	10.2
Star Wars Battlefront (2015)	56.5	33.3	15.2	13
Rainbow Six Siege (2015)	46.9	32.4	19.2	13.1
Just Cause 3 (2015)	35.6	29.6	16.2	14.5
Rise of the Tomb Raider (2016)	30.3	18.6	10.4

Geluidsniveau

Onbelast		30 / 30 / 30 dB (A)
Belasting		33.5 / 41.9 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Audix TM1, Arta (15 cm afstand)

	Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M
Noise		-8%	-4%	-24%	-1%	10%
Idle Minimum *	30	30 -0%	29.8 1%	37.2 -24%	30 -0%	26.9 10%
Idle Average *	30	30 -0%	29.8 1%	37.2 -24%	30 -0%	26.9 10%
Idle Maximum *	30	30 -0%	29.8 1%	37.2 -24%	30 -0%	26.9 10%
Load Average *	33.5	42.08 -26%	39.5 -18%	42.1 -26%	34.5 -3%	30.4 9%
Load Maximum *	41.9	46.78 -12%	43.2 -3%	50.7 -21%	42.1 -0%	38.1 9%

* ... kleiner is beter

Max. Belasting

Inactief


27.4 °C	30.7 °C	37.5 °C
27.3 °C	34.4 °C	44.2 °C
26.5 °C	32.3 °C	34.4 °C

Maximum: 44.2 °C
Gemiddelde: 32.7 °C


41.1 °C	33.8 °C	27.3 °C
57.8 °C	55.9 °C	28.9 °C
32.3 °C	30.2 °C	25.7 °C

Maximum: 57.8 °C
Gemiddelde: 37 °C

Stroomadapter (max.) 46.3 °C | Kamertemperatuur 20 °C | Fennel FIRT 550

(±) De gemiddelde temperatuur voor de bovenzijde bij maximale belasting bedraagt 32.7 °C / 91 F, vergeleken met het gemiddelde van 32 °C / ###class_avg_f## F voor de apparaten van de klasse Workstation.
(±) De maximumtemperatuur aan de bovenzijde bedraagt 44.2 °C / 112 F, vergeleken met het gemiddelde van 38.2 °C / 101 F, variërend van 22.2 tot 69.8 °C voor de klasse Workstation.
(-) De bodem warmt op tot een maximum van 57.8 °C / 136 F, vergeleken met een gemiddelde van 41.2 °C / 106 F
(+) Bij onbelast gebruik bedraagt de gemiddelde temperatuur voor de bovenzijde 24.8 °C / 77 F, vergeleken met het apparaatgemiddelde van 32 °C / 90 F.
(+) De handpalmsteunen en het touchpad bereiken maximaal de huidtemperatuur (34.4 °C / 93.9 F) en zijn dus niet heet.
(-) De gemiddelde temperatuur van de handpalmsteun van soortgelijke toestellen bedroeg 27.8 °C / 82 F (-6.6 °C / -11.9 F).

	Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M
Heat		-4%	6%	-11%	-0%	12%
Maximum Upper Side *	44.2	45.8 -4%	44.6 -1%	42.3 4%	36.7 17%	36.5 17%
Maximum Bottom *	57.8	46.7 19%	46 20%	60.1 -4%	41.3 29%	51.2 11%
Idle Upper Side *	26.4	31.2 -18%	25.8 2%	32.7 -24%	31.1 -18%	23.9 9%
Idle Bottom *	28.1	31.9 -14%	27.4 2%	33.1 -18%	36.2 -29%	25.7 9%

* ... kleiner is beter

Stroomgebruik

Uit / Standby	0.18 / 0.37 Watt
Inactief	4.3 / 9.7 / 10.2 Watt
Belasting	45.7 / 55.8 Watt


Key: min: , med: , max: Gossen Metrahit Energy

	Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U, NVIDIA Quadro M500M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M
Power Consumption		-90%	-4%	-201%	-39%	5%
Idle Minimum *	4.3	8.6 -100%	4.3 -0%	18.8 -337%	5.6 -30%	4 7%
Idle Average *	9.7	16.2 -67%	7.9 19%	29.6 -205%	8.6 11%	9.6 1%
Idle Maximum *	10.2	16.7 -64%	11.5 -13%	30.3 -197%	9.3 9%	10.8 -6%
Load Average *	45.7	82.6 -81%	43.3 5%	90.4 -98%	89.5 -96%	36.9 19%
Load Maximum *	55.8	131.8 -136%	72.3 -30%	150.2 -169%	105 -88%	54.5 2%

* ... kleiner is beter

Batterijduur

Inactief (zonder WLAN, minimale helderheid)		18h 27min
WiFi Websurfing		6h 48min
Big Buck Bunny H.264 1080p		8h 57min
Belast (maximale helderheid)		2h 9min

	Lenovo ThinkPad P50s-20FKS00400 67 Wh, 6500U, Quadro M500M	Dell Precision 5510 56 Wh, E3-1505M v5, Quadro M1000M	HP ZBook 15u G3 90 Wh, 6600U, FirePro W4190M	MSI WS60-6QJE316H11 47 Wh, E3-1505M v5, Quadro M2000M	Lenovo ThinkPad P50 90 Wh, 6820HQ, Quadro M2000M	Lenovo ThinkPad W550s 20E2-000PGE 116 Wh, 5500U, Quadro K620M
Batterijduur		-43%	-16%	-74%	-3%	62%
Reader / Idle	1107	428 -61%	756 -32%	160 -86%	860 -22%	1728 56%
H.264	537	197 -63%		141 -74%	533 -1%	667 24%
WiFi v1.3	408	286 -30%	312 -24%	106 -74%	498 22%	715 75%
Load	129	109 -16%	141 9%	51 -60%	113 -12%	247 91%
WiFi		298

Pro

+ Stevige behuizing

+ Goed beeldscherm

+ Uitstekend toetsenbord

+ Lange looptijden

+ Prestaties van poorten

+ Uitstekende Wi-Fi prestaties

+ 3 jaar garantie

Contra

- Layout van poorten

- Tegenvallende CPU rekenkracht

- CPU kan niet volledige Turbo gebruiken

- Lastig onderhoud

- Geen moderne poorten (USB 3.1, USB-C, Thunderbolt, M.2-2280)

- PWM

Getest: Lenovo ThinkPad P50s. Testmodel geleverd door Notebooksandmore.

Voor het volledige, Engelse testrapport, klik hier.

De ThinkPad P50 is een Skylake update van de oudere ThinkPad W550s, wat gelijk het grootste nadeel is van het apparaat. Afgezien van de processor is de notebook niet echt vernieuwd, dus zijn er geen moderne poorten aanwezig (USB-C, Thunderbolt, M.2-SSD's, M.2-2280). We kunnen de samenvatting van de W550s vrijwel letterlijk kopiëren, omdat ook nu geldt dat de koper een goed, dun werkstation krijgt met een te zwakke CPU. Dit laatste punt hangt natuurlijk af van het gebruik en de ULV chips zijn zeker geen slappelingen, maar het testmodel kan niet de volledige potentie benutten. Waarom kan het TDP limiet van een Ultrabook zoals de ThinkPad T460s verhoogd worden, maar niet bij een werkstation? De verschillende ontwikkelingsteams bij Lenovo moeten zeker beter communiceren.

Dit brengt ons bij het volgende probleem van de ThinkPad P50s: de ThinkPad P50. Dankzij een volledig opnieuw ontworpen behuizing, biedt dat apparaat alle moderne poorten, meer rekenkracht en is niet luider. Het voordeel van de P50s is de dunnere behuizing en een enigszins lager gewicht. Maar als je zoveel geeft om mobiliteit, is momenteel de Dell Precision 5510 de beste keuze.

De ThinkPad P50s is nog steeds een degelijk werkstation, maar het apparaat is niet echt vernieuwd vergeleken met de voorganger. Het is daarom niet eenvoudig om het apparaat aan te bevelen - vooral gezien de sterke concurrentie.

Dit geldt met name als je geen toegang hebt tot de educatieprogramma's van Lenovo, omdat de apparaten dan ongeveer gelijk geprijsd zijn. Ons educatiemodel voor €1400 heeft een goede prijs/kwaliteit verhouding, maar je kunt ook de ThinkPad P50 kopen voor ongeveer €1440. Je levert dan in op het beeldscherm, maar krijgt moderner en krachtiger apparaat terug.

Een opmerking over de beoordeling: ons beoordelingssysteem evalueert naast de normale applicatieprestaties ook de werkstation prestaties. Ter vergelijking: de P50s zou 85% scoren als zakelijke notebook.

Lenovo ThinkPad P50s-20FKS00400 - 2016-03-16 16-03-2016 v5 ^(old)
Andreas Osthoff

Behuizing

90 / 98 → 92%

Toetsenbord

94%

Aanwijsapparaat

87%

Aansluitmogelijkheden

65 / 81 → 80%

Gewicht

62 / 10-66 → 93%

Batterij

90%

Beeldscherm

86%

Gaming-performance

63%

Applicatie-performance

82%

Workstation

54%

Temperatuur

88 / 95 → 92%

Luidheid

91 / 90 → 100%

Audio

68%

Camera

50 / 85 → 59%

Gemiddelde

76%

79%

Workstation - Gewogen Gemiddelde

Read about the changes in the new rating version 5

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad P50s-20FKS00400 Notebook

Andreas Osthoff, 2016-04- 3 (Update: 2016-04- 3)
