Kort testrapport KFA2 GeForce GTX 1650 EX Plus - betere prestaties en snellere VRAM voor de kleinste op Turing gebaseerde desktop-GPU

De 90 Watt GeForce GTX 1650!

De GeForce GTX 1650 is de kleinste op Turing gebaseerde grafische kaart die bedoeld is voor prijsbewuste kopers. De GeForce GTX 1650 EX Plus van KFA2 wordt geleverd met een extra voedingsconnector en heeft daarom een TGP van 90 watt. Lees dit korte testrapport om erachter te komen wat je hiervan kunt verwachten.

Sebastian Bade, 👁 Klaus Hinum, Published 30-08-2020 🇺🇸 🇩🇪 ...

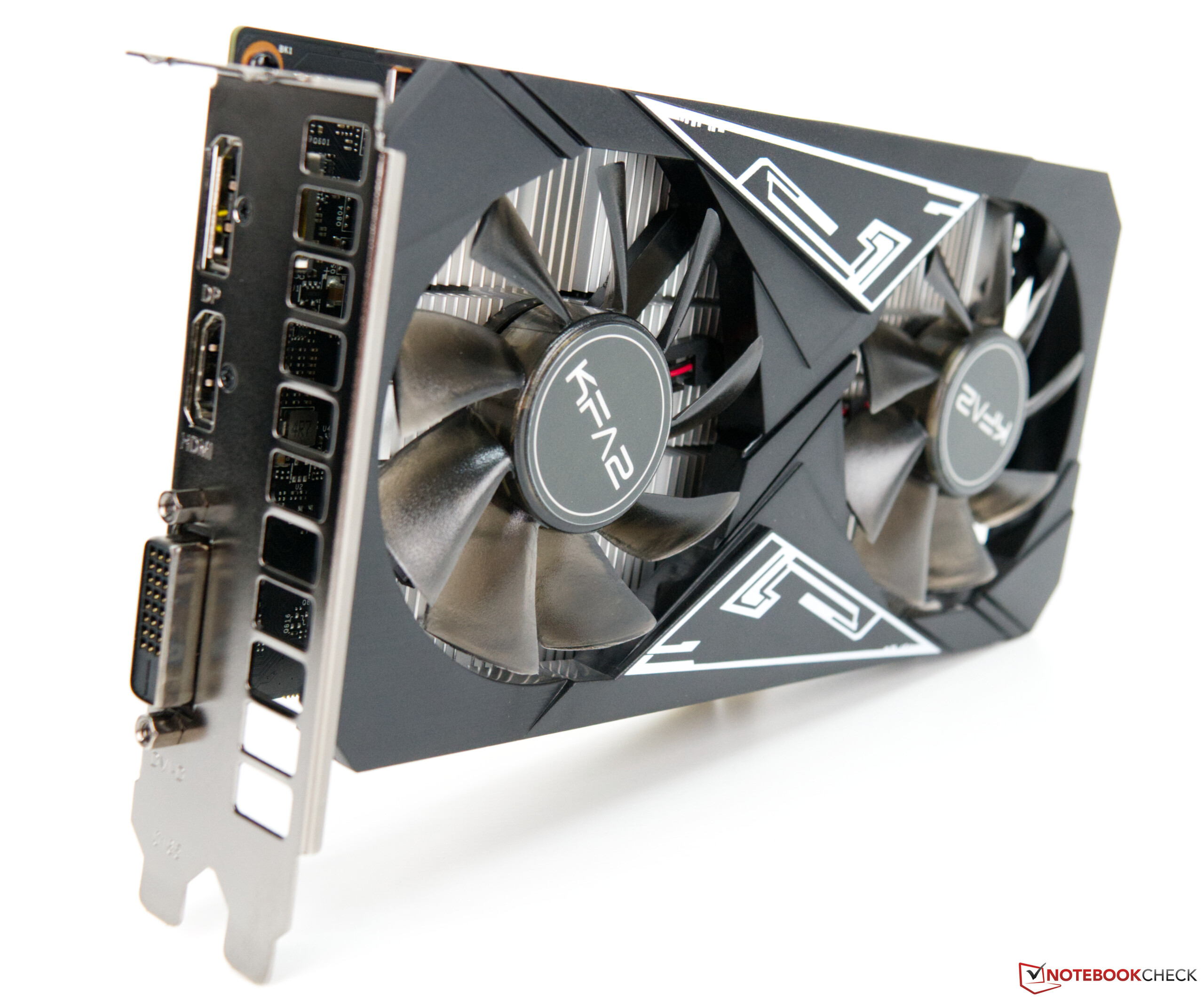

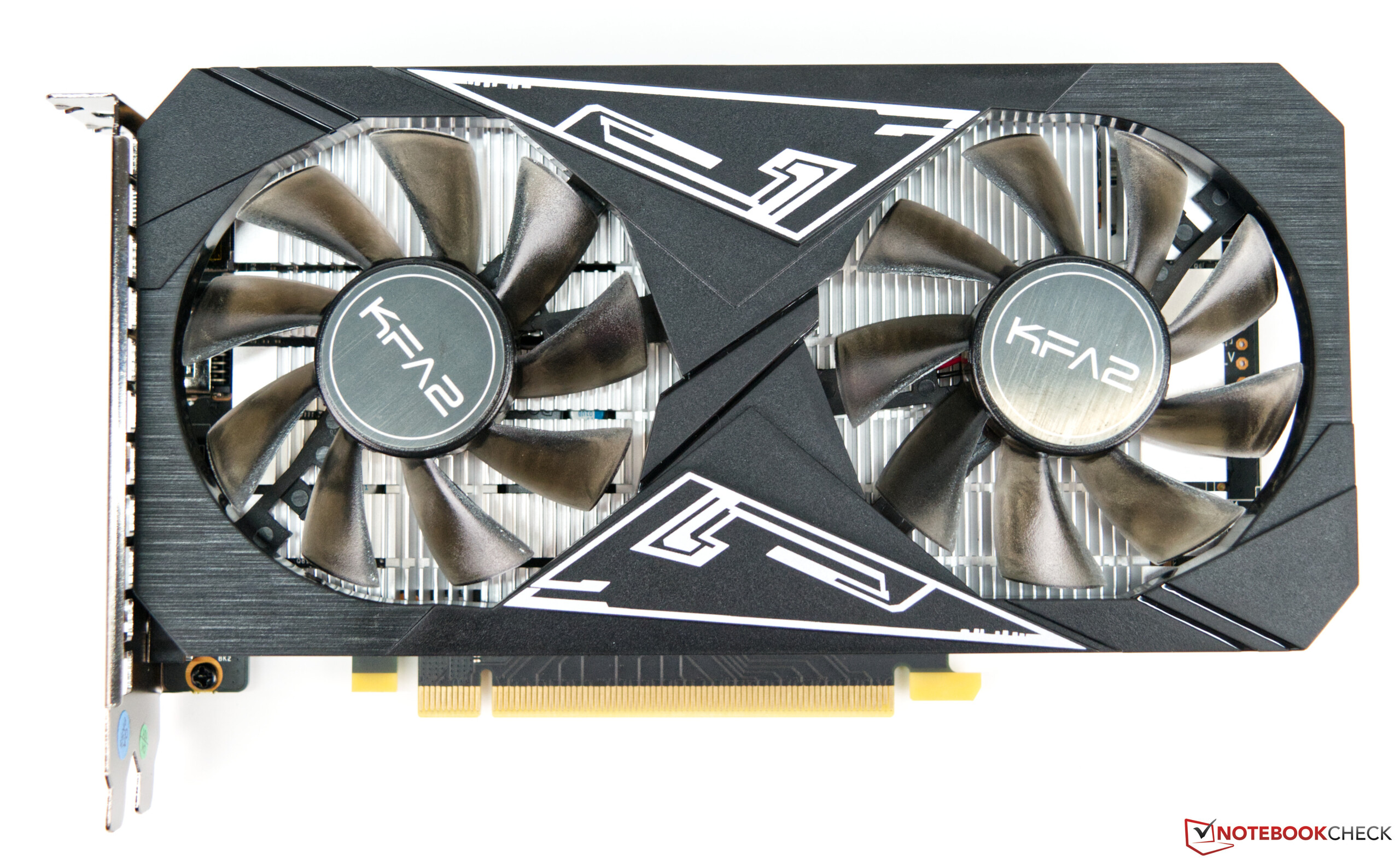

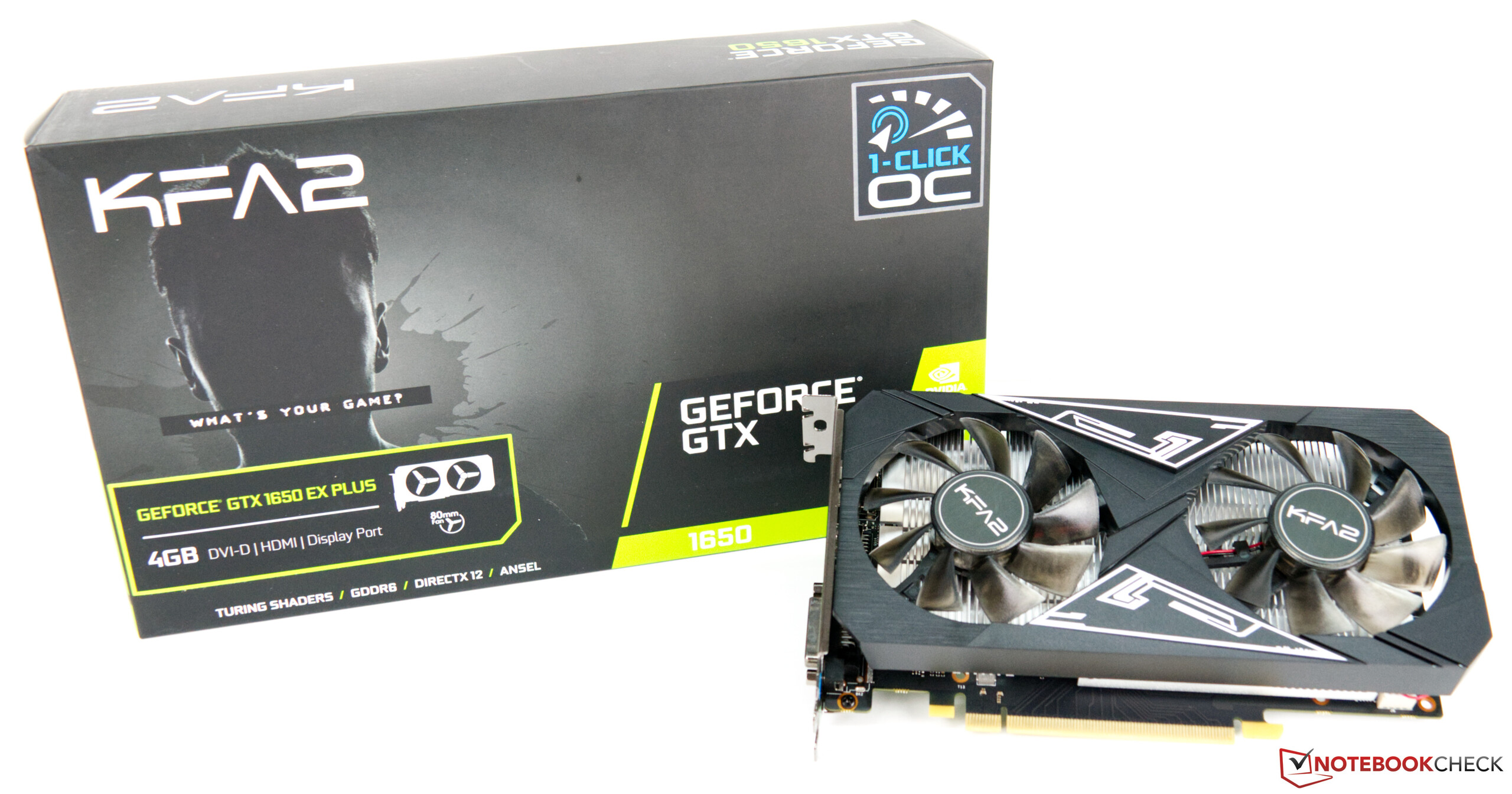

KFA2 GeForce GTX 1650 EX Plus (1-Click OC)

Performance Rating - Percent
AMD Radeon RX 5700 XT ^-1!	91.4 pt
Nvidia GeForce RTX 2060 Super ^-31!	88.2 pt
KFA2 GeForce RTX 2060 Super	83.1 pt
AMD Radeon RX 5700 ^-1!	80.7 pt
Sapphire AMD Radeon RX 5600 XT ^-9!	78.4 pt
MSI RTX 2060 Gaming Z 6G	72.5 pt
Zotac GeForce GTX 1660 Ti 6 GB	60.9 pt
XFX AMD Radeon RX 590 OC+ 8 GB ^-3!	59.2 pt
KFA 2 GeForce GTX 1660 Super	58.1 pt
Sapphire NITRO+ RX 570 8 GB ^-1!	49.8 pt
PNY GeForce GTX 1660	47.8 pt
KFA2 GeForce GTX 1650 EX One Click Plus	40.4 pt
Gainward GeForce GTX 1650 4 GB	36.8 pt

3DMark
1920x1080 Fire Strike Graphics
AMD Radeon RX 5700 XT	25383 Points +161%
AMD Radeon RX 5700	22457 Points +131%
Nvidia GeForce RTX 2060 Super	21772 Points +124%
Sapphire AMD Radeon RX 5600 XT	21734 Points +124%
KFA2 GeForce RTX 2060 Super	21563 Points +122%
MSI RTX 2060 Gaming Z 6G	19338 Points +99%
XFX AMD Radeon RX 590 OC+ 8 GB	16746 Points +72%
Zotac GeForce GTX 1660 Ti 6 GB	16024 Points +65%
KFA 2 GeForce GTX 1660 Super	15498 Points +59%
PNY GeForce GTX 1660	13847 Points +42%
Sapphire NITRO+ RX 570 8 GB	13827 Points +42%
KFA2 GeForce GTX 1650 EX One Click Plus	9718 Points
Gainward GeForce GTX 1650 4 GB	9195 Points -5%
Fire Strike Extreme Graphics
AMD Radeon RX 5700 XT	12209 Points +185%
AMD Radeon RX 5700	10876 Points +154%
Sapphire AMD Radeon RX 5600 XT	10663 Points +149%
Nvidia GeForce RTX 2060 Super	10540 Points +146%
KFA2 GeForce RTX 2060 Super	10368 Points +142%
MSI RTX 2060 Gaming Z 6G	9097 Points +112%
XFX AMD Radeon RX 590 OC+ 8 GB	7328 Points +71%
Zotac GeForce GTX 1660 Ti 6 GB	7184 Points +68%
KFA 2 GeForce GTX 1660 Super	6935 Points +62%
PNY GeForce GTX 1660	6414 Points +50%
Sapphire NITRO+ RX 570 8 GB	6077 Points +42%
KFA2 GeForce GTX 1650 EX One Click Plus	4287 Points
Gainward GeForce GTX 1650 4 GB	4044 Points -6%
3840x2160 Fire Strike Ultra Graphics
AMD Radeon RX 5700 XT	5955 Points +217%
Sapphire AMD Radeon RX 5600 XT	5556 Points +196%
AMD Radeon RX 5700	5292 Points +182%
Nvidia GeForce RTX 2060 Super	5185 Points +176%
KFA2 GeForce RTX 2060 Super	5137 Points +174%
MSI RTX 2060 Gaming Z 6G	4244 Points +126%
XFX AMD Radeon RX 590 OC+ 8 GB	3702 Points +97%
Zotac GeForce GTX 1660 Ti 6 GB	3158 Points +68%
KFA 2 GeForce GTX 1660 Super	3088 Points +64%
Sapphire NITRO+ RX 570 8 GB	3070 Points +63%
PNY GeForce GTX 1660	2684 Points +43%
KFA2 GeForce GTX 1650 EX One Click Plus	1878 Points
Gainward GeForce GTX 1650 4 GB	1674 Points -11%
2560x1440 Time Spy Graphics
KFA2 GeForce RTX 2060 Super	8699 Points +148%
AMD Radeon RX 5700 XT	8673 Points +147%
Nvidia GeForce RTX 2060 Super	8673 Points +147%
MSI RTX 2060 Gaming Z 6G	7732 Points +120%
AMD Radeon RX 5700	7675 Points +119%
Sapphire AMD Radeon RX 5600 XT	7602 Points +116%
Zotac GeForce GTX 1660 Ti 6 GB	6131 Points +75%
KFA 2 GeForce GTX 1660 Super	6021 Points +71%
PNY GeForce GTX 1660	5502 Points +57%
XFX AMD Radeon RX 590 OC+ 8 GB	4863 Points +38%
Sapphire NITRO+ RX 570 8 GB	3958 Points +13%
KFA2 GeForce GTX 1650 EX One Click Plus	3512 Points
Gainward GeForce GTX 1650 4 GB	3492 Points -1%

3DMark 11 - 1280x720 Performance GPU
AMD Radeon RX 5700 XT	35715 Points +164%
AMD Radeon RX 5700	31570 Points +133%
Sapphire AMD Radeon RX 5600 XT	30515 Points +126%
Nvidia GeForce RTX 2060 Super	29419 Points +117%
KFA2 GeForce RTX 2060 Super	29148 Points +115%
MSI RTX 2060 Gaming Z 6G	26413 Points +95%
XFX AMD Radeon RX 590 OC+ 8 GB	23202 Points +71%
Zotac GeForce GTX 1660 Ti 6 GB	22128 Points +64%
KFA 2 GeForce GTX 1660 Super	21347 Points +58%
PNY GeForce GTX 1660	20696 Points +53%
Sapphire NITRO+ RX 570 8 GB	18967 Points +40%
Gainward GeForce GTX 1650 4 GB	13759 Points +2%
KFA2 GeForce GTX 1650 EX One Click Plus	13531 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
KFA2 GeForce RTX 2060 Super	132.3 fps +135%
MSI RTX 2060 Gaming Z 6G	115.8 fps +106%
AMD Radeon RX 5700 XT	110.2 fps +96%
AMD Radeon RX 5700	100.7 fps +79%
Zotac GeForce GTX 1660 Ti 6 GB	94.3 fps +67%
Sapphire AMD Radeon RX 5600 XT	92.6 fps +64%
KFA 2 GeForce GTX 1660 Super	92.2 fps +64%
PNY GeForce GTX 1660	82.4 fps +46%
XFX AMD Radeon RX 590 OC+ 8 GB	60.3 fps +7%
KFA2 GeForce GTX 1650 EX One Click Plus	56.3 fps
Sapphire NITRO+ RX 570 8 GB	55.7 fps -1%
Gainward GeForce GTX 1650 4 GB	54.3 fps -4%
Extreme Preset DX11
KFA2 GeForce RTX 2060 Super	140.4 fps +134%
AMD Radeon RX 5700 XT	132.5 fps +120%
MSI RTX 2060 Gaming Z 6G	124.1 fps +106%
AMD Radeon RX 5700	119.9 fps +100%
Sapphire AMD Radeon RX 5600 XT	109.6 fps +82%
Zotac GeForce GTX 1660 Ti 6 GB	100.9 fps +68%
KFA 2 GeForce GTX 1660 Super	98.3 fps +64%
PNY GeForce GTX 1660	87.6 fps +46%
XFX AMD Radeon RX 590 OC+ 8 GB	76.1 fps +27%
Sapphire NITRO+ RX 570 8 GB	64.7 fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus	60.1 fps
Gainward GeForce GTX 1650 4 GB	56.8 fps -5%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
KFA2 GeForce RTX 2060 Super	111 fps +138%
AMD Radeon RX 5700 XT	106.3 fps +128%
AMD Radeon RX 5700	99.3 fps +113%
MSI RTX 2060 Gaming Z 6G	91.2 fps +96%
Sapphire AMD Radeon RX 5600 XT	91 fps +95%
KFA 2 GeForce GTX 1660 Super	77.6 fps +67%
Zotac GeForce GTX 1660 Ti 6 GB	77.4 fps +66%
PNY GeForce GTX 1660	64.2 fps +38%
XFX AMD Radeon RX 590 OC+ 8 GB	57.3 fps +23%
Sapphire NITRO+ RX 570 8 GB	49.1 fps +5%
KFA2 GeForce GTX 1650 EX One Click Plus	46.6 fps
Gainward GeForce GTX 1650 4 GB	42.1 fps -10%
1920x1080 Extreme HD Preset OpenGL AA:x8
KFA2 GeForce RTX 2060 Super	97.6 fps +125%
AMD Radeon RX 5700 XT	89.1 fps +105%
MSI RTX 2060 Gaming Z 6G	83.6 fps +93%
AMD Radeon RX 5700	82.7 fps +91%
Sapphire AMD Radeon RX 5600 XT	73.3 fps +69%
Zotac GeForce GTX 1660 Ti 6 GB	70.5 fps +62%
KFA 2 GeForce GTX 1660 Super	70.4 fps +62%
PNY GeForce GTX 1660	59.1 fps +36%
XFX AMD Radeon RX 590 OC+ 8 GB	50 fps +15%
KFA2 GeForce GTX 1650 EX One Click Plus	43.4 fps
Sapphire NITRO+ RX 570 8 GB	42.8 fps -1%
Gainward GeForce GTX 1650 4 GB	40 fps -8%

LuxMark v2.0 64Bit
Room GPUs-only
KFA2 GeForce RTX 2060 Super	3278 Samples/s +158%
MSI RTX 2060 Gaming Z 6G	2586 Samples/s +103%
KFA 2 GeForce GTX 1660 Super	2286 Samples/s +80%
Zotac GeForce GTX 1660 Ti 6 GB	2108 Samples/s +66%
AMD Radeon RX 5700 XT	2104 Samples/s +65%
PNY GeForce GTX 1660	2030 Samples/s +59%
XFX AMD Radeon RX 590 OC+ 8 GB	1996 Samples/s +57%
AMD Radeon RX 5700	1856 Samples/s +46%
Sapphire AMD Radeon RX 5600 XT	1692 Samples/s +33%
Sapphire NITRO+ RX 570 8 GB	1600 Samples/s +26%
Gainward GeForce GTX 1650 4 GB	1368 Samples/s +7%
KFA2 GeForce GTX 1650 EX One Click Plus	1273 Samples/s
Sala GPUs-only
KFA2 GeForce RTX 2060 Super	7010 Samples/s +171%
AMD Radeon RX 5700 XT	6188 Samples/s +140%
MSI RTX 2060 Gaming Z 6G	5655 Samples/s +119%
AMD Radeon RX 5700	5312 Samples/s +106%
Sapphire AMD Radeon RX 5600 XT	4898 Samples/s +90%
KFA 2 GeForce GTX 1660 Super	4490 Samples/s +74%
Zotac GeForce GTX 1660 Ti 6 GB	4440 Samples/s +72%
XFX AMD Radeon RX 590 OC+ 8 GB	4084 Samples/s +58%
PNY GeForce GTX 1660	4070 Samples/s +58%
Sapphire NITRO+ RX 570 8 GB	3282 Samples/s +27%
KFA2 GeForce GTX 1650 EX One Click Plus	2582 Samples/s
Gainward GeForce GTX 1650 4 GB	2577 Samples/s 0%

ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
AMD Radeon RX 5700 XT	5761 Points +142%
KFA2 GeForce RTX 2060 Super	5270 Points +121%
MSI RTX 2060 Gaming Z 6G	4903 Points +106%
Sapphire AMD Radeon RX 5600 XT	4799 Points +102%
AMD Radeon RX 5700	4703 Points +98%
Zotac GeForce GTX 1660 Ti 6 GB	3975 Points +67%
PNY GeForce GTX 1660	3740 Points +57%
KFA 2 GeForce GTX 1660 Super	3656 Points +54%
XFX AMD Radeon RX 590 OC+ 8 GB	3299 Points +39%
Gainward GeForce GTX 1650 4 GB	2538 Points +7%
Sapphire NITRO+ RX 570 8 GB	2444 Points +3%
KFA2 GeForce GTX 1650 EX One Click Plus	2381 Points
1024x600 Normal, Mandel Scalar
AMD Radeon RX 5700 XT	4869 Points +252%
Sapphire AMD Radeon RX 5600 XT	4095 Points +196%
AMD Radeon RX 5700	4043 Points +193%
XFX AMD Radeon RX 590 OC+ 8 GB	3312 Points +140%
KFA2 GeForce RTX 2060 Super	3169 Points +129%
MSI RTX 2060 Gaming Z 6G	2982 Points +116%
Sapphire NITRO+ RX 570 8 GB	2478 Points +79%
Zotac GeForce GTX 1660 Ti 6 GB	2362 Points +71%
PNY GeForce GTX 1660	2199 Points +59%
KFA 2 GeForce GTX 1660 Super	2149 Points +55%
Gainward GeForce GTX 1650 4 GB	1474 Points +7%
KFA2 GeForce GTX 1650 EX One Click Plus	1382 Points
1024x600 Normal, Mandel Vector
AMD Radeon RX 5700 XT	4246 Points +173%
Sapphire AMD Radeon RX 5600 XT	3593 Points +131%
AMD Radeon RX 5700	3532 Points +127%
KFA2 GeForce RTX 2060 Super	2948 Points +89%
XFX AMD Radeon RX 590 OC+ 8 GB	2802 Points +80%
MSI RTX 2060 Gaming Z 6G	2800 Points +80%
Zotac GeForce GTX 1660 Ti 6 GB	2327 Points +49%
PNY GeForce GTX 1660	2214 Points +42%
Sapphire NITRO+ RX 570 8 GB	2169 Points +39%
KFA 2 GeForce GTX 1660 Super	2169 Points +39%
Gainward GeForce GTX 1650 4 GB	1628 Points +5%
KFA2 GeForce GTX 1650 EX One Click Plus	1557 Points
1024x600 Normal, Fluid 2DTexArr
KFA2 GeForce RTX 2060 Super	2101 Points +136%
AMD Radeon RX 5700 XT	1960 Points +120%
AMD Radeon RX 5700	1810 Points +104%
MSI RTX 2060 Gaming Z 6G	1801 Points +103%
Sapphire AMD Radeon RX 5600 XT	1594 Points +79%
KFA 2 GeForce GTX 1660 Super	1488 Points +67%
Zotac GeForce GTX 1660 Ti 6 GB	1452 Points +63%
XFX AMD Radeon RX 590 OC+ 8 GB	1140 Points +28%
PNY GeForce GTX 1660	1030 Points +16%
Sapphire NITRO+ RX 570 8 GB	997 Points +12%
KFA2 GeForce GTX 1650 EX One Click Plus	889 Points
Gainward GeForce GTX 1650 4 GB	673 Points -24%
1024x600 Normal, Fluid 3DTex
AMD Radeon RX 5700 XT	2349 Points +148%
AMD Radeon RX 5700	2294 Points +142%
KFA2 GeForce RTX 2060 Super	2290 Points +141%
MSI RTX 2060 Gaming Z 6G	1889 Points +99%
Sapphire AMD Radeon RX 5600 XT	1701 Points +79%
KFA 2 GeForce GTX 1660 Super	1636 Points +72%
Zotac GeForce GTX 1660 Ti 6 GB	1531 Points +61%
XFX AMD Radeon RX 590 OC+ 8 GB	1239 Points +31%
Sapphire NITRO+ RX 570 8 GB	1106 Points +17%
PNY GeForce GTX 1660	1054 Points +11%
KFA2 GeForce GTX 1650 EX One Click Plus	949 Points
Gainward GeForce GTX 1650 4 GB	698 Points -26%
1024x600 Normal, Score
AMD Radeon RX 5700 XT	19184 Points +168%
AMD Radeon RX 5700	16383 Points +129%
Sapphire AMD Radeon RX 5600 XT	15783 Points +120%
KFA2 GeForce RTX 2060 Super	15776 Points +120%
MSI RTX 2060 Gaming Z 6G	14375 Points +101%
XFX AMD Radeon RX 590 OC+ 8 GB	11791 Points +65%
Zotac GeForce GTX 1660 Ti 6 GB	11648 Points +63%
KFA 2 GeForce GTX 1660 Super	11098 Points +55%
PNY GeForce GTX 1660	10237 Points +43%
Sapphire NITRO+ RX 570 8 GB	9194 Points +28%
KFA2 GeForce GTX 1650 EX One Click Plus	7159 Points
Gainward GeForce GTX 1650 4 GB	7011 Points -2%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Radeon RX 5700 XT	89.6 fps +88%
AMD Radeon RX 5700	79.2 fps +66%
XFX AMD Radeon RX 590 OC+ 8 GB	70.4 fps +47%
KFA2 GeForce RTX 2060 Super	63.3 fps +32%
Sapphire NITRO+ RX 570 8 GB	59.9 fps +25%
MSI RTX 2060 Gaming Z 6G	57.6 fps +21%
KFA 2 GeForce GTX 1660 Super	56.5 fps +18%
Zotac GeForce GTX 1660 Ti 6 GB	55.4 fps +16%
KFA2 GeForce GTX 1650 EX One Click Plus	47.78 fps
Gainward GeForce GTX 1650 4 GB	43.33 fps -9%
PNY GeForce GTX 1660	43.33 fps -9%
1900x1060 Siemens NX (snx-02)
AMD Radeon RX 5700 XT	35.27 fps +449%
AMD Radeon RX 5700	33.5 fps +422%
XFX AMD Radeon RX 590 OC+ 8 GB	24.87 fps +287%
Sapphire NITRO+ RX 570 8 GB	19.35 fps +201%
KFA2 GeForce RTX 2060 Super	8.6 fps +34%
Zotac GeForce GTX 1660 Ti 6 GB	8.55 fps +33%
MSI RTX 2060 Gaming Z 6G	8.35 fps +30%
KFA 2 GeForce GTX 1660 Super	8.21 fps +28%
Gainward GeForce GTX 1650 4 GB	6.48 fps +1%
PNY GeForce GTX 1660	6.48 fps +1%
KFA2 GeForce GTX 1650 EX One Click Plus	6.42 fps
1900x1060 Medical (medical-01)
AMD Radeon RX 5700 XT	46.9 fps +101%
AMD Radeon RX 5700	40.97 fps +76%
KFA2 GeForce RTX 2060 Super	38 fps +63%
MSI RTX 2060 Gaming Z 6G	35.22 fps +51%
XFX AMD Radeon RX 590 OC+ 8 GB	33.92 fps +46%
Zotac GeForce GTX 1660 Ti 6 GB	31.75 fps +36%
KFA 2 GeForce GTX 1660 Super	31.2 fps +34%
KFA2 GeForce GTX 1650 EX One Click Plus	23.29 fps
Gainward GeForce GTX 1650 4 GB	21.41 fps -8%
PNY GeForce GTX 1660	21.41 fps -8%
Sapphire NITRO+ RX 570 8 GB	18.12 fps -22%
1900x1060 Maya (maya-04)
KFA2 GeForce RTX 2060 Super	160 fps +70%
KFA 2 GeForce GTX 1660 Super	127.8 fps +36%
MSI RTX 2060 Gaming Z 6G	127.4 fps +36%
Zotac GeForce GTX 1660 Ti 6 GB	123.2 fps +31%
KFA2 GeForce GTX 1650 EX One Click Plus	93.9 fps
AMD Radeon RX 5700 XT	86.5 fps -8%
Gainward GeForce GTX 1650 4 GB	85.3 fps -9%
PNY GeForce GTX 1660	85.3 fps -9%
AMD Radeon RX 5700	73.3 fps -22%
XFX AMD Radeon RX 590 OC+ 8 GB	66.2 fps -29%
Sapphire NITRO+ RX 570 8 GB	31.7 fps -66%
1900x1060 Energy (energy-01)
AMD Radeon RX 5700 XT	12.72 fps +153%
AMD Radeon RX 5700	11.53 fps +129%
KFA2 GeForce RTX 2060 Super	10.74 fps +114%
MSI RTX 2060 Gaming Z 6G	9.19 fps +83%
KFA 2 GeForce GTX 1660 Super	8.18 fps +63%
Zotac GeForce GTX 1660 Ti 6 GB	7.89 fps +57%
XFX AMD Radeon RX 590 OC+ 8 GB	5.95 fps +18%
KFA2 GeForce GTX 1650 EX One Click Plus	5.03 fps
Sapphire NITRO+ RX 570 8 GB	4.27 fps -15%
Gainward GeForce GTX 1650 4 GB	2.2 fps -56%
PNY GeForce GTX 1660	2.2 fps -56%
1900x1060 Creo (creo-01)
AMD Radeon RX 5700 XT	66.9 fps +92%
AMD Radeon RX 5700	60.2 fps +73%
XFX AMD Radeon RX 590 OC+ 8 GB	49.01 fps +41%
KFA2 GeForce RTX 2060 Super	45.58 fps +31%
MSI RTX 2060 Gaming Z 6G	44.45 fps +28%
Sapphire NITRO+ RX 570 8 GB	41.33 fps +19%
Zotac GeForce GTX 1660 Ti 6 GB	36.6 fps +5%
KFA 2 GeForce GTX 1660 Super	35.51 fps +2%
KFA2 GeForce GTX 1650 EX One Click Plus	34.79 fps
Gainward GeForce GTX 1650 4 GB	27.36 fps -21%
PNY GeForce GTX 1660	27.36 fps -21%
1900x1060 Catia (catia-04)
AMD Radeon RX 5700 XT	158.8 fps +262%
AMD Radeon RX 5700	135.7 fps +209%
XFX AMD Radeon RX 590 OC+ 8 GB	123.5 fps +181%
KFA2 GeForce RTX 2060 Super	79.4 fps +81%
MSI RTX 2060 Gaming Z 6G	74.8 fps +70%
Zotac GeForce GTX 1660 Ti 6 GB	65.9 fps +50%
KFA 2 GeForce GTX 1660 Super	63 fps +44%
Sapphire NITRO+ RX 570 8 GB	54.6 fps +24%
KFA2 GeForce GTX 1650 EX One Click Plus	43.9 fps
Gainward GeForce GTX 1650 4 GB	42.85 fps -2%
PNY GeForce GTX 1660	42.85 fps -2%
1900x1060 3ds Max (3dsmax-05)
KFA2 GeForce RTX 2060 Super	193 fps +75%
MSI RTX 2060 Gaming Z 6G	183.6 fps +67%
AMD Radeon RX 5700 XT	173.8 fps +58%
Zotac GeForce GTX 1660 Ti 6 GB	159 fps +44%
AMD Radeon RX 5700	155.7 fps +41%
KFA 2 GeForce GTX 1660 Super	153.5 fps +39%
XFX AMD Radeon RX 590 OC+ 8 GB	120.3 fps +9%
KFA2 GeForce GTX 1650 EX One Click Plus	110.1 fps
Sapphire NITRO+ RX 570 8 GB	107.9 fps -2%
Gainward GeForce GTX 1650 4 GB	106.4 fps -3%
PNY GeForce GTX 1660	106.4 fps -3%

SPECviewperf 13
Solidworks (sw-04)
Sapphire AMD Radeon RX 5600 XT	117.8 fps +71%
AMD Radeon RX 5700 XT	114.4 fps +66%
AMD Radeon RX 5700	101.8 fps +48%
KFA2 GeForce RTX 2060 Super	89.1 fps +29%
MSI RTX 2060 Gaming Z 6G	83.4 fps +21%
XFX AMD Radeon RX 590 OC+ 8 GB	82.9 fps +20%
Sapphire NITRO+ RX 570 8 GB	79.9 fps +16%
KFA 2 GeForce GTX 1660 Super	78.8 fps +14%
Zotac GeForce GTX 1660 Ti 6 GB	77.5 fps +12%
KFA2 GeForce GTX 1650 EX One Click Plus	68.9 fps
Gainward GeForce GTX 1650 4 GB	60.8 fps -12%
PNY GeForce GTX 1660	60.8 fps -12%
Siemens NX (snx-03)
Sapphire AMD Radeon RX 5600 XT	69.7 fps +507%
AMD Radeon RX 5700 XT	61.3 fps +434%
AMD Radeon RX 5700	60.5 fps +427%
XFX AMD Radeon RX 590 OC+ 8 GB	44.18 fps +285%
Sapphire NITRO+ RX 570 8 GB	38.28 fps +233%
KFA2 GeForce RTX 2060 Super	15.49 fps +35%
Zotac GeForce GTX 1660 Ti 6 GB	15.26 fps +33%
MSI RTX 2060 Gaming Z 6G	14.99 fps +30%
KFA 2 GeForce GTX 1660 Super	14.76 fps +28%
Gainward GeForce GTX 1650 4 GB	11.6 fps +1%
PNY GeForce GTX 1660	11.6 fps +1%
KFA2 GeForce GTX 1650 EX One Click Plus	11.49 fps
Medical (medical-02)
AMD Radeon RX 5700 XT	82.8 fps +224%
AMD Radeon RX 5700	67.5 fps +164%
Sapphire AMD Radeon RX 5600 XT	65.2 fps +155%
KFA2 GeForce RTX 2060 Super	54.6 fps +113%
MSI RTX 2060 Gaming Z 6G	49.1 fps +92%
Sapphire NITRO+ RX 570 8 GB	43.54 fps +70%
Zotac GeForce GTX 1660 Ti 6 GB	42.08 fps +65%
KFA 2 GeForce GTX 1660 Super	39.5 fps +54%
XFX AMD Radeon RX 590 OC+ 8 GB	27.9 fps +9%
Gainward GeForce GTX 1650 4 GB	27.66 fps +8%
PNY GeForce GTX 1660	27.66 fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus	25.58 fps
Maya (maya-05)
KFA2 GeForce RTX 2060 Super	269.3 fps +92%
MSI RTX 2060 Gaming Z 6G	247 fps +76%
AMD Radeon RX 5700 XT	220.3 fps +57%
Sapphire AMD Radeon RX 5600 XT	211 fps +50%
Zotac GeForce GTX 1660 Ti 6 GB	202.7 fps +44%
AMD Radeon RX 5700	185.2 fps +32%
XFX AMD Radeon RX 590 OC+ 8 GB	151 fps +8%
Sapphire NITRO+ RX 570 8 GB	143.9 fps +3%
KFA2 GeForce GTX 1650 EX One Click Plus	140.3 fps
Gainward GeForce GTX 1650 4 GB	129.2 fps -8%
PNY GeForce GTX 1660	129.2 fps -8%
KFA 2 GeForce GTX 1660 Super	20.7 fps -85%
Energy (energy-02)
AMD Radeon RX 5700 XT	26.82 fps +282%
AMD Radeon RX 5700	24.55 fps +249%
KFA2 GeForce RTX 2060 Super	21.88 fps +211%
Sapphire AMD Radeon RX 5600 XT	19.43 fps +176%
KFA 2 GeForce GTX 1660 Super	11.25 fps +60%
Zotac GeForce GTX 1660 Ti 6 GB	11.17 fps +59%
XFX AMD Radeon RX 590 OC+ 8 GB	8.98 fps +28%
Sapphire NITRO+ RX 570 8 GB	8.1 fps +15%
MSI RTX 2060 Gaming Z 6G	7.62 fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus	7.03 fps
Gainward GeForce GTX 1650 4 GB	2.88 fps -59%
PNY GeForce GTX 1660	2.88 fps -59%
Creo (creo-02)
KFA2 GeForce RTX 2060 Super	180.4 fps +70%
MSI RTX 2060 Gaming Z 6G	169.8 fps +60%
AMD Radeon RX 5700 XT	157 fps +48%
Sapphire AMD Radeon RX 5600 XT	147.5 fps +39%
Zotac GeForce GTX 1660 Ti 6 GB	133.5 fps +26%
KFA 2 GeForce GTX 1660 Super	130.3 fps +23%
AMD Radeon RX 5700	116.7 fps +10%
KFA2 GeForce GTX 1650 EX One Click Plus	106 fps
XFX AMD Radeon RX 590 OC+ 8 GB	90 fps -15%
Gainward GeForce GTX 1650 4 GB	87.5 fps -17%
PNY GeForce GTX 1660	87.5 fps -17%
Sapphire NITRO+ RX 570 8 GB	80.2 fps -24%
Catia (catia-05)
AMD Radeon RX 5700 XT	242.8 fps +293%
Sapphire AMD Radeon RX 5600 XT	230.2 fps +272%
AMD Radeon RX 5700	209.2 fps +239%
XFX AMD Radeon RX 590 OC+ 8 GB	168.9 fps +173%
Sapphire NITRO+ RX 570 8 GB	153.6 fps +149%
KFA2 GeForce RTX 2060 Super	115.2 fps +86%
MSI RTX 2060 Gaming Z 6G	108.2 fps +75%
Zotac GeForce GTX 1660 Ti 6 GB	94.3 fps +53%
KFA 2 GeForce GTX 1660 Super	89.8 fps +45%
KFA2 GeForce GTX 1650 EX One Click Plus	61.8 fps
Gainward GeForce GTX 1650 4 GB	60.4 fps -2%
PNY GeForce GTX 1660	60.4 fps -2%
3ds Max (3dsmax-06)
KFA2 GeForce RTX 2060 Super	193.2 fps +75%
MSI RTX 2060 Gaming Z 6G	184.4 fps +67%
AMD Radeon RX 5700 XT	175.6 fps +59%
Sapphire AMD Radeon RX 5600 XT	172.8 fps +57%
Zotac GeForce GTX 1660 Ti 6 GB	159.4 fps +45%
AMD Radeon RX 5700	157 fps +43%
KFA 2 GeForce GTX 1660 Super	152.1 fps +38%
XFX AMD Radeon RX 590 OC+ 8 GB	120.4 fps +9%
KFA2 GeForce GTX 1650 EX One Click Plus	110.1 fps
Sapphire NITRO+ RX 570 8 GB	108.4 fps -2%
Gainward GeForce GTX 1650 4 GB	105.5 fps -4%
PNY GeForce GTX 1660	105.5 fps -4%

SiSoft Sandra 2016
Image Processing
KFA2 GeForce RTX 2060 Super	1120 MPix/s +156%
AMD Radeon RX 5700 XT	919 MPix/s +110%
MSI RTX 2060 Gaming Z 6G	912 MPix/s +109%
AMD Radeon RX 5700	775 MPix/s +77%
Zotac GeForce GTX 1660 Ti 6 GB	737 MPix/s +69%
KFA 2 GeForce GTX 1660 Super	706 MPix/s +62%
PNY GeForce GTX 1660	681 MPix/s +56%
Sapphire AMD Radeon RX 5600 XT	671 MPix/s +54%
Gainward GeForce GTX 1650 4 GB	440.6 MPix/s +1%
KFA2 GeForce GTX 1650 EX One Click Plus	436.7 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
KFA2 GeForce RTX 2060 Super	74.6 GB/s +140%
MSI RTX 2060 Gaming Z 6G	63.8 GB/s +105%
PNY GeForce GTX 1660	52.2 GB/s +68%
KFA 2 GeForce GTX 1660 Super	49.11 GB/s +58%
Zotac GeForce GTX 1660 Ti 6 GB	46.29 GB/s +49%
KFA2 GeForce GTX 1650 EX One Click Plus	31.05 GB/s
Sapphire NITRO+ RX 570 8 GB	29.52 GB/s -5%
Gainward GeForce GTX 1650 4 GB	23.8 GB/s -23%
GP Financial Analysis (FP High/Double Precision)
Sapphire NITRO+ RX 570 8 GB	137.4 KOPT/s +199%
KFA2 GeForce RTX 2060 Super	106.3 KOPT/s +131%
MSI RTX 2060 Gaming Z 6G	99.1 KOPT/s +116%
Zotac GeForce GTX 1660 Ti 6 GB	73.8 KOPT/s +61%
PNY GeForce GTX 1660	69.6 KOPT/s +52%
KFA 2 GeForce GTX 1660 Super	67 KOPT/s +46%
KFA2 GeForce GTX 1650 EX One Click Plus	45.92 KOPT/s
Gainward GeForce GTX 1650 4 GB	44.82 KOPT/s -2%
AMD Radeon RX 5700 XT	24 KOPT/s -48%
AMD Radeon RX 5700	20.81 KOPT/s -55%
Sapphire AMD Radeon RX 5600 XT	17.96 KOPT/s -61%

3DMark 06 Standard Score		44842 punten
3DMark Vantage P Result		47363 punten
3DMark 11 Performance		14069 punten
3DMark Ice Storm Standard Score		164494 punten
3DMark Cloud Gate Standard Score		39148 punten
3DMark Fire Strike Score		9209 punten
3DMark Fire Strike Extreme Score		4368 punten
3DMark Time Spy Score		3927 punten
Help

... in vergelijking

The Witcher 3 - Frame rates on the highest settings

KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X: Ø39.3 (36-42)

Far Cry 5 - 1920x1080 Ultra Preset AA:T
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	110 (85^min - 145^max) fps +86%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	108 (87^min - 136^max) fps +83%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	106 (85^min - 128^max) fps +80%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	99 (75^min - 131^max) fps +68%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	96 (75^min - 127^max) fps +63%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	94 (72^min - 124^max) fps +59%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	92 (83^min - 104^max) fps +56%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X	91 (78^min - 105^max) fps +54%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	84 (59^min - 114^max) fps +42%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	82 (73^min - 93^max) fps +39%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	74 (67^min - 88^max) fps +25%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X	65 (58^min - 79^max) fps +10%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	59 (52^min - 68^max) fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X	56 (50^min - 66^max) fps -5%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	94 (86^min - 103^max) fps +133%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	92 (79^min - 99^max) fps +128%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	83 (73^min - 96^max) fps +105%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	80 (70^min - 87^max) fps +98%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	79 (67^min - 89^max) fps +96%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	75.5 (66^min - 81^max) fps +87%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	72.7 (61^min - 82^max) fps +80%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X	62 (43^min - 74^max) fps +53%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	59.5 (53^min - 68^max) fps +47%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	55.5 (50^min - 63^max) fps +37%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	50.8 (42^min - 57^max) fps +26%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X	43 (37^min - 47^max) fps +6%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X	43 (37^min - 47^max) fps +6%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	40.4 (35^min - 46^max) fps

Apex Legends - 1920x1080 Maximum Settings AA:TS AF:16x
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	144 (143^min - 145^max) fps +102%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	144 (143^min - 145^max) fps +102%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	144 (143^min - 145^max) fps +102%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	142 (136^min - 145^max) fps +99%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	139 (126^min - 145^max) fps +95%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	135 fps +89%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	120 (109^min - 140^max) fps +68%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X	112 (104^min - 126^max) fps +57%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	111 (93.5^P1) fps +56%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	96 (88^min - 110^max) fps +35%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X	77 (71^min - 91^max) fps +8%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	71.3 (63^min - 85^max) fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X	67 (56^min - 78^max) fps -6%

Far Cry New Dawn - 1920x1080 Ultra Preset
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	97 (69^min - 147^max) fps +67%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	96 (68^min - 141^max) fps +66%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	88 (66^min - 125^max) fps +52%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	87 (69^min - 108^max) fps +50%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	86 (62^min - 132^max) fps +48%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	85 (63^min - 134^max) fps +47%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X	84 (65^min - 110^max) fps +45%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	83 (60^min - 132^max) fps +43%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	80 (64^min - 96^max) fps +38%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	79 (58^min - 120^max) fps +36%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	76 (58^min - 102^max) fps +31%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X	66 (49^min - 86^max) fps +14%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	58 (47^min - 70^max) fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X	55 (44^min - 67^max) fps -5%

Metro Exodus - 1920x1080 Ultra Quality AF:16x
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	61 (36.09^min - 86.1^max) fps +120%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	58.9 (32^min - 92^max) fps +113%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	58.6 (32.67^min - 85.8^max) fps +112%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	58 (32^min - 87^max) fps +109%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	58 (31^min - 90^max) fps +109%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	52.7 (29^min - 82^max) fps +90%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X	42.7 (24^min - 66^max) fps +54%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	41 (23^min - 61^max) fps +48%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	38 (22^min - 57^max) fps +37%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	37.9 (21^min - 58^max) fps +37%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X	31.7 (18^min - 49^max) fps +14%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	27.7 (15.94^min - 41.8^max) fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X	25.4 (15^min - 38^max) fps -8%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	94 fps +5%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	93 fps +4%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	92 fps +3%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	89.6 fps
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	77 fps -14%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	57.1 fps -36%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	54.8 fps -39%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	48.1 fps -46%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	47 fps -48%

FIFA 20 - 1920x1080 Ultra Preset AA:4xMS
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	284 (204.1^P1) fps +107%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	282 (208.3^P1) fps +106%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	266 (196.1^P1) fps +94%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	253 (225^min - 278^max) fps +85%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	248 (178.6^P1) fps +81%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	239 (175.4^P1) fps +74%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	236 (172.4^P1) fps +72%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X	234 (172.4^P1) fps +71%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	184 (140.8^P1) fps +34%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	137 (108.7^P1) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	71.7 fps
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	68.7 fps
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	66.7 fps
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	62 fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	50 fps
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	49 fps
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	42.1 fps
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X	35.2 fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	30.1 fps

GRID 2019 - 1920x1080 Ultra High Preset
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	96 (61.3^P1) fps +113%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	91 (55.9^P1) fps +102%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	90 (59.5^P1) fps +100%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	88.2 (56.5^P1) fps +96%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	69 (48.1^P1) fps +53%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	67 (47.2^P1) fps +49%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	64 (42.7^P1) fps +42%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X	47.1 (31.8^P1) fps +5%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	45 fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	43.1 (32.9^P1) fps -4%

Need for Speed Heat - 1920x1080 Ultra Preset
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	92 (76^min - 107^max) fps +136%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	88 (74^min - 99^max) fps +126%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	88 (74^min - 103^max) fps +126%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	83.5 (76^min - 92^max) fps +114%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	77 (70^min - 85^max) fps +97%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	70 (57^min - 78^max) fps +79%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	60 (55^min - 67^max) fps +54%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	48.4 (38^min - 56^max) fps +24%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	39 (16^min - 56^max) fps

Star Wars Jedi Fallen Order - 1920x1080 Epic Preset
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	114 (72^min - 140^max) fps +108%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	108 (65^min - 138^max) fps +97%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	102 (64^min - 125^max) fps +86%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	88 fps +60%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	81 (67^min - 96^max) fps +48%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	64 (53^min - 75^max) fps +17%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	56.9 (50^min - 70^max) fps +4%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	54.9 (45^min - 62^max) fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	52.8 (46^min - 61^max) fps -4%

Total War: Three Kingdoms - 1920x1080 Ultra (incl textures)
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	69 fps +161%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	63 fps +139%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	60.7 fps +130%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	57.6 fps +118%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	47.2 fps +79%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	42 fps +59%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	38.4 fps +45%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	27 fps +2%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	26.4 fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600	80 (53^min - 120^max) fps +94%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	79 (36^min - 121^max) fps +92%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	72.6 (31^min - 114^max) fps +76%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	69 (34^min - 112^max) fps +67%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X	59.6 (36^min - 90^max) fps +45%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X	59.6 (18^min - 102^max) fps +45%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	43.3 (25^min - 66^max) fps +5%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	41.2 fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X	35.7 (18^min - 56^max) fps -13%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X	35.2 (18^min - 53^max) fps -15%

Call of Duty Modern Warfare 2019 - 1920x1080 Maximum Settings AA:T2X Filmic SM
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	112 (83.3^P1) fps +107%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	109 (82^P1) fps +102%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	95 (69.9^P1) fps +76%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	93 fps +72%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	84 (65.8^P1) fps +56%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	79 (62.5^P1) fps +46%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	76 (54.1^P1) fps +41%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X	64 (49^P1) fps +19%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	54 fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	51.7 (40^P1) fps -4%

Red Dead Redemption 2 - 1920x1080 Maximum Settings
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	51.5 (24.8^min, 35.7^P1 - 75.7^max) fps +134%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	46.5 (27.7^min, 32.3^P1 - 56^max) fps +111%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	46.2 (29.6^min, 35.7^P1 - 60.4^max) fps +110%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	41 (3^min - 113^max) fps +86%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	33.2 (19.2^min, 22.7^P1 - 40.6^max) fps +51%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	30.9 (17.9^min, 21.3^P1 - 37.4^max) fps +40%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	29.9 (19.1^min, 22.2^P1 - 35.5^max) fps +36%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	22 (12^min - 67^max) fps
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X	21.5 (13.7^min, 14.1^P1 - 27^max) fps -2%

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	149 fps +147%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	143 (106^min - 175^max) fps +137%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	138 fps +129%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	127 (102^min - 149^max) fps +111%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	96 (71^min - 121^max) fps +59%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	94.3 (78^min - 111^max) fps +56%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	89.8 (73^min - 106^max) fps +49%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	60.3 (49^min - 72^max) fps

Death Stranding - 1920x1080 Very High Preset
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	125 fps +137%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	121 (105.3^P1) fps +130%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	115 fps +118%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	114 (102^P1) fps +116%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	84.3 (75.2^P1) fps +60%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	77.6 (69^P1) fps +47%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	73.9 (66.7^P1) fps +40%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	73.9 (66.7^P1) fps +40%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	52.7 (25.1^P1) fps

Horizon Zero Dawn - 1920x1080 Ultimate Quality
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	80 fps +122%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	78 (22^min - 158^max) fps +117%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	75 fps +108%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	69 (28^min - 144^max) fps +92%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	57 (21^min - 116^max) fps +58%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X	54 fps +50%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X	48 (22^min - 135^max) fps +33%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X	36 (23^min - 62^max) fps

	lage	gem.	hoge	ultra	QHD	4K
The Witcher 3 (2015)	216	128	70.1	40.4		23.6
Dota 2 Reborn (2015)	156.7	114.3	112.6	106.9		59.1
Final Fantasy XV Benchmark (2018)	108	55.3	41.2		28.9	15.8
X-Plane 11.11 (2018)	123	110	89.6			66.9
Far Cry 5 (2018)	135	69	63	59	40	19
Strange Brigade (2018)	245	94.4	74	62.2	44.7	25.7
Apex Legends (2019)	144	111	76	71.3	50.4	27
Far Cry New Dawn (2019)	120	68	63	58	42	21
Metro Exodus (2019)	107	48	35.2	27.7	21.3	12.1
Total War: Three Kingdoms (2019)	202.1	68.5	41.5	26.4	15.7	15
FIFA 20 (2019)	237	215	192	137	107	69.9
GRID 2019 (2019)	155	86	70	45	32	18
Call of Duty Modern Warfare 2019 (2019)	118	78	65	54	37	21
Need for Speed Heat (2019)	114	64.4	53.6	39	17.7	17.1
Star Wars Jedi Fallen Order (2019)		77.7	65.5	54.9	36.3	17
Red Dead Redemption 2 (2019)	111	54	34	22
Hunt Showdown (2020)	153	60.8	46.7		29.3	25.7
Doom Eternal (2020)	116	80.4	61.4
Gears Tactics (2020)	252.9	86.7	56	40.1	27.8	15
Valorant (2020)	341.7	291.8	260.1		176.6	82.8
F1 2020 (2020)	219	115	88.1	60.3	42.9	23.4
Death Stranding (2020)	98.2	58.7	54.4	52.7	35.6	17.3
Horizon Zero Dawn (2020)	99	55	46	36	26	15
Flight Simulator 2020 (2020)	76.7	35.6	25.3	17	12.3	5
Serious Sam 4 (2020)	138.7	57.5	43.3	17.8	13.7	9.9
Mafia Definitive Edition (2020)	103.8	49.7	45.2		29	14.5
Star Wars Squadrons (2020)	312	146	123	114	72.9	39.6
FIFA 21 (2020)	231	224	206	184	145	86.3
Watch Dogs Legion (2020)	92.9	56	47.6	21.2	14.3	8.02

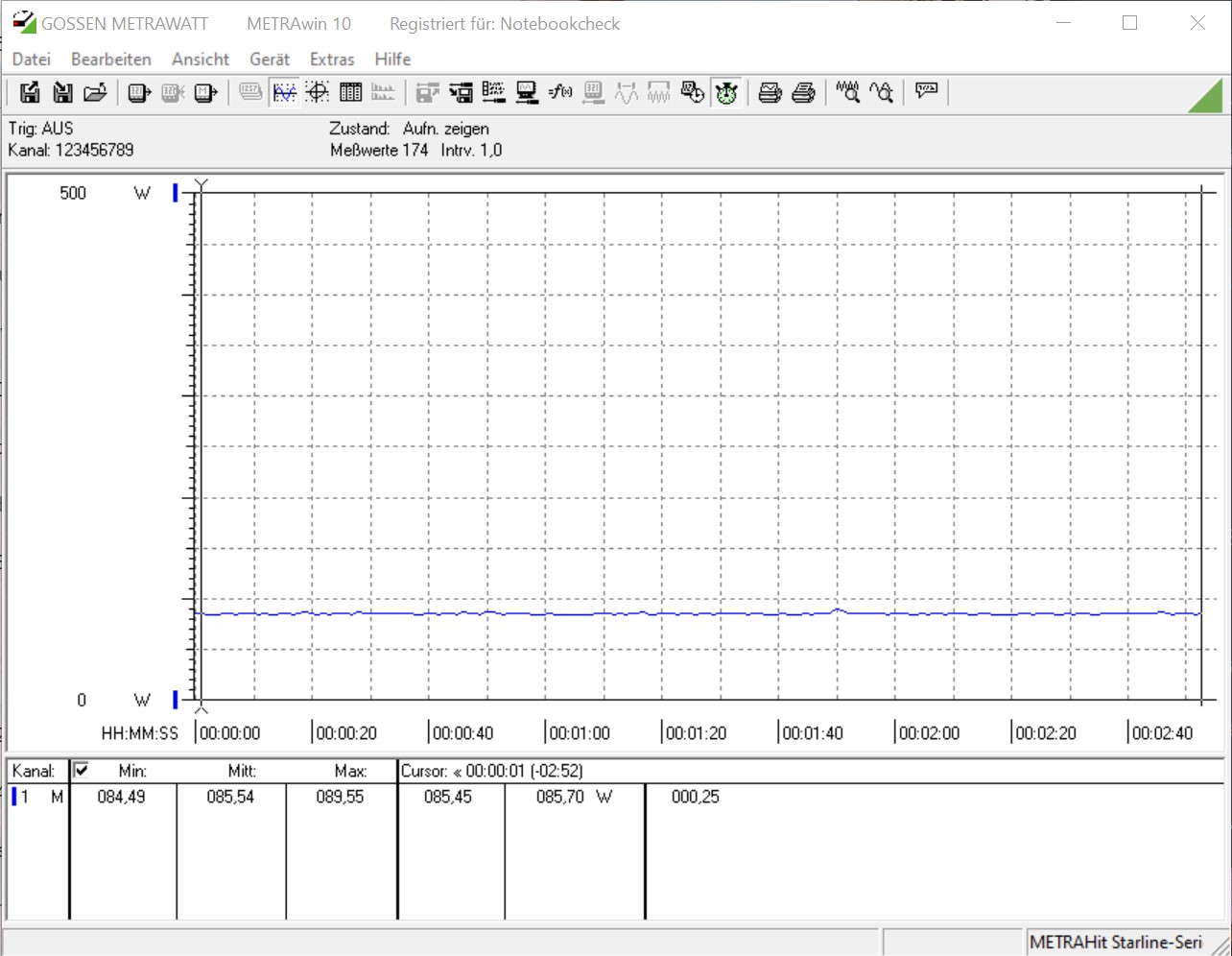

Energieverbruik van de testbank (in rust)

Energieverbruik van de testbank (FurMark, PT 100%)

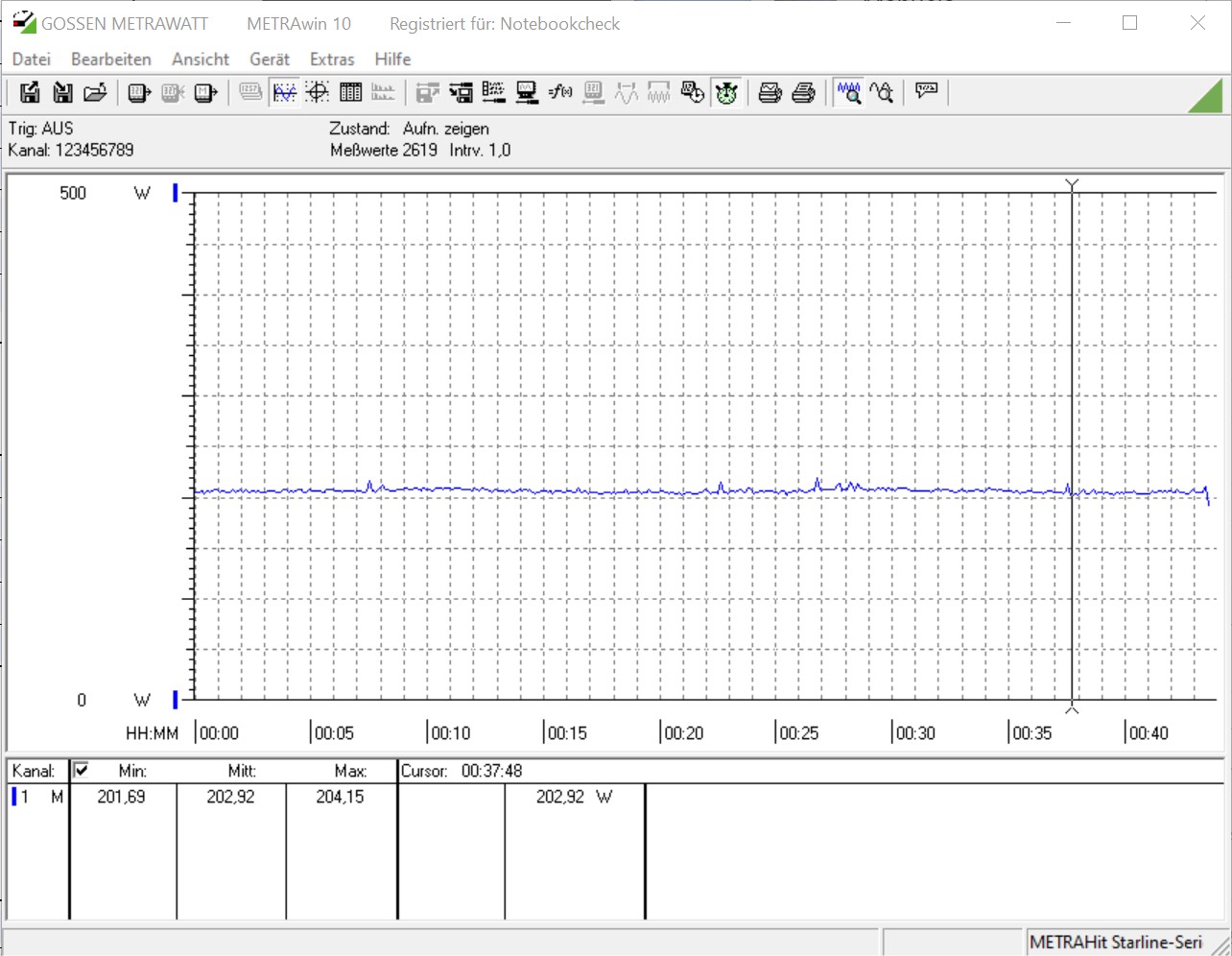

Energieverbruik van de testbank (tijdens gamen: The Witcher 3 max instellingen)

Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)	376.4 (373^min - 382^max) Watt * -86%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X (Idle: 85.9 W)	358.9 (351^min - 370^max) Watt * -77%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X (Idle: 69.8 W)	348.7 (341^min - 359^max) Watt * -72%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	346.9 (326^min - 364^max) Watt * -71%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600 (81.7 fps, Idle: 93.8 W)	331.4 (322^min - 345^max) Watt * -63%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X (Idle: 86.7 W)	331 (322^min - 344^max) Watt * -63%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)	317.5 (313^min, 216^P1 - 326^max) Watt * -56%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X (Idle: 85.5 W)	300.2 (284^min - 311^max) Watt * -48%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X (82.7 fps, Idle: 77.12 W)	298.2 (293^min - 322^max) Watt * -47%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X (84.2 fps, Idle: 64.5 W)	295.9 (284^min - 304^max) Watt * -46%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)	288.8 (284^min - 299^max) Watt * -42%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)	287.8 (282^min - 294^max) Watt * -42%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X (Idle: 72.61 W)	274 (268^min - 300^max) Watt * -35%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)	260.4 (255^min - 277^max) Watt * -28%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)	248.6 (240^min - 259^max) Watt * -23%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)	235.5 (232^min - 269^max) Watt * -16%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)	203.9 (199^min - 215^max) Watt * -0%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X (Idle: 85.5 W)	202.9 (202^min - 204^max) Watt *
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W)	178.9 (176^min - 192^max) Watt * +12%

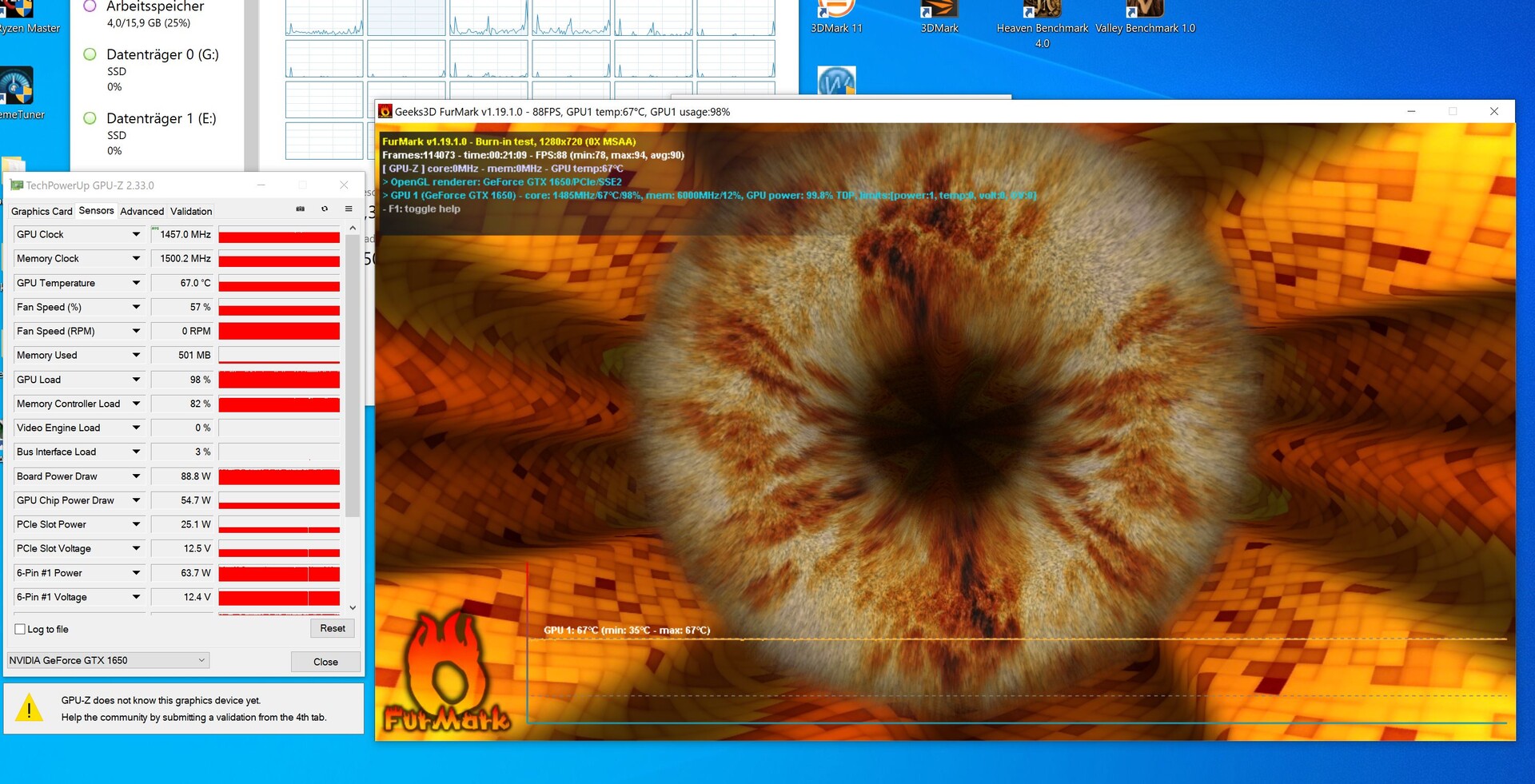

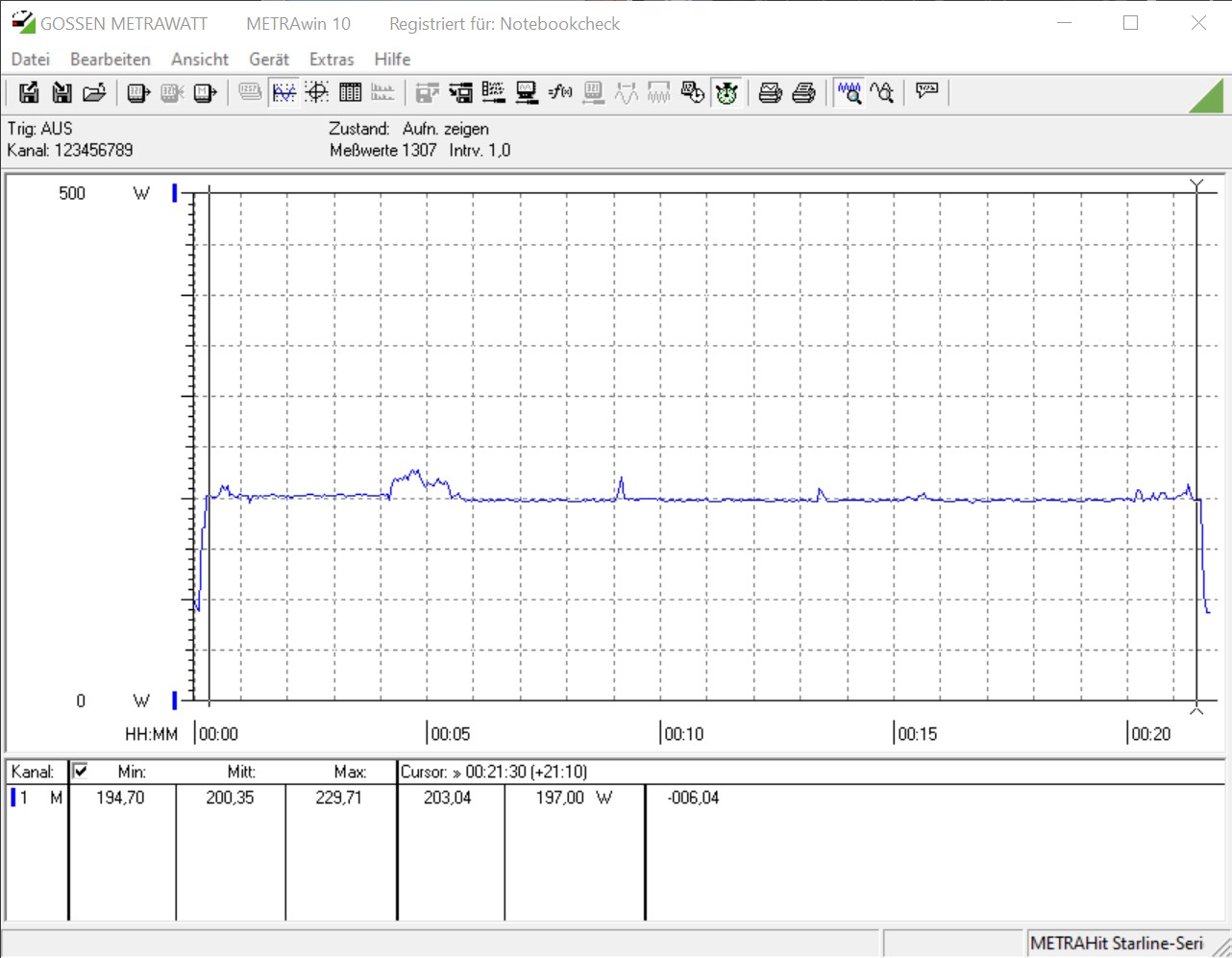

1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X (Idle: 85.9 W)	371.7 (360^min - 388^max) Watt * -85%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	357.5 (347^min - 383^max) Watt * -78%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)	352.1 (346^min - 377^max) Watt * -76%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X (239 fps, Idle: 69.8 W)	326.6 (313^min - 351^max) Watt * -63%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X (Idle: 85.5 W)	322.8 (309^min - 347^max) Watt * -61%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)	321.1 (300^min - 348^max) Watt * -60%
KFA2 GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X, Corsair MP600 (234 fps, Idle: 93.8 W)	315.3 (310^min - 344^max) Watt * -57%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X (Idle: 86.7 W)	312 (306^min - 328^max) Watt * -56%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X (Idle: 72.61 W)	308.9 (301^min - 338^max) Watt * -54%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)	297.3 (292^min - 316^max) Watt * -48%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)	295.2 (148^min - 331^max) Watt * -47%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X (237 fps, Idle: 77.12 W)	281.4 (275^min - 321^max) Watt * -40%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X (207 fps, Idle: 64.5 W)	280.5 (271^min - 312^max) Watt * -40%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)	247.8 (242^min - 282^max) Watt * -24%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)	247.6 (241^min - 322^max) Watt * -24%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)	233.2 (226^min - 250^max) Watt * -16%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)	202.5 (200^min - 213^max) Watt * -1%
KFA2 GeForce GTX 1650 EX One Click Plus GeForce GTX 1650 (Desktop), R9 3900X (Idle: 85.5 W)	200.4 (193^min - 230^max) Watt *
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W, Idle: 64.63 W)	183 (178^min - 187^max) Watt * +9%

* ... kleiner is beter

Pro

+ snel genoeg voor 1080p

+ GDDR6 VRAM

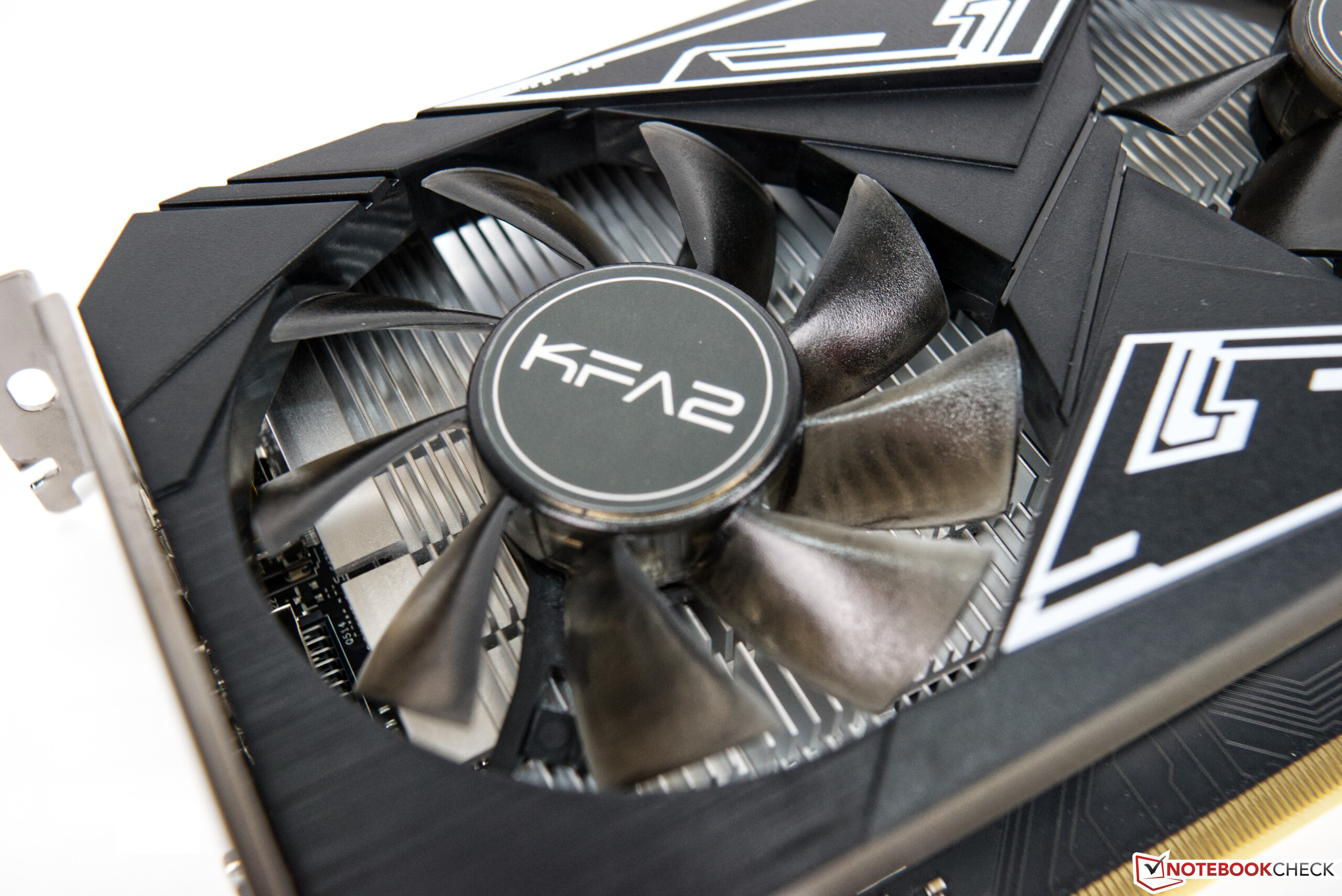

+ goede koeloplossing

+ laag energieverbruik

+ goede prijs-prestatieverhouding

+ goed OC-potentieel ondanks vermogenslimieten

Contra

- luid onder belasting

- De 1-Click-OC-optie biedt slechts een boost van 30 MHz

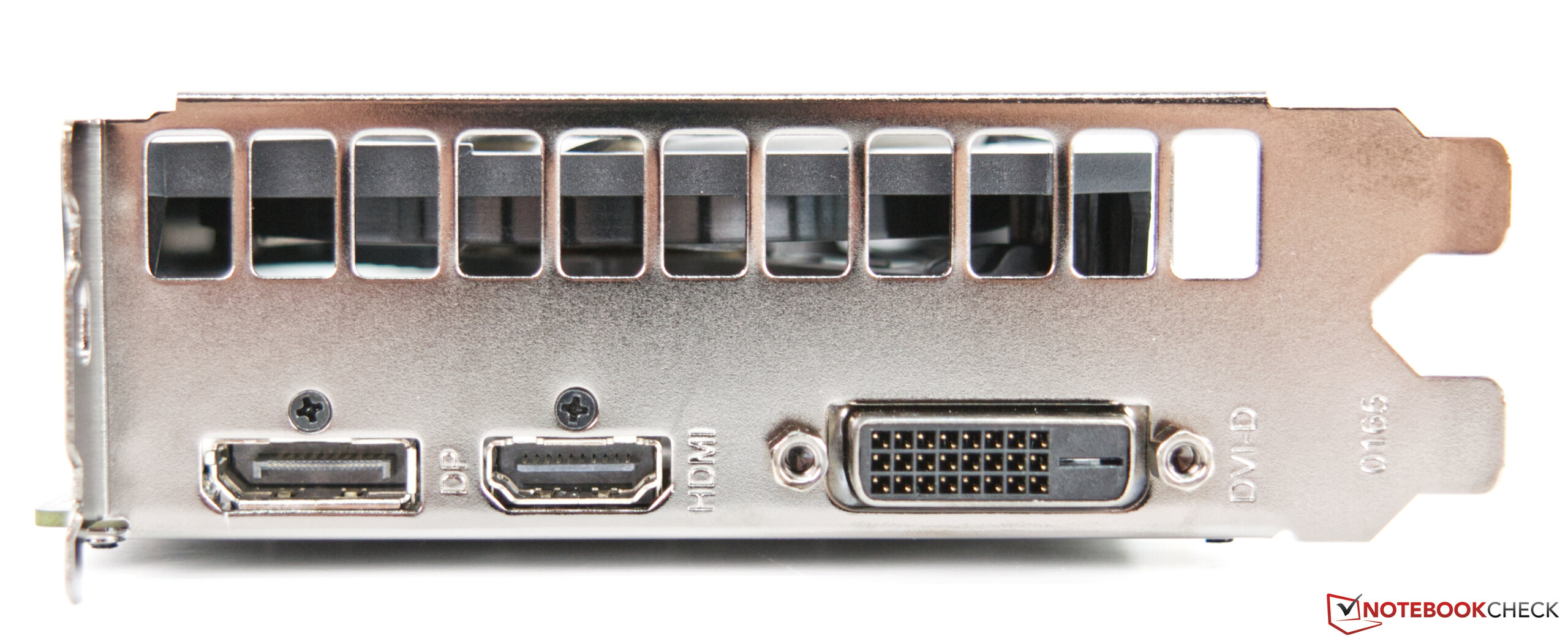

- slechts één DP-poort

De KFA2 GeForce GTX 1650 EX Plus (1-Click OC), geleverd door: KFA2 Germany

Voor het volledige, Engelse testrapport, klik hier.

De KFA2 GeForce GTX 1650 EX Plus is een betere versie van de GeForce GTX 1650. Door de slechte beschikbaarheid van GDDR5 VRAM moest de op Turing gebaseerde instap GPU snellere GDDR6 VRAM gebruiken. In combinatie met een toename van het aantal texture mapping-eenheden, biedt de GPU een kleine prestatieverbetering. In de pure gamingbenchmarks kan de KFA2 GeForce GTX 1650 soms de AMD Radeon RX 570 evenaren. 4 GB VRAM is niet veel, maar gezien het aangeboden prestatieniveau is het voldoende. De GPU kan moderne games draaien op 1080p met verminderde grafische instellingen.

De KFA2 GeForce GTX 1650 EX Plus is een laaggeprijsde grafische kaart, wat een perfecte optie is voor de prijsbewuste gamer.

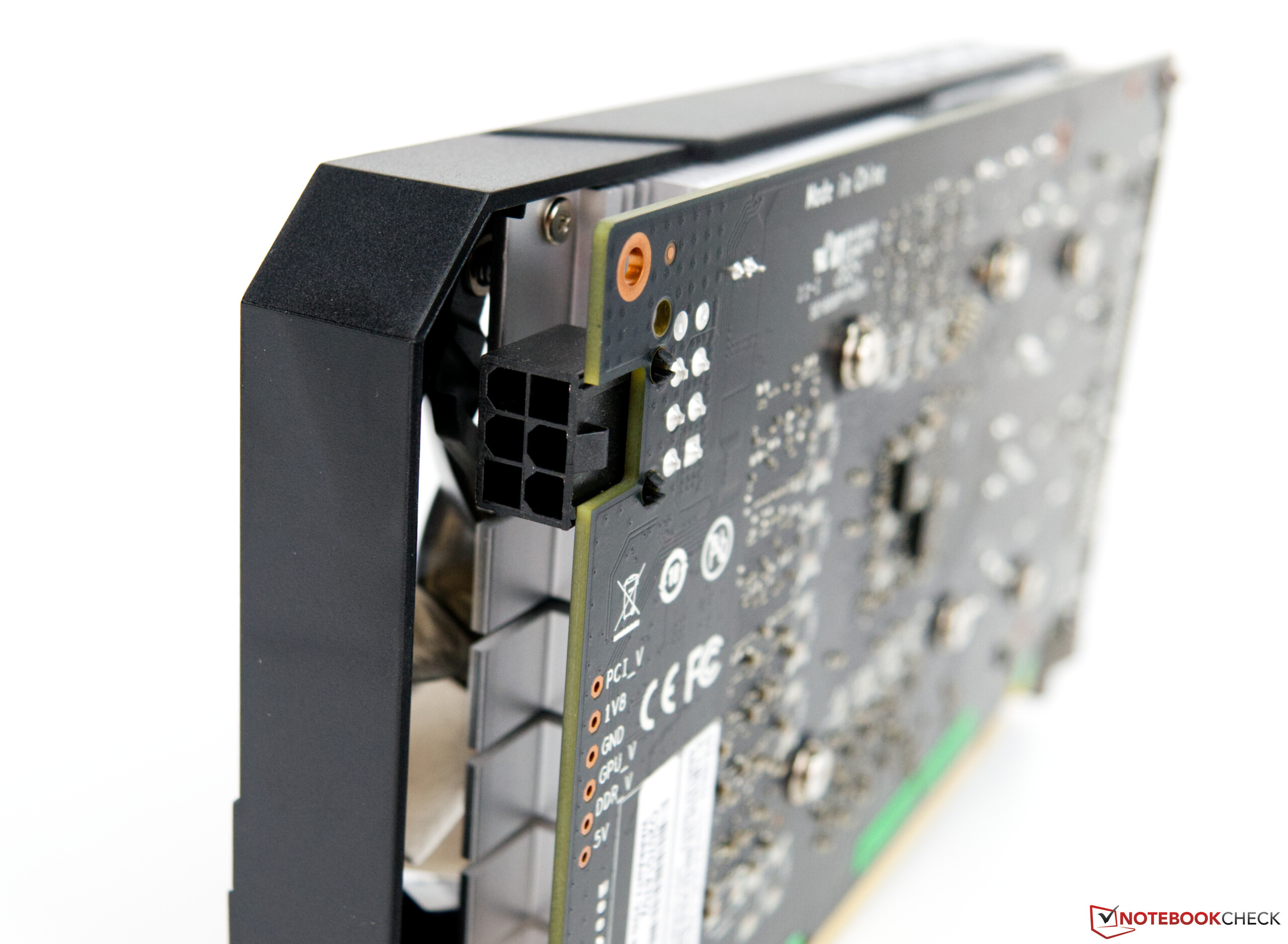

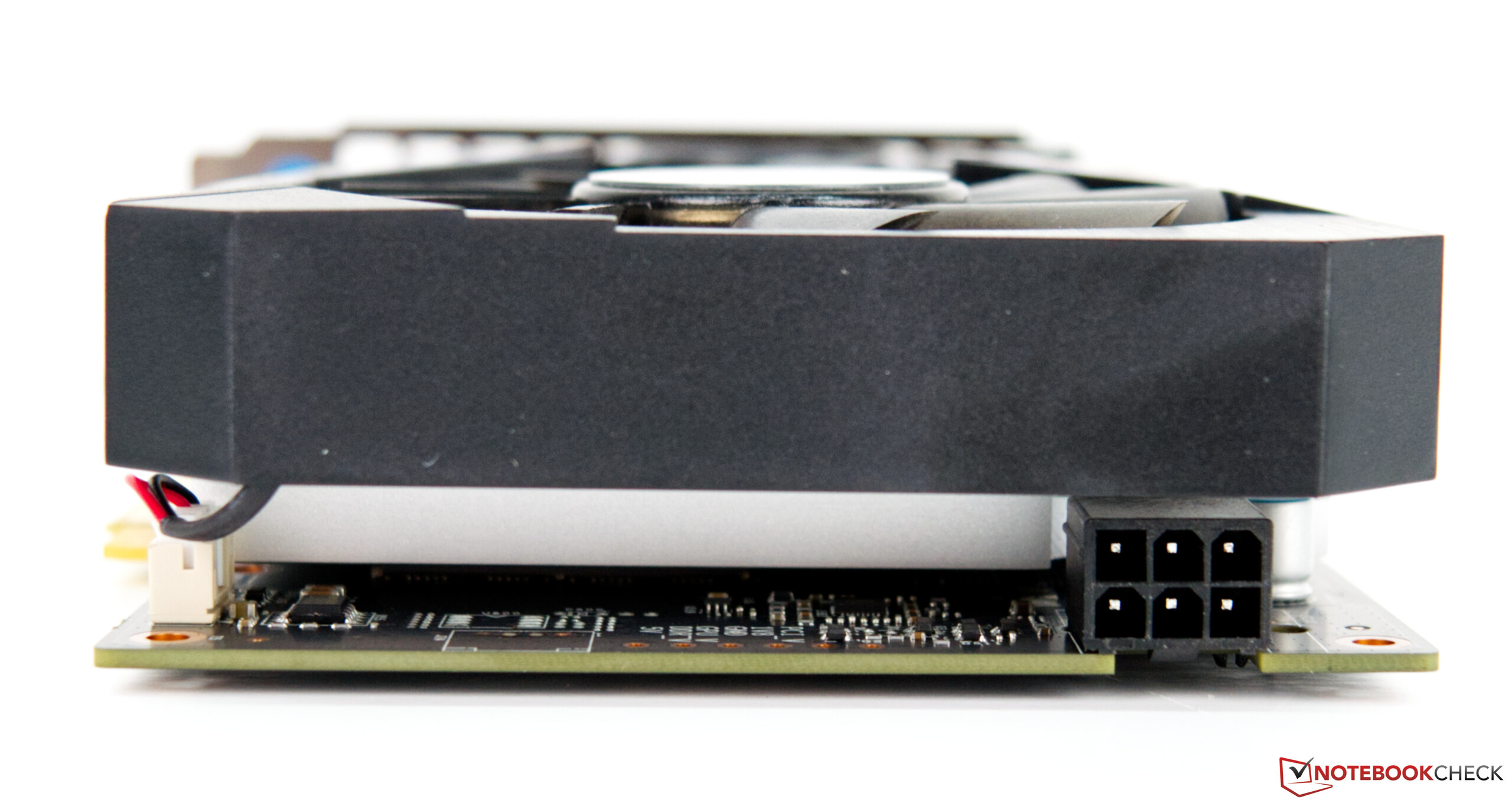

Al met al laat de KFA2 GeForce GTX 1650 EX Plus een zeer solide indruk achter. De koeloplossing wordt niet overweldigd en is niet erg luidruchtig. De prijzen beginnen bij 130 euro. Degenen die tevreden zijn met dit prestatieniveau en kunnen leven met het feit dat de GPU wordt geleverd met een 6-pins voedingsconnector, zouden de KFA2 GeForce GTX 1650 EX Plus van dichterbij moeten bekijken.

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport KFA2 GeForce GTX 1650 EX Plus - betere prestaties en snellere VRAM voor de kleinste op Turing gebaseerde desktop-GPU

Sebastian Bade, 2020-08-30 (Update: 2020-08-30)
