Kort testrapport Intel NUC Kit NUC8i7BEH (i7-8559U) Mini PC

Nu met Coffee Lake-U en Thunderbolt 3.

Intel heeft zijn assortiment NUC mini-pc's vernieuwd met het gloednieuwe Bean Canyon-platform dat Iris Plus-graphics en een Coffee Lake-U-processor integreert. De resultaten zijn zoals verwacht met CPU-prestaties die liggen in de buurt van de i7-8550U maar met sterk verbeterde GPU-prestaties ten opzichte van de UHD Graphics 620.

Allen Ngo, 👁 Allen Ngo, Published 16-11-2018 🇺🇸 🇫🇷 ...

Desktop

Intel NUC8i7BE

Processor

Intel Core i7-8559U 4 x 2.7 - 4.5 GHz, Coffee Lake-U

Grafische kaart

Intel Iris Plus Graphics 655, Core: 300 MHz, Geheugen: 1200 MHz, DDR4, 24.20.100.6286

Geheugen

32 GB

, DDR4 PC4-21300, Dual-Channel

Moederbord

Intel Cannon Lake-U PCH-LP Premium

Geluidskaart

Realtek ALC255 @ Intel Cannon Point-LP PCH - cAVS (Audio, Video, Speech)

Verbindingen

5 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 Infrared, 1 Kensington Lock, Audio Verbindingen: 3.5 mm combo, Card Reader: MicroSD

Netwerkmogelijkheden

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5

Afmetingen

hoogte x breedte x diepte (in mm): 51 x 115 x 111

Besturingssysteem

Microsoft Windows 10 Home 64 Bit

Bijkomende functionaliteiten

36 Maanden Garantie

Gewicht

683 g, Voeding: 386 g

Prijs

480 USD

Links

Intel startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

Zotac ZBOX-QK7P3000 Zotac ZBOX-CI660 Nano Intel Hades Canyon NUC8i7HVK Intel NUC8i7BE Intel NUC7CJYH Intel NUC6i5SYH DIN A4 ❌

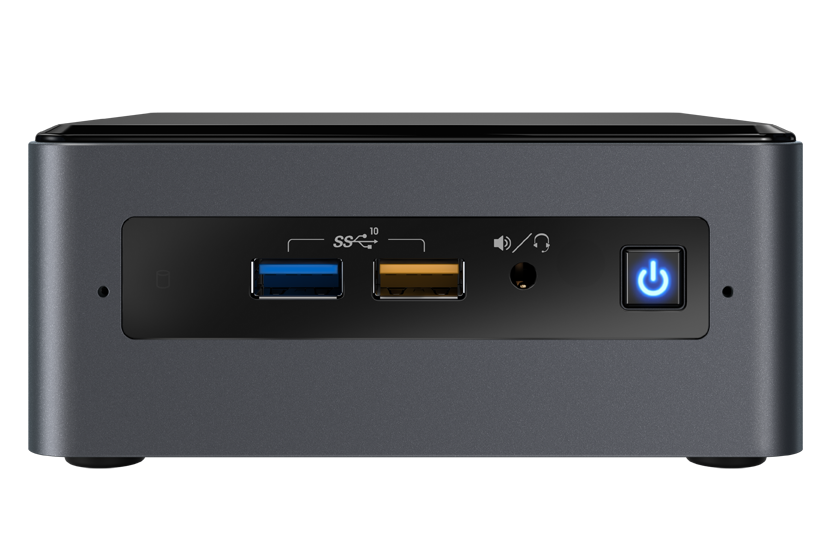

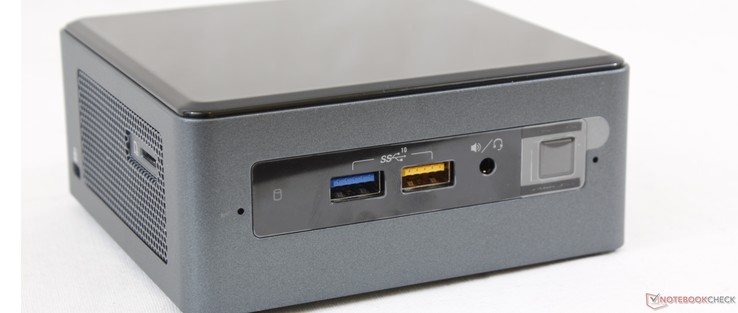

Voorkant: DMIC, 2x USB 3.1 Gen. 2, 3.5 mm audiopoort, CIR, Aan/uitknop

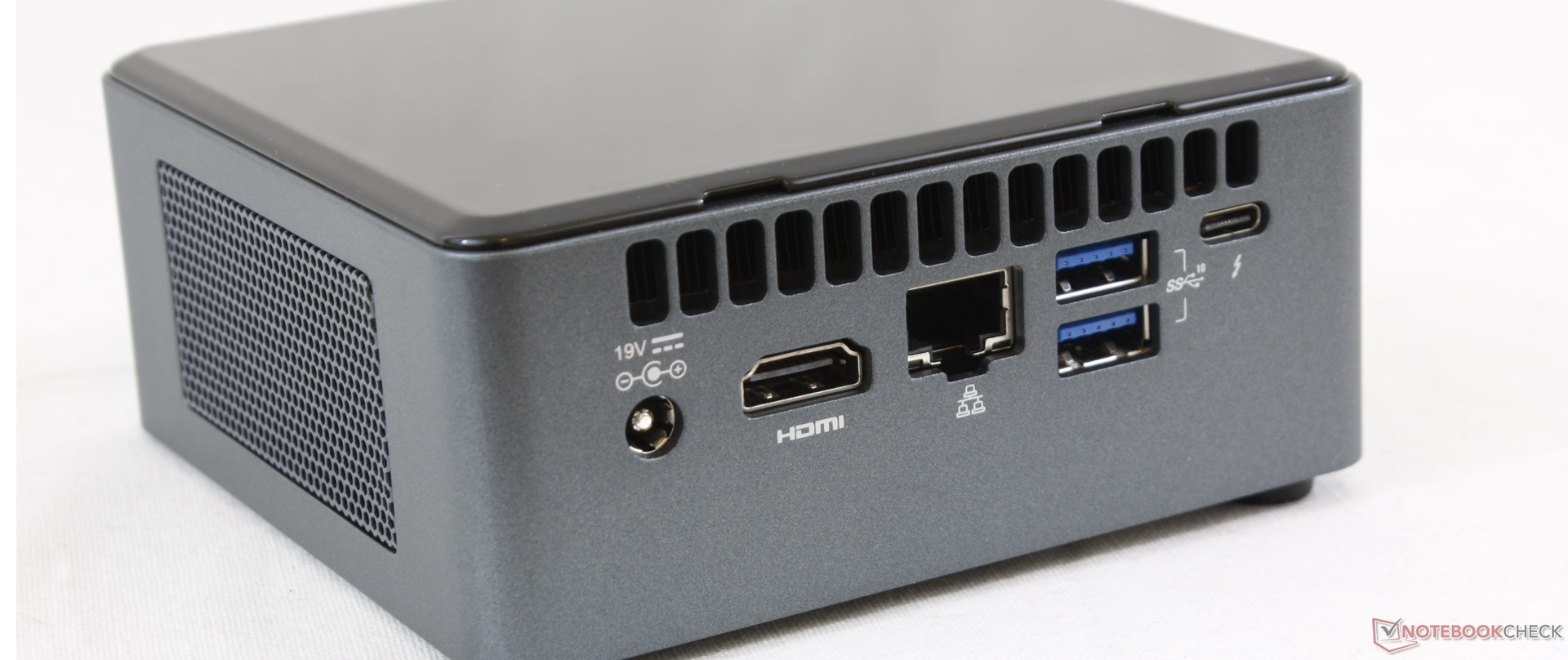

Achterkant: stroomadapter, HDMI 2.0, Gigabit RJ-45, 2x USB 3.1 Gen. 2, Thunderbolt 3

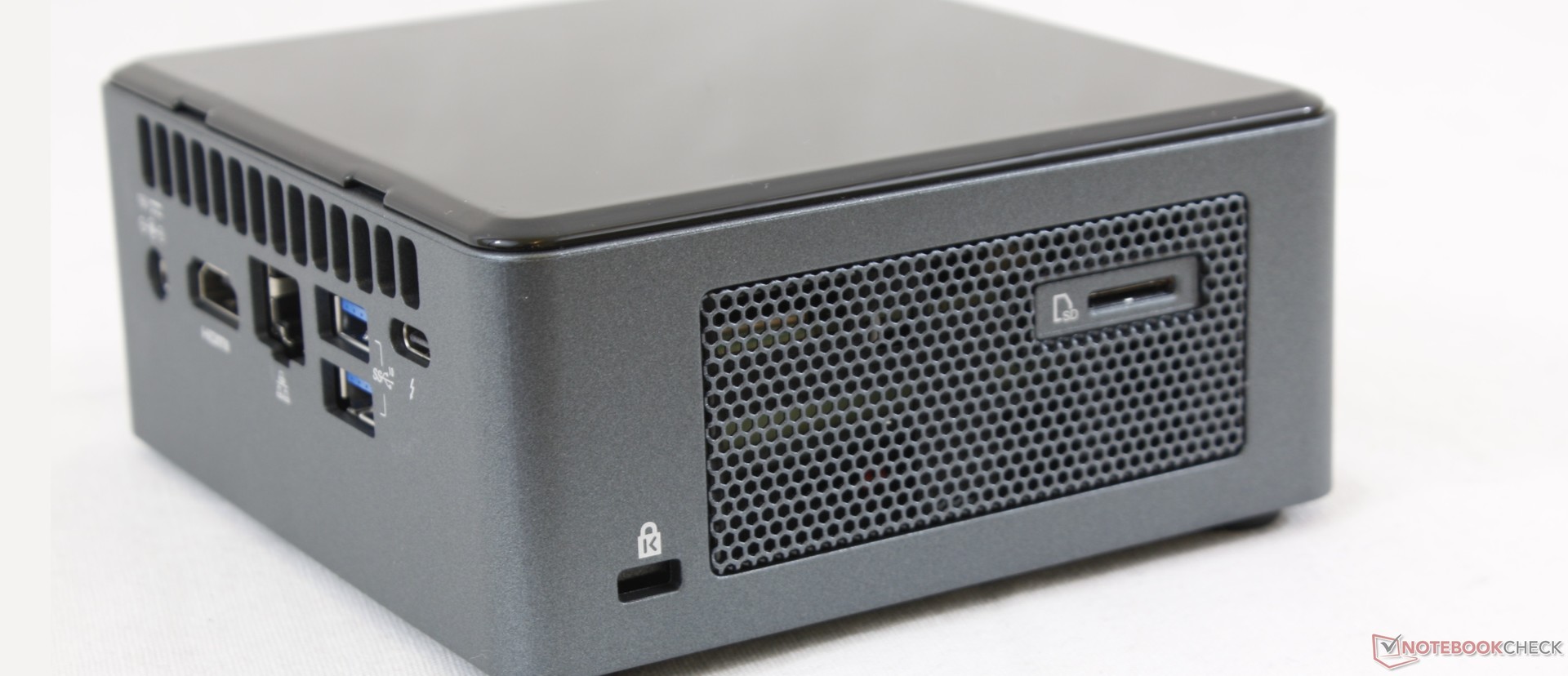

Linkerkant: Kensington Lock, MicroSD kaartlezer

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel Hades Canyon NUC8i7HVK (Toshiba Exceria Pro SDXC 64 GB UHS-II)	81 MB/s +17%
Intel NUC8i7BE (Toshiba Exceria Pro M501 UHS-II)	69 MB/s
Zotac ZBOX-QK7P3000 (Toshiba Exceria Pro SDXC 64 GB UHS-II)	35.52 MB/s -49%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	35 MB/s -49%
maximum AS SSD Seq Read Test (1GB)
Intel Hades Canyon NUC8i7HVK (Toshiba Exceria Pro SDXC 64 GB UHS-II)	88.3 MB/s +4%
Intel NUC8i7BE (Toshiba Exceria Pro M501 UHS-II)	85 MB/s
Zotac ZBOX-QK7P3000 (Toshiba Exceria Pro SDXC 64 GB UHS-II)	42.73 MB/s -50%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	37.73 MB/s -56%

Networking
iperf3 transmit AX12
Intel NUC8i7BE Intel Wireless-AC 9560	553 MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s -32%
Zotac ZBOX-QK7P3000 Intel Dual Band Wireless-AC 3165	243 MBit/s -56%
Zotac ZBOX-CI660 Nano Intel Dual Band Wireless-AC 3165	218 MBit/s -61%
iperf3 receive AX12
Intel NUC8i7BE Intel Wireless-AC 9560	602 MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s -2%
Zotac ZBOX-CI660 Nano Intel Dual Band Wireless-AC 3165	301 MBit/s -50%
Zotac ZBOX-QK7P3000 Intel Dual Band Wireless-AC 3165	292 MBit/s -51%

Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U; CPU Multi 64Bit: Ø681 (671.37-798.44)

Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA; CPU Multi 64Bit: Ø857 (853.53-862.44)

Lenovo Yoga C930-13IKB 81C4 UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG; CPU Multi 64Bit: Ø588 (570.26-651.27)

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

Cinebench R15
CPU Single 64Bit
Intel NUC8i7BE Intel Core i7-8559U	188 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -5%
Dell Latitude 5591 Intel Core i7-8850H	178 Points -5%
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	161 Points -14%
Zotac ZBOX-CI660 Nano Intel Core i7-8550U	156 Points -17%
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	155 Points -18%
Dell XPS 13 9360 FHD i7 Iris Intel Core i7-7560U	153 Points -19%
Lenovo Yoga C930-13IKB Intel Core i5-8250U	145 Points -23%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	141 Points -25%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	139 Points -26%
HP Pavilion 15-cw0003ng AMD Ryzen 5 2500U	124 Points -34%
Intel NUC6i5SYH Intel Core i5-6260U	117 Points -38%
Intel NUC7CJYH Intel Celeron J4005	77 Points -59%
CPU Multi 64Bit
Dell Latitude 5591 Intel Core i7-8850H	1090 Points +37%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points +8%
Intel NUC8i7BE Intel Core i7-8559U	798 (671.37^min - 798.44^max) Points
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	738 Points -8%
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	714 Points -11%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	711 Points -11%
Zotac ZBOX-CI660 Nano Intel Core i7-8550U	702 Points -12%
Lenovo Yoga C930-13IKB Intel Core i5-8250U	613 Points -23%
HP Pavilion 15-cw0003ng AMD Ryzen 5 2500U	606 (417.88^min - 605.96^max) Points -24%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	383 (377^min - 385^max) Points -52%
Dell XPS 13 9360 FHD i7 Iris Intel Core i7-7560U	336 Points -58%
Intel NUC6i5SYH Intel Core i5-6260U	298 Points -63%
Intel NUC7CJYH Intel Celeron J4005	144 Points -82%

Cinebench R11.5
CPU Single 64Bit
Intel NUC8i7BE Intel Core i7-8559U	2.17 Points
Dell Latitude 5591 Intel Core i7-8850H	2 Points -8%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	1.99 Points -8%
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	1.84 Points -15%
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	1.75 Points -19%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	1.66 Points -24%
Lenovo Yoga C930-13IKB Intel Core i5-8250U	1.64 Points -24%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	1.54 Points -29%
Intel NUC6i5SYH Intel Core i5-6260U	1.33 Points -39%
Intel NUC7CJYH Intel Celeron J4005	0.85 Points -61%
CPU Multi 64Bit
Dell Latitude 5591 Intel Core i7-8850H	10.95 Points +50%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	9.41 Points +29%
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	8.13 Points +11%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	7.76 Points +6%
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	7.58 Points +4%
Intel NUC8i7BE Intel Core i7-8559U	7.32 Points
Lenovo Yoga C930-13IKB Intel Core i5-8250U	6.05 Points -17%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	4.09 Points -44%
Intel NUC6i5SYH Intel Core i5-6260U	3.26 Points -55%
Intel NUC7CJYH Intel Celeron J4005	1.39 Points -81%

Cinebench R10
Rendering Multiple CPUs 32Bit
Dell Latitude 5591 Intel Core i7-8850H	31284 Points +35%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	25809 Points +11%
Intel NUC8i7BE Intel Core i7-8559U	23215 Points
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	21943 Points -5%
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	21587 Points -7%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	21075 Points -9%
Lenovo Yoga C930-13IKB Intel Core i5-8250U	18579 Points -20%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	11403 Points -51%
Intel NUC6i5SYH Intel Core i5-6260U	9949 Points -57%
Intel NUC7CJYH Intel Celeron J4005	3500 Points -85%
Rendering Single 32Bit
Intel NUC8i7BE Intel Core i7-8559U	7249 Points
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	6824 Points -6%
Dell Latitude 5591 Intel Core i7-8850H	6693 Points -8%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	6668 Points -8%
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	5940 Points -18%
Lenovo Yoga C930-13IKB Intel Core i5-8250U	5641 Points -22%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	5536 Points -24%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	5010 Points -31%
Intel NUC6i5SYH Intel Core i5-6260U	4481 Points -38%
Intel NUC7CJYH Intel Celeron J4005	2085 Points -71%

wPrime 2.10 - 1024m
Intel NUC7CJYH Intel Celeron J4005	1042 s * -344%
Intel NUC6i5SYH Intel Core i5-6260U	558 s * -138%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Core i5-7267U	492 s * -110%
Intel NUC8i7BE Intel Core i7-8559U	234.6 s *
Zotac ZBOX-QK7P3000 Intel Core i7-7700T	234.2 s * -0%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	225.7 s * +4%
Zotac ZBOX Magnus EK71080 Intel Core i7-7700HQ	224.4 s * +4%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	186.7 s * +20%

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

* ... kleiner is beter

Cinebench R10 Shading 32Bit

7836

Cinebench R10 Rendering Multiple CPUs 32Bit

23215

Cinebench R10 Rendering Single 32Bit

7249

Cinebench R11.5 CPU Single 64Bit

2.17 Points

Cinebench R11.5 CPU Multi 64Bit

7.32 Points

Cinebench R11.5 OpenGL 64Bit

52.2 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

85 fps

Cinebench R15 CPU Multi 64Bit

798 Points

Cinebench R15 CPU Single 64Bit

188 Points

Cinebench R20 CPU (Multi Core)

1691 Points

Cinebench R20 CPU (Single Core)

466 Points

Help

... in vergelijking

PCMark 10 | PCMark 8

PCMark 10
Score
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points +16%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4580 Points
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	3837 Points -16%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	1136 Points -75%
Essentials
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points +1%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	8994 Points
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	8051 Points -10%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	4188 Points -53%
Productivity
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +9%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	7236 Points
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	6481 Points -10%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	3289 Points -55%
Digital Content Creation
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points +40%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4007 Points
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	2939 Points -27%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	990 Points -75%

PCMark 8
Home Score Accelerated v2
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	4833 Points +3%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4674 Points
Intel NUC6i5SYH Iris Graphics 540, 6260U, Samsung SSD XP941 MZHPU256HCGL	3667 Points -22%
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	3594 Points -23%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	2084 Points -55%
Work Score Accelerated v2
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5454 Points
Intel NUC6i5SYH Iris Graphics 540, 6260U, Samsung SSD XP941 MZHPU256HCGL	4588 Points
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	3188 Points
Creative Score Accelerated v2
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	6457 Points
Intel NUC6i5SYH Iris Graphics 540, 6260U, Samsung SSD XP941 MZHPU256HCGL	4395 Points
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	2212 Points

PCMark 8 Home Score Accelerated v2		4674 punten
PCMark 10 Score		4580 punten
Help

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance GPU
Zotac ZBOX-QK7P3000 NVIDIA Quadro P3000, i7-7700T	14483 Points +370%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	14302 Points +364%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	4686 Points +52%
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	3220 Points +5%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	3081 Points
Dell Latitude 5591 NVIDIA GeForce MX130, i7-8850H	3044 Points -1%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, i5-7267U	2762 (2743^min - 2780^max) Points -10%
Gemiddeld Intel Iris Plus Graphics 655 (1365 - 3081, n=8)	2707 Points -12%
Asus VivoBook S410UQ-NH74 NVIDIA GeForce 940MX, i5-8550U	2613 Points -15%
HP Pavilion 15-cw0003ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	2381 Points -23%
Intel NUC6i5SYH Intel Iris Graphics 540, 6260U	2322 Points -25%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, i7-7560U	2124 Points -31%
Zotac ZBOX-CI660 Nano Intel UHD Graphics 620, i5-8550U	1769 Points -43%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	579 Points -81%
1280x720 Performance Combined
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10391 Points +302%
Zotac ZBOX-QK7P3000 NVIDIA Quadro P3000, i7-7700T	8076 Points +213%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	4354 Points +69%
Dell Latitude 5591 NVIDIA GeForce MX130, i7-8850H	2934 Points +14%
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	2784 Points +8%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	2583 Points
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, i5-7267U	2517 (2509^min - 2525^max) Points -3%
Asus VivoBook S410UQ-NH74 NVIDIA GeForce 940MX, i5-8550U	2395 Points -7%
Gemiddeld Intel Iris Plus Graphics 655 (1245 - 2688, n=8)	2349 Points -9%
Intel NUC6i5SYH Intel Iris Graphics 540, 6260U	2198 Points -15%
HP Pavilion 15-cw0003ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	2155 Points -17%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, i7-7560U	1838 Points -29%
Zotac ZBOX-CI660 Nano Intel UHD Graphics 620, i5-8550U	1410 Points -45%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	593 Points -77%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	59162 Points +254%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	21586 Points +29%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	16698 Points
Dell Latitude 5591 NVIDIA GeForce MX130, i7-8850H	14809 Points -11%
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	14594 Points -13%
Gemiddeld Intel Iris Plus Graphics 655 (6498 - 16698, n=9)	13736 Points -18%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, i5-7267U	13153 Points -21%
Intel NUC6i5SYH Intel Iris Graphics 540, 6260U	11893 Points -29%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, i7-7560U	11232 Points -33%
HP Pavilion 15-cw0003ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	11226 Points -33%
Asus VivoBook S410UQ-NH74 NVIDIA GeForce 940MX, i5-8550U	10816 Points -35%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	3513 Points -79%
1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10248 Points +353%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	3712 Points +64%
Dell Latitude 5591 NVIDIA GeForce MX130, i7-8850H	2430 Points +8%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	2260 Points
Asus VivoBook S410UQ-NH74 NVIDIA GeForce 940MX, i5-8550U	2069 Points -8%
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	1903 Points -16%
Gemiddeld Intel Iris Plus Graphics 655 (920 - 2260, n=9)	1836 Points -19%
HP Pavilion 15-cw0003ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	1715 Points -24%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, i5-7267U	1698 Points -25%
Intel NUC6i5SYH Intel Iris Graphics 540, 6260U	1479 Points -35%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, i7-7560U	1369 Points -39%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	448 Points -80%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	282345 Points
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	98218 Points
Gemiddeld Intel Iris Plus Graphics 655 (57033 - 89859, n=3)	72655 Points
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	16594 Points
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	2908 Points +359%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	633 Points
Gemiddeld Intel Iris Plus Graphics 655 (301 - 633, n=10)	570 Points -10%
Apple MacBook Pro 13 2017 Touchbar i5 Intel Iris Plus Graphics 650, i5-7267U	555 Points -12%
Dell XPS 13 9360 FHD i7 Iris Intel Iris Plus Graphics 640, i7-7560U	413 Points -35%

3DMark 11 | 3DMark

3DMark Vantage P Result		12093 punten
3DMark 11 Performance		3349 punten
3DMark Ice Storm Standard Score		87906 punten
3DMark Cloud Gate Standard Score		13037 punten
3DMark Fire Strike Score		2040 punten
3DMark Fire Strike Extreme Score		1011 punten
3DMark Time Spy Score		722 punten
Help

... in vergelijking

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Gemiddelde van klas Desktop (42 - 797, n=15, laatste 2 jaar)	572 fps +1988%
Intel NUC8i7BE Intel Core i7-8559U, Intel Iris Plus Graphics 655	27.4 (21^min - 35^max) fps
Gemiddeld Intel Iris Plus Graphics 655 (23.2 - 27.9, n=4)	25.8 fps -6%

	lage	gem.	hoge	ultra	QHD	4K
Counter-Strike: GO (2012)			93.7	49.6		12.4
BioShock Infinite (2013)	116.6	64.8	55	17
GTA V (2015)	68	62.1	15.8	6.22	4.17
The Witcher 3 (2015)	27.4
Dota 2 Reborn (2015)	95	68	34.7	30.4		12.2
Rainbow Six Siege (2015)	75.8	0
Rise of the Tomb Raider (2016)	39.2	22.3	10.8	8.9
Ashes of the Singularity (2016)	19.4	11.3	10.5
Deus Ex Mankind Divided (2016)	28.7	21.1
For Honor (2017)	41.3	16.1
Ghost Recon Wildlands (2017)	22.7
Rocket League (2017)	133.3	59.1	38.8
Final Fantasy XV Benchmark (2018)	16.9
X-Plane 11.11 (2018)	32.6	23.3	19.8
World of Tanks enCore (2018)	15.7	40.3
Far Cry 5 (2018)	23	11
Shadow of the Tomb Raider (2018)	22
FIFA 19 (2018)	82	45.8	40.3	36.7
Assassin´s Creed Odyssey (2018)	18
Battlefield V (2018)	19.9
Far Cry New Dawn (2019)	22	11
Metro Exodus (2019)	18.3
Anthem (2019)	16.6
Dirt Rally 2.0 (2019)	64	22.8
The Division 2 (2019)	35
Anno 1800 (2019)	30.2
Rage 2 (2019)	24.5
Total War: Three Kingdoms (2019)	56.7	18.5	10.5
F1 2019 (2019)	51.2	21.9	19.3
Control (2019)	25 ernstige grafische problemen
Borderlands 3 (2019)	23.5	10.2	6.4
FIFA 20 (2019)	92	55.9	46.3	34.9	26.5	13.6
Ghost Recon Breakpoint (2019)	0 het spel wil niet beginnen
GRID 2019 (2019)	36 ernstige grafische problemen	20 ernstige grafische problemen
Call of Duty Modern Warfare 2019 (2019)	0 het spel wil niet beginnen
Red Dead Redemption 2 (2019)	15.8
Hearthstone (2020)			59.8			27.2
Escape from Tarkov (2020)	29.1	16.2	14.1	6.59
Doom Eternal (2020)	0 het spel wil niet beginnen
Gears Tactics (2020)	54.8	17.3	11.6

	Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	Intel Skull Canyon NUC6i7KYK Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB	Lenovo Yoga C930-13IKB 81C4 UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG	Apple MacBook Pro 13 2018 Touchbar i5 Iris Plus Graphics 655, i5-8259U
Noise		-1%	-7%	7%	1%
uit / omgeving *	28.7	28.7 -0%	29.5 -3%	27.9 3%	29.6 -3%
Idle Minimum *	28.7	29 -1%	31.6 -10%	27.9 3%	29.6 -3%
Idle Average *	29.3	29 1%	32.2 -10%	27.9 5%	29.6 -1%
Idle Maximum *	31.8	29 9%	32.3 -2%	29.3 8%	29.6 7%
Load Average *	39	36 8%	43 -10%	32 18%	36.7 6%
Witcher 3 ultra *	39	42 -8%			32.5 17%
Load Maximum *	41.4	49.4 -19%	43.2 -4%	39.3 5%	46.7 -13%

* ... kleiner is beter

Geluidsniveau

Onbelast		28.7 / 29.3 / 31.8 dB (A)
Belasting		39 / 41.4 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Audix TM1, Arta (15 cm afstand) omgevingslawaai: 28.7 dB(A)

Stroomgebruik

Uit / Standby	0.73 / 0.88 Watt
Inactief	2.7 / 3.1 / 6.3 Watt
Belasting	59.7 / 78 Watt


Key: min: , med: , max: Metrahit Energy

	Intel NUC8i7BE i7-8559U, Iris Plus Graphics 655, , , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,	Intel NUC6i5SYH 6260U, Iris Graphics 540, Samsung SSD XP941 MZHPU256HCGL, , x, 0"	Zotac ZBOX-CI660 Nano i5-8550U, UHD Graphics 620, OCZ Vertex OCZSSD2-1VTX120G, , x,	Lenovo Yoga C930-13IKB i5-8250U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 13.9"	Lenovo Ideapad 720S-13ARR R7 2700U, Vega 10, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 13.3"
Power Consumption		-230%	-64%	-106%	-27%	-59%
Idle Minimum *	2.7	15.5 -474%	8.7 -222%	9.7 -259%	3.3 -22%	5.4 -100%
Idle Average *	3.1	16.2 -423%	8.7 -181%	9.8 -216%	6.8 -119%	9.8 -216%
Idle Maximum *	6.3	16.5 -162%	8.7 -38%	11.8 -87%	9.5 -51%	11.3 -79%
Load Average *	59.7	83.4 -40%	18.2 70%	51.6 14%	40.8 32%	29.3 51%
Witcher 3 ultra *	47.2	121.7 -158%
Load Maximum *	78	173.5 -122%	36.6 53%	63.2 19%	57 27%	38.5 51%

* ... kleiner is beter

Pro

+ gemakkelijke toegang tot RAM en opslag (NVMe PCIe x4)

+ sterke initiële piek van Turbo Boost

+ Garantietermijn van 3 jaar

+ 1,73 Gbps WLAN-standaard

+ Thunderbolt 3 (40 Gbps)

+ compact ontwerp

+ MicroSD-kaartlezer

+ IR-ontvanger

Contra

- kleine CPU-prestatie toename ten opzichte van de i7-8550U

- kan niet verticaal staan zonder ventilatie te blokkeren

- vereist nog steeds een externe stroomadapter

- Turbo Boost is van korte duur

- geen SD-kaartlezer op volledige grootte

Getest: Intel NUC Kit NUC8i7BEH. Testmodel gelever door Intel

Voor het volledige, Engelse testrapport, klik hier.

Gebruikers kunnen een algemeen prestatieniveau verwachten dat heel dicht bij dat van de laatste generatie Skull Canyon NUC ligt terwijl ze stiller, koeler en voor een goedkopere startprijs werken. De toevoeging van Thunderbolt 3 betekent dat gebruikers het systeem kunnen koppelen met een extern grafisch dock voor gamen of andere veeleisende taken om de veelzijdigheid van het systeem verder uit te breiden.

De NUC8-serie zal opvallen door de CPU-opties van Coffee Lake-U en de resultaten zijn wat dit betreft meer gemengd. De Iris Plus Graphics 655 is 5 tot 30 procent sneller dan een AMD Vega 10, op voorwaarde dat je de NUC uitrust met dual-channel RAM, maar de CPU-prestaties zijn niet zo veel beter dan die van de goedkopere i7-8550U. De hogere TDP is voornamelijk bedoeld voor het aandrijven van de Iris GPU en dus profiteert de CPU weinig van het hogere TDP-limiet, behalve voor de eerste kortstondige piek van Turbo Boost-kloksnelheden.

Voor 4K streaming en HTPC-doeleinden zou een goedkopere ZBox of NUC7 mini-pc met de i5-8250U of i7-8550U voldoende zijn. De NUC8 is het beste voor diegene die de Thunderbolt 3-poort daadwerkelijk zullen gebruiken en de Iris Plus grafische kaart volledig benutten.

Gelinkte Artikelen

Intel NUC8i7BE (NUC Serie)

Testrapport

•

Kort testrapport Intel Hades C...

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5243 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Intel NUC Kit NUC8i7BEH (i7-8559U) Mini PC

Allen Ngo, 2018-11-16 (Update: 2018-11-16)
