Kort testrapport Intel Hades Canyon NUC8i7HVK (i7-8809G, Radeon RX Vega M GH) Mini PC

Bliksemsnel. Hades zou zelf een exemplaar aanschaffen als hij op zoek was naar een mini gaming PC. De NUC concurreert met een GTX 1060 laptop wat betreft ruwe grafische rekenkracht en biedt de CPU prestaties van een standaard Core i7-7700K - alles in een geïntegreerde chipset gekoeld door een dampkamer.

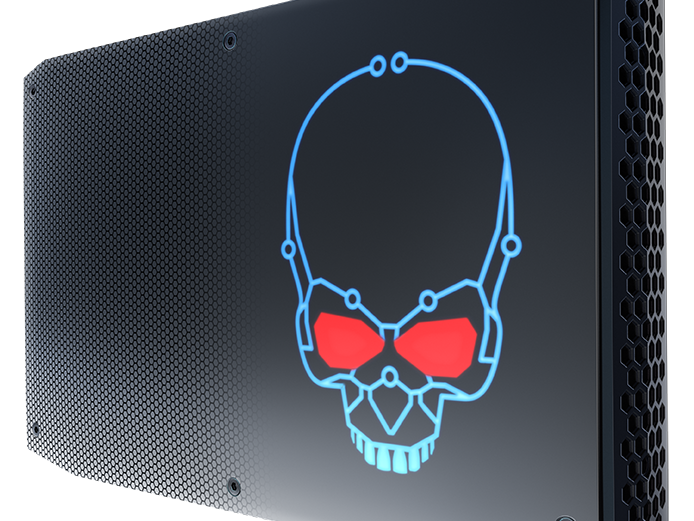

Intel Hades Canyon NUC8i7HVK
Processor
Intel Core i7-8809G 4 x 3.1 - 4.2 GHz, Kaby Lake-G
Grafische kaart

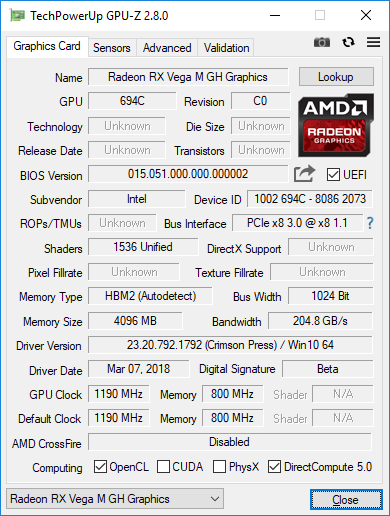

AMD Radeon RX Vega M GH - 4 GB VRAM, Core: 1190 MHz, Geheugen: 800 MHz, HBM2, 23.20.792.1792
Geheugen
16 GB

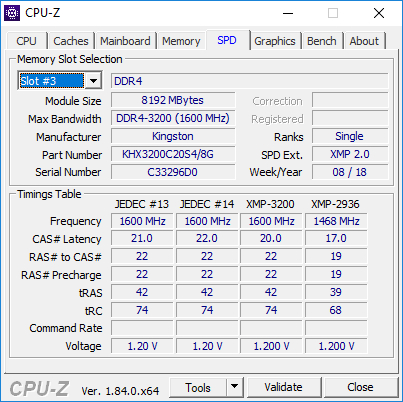

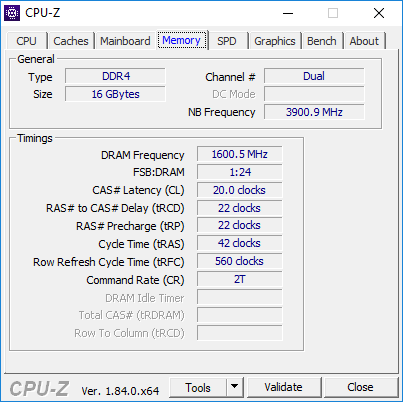

, DDR4, SDRAM, PC4-25600, 1600 MHz, 20-22-22-42, Dual-Channel
Moederbord

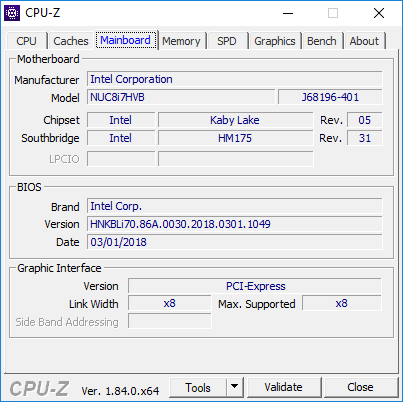

Intel HM175 (Skylake PCH-H)
Opslag
Intel Optane 120 GB SSDPEK1W120GA, 110 GB
, Secundair: Intel SSDSCKKW512GB
Geluidskaart
ATI/AMD Polaris22 - High Definition Audio Controller
Verbindingen
7 USB 3.0, 1 USB 3.1 Gen2, 2 Thunderbolt, 2 HDMI, 3 DisplayPort, 1 Infrared, 1 Kensington Lock, Audio Verbindingen: 3.5 mm combo, TOSLINK, Card Reader: SDXC kaartlezer
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 39 x 221 x 142
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Bijkomende functionaliteiten
Handleiding, VESA montage, LED Manager, 12 Maanden Garantie
Gewicht
1.334 kg, Voeding: 907 g
Prijs
1000 USD
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

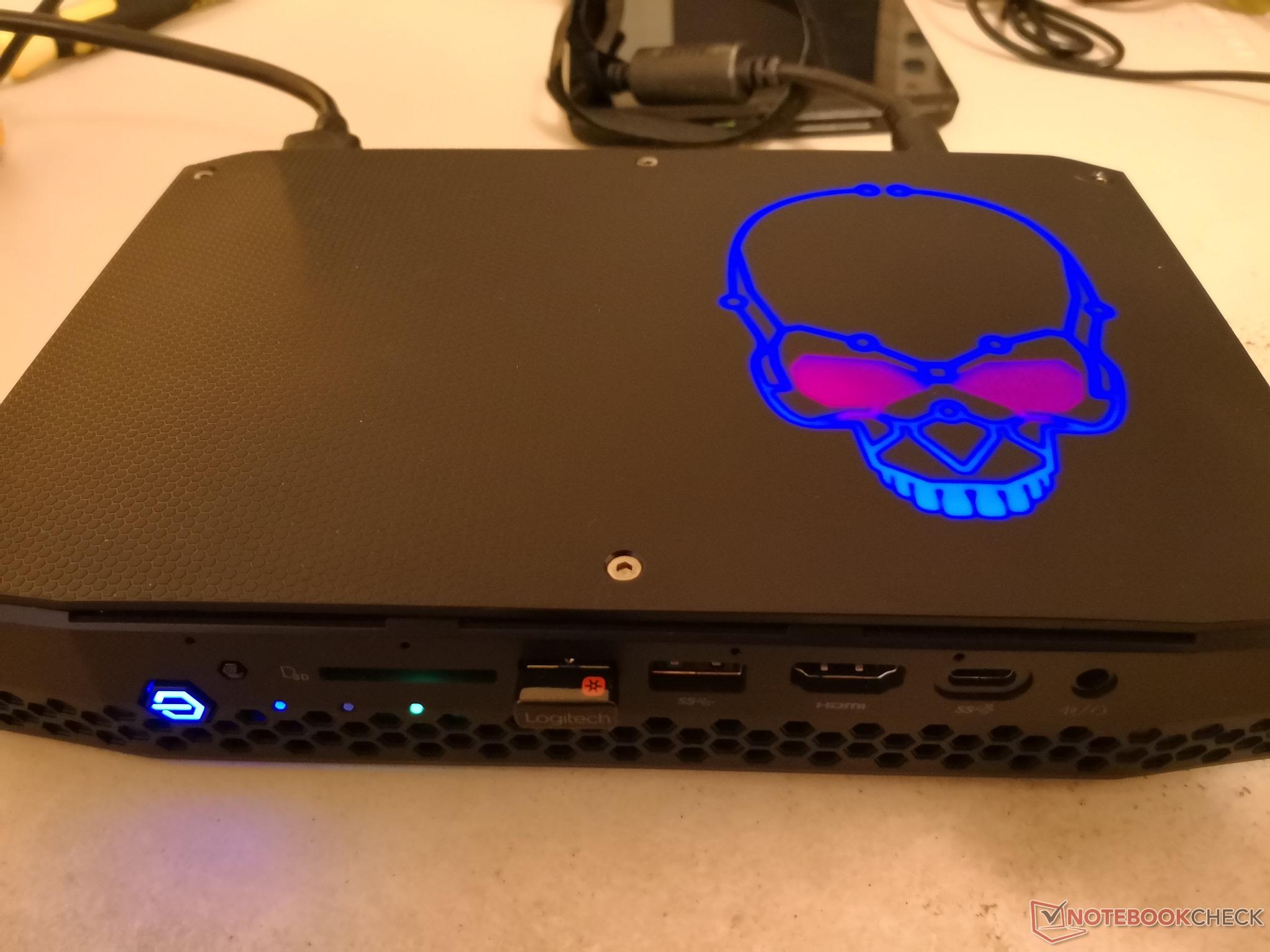

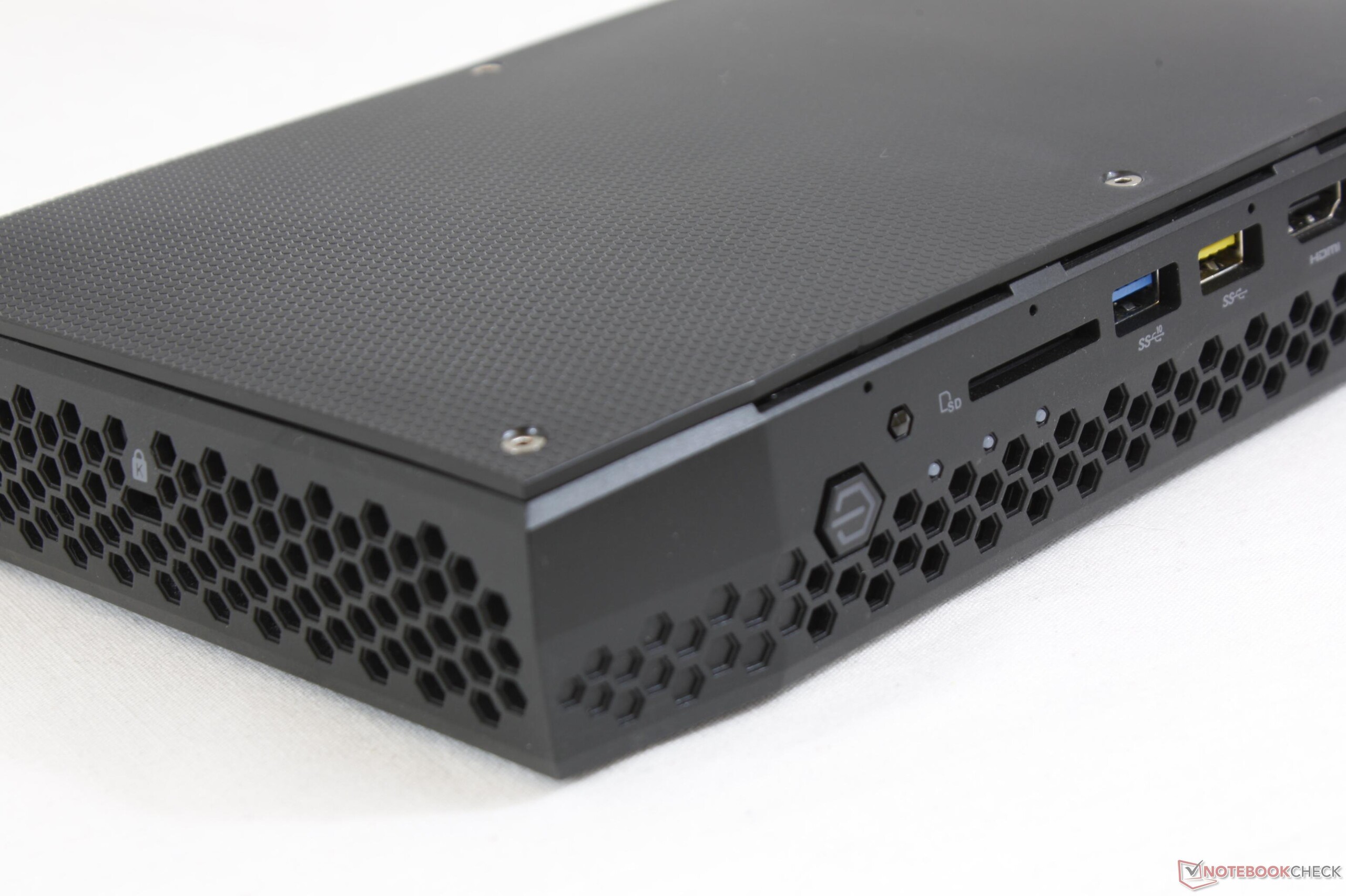

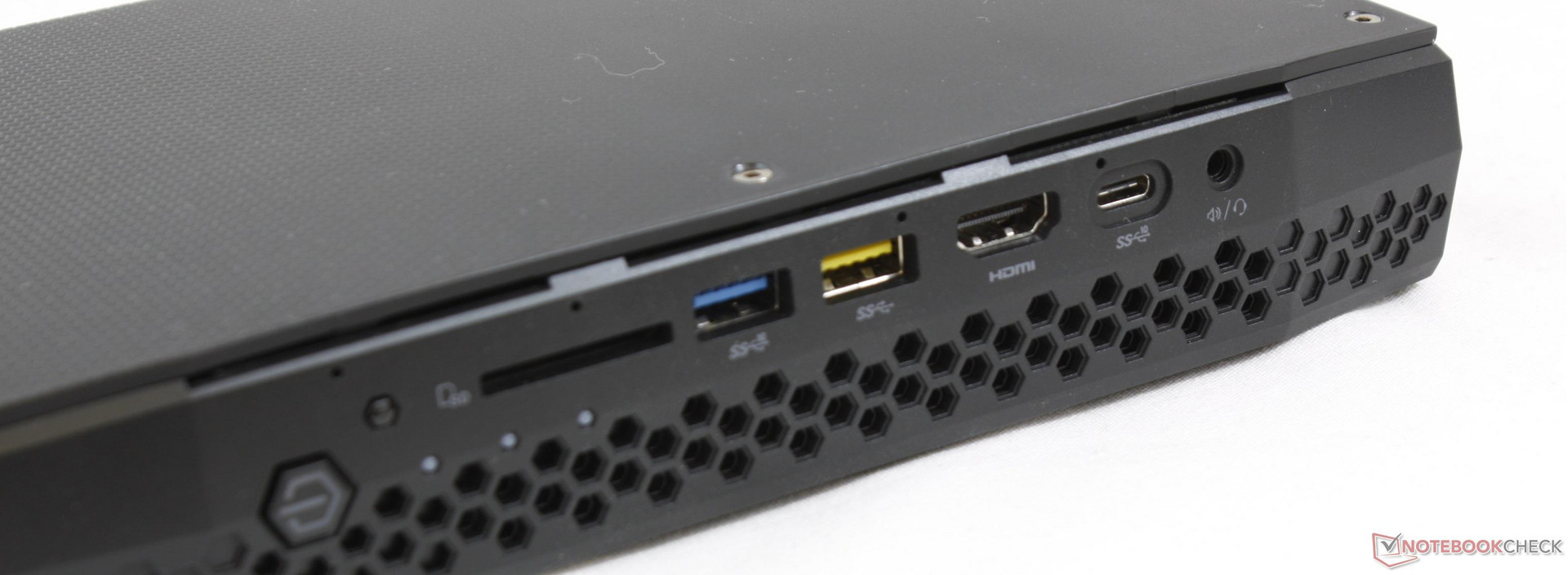

Voorkant: Aan/uitknop, IR ontvanger, SD kaartlezer, USB 3.1, USB 2.0, HDMI 2.0a, USB Type-C Gen. 2, 3.5 mm audiopoort
Voorkant: Aan/uitknop, IR ontvanger, SD kaartlezer, USB 3.1, USB 2.0, HDMI 2.0a, USB Type-C Gen. 2, 3.5 mm audiopoort

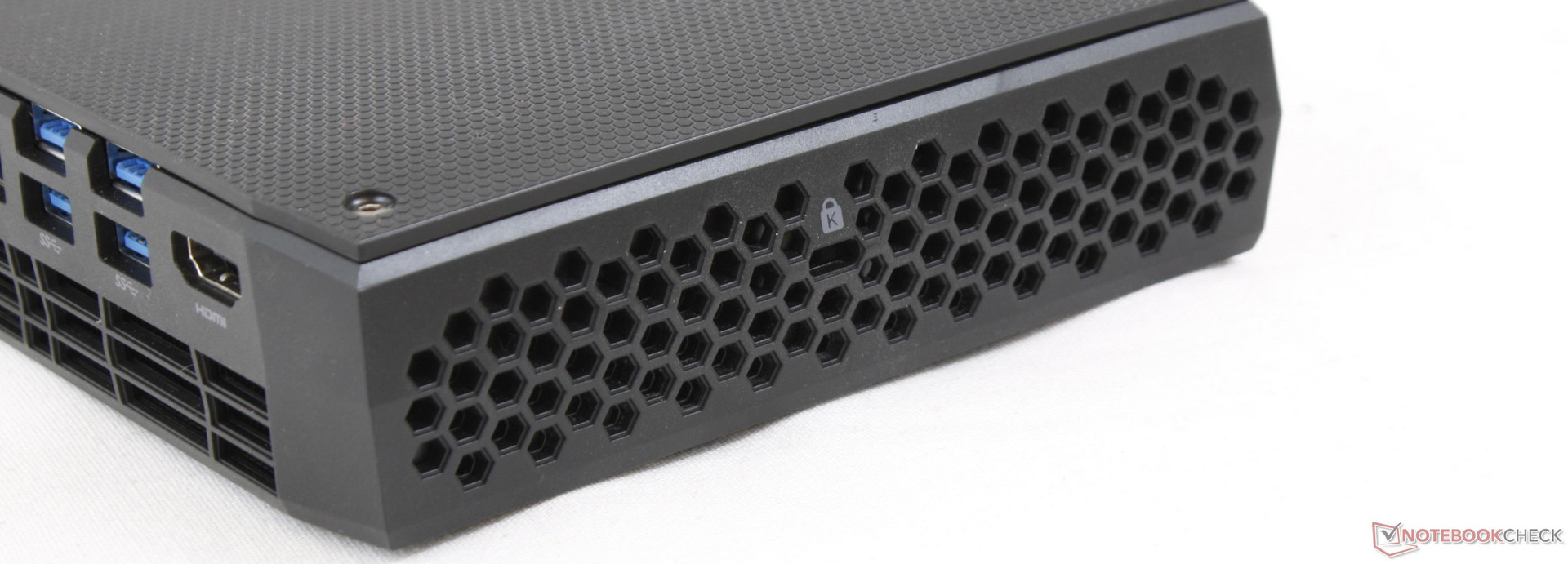

Linkerkant: Kensington Lock
Linkerkant: Kensington Lock

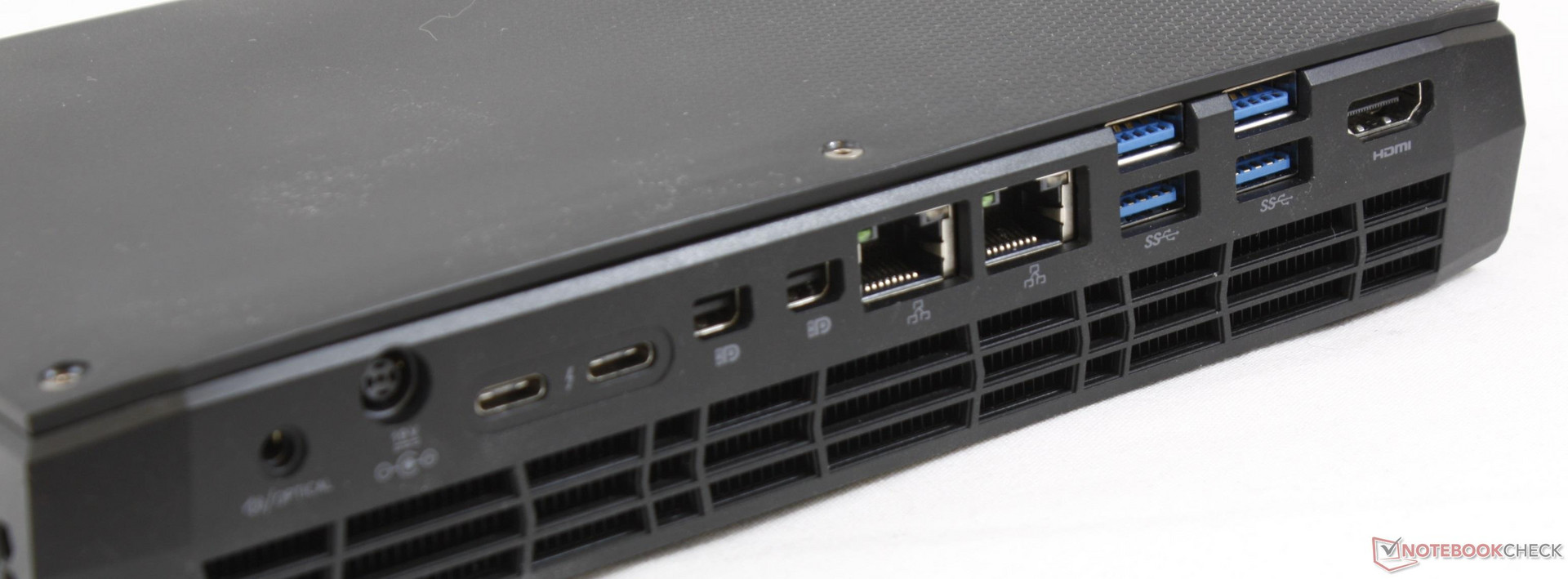

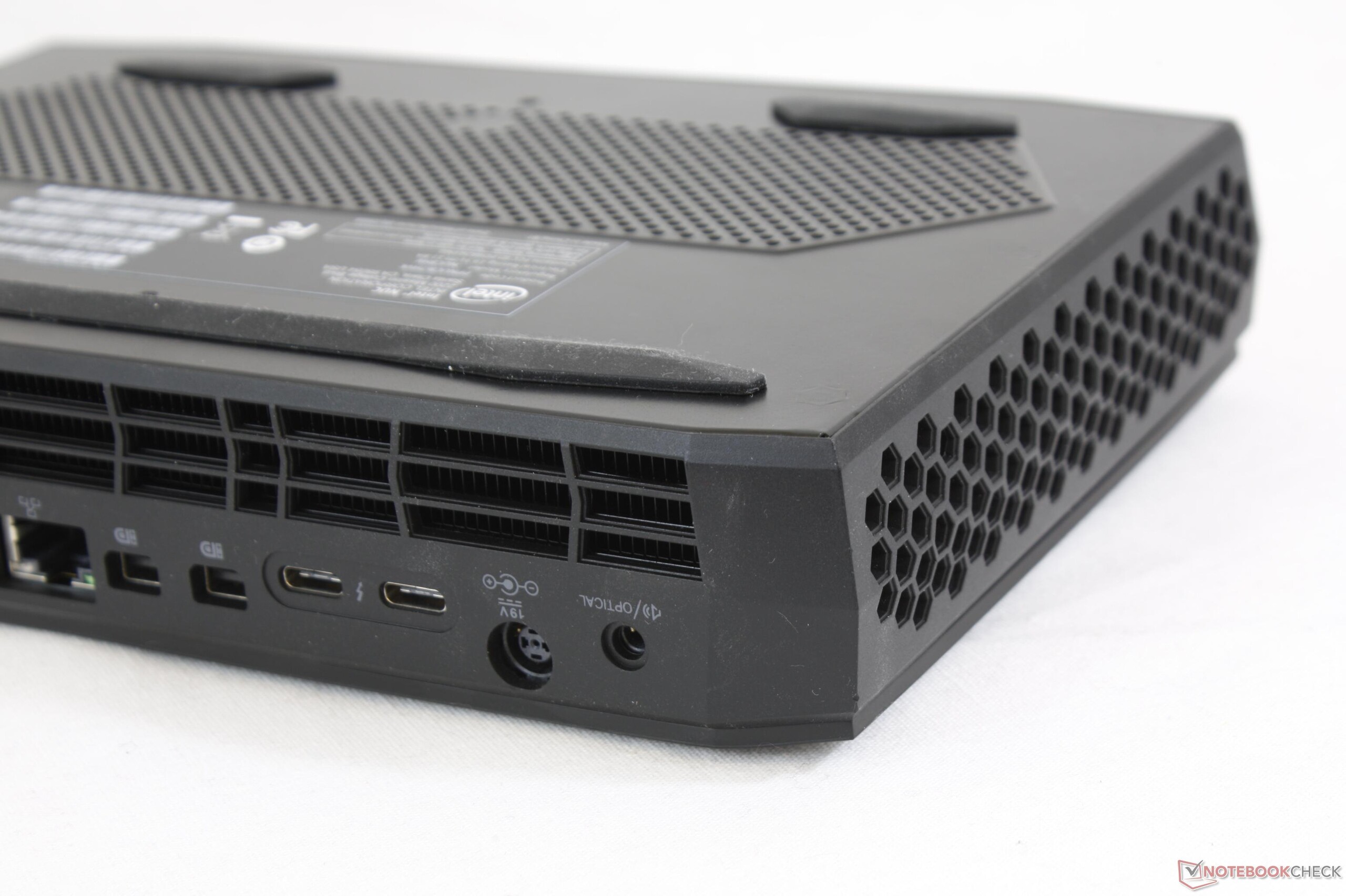

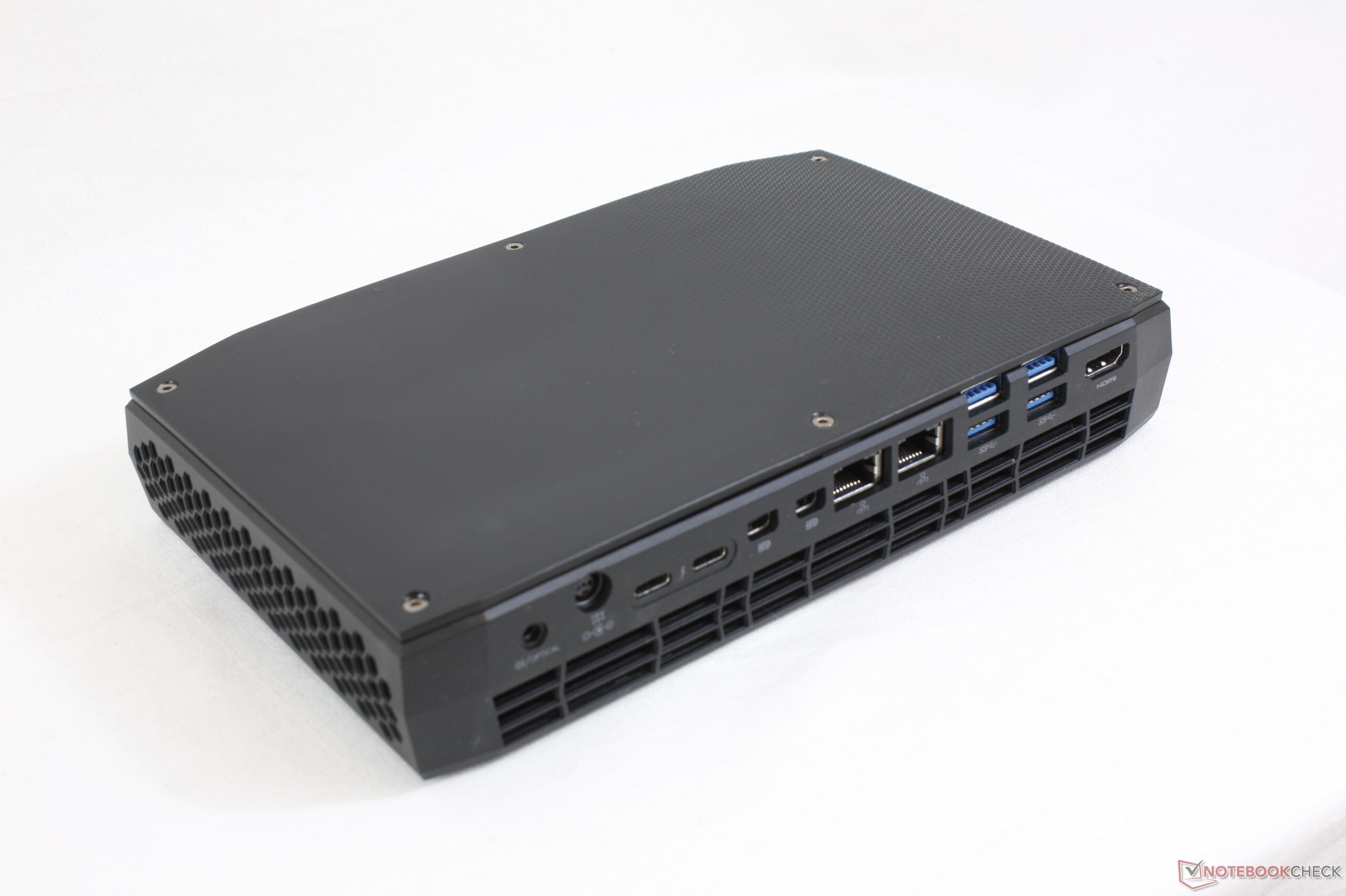

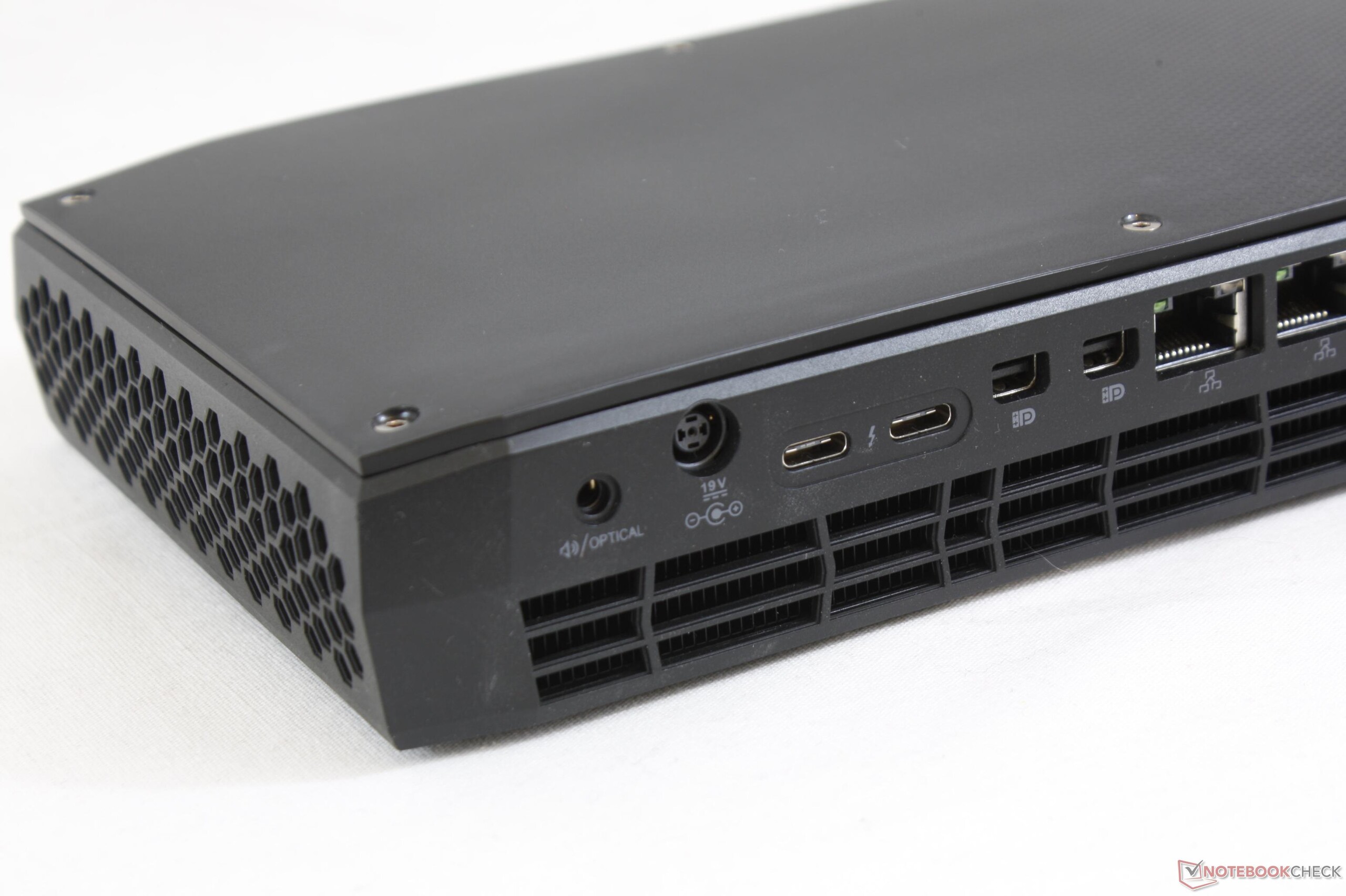

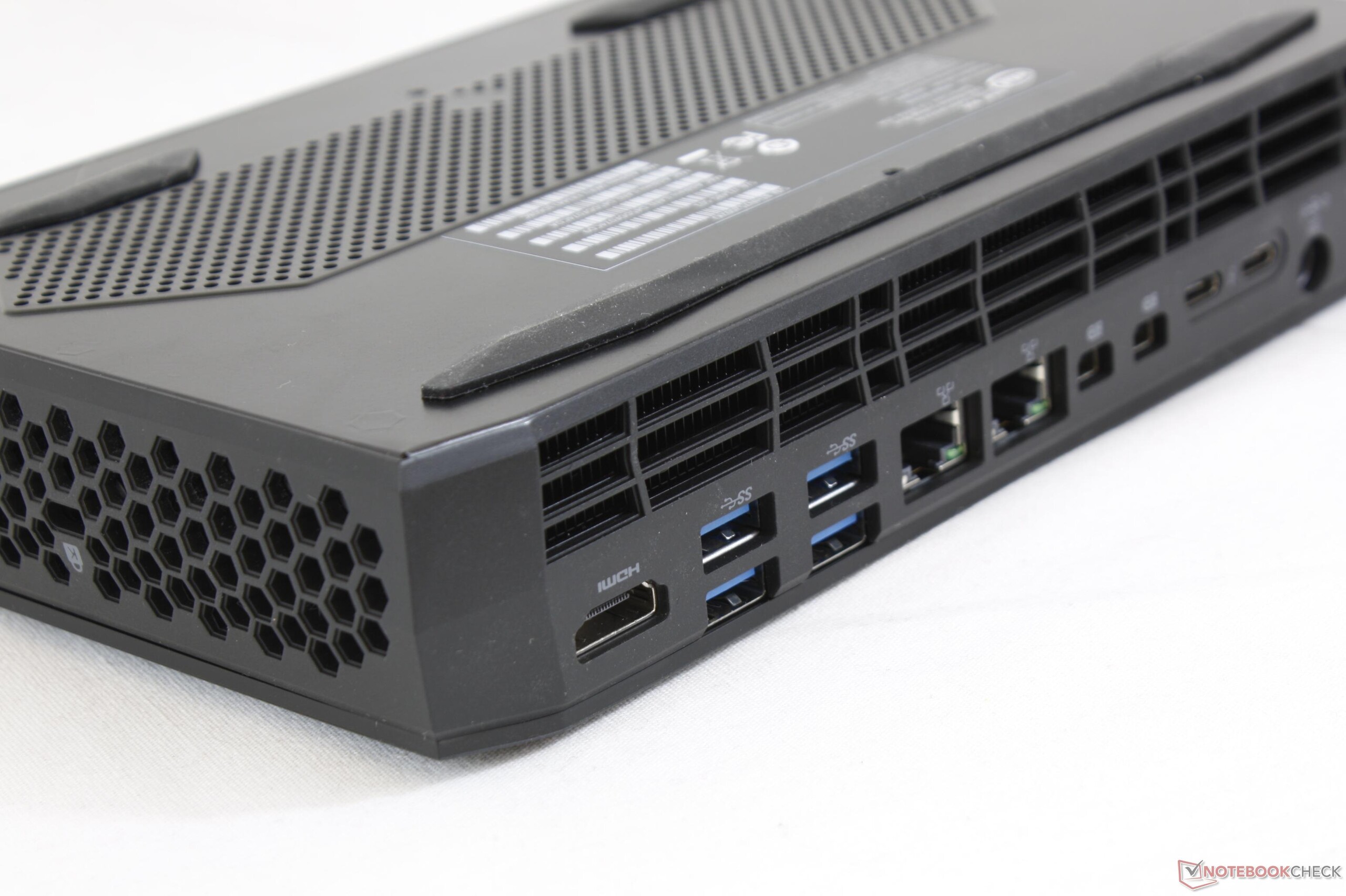

Achterkant: Optical/SPDIF, Stroomadapter, 2x Thunderbolt 3, 2x mini-DisplayPort 1.3, 2x Gigabit RJ-45, 4x USB 3.0, HDMI 2.0a
Achterkant: Optical/SPDIF, Stroomadapter, 2x Thunderbolt 3, 2x mini-DisplayPort 1.3, 2x Gigabit RJ-45, 4x USB 3.0, HDMI 2.0a

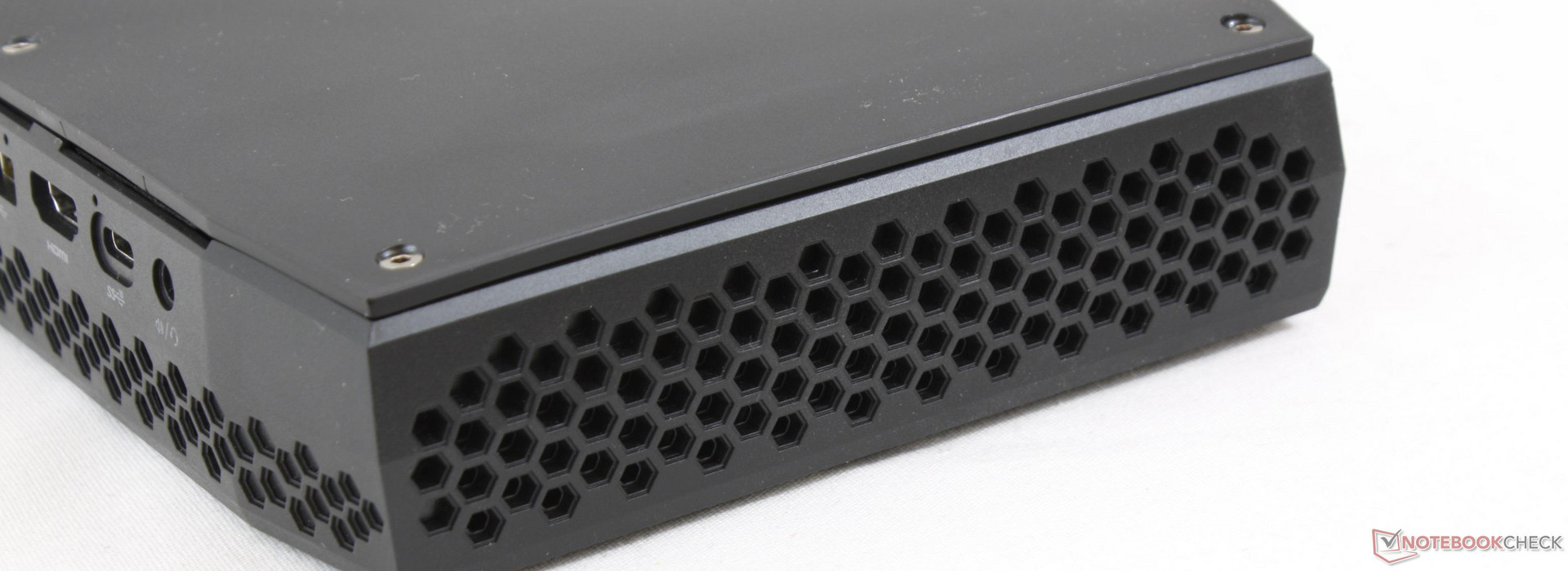

Rechterkant: Geen aansluitingen
Rechterkant: Geen aansluitingen
SD Card Reader
average JPG Copy Test (av. of 3 runs)
MSI GS73VR 7RG
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
182.9 MB/s +126%
Dell XPS 13 i5-8250U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
130.7 MB/s +61%
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s
Zotac ZBOX Magnus EN51050
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
43.3 MB/s -47%
maximum AS SSD Seq Read Test (1GB)
MSI GS73VR 7RG
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
212.2 MB/s +140%
Dell XPS 13 i5-8250U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
194 MB/s +120%
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.3 MB/s
Zotac ZBOX Magnus EN51050
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
41.68 MB/s -53%
Networking
iperf3 transmit AX12
Dell XPS 13 9370 i5 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
505 MBit/s +34%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
376 MBit/s
Dell Latitude 5290 2-in-1
Intel Dual Band Wireless-AC 8265
305 MBit/s -19%
Zotac ZBOX Magnus EN51050
Intel Dual Band Wireless-AC 3165
219 MBit/s -42%
iperf3 receive AX12
Dell Latitude 5290 2-in-1
Intel Dual Band Wireless-AC 8265
653 MBit/s +10%
Dell XPS 13 9370 i5 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
639 MBit/s +8%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
591 MBit/s
Zotac ZBOX Magnus EN51050
Intel Dual Band Wireless-AC 3165
327 MBit/s -45%

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
190 Points +7%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
170 Points -4%
HP Omen X 17-ap0xx
Intel Core i7-7820HK
162 Points -9%
Dell XPS 13 9360 FHD i7 Iris
Intel Core i7-7560U
153 Points -14%
Razer Blade (2016)
Intel Core i7-6700HQ
146 Points -18%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
142 Points -20%
Acer Swift 3 SF315-41-R4W1
AMD Ryzen 5 2500U
140 Points -21%
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
140 Points -21%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
139 Points -22%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
134 Points -25%
Lenovo ThinkPad A275
AMD PRO A12-9800B
75 Points -58%
CPU Multi 64Bit
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
1129 Points +31%
Eurocom Tornado F5
Intel Core i7-7700K
897 Points +4%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points
HP Omen X 17-ap0xx
Intel Core i7-7820HK
770 Points -11%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
723 Points -16%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
714 Points -17%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
711 Points -18%
Razer Blade (2016)
Intel Core i7-6700HQ
671 Points -22%
Acer Swift 3 SF315-41-R4W1
AMD Ryzen 5 2500U
589 (499min - 552max) Points -32%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
507 Points -41%
Dell XPS 13 9360 FHD i7 Iris
Intel Core i7-7560U
336 Points -61%
Lenovo ThinkPad A275
AMD PRO A12-9800B
225 Points -74%
Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
2.19 Points +10%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
1.99 Points
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
1.94 Points -3%
HP Omen X 17-ap0xx
Intel Core i7-7820HK
1.84 Points -8%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
1.66 Points -17%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
1.61 Points -19%
Acer Swift 3 SF315-41-R4W1
AMD Ryzen 5 2500U
1.6 Points -20%
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
1.55 Points -22%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
1.53 Points -23%
CPU Multi 64Bit
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
12.5 Points +33%
Eurocom Tornado F5
Intel Core i7-7700K
9.78 Points +4%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
9.41 Points
HP Omen X 17-ap0xx
Intel Core i7-7820HK
8.47 Points -10%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
7.84 Points -17%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
7.76 Points -18%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
7.13 Points -24%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
5.85 Points -38%
Acer Swift 3 SF315-41-R4W1
AMD Ryzen 5 2500U
5.71 Points -39%
Cinebench R10
Rendering Multiple CPUs 32Bit
Eurocom Tornado F5
Intel Core i7-7700K
28189 Points +9%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
25809 Points
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
25561 Points -1%
HP Omen X 17-ap0xx
Intel Core i7-7820HK
23052 Points -11%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
22188 Points -14%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
21075 Points -18%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
19801 Points -23%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
17806 Points -31%
Acer Swift 3 SF315-41-R4W1
AMD Ryzen 5 2500U
15307 Points -41%
Rendering Single 32Bit
Eurocom Tornado F5
Intel Core i7-7700K
7222 Points +8%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
6668 Points
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
6437 Points -3%
HP Omen X 17-ap0xx
Intel Core i7-7820HK
6062 Points -9%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
5536 Points -17%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
5426 Points -19%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
5147 Points -23%
Acer Swift 3 SF315-41-R4W1
AMD Ryzen 5 2500U
4418 Points -34%
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
4330 Points -35%
wPrime 2.10 - 1024m
Asus ROG Strix GL702ZC-GC204T
AMD Ryzen 5 1600
353.2 s * -89%
Asus Strix GL703VM-DB74
Intel Core i7-7700HQ
247 s * -32%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
225.7 s * -21%
HP Omen X 17-ap0xx
Intel Core i7-7820HK
215.4 s * -15%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
186.7 s *
Eurocom Tornado F5
Intel Core i7-7700K
176.3 s * +6%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
13015
Cinebench R10 Rendering Multiple CPUs 32Bit
25809
Cinebench R10 Rendering Single 32Bit
6668
Cinebench R11.5 OpenGL 64Bit
123.3 fps
Cinebench R11.5 CPU Single 64Bit
1.99 Points
Cinebench R11.5 CPU Multi 64Bit
9.41 Points
Cinebench R15 CPU Single 64Bit
178 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
151.9 fps
Cinebench R15 CPU Multi 64Bit
864 Points
Cinebench R20 CPU (Multi Core)
2005 Points
Cinebench R20 CPU (Single Core)
404 Points
Help
PCMark 10 - Score
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5301 Points
SCHENKER XMG Pro 17
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
4571 Points -14%
Microsoft Surface Book 2 15
GeForce GTX 1060 Mobile, i7-8650U, Samsung PM961 MZVLW256HEHP
4417 Points -17%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 Mobile, i5-7500T, Samsung SSD 960 Pro 512 GB m.2
4355 Points -18%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
3678 Points -31%
Acer Swift 3 SF315-41-R4W1
Vega 8, R5 2500U, Intel SSD 600p SSDPEKKW256G7
2501 Points -53%
PCMark 8
Home Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
4833 Points
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 Mobile, i5-7500T, Samsung SSD 960 Pro 512 GB m.2
4755 Points -2%
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
4323 Points -11%
SCHENKER XMG Pro 17
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
3635 Points -25%
Microsoft Surface Book 2 15
GeForce GTX 1060 Mobile, i7-8650U, Samsung PM961 MZVLW256HEHP
3601 Points -25%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
3471 Points -28%
Acer Swift 3 SF315-41-R4W1
Vega 8, R5 2500U, Intel SSD 600p SSDPEKKW256G7
3450 Points -29%
Work Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5454 Points
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 Mobile, i5-7500T, Samsung SSD 960 Pro 512 GB m.2
5027 Points -8%
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
4966 Points -9%
Microsoft Surface Book 2 15
GeForce GTX 1060 Mobile, i7-8650U, Samsung PM961 MZVLW256HEHP
4544 Points -17%
SCHENKER XMG Pro 17
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
4312 Points -21%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
4140 Points -24%
Acer Swift 3 SF315-41-R4W1
Vega 8, R5 2500U, Intel SSD 600p SSDPEKKW256G7
3797 Points -30%
Creative Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
6457 Points
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 Mobile, i5-7500T, Samsung SSD 960 Pro 512 GB m.2
6341 Points -2%
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
5581 Points -14%
Microsoft Surface Book 2 15
GeForce GTX 1060 Mobile, i7-8650U, Samsung PM961 MZVLW256HEHP
5065 Points -22%
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
4933 Points -24%
Acer Swift 3 SF315-41-R4W1
Vega 8, R5 2500U, Intel SSD 600p SSDPEKKW256G7
3577 Points -45%
PCMark 8 Home Score Accelerated v2
4833 punten
PCMark 8 Creative Score Accelerated v2
6457 punten
PCMark 8 Work Score Accelerated v2
5454 punten
PCMark 10 Score
5301 punten
Help
Intel Hades Canyon NUC8i7HVK
Intel Optane 120 GB SSDPEK1W120GA
Intel Skull Canyon NUC6i7KYK
Samsung SSD 850 EVO m.2 120GB
Dell XPS 13 i5-8250U
Toshiba XG5 KXG50ZNV256G
Razer Blade (2017) UHD
Samsung PM961 NVMe MZVLW512HMJP
MSI GS63VR 7RG-005
Samsung SM961 MZVPW256HEGL
AS SSD
-67%
-721%
-1265%
27%
Copy Game MB/s
768
295.8
-61%
892
16%
Copy Program MB/s
342.4
213.1
-38%
317.5
-7%
Copy ISO MB/s
1125
358
-68%
1698
51%
Score Total
3023
919
-70%
815
-73%
1557
-48%
3848
27%
Score Write
714
268
-62%
71
-90%
80
-89%
1185
66%
Score Read
1524
424
-72%
531
-65%
1034
-32%
1795
18%
Access Time Write *
0.033
0.047
-42%
2.148
-6409%
4.467
-13436%
0.03
9%
Access Time Read *
0.025
0.075
-200%
0.244
-876%
0.036
-44%
0.039
-56%
4K-64 Write
556
145.2
-74%
52.3
-91%
42.59
-92%
932
68%
4K-64 Read
1258
337.4
-73%
385.7
-69%
755
-40%
1506
20%
4K Write
103.5
76.9
-26%
1.94
-98%
1.03
-99%
124.7
20%
4K Read
127.9
35.55
-72%
11.93
-91%
47.31
-63%
51
-60%
Seq Write
553
460.4
-17%
166
-70%
359.9
-35%
1281
132%
Seq Read
1379
508
-63%
1338
-3%
2318
68%
2382
73%

* ... kleiner is beter

Intel Optane 120 GB SSDPEK1W120GA
CDM 5/6 Read Seq Q32T1: 1521 MB/s
CDM 5/6 Write Seq Q32T1: 627 MB/s
CDM 5/6 Read 4K Q32T1: 282.3 MB/s
CDM 5/6 Write 4K Q32T1: 323.6 MB/s
CDM 5 Read Seq: 1428 MB/s
CDM 5 Write Seq: 608 MB/s
CDM 5/6 Read 4K: 178.6 MB/s
CDM 5/6 Write 4K: 133.7 MB/s
3DMark 11
1280x720 Performance GPU
Eurocom Sky X4C
NVIDIA GeForce GTX 1080 Mobile, i7-8700K
26912 Points +88%
SCHENKER XMG Pro 17
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
22804 Points +59%
Asus Zephyrus GX501VS
NVIDIA GeForce GTX 1070 Max-Q, i7-7700HQ
20240 Points +42%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
17401 Points +22%
Asus ROG Strix GL702ZC-GC204T
AMD Radeon RX 580 (Laptop), R5 1600
15182 Points +6%
Asus Strix GL703VM-DB74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
15145 Points +6%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
14302 Points
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q, i7-7700HQ
12970 Points -9%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M, 6700HQ
12472 Points -13%
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, i5-7300HQ
9904 Points -31%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
7831 Points -45%
HP Envy 17-ae143ng
NVIDIA GeForce MX150, i5-8250U
4631 Points -68%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
3549 Points -75%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points -77%
Dell Latitude 5590
Intel UHD Graphics 620, i5-8250U
1619 Points -89%
1280x720 Performance Combined
Eurocom Sky X4C
NVIDIA GeForce GTX 1080 Mobile, i7-8700K
13928 Points +34%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
11160 Points +7%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10391 Points
SCHENKER XMG Pro 17
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
9154 Points -12%
Asus Zephyrus GX501VS
NVIDIA GeForce GTX 1070 Max-Q, i7-7700HQ
9065 Points -13%
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q, i7-7700HQ
9007 Points -13%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M, 6700HQ
8343 Points -20%
Asus ROG Strix GL702ZC-GC204T
AMD Radeon RX 580 (Laptop), R5 1600
7838 Points -25%
Asus Strix GL703VM-DB74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
7358 Points -29%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
6938 Points -33%
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, i5-7300HQ
6406 Points -38%
HP Envy 17-ae143ng
NVIDIA GeForce MX150, i5-8250U
4226 Points -59%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points -73%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
2683 Points -74%
Dell Latitude 5590
Intel UHD Graphics 620, i5-8250U
1299 Points -87%
3DMark
1280x720 Cloud Gate Standard Graphics
Eurocom Sky X4C
NVIDIA GeForce GTX 1080 Mobile, i7-8700K
124077 Points +110%
Asus Zephyrus GX501VS
NVIDIA GeForce GTX 1070 Max-Q, i7-7700HQ
107807 Points +82%
Asus Strix GL703VM-DB74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
82913 Points +40%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
80879 Points +37%
SCHENKER XMG Pro 17
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
80593 Points +36%
Asus ROG Strix GL702ZC-GC204T
AMD Radeon RX 580 (Laptop), R5 1600
70020 Points +18%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M, 6700HQ
64343 Points +9%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
59162 Points
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, i5-7300HQ
51473 Points -13%
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q, i7-7700HQ
42781 Points -28%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
37975 Points -36%
HP Envy 17-ae143ng
NVIDIA GeForce MX150, i5-8250U
21153 Points -64%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
15186 Points -74%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
14594 Points -75%
Dell Latitude 5590
Intel UHD Graphics 620, i5-8250U
8065 Points -86%
1920x1080 Fire Strike Graphics
Eurocom Sky X4C
NVIDIA GeForce GTX 1080 Mobile, i7-8700K
20909 Points +104%
SCHENKER XMG Pro 17
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
17216 Points +68%
Asus Zephyrus GX501VS
NVIDIA GeForce GTX 1070 Max-Q, i7-7700HQ
16165 Points +58%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
12984 Points +27%
Asus Strix GL703VM-DB74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
12038 Points +17%
Asus ROG Strix GL702ZC-GC204T
AMD Radeon RX 580 (Laptop), R5 1600
11512 Points +12%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10248 Points
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q, i7-7700HQ
9992 Points -2%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M, 6700HQ
9608 Points -6%
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, i5-7300HQ
7795 Points -24%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
6066 Points -41%
HP Envy 17-ae143ng
NVIDIA GeForce MX150, i5-8250U
3628 Points -65%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
2310 Points -77%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
1903 Points -81%
Dell Latitude 5590
Intel UHD Graphics 620, i5-8250U
954 Points -91%
Fire Strike Extreme Graphics
Eurocom Sky X4C
NVIDIA GeForce GTX 1080 Mobile, i7-8700K
9996 Points +127%
Asus Zephyrus GX501VS
NVIDIA GeForce GTX 1070 Max-Q, i7-7700HQ
7527 Points +71%
Asus Strix GL703VM-DB74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
5542 Points +26%
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q, i7-7700HQ
4672 Points +6%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M, 6700HQ
4623 Points +5%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
4405 Points
Lenovo Legion Y520-15IKBN 80WK0042GE
NVIDIA GeForce GTX 1050 Ti Mobile, i5-7300HQ
3670 Points -17%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
2582 Points -41%
HP Envy 17-ae143ng
NVIDIA GeForce MX150, i5-8250U
1688 Points -62%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
1043 Points -76%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
822 Points -81%
Dell Latitude 5590
Intel UHD Graphics 620, i5-8250U
428 Points -90%
3DMark 06 Standard Score
33046 punten
3DMark 11 Performance
13212 punten
3DMark Ice Storm Standard Score
156453 punten
3DMark Cloud Gate Standard Score
25445 punten
3DMark Fire Strike Score
8506 punten
3DMark Fire Strike Extreme Score
4154 punten
3DMark Time Spy Score
3096 punten
Help
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
MSI GS63VR 7RG-005
GeForce GTX 1070 Max-Q, i7-7700HQ, Samsung SM961 MZVPW256HEGL
109.6 fps +35%
MSI GF62VR 7RF-877
GeForce GTX 1060 Mobile, i7-7700HQ, Intel SSD 600p SSDPEKKW256G7
108 fps +33%
Dell Inspiron 15 7000 7577 4K
GeForce GTX 1060 Max-Q, i7-7700HQ, SK hynix SC311 M.2
100.4 fps +23%
EVGA SC17
GeForce GTX 980M, 6820HK, Samsung SSD 950 Pro 512GB m.2 NVMe
90.2 fps +11%
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
81.4 fps
Gigabyte Aero 14-K7
GeForce GTX 1050 Ti Mobile, i7-7700HQ, Samsung SM961 MZVPW256HEGL
74.4 fps -9%
Asus GL503VD-DB74
GeForce GTX 1050 Mobile, i7-7700HQ, ADATA SX7000NP 256 GB
66 fps -19%
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
28.9 fps -64%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
MSI GF62VR 7RF-877
GeForce GTX 1060 Mobile, i7-7700HQ, Intel SSD 600p SSDPEKKW256G7
60 fps +47%
EVGA SC17
GeForce GTX 980M, 6820HK, Samsung SSD 950 Pro 512GB m.2 NVMe
54.7 fps +34%
Dell Inspiron 15 7000 7577 4K
GeForce GTX 1060 Max-Q, i7-7700HQ, SK hynix SC311 M.2
45.3 fps +11%
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
40.8 fps
Asus GL503VD-DB74
GeForce GTX 1050 Mobile, i7-7700HQ, ADATA SX7000NP 256 GB
39 fps -4%
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
14.8 fps -64%
lagegem.hogeultraQHD4K
BioShock Infinite (2013) 302.7 239.3 209.2 81.4
Metro: Last Light (2013) 159.2 156.5 113.1 55.9
Thief (2014) 120.7 109.8 107.1 62.6
GTA V (2015) 165 158 81.2 39.4
The Witcher 3 (2015) 165.5 105.1 59.7 34.3
Batman: Arkham Knight (2015) 146 135 74
Metal Gear Solid V (2015) 60 60 60 59
Dota 2 Reborn (2015) 127 119 108 94.6
Fallout 4 (2015) 179.1 63.4 50.8
Rise of the Tomb Raider (2016) 161.8 102.4 53.9 40.8
Ashes of the Singularity (2016) 80.2 50.8 45.1
Overwatch (2016) 197.3 148.3 71
Deus Ex Mankind Divided (2016) 48.3 23.4
Mafia 3 (2016) 63 39.4 36
Prey (2017) 143 118.9 96.5 81.5
Rocket League (2017) 141 49.1
Dirt 4 (2017) 202.1 137.9 81.2 46.9
F1 2017 (2017) 215 105 86 53
Middle-earth: Shadow of War (2017) 150 69 48 36
Destiny 2 (2017) 106.1 81.2 78.8 65.9
Assassin´s Creed Origins (2017) 64 45 42 34
Final Fantasy XV Benchmark (2018) 81.8 41.2 20.4
X-Plane 11.11 (2018) 61.8 52.8 45.5
World of Tanks enCore (2018) 386.1 186.1 63.3 41.8 21.4
Far Cry 5 (2018) 51 47
The Crew 2 (2018) 51
F1 2018 (2018) 139 83 70 46.1
Strange Brigade (2018) 210 85.3 68 56.6
Shadow of the Tomb Raider (2018) 109 47 43 36
Forza Horizon 4 (2018) 0 het spel wil niet beginnen (benchmark wont start)
Assassin´s Creed Odyssey (2018) 44 35 21
Call of Duty Black Ops 4 (2018) 66 38.7 17.8
Hitman 2 (2018) 53 52.8 46.2 41.3 14.4
Fallout 76 (2018) 50.4
Battlefield V (2018) 161 81 66 59.8 43.3 20.9
Farming Simulator 19 (2018) 142.9 101.6 88.6 57.1 21.3
Darksiders III (2018) 134.7 59.7 49.7 42.3 14.3
Just Cause 4 (2018) 76.2 51.6 41.9 40.3 14
Far Cry New Dawn (2019) 71 55 51 47 22
Metro Exodus (2019) 85.1 43.11 28.43 24.01 10.94
Anthem (2019) 23.81 19.78 10
Dirt Rally 2.0 (2019) 164.7 78.2 64.7 35.95
The Division 2 (2019) 57 52 44 35 10
Rage 2 (2019) 100.2 46.8 39.7 38.6
Total War: Three Kingdoms (2019) 149 49.4 29.8 19.8 12.7 5.4
League of Legends (2019) 174.9 160.4 158.8 156.8 156.2 156
F1 2019 (2019) 133 87 74 50.1 37.8 21.5
Control (2019) 102 34 24 15
Borderlands 3 (2019) 80.8 50 31.5 21.9 16.8 6.6
FIFA 20 (2019) 148.2 145.1 139.3 137.3 127.4 74.3
Ghost Recon Breakpoint (2019) 44 36 32 21 13
Need for Speed Heat (2019) 70.9 55 48 41 29
Star Wars Jedi Fallen Order (2019) 39 33 27.9
Hunt Showdown (2020) 133 53.3 41.3 24.5 11
Gears Tactics (2020) 134.9 84.4 49 37.7 23.5 12.1
F1 2020 (2020) 204 105 81.5 56.1 40.8 20.8
Forza Horizon 5 (2021) 85 47 35 14 13
Cyberpunk 2077 1.6 (2022) 39 30 23 23 4
012345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758Tooltip
The Witcher 3 high

Geluidsniveau

Onbelast
29 / 29 / 29 dB (A)
Belasting
36 / 49.4 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   omgevingslawaai: 28.7 dB(A)
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 Mobile, i5-7500T, Samsung SSD 960 Pro 512 GB m.2
Razer Blade (2017) UHD
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 NVMe MZVLW512HMJP
Dell XPS 13 9370 i5 UHD
UHD Graphics 620, i5-8250U, Toshiba XG5 KXG50ZNV256G
MSI GS63VR 7RG-005
GeForce GTX 1070 Max-Q, i7-7700HQ, Samsung SM961 MZVPW256HEGL
Noise
-7%
-13%
-8%
5%
-9%
uit / omgeving *
28.7
29.5
-3%
30.7
-7%
30.3
-6%
29
-1%
30
-5%
Idle Minimum *
29
31.6
-9%
37.6
-30%
30.3
-4%
29
-0%
31
-7%
Idle Average *
29
32.2
-11%
37.6
-30%
30.3
-4%
29
-0%
34
-17%
Idle Maximum *
29
32.3
-11%
37.7
-30%
30.3
-4%
29
-0%
35
-21%
Load Average *
36
43
-19%
39.3
-9%
42.2
-17%
32
11%
42
-17%
Witcher 3 ultra *
42
40.6
3%
44
-5%
Load Maximum *
49.4
43.2
13%
44
11%
55.7
-13%
40.1
19%
46
7%

* ... kleiner is beter

Stroomgebruik
Uit / Standbydarklight 1.24 / 2.1 Watt
Inactiefdarkmidlight 15.5 / 16.2 / 16.5 Watt
Belasting midlight 83.4 / 173.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Zotac ZBOX Magnus EN51050
i5-7500T, GeForce GTX 1050 Mobile, Samsung SSD 960 Pro 512 GB m.2, , x,
Razer Blade (2017) UHD
i7-7700HQ, GeForce GTX 1060 Mobile, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 14"
Intel Skull Canyon NUC6i7KYK
6770HQ, Iris Pro Graphics 580, Samsung SSD 850 EVO m.2 120GB, , x, 0"
Asus Strix GL502VY-DS71
6700HQ, GeForce GTX 980M, SanDisk SD8SN8U1T001122, IPS, 1920x1080, 15.6"
Asus FX503VM-EH73
i7-7700HQ, GeForce GTX 1060 Mobile, SanDisk SD8SN8U128G1002, IPS, 1920x1080, 15.6"
Power Consumption
-12%
15%
22%
-33%
10%
Idle Minimum *
15.5
21.1
-36%
8.1
48%
14.8
5%
20.6
-33%
12.8
17%
Idle Average *
16.2
22.1
-36%
14.3
12%
15.7
3%
22.1
-36%
15.4
5%
Idle Maximum *
16.5
26.6
-61%
16.3
1%
15.8
4%
22.5
-36%
15.9
4%
Load Average *
83.4
77.5
7%
74
11%
62.7
25%
130.6
-57%
78
6%
Witcher 3 ultra *
121.7
92.4
24%
107.3
12%
Load Maximum *
173.5
121.7
30%
164
5%
48.5
72%
177.2
-2%
143.4
17%

* ... kleiner is beter

Pro

+ Stiller dan de meeste gaming notebooks; dampkamer koeling
+ Geen oververhitting; constante Turbo Boost
+ Indrukwekkende CPU en GPU prestaties gezien de grootte
+ Intel Optane en FreeSync ondersteuning
+ Standaard drie jaar garantie
+ Ontgrendelde CPU, GPU en HBM2
+ Geen pieptoon van ventilator
+ Veel aansluitingen

Contra

- Verbruikt meer energie dan een GTX 1060 notebook

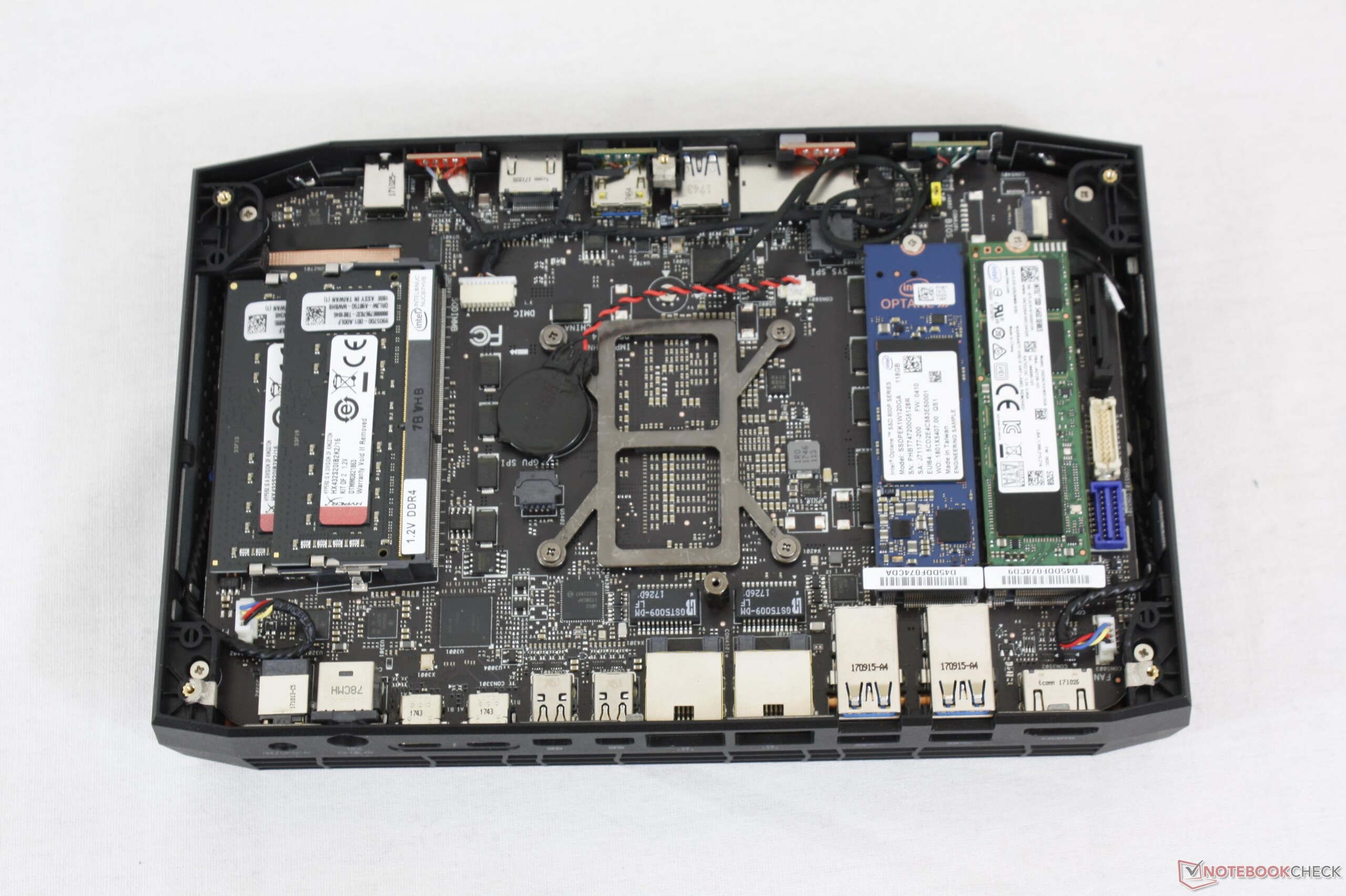

- Systeem lastig toegankelijk voor schoonmaken
- Groter en waarder dan Skull Canyon
- Geen interne 2,5 inch SATA III bay
- Pulserende ventilatoren bij het gamen
- SD kaartlezer kan sneller
- Beperkte potentie voor overklokken
- Kan niet verticaal geplaatst worden
- Grote externe AC adapter
- Ondersteboven USB poorten
- Prijzig
Kort testrapport van de Intel Hades Canyon NUC8i7HVK. Testmodel geleverd door Intel
Kort testrapport van de Intel Hades Canyon NUC8i7HVK. Testmodel geleverd door Intel

Voor het volledige, Engelse testrapport, klik hier.

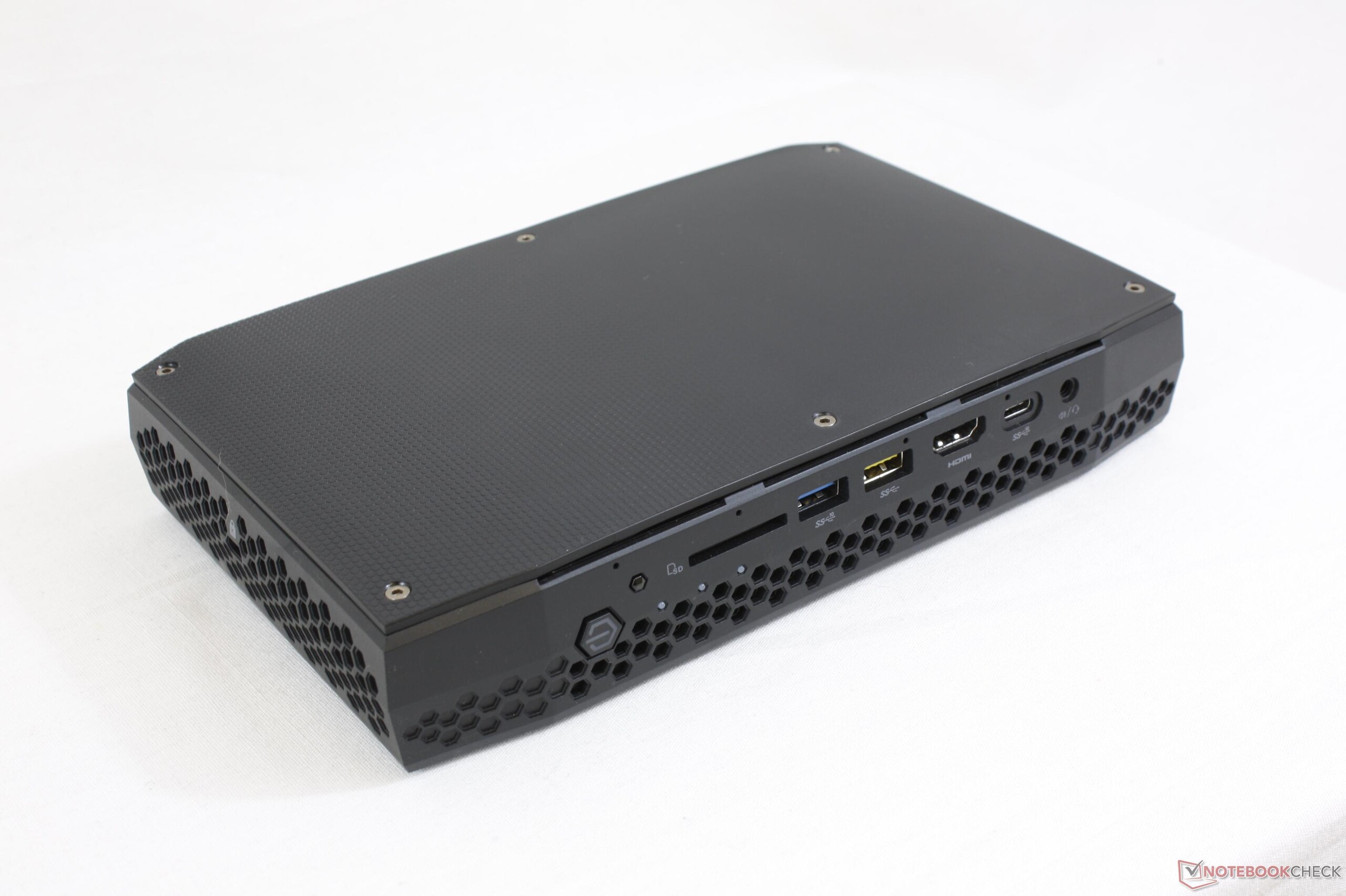

Vanaf de buitenkant lijkt de Hades Canyon NUC op een marginale update van de 2016 Skull Canyon NUC. Wat betreft prestaties is er echter een veel groter verschil. Intel heeft al onze kritiek op de interne componenten van de Skull Canyon verwerkt voor een superieure gaming ervaring. De geluidsoverlast van de ventilator is aanzienlijk minder, kerntemperaturen zijn lager en de gaming prestaties liggen op het niveau van een GTX 1050 Ti of GTX 1060 gaming notebook. Kaby Lake-G is niet alleen functioneler dan elke eerdere mobiele AMD Fusion APU, maar komt ook al zijn beloftes na.

Het grootste gebrek dat we hebben kunnen ontdekken is de lage energie-efficiëntie van de Core i7-8809G vergeleken met een GTX 1060 equivalent. De NUC vraagt meer energie dan een 15,6 inch gaming laptop met een 7e generatie HQ-serie CPU en GTX 1060 of GTX 1060 Max-Q GPU met inachtneming van het beeldscherm en toetsenbordcomponenten. Dit komt overeen met de huidige desktop Vega 56/64 GPU's, aangezien ze een inferieure prestaties-per-Watt ratio hebben dan de populaire Pascal alternatieven. In andere woorden komt al die compacte rekenkracht in ruil voor energiezuinigheid.

De adviesprijs van $1000 kan potentiële kopers afschrikken. Immers, de NUC bevat geen RAM, opslagstations of besturingssysteem, waardoor gebruikers nog flink meer moeten investeren voor een werkend systeem. Een gaming laptop met GTX 1050 Ti of GTX 1060 daarentegen is al verkrijgbaar vanaf $1000 tot $1200, compleet met RAM, opslagstation, besturingssysteem en meer. Kopers van de nieuwe Intel NUC betalen dus vooral voor de beperkte afmetingen en nieuwe processor.

De andere nadelen zijn in onze ogen relatief onbelangrijk. De kerntemperaturen kunnen nog een stuk lager aangezien temperaturen van 85 graden Celsius tot 99 graden Celsius niet zeldzaam zijn - en dit is nog een onveranderd systeem. De gemiddelde snelheid van de kaartlezer, ondersteboven USB poorten, langzame pulserende ventilatoren tijdens het gamen en de grote stroomadapter staat op onze lijst met kleinere ongemakken.

Het is niet de snelste mini PC aangezien elke door een GTX 1060 aangedreven concurrent een beter prijs/prestaties ratio geeft. Echter, het apparaat legt de lat voor het nieuwe Kaby Lake-G platform zeer hoog. We kijken ernaar uit om de prijzen te zien dalen tot het niveau van de populaire Pascal serie.

Price comparison

Please share our article, every link counts!
Mail Logo
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Intel Hades Canyon NUC8i7HVK (i7-8809G, Radeon RX Vega M GH) Mini PC
Allen Ngo, 2018-04- 1 (Update: 2018-04- 1)
