Kort testrapport HP ZBook Studio G3 Workstation

Name: HP ZBook Studio G3
Brand: HP

Te ambitieus? De HP ZBook Studio G3 is de nieuwste telg in de ZBook-serie en volgt de trend van slankere apparaten met krachtige componenten. HP levert in vele opzichten een erg goed notebook; er zijn echter significante beperkingen wat betreft emissies en met name batterijlevensduur.

Andreas Osthoff, ✓ Stefanie Voigt, Published 29-05-2016 🇺🇸 🇩🇪 ...

Geforce Laptop / Notebook Skylake Ultrabook Workstation Windows

Testtoestel voorzien door HP Deutschland

Download your licensed rating image as PNG / SVG

HP ZBook Studio G3 (ZBook Studio Serie)

Processor

Intel Core i7-6820HQ 4 x 2.7 - 3.6 GHz, Skylake

Grafische kaart

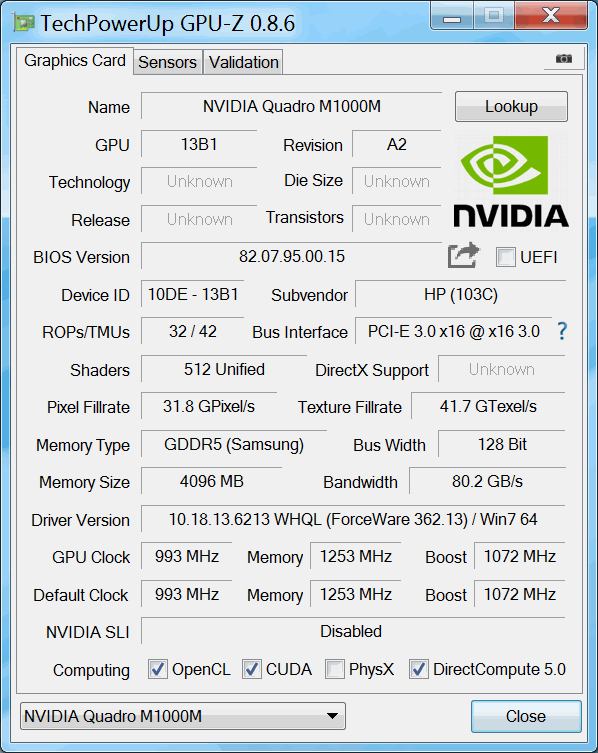

NVIDIA Quadro M1000M - 4 GB VRAM, Core: 1124 MHz, Geheugen: 1253 MHz, GDDR5, ForceWare 362.13, Optimus

Geheugen

16 GB

, DDR4-2133, dual-channel, 2/2 sleuven in gebruik, max. 32 GB

Beeldscherm

15.60 inch 16:9, 3840 x 2160 pixel 282 PPI, Sharp SPH1445, IPS, glimmend: nee

Moederbord

Intel CM236 (Skylake PCH-H)

Opslag

Samsung SM951 MZVPV512HDGL m.2 PCI-e, 512 GB

, 420 GB beschikbaar

Geluidskaart

Intel Skylake PCH-H High Definition Audio Controller

Verbindingen

3 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 1 Kensington Lock, Audio Verbindingen: 3.5 mm koptelefoon aansluiting, Card Reader: SD UHS-II, 1 Vingerafdruklezer, Helderheidssensor

Netwerkmogelijkheden

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Afmetingen

hoogte x breedte x diepte (in mm): 18 x 375 x 255

Batterij

64 Wh, 3930 mAh Lithium-Ion, 4-cellen

Besturingssysteem

Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)

Camera

Webcam: 720p HD webcam

Bijkomende functionaliteiten

Luidsprekers: Stereo luidsprekers, audio door Bang & Olufsen, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 150-Watt stroomadapter, brochures, HP Performance Advisor, HP Remote Graphics Software, HP Client Security, HP Drive Encryption (FIPS 140-2), Microsoft Security Essentials, Microsoft Defender, HP ePrint Driver, HP PageLift, 36 Maanden Garantie

Gewicht

2.086 kg, Voeding: 446 g

Prijs

3800 Euro

Links

HP startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

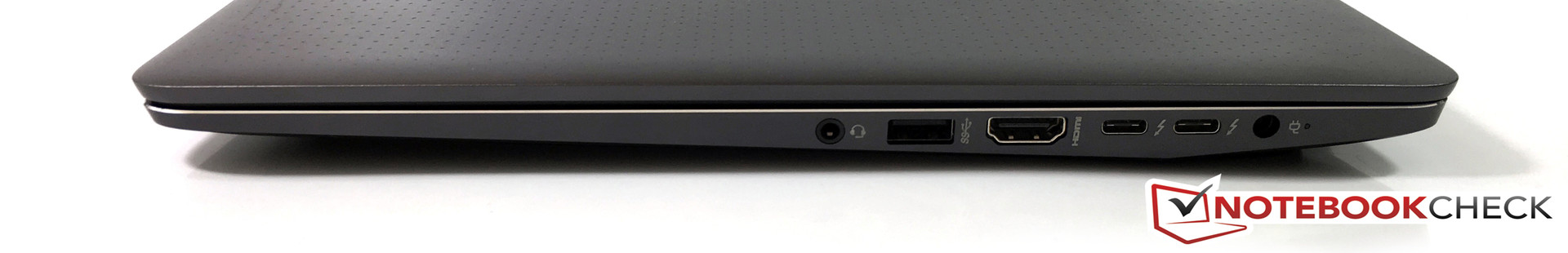

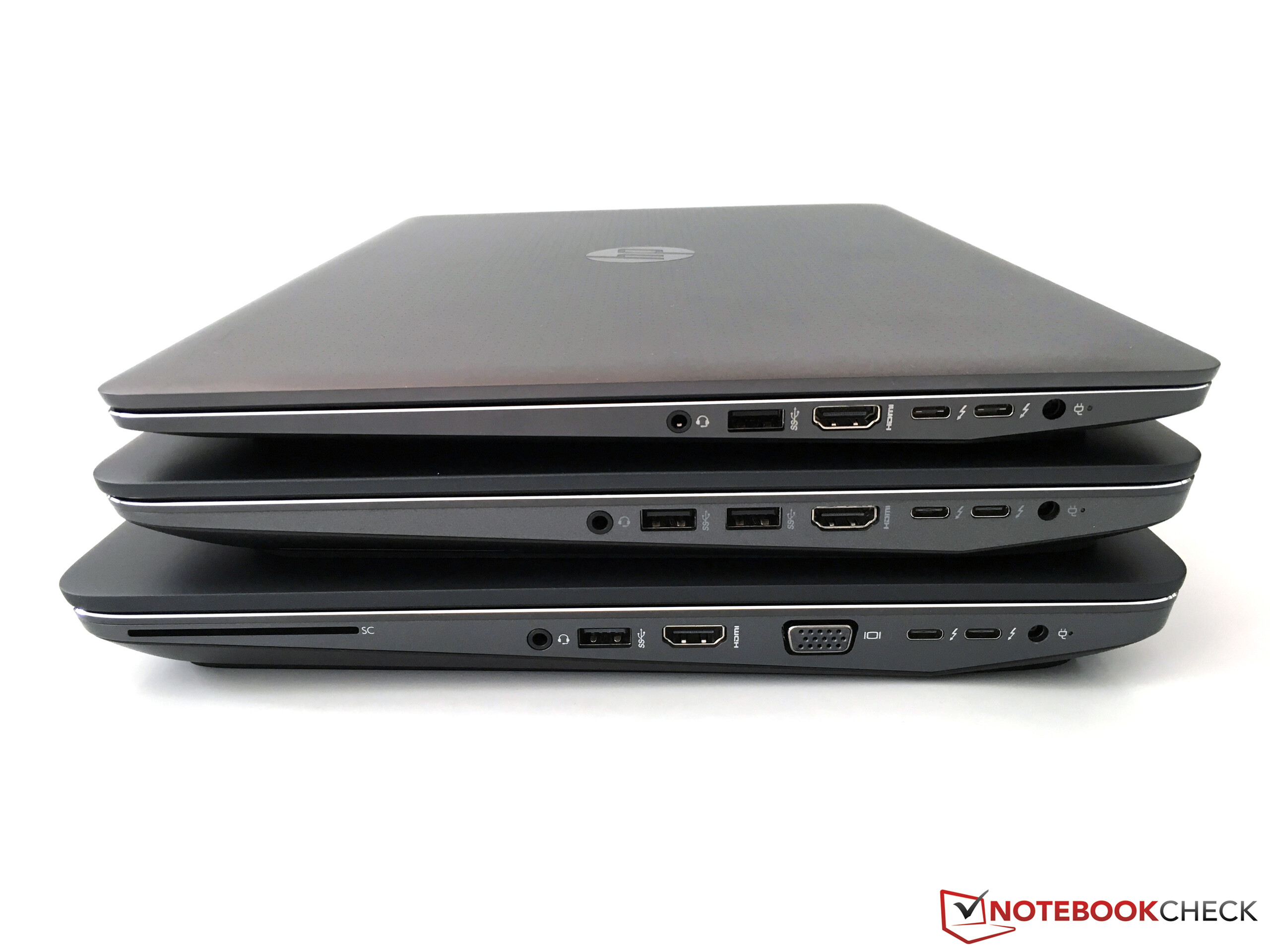

right: 3.5 mm audio, USB 3.0, HDMI 1.4, 2x Thunderbolt 3, power

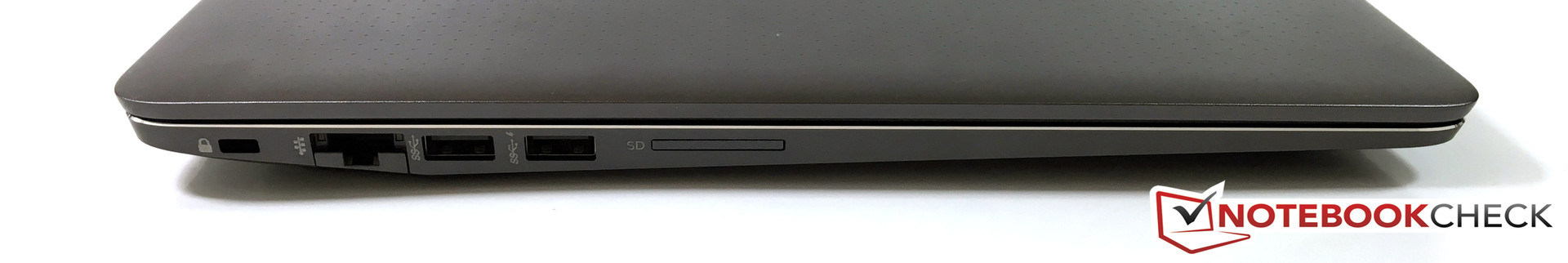

left: Kensington Lock, Gigabit-Ethernet, 2x USB 3.0, SD-card reader


296 cd/m²	334 cd/m²	289 cd/m²
287 cd/m²	310 cd/m²	288 cd/m²
313 cd/m²	286 cd/m²	292 cd/m²

Helderheidsverdeling

Sharp SPH1445 tested with X-Rite i1Pro 2

Maximum: 334 cd/m² (Nits) Gemiddelde: 299.4 cd/m² Minimum: 16 cd/m²
Helderheidsverdeling: 86 %
Helderheid in Batterij-modus: 307 cd/m²
Contrast: 1069:1 (Zwart: 0.29 cd/m²)
ΔE Color 5.9 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.5 | 0.5-98 Ø5.2
99.9% sRGB (Calman 2D)
99% sRGB (Argyll 1.6.3 3D)
85% AdobeRGB 1998 (Argyll 1.6.3 3D)
98% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)
86% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.09

Download ICC-profiel (X-Rite i1Pro 2)

	HP ZBook Studio G3 15.6", 3840x2160, IPS	Dell Precision 5510 15.6", 3840x2160, IGZO LED	MSI WS60-6QJE316H11 15.6", 3840x2160, IPS	Lenovo ThinkPad P50 15.6", 1920x1080, IPS	Lenovo ThinkPad P50s-20FKS00400 15.5", 2880x1620, IPS	HP ZBook 15 G3 15.6", 1920x1080, UWVA-IPS	HP ZBook 15u G3 15.6", 1920x1080, TN LED	Apple MacBook Pro Retina 15 inch 2015-05 15.4", 2880x1800, IPS-Panel
Display		2%	-31%	-51%	-24%	-18%	-34%	-24%
Display P3 Coverage	86	88.4 3%	55.1 -36%	39.13 -54%	63.7 -26%	66.8 -22%	53.2 -38%	61.4 -29%
sRGB Coverage	98.9	100 1%	83 -16%	58.5 -41%	87.6 -11%	95.5 -3%	80.1 -19%	90.8 -8%
AdobeRGB 1998 Coverage	98	99.5 2%	56.9 -42%	40.45 -59%	63.8 -35%	69 -30%	54.9 -44%	62.9 -36%
Response Times		-38%	193%	-9%	0%	-26%	-18%
Response Time Grey 50% / Grey 80% *	44 ?(17, 27)	56.4 ?(23.2, 33.2) -28%	34 ?(13, 21) 23%	46 ?(17, 29) -5%	38 ?(15.2, 22.8) 14%	54 ?(24.4, 29.6) -23%	45.6 ?(25.6, 20) -4%
Response Time Black / White *	23.2 ?(6, 17.2)	34 ?(11, 23) -47%	24 ?(9, 15) -3%	26 ?(9, 17) -12%	28.8 ?(8.4, 20.4) -24%	35.6 ?(11.6, 24) -53%	34.4 ?(16.4, 18) -48%
PWM Frequency	200 ?(55)		1316 ?(40) 558%		219 ?(90) 10%	198 ?(95) -1%	198.4 ?(90) -1%
Screen		7%	-6%	-10%	-2%	-8%	-48%	15%
Brightness middle	310	391 26%	237 -24%	263 -15%	319 3%	306 -1%	297.8 -4%	341 10%
Brightness	299	361 21%	208 -30%	236 -21%	290 -3%	289 -3%	284 -5%	315 5%
Brightness Distribution	86	87 1%	77 -10%	78 -9%	82 -5%	85 -1%	89 3%	82 -5%
Black Level *	0.29	0.4 -38%	0.26 10%	0.34 -17%	0.31 -7%	0.34 -17%	0.849 -193%	0.34 -17%
Contrast	1069	978 -9%	912 -15%	774 -28%	1029 -4%	900 -16%	351 -67%	1003 -6%
Colorchecker dE 2000 *	5.9	4.85 18%	4.42 25%	2.35 60%	4.8 19%	5.1 14%	8.68 -47%	2.07 65%
Colorchecker dE 2000 max. *	10.7		8.54 20%		7.8 27%	9.9 7%	14.98 -40%	3.27 69%
Greyscale dE 2000 *	5.5	4.01 27%	4.43 19%	3.33 39%	5.7 -4%	7.4 -35%	9.3 -69%	1.9 65%
Gamma	2.09 ^105%	2.18 ^101%	2.23 ^99%	2.38 ^92%	2.07 ^106%	2.37 ^93%	2.27 ^97%	2.62 ^84%
CCT	5980 ^109%	7340 ^89%	6133 ^106%	6917 ^94%	6260 ^104%	7263 ^89%	10585 ^61%	6514 ^100%
Color Space (Percent of AdobeRGB 1998)	85	96 13%	52.5 -38%	37 -56%	56.9 -33%	63 -26%	50.99 -40%	58 -32%
Color Space (Percent of sRGB)	99	100 1%	82.9 -16%	58 -41%	87.4 -12%	95 -4%	80.42 -19%	91 -8%
Totaal Gemiddelde (Programma / Instellingen)		-10% / -1%	52% / 27%	-23% / -19%	-9% / -6%	-17% / -13%	-33% / -40%	-5% / 6%

* ... kleiner is beter

Responstijd Scherm

ℹ

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

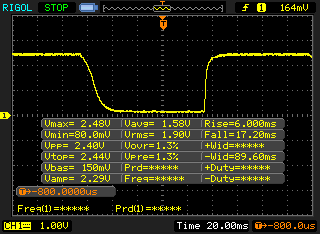

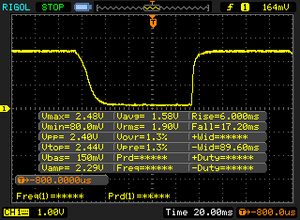

↔ Responstijd Zwart naar Wit
23.2 ms ... stijging ↗ en daling ↘ gecombineerd	↗ 6 ms stijging
23.2 ms ... stijging ↗ en daling ↘ gecombineerd	↘ 17.2 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games. Ter vergelijking: alle testtoestellen variëren van 0.1 (minimum) tot 240 (maximum) ms. » 49 % van alle toestellen zijn beter. Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (21 ms) van alle geteste toestellen.

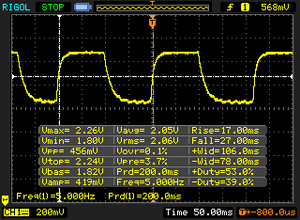

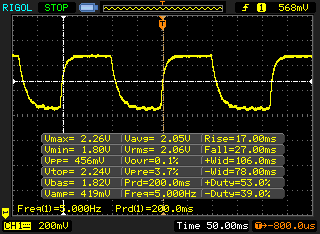

↔ Responstijd 50% Grijs naar 80% Grijs
44 ms ... stijging ↗ en daling ↘ gecombineerd	↗ 17 ms stijging
44 ms ... stijging ↗ en daling ↘ gecombineerd	↘ 27 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games. Ter vergelijking: alle testtoestellen variëren van 0.165 (minimum) tot 636 (maximum) ms. » 71 % van alle toestellen zijn beter. Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (32.9 ms) van alle geteste toestellen.

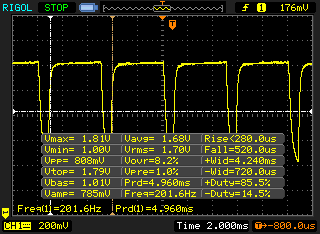

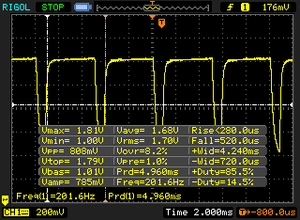

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.

Screen flickering / PWM waargenomen

200 Hz

≤ 55 % helderheid instelling

Het backlight van het scherm flikkert aan 200 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 55 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 200 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8774 (minimum: 5 - maximum: 343500) Hz waargenomen.

Cinebench R15 | Cinebench R11.5 | Cinebench R10

Cinebench R15
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	732 Points +4%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	732 Points +4%
HP ZBook Studio G3 Intel Core i7-6820HQ	706 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	674 Points -5%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	594 Points -16%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	589 Points -17%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points -16%
HP ZBook 15u G3 Intel Core i7-6600U	330 Points -53%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	307 Points -57%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	158 Points +6%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	158 Points +6%
HP ZBook Studio G3 Intel Core i7-6820HQ	149 Points
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	144 Points -3%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	143 Points -4%
HP ZBook 15u G3 Intel Core i7-6600U	143 Points -4%
Dell Precision 5510 Intel Xeon E3-1505M v5	142 Points -5%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	129 Points -13%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -21%

Cinebench R11.5
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	7.93 Points +3%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	7.91 Points +3%
HP ZBook Studio G3 Intel Core i7-6820HQ	7.7 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7.42 Points -4%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	6.48 Points -16%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	6.3 Points -18%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	6.18 Points -20%
HP ZBook 15u G3 Intel Core i7-6600U	3.67 Points -52%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	3.45 Points -55%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	1.78 Points +2%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	1.78 Points +2%
HP ZBook Studio G3 Intel Core i7-6820HQ	1.74 Points
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	1.64 Points -6%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	1.58 Points -9%
HP ZBook 15u G3 Intel Core i7-6600U	1.63 Points -6%
Dell Precision 5510 Intel Xeon E3-1505M v5	1.6 Points -8%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	1.49 Points -14%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	1.32 Points -24%

Cinebench R10
Rendering Multiple CPUs 32Bit
HP ZBook 15 G3 Intel Xeon E3-1505M v5	21834 Points +5%
Dell Precision 5510 Intel Xeon E3-1505M v5	21436 Points +3%
HP ZBook Studio G3 Intel Core i7-6820HQ	20868 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	20115 Points -4%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	17747 Points -15%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	17506 Points -16%
HP ZBook 15u G3 Intel Core i7-6600U	11464 Points -45%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	10447 Points -50%
Rendering Single 32Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	5670 Points +5%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	5560 Points +3%
HP ZBook Studio G3 Intel Core i7-6820HQ	5401 Points
HP ZBook 15u G3 Intel Core i7-6600U	5383 Points 0%
Dell Precision 5510 Intel Xeon E3-1505M v5	5367 Points -1%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	5358 Points -1%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	4886 Points -10%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	4420 Points -18%
Rendering Multiple CPUs 64Bit
HP ZBook 15 G3 Intel Xeon E3-1505M v5	28384 Points +4%
Dell Precision 5510 Intel Xeon E3-1505M v5	28057 Points +3%
HP ZBook Studio G3 Intel Core i7-6820HQ	27362 Points
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	23488 Points -14%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	23333 Points -15%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	22840 Points -17%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	14039 Points -49%
Rendering Single CPUs 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7347 Points +5%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	7222 Points +3%
Apple MacBook Pro Retina 15 inch 2015-05 Intel Core i7-4870HQ	7044 Points +1%
HP ZBook Studio G3 Intel Core i7-6820HQ	6991 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	6890 Points -1%
Lenovo ThinkPad P50s-20FKS00400 Intel Core i7-6500U	6241 Points -11%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	5791 Points -17%

Cinebench R10 Rendering Single CPUs 64Bit

6991 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

27362 Points

Cinebench R10 Shading 64Bit

6840 Points

Cinebench R10 Shading 32Bit

6833

Cinebench R10 Rendering Multiple CPUs 32Bit

20868

Cinebench R10 Rendering Single 32Bit

5401

Cinebench R11.5 OpenGL 64Bit

81.5 fps

Cinebench R11.5 CPU Multi 64Bit

7.7 Points

Cinebench R11.5 CPU Single 64Bit

1.74 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

93.7 fps

Cinebench R15 CPU Multi 64Bit

706 Points

Cinebench R15 CPU Single 64Bit

149 Points

Help

... in vergelijking

PCMark 8 | PCMark 7

PCMark 8
Work Score Accelerated v2
HP ZBook 15 G3 E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5221 Points +21%
Dell Precision 5510 E3-1505M v5, 16384, SK hynix SC920 512 GB	5100 Points +19%
HP ZBook 15u G3 6600U, 16384, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4900 Points +14%
Lenovo ThinkPad P50 6820HQ, 8192, Samsung SSD PM871 MZNLN256HCHP	4677 Points +9%
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, 16384, Apple SSD SM0512G	4638 Points +8%
HP ZBook Studio G3 6820HQ, 16384, Samsung SM951 MZVPV512HDGL m.2 PCI-e	4301 Points
MSI WS60-6QJE316H11 E3-1505M v5, 16384, Toshiba NVMe THNSN5128GP	4045 Points -6%
Lenovo ThinkPad P50s-20FKS00400 6500U, 8192, Samsung PM871 MZYLN256HCHP	3744 Points -13%
Creative Score Accelerated v2
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, 16384, Apple SSD SM0512G	4662 Points +10%
HP ZBook 15u G3 6600U, 16384, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4453 Points +5%
Dell Precision 5510 E3-1505M v5, 16384, SK hynix SC920 512 GB	4429 Points +5%
HP ZBook 15 G3 E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e	4392 Points +4%
HP ZBook Studio G3 6820HQ, 16384, Samsung SM951 MZVPV512HDGL m.2 PCI-e	4235 Points
Home Score Accelerated v2
Lenovo ThinkPad P50 6820HQ, 8192, Samsung SSD PM871 MZNLN256HCHP	4213 Points +29%
HP ZBook 15u G3 6600U, 16384, Samsung SM951 MZVPV256HDGL m.2 PCI-e	3974 Points +22%
HP ZBook 15 G3 E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3959 Points +21%
Dell Precision 5510 E3-1505M v5, 16384, SK hynix SC920 512 GB	3941 Points +21%
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, 16384, Apple SSD SM0512G	3821 Points +17%
HP ZBook Studio G3 6820HQ, 16384, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3262 Points
MSI WS60-6QJE316H11 E3-1505M v5, 16384, Toshiba NVMe THNSN5128GP	3134 Points -4%
Lenovo ThinkPad P50s-20FKS00400 6500U, 8192, Samsung PM871 MZYLN256HCHP	2790 Points -14%

PCMark 7 - Score
HP ZBook 15 G3 E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5521 Points +3%
HP ZBook 15u G3 6600U, 16384, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5493 Points +3%
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, 16384, Apple SSD SM0512G	5480 Points +3%
MSI WS60-6QJE316H11 E3-1505M v5, 16384, Toshiba NVMe THNSN5128GP	5340 Points 0%
HP ZBook Studio G3 6820HQ, 16384, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5336 Points
Dell Precision 5510 E3-1505M v5, 16384, SK hynix SC920 512 GB	5317 Points 0%
Lenovo ThinkPad P50s-20FKS00400 6500U, 8192, Samsung PM871 MZYLN256HCHP	4992 Points -6%
Lenovo ThinkPad P50 6820HQ, 8192, Samsung SSD PM871 MZNLN256HCHP	4892 Points -8%

PCMark 7 Score		5336 punten
PCMark 8 Home Score Accelerated v2		3262 punten
PCMark 8 Creative Score Accelerated v2		4235 punten
PCMark 8 Work Score Accelerated v2		4301 punten
Help

... in vergelijking

CrystalDiskMark 3.0

AS SSD

Samsung SM951 MZVPV512HDGL m.2 PCI-e

Sequential Read: 1578 MB/s

Sequential Write: 1557 MB/s

512K Read: 1234 MB/s

512K Write: 1391 MB/s

4K Read: 59.9 MB/s

4K Write: 225.6 MB/s

4K QD32 Read: 946 MB/s

4K QD32 Write: 359 MB/s

SPECviewperf 12 | SPECviewperf 11

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	71.7 fps +26%
HP ZBook 15 G3 NVIDIA Quadro M2000M	66 fps +16%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	63 fps +11%
Dell Precision 5510 NVIDIA Quadro M1000M	62 fps +9%
HP ZBook Studio G3 NVIDIA Quadro M1000M	56.7 fps
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	38.02 fps -33%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	37.22 fps -34%
HP ZBook 15u G3 AMD FirePro W4190M	31.41 fps -45%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G3 NVIDIA Quadro M2000M	35.87 fps +15%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	33.95 fps +9%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	32.52 fps +4%
HP ZBook Studio G3 NVIDIA Quadro M1000M	31.13 fps
Dell Precision 5510 NVIDIA Quadro M1000M	31 fps 0%
HP ZBook 15u G3 AMD FirePro W4190M	19.89 fps -36%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	19.13 fps -39%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	10.24 fps -67%
1900x1060 Showcase (showcase-01)
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	24.25 fps +17%
HP ZBook 15 G3 NVIDIA Quadro M2000M	23.86 fps +15%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.35 fps +3%
HP ZBook Studio G3 NVIDIA Quadro M1000M	20.72 fps
Dell Precision 5510 NVIDIA Quadro M1000M	20 fps -3%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	15.31 fps -26%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.08 fps -71%
HP ZBook 15u G3 AMD FirePro W4190M	4.98 fps -76%
1900x1060 Medical (medical-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	15.03 fps +25%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	14.68 fps +22%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	14.4 fps +19%
HP ZBook Studio G3 NVIDIA Quadro M1000M	12.06 fps
Dell Precision 5510 NVIDIA Quadro M1000M	12 fps 0%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	9.51 fps -21%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	7.5 fps -38%
HP ZBook 15u G3 AMD FirePro W4190M	6.09 fps -50%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.46 fps +23%
HP ZBook 15 G3 NVIDIA Quadro M2000M	35.94 fps +15%
HP ZBook Studio G3 NVIDIA Quadro M1000M	31.27 fps
Dell Precision 5510 NVIDIA Quadro M1000M	30 fps -4%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	29.89 fps -4%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	25.1 fps -20%
HP ZBook 15u G3 AMD FirePro W4190M	16.38 fps -48%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	11.14 fps -64%
1900x1060 Energy (energy-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	3.29 fps +21%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3.2 fps +18%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3.16 fps +16%
HP ZBook Studio G3 NVIDIA Quadro M1000M	2.72 fps
Dell Precision 5510 NVIDIA Quadro M1000M	0.69 fps -75%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	0.53 fps -81%
HP ZBook 15u G3 AMD FirePro W4190M	0.41 fps -85%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	0.37 fps -86%
1900x1060 Creo (creo-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	40.61 fps +20%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.95 fps +15%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	37.48 fps +11%
Dell Precision 5510 NVIDIA Quadro M1000M	34 fps +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	33.8 fps
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.62 fps -39%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	20.07 fps -41%
HP ZBook 15u G3 AMD FirePro W4190M	16.87 fps -50%
1900x1060 Catia (catia-04)
HP ZBook 15 G3 NVIDIA Quadro M2000M	47.08 fps +24%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.26 fps +22%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	44.29 fps +17%
HP ZBook Studio G3 NVIDIA Quadro M1000M	37.89 fps
Dell Precision 5510 NVIDIA Quadro M1000M	37 fps -2%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	23.89 fps -37%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21.42 fps -43%
HP ZBook 15u G3 AMD FirePro W4190M	18.62 fps -51%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.31 fps +6%
HP ZBook 15 G3 NVIDIA Quadro M2000M	43.17 fps +6%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.14 fps +3%
Dell Precision 5510 NVIDIA Quadro M1000M	41 fps 0%
HP ZBook Studio G3 NVIDIA Quadro M1000M	40.87 fps
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	29.41 fps -28%
1920x1080 Tcvis
HP ZBook 15 G3 NVIDIA Quadro M2000M	44.89 fps +4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.93 fps +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	43.34 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.91 fps -1%
Dell Precision 5510 NVIDIA Quadro M1000M	40 fps -8%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	35.63 fps -18%
1920x1080 SolidWorks
Dell Precision 5510 NVIDIA Quadro M1000M	51 fps +10%
HP ZBook 15 G3 NVIDIA Quadro M2000M	48.13 fps +4%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	47.71 fps +3%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.69 fps +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	46.32 fps
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	39.63 fps -14%
1920x1080 Pro/ENGINEER
HP ZBook 15 G3 NVIDIA Quadro M2000M	21.57 fps +7%
Dell Precision 5510 NVIDIA Quadro M1000M	21 fps +4%
HP ZBook Studio G3 NVIDIA Quadro M1000M	20.22 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	17.54 fps -13%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	17.4 fps -14%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	14.87 fps -26%
1920x1080 Maya
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	58.3 fps +4%
HP ZBook 15 G3 NVIDIA Quadro M2000M	57.7 fps +3%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	56.9 fps +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	56.2 fps
Dell Precision 5510 NVIDIA Quadro M1000M	56 fps 0%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.88 fps -17%
1920x1080 Lightwave
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +6%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	52.5 fps +3%
HP ZBook 15 G3 NVIDIA Quadro M2000M	52 fps +2%
HP ZBook Studio G3 NVIDIA Quadro M1000M	50.9 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	48.27 fps -5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.9 fps -8%
1920x1080 Ensight
HP ZBook 15 G3 NVIDIA Quadro M2000M	46.68 fps +16%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.43 fps +16%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43.49 fps +8%
HP ZBook Studio G3 NVIDIA Quadro M1000M	40.12 fps
Dell Precision 5510 NVIDIA Quadro M1000M	39 fps -3%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.44 fps -49%
1920x1080 Catia
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +2%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	53.5 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	53.5 fps +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	53.1 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	48.98 fps -8%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	38.08 fps -28%

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only
HP ZBook 15 G3 NVIDIA Quadro M2000M	930 Samples/s +12%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	903 Samples/s +9%
HP ZBook Studio G3 NVIDIA Quadro M1000M	830 Samples/s
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	791 Samples/s -5%
Dell Precision 5510 NVIDIA Quadro M1000M	534 Samples/s -36%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	379 Samples/s -54%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	378 Samples/s -54%
Sala GPUs-only
HP ZBook 15 G3 NVIDIA Quadro M2000M	1556 Samples/s +6%
HP ZBook Studio G3 NVIDIA Quadro M1000M	1470 Samples/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1434 Samples/s -2%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1426 Samples/s -3%
HP ZBook 15u G3 AMD FirePro W4190M	1034 Samples/s -30%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	945 Samples/s -36%
Dell Precision 5510 NVIDIA Quadro M1000M	889 Samples/s -40%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	659 Samples/s -55%

SiSoft Sandra 2016
Image Processing
HP ZBook 15 G3 NVIDIA Quadro M2000M	228.6 MPix/s +18%
HP ZBook Studio G3 NVIDIA Quadro M1000M	194.4 MPix/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	155.8 MPix/s -20%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	155.7 MPix/s -20%
Dell Precision 5510 NVIDIA Quadro M1000M	127.5 MPix/s -34%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	99.5 MPix/s -49%
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	12.28 GB/s +58%
HP ZBook 15 G3 NVIDIA Quadro M2000M	9.82 GB/s +26%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	9.28 GB/s +19%
HP ZBook Studio G3 NVIDIA Quadro M1000M	7.77 GB/s
Dell Precision 5510 NVIDIA Quadro M1000M	7.38 GB/s -5%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	5.37 GB/s -31%
GP Financial Analysis (FP High/Double Precision)
HP ZBook 15 G3 NVIDIA Quadro M2000M	21.8 KOPT/s +28%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.75 KOPT/s +28%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	21.63 KOPT/s +27%
Dell Precision 5510 NVIDIA Quadro M1000M	17 KOPT/s 0%
HP ZBook Studio G3 NVIDIA Quadro M1000M	17 KOPT/s
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	12.82 KOPT/s -25%

Unigine Heaven 3.0 | Unigine Valley 1.0 | 3DMark

Unigine Heaven 3.0
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	53.4 fps +19%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	52.5 fps +17%
HP ZBook 15 G3 NVIDIA Quadro M2000M	51.8 fps +15%
Dell Precision 5510 NVIDIA Quadro M1000M	44.9 fps 0%
HP ZBook Studio G3 NVIDIA Quadro M1000M	44.9 fps
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21 fps -53%
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
HP ZBook 15 G3 NVIDIA Quadro M2000M	51.6 fps +18%
HP ZBook Studio G3 NVIDIA Quadro M1000M	43.8 fps
Dell Precision 5510 NVIDIA Quadro M1000M	43.4 fps -1%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	33.9 fps -23%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	32.4 fps -26%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20 fps -54%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	20.4 fps +8%
HP ZBook 15 G3 NVIDIA Quadro M2000M	20.4 fps +8%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	20.3 fps +7%
HP ZBook Studio G3 NVIDIA Quadro M1000M	18.9 fps
Dell Precision 5510 NVIDIA Quadro M1000M	18.7 fps -1%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.5 fps -66%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G3 NVIDIA Quadro M2000M	18.3 fps +12%
HP ZBook Studio G3 NVIDIA Quadro M1000M	16.4 fps
Dell Precision 5510 NVIDIA Quadro M1000M	16.2 fps -1%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	13.8 fps -16%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	13.2 fps -20%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.8 fps -59%

3DMark
1920x1080 Fire Strike Score
Asus G501VW-FY081T NVIDIA GeForce GTX 960M	4028 Points +22%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3952 Points +20%
HP ZBook 15 G3 NVIDIA Quadro M2000M	3820 Points +16%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3813 Points +15%
Dell Precision 5510 NVIDIA Quadro M1000M	3344 Points +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	3302 Points
Asus N752VX-GC131T NVIDIA GeForce GTX 950M	2866 Points -13%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	2350 Points -29%
HP ZBook 15u G3 AMD FirePro W4190M	1517 Points -54%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1432 Points -57%
1920x1080 Fire Strike Graphics
Asus G501VW-FY081T NVIDIA GeForce GTX 960M	4348 Points +25%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	4243 Points +22%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	4126 Points +19%
HP ZBook 15 G3 NVIDIA Quadro M2000M	4091 Points +18%
Dell Precision 5510 NVIDIA Quadro M1000M	3517 Points +1%
HP ZBook Studio G3 NVIDIA Quadro M1000M	3478 Points
Asus N752VX-GC131T NVIDIA GeForce GTX 950M	3174 Points -9%
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X	2501 Points -28%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1610 Points -54%
HP ZBook 15u G3 AMD FirePro W4190M	1588 Points -54%

3DMark 06 Standard Score		24393 punten
3DMark 11 Performance		4673 punten
3DMark Ice Storm Standard Score		42096 punten
3DMark Cloud Gate Standard Score		15717 punten
3DMark Fire Strike Score		3302 punten
Help

... in vergelijking

	lage	gem.	hoge	ultra	4K
BioShock Infinite (2013)	176.7	115	100.1	37
The Witcher 3 (2015)	59.4	36.5	20.8	10.8	7.7
Rainbow Six Siege (2015)	137.8	79.9	43.5	32	13.2

Geluidsniveau

Onbelast		30 / 30 / 30 dB (A)
Belasting		51 / 52.8 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Audix TM1 Arta (15 cm afstand) omgevingslawaai: 30 dB(A)

	HP ZBook Studio G3 6820HQ, Quadro M1000M	Dell Precision 5510 E3-1505M v5, Quadro M1000M	MSI WS60-6QJE316H11 E3-1505M v5, Quadro M2000M	Lenovo ThinkPad P50 6820HQ, Quadro M2000M	Lenovo ThinkPad P50s-20FKS00400 6500U, Quadro M500M	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M	HP ZBook 15u G3 6600U, FirePro W4190M	Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, Radeon R9 M370X
Noise		6%	-10%	10%	11%	3%	9%	7%
uit / omgeving *	30					30 -0%
Idle Minimum *	30	30 -0%	37.2 -24%	30 -0%	30 -0%	30 -0%	29.8 1%	28.9 4%
Idle Average *	30	30 -0%	37.2 -24%	30 -0%	30 -0%	30 -0%	29.8 1%	28.9 4%
Idle Maximum *	30	30 -0%	37.2 -24%	30 -0%	30 -0%	30 -0%	29.8 1%	28.9 4%
Load Average *	51	42.08 17%	42.1 17%	34.5 32%	33.5 34%	45.3 11%	39.5 23%	46 10%
Load Maximum *	52.8	46.78 11%	50.7 4%	42.1 20%	41.9 21%	49.7 6%	43.2 18%	46 13%

* ... kleiner is beter

Max. Belasting

Inactief


55.2 °C	69.8 °C	56.1 °C
39.7 °C	47.9 °C	39 °C
37.4 °C	38 °C	37.6 °C

Maximum: 69.8 °C
Gemiddelde: 46.7 °C


46 °C	77.3 °C	37.7 °C
43.4 °C	70.7 °C	36.2 °C
37.2 °C	39 °C	35.3 °C

Maximum: 77.3 °C
Gemiddelde: 47 °C

Stroomadapter (max.) 55.5 °C | Kamertemperatuur 21 °C | Fennel FIRT 550-Pocket

(-) De gemiddelde temperatuur voor de bovenzijde bij maximale belasting bedraagt 46.7 °C / 116 F, vergeleken met het gemiddelde van 32 °C / ###class_avg_f## F voor de apparaten van de klasse Workstation.
(-) De maximumtemperatuur aan de bovenzijde bedraagt 69.8 °C / 158 F, vergeleken met het gemiddelde van 38.2 °C / 101 F, variërend van 22.2 tot 69.8 °C voor de klasse Workstation.
(-) De bodem warmt op tot een maximum van 77.3 °C / 171 F, vergeleken met een gemiddelde van 41.2 °C / 106 F
(+) Bij onbelast gebruik bedraagt de gemiddelde temperatuur voor de bovenzijde 30.1 °C / 86 F, vergeleken met het apparaatgemiddelde van 32 °C / 90 F.
(±) De palmsteunen en het touchpad kunnen zeer heet aanvoelen met een maximum van ###max## °C / 100.4 F.
(-) De gemiddelde temperatuur van de handpalmsteun van soortgelijke toestellen bedroeg 27.8 °C / 82 F (-10.2 °C / -18.4 F).

	HP ZBook Studio G3 6820HQ, Quadro M1000M	Dell Precision 5510 E3-1505M v5, Quadro M1000M	MSI WS60-6QJE316H11 E3-1505M v5, Quadro M2000M	Lenovo ThinkPad P50 6820HQ, Quadro M2000M	Lenovo ThinkPad P50s-20FKS00400 6500U, Quadro M500M	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M	HP ZBook 15u G3 6600U, FirePro W4190M	Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, Radeon R9 M370X
Heat		22%	17%	24%	26%	16%	30%	29%
Maximum Upper Side *	69.8	45.8 34%	42.3 39%	36.7 47%	44.2 37%	54.6 22%	44.6 36%	43.2 38%
Maximum Bottom *	77.3	46.7 40%	60.1 22%	41.3 47%	57.8 25%	60.8 21%	46 40%	39 50%
Idle Upper Side *	37.8	31.2 17%	32.7 13%	31.1 18%	26.4 30%	30.3 20%	25.8 32%	30 21%
Idle Bottom *	31.4	31.9 -2%	33.1 -5%	36.2 -15%	28.1 11%	30.7 2%	27.4 13%	29.3 7%

* ... kleiner is beter

Stroomgebruik

Uit / Standby	0.2 / 0.5 Watt
Inactief	8.7 / 14.2 / 14.4 Watt
Belasting	85.6 / 129.7 Watt


Key: min: , med: , max: Metrahit Energy

	HP ZBook Studio G3 64 Wh, 3840x2160	Dell Precision 5510 56 Wh, 3840x2160	MSI WS60-6QJE316H11 47 Wh, 3840x2160	Lenovo ThinkPad P50 90 Wh, 1920x1080	Lenovo ThinkPad P50s-20FKS00400 67 Wh, 2880x1620	HP ZBook 15 G3 90 Wh, 1920x1080	HP ZBook 15u G3 90 Wh, 1920x1080	Apple MacBook Pro Retina 15 inch 2015-05 100 Wh, 2880x1800
Power Consumption		-5%	-71%	25%	43%	11%	42%	16%
Idle Minimum *	8.7	8.6 1%	18.8 -116%	5.6 36%	4.3 51%	5.7 34%	4.3 51%	6 31%
Idle Average *	14.2	16.2 -14%	29.6 -108%	8.6 39%	9.7 32%	12.2 14%	7.9 44%	12.8 10%
Idle Maximum *	14.4	16.7 -16%	30.3 -110%	9.3 35%	10.2 29%	12.6 12%	11.5 20%	13.3 8%
Load Average *	85.6	82.6 4%	90.4 -6%	89.5 -5%	45.7 47%	83.1 3%	43.3 49%	82.4 4%
Load Maximum *	129.7	131.8 -2%	150.2 -16%	105 19%	55.8 57%	138.2 -7%	72.3 44%	91.8 29%

* ... kleiner is beter

Batterijduur

Inactief (zonder WLAN, minimale helderheid)		8h 31min
WiFi Websurfing		3h 28min
Big Buck Bunny H.264 1080p		3h 48min
Belast (maximale helderheid)		1h 05min

	HP ZBook Studio G3 64 Wh	Dell Precision 5510 56 Wh	MSI WS60-6QJE316H11 47 Wh	Lenovo ThinkPad P50 90 Wh	Lenovo ThinkPad P50s-20FKS00400 67 Wh	HP ZBook 15 G3 90 Wh	HP ZBook 15u G3 90 Wh	Apple MacBook Pro Retina 15 inch 2015-05 100 Wh
Batterijduur		19%	-45%	104%	112%	78%	72%	89%
Reader / Idle	511	428 -16%	160 -69%	860 68%	1107 117%	822 61%	756 48%	1039 103%
H.264	228	197 -14%	141 -38%	533 134%	537 136%	449 97%		413 81%
WiFi v1.3	208	286 38%	106 -49%	498 139%	408 96%	386 86%	312 50%	432 108%
Load	65	109 68%	51 -22%	113 74%	129 98%	110 69%	141 117%	105 62%
WiFi		298

Pro

+ uitstekende behuizing

+ moderne aansluitingen

+ erg goed UHD-IPS beeldscherm

+ goede invoerapparaten

+ hoge prestaties, ook bij belasting

Contra

- alarmerende hoge temperturen (oppervlak en intern)

- luide en pulserende ventilatoren

- korte batterijlevensduren

- geen SmartCard-lezer

- geen WWAN

- duur

In review: HP ZBook Studio G3. Test model courtesy of HP Germany.

Voor het volledige, Engelse testrapport, klik hier.

De ZBook Studio G3 vormt een klein mysterie voor ons. HP levert in bepaalde opzichten een fantastisch product, terwijl het op andere vlakken teleurstelt. Onze algehele indruk van het ambitieuze werkstation is helaas negatief. Dit komt met name door de testresultaten van zowel de emissies als de batterijlevensduur. De oppervlakken haal alarmerend hoge temperaturen die brandwonden kunnen veroorzaken, zelfs bij normale belasting. Ook het gedrag van de ventilatoren is ergerlijk, omdat beide ventilatoren onafhankelijk van elkaar werken, erg luid zijn en erg pulseren. De praktische batterijlevensduur van minder dan 4 uur is ook moeilijk te rechtvaardigen voor een apparaat dat erg draagbaar is. Daarnaast zijn er nog enkele kleinere minpunten, zoals het ontbreken van een SmartCard-lezer en WWAN-module.

De ZBook Studio is een ambitieus project. We krijgen erg veel prestaties in een compact formaat, maar we krijgen daar ook extreem hoge temperaturen en hinderlijke ventilatoren voor terug. Dit zou niet het geval moeten zijn voor een adviesprijs van ongeveer 3800 EUR (~$4237).

De ZBook Studio overtuigd in vele opzichten: we krijgen erg veel prestaties in een fantastische behuizing, gecombineerd met een fantastisch 4K beeldscherm en goede invoerapparaten. We vinden de beperkingen echter nog steeds te groot. En dan is er ook nog de extreem hoge prijs van ongeveer 3800 EUR (~$4237) voor ons testmodel, wat eigenlijk niet te rechtvaardigen is gezien de genoemde minpunten. De BIOS updates hebben tot nog toe de situatie niet kunnen verbeteren, maar we hopen dat HP op zijn minst de hinderlijke ventilatoren kan verbeteren met een toekomstige update. Op dit moment hebben grotere werkstations het voordeel op gebied van emissies en kunnen ook nog eens uitgerust worden met nog krachtiger componenten.

HP ZBook Studio G3 - 2016-05-19 19-05-2016 v5.1 ^(old)
Andreas Osthoff

Behuizing

92 / 98 → 94%

Toetsenbord

88%

Aanwijsapparaat

91%

Aansluitmogelijkheden

80 / 81 → 98%

Gewicht

62 / 10-66 → 93%

Batterij

72%

Beeldscherm

86%

Gaming-performance

77%

Applicatie-performance

87%

Workstation

64%

Temperatuur

35 / 95 → 37%

Luidheid

68 / 90 → 76%

Audio

70%

Camera

42 / 85 → 49%

Gemiddelde

72%

80%

Workstation - Gewogen Gemiddelde

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport HP ZBook Studio G3 Workstation

Andreas Osthoff, 2016-05-29 (Update: 2016-07-23)
