Kort testrapport AMD Radeon RX 5600 XT: gaming in Full HD

Minder VRAM in de middenklasse!

AMD vertrouwt nu volledig op de Navi-architectuur en lanceert de AMD Radeon RX 5600 XT, een mid-range GPU die is ontworpen voor Full HD-gaming. Ontdek in deze review hoe goed het Sapphire-model presteert.

Sebastian Bade, 👁 Klaus Hinum, ✓ Felicitas Krohn (vertaald door Siemon Boes), Published 28-02-2020 🇺🇸 🇩🇪 ...

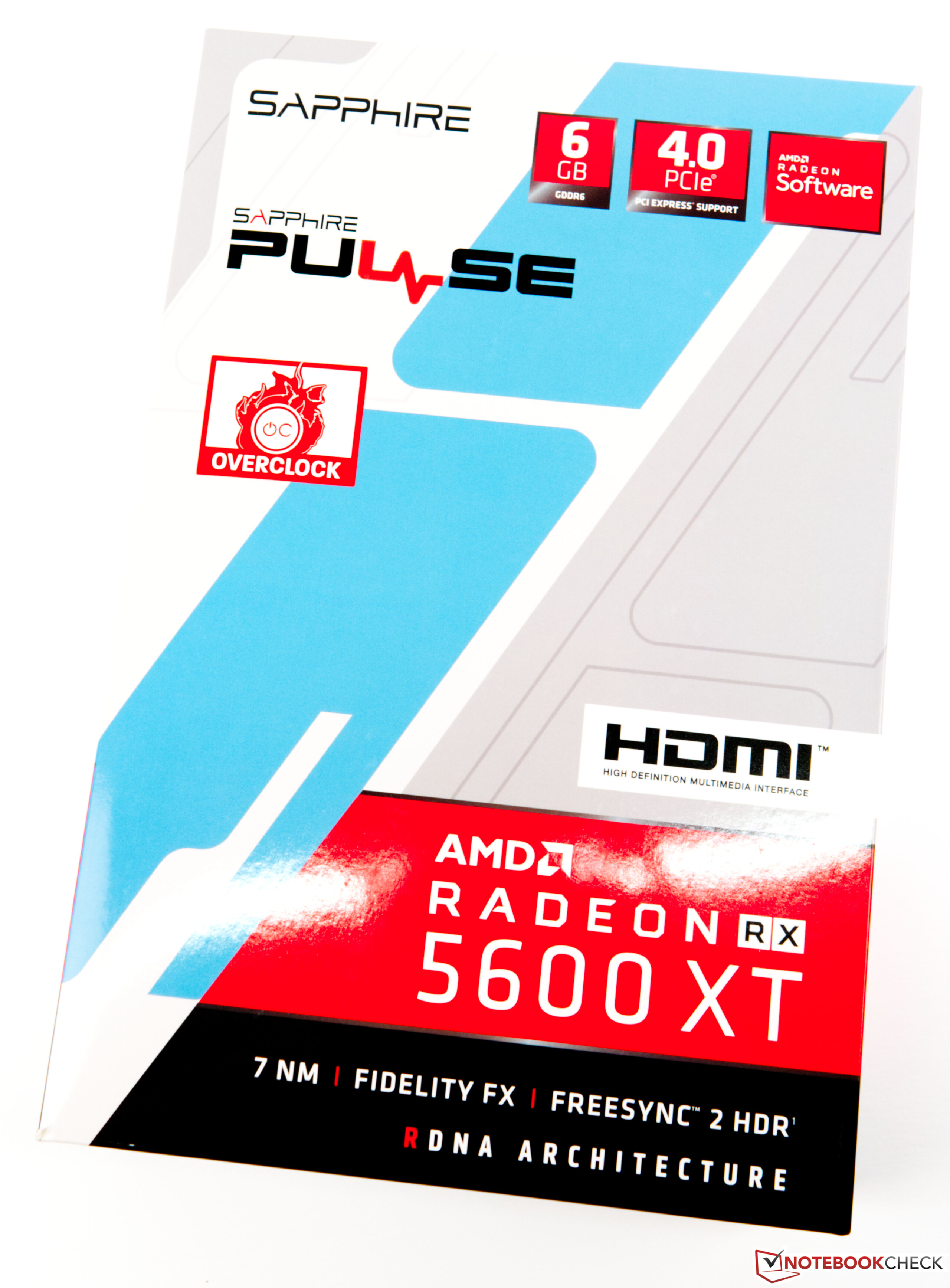

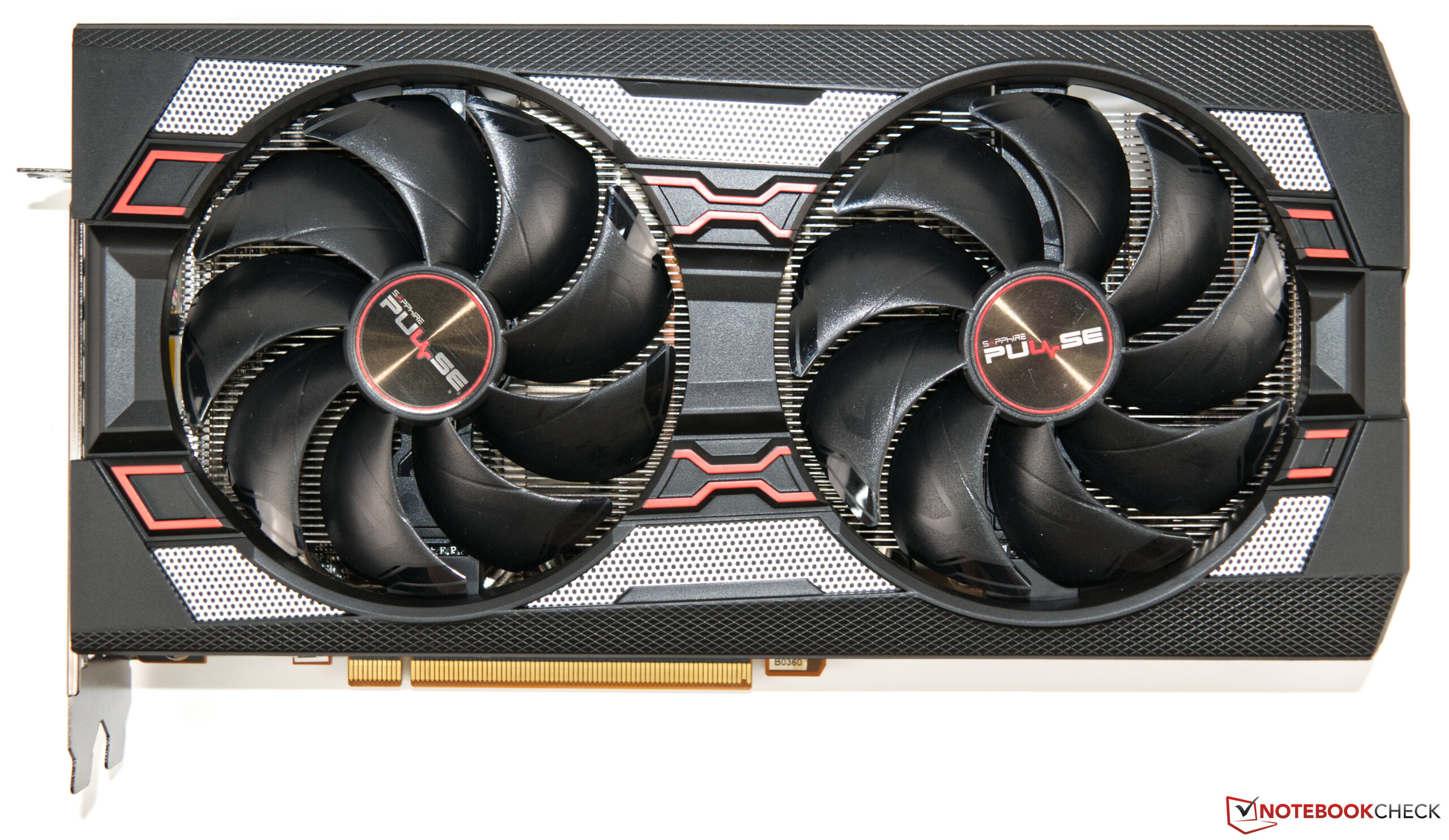

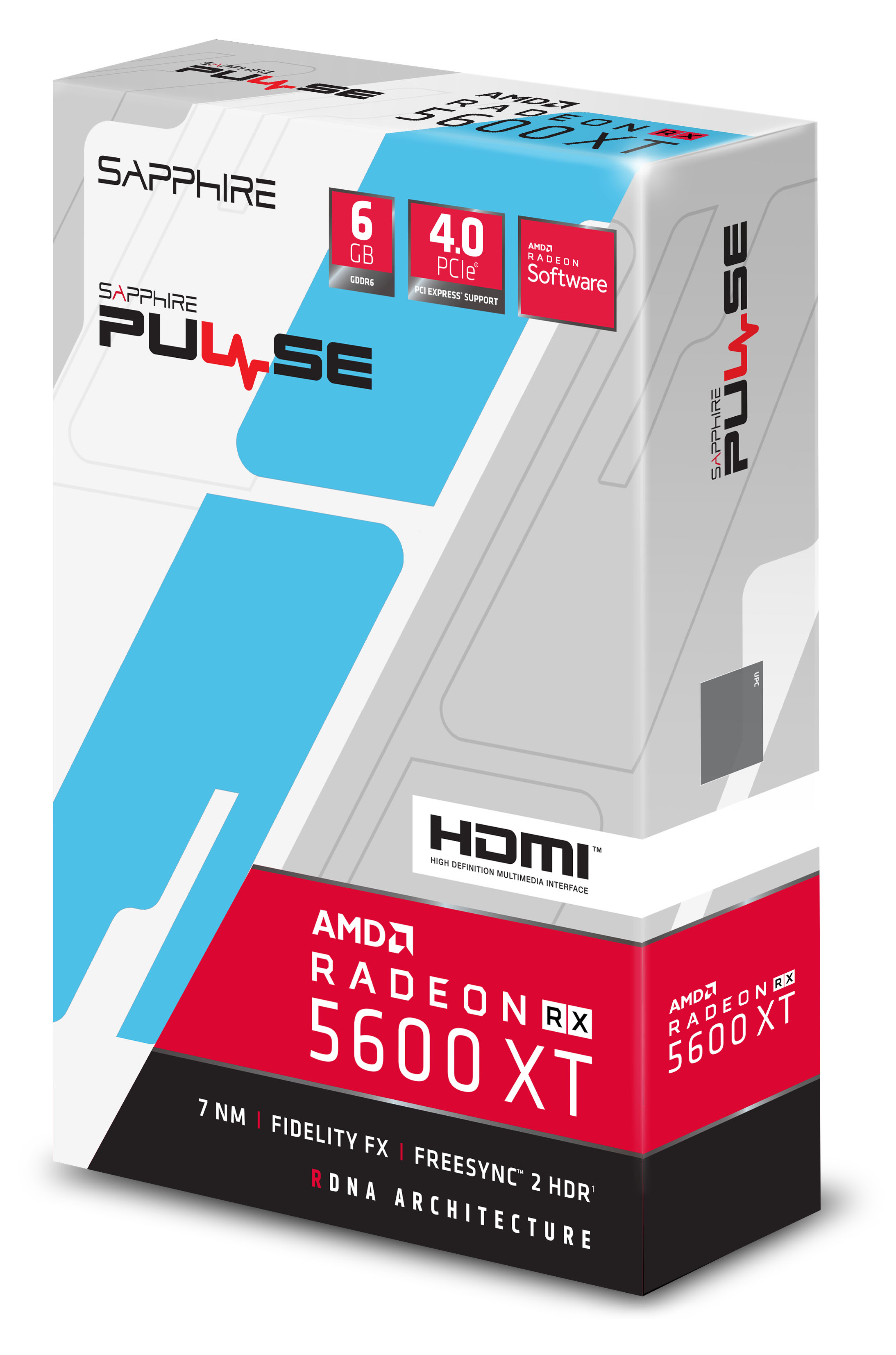

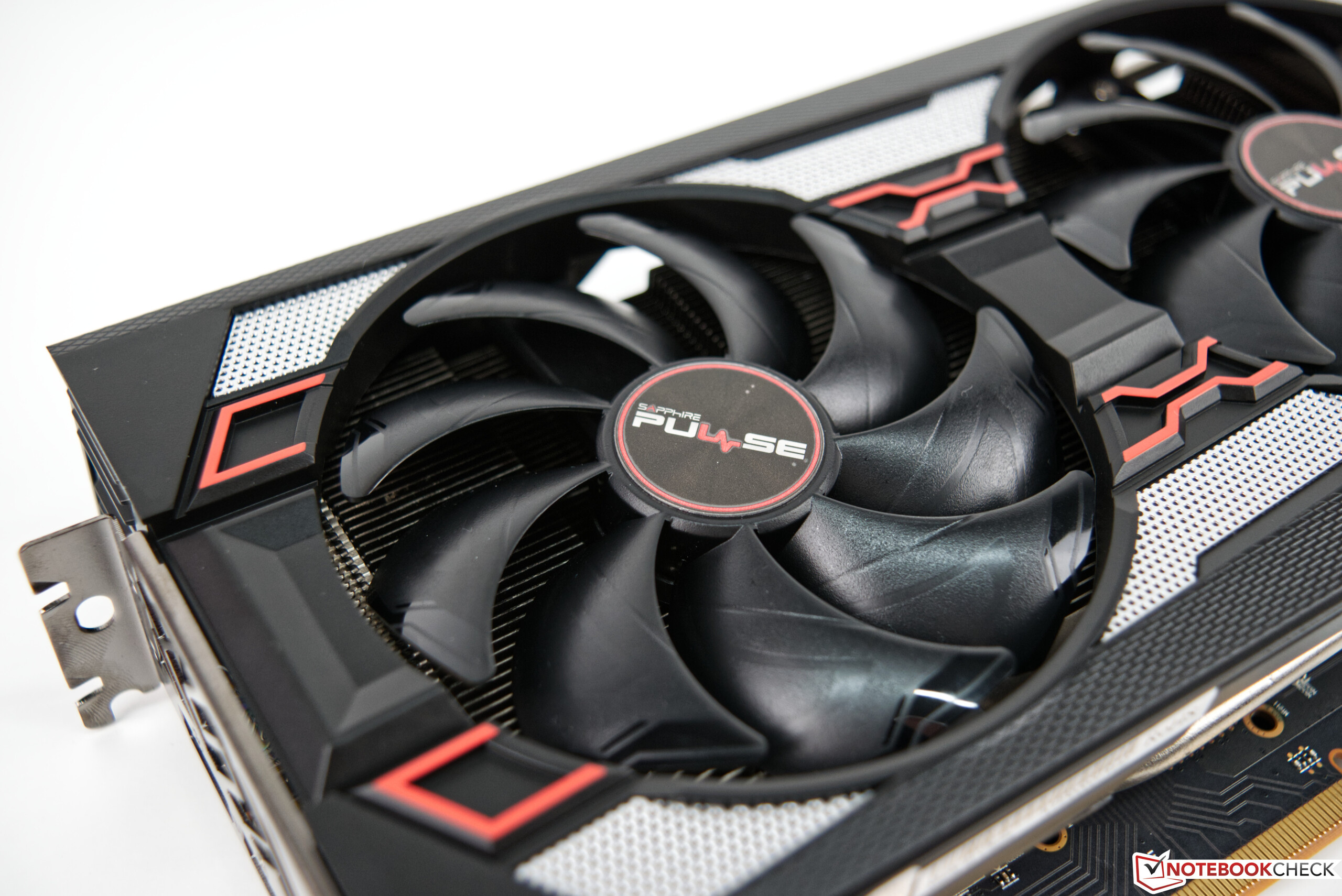

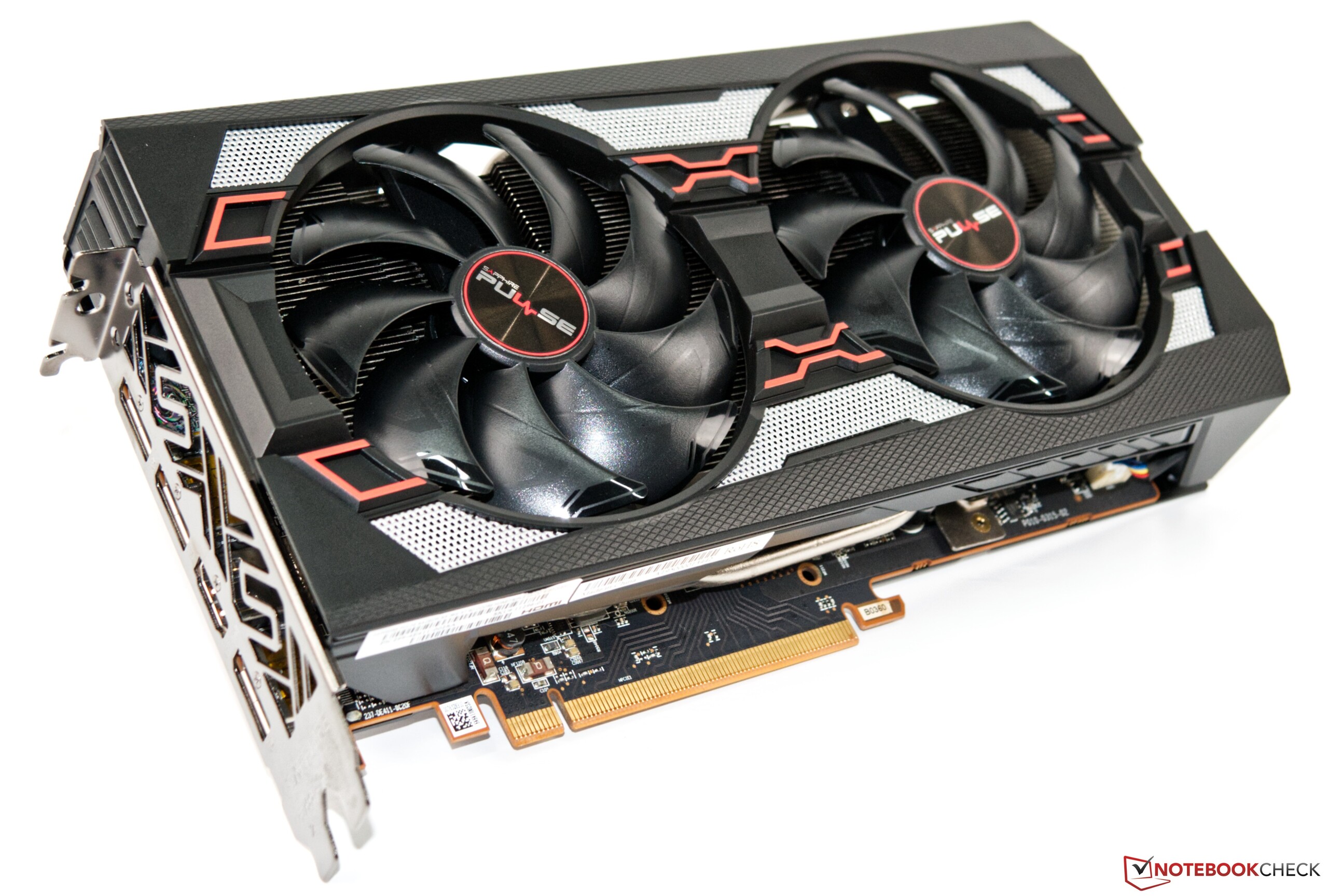

Sapphire Pulse Radeon RX 5600 XT (bron: Sapphire)

3DMark
1920x1080 Fire Strike Graphics
Nvidia Titan RTX	34780 Points +60%
MSI RTX 2080 Gaming X Trio	27620 Points +27%
AMD Radeon VII	27476 Points +26%
AMD Radeon RX 5700 XT	26189 Points +20%
Nvidia GeForce RTX 2070 Super	24151 Points +11%
AMD Radeon RX 5700	23382 Points +8%
MSI RTX 2070 Gaming Z 8G	22999 Points +6%
AMD Radeon RX Vega 64	22338 Points +3%
Nvidia GeForce RTX 2060 Super	21970 Points +1%
Sapphire AMD Radeon RX 5600 XT	21734 Points
MSI RTX 2060 Gaming Z 6G	19338 Points -11%
Fire Strike Extreme Graphics
Nvidia Titan RTX	17179 Points +61%
AMD Radeon VII	13388 Points +26%
MSI RTX 2080 Gaming X Trio	13355 Points +25%
AMD Radeon RX 5700 XT	12740 Points +19%
Nvidia GeForce RTX 2070 Super	11634 Points +9%
AMD Radeon RX 5700	11311 Points +6%
MSI RTX 2070 Gaming Z 8G	11021 Points +3%
AMD Radeon RX Vega 64	10758 Points +1%
Sapphire AMD Radeon RX 5600 XT	10663 Points
Nvidia GeForce RTX 2060 Super	10481 Points -2%
MSI RTX 2060 Gaming Z 6G	9097 Points -15%
3840x2160 Fire Strike Ultra Graphics
Nvidia Titan RTX	8625 Points +55%
AMD Radeon VII	6837 Points +23%
MSI RTX 2080 Gaming X Trio	6513 Points +17%
AMD Radeon RX 5700 XT	6472 Points +16%
Nvidia GeForce RTX 2070 Super	5786 Points +4%
AMD Radeon RX 5700	5742 Points +3%
Sapphire AMD Radeon RX 5600 XT	5556 Points
MSI RTX 2070 Gaming Z 8G	5450 Points -2%
AMD Radeon RX Vega 64	5441 Points -2%
Nvidia GeForce RTX 2060 Super	5175 Points -7%
MSI RTX 2060 Gaming Z 6G	4244 Points -24%
2560x1440 Time Spy Graphics
Nvidia Titan RTX	14216 Points +87%
MSI RTX 2080 Gaming X Trio	11294 Points +49%
Nvidia GeForce RTX 2070 Super	10094 Points +33%
MSI RTX 2070 Gaming Z 8G	9236 Points +21%
AMD Radeon RX 5700 XT	9059 Points +19%
AMD Radeon VII	8803 Points +16%
Nvidia GeForce RTX 2060 Super	8795 Points +16%
AMD Radeon RX 5700	8051 Points +6%
MSI RTX 2060 Gaming Z 6G	7732 Points +2%
Sapphire AMD Radeon RX 5600 XT	7602 Points
AMD Radeon RX Vega 64	7183 Points -6%

3DMark 11 - 1280x720 Performance GPU
Nvidia Titan RTX	43461 Points +42%
MSI RTX 2080 Gaming X Trio	37989 Points +24%
AMD Radeon VII	37881 Points +24%
AMD Radeon RX 5700 XT	35441 Points +16%
Nvidia GeForce RTX 2070 Super	33293 Points +9%
AMD Radeon RX 5700	31370 Points +3%
MSI RTX 2070 Gaming Z 8G	31260 Points +2%
Sapphire AMD Radeon RX 5600 XT	30515 Points
Nvidia GeForce RTX 2060 Super	29605 Points -3%
AMD Radeon RX Vega 64	29285 Points -4%
MSI RTX 2060 Gaming Z 6G	26413 Points -13%

Unigine Heaven 4.0
Extreme Preset OpenGL
Nvidia Titan RTX	203.4 fps +120%
MSI RTX 2080 Gaming X Trio	161.4 fps +74%
Nvidia GeForce RTX 2070 Super	153.5 fps +66%
MSI RTX 2070 Gaming Z 8G	139 fps +50%
Nvidia GeForce RTX 2060 Super	132.3 fps +43%
MSI RTX 2060 Gaming Z 6G	115.8 fps +25%
AMD Radeon RX 5700 XT	113.5 fps +23%
AMD Radeon VII	109 fps +18%
AMD Radeon RX 5700	103.4 fps +12%
Sapphire AMD Radeon RX 5600 XT	92.6 fps
Extreme Preset DX11
Nvidia Titan RTX	207.2 fps +89%
MSI RTX 2080 Gaming X Trio	176.5 fps +61%
Nvidia GeForce RTX 2070 Super	160.1 fps +46%
MSI RTX 2070 Gaming Z 8G	149.3 fps +36%
Nvidia GeForce RTX 2060 Super	141.7 fps +29%
AMD Radeon VII	140.3 fps +28%
AMD Radeon RX 5700 XT	134.1 fps +22%
MSI RTX 2060 Gaming Z 6G	124.1 fps +13%
AMD Radeon RX 5700	121.5 fps +11%
Sapphire AMD Radeon RX 5600 XT	109.6 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Nvidia Titan RTX	135 fps +48%
MSI RTX 2080 Gaming X Trio	119.6 fps +31%
Nvidia GeForce RTX 2070 Super	113.7 fps +25%
AMD Radeon RX 5700 XT	111.9 fps +23%
MSI RTX 2070 Gaming Z 8G	111.5 fps +23%
AMD Radeon VII	108.5 fps +19%
Nvidia GeForce RTX 2060 Super	106.9 fps +17%
AMD Radeon RX 5700	102.2 fps +12%
MSI RTX 2060 Gaming Z 6G	91.2 fps 0%
Sapphire AMD Radeon RX 5600 XT	91 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Nvidia Titan RTX	139.2 fps +90%
MSI RTX 2080 Gaming X Trio	110.5 fps +51%
Nvidia GeForce RTX 2070 Super	105.6 fps +44%
MSI RTX 2070 Gaming Z 8G	101 fps +38%
Nvidia GeForce RTX 2060 Super	98.3 fps +34%
AMD Radeon RX 5700 XT	89.1 fps +22%
MSI RTX 2060 Gaming Z 6G	83.6 fps +14%
AMD Radeon RX 5700	83.6 fps +14%
AMD Radeon VII	81.3 fps +11%
Sapphire AMD Radeon RX 5600 XT	73.3 fps

ComputeMark v2.1
1024x600 Normal, Score
Nvidia Titan RTX	27907 Points +77%
AMD Radeon VII	22798 Points +44%
MSI RTX 2080 Gaming X Trio	20771 Points +32%
Nvidia GeForce RTX 2070 Super	18083 Points +15%
MSI RTX 2070 Gaming Z 8G	17031 Points +8%
Sapphire AMD Radeon RX 5600 XT	15783 Points
Nvidia GeForce RTX 2060 Super	15749 Points 0%
MSI RTX 2060 Gaming Z 6G	14375 Points -9%
1024x600 Normal, Fluid 3DTex
Nvidia Titan RTX	3877 Points +128%
AMD Radeon VII	3646 Points +114%
MSI RTX 2080 Gaming X Trio	2588 Points +52%
Nvidia GeForce RTX 2070 Super	2456 Points +44%
MSI RTX 2070 Gaming Z 8G	2380 Points +40%
Nvidia GeForce RTX 2060 Super	2289 Points +35%
MSI RTX 2060 Gaming Z 6G	1889 Points +11%
Sapphire AMD Radeon RX 5600 XT	1701 Points
1024x600 Normal, Fluid 2DTexArr
Nvidia Titan RTX	3691 Points +132%
MSI RTX 2080 Gaming X Trio	2482 Points +56%
Nvidia GeForce RTX 2070 Super	2331 Points +46%
AMD Radeon VII	2248 Points +41%
MSI RTX 2070 Gaming Z 8G	2221 Points +39%
Nvidia GeForce RTX 2060 Super	2064 Points +29%
MSI RTX 2060 Gaming Z 6G	1801 Points +13%
Sapphire AMD Radeon RX 5600 XT	1594 Points
1024x600 Normal, Mandel Vector
Nvidia Titan RTX	4944 Points +38%
AMD Radeon VII	4714 Points +31%
MSI RTX 2080 Gaming X Trio	3892 Points +8%
Sapphire AMD Radeon RX 5600 XT	3593 Points
Nvidia GeForce RTX 2070 Super	3358 Points -7%
MSI RTX 2070 Gaming Z 8G	3169 Points -12%
Nvidia GeForce RTX 2060 Super	2939 Points -18%
MSI RTX 2060 Gaming Z 6G	2800 Points -22%
1024x600 Normal, Mandel Scalar
AMD Radeon VII	6312 Points +54%
Nvidia Titan RTX	5977 Points +46%
MSI RTX 2080 Gaming X Trio	4526 Points +11%
Sapphire AMD Radeon RX 5600 XT	4095 Points
Nvidia GeForce RTX 2070 Super	3782 Points -8%
MSI RTX 2070 Gaming Z 8G	3514 Points -14%
Nvidia GeForce RTX 2060 Super	3185 Points -22%
MSI RTX 2060 Gaming Z 6G	2982 Points -27%
1024x600 Normal, QJuliaRayTrace
Nvidia Titan RTX	9418 Points +96%
MSI RTX 2080 Gaming X Trio	7283 Points +52%
Nvidia GeForce RTX 2070 Super	6155 Points +28%
AMD Radeon VII	5878 Points +22%
MSI RTX 2070 Gaming Z 8G	5747 Points +20%
Nvidia GeForce RTX 2060 Super	5271 Points +10%
MSI RTX 2060 Gaming Z 6G	4903 Points +2%
Sapphire AMD Radeon RX 5600 XT	4799 Points

LuxMark v2.0 64Bit
Room GPUs-only
Nvidia Titan RTX	4643 Samples/s +174%
AMD Radeon VII	3477 Samples/s +105%
MSI RTX 2080 Gaming X Trio	3453 Samples/s +104%
Nvidia GeForce RTX 2070 Super	3404 Samples/s +101%
MSI RTX 2070 Gaming Z 8G	3300 Samples/s +95%
Nvidia GeForce RTX 2060 Super	3274 Samples/s +93%
MSI RTX 2060 Gaming Z 6G	2586 Samples/s +53%
Sapphire AMD Radeon RX 5600 XT	1692 Samples/s
Sala GPUs-only
Nvidia Titan RTX	10799 Samples/s +120%
MSI RTX 2080 Gaming X Trio	7928 Samples/s +62%
Nvidia GeForce RTX 2070 Super	7594 Samples/s +55%
MSI RTX 2070 Gaming Z 8G	7179 Samples/s +47%
Nvidia GeForce RTX 2060 Super	6980 Samples/s +43%
AMD Radeon VII	6869 Samples/s +40%
MSI RTX 2060 Gaming Z 6G	5655 Samples/s +15%
Sapphire AMD Radeon RX 5600 XT	4898 Samples/s

SPECviewperf 13
Solidworks (sw-04)
Nvidia Titan RTX	132.9 fps +13%
Sapphire AMD Radeon RX 5600 XT	117.8 fps
MSI RTX 2080 Gaming X Trio	100.3 fps -15%
AMD Radeon VII	95.1 fps -19%
Nvidia GeForce RTX 2070 Super	93.3 fps -21%
MSI RTX 2070 Gaming Z 8G	86.7 fps -26%
MSI RTX 2060 Gaming Z 6G	83.4 fps -29%
Nvidia GeForce RTX 2060 Super	75.7 fps -36%
Siemens NX (snx-03)
Nvidia Titan RTX	462.4 fps +563%
Sapphire AMD Radeon RX 5600 XT	69.7 fps
AMD Radeon VII	37.03 fps -47%
MSI RTX 2080 Gaming X Trio	21.7 fps -69%
Nvidia GeForce RTX 2070 Super	20.71 fps -70%
MSI RTX 2070 Gaming Z 8G	15.6 fps -78%
Nvidia GeForce RTX 2060 Super	15.46 fps -78%
MSI RTX 2060 Gaming Z 6G	14.99 fps -78%
Showcase (showcase-02)
Nvidia Titan RTX	192 fps +74%
Nvidia GeForce RTX 2070 Super	127.3 fps +16%
Nvidia GeForce RTX 2060 Super	116.8 fps +6%
Sapphire AMD Radeon RX 5600 XT	110.2 fps
MSI RTX 2060 Gaming Z 6G	101.6 fps -8%
Medical (medical-02)
Nvidia Titan RTX	89.3 fps +37%
AMD Radeon VII	77.9 fps +19%
MSI RTX 2080 Gaming X Trio	71 fps +9%
Sapphire AMD Radeon RX 5600 XT	65.2 fps
Nvidia GeForce RTX 2070 Super	63.8 fps -2%
MSI RTX 2070 Gaming Z 8G	57.7 fps -12%
Nvidia GeForce RTX 2060 Super	54.5 fps -16%
MSI RTX 2060 Gaming Z 6G	49.1 fps -25%
Maya (maya-05)
Nvidia Titan RTX	367.8 fps +74%
Nvidia GeForce RTX 2070 Super	290.4 fps +38%
MSI RTX 2070 Gaming Z 8G	275.3 fps +30%
Nvidia GeForce RTX 2060 Super	262.4 fps +24%
MSI RTX 2060 Gaming Z 6G	247 fps +17%
AMD Radeon VII	212.6 fps +1%
Sapphire AMD Radeon RX 5600 XT	211 fps
Energy (energy-02)
Nvidia Titan RTX	51.9 fps +167%
AMD Radeon VII	35.05 fps +80%
Nvidia GeForce RTX 2070 Super	23.76 fps +22%
MSI RTX 2070 Gaming Z 8G	22.33 fps +15%
Nvidia GeForce RTX 2060 Super	21.81 fps +12%
Sapphire AMD Radeon RX 5600 XT	19.43 fps
MSI RTX 2060 Gaming Z 6G	7.62 fps -61%
Creo (creo-02)
Nvidia Titan RTX	307.6 fps +109%
MSI RTX 2080 Gaming X Trio	220.3 fps +49%
MSI RTX 2070 Gaming Z 8G	184.2 fps +25%
Nvidia GeForce RTX 2060 Super	172.5 fps +17%
Nvidia GeForce RTX 2070 Super	171 fps +16%
MSI RTX 2060 Gaming Z 6G	169.8 fps +15%
Sapphire AMD Radeon RX 5600 XT	147.5 fps
AMD Radeon VII	115.7 fps -22%
Catia (catia-05)
Nvidia Titan RTX	260.4 fps +13%
AMD Radeon VII	239.2 fps +4%
Sapphire AMD Radeon RX 5600 XT	230.2 fps
Nvidia GeForce RTX 2070 Super	146.3 fps -36%
MSI RTX 2070 Gaming Z 8G	118.6 fps -48%
Nvidia GeForce RTX 2060 Super	114.6 fps -50%
MSI RTX 2060 Gaming Z 6G	108.2 fps -53%
3ds Max (3dsmax-06)
Nvidia Titan RTX	268.7 fps +55%
Nvidia GeForce RTX 2070 Super	212.4 fps +23%
MSI RTX 2070 Gaming Z 8G	207.3 fps +20%
Nvidia GeForce RTX 2060 Super	199.4 fps +15%
MSI RTX 2060 Gaming Z 6G	184.4 fps +7%
Sapphire AMD Radeon RX 5600 XT	172.8 fps
AMD Radeon VII	168.5 fps -2%

3DMark 05 Standard		50634 punten
3DMark 06 Standard Score		45998 punten
3DMark Vantage P Result		65563 punten
3DMark 11 Performance		25782 punten
3DMark Ice Storm Standard Score		208976 punten
3DMark Cloud Gate Standard Score		53465 punten
3DMark Fire Strike Score		19464 punten
3DMark Fire Strike Extreme Score		10083 punten
3DMark Time Spy Score		8039 punten
Help

... in vergelijking

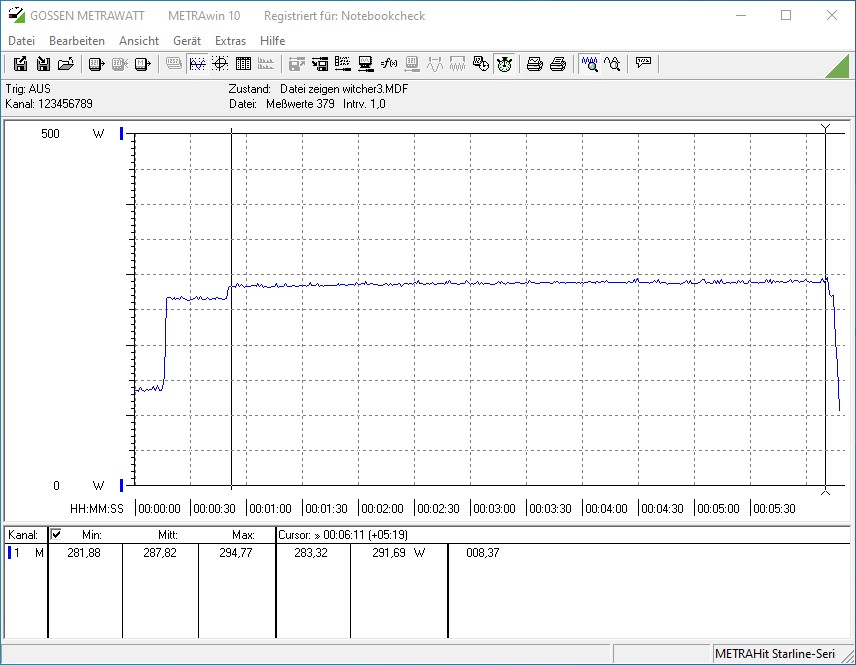

The Witcher 3 frame course ultra preset

Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X: Ø77.4 (71-80)

Red Dead Redemption 2 - 1920x1080 Maximum Settings
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	76 (43^min - 94^max) fps +85%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	61 (36.7^min, 41.7^P1 - 75.8^max) fps +49%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	54.6 (31.7^min, 37^P1 - 66.8^max) fps +33%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	51.5 (24.8^min, 35.7^P1 - 75.7^max) fps +26%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	46.5 (27.7^min, 32.3^P1 - 56^max) fps +13%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	46.2 (29.6^min, 35.7^P1 - 60.4^max) fps +13%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	45.4 (29^min, 32.3^P1 - 55.5^max) fps +11%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	45.1 (29.2^min, 33.3^P1 - 55.6^max) fps +10%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	41 (3^min - 113^max) fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	33.2 (19.2^min, 22.7^P1 - 40.6^max) fps -19%

Forza Horizon 4 - 1920x1080 Ultra Preset AA:2xMS
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	158 fps +14%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	149 fps +8%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	139 fps +1%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	138 fps 0%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	138 fps
Nvidia Titan RTX NVIDIA Titan RTX, R7 2700X, ADATA Premier Pro SP900NS38 512 GB	132 fps -4%
AMD Radeon VII Radeon VII, R7 2700X	130 fps -6%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	129 fps -7%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	125 fps -9%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	121 fps -12%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	113 fps -18%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	110 fps -20%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	107 fps -22%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	105 fps -24%

Far Cry 5 - 1920x1080 Ultra Preset AA:T
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	120 (94^min - 159^max) fps +13%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	110 (85^min - 145^max) fps +4%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	107 (82^min - 145^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	106 (85^min - 128^max) fps
Nvidia Titan RTX NVIDIA Titan RTX, R7 2700X, ADATA Premier Pro SP900NS38 512 GB	103 (77^min - 137^max) fps -3%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	103 (78^min - 136^max) fps -3%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	103 (85^min - 118^max) fps -3%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	99 (78^min - 124^max) fps -7%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	99 (75^min - 131^max) fps -7%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	99 (76^min - 132^max) fps -7%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	96 (75^min - 127^max) fps -9%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	94 (72^min - 124^max) fps -11%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	92 (83^min - 104^max) fps -13%
AMD Radeon VII Radeon VII, R7 2700X	91 (70^min - 120^max) fps -14%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	138 (125^min - 151^max) fps +83%
Nvidia Titan RTX NVIDIA Titan RTX, R7 2700X, ADATA Premier Pro SP900NS38 512 GB	128 (111^min - 142^max) fps +70%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	109 (94^min - 120^max) fps +44%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	97 (83^min - 109^max) fps +28%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	94 (86^min - 103^max) fps +25%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	92 (79^min - 99^max) fps +22%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	89.9 (81^min - 101^max) fps +19%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	79 (67^min - 89^max) fps +5%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	77 (67^min - 84^max) fps +2%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	76 (67^min - 84^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	75.5 (66^min - 81^max) fps
AMD Radeon VII Radeon VII, R7 2700X	75 (65^min - 83^max) fps -1%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	72.7 (61^min - 82^max) fps -4%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	59.5 (53^min - 68^max) fps -21%

Farming Simulator 19 - 1920x1080 Very High Preset
Nvidia Titan RTX NVIDIA Titan RTX, R7 2700X, ADATA Premier Pro SP900NS38 512 GB	125 (106^min - 167^max) fps
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	124 (109^min - 167^max) fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	123 (99^min - 182^max) fps
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	122.4 (108^min - 163^max) fps
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	121 (107^min - 161^max) fps
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	120.7 (108^min - 159^max) fps
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	118 (106^min - 156^max) fps
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	116 (101^min - 151^max) fps
AMD Radeon VII Radeon VII, R7 2700X	111 (99^min - 144^max) fps
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	100 (72^min - 144^max) fps

Apex Legends - 1920x1080 Maximum Settings AA:TS AF:16x
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	144 (143^min - 145^max) fps +7%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	144 (142^min - 145^max) fps +7%
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	144 fps +7%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	144 (143^min - 145^max) fps +7%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	144 (143^min - 145^max) fps +7%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	144 (143^min - 145^max) fps +7%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	139 (126^min - 145^max) fps +3%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	135 fps
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	131 (122^min - 144^max) fps -3%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	120 (109^min - 140^max) fps -11%

Far Cry New Dawn - 1920x1080 Ultra Preset
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	97 (69^min - 147^max) fps +13%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	94 (69^min - 143^max) fps +9%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	92 (65^min - 147^max) fps +7%
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	92 (64^min - 140^max) fps +7%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	90 (65^min - 138^max) fps +5%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	88 (66^min - 125^max) fps +2%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	87 (63^min - 135^max) fps +1%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	87 (69^min - 108^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	86 (62^min - 132^max) fps
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	85 (62^min - 130^max) fps -1%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	85 (63^min - 134^max) fps -1%
AMD Radeon VII Radeon VII, R7 2700X	83 (59^min - 128^max) fps -3%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	79 (58^min - 120^max) fps -8%
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	72 (51^min - 112^max) fps -16%

Metro Exodus - 1920x1080 Ultra Quality AF:16x
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	98.8 (49.5^min - 151.52^max) fps +70%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	74.2 (38^min - 122^max) fps +28%
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	73 (40^min - 107^max) fps +26%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	67.8 (36^min - 110^max) fps +17%
AMD Radeon VII Radeon VII, R7 2700X	67.2 (36^min - 104^max) fps +16%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	61 (36.09^min - 86.1^max) fps +5%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	60.4 (32^min - 94^max) fps +4%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	58.9 (32^min - 92^max) fps +2%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	58 (31^min - 90^max) fps
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	56.4 (30^min - 87^max) fps -3%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	52.7 (29^min - 82^max) fps -9%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	41 (23^min - 61^max) fps -29%

The Division 2 - 1920x1080 Ultra Preset
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	113 fps +41%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	106 fps +33%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	95 fps +19%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	90 fps +13%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	88 (30.2^min, 50^P1) fps +10%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	85 fps +6%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	85 fps +6%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	80 fps
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	78 fps -2%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	63 fps -21%

Anno 1800 - 1920x1080 Ultra Graphics Quality (DX11)
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	45 (37^min - 58^max) fps +22%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	43.3 (38^min - 59^max) fps +18%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	42.5 (38^min - 47^max) fps +15%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	42.1 (36^min - 45^max) fps +14%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	40.9 (35^min - 53^max) fps +11%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	40.6 (35^min - 49^max) fps +10%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	40.6 (36^min - 45^max) fps +10%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	40.3 (36^min - 46^max) fps +10%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	40.3 (30^min - 55^max) fps +10%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	36.8 (33^min - 42^max) fps
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	33.9 (29^min - 43^max) fps -8%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	33.1 (31^min - 35^max) fps -10%

Rage 2 - 1920x1080 Ultra Preset (Resolution Scale Off)
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	157 (119.4^P1) fps +66%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	131 (64.4^P1) fps +38%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	118 (71^P1) fps +25%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	109 (59.4^P1) fps +15%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	106 (92.4^P1) fps +12%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	104 (65.1^P1) fps +10%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	103 (94.3^P1) fps +9%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	94.7 (80.6^P1) fps
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	94 (47.1^P1) fps -1%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	83 (70.4^P1) fps -12%

F1 2019 - 1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	152 (129^min - 171^max) fps +27%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	140 (120^min - 156^max) fps +17%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	137 (120^min - 153^max) fps +14%
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	134 (112^min - 152^max) fps +12%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	131 (116^min - 147^max) fps +9%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	124 (113^min - 135^max) fps +3%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	121 (108^min - 136^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	120 (105^min - 137^max) fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	87 (77^min - 87^max) fps -27%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	94 fps +72%
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	92.8 fps +69%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	77 fps +41%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	76 fps +39%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	61 fps +11%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	57.1 fps +4%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	54.8 fps
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	48.1 fps -12%

Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	120 fps +26%
Nvidia Titan RTX NVIDIA Titan RTX, R7 2700X, ADATA Premier Pro SP900NS38 512 GB	116 fps +22%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	114 fps +20%
MSI RTX 2080 Gaming X Trio GeForce RTX 2080 (Desktop), R7 2700X	110 fps +16%
AMD Radeon VII Radeon VII, R7 2700X	110 fps +16%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X	110 fps +16%
MSI RTX 2070 Gaming Z 8G GeForce RTX 2070 (Desktop), R7 2700X	104 fps +9%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R7 2700X	104 fps +9%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X	96 fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	95 fps
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	91 fps -4%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X	90 fps -5%
AMD Radeon RX Vega 64 RX Vega 64, R7 2700X	85 fps -11%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	80 fps -16%

FIFA 20 - 1920x1080 Ultra Preset AA:4xMS
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	284 (204.1^P1) fps +12%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	282 (208.3^P1) fps +11%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	281 (204.1^P1) fps +11%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	253 (185.2^P1) fps 0%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	253 (225^min - 278^max) fps
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	251 (181.8^P1) fps -1%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	248 (178.6^P1) fps -2%
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	245 (178.6^P1) fps -3%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	239 (178.6^P1) fps -6%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	236 (172.4^P1) fps -7%

Control - 1920x1080 High Quality Preset (DX11)
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	135 (118^min - 152^max) fps +97%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	95 (83^min - 109^max) fps +38%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	95 (83^min - 109^max) fps +38%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	83 (72^min - 95^max) fps +21%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	83 (73^min - 94^max) fps +21%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	80 (70^min - 91^max) fps +17%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	73 (63^min - 83^max) fps +6%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	68.6 (58^min - 80^max) fps
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	67 (57^min - 77^max) fps -2%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	56.3 (49^min - 64^max) fps -18%

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	109 fps +76%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	91 fps +47%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	81.5 fps +31%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	79.4 fps +28%
Nvidia Titan RTX 24 GB NVIDIA Titan RTX, TR 2920X	77.2 fps +25%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	71.7 fps +16%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	68.7 fps +11%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	66.7 fps +8%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	62 fps
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	58.1 fps -6%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	50 fps -19%

Ghost Recon Breakpoint - 1920x1080 Ultra Preset AA:T
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	99 (31^min - 148^max) fps +25%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	90 (31^min - 124^max) fps +14%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	88 (13^min - 142^max) fps +11%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	80 (35^min - 125^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	79 (58^min - 121^max) fps
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	75 (31^min - 117^max) fps -5%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	71 (24^min - 106^max) fps -10%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	68 (36^min - 104^max) fps -14%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	55 (44^min - 80^max) fps -30%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	54 (7^min - 96^max) fps -32%

GRID 2019 - 1920x1080 Ultra High Preset
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	147 (104.2^P1) fps +67%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	118 (80^P1) fps +34%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	105 (64.1^P1) fps +19%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	104 (71.4^P1) fps +18%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	96 (61.3^P1) fps +9%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	91 (55.9^P1) fps +3%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	90 (59.5^P1) fps +2%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	88.2 (56.5^P1) fps
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	82 (60.2^P1) fps -7%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	69 (48.1^P1) fps -22%

Call of Duty Modern Warfare 2019 - 1920x1080 Maximum Settings AA:T2X Filmic SM
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	169 (119^P1) fps +82%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	144 (112.4^P1) fps +55%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	128 (97.1^P1) fps +38%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	114 (87^P1) fps +23%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	112 (83.3^P1) fps +20%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	109 (82^P1) fps +17%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	106 (78.1^P1) fps +14%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	95 (69.9^P1) fps +2%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	93 fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	84 (65.8^P1) fps -10%

Need for Speed Heat - 1920x1080 Ultra Preset
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	93 (78^min - 108^max) fps +11%
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	93 (79^min - 106^max) fps +11%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	92 (76^min - 107^max) fps +10%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	92 (78^min - 105^max) fps +10%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	90 (77^min - 103^max) fps +8%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	88 (74^min - 99^max) fps +5%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	88 (74^min - 103^max) fps +5%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	84 (75^min - 95^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	83.5 (76^min - 92^max) fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	77 (70^min - 85^max) fps -8%

Star Wars Jedi Fallen Order - 1920x1080 Epic Preset
AMD Ryzen 9 3900X NVIDIA Titan RTX, R9 3900X, Corsair MP600	122 (75^min - 145^max) fps +39%
Nvidia GeForce RTX 2080 Super GeForce RTX 2080 Super (Desktop), R9 3900X	118 (72^min - 145^max) fps +34%
Nvidia Titan X (Pascal) Titan X Pascal, R9 3900X	118 (71^min - 145^max) fps +34%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X	114 (72^min - 140^max) fps +30%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X	108 (65^min - 138^max) fps +23%
Nvidia GeForce RTX 2070 Super GeForce RTX 2070 Super (Desktop), R9 3900X	107 (66^min - 140^max) fps +22%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X	102 (64^min - 125^max) fps +16%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600	89 (64^min - 105^max) fps +1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X	88 fps
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X	56.9 (50^min - 70^max) fps -35%

	lage	gem.	hoge	ultra	QHD	4K
The Witcher 3 (2015)	335		127	75.5		45.8
Dota 2 Reborn (2015)	169.8	152.9	153.9	138.4		95.2
X-Plane 11.11 (2018)	73.9	62.9	54.8			38.4
Far Cry 5 (2018)	139	118	112	106	83	43
Strange Brigade (2018)	440	193	156	134	96	57
Shadow of the Tomb Raider (2018)	131	113	108	95	63	32
Forza Horizon 4 (2018)	226	185	173	138	109	70
Apex Legends (2019)	144	144	144	135	84	51
Far Cry New Dawn (2019)	110	97	94	86	78	45
Metro Exodus (2019)	171	103	72	58	47	29
Dirt Rally 2.0 (2019)	235	198	130	99	74	42
The Division 2 (2019)	172	113	97	80	55	30
Anno 1800 (2019)	99.4	88.4	72.9	36.8	32.6	19.6
Rage 2 (2019)	217	113	96.3	94.7	62.4	25.8
Total War: Three Kingdoms (2019)	247.5	129.1	85.7	57.6	35.4	15.3
F1 2019 (2019)	260	209	178	120	95	58
Control (2019)	221	97	68.6		43.5	21.2
Borderlands 3 (2019)	130	112	82	62	44	24
FIFA 20 (2019)	274	273	261	253	216	170
Ghost Recon Breakpoint (2019)	129	104	98	79	62	37
GRID 2019 (2019)	171	88.2	121	88.2	70.9	37.4
Call of Duty Modern Warfare 2019 (2019)	192	136	111	93	65	30
Need for Speed Heat (2019)	111	106	93.8	83.5	65.7	36.3
Star Wars Jedi Fallen Order (2019)		112	101	88	69	39
Red Dead Redemption 2 (2019)	148	80	65	41	35	23
Escape from Tarkov (2020)	121	121	121	88.1	60.5	31.1
Hunt Showdown (2020)	225	111	87.3		57.6	27.2
Doom Eternal (2020)	243	179	158	148	97.3	37.9
Gears Tactics (2020)	342.4	189.9	132.5	88	60.4	30.7
Valorant (2020)	310.7	275.2	272		252.4	214.1
F1 2020 (2020)	340	248	207	138	101	58
Death Stranding (2020)	195	128	118	115	82	42
Horizon Zero Dawn (2020)	172	114	96	75	54	28
Flight Simulator 2020 (2020)	82.7	63.8	43.4	27.5	21.4	8.1
Serious Sam 4 (2020)	104	93.9	70.3	66	58.1	38.3
Mafia Definitive Edition (2020)	123.2	92.3	84.8		58.4	31.1
Star Wars Squadrons (2020)	510	319.5	269	251.4	165	87.4
FIFA 21 (2020)	263	262	248	249	242	164
Watch Dogs Legion (2020)	140	104	88.6	35	21.4	10.8

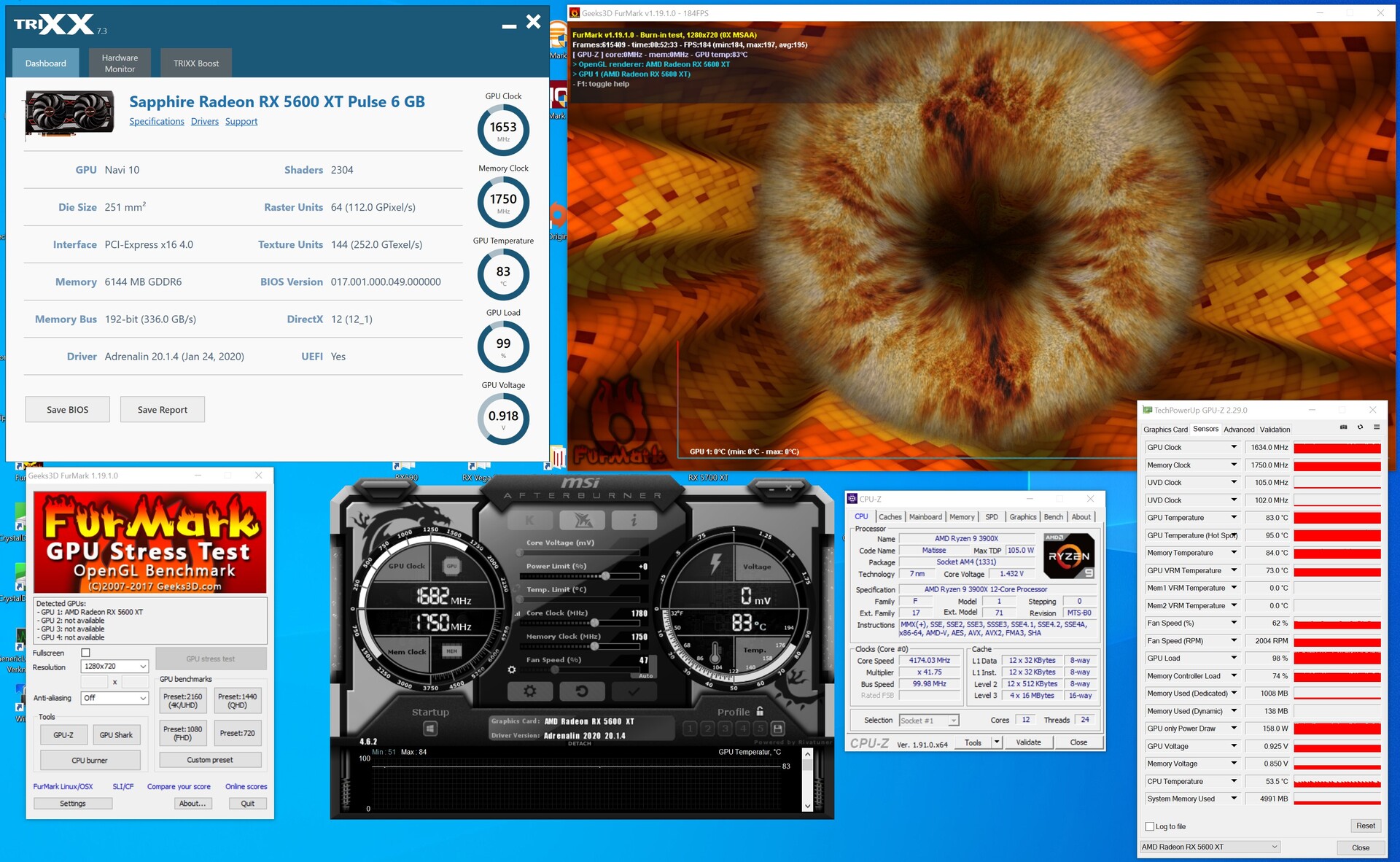

Energieverbruik testsysteem (FurMark PT 100%)

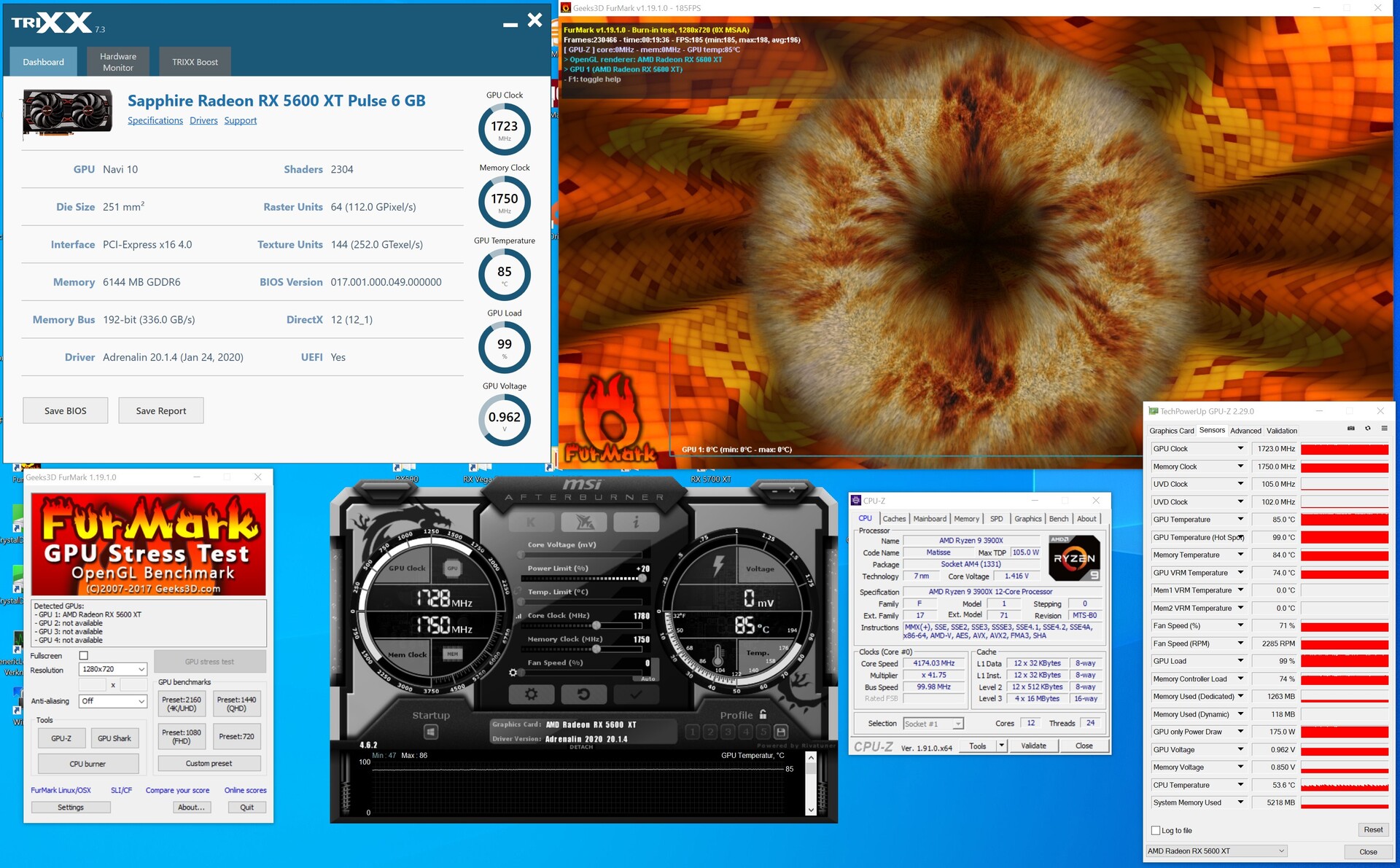

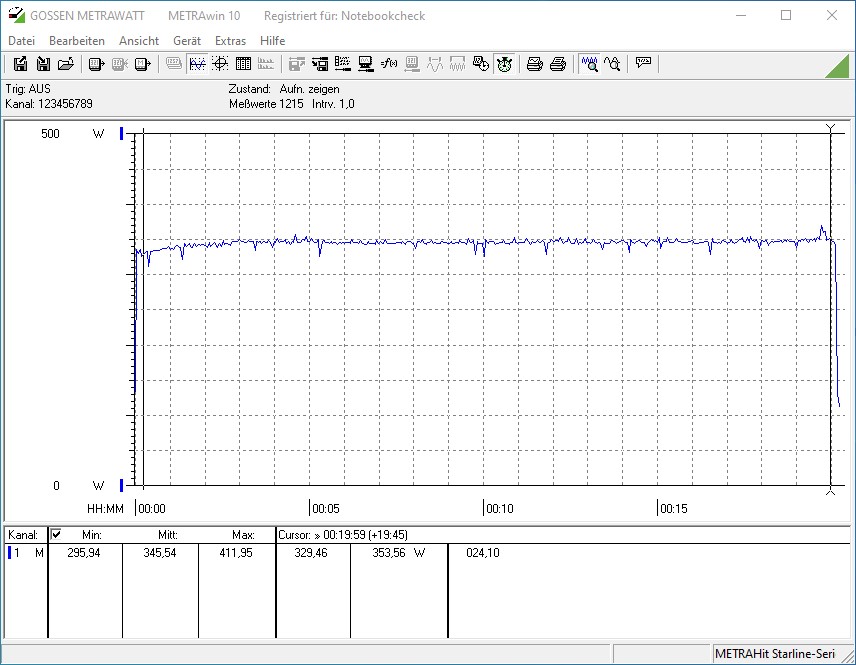

Energieverbruik testsysteem (FurMark PT 120%)

Energieverbruik testsysteem (Gaming - The Witcher 3 ultra instellingen)

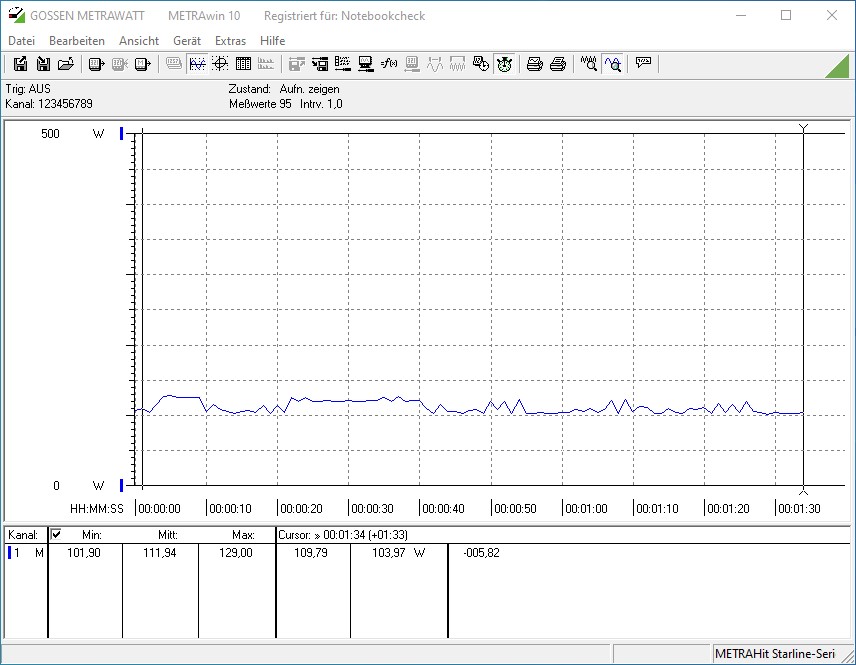

Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)	376.4 (373^min - 382^max) Watt * -31%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X (Idle: 85.9 W)	358.9 (351^min - 370^max) Watt * -25%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X (Idle: 69.8 W)	348.7 (341^min - 359^max) Watt * -21%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	346.9 (326^min - 364^max) Watt * -21%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X (Idle: 86.7 W)	331 (322^min - 344^max) Watt * -15%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)	317.5 (313^min, 216^P1 - 326^max) Watt * -10%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X (Idle: 85.5 W)	300.2 (284^min - 311^max) Watt * -4%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X (82.7 fps, Idle: 77.12 W)	298.2 (293^min - 322^max) Watt * -4%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X (84.2 fps, Idle: 64.5 W)	295.9 (284^min - 304^max) Watt * -3%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)	288.8 (284^min - 299^max) Watt * -0%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)	287.8 (282^min - 294^max) Watt *
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X (Idle: 72.61 W)	274 (268^min - 300^max) Watt * +5%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)	260.4 (255^min - 277^max) Watt * +10%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)	248.6 (240^min - 259^max) Watt * +14%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)	235.5 (232^min - 269^max) Watt * +18%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)	203.9 (199^min - 215^max) Watt * +29%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W)	178.9 (176^min - 192^max) Watt * +38%
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R9 3900X (Idle: 85.9 W)	371.7 (360^min - 388^max) Watt * -16%
XFX AMD Radeon RX 590 OC+ 8 GB Radeon RX 590, R7 2700X	357.5 (347^min - 383^max) Watt * -11%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)	352.1 (346^min - 377^max) Watt * -10%
AMD Radeon RX 5700 XT Radeon RX 5700 XT (Desktop), R7 2700X (239 fps, Idle: 69.8 W)	326.6 (313^min - 351^max) Watt * -2%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R9 3900X (Idle: 85.5 W)	322.8 (309^min - 347^max) Watt * -1%
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)	321.1 (300^min - 348^max) Watt *
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R9 3900X (Idle: 86.7 W)	312 (306^min - 328^max) Watt * +3%
Sapphire NITRO+ RX 570 8 GB Radeon RX 570, R7 2700X (Idle: 72.61 W)	308.9 (301^min - 338^max) Watt * +4%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)	297.3 (292^min - 316^max) Watt * +7%
MSI RTX 2060 Gaming Z 6G GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)	295.2 (148^min - 331^max) Watt * +8%
Nvidia GeForce RTX 2060 Super GeForce RTX 2060 Super (Desktop), R7 2700X (237 fps, Idle: 77.12 W)	281.4 (275^min - 321^max) Watt * +12%
AMD Radeon RX 5700 Radeon RX 5700 (Desktop), R7 2700X (207 fps, Idle: 64.5 W)	280.5 (271^min - 312^max) Watt * +13%
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)	247.8 (242^min - 282^max) Watt * +23%
KFA 2 GeForce GTX 1660 Super GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)	247.6 (241^min - 322^max) Watt * +23%
Zotac GeForce GTX 1660 Ti 6 GB GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)	233.2 (226^min - 250^max) Watt * +27%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)	202.5 (200^min - 213^max) Watt * +37%
Gainward GeForce GTX 1650 4 GB GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W, Idle: 64.63 W)	183 (178^min - 187^max) Watt * +43%

* ... kleiner is beter

Pro

+ snel genoeg voor Full HD

+ 6 GB GDDR6

+ ventilatoren stoppen in 2D-modus

+ matig energieverbruik

+ relatief stil onder belasting

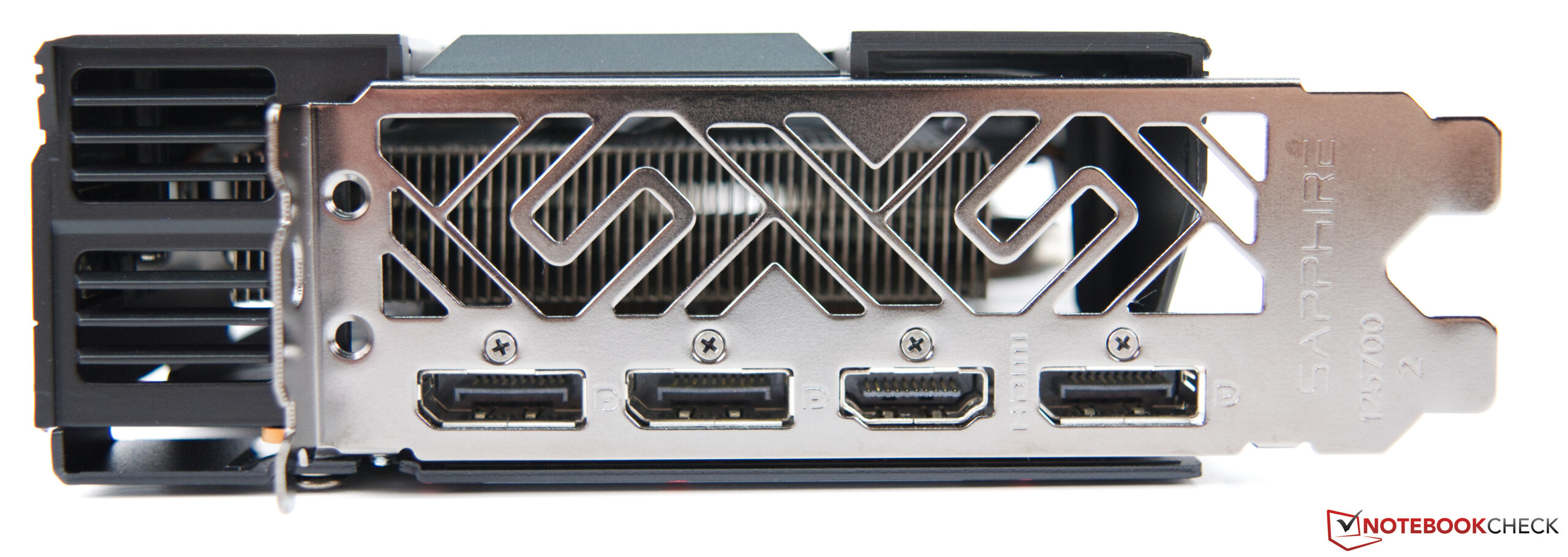

+ 3x DisplayPort

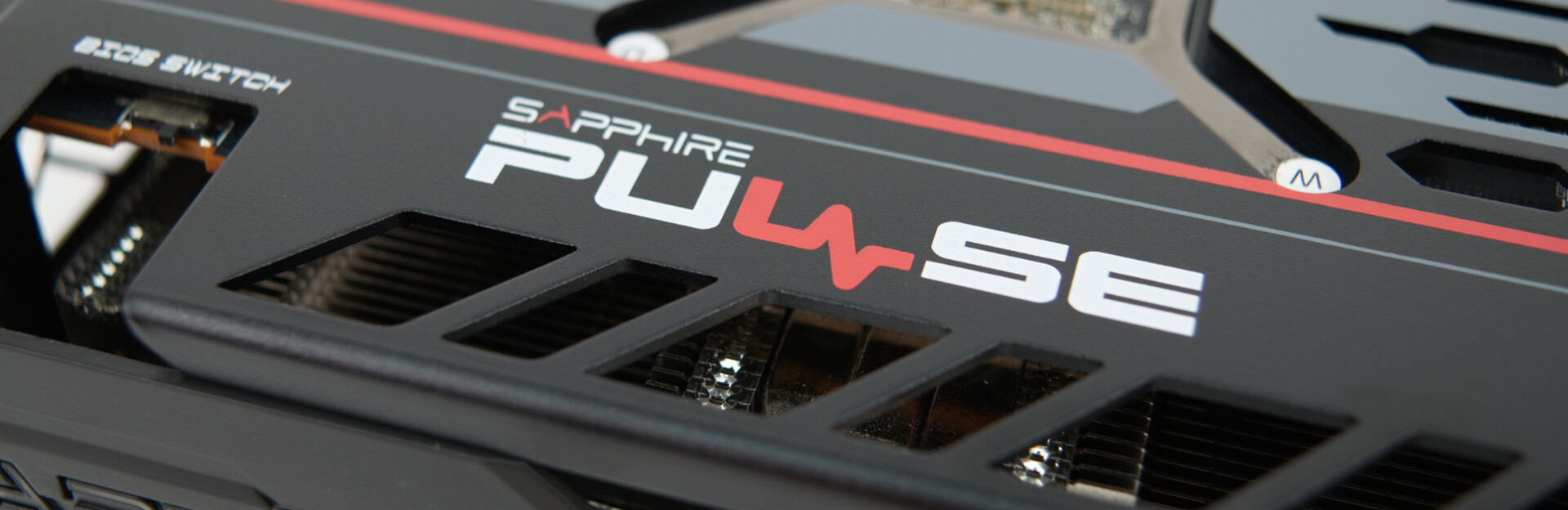

+ dual-BIOS (Performance en Silent)

Contra

- relatief duur (kleine prijsafstand tot de RX 5700)

- weinig overklokpotentieel

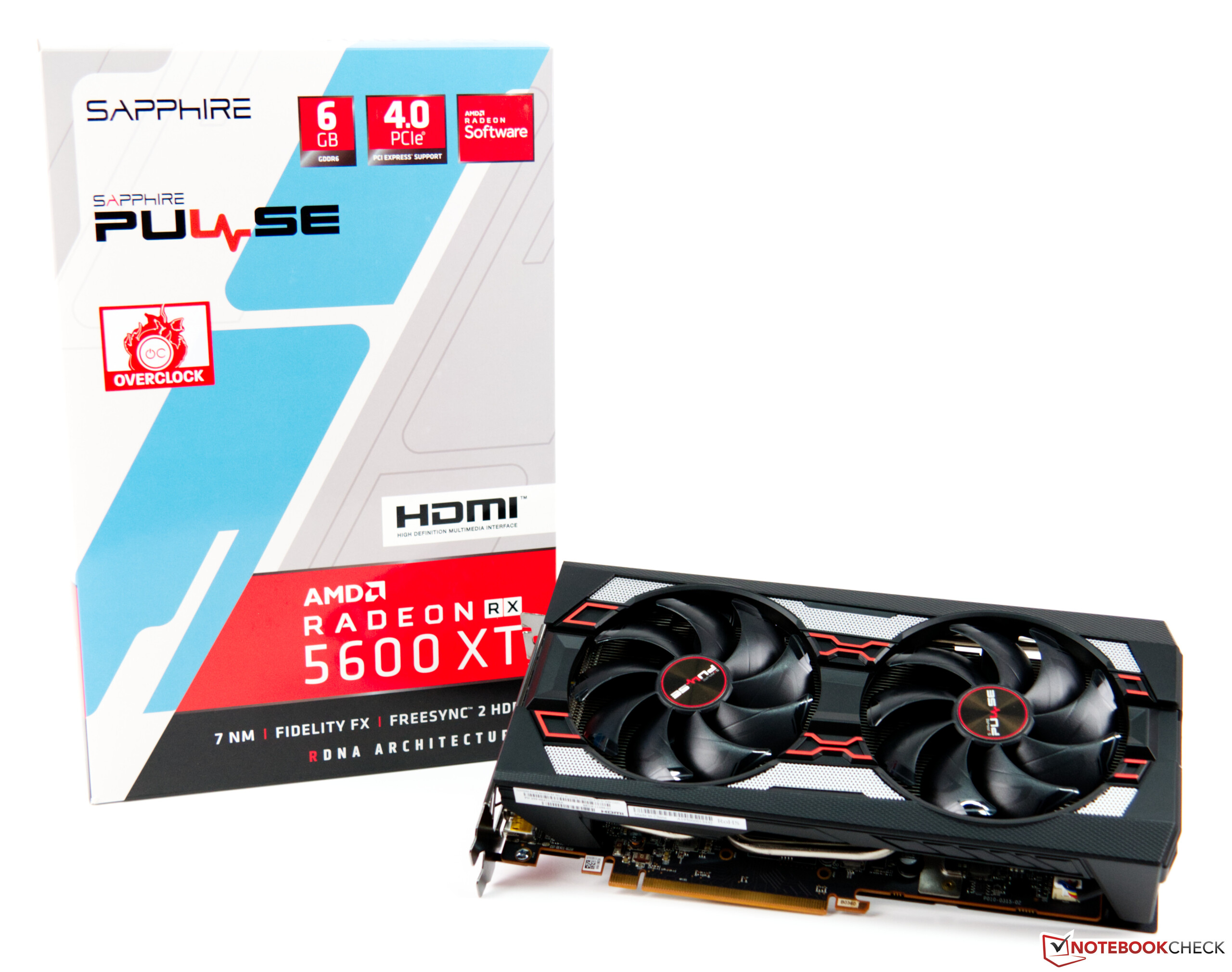

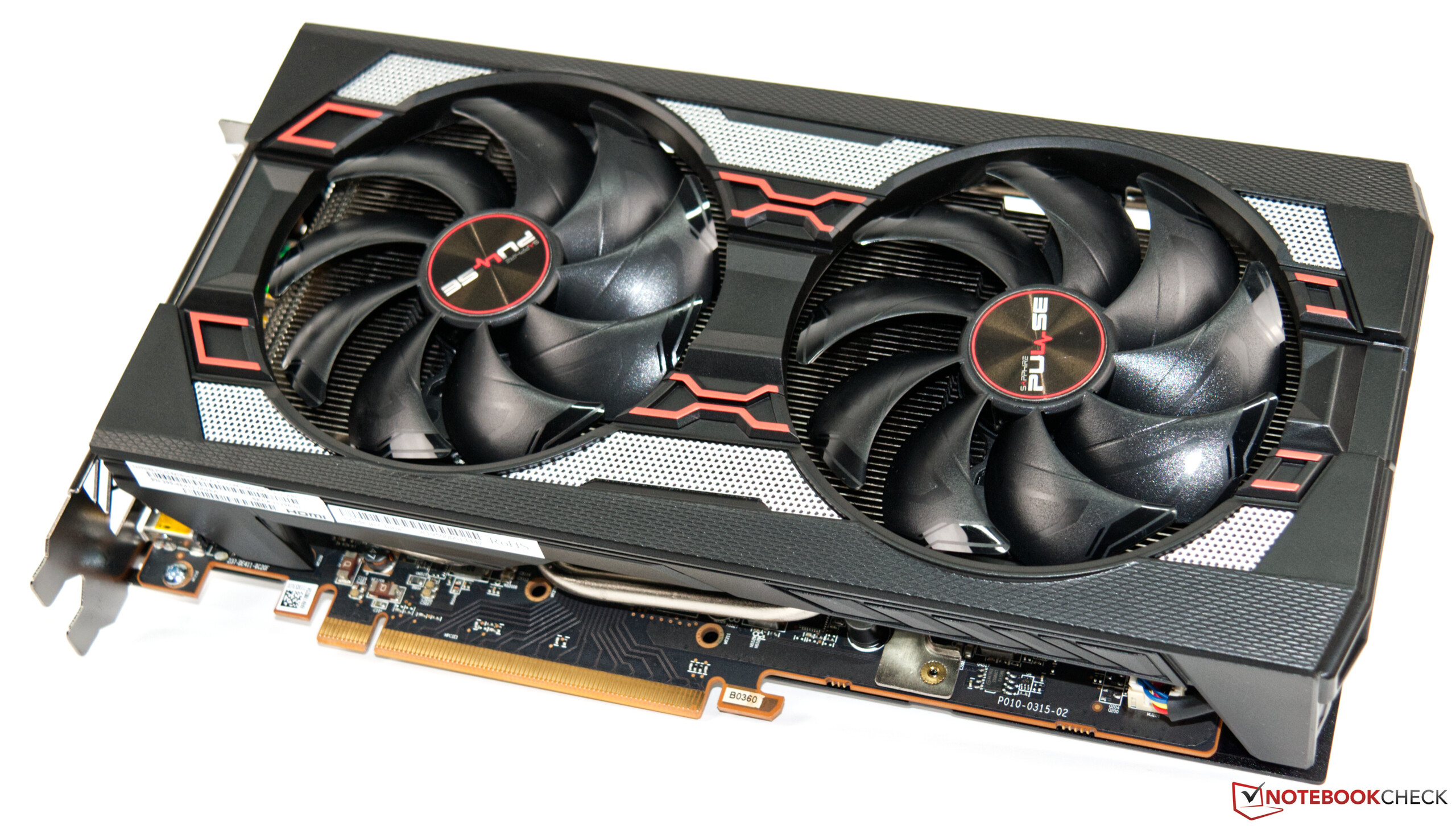

Getest: Sapphire Pulse Radeon RX 5600 XT. Testkaart voorzien door AMD Germany

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Na de lancering van de Navi-GPU's moet AMD nu op een hoger niveau beginnen spelen in de middenklasse en lanceert het bedrijf de Radeon RX 5600 XT, een degelijke grafische kaart voor Full HD-gaming. AMD richt zich vooral hierop aangezien de 5700-serie al beschikbaar is voor QHD-gaming.

Tijdens het testen zagen we de prestaties van onze Sapphire Pulse Radeon RX 5600 XT-testkaart voortdurend bevestigd worden. Alle moderne titels zijn vlot speelbaar en in sommige gevallen volstaan de prestaties van de kleinere Navi-kaart zelfs voor hogere resoluties. Het lijkt weinig uit te maken dat de RX 5600 XT slechts over 6 GB VRAM beschikt. Nvidia's huidige GeForce GTX 1660 Super biedt immers ook slechts 6 GB VRAM.

Dankzij RDNA en het 7-nm-productieproces krijgen de mid-range grafische kaarten nu ook een behoorlijke prestatie-upgrade zonder meer energie te verbruiken.

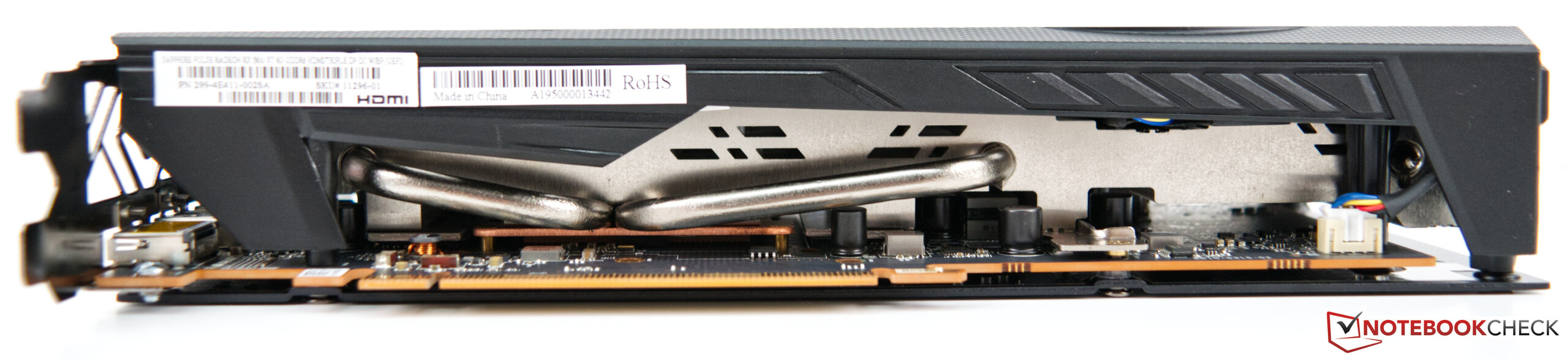

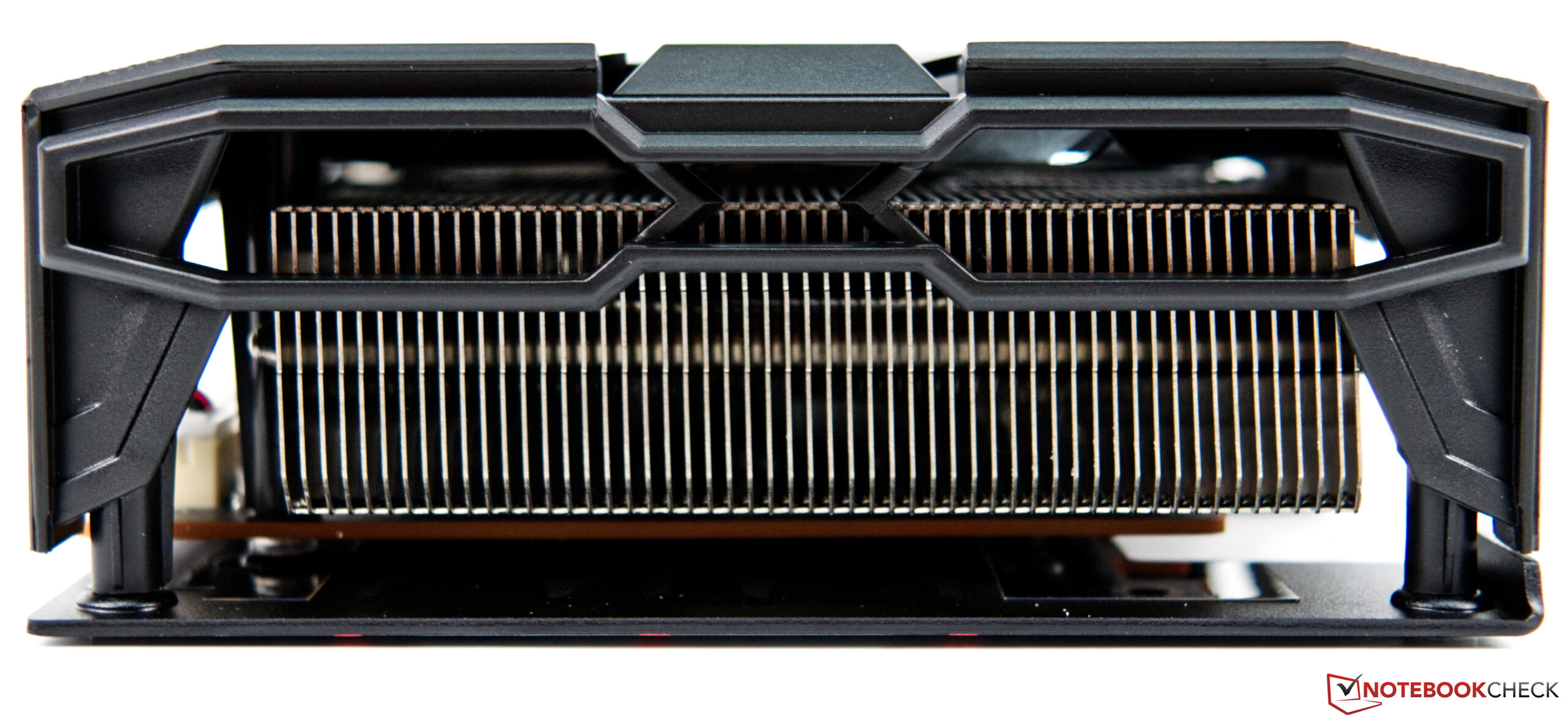

De toegepaste koeling werkt ook prima en houdt de temperaturen van de grafische kaart binnen de perken. Het koelsysteem beschikt echter over weinig reserves om nog meer prestaties uit de grafische kaart te halen. Naar onze mening is dit ook niet nodig. De Sapphire Pulse Radeon RX 5600 XT is met zijn prijs van bijna 300 euro een van de goedkoopste RX 5600 XT-kaarten op de markt. Niettemin is het prijsverschil met de snellere AMD Radeon RX 5700 verwaarloosbaar. De AMD Radeon RX 5600 XT zou dus aanzienlijk goedkoper moeten worden om echt interessant te zijn voor potentiële kopers.

Editor of the original article: Christian Hintze - Managing Editor - 1981 articles published on Notebookcheck since 2016

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport AMD Radeon RX 5600 XT: gaming in Full HD

Sebastian Bade, 2020-02-28 (Update: 2020-02-28)
