Intel Graphics Media Accelerator (GMA) 4500M

Intel Graphics Media Accelerator (GMA) 4500M

De Intel Graphics Media Accelerator 4500MHD (soms ook GMA X4500 HD genoemd) is een DirectX 10 onboard videokaart voor de GM45, GE45 en GS45 chipset van het Centrino 2 platform (Montevina). De chip heeft geen eigen geheugen, maar kan dynamisch gebruik maken van het RAM geheugen (tot 384MB).
De op 400MHz geklokte versie van de 4500MHD kan gevonden worden in de GL40 en GS40 chipsets, en heet daarin GMA 4500M (zonder de HD) en heeft lagere prestaties in 3D games of video decodering.
Vergeleken met de voorganger GMA X3100 heeft de GMA 4500MHD twee extra shaders en een 33MHz hogere kloksnelheid. De chip is daarmee sneller dan de oudere (duidelijk te zien in 3DMark 06) maar de prestaties zijn nog steeds ver verwijdert van zelfs de minste dedicated videokaarten en zijn onvoldoende voor games. Enkele games zoals F.E.A.R. kunen op lage details en resolutie gespeeld worden (zie "gaming prestaties").
Vergeleken met andere moderne geïntegreerde videokaarten zoals de nVidia GeForce 9400M (G102M) of AMD ATI Radeon HD 3200 is de GMA 4500M HD merkbaar trager en heeft hij minder geoptimaliseerde drivers voor games.

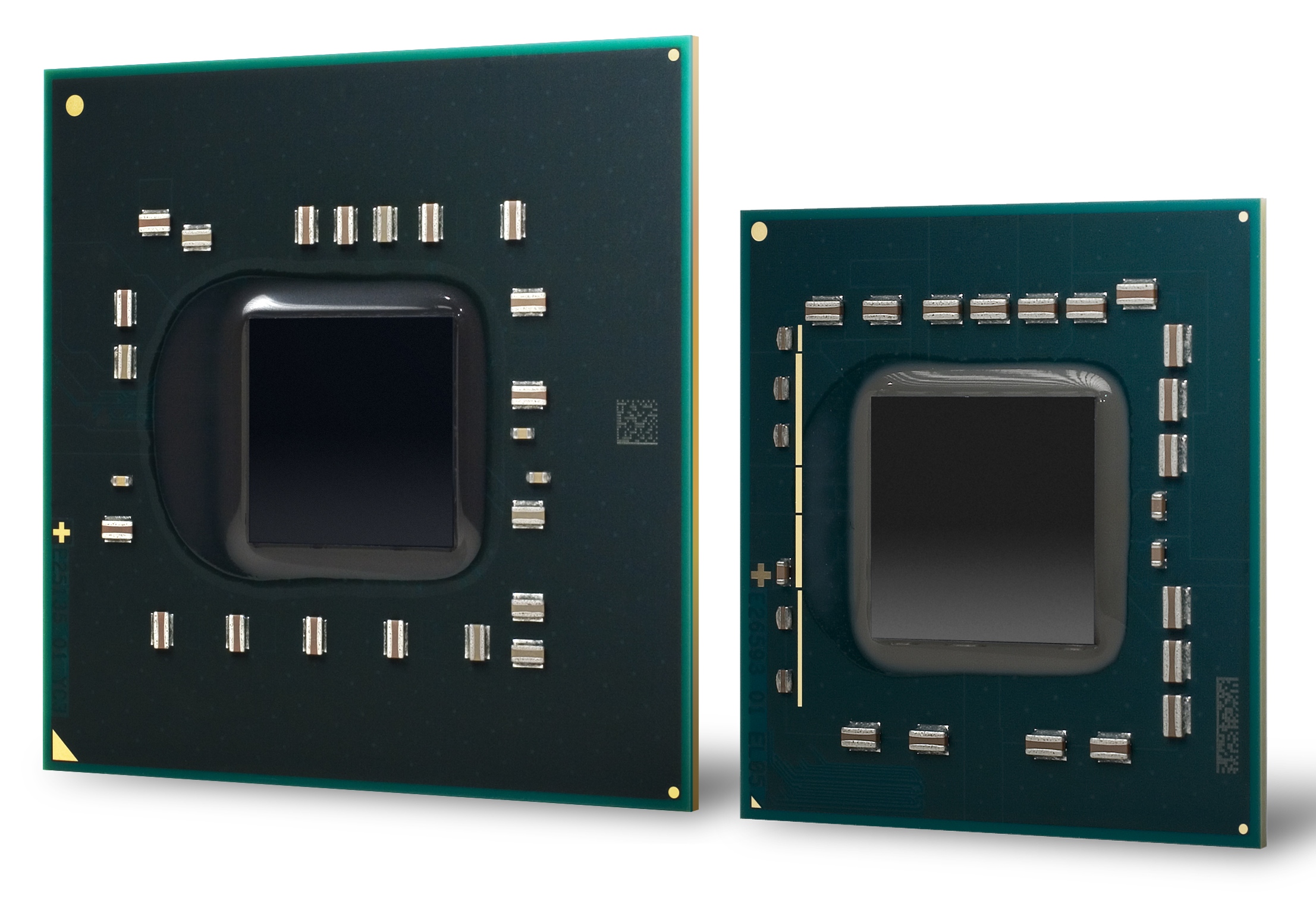

De versie in de GS45 kan lager geklokt zijn (320 versus 533MHz) en ondersteund maar een FSB tot 800 (in plaats van FSB 533/1066). De GE45 heeft dezelfde functionaliteiten als de GM45, maar is nog gecertificeerd door Macrovision.
Een nieuwe feature van de GMA chip zijn de geïntegreerde HD video-decodering functies. De GM45 kan HD video's decoderen in de AVC, VC-2, and MPEG-2 formaten om de CPU te helpen. Zo kan eventueel ook een Blu-Ray film afgespeeld worden met een low-end CPU (enkel met de 533 MHz versie in de GM45 en GS45).
De graphics core in de GL40 en GS40 chipset met een lagere kloksnelheid van 400 MHz heeft GMA 4500M (zonder de HD). Door de lagere kloksnelheid presteert de 4500M minder in games en kan hij geen Blu-Ray films vlot afspelen.

GMA Serie

Graphics Media Accelerator (GMA) 4700MHD 10 @ 0.64 GHz
Graphics Media Accelerator (GMA) 4500MHD 10 @ 0.53 GHz
Graphics Media Accelerator (GMA) 4500M 10 @ 0.4 GHz
Graphics Media Accelerator (GMA) X3100 8 @ 0.5 GHz
Graphics Media Accelerator (GMA) 950 4/0 cores @ 0.25 GHz
Graphics Media Accelerator (GMA) 900 4/0 cores @ 0.4 GHz
Graphics Media Accelerator (GMA) 600 4 @ 0.4 GHz
Graphics Media Accelerator (GMA) 500 4 @ 0.2 GHz
CodenaamGL40
ArchitectuurGen. 4.5
Pipelines10 - verenigd
Core-snelheid400 MHz
Gedeeld geheugenja
APIDirectX 10, Shader 4.0
technologie65 nm
FaciliteitenEnhanced Intel Clear Video Technology, HD Video Decoder (VC/VC2/MPEG2), HDMI mit HDCP Support, Display Refresh Rate Switching Technology, Render Standby
Aangekondigde datum01.10.2008
Link naar fabrikantwww.intel.com

Benchmarks

3DMark 2001SE - 3DMark 2001 - Standard
min: 3335     gem: 4018     mediaan: 3882 (4%)     max: 5389 Points
+ 7 Meer details   + Toon vergelijkingstabel
3DMark 03 - 3DMark 03 - Standard
min: 1136     gem: 1676     mediaan: 1650.5 (1%)     max: 2373 Points
+ 14 Meer details   + Toon vergelijkingstabel
3DMark 05 - 3DMark 05 - Standard
min: 470     gem: 987     mediaan: 1037 (1%)     max: 1277 Points
+ 11 Meer details   - Verberg vergelijkingstabel
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
min: 645     gem: 696     mediaan: 687.5 (1%)     max: 765 punten
+ 4 Meer details   + Toon vergelijkingstabel
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 515     gem: 594     mediaan: 612.5 (1%)     max: 636 Points
+ 4 Meer details   + Toon vergelijkingstabel
3DMark 06 - Standard 1280x768 +
3DMark 06
min: 533     gem: 700     mediaan: 698.5 (1%)     max: 871 Points
+ 4 Meer details   + Toon vergelijkingstabel
Windows 7 Experience Index - Win7 Gaming graphics
3.3 Points (42%)
+ 2 Meer details   + Toon vergelijkingstabel
Windows 7 Experience Index - Win7 Graphics
min: 3.2     gem: 3.4     mediaan: 3.4 (43%)     max: 3.6 Points
+ 2 Meer details   + Toon vergelijkingstabel
Windows Vista Experience Index - Windows Vista Leistungsindex - Grafik (Spiele)
3.8 Points (56%)
+ 1 Meer details   + Toon vergelijkingstabel
Windows Vista Experience Index - Windows Vista Leistungsindex - Grafik
4.1 Points (60%)
+ 1 Meer details   + Toon vergelijkingstabel
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 345     gem: 687     mediaan: 687 (0%)     max: 1010 punten
+ 13 Meer details   + Toon vergelijkingstabel
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
1.1 fps (0%)
+ 1 Meer details   + Toon vergelijkingstabel
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie

Game Benchmarks

De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

Sims 3

Sims 3

2009
lage 800x600
34  fps    + Vergelijk
gem. 1024x768
11.4  fps    + Vergelijk
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
hoge 1024x768
3.5  fps    + Vergelijk
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
F.E.A.R.

F.E.A.R.

2005
lage 640x480
28 40 ~ 34 fps    + Vergelijk
gem. 800x600
12 15 ~ 14 fps    + Vergelijk
hoge 1024x768
5 5 ~ 5 fps    + Vergelijk
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
World of Warcraft

World of Warcraft

2005
lage 800x600
15 29.4 30 ~ 25 fps    + Vergelijk
gem. 1024x768
6 9.9 21 ~ 12 fps    + Vergelijk
hoge 1280x1024
1 4 ~ 3 fps    + Vergelijk
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Counter-Strike Source

Counter-Strike Source

2004
hoge 1024x768
23.6  fps    + Vergelijk
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
hoge 1024x768
59.9 84.5 ~ 72 fps    + Vergelijk
» Met alle geteste laptops speelbaar met hoge instellingen.
lagegem.hogeultraQHD4K
Sims 333.9811.39
Crysis - GPU Benchmark3.49
F.E.A.R.34145
World of Warcraft25123
Counter-Strike Source23.6
Quake 3 Arena - Timedemo72
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		1
2

3


4

1









Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
