Name: GMK NucBox K2
Brand: GMK

De NucBox K2 is de nieuwste mini PC van GMKtec voor thuis en op kantoor. Hoewel de naam doet vermoeden dat hij direct de NucBox K1maar de NucBox K2 is in zijn eigen categorie omdat de K1 zich richt op een andere subset van mini PC-gebruikers.

Onze evaluatie-eenheid is geconfigureerd met de Zen 3+ AMD Ryzen 7 7735HS CPU, geïntegreerde Radeon 680M GPU, 1 TB PCIe3 SSD en 32 GB RAM voor ongeveer 580 USD of slechts 480 USD in de uitverkoop. SKU's met de helft van het ram en de opslag zijn ook beschikbaar en er is er zelfs een met de snellere Zen 4 Ryzen 9 7940HS voor net onder de $800. Er zijn momenteel geen barebone opties.

Alternatieven voor de NucBox 2 zijn andere mini-pc's met geïntegreerde graphics zoals de Lenovo IdeaCentre Mini, Geekom Mini iT13, Trigkey Speed Sof Intel NUC 13 Pro.

Meer GMK beoordelingen:

Zaak - Het eenvoudig houden

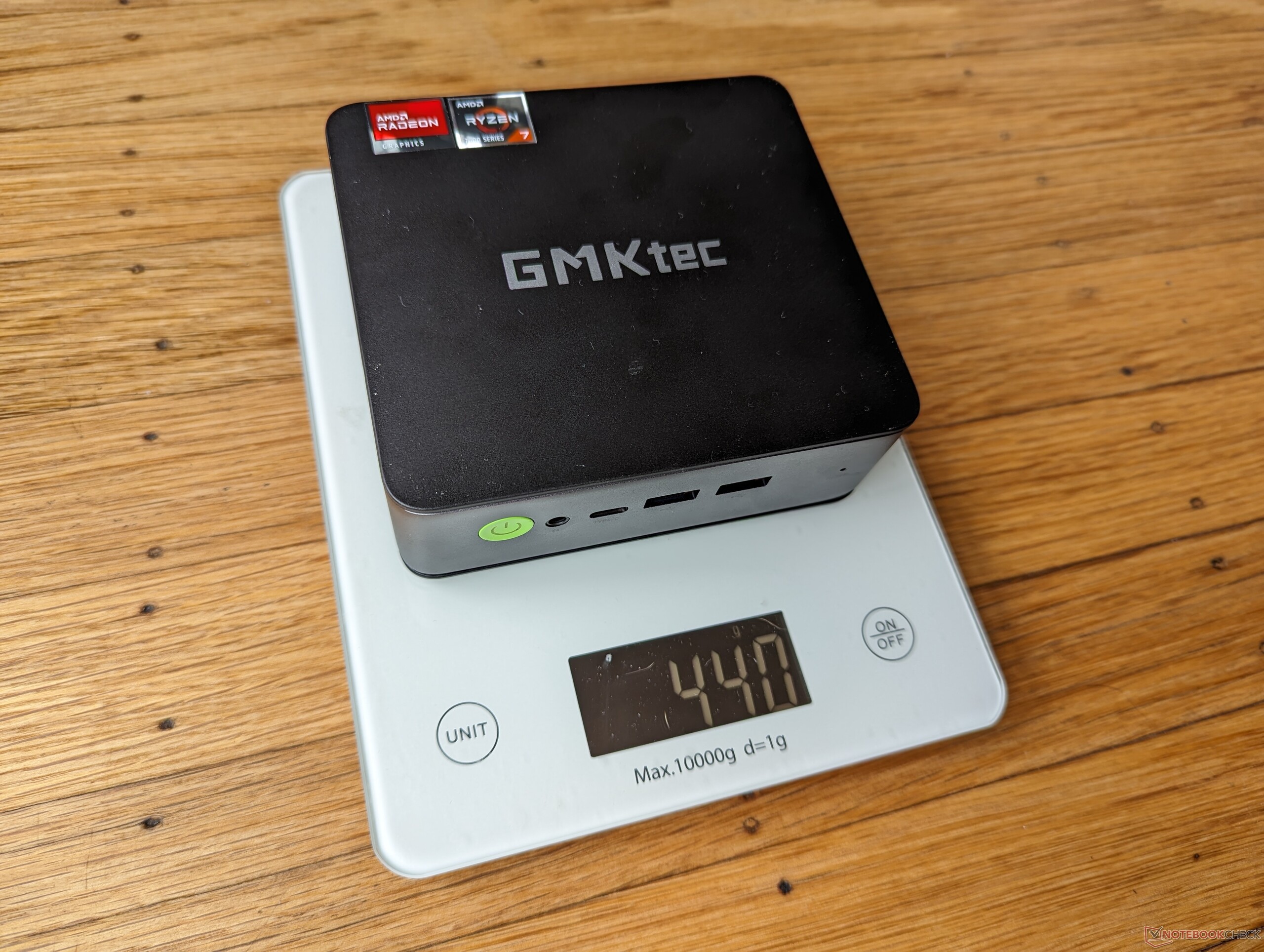

De NucBox K2 is merkbaar lichter dan veel andere mini PC's van vergelijkbare grootte, waaronder de Intel NUC 13 Pro en Geekom Mini IT11. Het nadeel is echter dat de K2 meer plastic gebruikt op de boven- en onderkant, terwijl alleen de zijkanten en randen van metaal zijn. Het volledig matte ontwerp is zeker subtieler dan mini PC's zoals de Beelink SER7 waar het glimmende chroom uiterlijk de aandacht trekt. De stevigheid van het chassis is desondanks erg goed en er waren geen problemen met de bouwkwaliteit van onze specifieke unit.

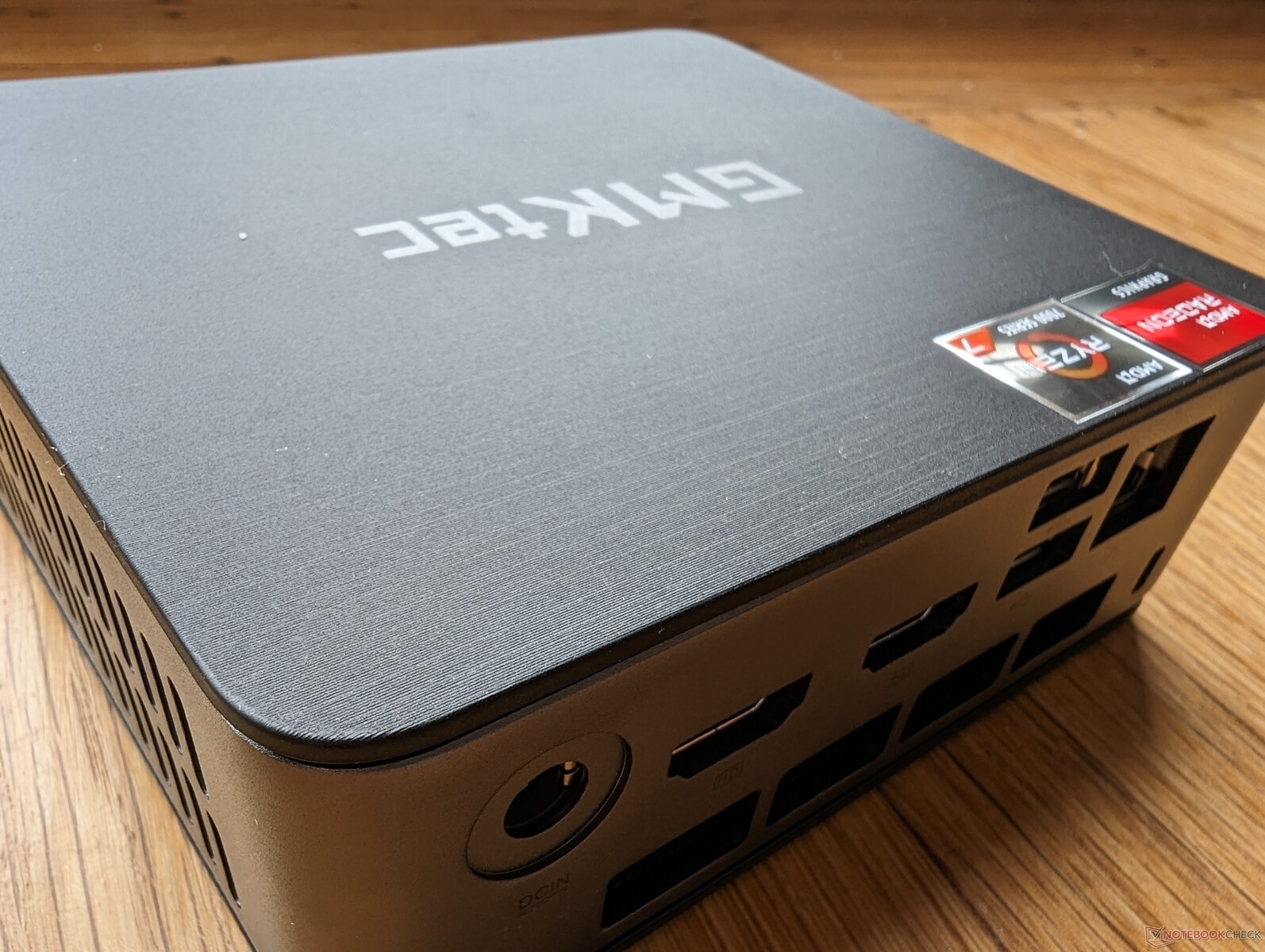

Mat plastic bovenklep zonder mooie metalen ontwerpen

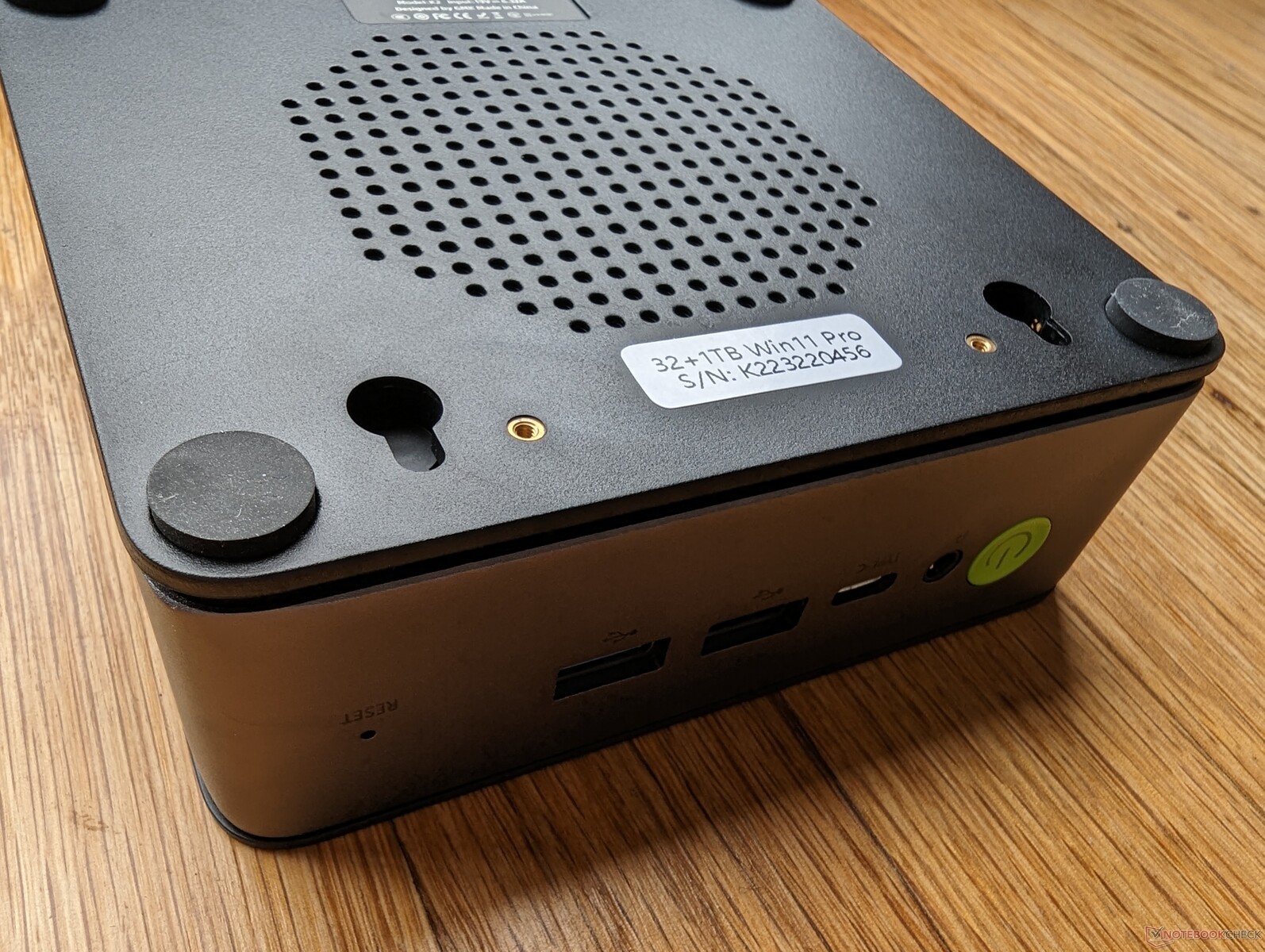

Gaten aan de onderkant van het apparaat voor VESA-montage of gewone muurschroeven

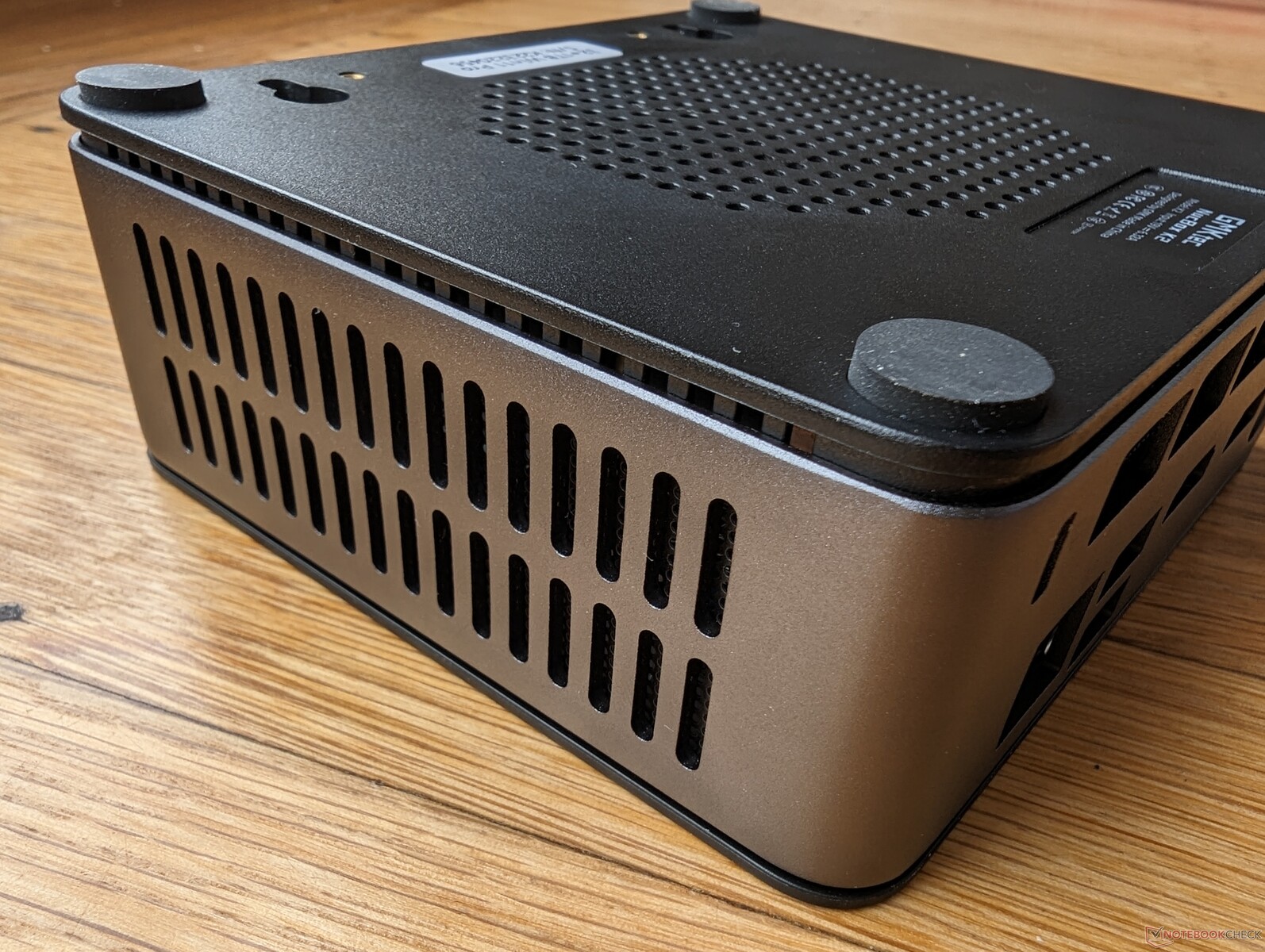

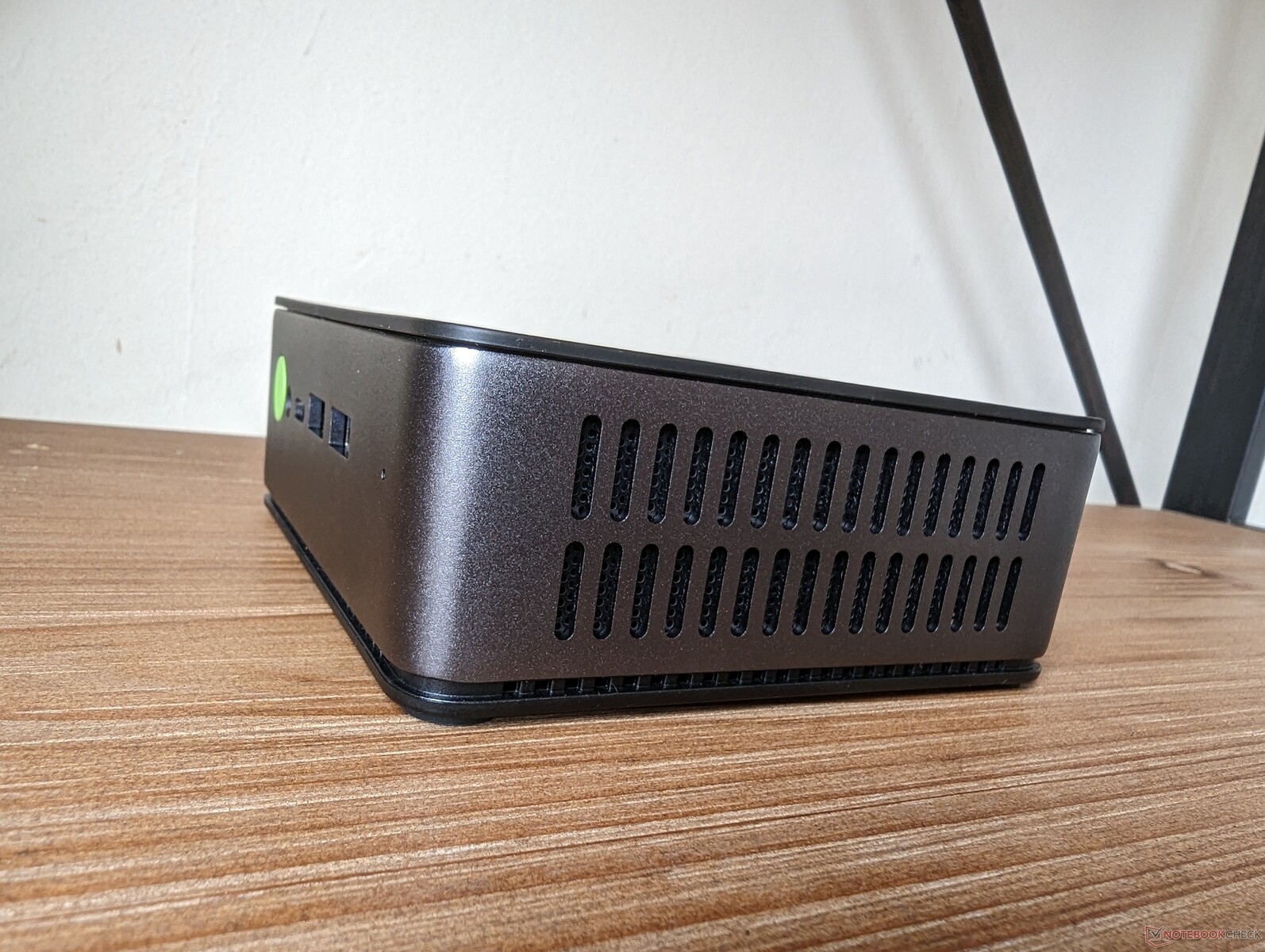

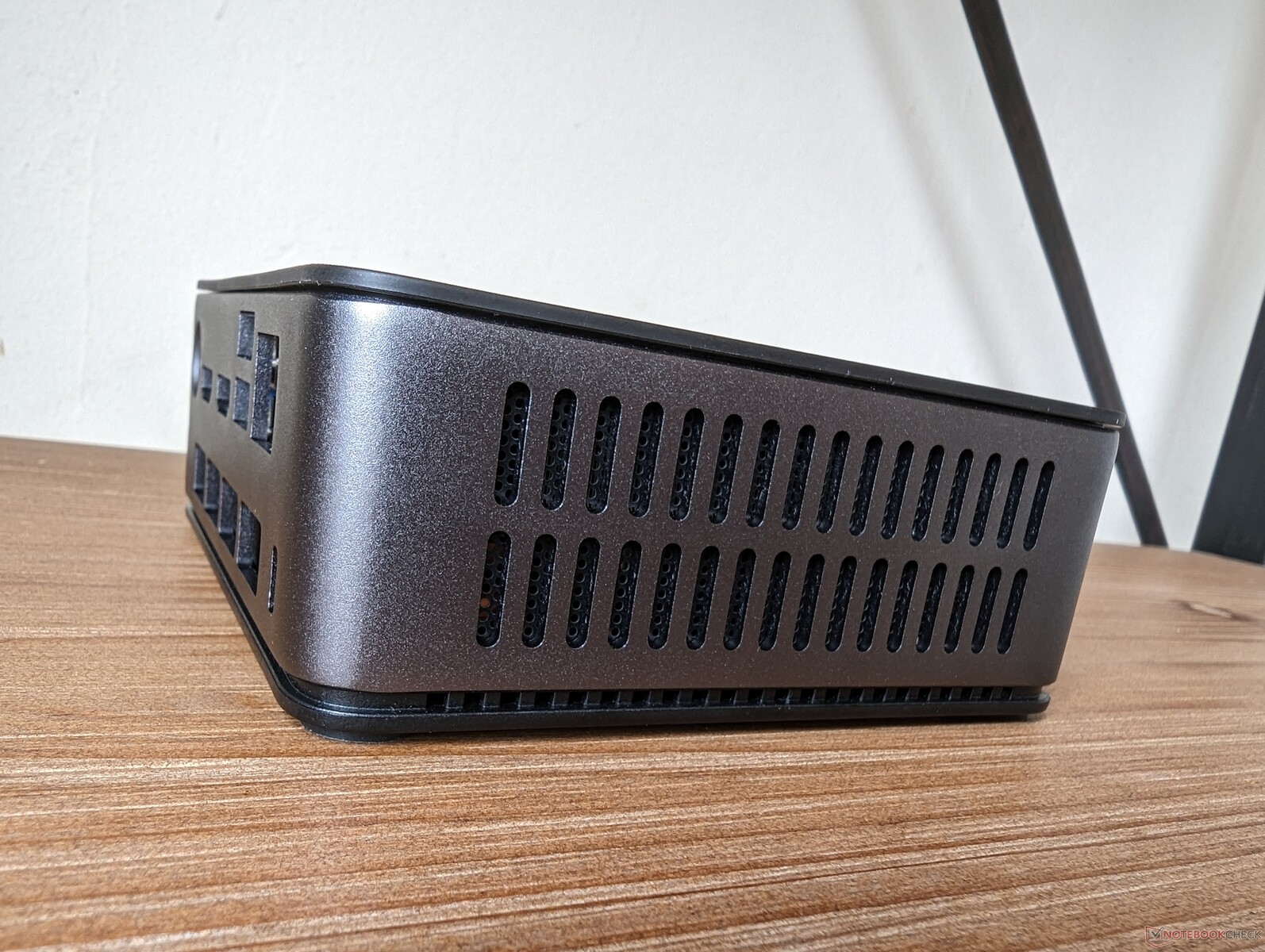

Ventilatieroosters aan de zijkanten en zelfs rond de bodemplaat

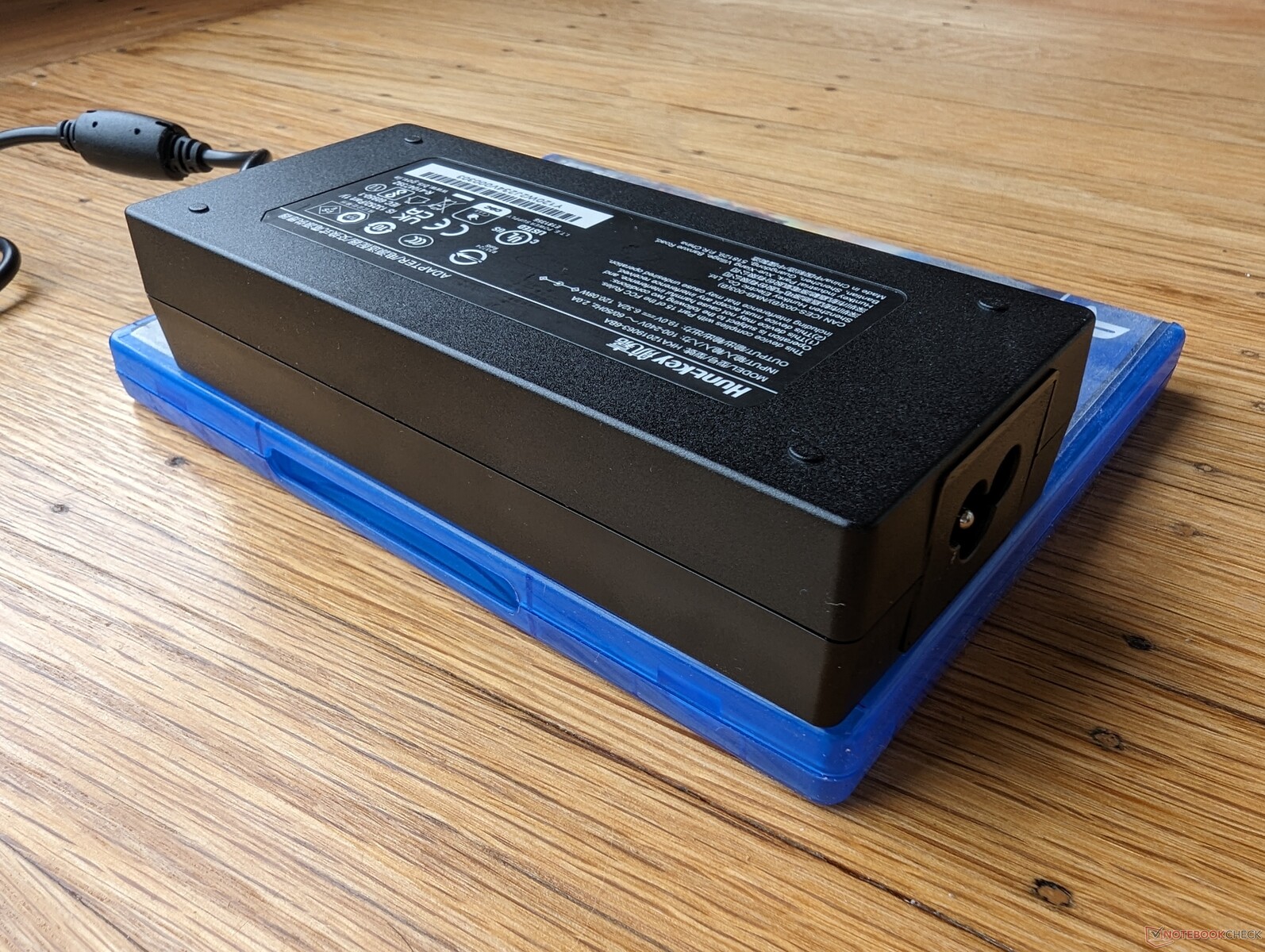

Middelgrote (~14,5 x 6,4 x 3 cm) externe voedingseenheid van 120 W

Vergelijking grootte

GMK NucBox 2 Beelink SER7 Trigkey Speed S GMK NucBox K2 Geekom Mini IT11, i7-11390H Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

Connectiviteit

De meest opvallende poort op de NucBox 2 is zonder twijfel de USB 4 poort. Deze veelzijdige poort kan worden gebruikt voor externe GPU's, externe beeldschermen, docking stations en zelfs AC-adapters van derden, mocht je ooit de meegeleverde voedingsmodule kwijtraken. Helaas is er maar één USB-C poort, in tegenstelling tot de Beelink SER7 die drie USB-C poorten heeft.

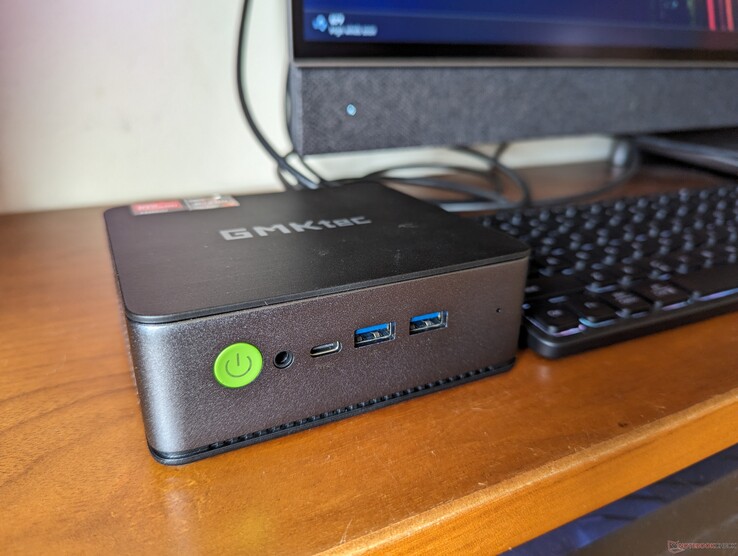

Voorkant: Voeding, 3,5 mm headset, USB-C 4.0 w/ Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

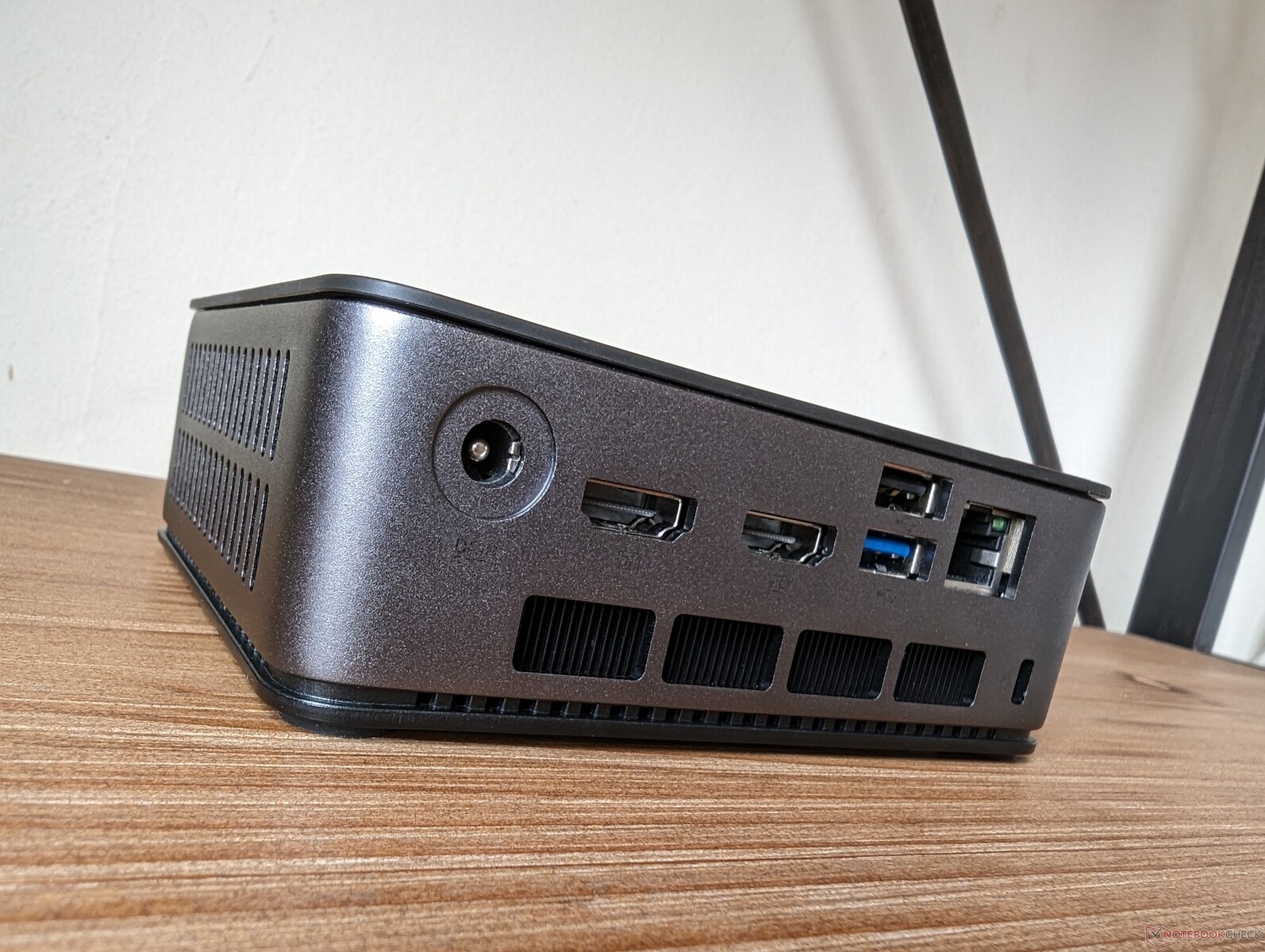

Achterkant: AC-adapter, 2x HDMI 2.1, USB-A 2.0, USB-A 3.2 Gen. 2, 2,5 Gbps RJ-45, Kensington-slot

Communicatie

Een MediaTek RZ608 wordt standaard geleverd voor Wi-Fi 6 en Wi-Fi 6E ondersteuning. Hoewel de verbinding betrouwbaar is, zijn de prestaties langzamer dan verwacht bij koppeling met ons 6 GHz netwerk, zoals hieronder te zien is. Dit suggereert dat de draadloze antennes aan de zwakke kant zijn.

Bluetooth is ook problematisch. Onze Bluetooth muis kon telkens geen verbinding maken, hoewel hij perfect werkte op andere apparaten.

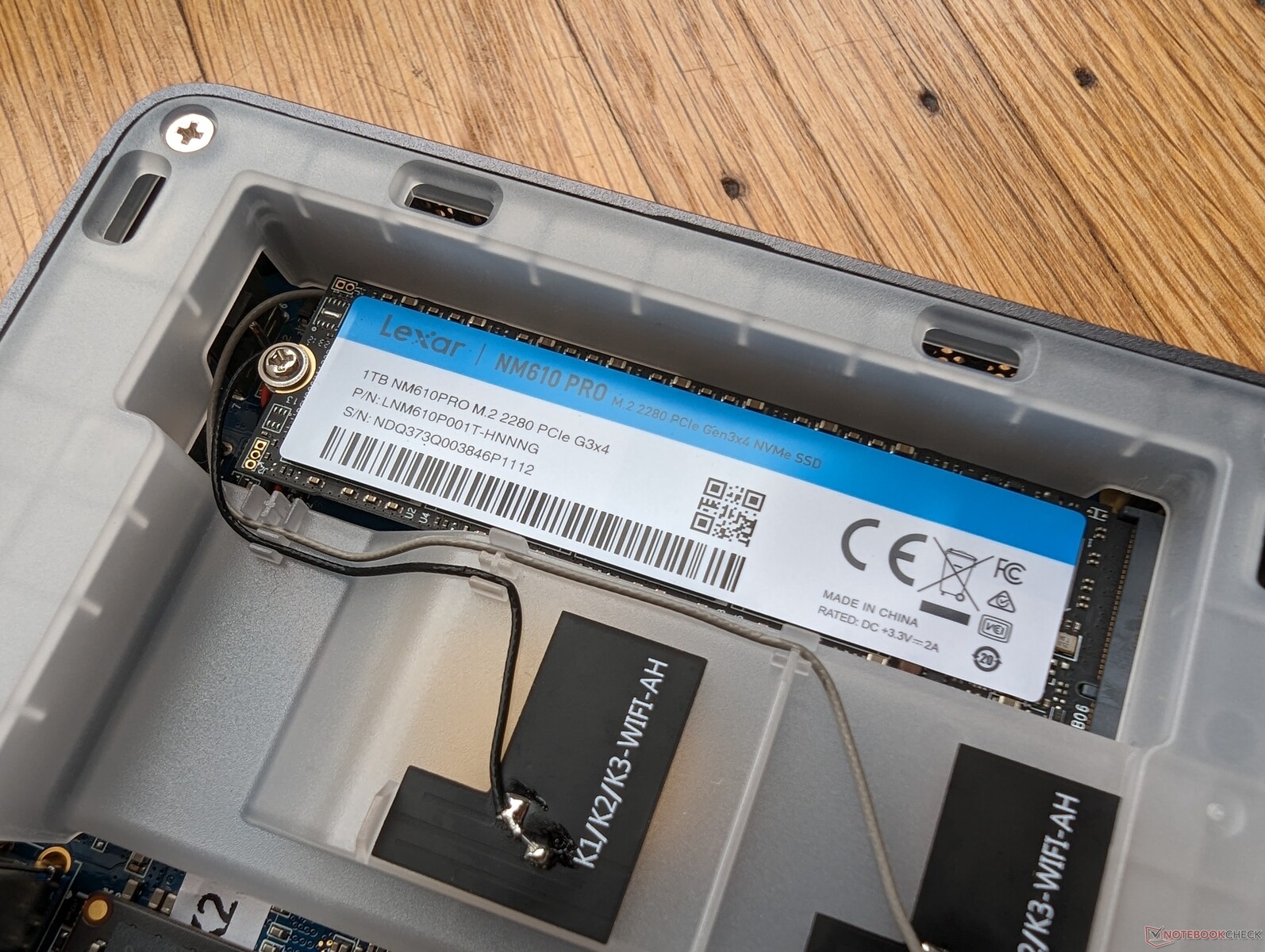

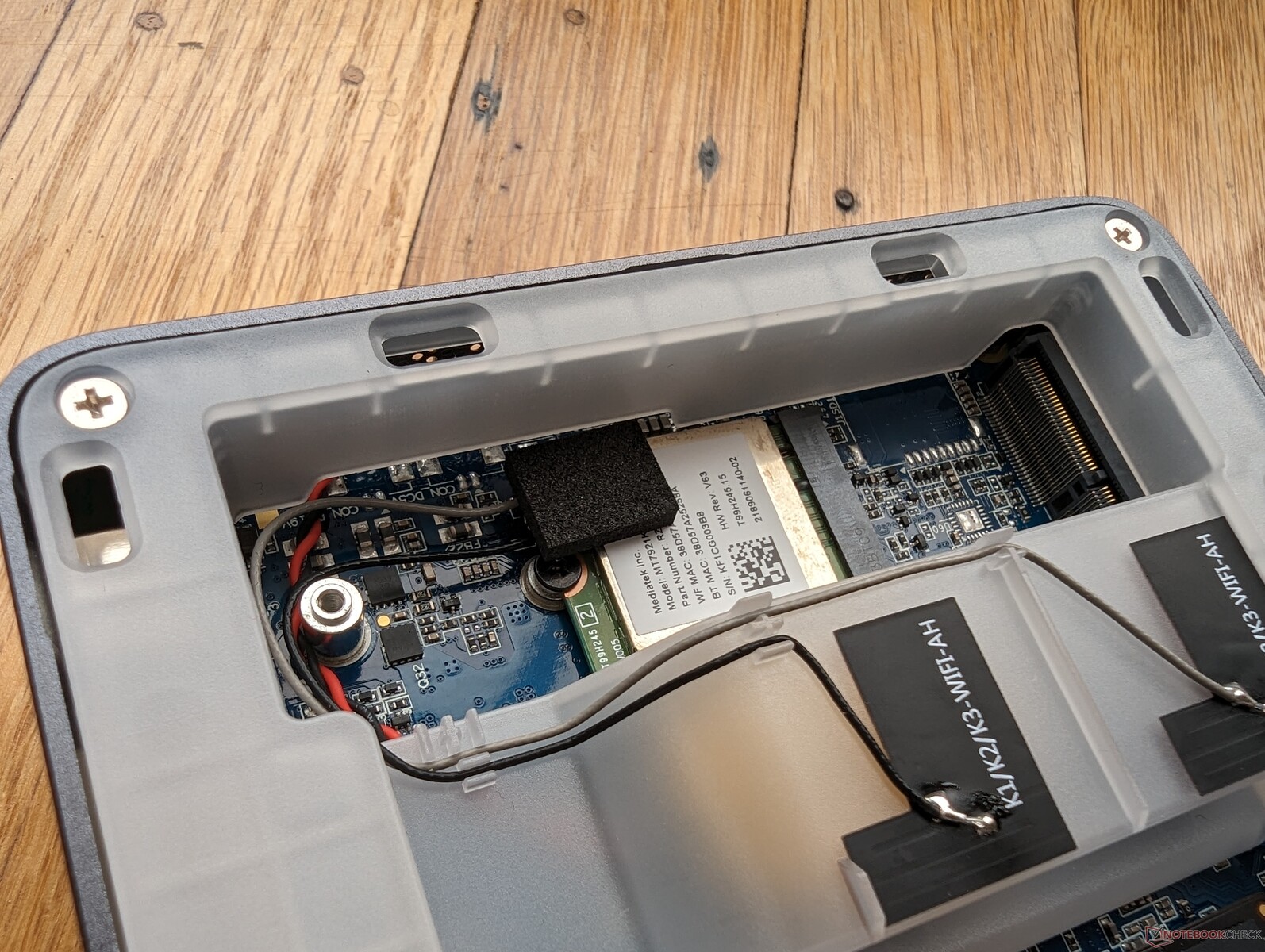

Verwijderbare WLAN module zit onder de primaire M.2 SSD

Networking
iperf3 transmit AX12
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	385 (299^min - 426^max) MBit/s
iperf3 receive AX12
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	625 (346^min - 678^max) MBit/s
iperf3 transmit AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s +53%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +51%
Trigkey Speed S Intel Wi-Fi 6 AX201	1068 (610^min - 1322^max) MBit/s +24%
GMK NucBox K2 MediaTek RZ608	864 (682^min - 951^max) MBit/s
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s -2%
iperf3 receive AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s +38%
Trigkey Speed S Intel Wi-Fi 6 AX201	1163 (815^min - 1422^max) MBit/s +34%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +29%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +11%
GMK NucBox K2 MediaTek RZ608	865 (443^min - 893^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +98%
GMK NucBox K2 MediaTek RZ608	764 (524^min - 875^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +96%
GMK NucBox K2 MediaTek RZ608	739 (709^min - 762^max) MBit/s

GMK NucBox K2; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø764 (524-875)

GMK NucBox K2; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø738 (709-762)

Onderhoud

De NucBox K2 is een van de eenvoudigste mini PC's om te onderhouden, vooral na de Beelink SER7. Het plastic bovenpaneel springt er binnen enkele seconden af zonder gereedschap voor directe toegang tot de 2x SODIMM slots, 1x M.2 SSD en WLAN module. Zelfs de systeemventilator is eenvoudig toegankelijk door het apparaat ondersteboven te draaien, de vier rubberen voetjes te verwijderen en de vier schroeven los te draaien.

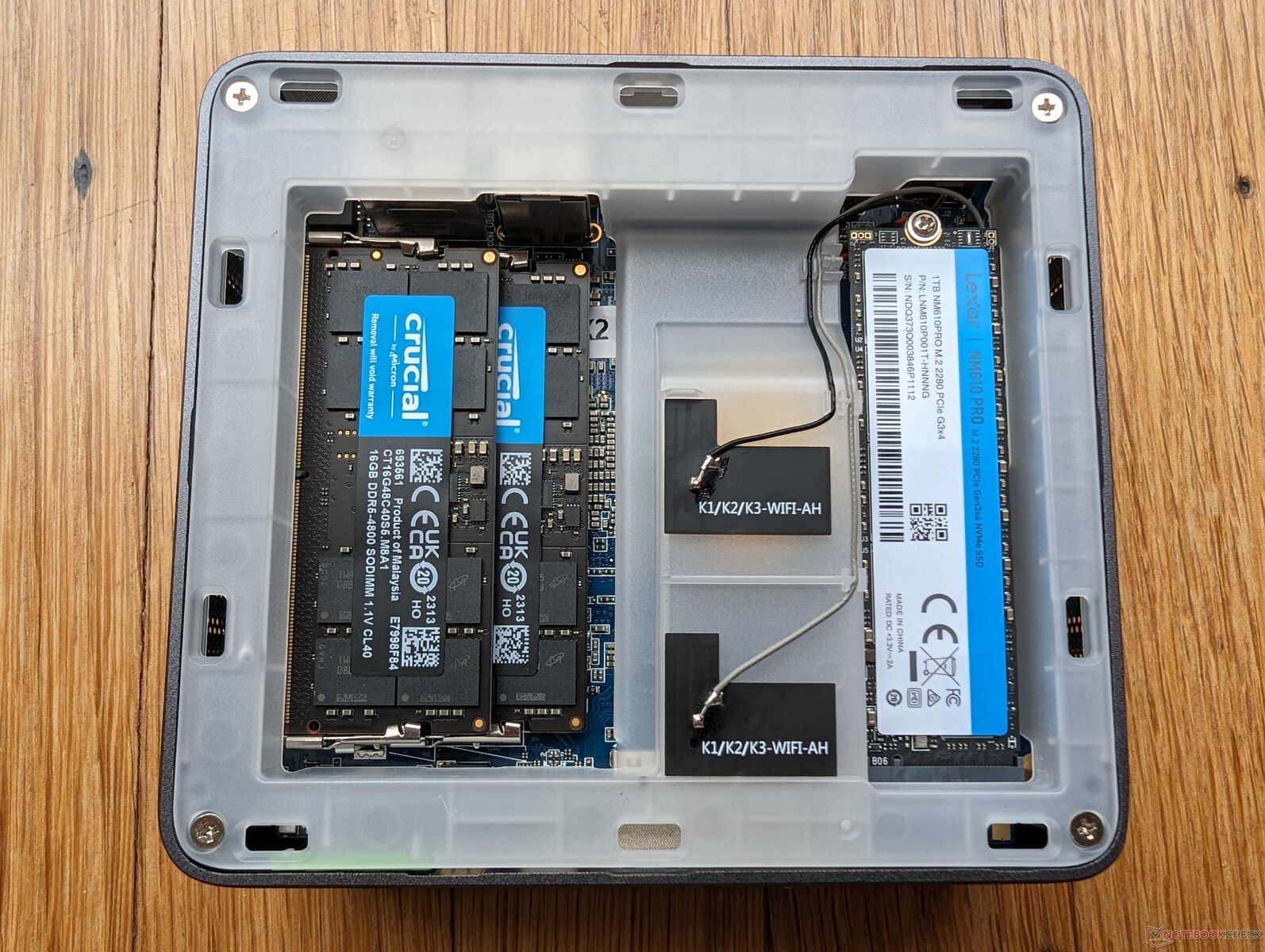

Als u het bovenpaneel verwijdert, worden alle upgradebare onderdelen zichtbaar

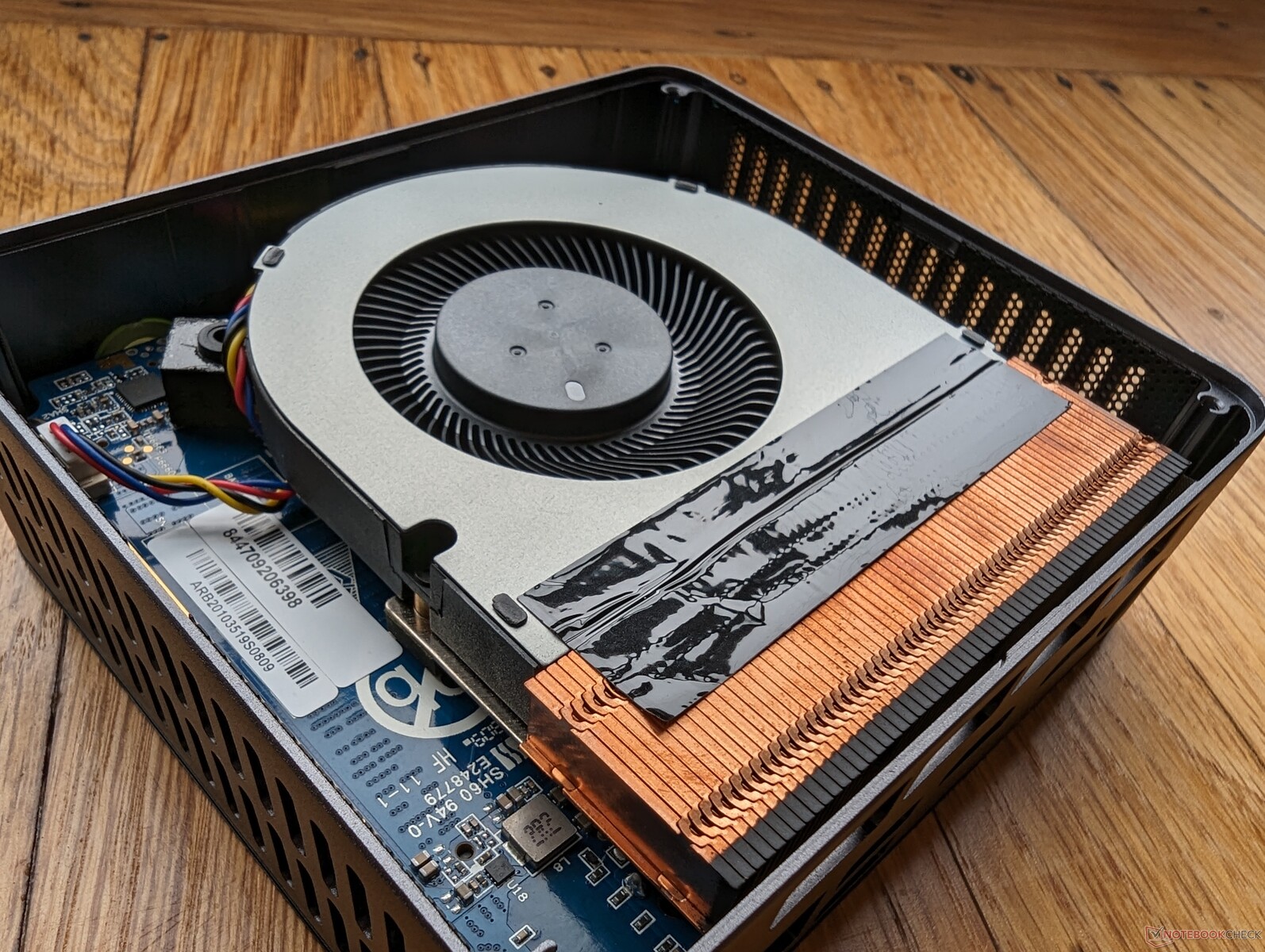

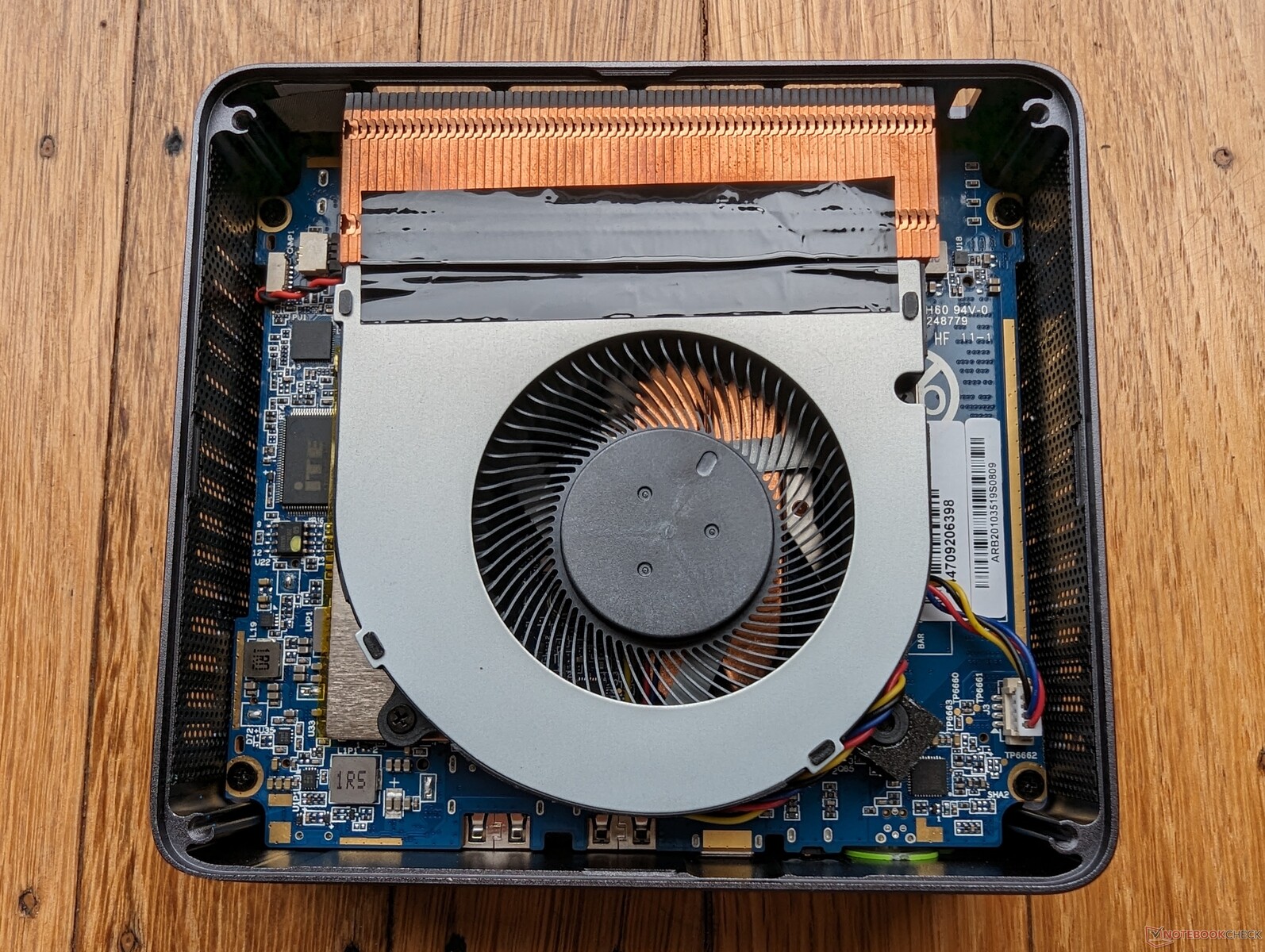

Door het bodempaneel te verwijderen, kan de ventilator van het systeem eenvoudig worden gereinigd

Accessoires en garantie

De verkoopverpakking bevat de handleiding, AC-adapter, HDMI-kabel en verwijderbare VESA-montagebeugel. De standaard beperkte fabrieksgarantie van een jaar is van toepassing bij aankoop in de VS.

Prestaties - Zen 3+ is nog steeds krachtig

Testomstandigheden

We hebben Windows in de prestatiemodus gezet voordat we de onderstaande benchmarks uitvoerden. GMK bevat geen voorgeïnstalleerde control center-toepassingen of bloatware.

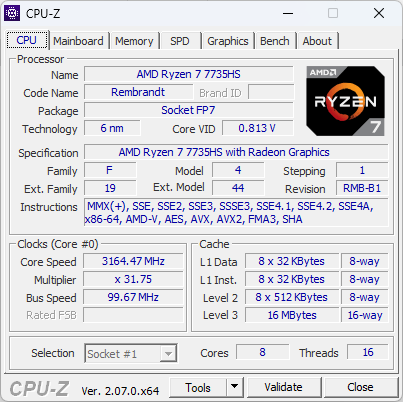

Processor

DeRyzen 7 7735HS is in wezen een rebranded vorige generatie Ryzen 7 6800H vooral omdat ze beide gebaseerd zijn op de Zen 3+ architectuur. Dit wil niet zeggen dat de CPU traag is, maar gebruikers die de nieuwste Zen 4 technologie willen hebben, zullen in plaats daarvan naar de high-end configuratie moeten kijken met de Ryzen 9 7940HS die tot 45 tot 50 procent snellere multi-thread prestaties kan bieden ten opzichte van onze Ryzen 7 unit.

De algehele prestaties zijn ongeveer 30 procent langzamer dan de 12e generatie Core i7-12700H die vaak wordt gebruikt in krachtige gaminglaptops en mini-pc's zoals de Intel NUC 12 Serpent Canyon.

Cinebench R15 Multi Loop

GMK NucBox K2 AMD Ryzen 7 7735HS: Ø1907 (1875.64-1972)

GMK NucBox 2 Intel Core i5-8259U: Ø612 (608.07-614.94)

Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H: Ø946 (931.81-953.22)

Trigkey Speed S Intel Core i5-11320H: Ø854 (839.91-860.88)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	88.8 pt
Beelink SER7 AMD Ryzen 7 7840HS	87.8 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	82.9 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	76.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	75.2 pt
Beelink GTR6 AMD Ryzen 9 6900HX	73 pt
Gemiddeld AMD Ryzen 7 7735HS	72.2 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	70.8 pt
Beelink SER6 Pro AMD Ryzen 7 6800H	69.6 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	65.3 pt
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	55.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	52.6 pt
Trigkey Speed S Intel Core i5-11320H	48.6 pt
GMK NucBox 2 Intel Core i5-8259U	29.6 pt

Cinebench R23 / Multi Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +47%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	16674 Points +44%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +39%
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points +17%
Gemiddeld AMD Ryzen 7 7735HS (11072 - 14131, n=12)	13103 Points +13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +5%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	11171 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -49%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -51%
GMK NucBox 2 Intel Core i5-8259U	3728 (3687.99^min - 3727.55^max) Points -68%

Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1801 Points +20%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points +18%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +18%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points +7%
Gemiddeld AMD Ryzen 7 7735HS (1288 - 1570, n=12)	1524 Points +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points 0%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1506 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points
Trigkey Speed S Intel Core i5-11320H	1465 Points -2%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points -9%
GMK NucBox 2 Intel Core i5-8259U	973 Points -35%

Cinebench R20 / CPU (Multi Core)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +46%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	6459 Points +42%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +40%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points +13%
Gemiddeld AMD Ryzen 7 7735HS (4339 - 5502, n=12)	5080 Points +12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +3%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	4386 Points -3%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points -32%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -50%
Trigkey Speed S Intel Core i5-11320H	2216 Points -51%
GMK NucBox 2 Intel Core i5-8259U	1432 Points -68%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points +20%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +18%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	692 Points +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points +16%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points +5%
Gemiddeld AMD Ryzen 7 7735HS (502 - 613, n=12)	595 Points +1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	592 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -1%
Trigkey Speed S Intel Core i5-11320H	567 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points -10%
GMK NucBox 2 Intel Core i5-8259U	382 Points -35%

Cinebench R15 / CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	2632 Points +33%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +30%
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +17%
Gemiddeld AMD Ryzen 7 7735HS (1795 - 2355, n=14)	2166 Points +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1837 Points -7%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -52%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -56%
GMK NucBox 2 Intel Core i5-8259U	615 (608.07^min - 614.94^max) Points -69%

Cinebench R15 / CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +16%
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +9%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	259 Points +6%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points +5%
Gemiddeld AMD Ryzen 7 7735HS (206 - 255, n=13)	245 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	243 Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points -5%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points -9%
Trigkey Speed S Intel Core i5-11320H	215 Points -12%
GMK NucBox 2 Intel Core i5-8259U	151 Points -38%

Blender / v2.79 BMW27 CPU
GMK NucBox 2 Intel Core i5-8259U	755 Seconds * -192%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -110%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -98%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	282 Seconds * -9%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * -0%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds *
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +1%
Gemiddeld AMD Ryzen 7 7735HS (214 - 279, n=12)	238 Seconds * +8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	198 Seconds * +24%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +24%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +27%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +21%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	64403 MIPS +11%
Gemiddeld AMD Ryzen 7 7735HS (48327 - 63698, n=12)	59032 MIPS +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS -9%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	52046 MIPS -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -11%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -55%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -57%
GMK NucBox 2 Intel Core i5-8259U	18802 MIPS -67%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +15%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	5972 MIPS +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -2%
Gemiddeld AMD Ryzen 7 7735HS (4779 - 5849, n=12)	5676 MIPS -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	5433 MIPS -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS -7%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -12%
GMK NucBox 2 Intel Core i5-8259U	3951 MIPS -32%

Geekbench 5.5 / Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +23%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +22%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	10126 Points +7%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points
Gemiddeld AMD Ryzen 7 7735HS (7368 - 10258, n=12)	9394 Points 0%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	7986 Points -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points -35%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -46%
Trigkey Speed S Intel Core i5-11320H	4927 Points -48%
GMK NucBox 2 Intel Core i5-8259U	3359 Points -64%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +27%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points +7%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +6%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1590 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -1%
Gemiddeld AMD Ryzen 7 7735HS (1327 - 1615, n=12)	1541 Points -1%
Trigkey Speed S Intel Core i5-11320H	1523 Points -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1499 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points -8%
GMK NucBox 2 Intel Core i5-8259U	984 Points -37%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +37%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	18.7 fps +24%
Gemiddeld AMD Ryzen 7 7735HS (12.7 - 17.9, n=12)	16.3 fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -8%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	13.3 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -50%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -52%
GMK NucBox 2 Intel Core i5-8259U	5.37 fps -64%

LibreOffice / 20 Documents To PDF
GMK NucBox 2 Intel Core i5-8259U	63.6 s * -38%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	60.2 s * -31%
Gemiddeld AMD Ryzen 7 7735HS (44.3 - 63.9, n=12)	53.9 s * -17%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -1%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -0%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s *
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	44.9 s * +2%
Trigkey Speed S Intel Core i5-11320H	44 s * +4%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * +4%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +14%

R Benchmark 2.5 / Overall mean
GMK NucBox 2 Intel Core i5-8259U	0.786 sec * -60%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * -10%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * -8%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	0.525 sec * -7%
Gemiddeld AMD Ryzen 7 7735HS (0.4822 - 0.585, n=12)	0.504 sec * -2%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -1%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec *
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	0.4643 sec * +6%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +9%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +15%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... kleiner is beter

Performance Rating
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	100 pt
Gemiddeld AMD Ryzen 7 7735HS	73.6 pt
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	71.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	55.5 pt
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	37.4 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	35.6 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s +93%
Gemiddeld AMD Ryzen 7 7735HS (12718 - 17161, n=13)	15187 KRay/s +14%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	13337 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	6976 KRay/s -48%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -50%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -94%

AIDA64 / FPU Julia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points +29%
Gemiddeld AMD Ryzen 7 7735HS (81722 - 105483, n=13)	95077 Points +12%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	84934 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -33%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	30000 Points -65%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -67%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -95%

AIDA64 / CPU SHA3
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s +61%
Gemiddeld AMD Ryzen 7 7735HS (2818 - 3494, n=13)	3226 MB/s +9%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	2969 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -10%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	1979 MB/s -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -38%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -90%

AIDA64 / CPU Queen
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points +18%
Gemiddeld AMD Ryzen 7 7735HS (90101 - 108729, n=13)	100876 Points +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	95223 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -48%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	48734 Points -49%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -91%

AIDA64 / FPU SinJulia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points +20%
Gemiddeld AMD Ryzen 7 7735HS (11441 - 13097, n=13)	12501 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	12254 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -41%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	4826 Points -61%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -63%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -97%

AIDA64 / FPU Mandel
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points +26%
Gemiddeld AMD Ryzen 7 7735HS (44756 - 58232, n=13)	52240 Points +12%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	46670 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -40%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	17951 Points -62%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -64%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -96%

AIDA64 / CPU AES
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s +34%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	120363 MB/s
Gemiddeld AMD Ryzen 7 7735HS (49927 - 137629, n=13)	84134 MB/s -30%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	68595 MB/s -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -56%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -93%

AIDA64 / CPU ZLib
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s +26%
Gemiddeld AMD Ryzen 7 7735HS (651 - 906, n=13)	804 MB/s +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	751 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -50%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	362 MB/s -52%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -90%

AIDA64 / FP64 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s +95%
Gemiddeld AMD Ryzen 7 7735HS (1459 - 9094, n=13)	7511 KRay/s +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	7123 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	3761 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -49%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -94%

AIDA64 / CPU PhotoWorxx
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s +36%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	30200 MPixel/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -3%
Gemiddeld AMD Ryzen 7 7735HS (19153 - 30542, n=13)	27840 MPixel/s -8%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	25970 MPixel/s -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -16%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -78%

Systeemprestaties

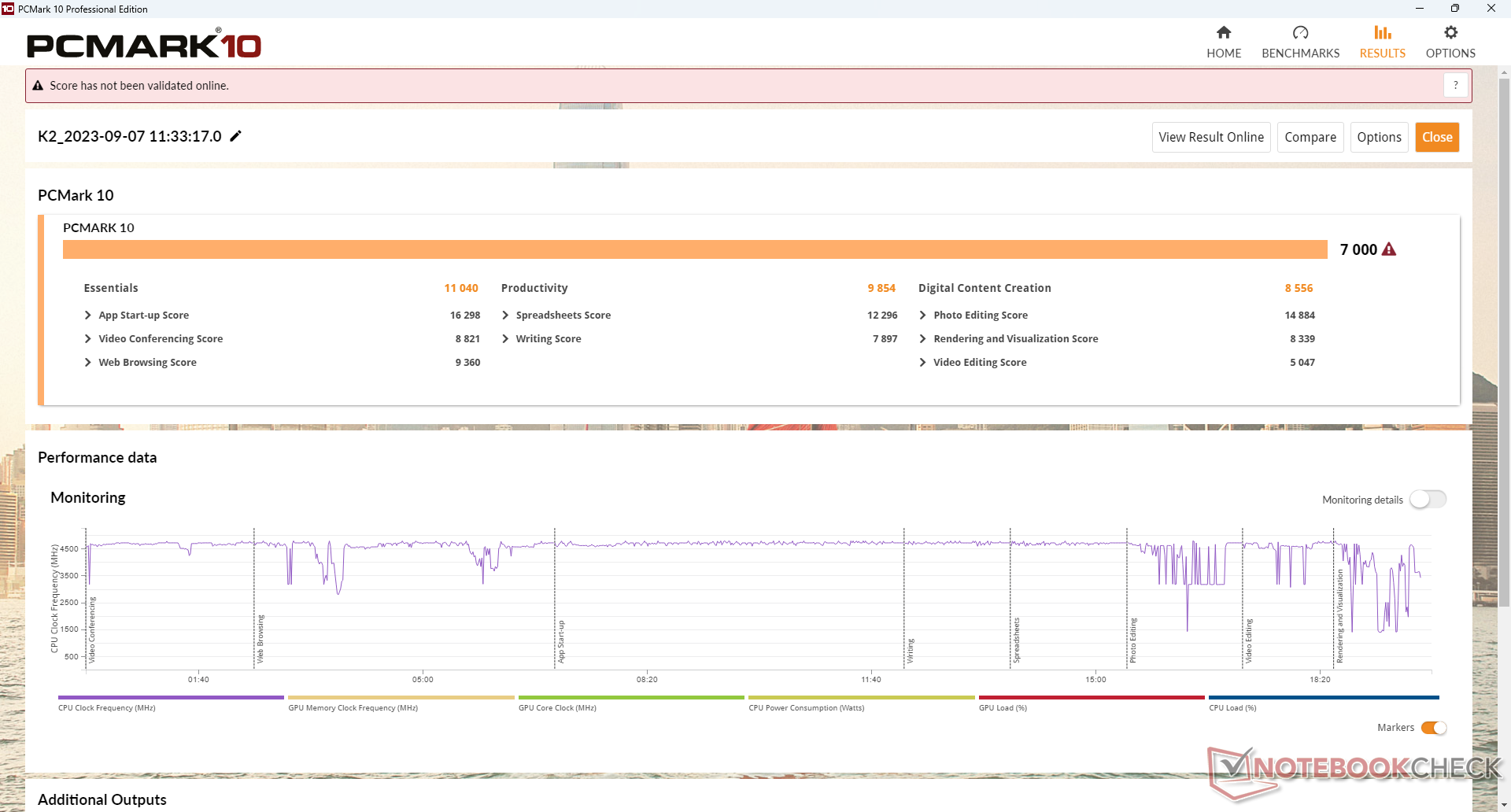

PCMark scores zijn uitstekend met resultaten die sneller zijn dan de meeste andere mini PC's met 12e generatie of oudere Intel CPU's. Vooral de Digital Content Creation score is opmerkelijk omdat de Radeon 680M rondjes kan lopen om de Iris Xe serie.

PCMark 10 / Score
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7225 Points +3%
Gemiddeld AMD Ryzen 7 7735HS (5722 - 7916, n=13)	7022 Points 0%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	7000 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -16%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5302 Points -24%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -30%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	4132 Points -41%

PCMark 10 / Essentials
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	11040 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points 0%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10819 Points -2%
Gemiddeld AMD Ryzen 7 7735HS (9933 - 11124, n=13)	10636 Points -4%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	10558 Points -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -13%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	8351 Points -24%

PCMark 10 / Productivity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10452 Points +6%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	9854 Points
Gemiddeld AMD Ryzen 7 7735HS (8077 - 9862, n=13)	9251 Points -6%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	6963 Points -29%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -31%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -33%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	6348 Points -36%

PCMark 10 / Digital Content Creation
Gemiddeld AMD Ryzen 7 7735HS (5798 - 12699, n=13)	9663 Points +13%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9052 Points +6%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	8556 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -11%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5502 Points -36%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4916 Points -43%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	3613 Points -58%

CrossMark / Overall
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1700 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1655 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -4%
Gemiddeld AMD Ryzen 7 7735HS (1361 - 1736, n=9)	1577 Points -5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -13%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1371 Points -17%

CrossMark / Productivity
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1641 Points
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1621 Points -1%
Gemiddeld AMD Ryzen 7 7735HS (1308 - 1730, n=9)	1566 Points -5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -7%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1456 Points -11%

CrossMark / Creativity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1953 Points +14%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1720 Points
Gemiddeld AMD Ryzen 7 7735HS (1376 - 1785, n=9)	1652 Points -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -21%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1255 Points -27%

CrossMark / Responsiveness
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1515 Points
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1494 Points -1%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -5%
Gemiddeld AMD Ryzen 7 7735HS (1108 - 1704, n=9)	1411 Points -7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -13%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1293 Points -15%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	69325 MB/s +35%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51223 MB/s
Gemiddeld AMD Ryzen 7 7735HS (30324 - 52012, n=13)	48412 MB/s -5%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	48099 MB/s -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -18%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	41310 MB/s -19%

AIDA64 / Memory Read
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	61911 MB/s +20%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51734 MB/s
Gemiddeld AMD Ryzen 7 7735HS (33938 - 51856, n=13)	48582 MB/s -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s -9%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46709 MB/s -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -13%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	38017 MB/s -27%

AIDA64 / Memory Write
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	87358 MB/s +58%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	55242 MB/s
Gemiddeld AMD Ryzen 7 7735HS (33175 - 55284, n=13)	52789 MB/s -4%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	51980 MB/s -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s -15%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46778 MB/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -17%

AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -17%
Gemiddeld AMD Ryzen 7 7735HS (78.2 - 109.7, n=13)	88.2 ns * -7%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * -4%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	82.1 ns *
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	77.6 ns * +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +19%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	55.6 ns * +32%

* ... kleiner is beter

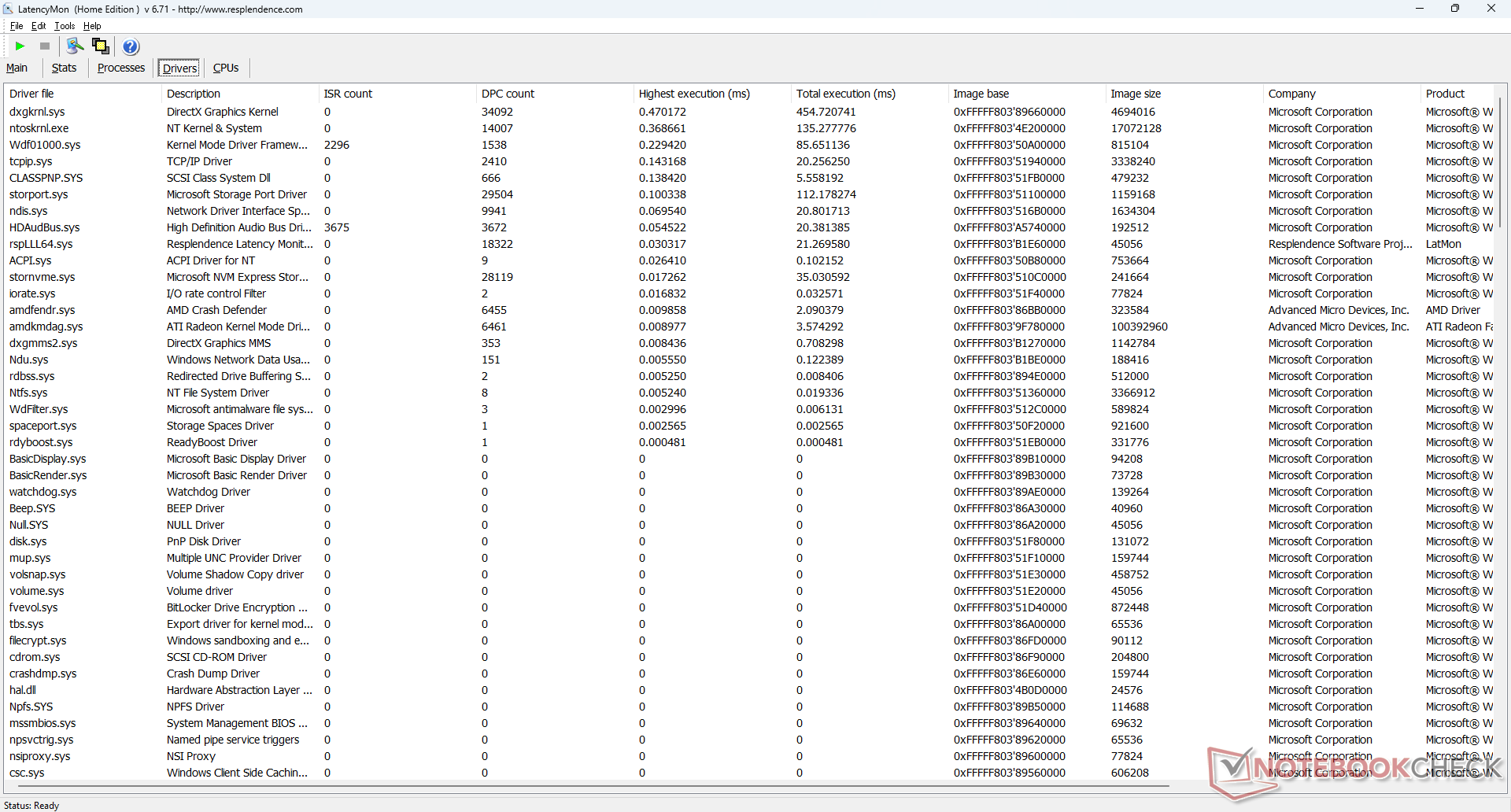

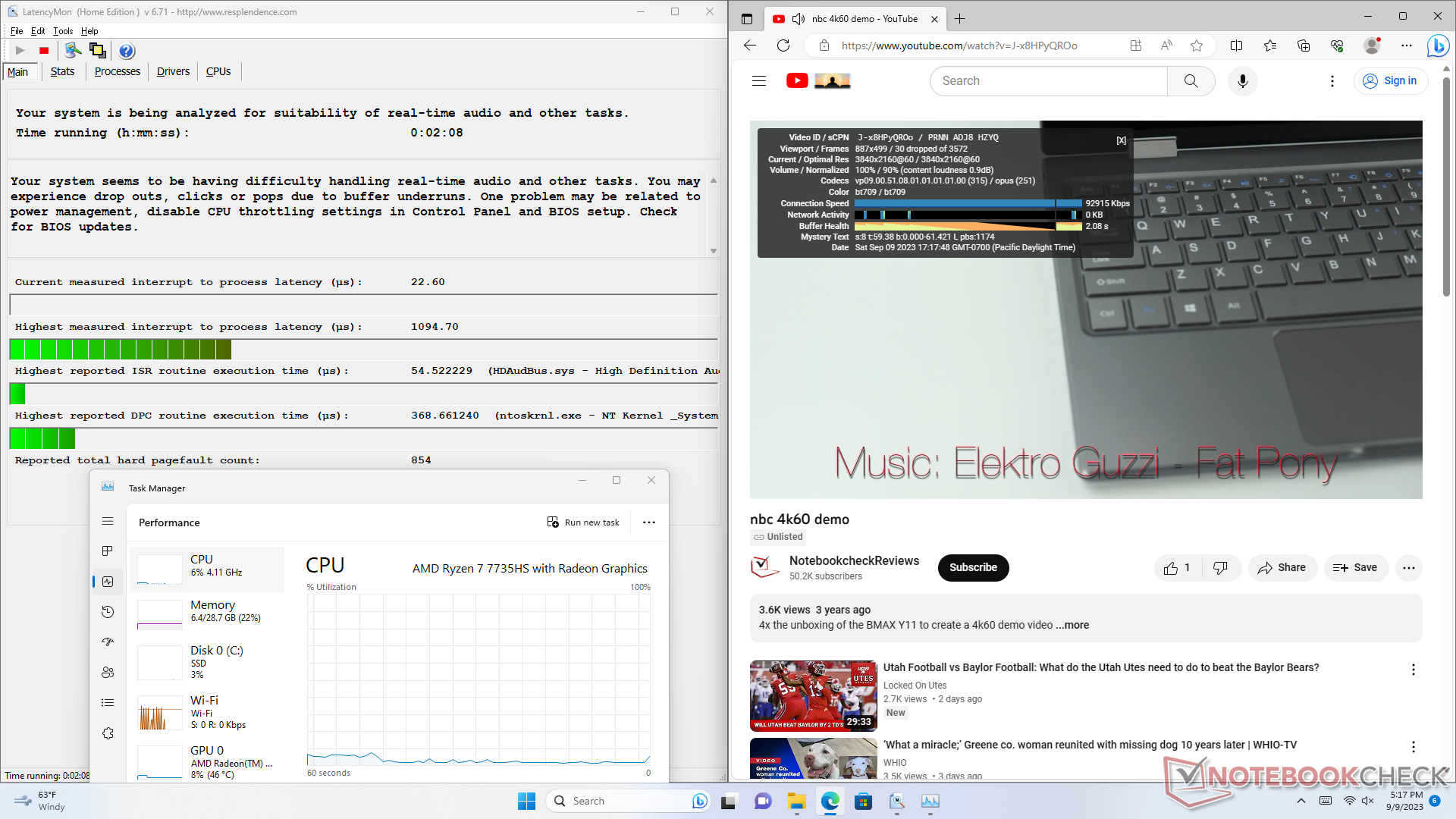

DPC latentie

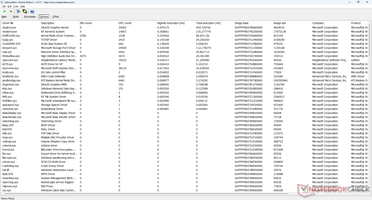

LatencyMon laat kleine DPC-problemen zien bij het openen van meerdere browsertabbladen van onze startpagina. het afspelen van 4K-video met 60 FPS vertoont problemen, aangezien we 30 dropped frames binnen een tijdsbestek van een minuut kunnen registreren. Het stotteren wijst op een mogelijk probleem met het AMD stuurprogramma dat moet worden aangepakt.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1455.4 μs * -33%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1094.7 μs *
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +2%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	786 μs * +28%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	647.9 μs * +41%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +57%

* ... kleiner is beter

Opslagapparaten

Het model wordt geleverd met een midrange PCIe3 x4 Lexar NM610 Pro die hogere maximale overdrachtsnelheden biedt dan de gewone NM610 niet-Pro versie (3300 MB/s vs. 2100 MB/s). Duurdere PCIe4-modellen zoals de Samsung PM9A1 worden ondersteund voor maximaal 2x de prestaties, maar throttling kan een probleem zijn omdat er geen extra koeling voor de schijf is.

Slechts één M.2 2280-sleuf zonder secundaire opties

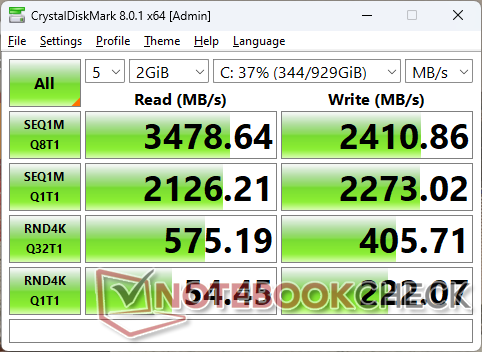

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3483 MB/s

CDM 5/6 Write Seq Q32T1: 2362 MB/s

CDM 5/6 Read 4K Q32T1: 569.9 MB/s

CDM 5/6 Write 4K Q32T1: 410.1 MB/s

CDM 5 Read Seq: 2029 MB/s

CDM 5 Write Seq: 2288 MB/s

CDM 5/6 Read 4K: 53.97 MB/s

CDM 5/6 Write 4K: 218.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	80.6 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	62.7 pt
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	61.1 pt
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	58.6 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	53.9 pt
GMK NucBox 2 Netac S930E8/256GPN	35.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +57%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s +28%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2433 (2411.3^min - 2433.16^max) MB/s +14%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2129 (2045.25^min - 2129.3^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -21%
GMK NucBox 2 Netac S930E8/256GPN	1566 (1557.38^min - 1565.96^max) MB/s -26%
seq write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s +56%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +5%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2180 (2126.36^min - 2180.16^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1625 (1475.57^min - 1625.19^max) MB/s -25%
GMK NucBox 2 Netac S930E8/256GPN	1213 (454.38^min - 1213.29^max) MB/s -44%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +59%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s +43%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	3411 (3096.44^min - 3410.5^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2909 (2628.77^min - 2908.96^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -35%
GMK NucBox 2 Netac S930E8/256GPN	2121 (1959.37^min - 2121.01^max) MB/s -38%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +108%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +5%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2378 (2283.33^min - 2377.68^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1621 (1610.27^min - 1621.2^max) MB/s -32%
GMK NucBox 2 Netac S930E8/256GPN	1248 (414.41^min - 1248.45^max) MB/s -48%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s -69%
4k q1 t1 read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	86.1 (85.71^min - 86.12^max) MB/s +66%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +63%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	51.8 (50.1^min - 51.75^max) MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -26%
GMK NucBox 2 Netac S930E8/256GPN	29.4 (21.8^min - 29.38^max) MB/s -43%
4k q1 t1 write
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	260 (257.62^min - 260.21^max) MB/s +23%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	212 (203.51^min - 212.25^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	156 (133.05^min - 156.14^max) MB/s -26%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -32%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s -34%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -43%
4k q32 t16 read
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s +84%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1530 (1528.13^min - 1529.56^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -47%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -58%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	474 (472.39^min - 473.68^max) MB/s -69%
GMK NucBox 2 Netac S930E8/256GPN	331 (329.92^min - 330.85^max) MB/s -78%
4k q32 t16 write
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1258 (1245.8^min - 1257.91^max) MB/s +50%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s +28%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	836 (794.23^min - 835.97^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	739 (122.91^min - 738.54^max) MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -46%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -79%

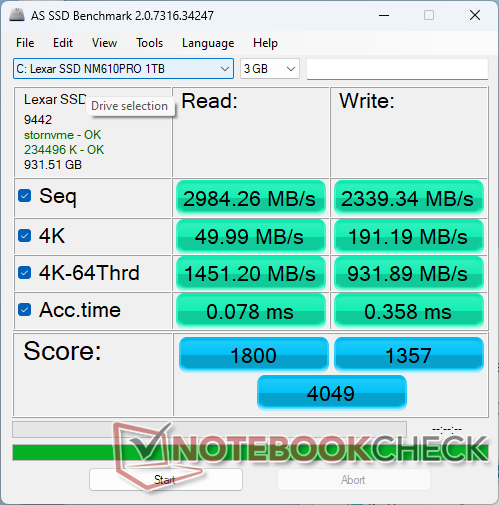

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +30%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	4049 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points -4%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points -35%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2595 Points -36%
GMK NucBox 2 Netac S930E8/256GPN	1497 Points -63%
Score Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1800 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points -16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -27%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points -32%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	792 Points -56%
GMK NucBox 2 Netac S930E8/256GPN	615 Points -66%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +145%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points +20%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1442 Points +6%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1357 Points
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points -41%
GMK NucBox 2 Netac S930E8/256GPN	598 Points -56%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +52%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s +31%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2984.26 MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2714.84 MB/s -9%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -24%
GMK NucBox 2 Netac S930E8/256GPN	2069 MB/s -31%
Seq Write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s +45%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +15%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2339.34 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -44%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1287.68 MB/s -45%
GMK NucBox 2 Netac S930E8/256GPN	1203 MB/s -49%
4K Read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	73.17 MB/s +46%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +44%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s +27%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	49.99 MB/s
GMK NucBox 2 Netac S930E8/256GPN	41.66 MB/s -17%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s -25%
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +18%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	219.46 MB/s +15%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	191.19 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -13%
GMK NucBox 2 Netac S930E8/256GPN	136.9 MB/s -28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s -32%
4K-64 Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1451.2 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s -16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -45%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s -46%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	447.15 MB/s -69%
GMK NucBox 2 Netac S930E8/256GPN	366.3 MB/s -75%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +210%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s +37%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1094.27 MB/s +17%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	931.89 MB/s
GMK NucBox 2 Netac S930E8/256GPN	340.5 MB/s -63%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s -64%
Access Time Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -28%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.083 ms * -6%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.078 ms *
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms * +15%
GMK NucBox 2 Netac S930E8/256GPN	0.064 ms * +18%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +23%
Access Time Write
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.358 ms *
GMK NucBox 2 Netac S930E8/256GPN	0.347 ms * +3%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.102 ms * +72%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +76%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +79%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +93%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K2: Ø3162 (1744.33-3330.86)

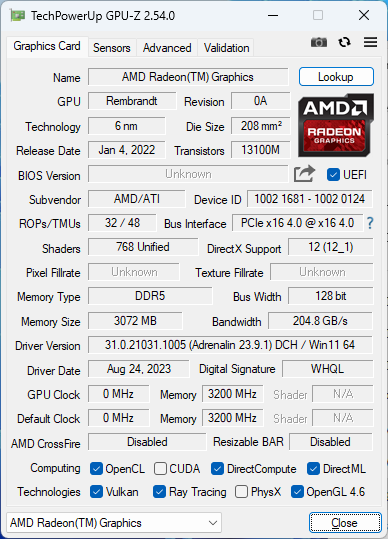

GPU-prestaties

De Radeon 680M is nog steeds een van de snelste geïntegreerde GPU's op de markt, ook al is hij bijna een paar jaar oud. De GPU is krachtig genoeg om moderne 3D-titels te spelen op native 1080p zolang de instellingen lager worden ingesteld. We raden aan om verbinding te maken met een FreeSync-compatibel beeldscherm als je vaak gaat gamen op de NucBox K2, omdat de Radeon 680M de neiging heeft om tussen de 45 en 60 FPS te zweven.

Upgraden naar de Ryzen 9 7940HS configuratie met de Radeon 780M zal de grafische prestaties naar verwachting met ongeveer 10 tot 20 procent verbeteren, gebaseerd op onze tijd met de Beelink SER7.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	92.2 pt
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	85.8 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	85.1 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	84.2 pt
Gemiddeld AMD Radeon 680M	78.7 pt
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	64.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.7 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.4 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	52.6 pt
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	45.9 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.5 pt
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	22 pt

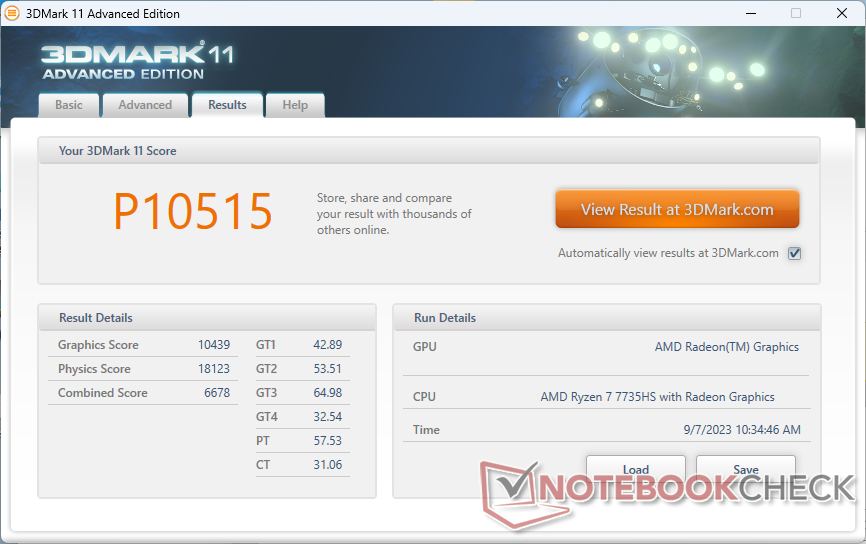

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +23%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +19%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points +4%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points +1%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points
Gemiddeld AMD Radeon 680M (6858 - 11755, n=35)	10068 Points -4%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points -26%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points -38%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points -38%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points -42%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -48%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	2947 Points -72%

3DMark

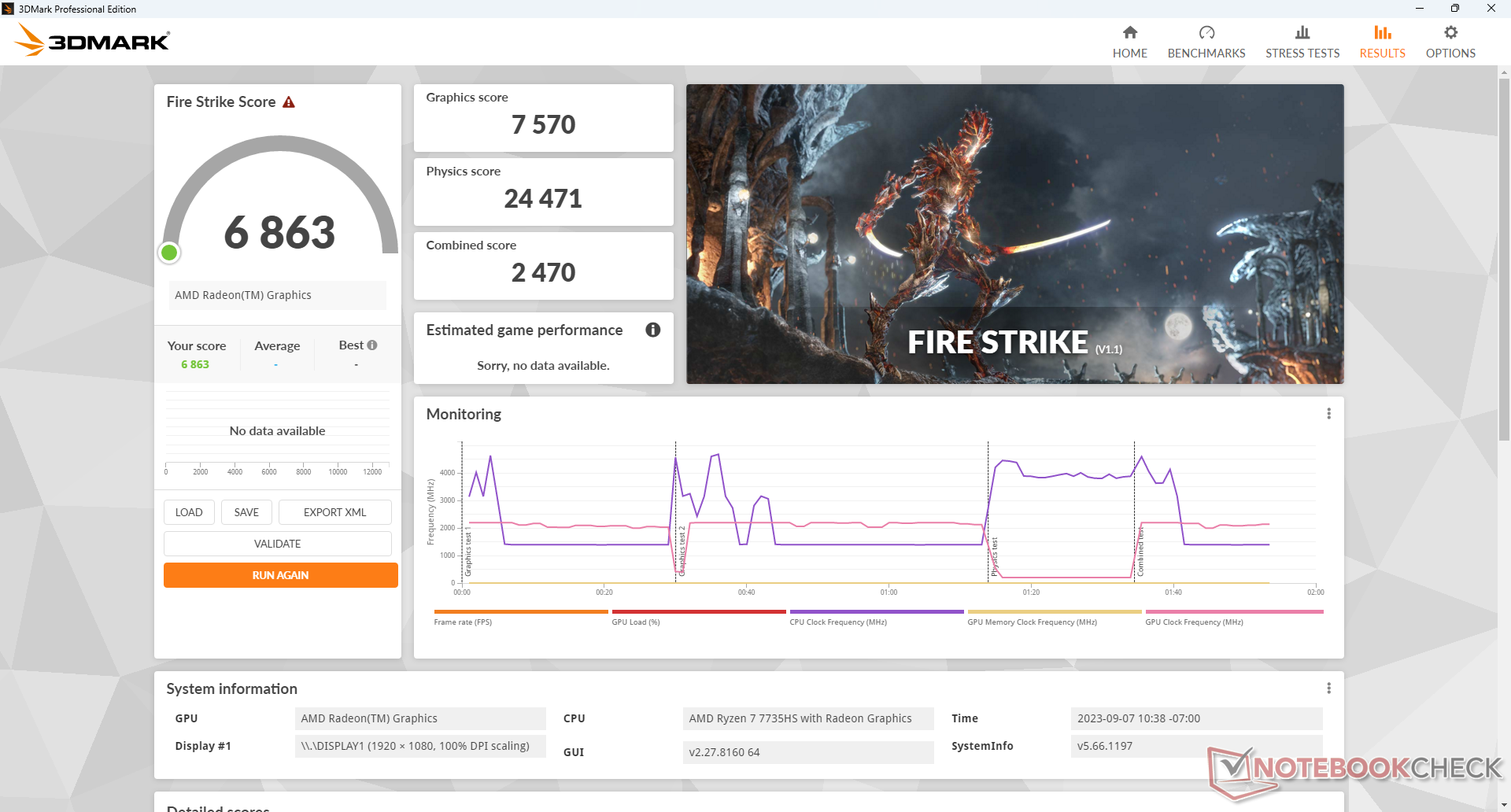

1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +6%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points -4%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -7%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -8%
Gemiddeld AMD Radeon 680M (3791 - 7706, n=36)	6701 Points -11%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -26%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points -30%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -40%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points -47%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	1914 Points -75%

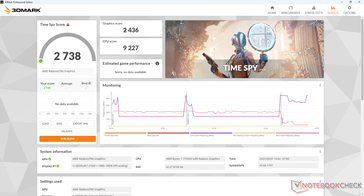

2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +19%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points +1%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points 0%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points
Gemiddeld AMD Radeon 680M (1359 - 2607, n=36)	2227 Points -9%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -31%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points -38%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points -38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	594 Points -76%

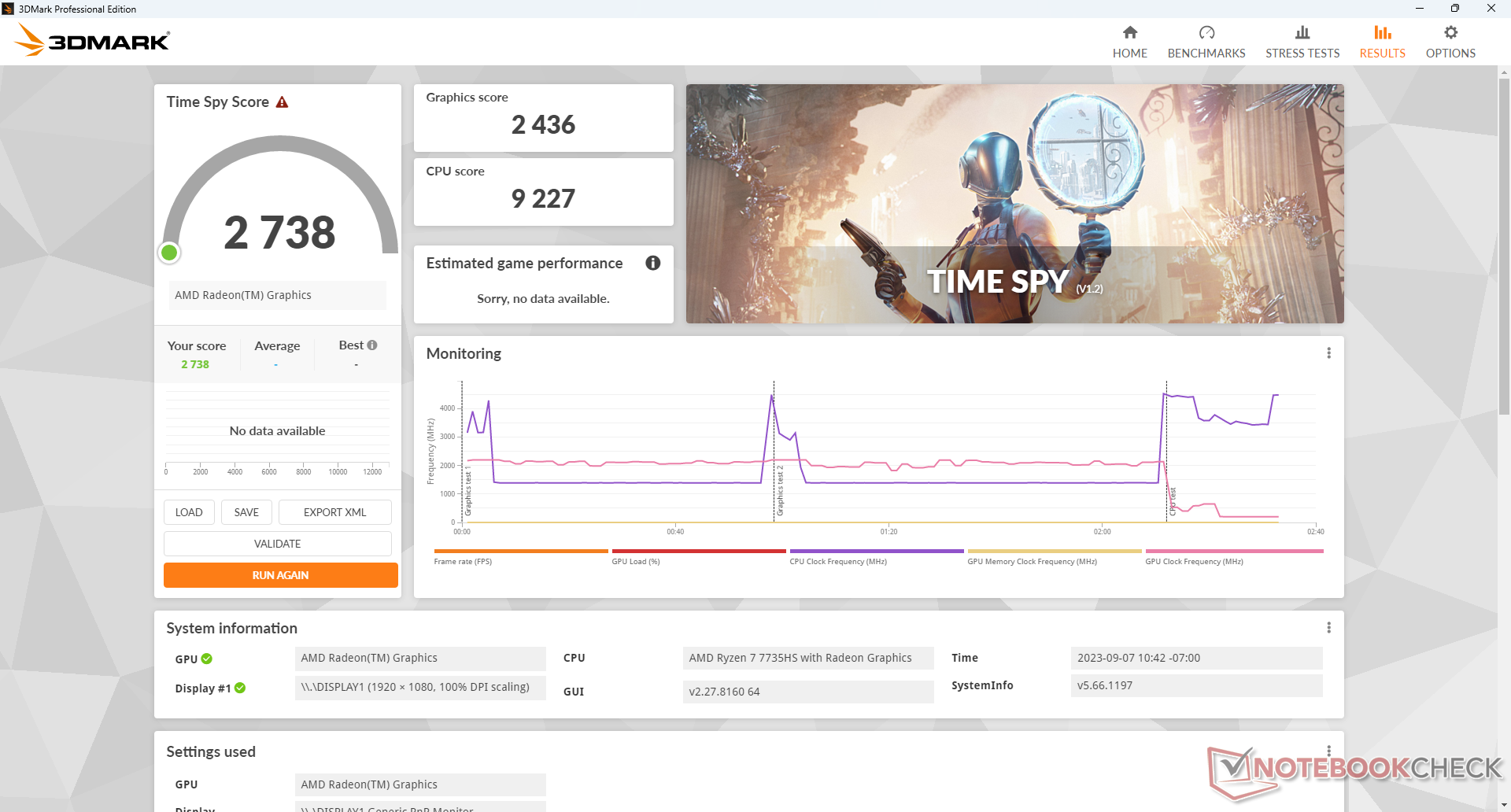

2560x1440 Time Spy Score
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	3270 Points +19%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2966 Points +8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points 0%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2738 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points 0%
Gemiddeld AMD Radeon 680M (1546 - 2914, n=36)	2494 Points -9%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2057 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points -37%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points -39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1456 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1405 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	676 Points -75%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	504 Seconds * -87%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * -32%
Gemiddeld AMD Radeon 680M (270 - 555, n=31)	346 Seconds * -28%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds * -18%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1010 Seconds * -131%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	943 Seconds * -115%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * -52%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	479 Seconds * -9%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -9%
Gemiddeld AMD Radeon 680M (389 - 609, n=32)	475 Seconds * -8%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * -6%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -3%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * -0%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +27%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	305 Seconds * +30%

* ... kleiner is beter

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	140.6 fps +23%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	131.4 fps +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps
Gemiddeld AMD Radeon 680M (59.3 - 126.2, n=17)	98.2 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	59.3 fps -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -50%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	55 fps -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	35.9 fps -69%
1920x1080 Low Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.6 fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	62.6 fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps
Gemiddeld AMD Radeon 680M (37.7 - 65.8, n=18)	52.2 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.3 fps -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -47%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.3 fps -63%
1920x1080 Medium Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	52 fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	46.8 fps +4%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps
Gemiddeld AMD Radeon 680M (28.2 - 47.7, n=18)	38.9 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	30.6 fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -44%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	23.9 fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 fps -62%
1920x1080 High Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps +19%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	33.3 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	31.2 fps
Gemiddeld AMD Radeon 680M (19.8 - 32.3, n=18)	26.3 fps -16%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.8 fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -49%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	14.7 fps -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.7 fps -66%
1920x1080 Badass Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30 fps +23%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	27.1 fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.4 fps
Gemiddeld AMD Radeon 680M (16 - 26.1, n=18)	21 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	18.5 fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -45%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	11.4 fps -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.4 fps -66%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	148.1 (121^min) fps +22%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	135.1 fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps
Gemiddeld AMD Radeon 680M (67.4 - 150, n=30)	114.8 fps -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps -20%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.8 (79^min) fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.4 fps -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	63.3 fps -48%
1366x768 Medium Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	97.1 (91^min) fps +28%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	85.2 fps +12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps +12%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps
Gemiddeld AMD Radeon 680M (44.5 - 85.3, n=23)	70 fps -8%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.5 (49^min) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps -36%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	47.7 fps -37%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (45^min) fps +29%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +21%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 fps +14%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps
Gemiddeld AMD Radeon 680M (22.3 - 48, n=32)	37.4 fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -12%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	32.1 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.5 (22^min) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.2 fps -41%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (28^min) fps +34%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.1 fps +24%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +19%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps +19%
Gemiddeld AMD Radeon 680M (14.3 - 27.1, n=32)	23 fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.1 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -26%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps -30%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps -31%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps -42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	11.4 fps -50%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	60.3 fps -10%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.8 fps -13%
Gemiddeld AMD Radeon 680M (26.8 - 66.7, n=36)	55.5 fps -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps -20%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps -23%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps -27%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26.8 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	25.3 fps -62%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps 0%
Gemiddeld AMD Radeon 680M (21.1 - 53.1, n=36)	43.8 fps -17%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps -17%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.5 fps -18%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps -24%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.1 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	18 fps -66%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps -9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps -14%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.5 fps -14%
Gemiddeld AMD Radeon 680M (16.6 - 44.5, n=36)	35.9 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	16.6 fps -61%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -62%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	76.5 fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	69.7 fps +10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps
Gemiddeld AMD Radeon 680M (34.4 - 74.7, n=34)	59.4 fps -6%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	45.7 fps -28%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps -37%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.3 fps -73%
1920x1080 Standard Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.2 fps +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	35.2 fps +7%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps
Gemiddeld AMD Radeon 680M (18.3 - 36.9, n=35)	30.9 fps -6%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	28.9 fps -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	25.1 fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -26%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	21.3 fps -35%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps -38%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	9.07 fps -73%
1920x1080 High Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.5 fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 fps +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -1%
Gemiddeld AMD Radeon 680M (12.9 - 26.2, n=35)	22.1 fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.9 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	17.4 fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps -38%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps -42%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -76%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	156.9 (136.5^min) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	150.2 (132.8^min) fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps +1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps -3%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps -14%
Gemiddeld AMD Radeon 680M (34.4 - 146.2, n=36)	115 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -19%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	98 (79.8^min) fps -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	95.8 (84.4^min) fps -32%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	62.4 (51.9^min) fps -56%
1366x768 med (1/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	121.1 (100.6^min) fps +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	116.1 (95.8^min) fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps -11%
Gemiddeld AMD Radeon 680M (33.3 - 121.4, n=36)	95.6 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.6 (50^min) fps -41%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	66 (54.7^min) fps -42%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	57.3 (48.6^min) fps -50%
1920x1080 high (2/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	95.5 (85.2^min) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	89.9 (78.3^min) fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -4%
Gemiddeld AMD Radeon 680M (33.2 - 89.1, n=36)	71.7 fps -15%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -20%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps -30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps -40%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	45.2 (38.5^min) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	44.8 (38.3^min) fps -47%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	31.9 (29.3^min) fps -62%
1920x1080 ultra (3/3) best looking
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.6 (74.9^min) fps +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80.3 (71.5^min) fps +9%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps -12%
Gemiddeld AMD Radeon 680M (33.2 - 84.9, n=36)	63 fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	42 (36.8^min) fps -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	42 (37.8^min) fps -43%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -62%

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80 (69^min) fps +16%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	63 (57^min) fps -9%
Gemiddeld AMD Radeon 680M (37 - 82, n=27)	62.3 fps -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	41 (35^min) fps -41%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	40 (35^min) fps -42%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	45 (40^min) fps +10%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps
Gemiddeld AMD Radeon 680M (21 - 45, n=27)	36.7 fps -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	31 (27^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26 (23^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -51%
1920x1080 High Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	46 (41^min) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps +8%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps
Gemiddeld AMD Radeon 680M (18 - 41, n=27)	33.5 fps -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29 (25^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	24 (21^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19 (17^min) fps -50%
1920x1080 Ultra Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	44 (39^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	39 (35^min) fps +8%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps
Gemiddeld AMD Radeon 680M (20 - 40, n=26)	32.2 fps -11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -28%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	23 (20^min) fps -36%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 (15^min) fps -53%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	166 (4.54^min, 125^P1) fps +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	157.8 (4.54^min, 111.1^P1) fps +4%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	144.6 (8.46^min, 100^P1) fps -5%
Gemiddeld AMD Radeon 680M (67.7 - 155.4, n=31)	134 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	97.7 (25.6^min, 55.6^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	92.2 (30.2^min, 58.8^P1) fps -39%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.7 (4.02^min, 38.5^P1) fps -56%
1920x1080 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	129.1 (9.37^min, 90.9^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	113.4 (16.8^min, 76.9^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -1%
Gemiddeld AMD Radeon 680M (56.9 - 115.8, n=23)	102.9 fps -8%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.1 (39.1^min, 71.4^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps -28%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	68.9 (21.3^min, 45.5^P1) fps -39%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.4 (17.6^min, 43.5^P1) fps -41%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	56.9 (8.92^min, 35.7^P1) fps -49%
1366x768 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	158.4 (14.6^min, 111.1^P1) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	146 (6.65^min, 100^P1) fps +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	133.8 (46.7^min, 83.3^P1) fps -4%
Gemiddeld AMD Radeon 680M (60.7 - 143.9, n=28)	120 fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	84.7 (19.5^min, 47.6^P1) fps -39%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.3 (25.9^min, 50^P1) fps -42%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	61.7 (8.03^min, 38.5^P1) fps -56%
1920x1080 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	132.3 (14.1^min, 83.3^P1) fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	117.6 (14.5^min, 83.3^P1) fps +4%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -3%
Gemiddeld AMD Radeon 680M (54.9 - 117.3, n=23)	102.3 fps -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.2 (7.32^min, 66.7^P1) fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	60.6 (22.7^min, 41.7^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	59 (18^min, 35.7^P1) fps -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	54.9 (8.78^min, 33.3^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	68.3 (4.5^min, 45.5^P1) fps +32%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (4.52^min, 40^P1) fps +15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps 0%
Gemiddeld AMD Radeon 680M (25.9 - 99.1, n=31)	49.2 fps -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34 (1.184^min, 19.2^P1) fps -34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps -38%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	24.3 (14.7^min, 18.9^P1) fps -53%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.4 (9.03^min, 16.7^P1) fps -55%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -60%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20.5 (8.17^min, 14.5^P1) fps -61%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.5 (3.06^min, 18.9^P1) fps +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps -1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	23.6 (2.03^min, 16.1^P1) fps -2%
Gemiddeld AMD Radeon 680M (11.3 - 24.8, n=31)	21.5 fps -10%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	19.6 (0.569^min, 10.2^P1) fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps -40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	10.3 (4.68^min, 5.59^P1) fps -57%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.04 (4.64^min, 5.71^P1) fps -62%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -63%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.71 (3.66^min, 5.78^P1) fps -68%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.7 (3.58^min, 5.88^P1) fps -68%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	164.2 (129^min, 114^P1) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	151.3 (123^min, 105^P1) fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps
Gemiddeld AMD Radeon 680M (75.5 - 147.3, n=19)	126.1 fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	81 (63^min, 64^P1) fps -45%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	77.5 (64^min, 42^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	58.2 (44^min, 44^P1) fps -60%
1920x1080 Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	94.6 (81^min, 71^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	82.6 (71^min, 56^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps
Gemiddeld AMD Radeon 680M (44.1 - 85.4, n=25)	73.3 fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	49.7 (37^min, 25^P1) fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -42%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	46.6 (39^min, 39^P1) fps -44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	33.3 (28^min, 27^P1) fps -60%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.7 (72^min, 66^P1) fps +16%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	74.1 (61^min, 47^P1) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	72.9 (57^min, 45^P1) fps -2%
Gemiddeld AMD Radeon 680M (38 - 75.1, n=25)	64.5 fps -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.1 (29^min, 22^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -41%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	42.5 (37^min, 34^P1) fps -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30.6 (26^min, 25^P1) fps -59%
1920x1080 High Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	63 (48^min, 51^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	55.2 (39^min, 36^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 (47^min, 37^P1) fps
Gemiddeld AMD Radeon 680M (30 - 56.2, n=25)	47.7 fps -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.8 (19^min, 17^P1) fps -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -42%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29.8 (25^min, 23^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	21.7 (18^min, 18^P1) fps -60%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +73%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	22.8 (19^min, 17^P1) fps +64%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	17.7 (13^min, 13^P1) fps +27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min, 13^P1) fps +19%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (9^min, 9^P1) fps
Gemiddeld AMD Radeon 680M (7.85 - 14.7, n=22)	11.5 fps -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	8.92 (2^min, 3^P1) fps -36%

Cyberpunk 2077 1.6
1280x720 Low Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	75 (48.8^min) fps +26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	72.8 (23.7^min) fps +22%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	72.2 (23.3^min) fps +21%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.5 (19.7^min) fps +20%
Gemiddeld AMD Radeon 680M (46.1 - 77.6, n=14)	63.7 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	59.5 (21.9^min) fps
1920x1080 Low Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	44.6 (33.4^min) fps +25%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 (20.7^min) fps +23%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (18.6^min) fps +21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps +20%
Gemiddeld AMD Radeon 680M (26 - 50.6, n=15)	38 fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	35.8 (14.4^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps -42%
1920x1080 Medium Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (27.9^min) fps +32%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	34.6 (17.5^min) fps +26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	33.1 (19.1^min) fps +21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps +20%
Gemiddeld AMD Radeon 680M (20.1 - 41.8, n=15)	29 fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	27.4 (12.8^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps -41%
1920x1080 High Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.6 (21.3^min) fps +36%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	26.9 (6.5^min) fps +28%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +6%
Gemiddeld AMD Radeon 680M (16.3 - 33.6, n=15)	21.4 fps +2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	21.3 (3^min) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	21 (9.9^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps -46%
1920x1080 Ultra Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 (18.8^min) fps +35%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 (6.1^min) fps +29%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	19.2 (5^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps -9%
Gemiddeld AMD Radeon 680M (14 - 23.8, n=15)	17.5 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	17.2 (3.2^min) fps -10%

Strange Brigade
1280x720 lowest AF:1
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.2 (109.1^min, 139.7^P1) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	148.8 (53.7^min, 130^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps -3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -4%
Gemiddeld AMD Radeon 680M (72.9 - 167.5, n=34)	131.9 fps -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -33%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.7 (21.2^min, 36.7^P1) fps -33%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	84.5 (32.3^min, 62.9^P1) fps -43%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.1 (18.9^min, 25.5^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	68.6 (15.6^min, 21.8^P1) fps -53%
1920x1080 medium AA:medium AF:4
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.6 (52.2^min, 57^P1) fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.8 (35.1^min, 52^P1) fps +7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps +3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps
Gemiddeld AMD Radeon 680M (30 - 63, n=34)	53.8 fps -4%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.2 (28.6^min, 35^P1) fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	40.9 (10.8^min, 22.7^P1) fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	34.5 (12.4^min, 19.8^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 (13.9^min, 17.8^P1) fps -48%
1920x1080 high AA:high AF:8
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.6 (39.2^min, 42.9^P1) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	50.7 (14.7^min, 38.5^P1) fps +10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps +6%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps
Gemiddeld AMD Radeon 680M (25.3 - 53.1, n=34)	44.5 fps -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.4 (9.7^min, 22.8^P1) fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	32.3 (8.2^min, 17^P1) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	28.5 (7.8^min, 15.4^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	23.3 (6.2^min, 12.7^P1) fps -49%
1920x1080 ultra AA:ultra AF:16
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (23.8^min, 32^P1) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 (11.1^min, 16.3^P1) fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -2%
Gemiddeld AMD Radeon 680M (22 - 44.2, n=34)	38.2 fps -10%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.2 (6.7^min, 10.3^P1) fps -20%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	26.2 (5.2^min, 9.1^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -39%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps -40%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.9 (6.4^min, 8.1^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19.1 (5^min, 5.1^P1) fps -55%

De framerates bij stationair draaien op Witcher 3 zijn over het algemeen consistent, maar niet zonder enkele pieken en dalen, zoals onze grafiek hieronder laat zien. De schommelingen zijn gelukkig niet extreem genoeg om je zorgen te maken tijdens het gamen.

Witcher 3 FPS Chart

GMK NucBox K2: Ø38 (33-45)

	lage	gem.	hoge	ultra
GTA V (2015)	152.3	139.1	51.9	24
The Witcher 3 (2015)	121.6	75.9	37.9	22.7
Dota 2 Reborn (2015)	141.2	113.5	84.2	73.7
Final Fantasy XV Benchmark (2018)	63.4	33	24.8
X-Plane 11.11 (2018)	66.7	52.8	42.4
Far Cry 5 (2018)	69	41	38	36
Strange Brigade (2018)	147.3	56	45.9	42.5
Cyberpunk 2077 1.6 (2022)	35.8	27.4	21	19.2
Tiny Tina's Wonderlands (2022)	61	45.1	31.2	24.4
F1 22 (2022)	82.6	74.1	54.7	13.9

Uitstoot

Systeemgeluid

Het geluid van de ventilator is een zwak punt van de NucBox K2. De interne ventilator pulseert vrij frequent van stil naar 36 dB(A), zelfs tijdens lage belastingen zoals browsen of video streamen. Halverwege de eerste benchmarkscène van 3DMark 06 bereiken we vrij snel een maximaal geluid van bijna 42 dB(A).

Systeemgeluid (Wit: Achtergrond, Rood: Systeem inactief, Blauw: 3DMark 06, Oranje: Witcher 3 groen: Prime95 stress)

Geluidsniveau

Onbelast		24.4 / 24.4 / 36.8 dB (A)
Belasting		41.6 / 41.6 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Earthworks M23R, Arta (15 cm afstand) omgevingslawaai: 24.1 dB(A)

Temperatuur

AC-adapter kan bijna 40 C bereiken bij zware belastingen

De oppervlaktetemperaturen aan de bovenkant van het apparaat kunnen oplopen tot meer dan 36 C wanneer zware belastingen zoals games worden uitgevoerd. Afvalwarmte ontsnapt via de achterkant, zoals te zien is op de onderstaande temperatuurkaarten.

Het is veilig om de unit verticaal te plaatsen in plaats van horizontaal omdat het NucBox 2-ontwerp extra ventilatieroosters op de bodemplaat bevat.

Stresstest

Tijdens het uitvoeren van Prime95 om de CPU te belasten, piekten de kloksnelheden en het opgenomen vermogen op het moederbord naar respectievelijk 3,5 GHz en 45 W. Na een paar seconden daalde dit echter naar 3,1 GHz en 38 W, wat suggereert dat het turbo boost-potentieel beperkt is.

Kerntemperatuur tijdens het draaien Witcher 3 stabiliseert op 67 C, vergeleken met 64 C op de duurdere Beelink SER7. De kerntemperatuur bereikt alleen 70 C of hoger wanneer gedurende langere perioden veeleisende belastingen worden uitgevoerd.

Energiebeheer - Een beetje dorstiger

Stroomverbruik

Het systeem is veeleisender dan andere mini-pc's met oudere CPU's zoals de NucBox 2 ofTrigkey Speed S. De prestatievoordelen compenseren echter ruimschoots het hogere stroomverbruik. Onze NucBox K2 zou bijvoorbeeld bijna 30 procent meer stroom verbruiken dan de Trigkey Speed S bij het draaien van games, maar de prestaties zouden 60 tot 70 procent sneller zijn om de toename in stroomverbruik meer dan waard te zijn.

Prime95+FurMark stress ingezet bij 10s markering

Het verbruik piekt naar 73 W gedurende ongeveer 5 seconden bij het starten van Prime95 voordat het daalt en zich stabiliseert op 63 W

Stroomgebruik

Uit / Standby	0.62 / 0.83 Watt
Inactief	7.3 / 9.8 / 10.5 Watt
Belasting	61.3 / 72.8 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox K2 R7 7735HS, Radeon 680M, Lexar NM610 Pro NM610P001T-HNNNG, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs, Intel SSD 670p SSDPEKNU512GZ, , x,
Power Consumption		26%	-6%	-2%	22%	20%
Idle Minimum *	7.3	6.1 16%	6.7 8%	7 4%	7.3 -0%	6.7 8%
Idle Average *	9.8	6.8 31%	7.3 26%	9.2 6%	7.8 20%	8 18%
Idle Maximum *	10.5	7.3 30%	11.6 -10%	11.8 -12%	8.4 20%	8.1 23%
Load Average *	61.3	46.3 24%	64.1 -5%	45 27%	28.7 53%	47.6 22%
Witcher 3 ultra *	62.2		75.8 -22%			47.5 24%
Load Maximum *	72.8	50.7 30%	94.8 -30%	97.2 -34%	61.1 16%	56.3 23%

* ... kleiner is beter

Power Consumption Witcher 3 / Stresstest

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Power Consumption external Monitor

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Verdict - Veel prestaties voor niet veel geld

In review: GMKtec NucBox K2. Testunit geleverd door GMK

De GMKtec NucBox K2 heeft alle kernfuncties die thuis- of kantoorgebruikers kunnen waarderen zonder veel van de opzichtige extra's. Vooral de supergemakkelijke toegankelijkheid en onderhoudsvriendelijkheid, de snelle Zen 3+ CPU en geïntegreerde GPU, en de USB4-poort zijn hoogtepunten van het model. Het feit dat onze configuratie te vinden is voor slechts $480 USD maakt het extreem aantrekkelijk, omdat je maar weinig inlevert op prestaties en functies.

Toch zijn er een paar kantjes boord en een paar problemen die het vermelden waard zijn. Ten eerste ondersteunt het systeem slechts één interne SSD, in tegenstelling tot de meeste andere mini PC's die er twee kunnen ondersteunen. Ten tweede kan de enkele USB-C poort beperkend aanvoelen als je van plan bent om meerdere USB-C apparaten aan te sluiten. En tot slot raden we aan om de Bluetooth-functionaliteit en eventuele problemen met het overslaan van frames dubbel te controleren, omdat we beide hebben ervaren op onze evaluatie-eenheid.

De NucBox K2 overtreft zijn gewicht en prijscategorie. Je kunt echter te maken krijgen met een aantal duidelijke nadelen.

We zouden ook graag verbeteringen zien in de sterkte van het WLAN-signaal en het gedrag van de systeemventilator. Onze Wi-Fi 6E verbinding is trager dan verwacht, terwijl de pulserende ventilator erg merkbaar is. Als je het model echter kunt vinden voor minder dan $500, dan zijn deze nadelen het misschien waard om te accepteren.

Prijs en beschikbaarheid

Amazon levert de GMKtec NucBox K2 nu voor $580 USD of $480 na toepassing van de huidige couponcode.

GMK NucBox K2 - 12-09-2023 v7 ^(old)
Allen Ngo

Behuizing

79 / 98 → 80%

Aansluitmogelijkheden

60 / 81 → 74%

Gewicht

84%

Gaming-performance

76%

Applicatie-performance

95%

Luidheid

83%

Gemiddelde

80%

83%

Mini PC - Gewogen Gemiddelde

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Evaluatie	Datum	Model	Gewicht	Hoogte	Resolutie
83 % v7 ^(old)	09-2023	GMK NucBox K2 R7 7735HS, Radeon 680M	440 g	43.2 mm	x
86.6 % v7 ^(old)	09-2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm	x
73.5 % v7 ^(old)	09-2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	37 mm	x
83.1 % v7 ^(old)	08-2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
80.6 % v7 ^(old)	07-2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm	x
v ^(old)		Trigkey Speed S i5-11320H, Iris Xe G7 96EUs	415 g	40.7 mm	x

3DMark 11 Performance		10515 punten
3DMark Fire Strike Score		6863 punten
3DMark Time Spy Score		2738 punten
Help

GMK NucBox K2 Ryzen 7 7735HS mini PC review: Geoptimaliseerd voor hoge prestaties per dollar

Veel waar voor je geld.

Potentiële concurrenten in vergelijking

Zaak - Het eenvoudig houden

Vergelijking grootte

Connectiviteit

Communicatie

Onderhoud

Accessoires en garantie

Prestaties - Zen 3+ is nog steeds krachtig

Testomstandigheden

Processor

Cinebench R15 Multi Loop

Systeemprestaties

DPC latentie

Opslagapparaten

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestaties

Witcher 3 FPS Chart

Uitstoot

Systeemgeluid

Temperatuur

Stresstest

Energiebeheer - Een beetje dorstiger

Stroomverbruik

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Verdict - Veel prestaties voor niet veel geld

Prijs en beschikbaarheid

Gelinkte Artikelen

Transparency

Price comparison

	GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
Noise		8%	6%	-3%	2%	13%
uit / omgeving *	24.1	25.6 -6%	24.5 -2%	25.2 -5%	29.7 -23%	23.5 2%
Idle Minimum *	24.4	25.7 -5%	25.1 -3%	28.1 -15%	30.2 -24%	24.1 1%
Idle Average *	24.4	25.7 -5%	25.1 -3%	28.2 -16%	30.2 -24%	24.1 1%
Idle Maximum *	36.8	25.7 30%	25.1 32%	28.3 23%	30.2 18%	26.6 28%
Load Average *	41.6	35.3 15%	35.9 14%	42 -1%	30.6 26%	30.4 27%
Witcher 3 ultra *	41.7		35.6 15%		30.5 27%	30.4 27%
Load Maximum *	41.6	35.1 16%	45.4 -9%	42.1 -1%	36.4 12%	38.1 8%

	CPU-klok (GHz)	GPU-klok (MHz)	Gemiddelde CPU-temperatuur (°C)
Inactief systeem	--	--	41
Prime95-stress	3.0	--	79
Prime95 + FurMark-stress	3.1	~1323	71
Witcher 3 Stress	0,4	2000 - 2200	67
