Beelink SEi12 mini PC review: Outperforming the Intel NUC 11

Intel 12th gen mini PC for $US460.

The SEi12 Core i5-1235U offers faster processor performance than the Intel NUC11 Core i7-1165G7 while costing hundreds of dollars less. For most HTPC setups, the new Beelink will have all the power and features needed for 4K streaming and then some.

Allen Ngo, 👁 Allen Ngo (vertaald door DeepL / Ninh Duy), Published 10-12-2022 🇺🇸 🇸🇪 ...

Mini PC Alder Lake

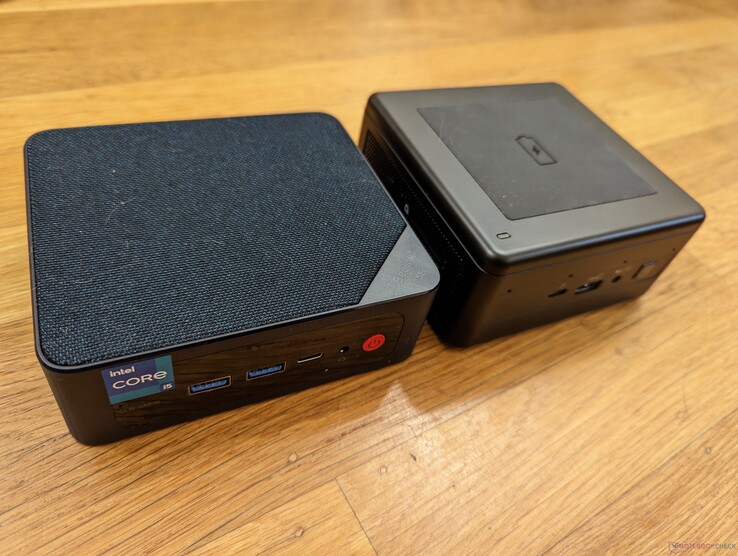

Links: Beelink SEi12, rechts: Intel NUC11TNK

Beelink levert een brede waaier van mini PC's ontworpen voor de budget tot midrange markten. Hoewel er nog geen modellen zijn met dedicated GPU's, worden veel modellen geleverd met Windows 11, RAM, en opslag al voorgeïnstalleerd om voldoende te zijn voor media centers, streaming boxes, of typische dagelijkse browsing of kantoortaken

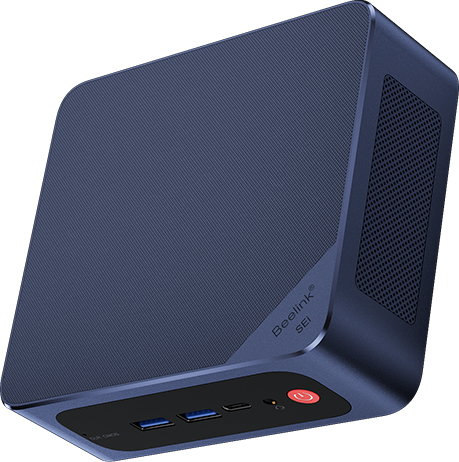

De nieuwste mini PC van Beelink is de SEi12 die wordt geleverd met de 12e generatie Core i5-1235U, terwijl de meeste andere goedkope alternatieven meestal met oudere of tragere CPU's komen om de kosten laag te houden. Onze recensie-eenheid kan online worden gevonden voor slechts 460 USD

Concurrenten van de SEi12 zijn de meeste andere mini-pc's met U-serie CPU's, zoals vele Intel NUC modellende BMAX B5 Proof de Ace Magician AMR5

Meer Beelink beoordelingen:

Beelink SEi12 Core i5-1235U

Processor

Intel Core i5-1235U 10 x 0.9 - 4.4 GHz, 47 W PL2 / Short Burst, 27 W PL1 / Sustained, Alder Lake-U

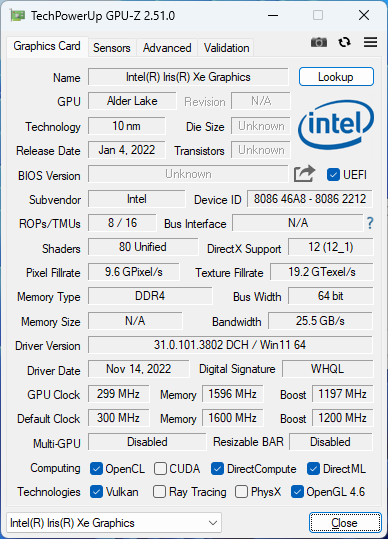

Grafische kaart

Intel Iris Xe Graphics G7 80EUs, Core: 1200 MHz, Geheugen: 1600 MHz, DDR4, 31.0.101.3802

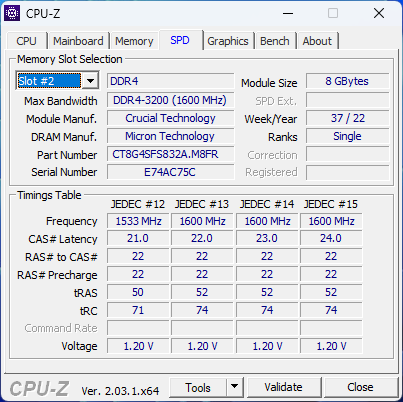

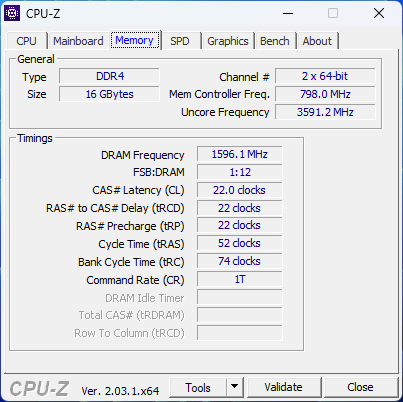

Geheugen

16 GB

, Crucial DDR4-3200, 22-22-22-52, Dual-Channel

Moederbord

Intel Alder Lake-P PCH

Opslag

Kingston NV1 SNVS/500GCN, 500 GB

Geluidskaart

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Verbindingen

2 USB 2.0, 3 USB 3.0, 2 HDMI, 1 DisplayPort, Audio Verbindingen: 3.5 mm headset

Netwerkmogelijkheden

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Afmetingen

hoogte x breedte x diepte (in mm): 42 x 126 x 113

Besturingssysteem

Microsoft Windows 11 Pro

Bijkomende functionaliteiten

12 Maanden Garantie

Gewicht

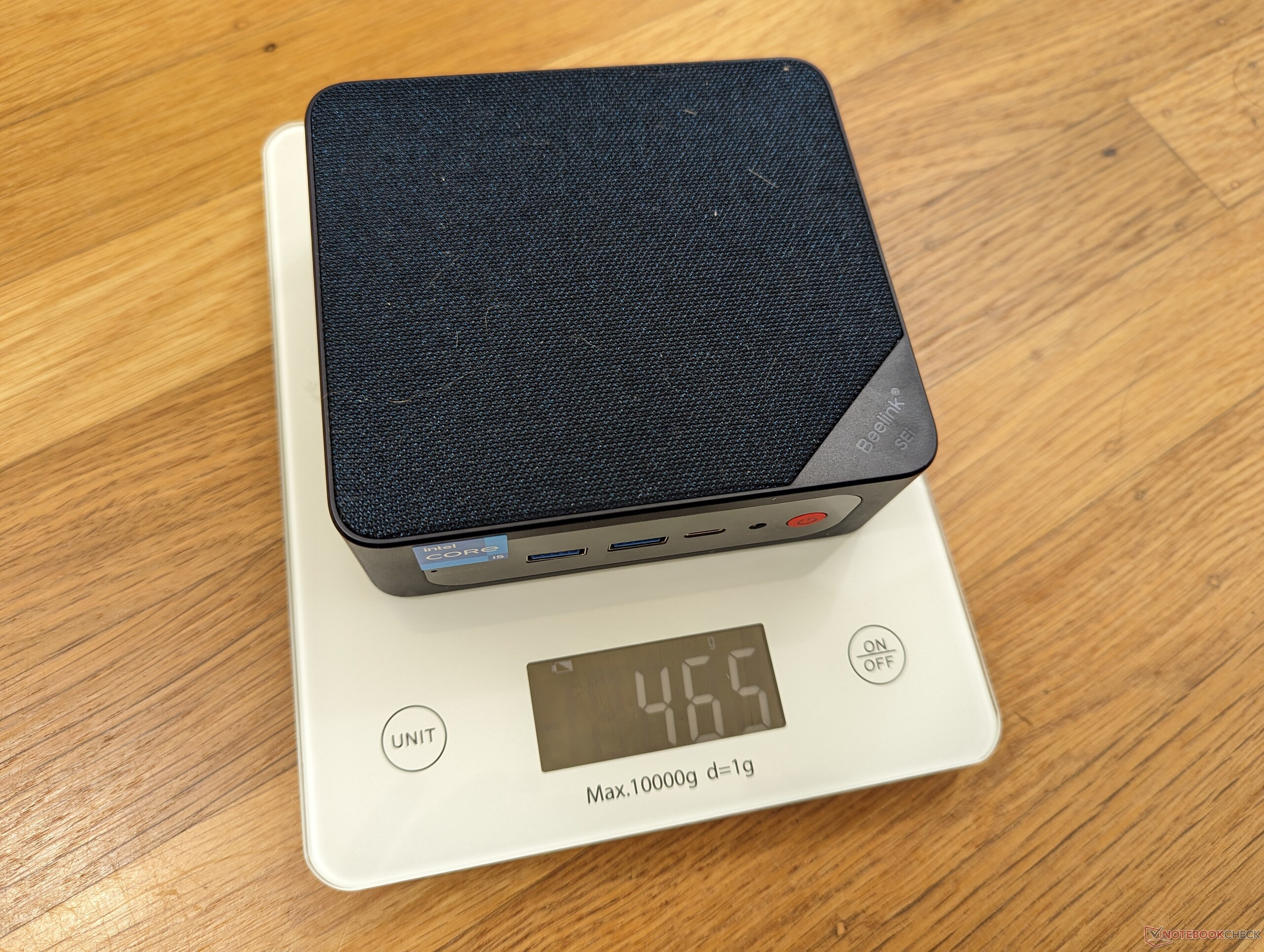

465 g, Voeding: 546 g

Prijs

460 USD

Links

Beelink startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

Potentiële concurrenten in vergelijking

Evaluatie	Datum	Model	Gewicht	Hoogte	Resolutie
v ^(old)	12-2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
v ^(old)	04-2022	Beelink SEi8 i3-8109U, Iris Plus Graphics 655	346 g	41 mm	x
v ^(old)	04-2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
v ^(old)	02-2021	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs	647 g	56 mm	x
v ^(old)	11-2022	BMAX B5 Pro G7H8 i5-8260U, UHD Graphics 620	369 g	43.2 mm	x
v ^(old)	04-2018	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH	1.3 kg	39 mm	x

Zaak

Het chassis is net iets dikker en zwaarder dan de oudere SEi 11maar met verder vergelijkbare metalen materialen en fysieke kenmerken. Het meest opvallende visuele aspect van de SEi12 is het nieuwe fleece of doek materiaal op de bovenkant, terwijl oudere Beelink ontwerpen gewoon glad plastic of een geperforeerd plastic gaas waren. Het doek voelt glad aan voor een luxueus gevoel, maar schoonmaken kan moeilijk zijn omdat haar en stof zich er gemakkelijker op vastzetten.

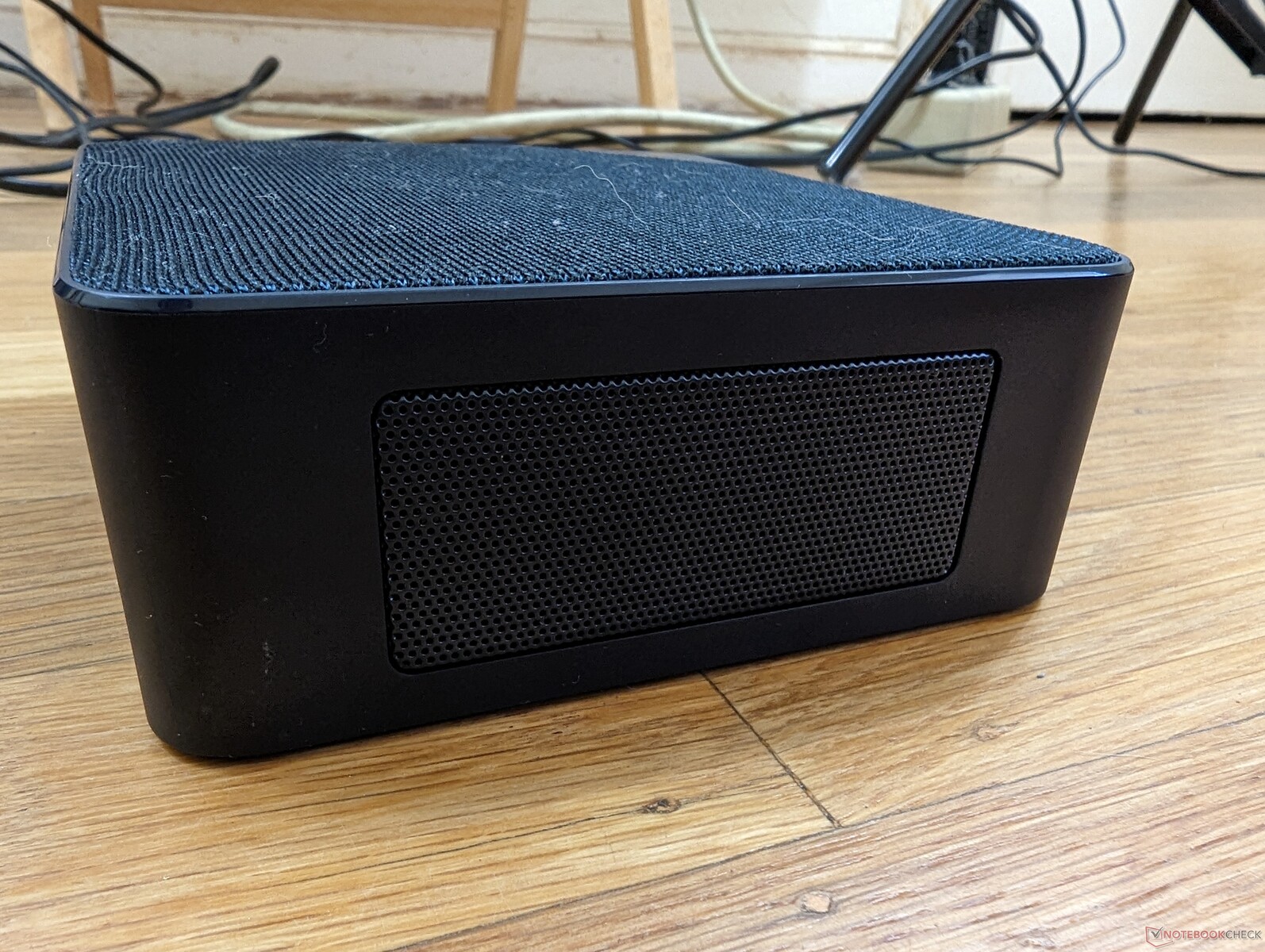

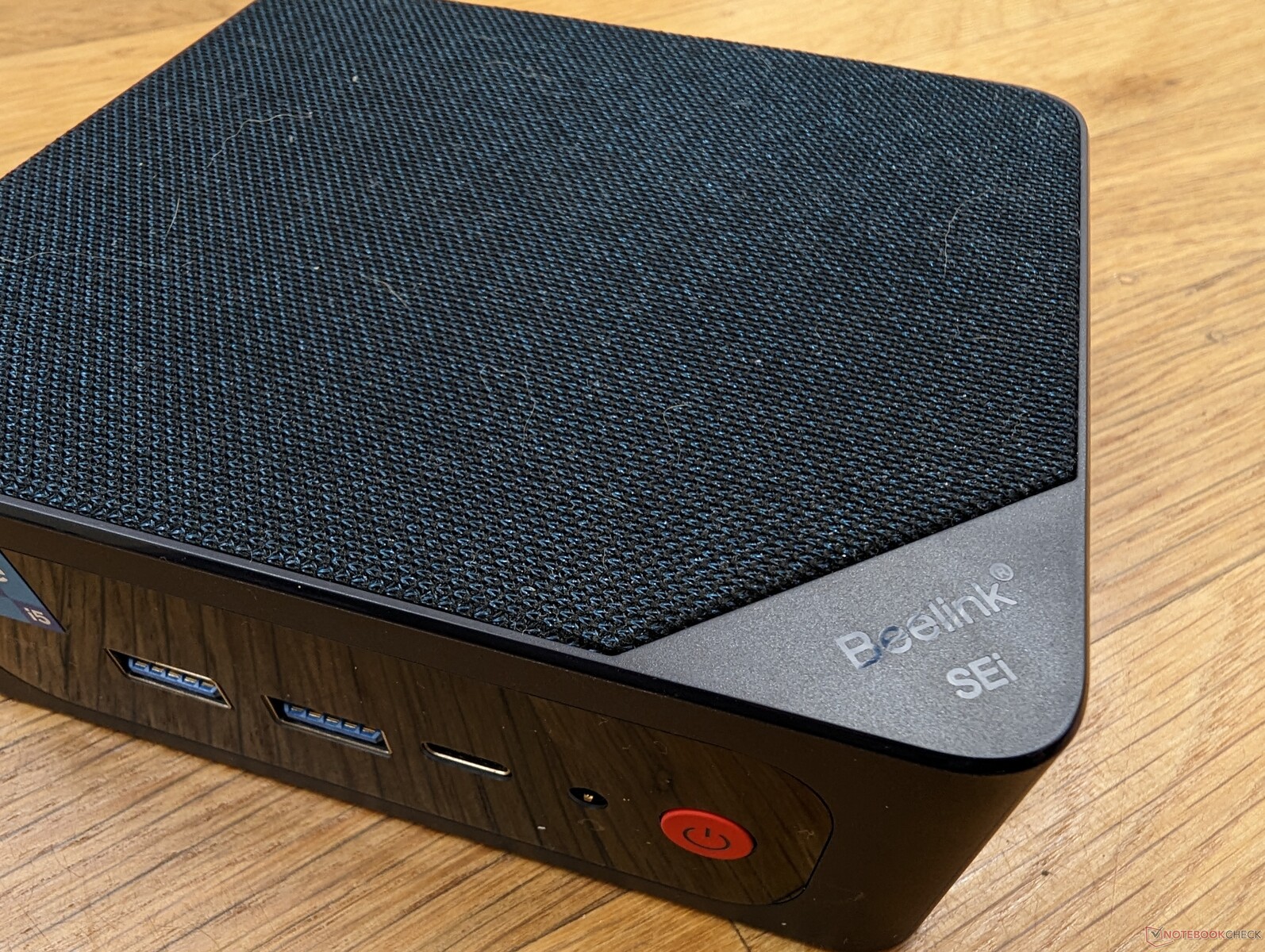

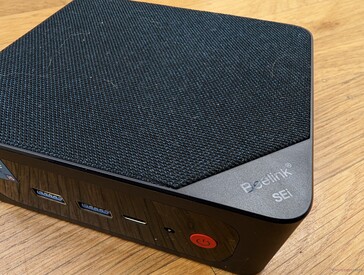

Nieuwe waterbestendige stof aan de bovenkant

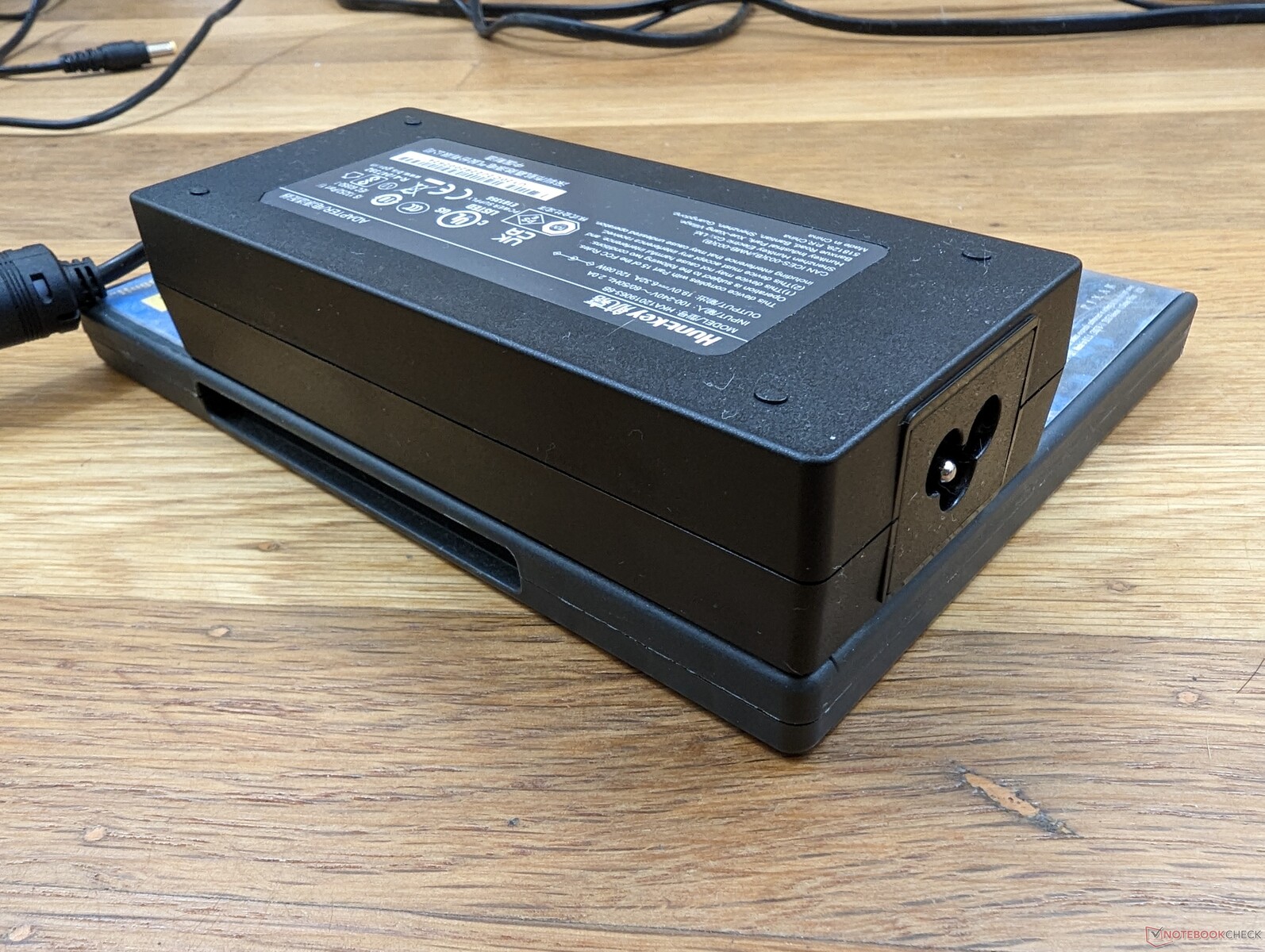

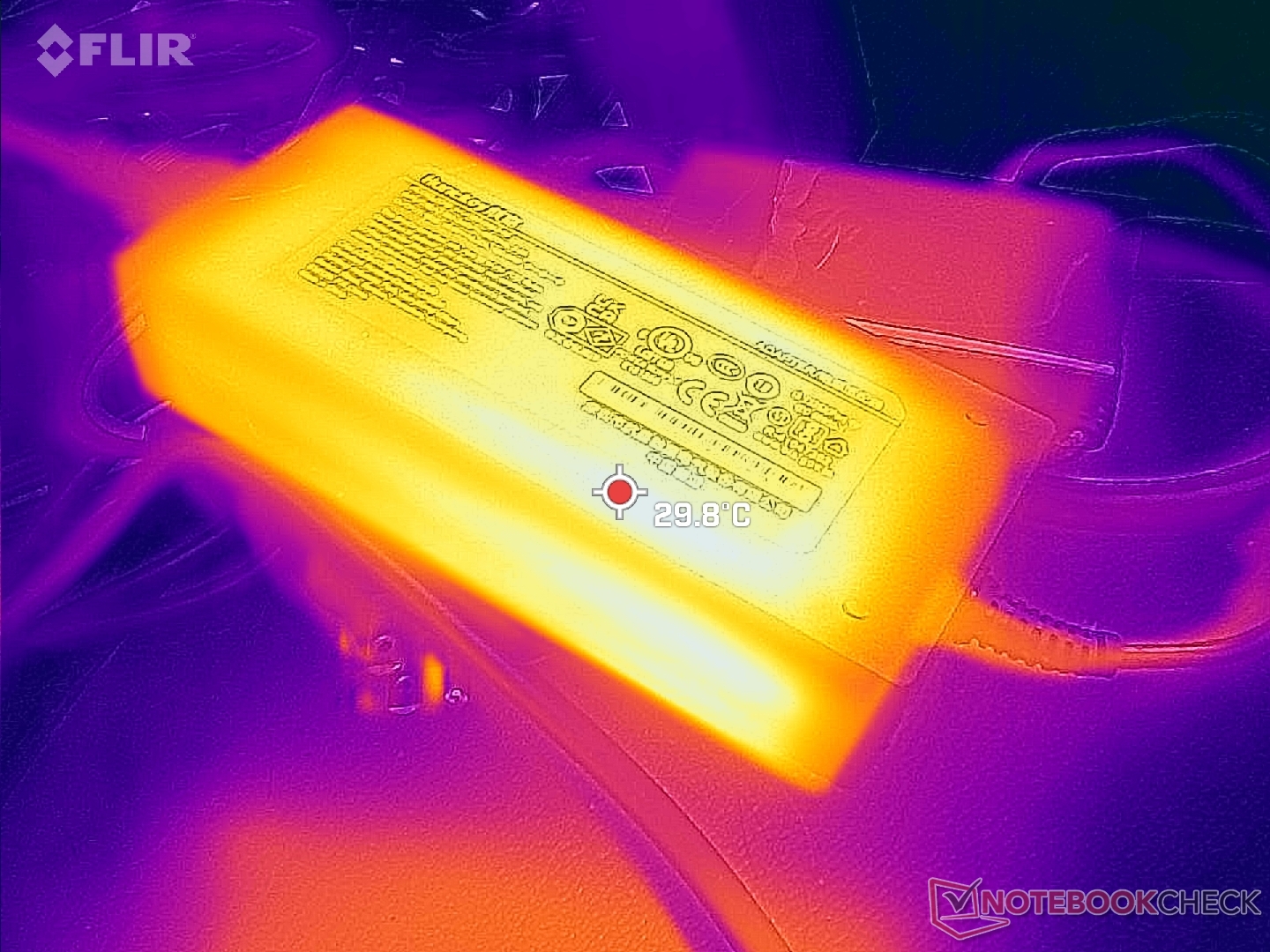

de vermogenssteen van 120 W is met 14,5 x 6,4 x 3 cm relatief groot

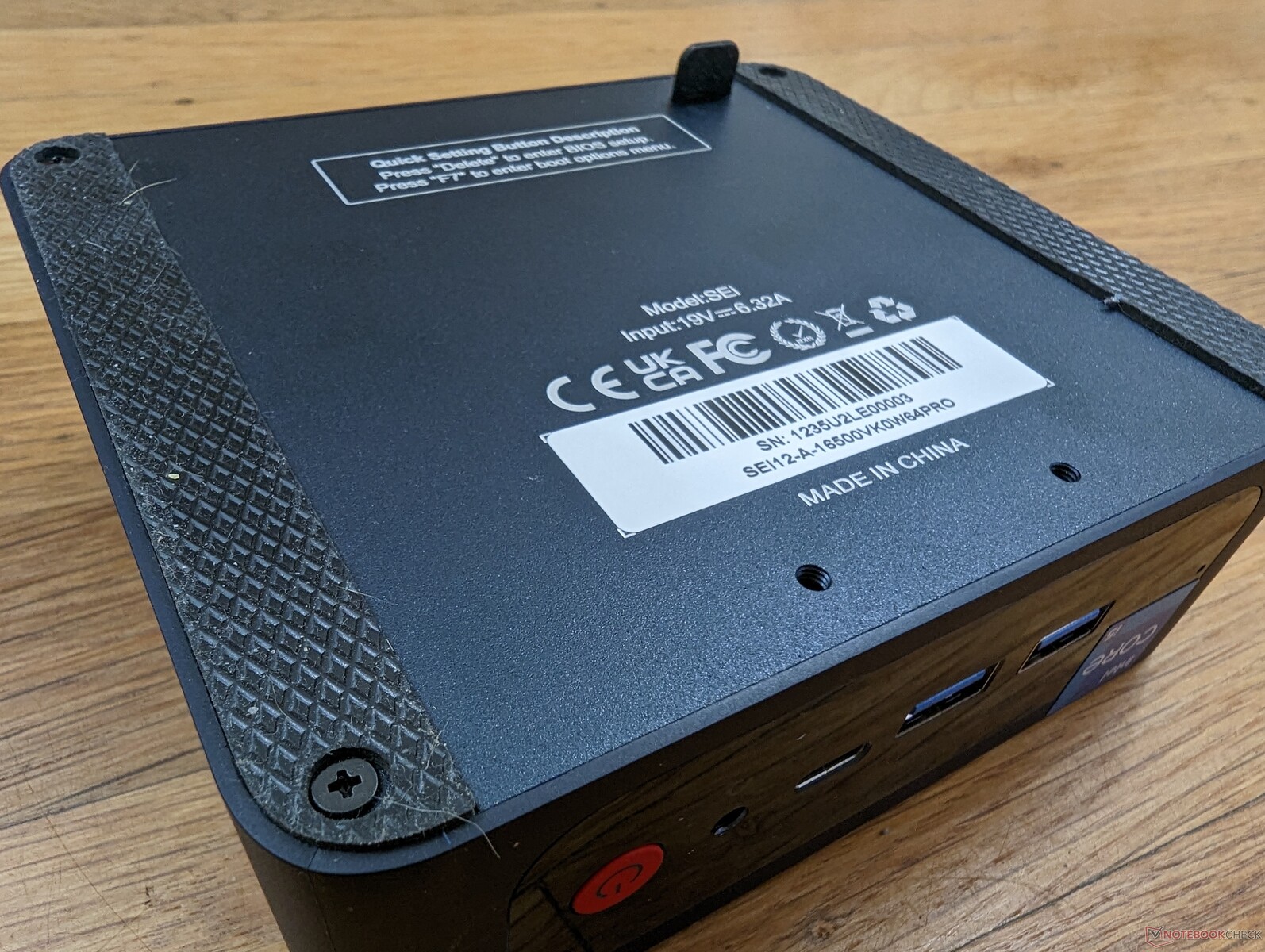

Bodempaneel heeft gaten voor de verwijderbare VESA-bevestiging met opgelijmde rubberen voet en Philips-schroeven

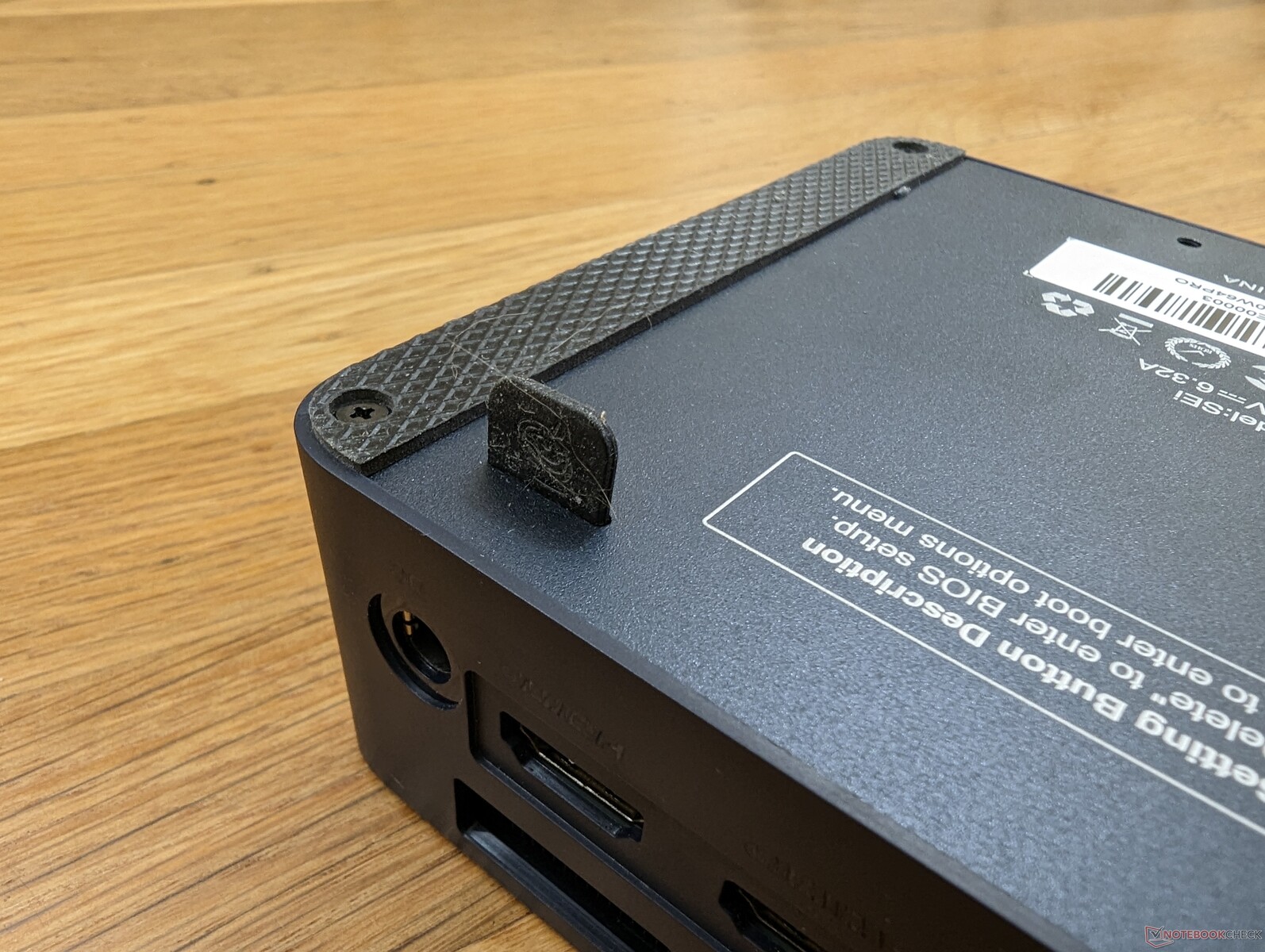

Rubberen flap aan de onderkant om het verwijderen van het platte paneel veel gemakkelijker te maken

Vergelijking grootte

Intel Hades Canyon NUC8i7HVK Intel NUC11PAQi7 BMAX B5 Pro G7H8 Beelink SEi12 Core i5-1235U Beelink SEi11 Pro Beelink SER4 DIN A4 ❌

Connectiviteit - Geen Thunderbolt

De poortopties zijn uitstekend met vijf USB-poorten en twee HDMI-poorten om uit te kiezen. We kunnen echter geen video uitvoeren vanaf de USB-C poort, wat betekent dat DisplayPort-over-USB mogelijk niet wordt ondersteund. Het systeem kan ook niet gevoed worden via USB-C.

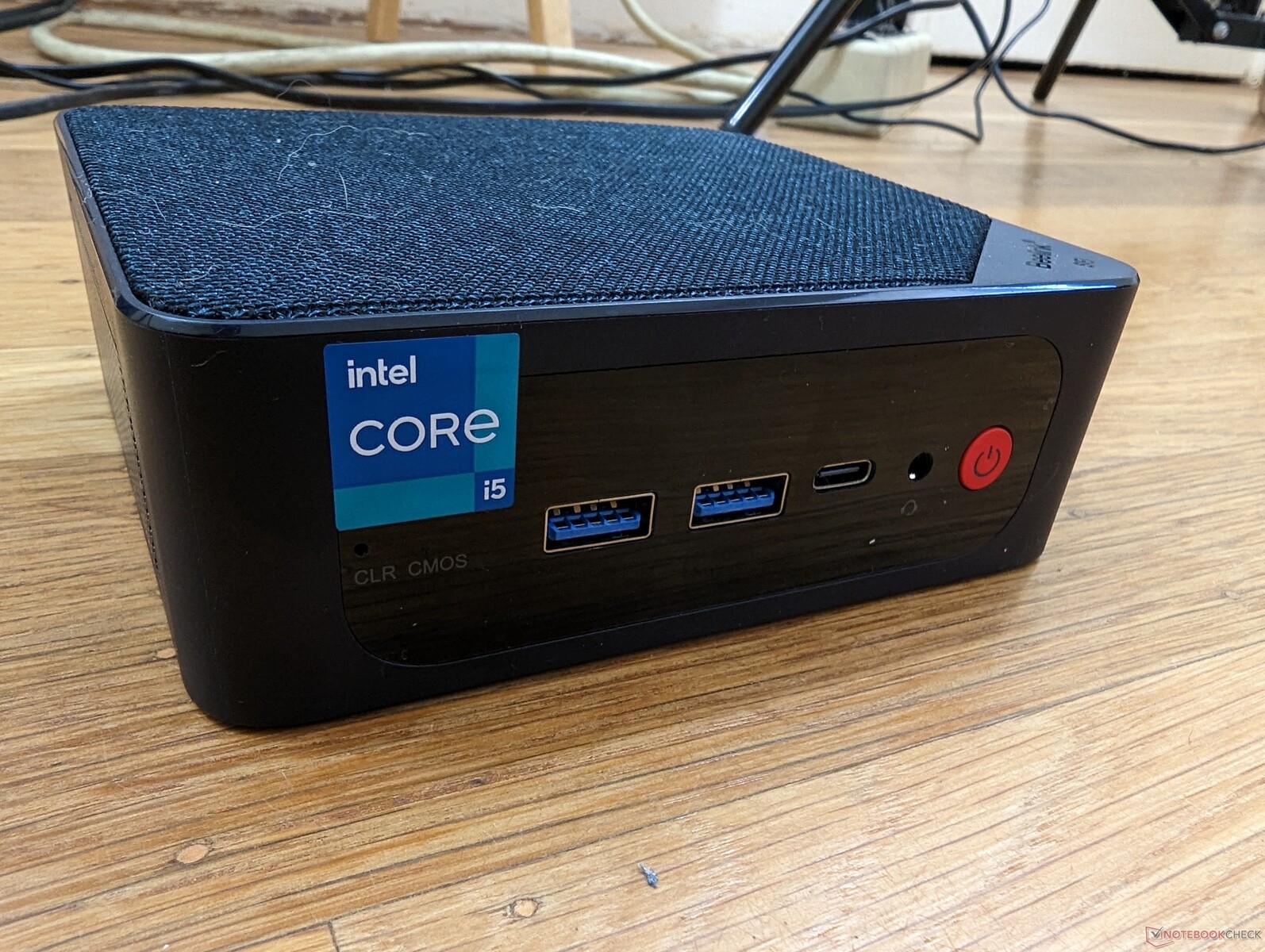

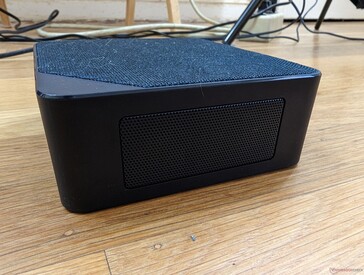

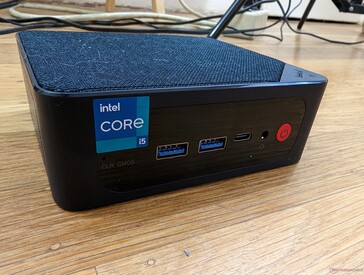

Voorkant: Clear CMOS-knop, 2x USB-A 3.0, USB-C, 3,5 mm headset, aan/uit-knop

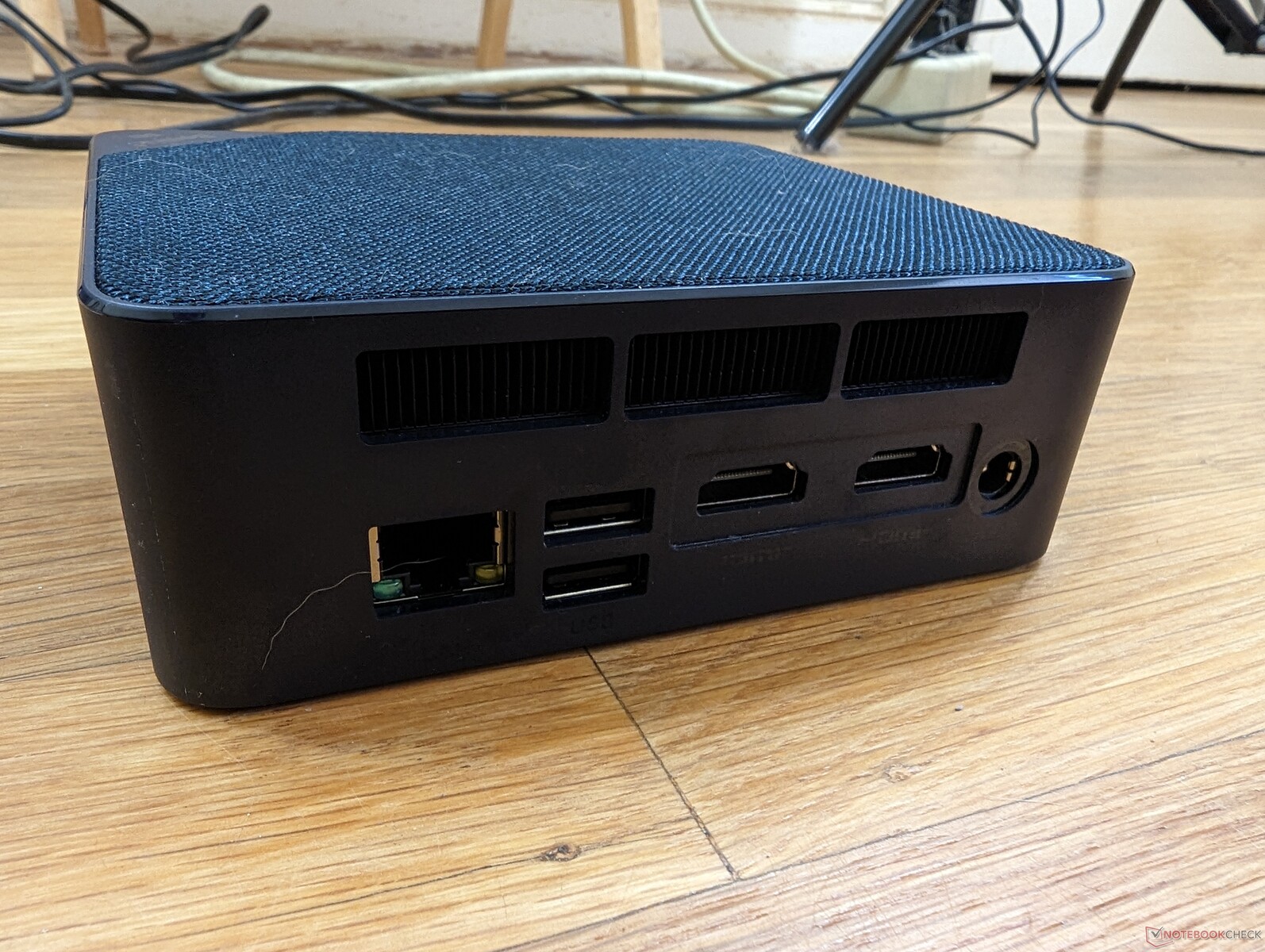

Achterkant: Gigabit RJ-45, 2x USB-A 2.0, 2x HDMI 2.0, AC-adapter

Communicatie

Een Intel AX201 wordt standaard geleverd voor Wi-Fi 6 en Bluetooth 5.2 connectiviteit. Er zijn geen Wi-Fi 6E opties om de kosten te drukken, maar gebruikers kunnen desgewenst een eigen Wi-Fi 6E module installeren. De overdrachtssnelheden zijn niettemin snel en stabiel.

Networking
iperf3 transmit AX12
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	546 (369^min - 618^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s
Beelink SEi8 Intel Dual Band Wireless-AC 3165	200 (156^min - 261^max) MBit/s
iperf3 receive AX12
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	862 (809^min - 916^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s
Beelink SEi8 Intel Dual Band Wireless-AC 3165	338 (320^min - 344^max) MBit/s
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s
BMAX B5 Pro G7H8 Realtek RTL8852BE	708 (679^min - 737^max) MBit/s -49%
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s
BMAX B5 Pro G7H8 Realtek RTL8852BE	634 (593^min - 680^max) MBit/s -57%

Beelink SEi12 Core i5-1235U; iperf3 transmit AXE11000; iperf 3.1.3: Ø1491 (1413-1572)

Beelink SEi12 Core i5-1235U; iperf3 receive AXE11000; iperf 3.1.3: Ø1384 (1200-1495)

Onderhoud

Onderhoud vereist iets meer werk dan bij de meeste andere mini PC's. Het verwijderen van de bodemplaat legt een van de ventilatoren bloot, die vervolgens moet worden verwijderd om de RAM, M.2 SSD, en M.2 WLAN modules te onthullen, zoals de afbeeldingen hieronder laten zien. Gelukkig is een gewone Philips schroevendraaier voldoende voor eventuele upgrades.

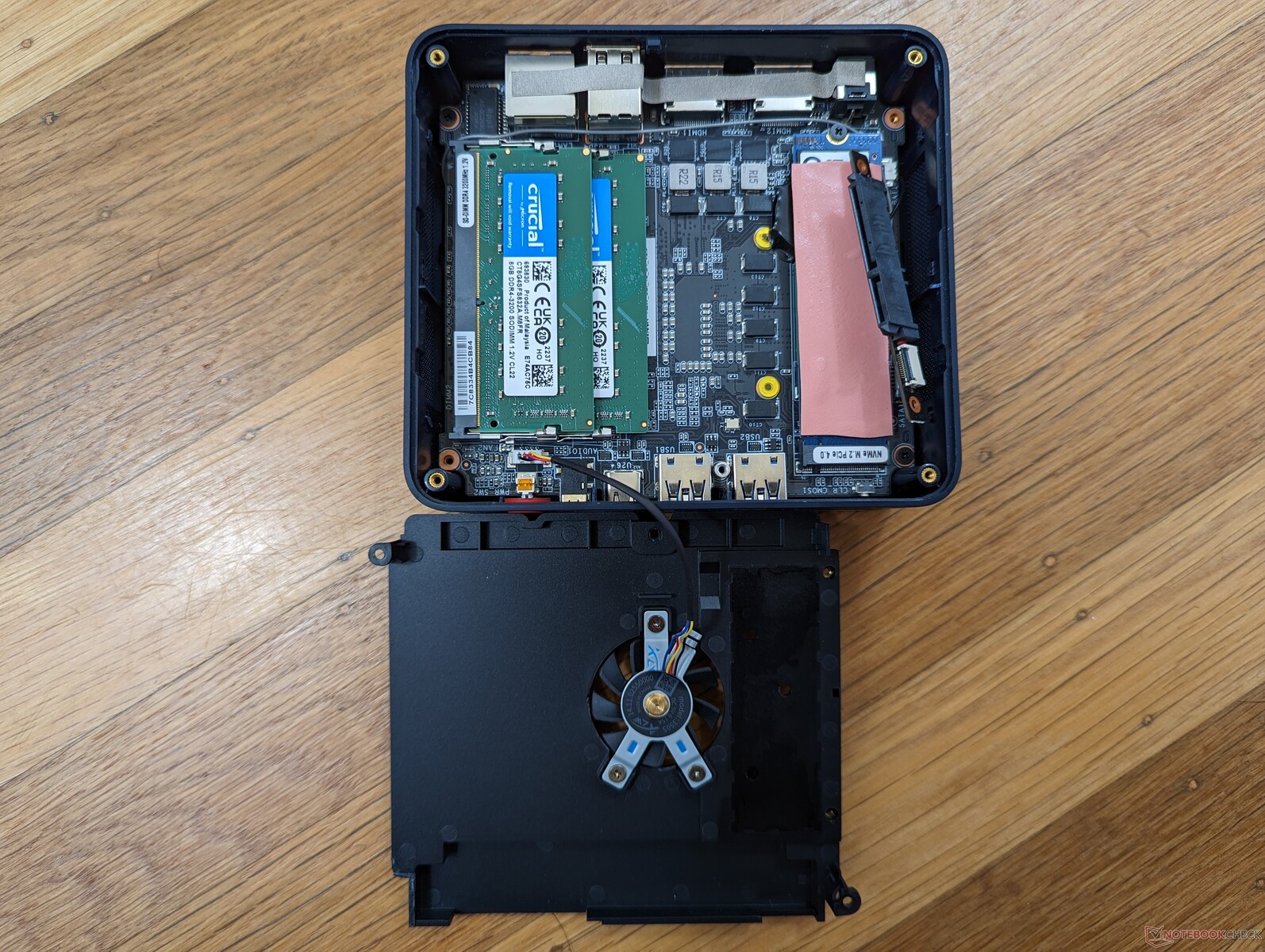

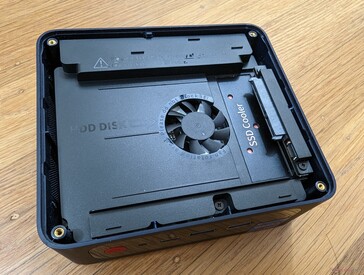

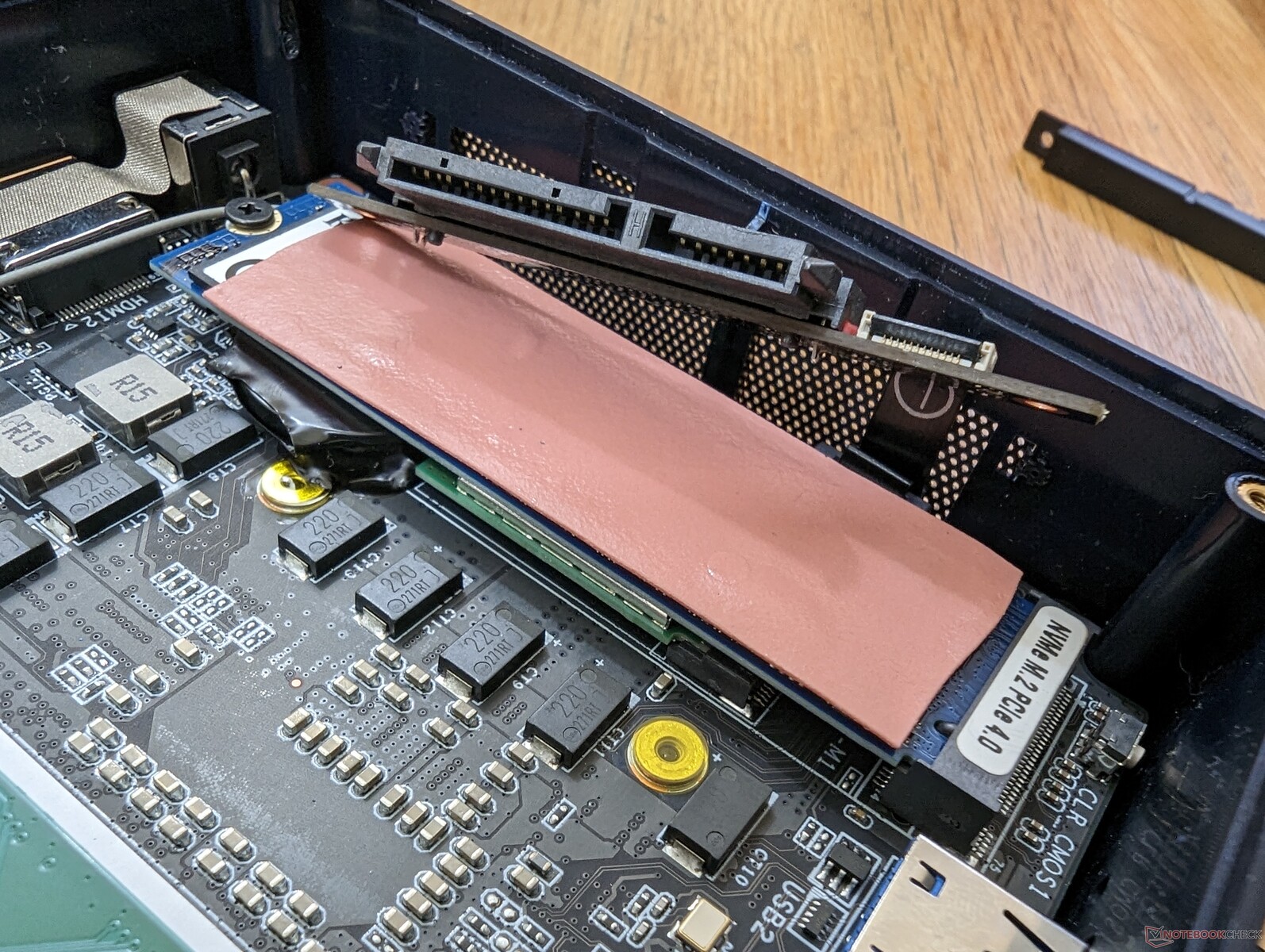

Het verwijderen van de bodemplaat legt de ventilator en de lege 2,5-inch SATA III-sleuf bloot

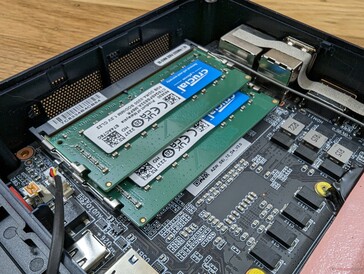

De interne onderdelen zijn toegankelijk zodra de ventilator is verwijderd

Accessoires en garantie

De verkoopdoos bevat twee HDMI-kabels, VESA-beugel met schroeven, gebruikershandleiding en de AC-adapter. Er geldt een beperkte fabrieksgarantie van één jaar, vergeleken met drie jaar bij aankoop van een Intel NUC.

Prestaties

Testomstandigheden

We hebben ons toestel in de modus Prestaties gezet voordat we onderstaande prestatie-benchmarks uitvoerden. De fabrikant levert geen vooraf geïnstalleerde toepassingen of software van het type "controlecentrum" bij zijn mini PC's.

Processor

CPU prestaties zijn uitstekend met resultaten die aanzienlijk sneller zijn dan deGateway Ultra Slim 14.1 of VAIO FE 14.1 elk met dezelfde 12e generatie Core i5-1235U CPU. Turbo Boost duurzaamheid zou echter zeker beter kunnen, aangezien CineBench R15 xT scores met ongeveer 14 procent in de tijd zouden dalen, zoals blijkt uit de onderstaande grafiek. Een hoog Turbo Boost potentieel wordt sowieso niet verwacht gezien het feit dat dit een Core U-serie CPU is

De totale multi-thread prestaties zijn ruwweg 15 procent sneller dan de 11e generatie Core i7-1165G7 in de duurdere NUC11.

Cinebench R15 Multi Loop

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink SER4 AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Intel NUC11PAQi7 Intel Core i7-1165G7: Ø969 (962.77-985.76)

BMAX B5 Pro G7H8 Intel Core i5-8260U: Ø566 (557.08-626.69)

Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G: Ø857 (853.53-862.44)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points +4%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	3131 Points +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points
Gemiddeld Intel Core i5-1235U (1783 - 3537, n=8)	2709 Points -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points -15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points -35%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points -36%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points -52%
Beelink SEi8 Intel Core i3-8109U	772 Points -75%

Cinebench R20 / CPU (Single Core)
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	669 Points +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points
Gemiddeld Intel Core i5-1235U (566 - 651, n=8)	613 Points -1%
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points -6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points -10%
Beelink SER4 AMD Ryzen 7 4800U	488 Points -21%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points -35%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points -35%
Beelink SEi8 Intel Core i3-8109U	351 Points -43%

Cinebench R23 / Multi Core
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points +3%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8332 (8041.69^min - 8332.08^max) Points +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points -16%
Gemiddeld Intel Core i5-1235U (2485 - 9208, n=8)	6365 Points -22%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points -36%
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points -63%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -75%

Cinebench R23 / Single Core
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1756 Points +9%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points
Gemiddeld Intel Core i5-1235U (1444 - 1698, n=8)	1587 Points -1%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points -10%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points -23%
Beelink SEi8 Intel Core i3-8109U	906 Points -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points -61%

Cinebench R15 / CPU Multi 64Bit
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1400 (1342.78^min - 1400.12^max) Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points -6%
Gemiddeld Intel Core i5-1235U (785 - 1587, n=8)	1125 Points -20%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points -30%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -39%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points -56%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -77%

Cinebench R15 / CPU Single 64Bit
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	250 Points +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points 0%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points -7%
Gemiddeld Intel Core i5-1235U (151.5 - 242, n=8)	213 Points -8%
Beelink SER4 AMD Ryzen 7 4800U	187 Points -19%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -23%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points -32%
Beelink SEi8 Intel Core i3-8109U	124.3 Points -46%

Blender / v2.79 BMW27 CPU
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * -241%
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * -86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * -51%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * -38%
Gemiddeld Intel Core i5-1235U (366 - 662, n=8)	491 Seconds * -26%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds *
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	381 Seconds * +2%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * +3%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +13%

7-Zip 18.03 / 7z b 4
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +13%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	37325 MIPS +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS
Gemiddeld Intel Core i5-1235U (20166 - 38643, n=8)	30566 MIPS -14%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS -24%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS -34%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS -47%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -73%

7-Zip 18.03 / 7z b 4 -mmt1
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	5464 MIPS +5%
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS +3%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS
Gemiddeld Intel Core i5-1235U (4371 - 5233, n=8)	5000 MIPS -4%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS -11%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS -21%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS -22%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS -28%

Geekbench 5.5 / Multi-Core
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points +12%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8105 Points +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points
Gemiddeld Intel Core i5-1235U (5528 - 8571, n=10)	6774 Points -13%
Beelink SER4 AMD Ryzen 7 4800U	6375 Points -18%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points -26%
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -36%
Beelink SEi8 Intel Core i3-8109U	1880 Points -76%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points -77%

Geekbench 5.5 / Single-Core
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1712 Points +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points -5%
Gemiddeld Intel Core i5-1235U (1426 - 1643, n=10)	1553 Points -5%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points -8%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points -27%
Beelink SEi8 Intel Core i3-8109U	888 Points -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points -61%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +10%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	9.92 fps +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps -10%
Gemiddeld Intel Core i5-1235U (4.99 - 9.43, n=8)	7.83 fps -17%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps -25%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps -31%
Beelink SEi8 Intel Core i3-8109U	2.85 fps -70%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps -81%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * -122%
Beelink SEi8 Intel Core i3-8109U	79 s * -62%
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * -29%
Gemiddeld Intel Core i5-1235U (42.4 - 65.5, n=8)	50.3 s * -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * -0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s *
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	44.5 s * +9%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * +13%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * -146%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * -68%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * -17%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * -8%
Gemiddeld Intel Core i5-1235U (0.4986 - 0.603, n=8)	0.527 sec * -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec *
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	0.4807 sec * +6%

* ... kleiner is beter

Cinebench R15 CPU Multi 64Bit

1409 Points

Cinebench R15 OpenGL 64Bit

95.4 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

231 Points

Cinebench R20 CPU (Multi Core)

3111 Points

Cinebench R20 CPU (Single Core)

620 Points

Cinebench R23 Single Core

1610 Points

Cinebench R23 Multi Core

8128 Points

Help

... in vergelijking

Performance Rating
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	91.8 pt
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	78 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	73.2 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	72.1 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	69.5 pt
Gemiddeld Intel Core i5-1235U	60 pt
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	43.2 pt
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	24.5 pt

AIDA64 / FP32 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +48%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	7373 KRay/s +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	7026 KRay/s +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	6915 KRay/s +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s
Gemiddeld Intel Core i5-1235U (3078 - 7457, n=8)	5618 KRay/s -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	4686 KRay/s -31%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	2663 KRay/s -61%

AIDA64 / FPU Julia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +64%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	37403 Points +9%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	37275 Points +8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	29426 Points -15%
Gemiddeld Intel Core i5-1235U (15838 - 37760, n=8)	29359 Points -15%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	23561 Points -32%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	12985 Points -62%

AIDA64 / CPU SHA3
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	2079 MB/s +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	1983 MB/s +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	1911 MB/s +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -2%
Gemiddeld Intel Core i5-1235U (978 - 2072, n=8)	1604 MB/s -15%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	1029 MB/s -45%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	629 MB/s -67%

AIDA64 / CPU Queen
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +31%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65340 Points +9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	64914 Points +9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points
Gemiddeld Intel Core i5-1235U (45680 - 62404, n=8)	57047 Points -5%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	52480 Points -12%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	43788 Points -27%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	23893 Points -60%

AIDA64 / FPU SinJulia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +154%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	4779 Points +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	4580 Points -1%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	4499 Points -3%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	4189 Points -10%
Gemiddeld Intel Core i5-1235U (3099 - 4644, n=8)	3958 Points -15%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	2152 Points -54%

AIDA64 / FPU Mandel
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +75%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	18624 Points +14%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	17999 Points +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	17959 Points +10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points
Gemiddeld Intel Core i5-1235U (8046 - 18819, n=8)	14550 Points -11%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	11729 Points -28%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	6615 Points -60%

AIDA64 / CPU AES
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	67682 MB/s +1%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	67458 MB/s 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -19%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	38221 MB/s -43%
Gemiddeld Intel Core i5-1235U (23386 - 67140, n=8)	35602 MB/s -47%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	16756 MB/s -75%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	8170 MB/s -88%

AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	577 MB/s -9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	558 MB/s -12%
Gemiddeld Intel Core i5-1235U (329 - 633, n=8)	500 MB/s -21%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	341 MB/s -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	299 MB/s -53%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	147.2 MB/s -77%

AIDA64 / FP64 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +57%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	3966 KRay/s +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	3926 KRay/s +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	3766 KRay/s +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s
Gemiddeld Intel Core i5-1235U (1670 - 3928, n=8)	3034 KRay/s -14%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	2556 KRay/s -28%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	1440 KRay/s -59%

AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	44210 MPixel/s +50%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	42305 MPixel/s +43%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	38731 MPixel/s +31%
Gemiddeld Intel Core i5-1235U (15933 - 41909, n=8)	31677 MPixel/s +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s -18%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	19258 MPixel/s -35%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	14060 MPixel/s -52%

Systeemprestaties

PCMark resultaten zijn aanzienlijk hoger dan de oudereBeelink SEi8 die een 8th gen i3-8109U en een tragere Intel 660p SSD gebruikt.

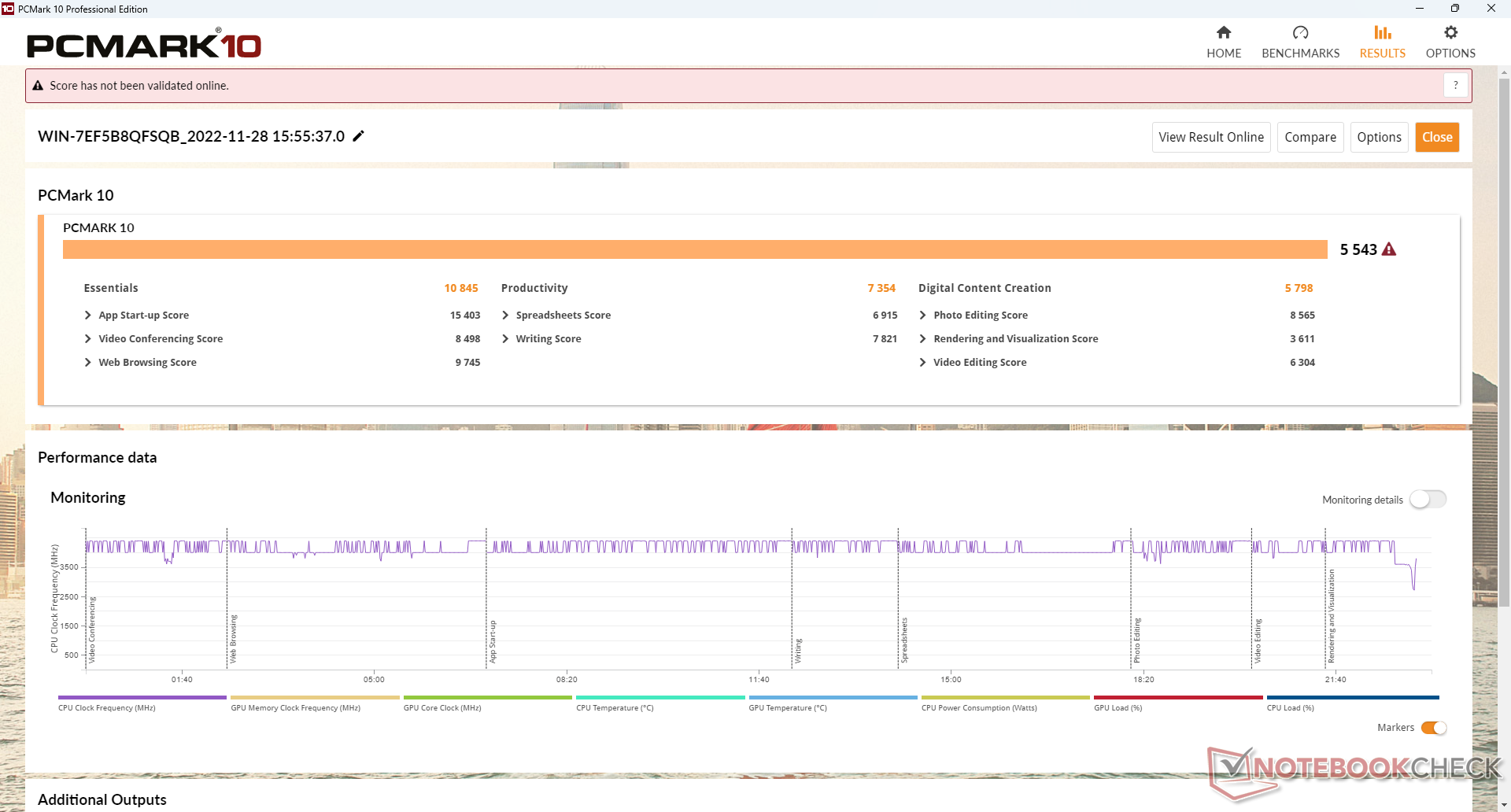

PCMark 10 / Score
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points -4%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points -5%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5158 Points -7%
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (4528 - 5543, n=8)	5007 Points -10%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	3921 Points -29%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	3645 Points -34%

PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	10258 Points -5%
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (9143 - 11273, n=8)	9930 Points -8%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points -15%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points -16%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	8177 Points -25%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	7861 Points -28%

PCMark 10 / Productivity
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +8%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +8%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	7136 Points -3%
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (6440 - 7354, n=8)	6708 Points -9%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	6197 Points -16%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	6093 Points -17%

PCMark 10 / Digital Content Creation
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points -3%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points -6%
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (4220 - 5839, n=8)	5129 Points -12%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5087 Points -12%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	3229 Points -44%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	2746 Points -53%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (983 - 1644, n=8)	1383 Points -16%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	819 Points -50%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (1026 - 1676, n=8)	1378 Points -18%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	856 Points -49%

CrossMark / Creativity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (1032 - 1618, n=8)	1445 Points -7%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	761 Points -51%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points
Gemiddeld Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (746 - 1867, n=8)	1241 Points -34%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	891 Points -52%

PCMark 10 Score		5543 punten
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Gemiddeld Intel Core i5-1235U (24653 - 61921, n=8)	49493 MB/s +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s -14%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	33609 MB/s -22%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	28779 MB/s -33%

AIDA64 / Memory Read
Gemiddeld Intel Core i5-1235U (24441 - 66108, n=8)	51759 MB/s +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	30792 MB/s -34%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	30757 MB/s -34%

AIDA64 / Memory Write
Gemiddeld Intel Core i5-1235U (25156 - 75808, n=8)	52813 MB/s +14%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s -6%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	34164 MB/s -26%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	17678 MB/s -62%

AIDA64 / Memory Latency
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -3%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	94.4 ns * -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns *
Gemiddeld Intel Core i5-1235U (76.3 - 119, n=8)	82.8 ns * +10%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	56 ns * +39%

* ... kleiner is beter

DPC latentie

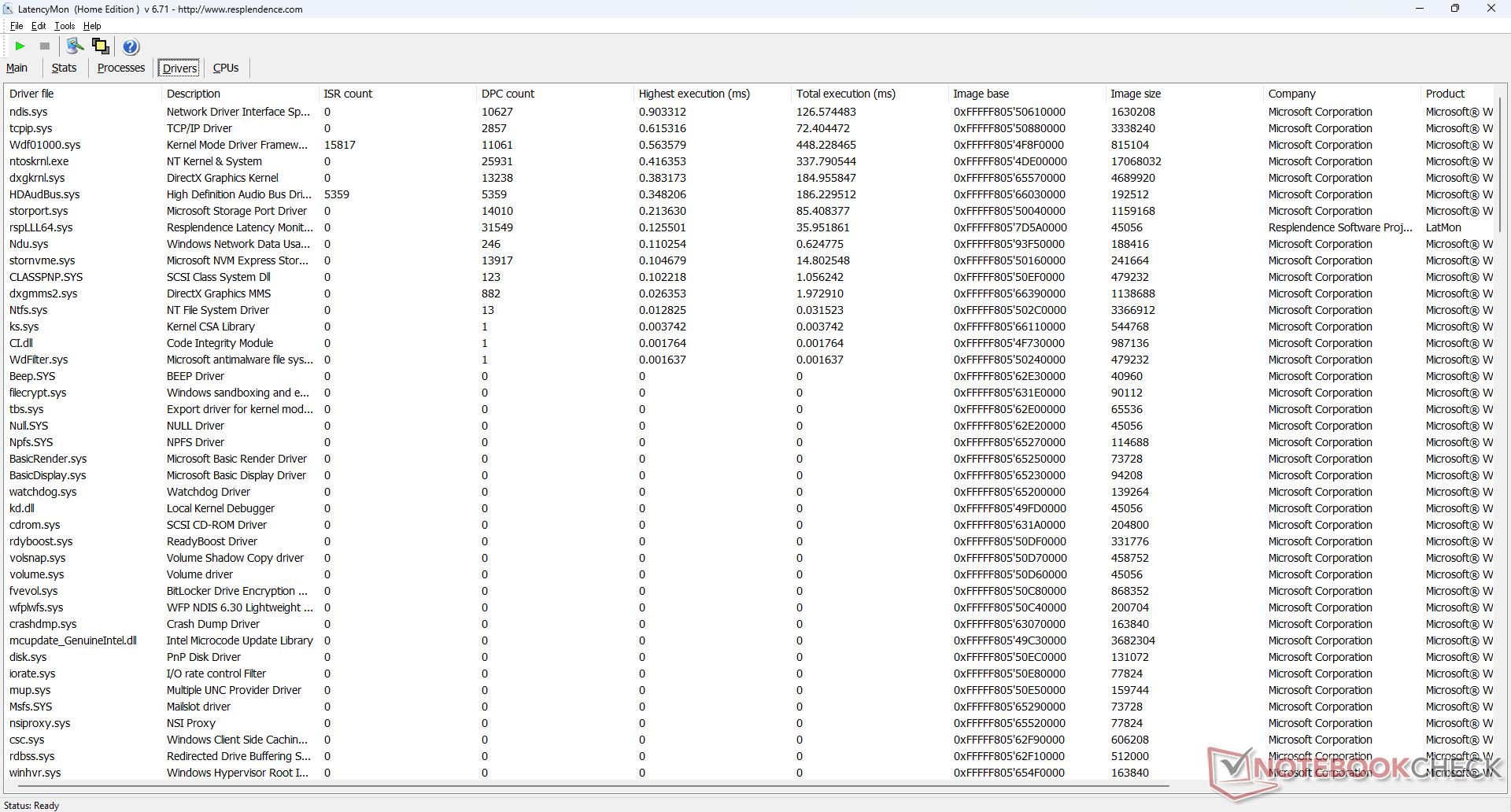

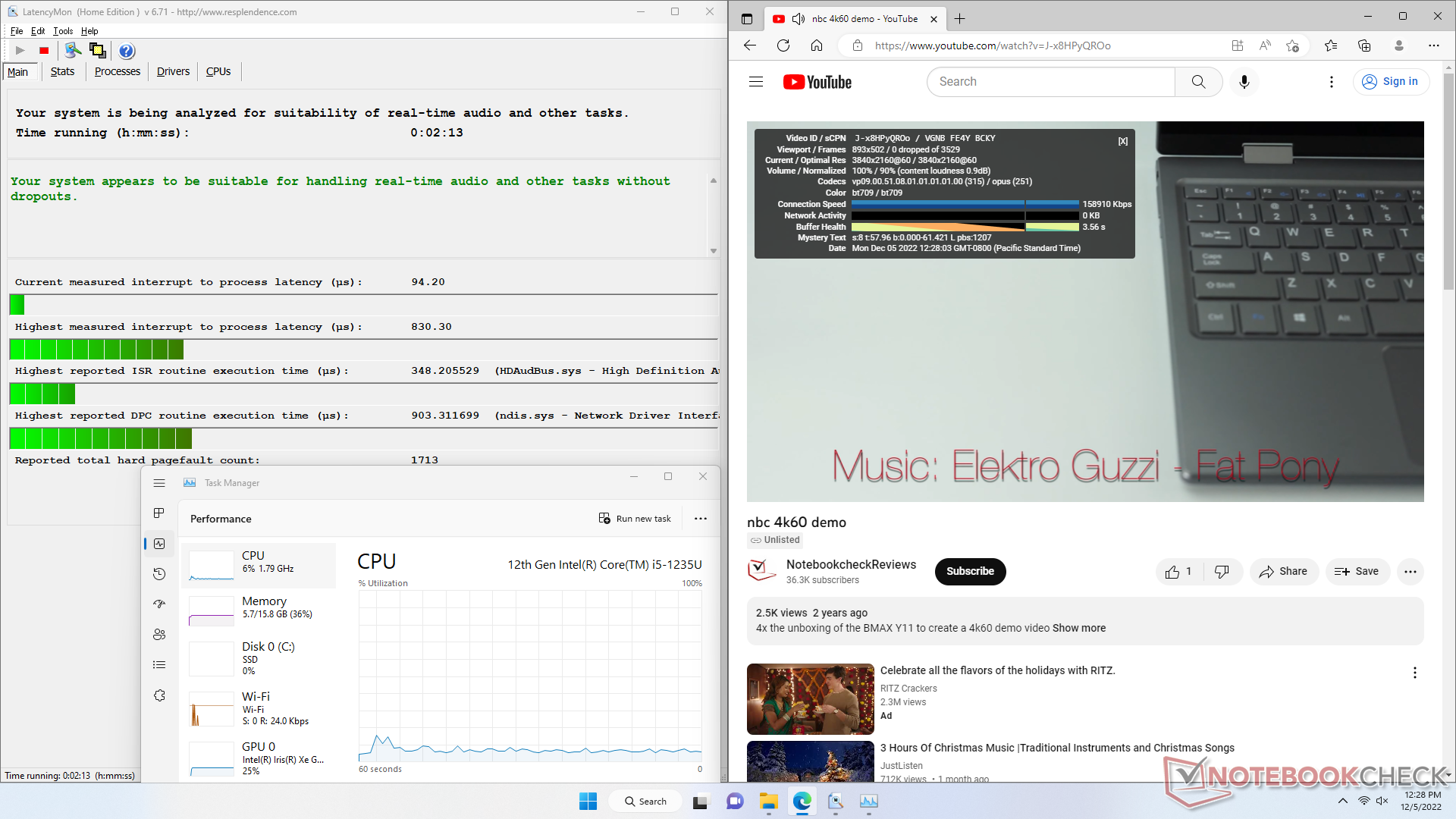

LatencyMon toont geen DPC-problemen bij het openen van meerdere browsertabbladen van onze homepage. het afspelen van 4K-video's met 60 FPS verloopt ook soepel, zonder dropped frames.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs *
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	568 μs * +32%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	401.8 μs * +52%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * +60%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +80%

* ... kleiner is beter

Opslagapparaten

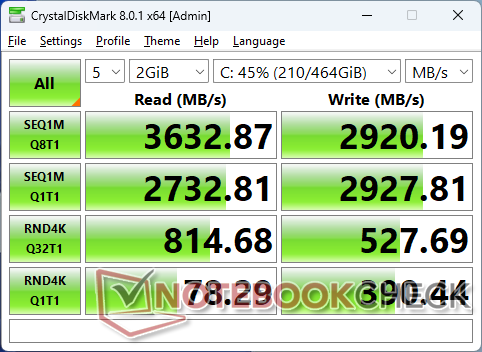

Het systeem ondersteunt PCIe4 x4 NVMe SSD's en bevat zelfs een koellichaam om de temperatuur onder controle te houden. Niettemin wordt de unit geleverd met een langzamere Kingston NV1 PCIe3 x4 NVMe SSD als kostenbesparende maatregel. Wanneer we DiskSpd in een lus draaien, zien we dat de overdrachtsnelheden dalen van een maximum van 3600 MB/s naar een minimum van 1700 MB/s, wat kan duiden op een slecht presterende koellichaam.

Primaire M.2 2280 PCIe4 x4 NVMe-sleuf + secundaire 2,5-inch SATA III-sleuf bovenop. Verwijderbare WLAN module zit onder de M.2 SSD

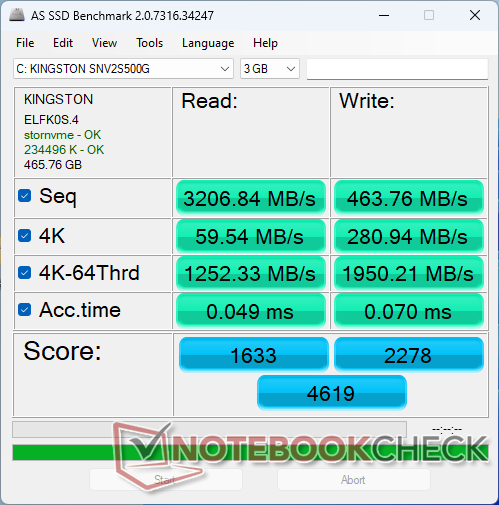

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

Sequential Read: 3206.84MB/s

Sequential Write: 463.76MB/s

4K Read: 59.54MB/s

4K Write: 280.94MB/s

4K-64 Read: 1252.33MB/s

4K-64 Write: 1950.21MB/s

Access Time Read: 0.049ms

Access Time Write: 0.07ms

Copy ISO: 0.99MB/s

Copy Program: 344.18MB/s

Copy Game: 411.4MB/s

Score Read: 1633Points

Score Write: 2278Points

Score Total: 4619Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	81.5 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	70.8 pt
Intel Hades Canyon NUC8i7HVK ^-8! Intel Optane 120 GB SSDPEK1W120GA	51.2 pt
BMAX B5 Pro G7H8	42 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	40.5 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	34.3 pt

DiskSpd
seq read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3630 (3511.15^min - 3630.17^max) MB/s +45%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s
BMAX B5 Pro G7H8	2167 (1366.5^min - 2167.27^max) MB/s -14%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -45%
seq write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3504 (3409.87^min - 3503.8^max) MB/s +23%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -42%
BMAX B5 Pro G7H8	1401 (545.01^min - 1401.03^max) MB/s -51%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -66%
seq q8 t1 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6794 (6533.05^min - 6794.19^max) MB/s +87%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s
BMAX B5 Pro G7H8	2448 (2357.41^min - 2447.51^max) MB/s -33%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -57%
seq q8 t1 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	4867 (4865.94^min - 4867.49^max) MB/s +71%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s
BMAX B5 Pro G7H8	1922 (587.5^min - 1922.04^max) MB/s -32%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -50%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -66%
4k q1 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s -21%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	55.8 (55.66^min - 55.82^max) MB/s -30%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s -36%
BMAX B5 Pro G7H8	49.1 (48.65^min - 49.06^max) MB/s -38%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -49%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s -56%
BMAX B5 Pro G7H8	130.2 (125.24^min - 130.18^max) MB/s -67%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	83.2 (82.75^min - 83.2^max) MB/s -79%
4k q32 t16 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3117 (3085.18^min - 3117.44^max) MB/s +61%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s
BMAX B5 Pro G7H8	1181 (609.06^min - 1181.44^max) MB/s -39%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s -62%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -82%
4k q32 t16 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2636 (2619.44^min - 2635.84^max) MB/s +19%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s
BMAX B5 Pro G7H8	914 (454.55^min - 913.99^max) MB/s -59%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s -63%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -67%

AS SSD
Score Total
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6725 Points +46%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	3023 Points -35%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points -41%
BMAX B5 Pro G7H8	2389 Points -48%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -60%
Score Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2660 Points +63%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1524 Points -7%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points -40%
BMAX B5 Pro G7H8	827 Points -49%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -67%
Score Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2676 Points +17%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points -44%
BMAX B5 Pro G7H8	1147 Points -50%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -55%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	714 Points -69%
Seq Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3257 MB/s +2%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s
BMAX B5 Pro G7H8	2258.54 MB/s -30%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s -30%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -48%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1379 MB/s -57%
Seq Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3937 MB/s +749%
BMAX B5 Pro G7H8	1845.2 MB/s +298%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s +280%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s +87%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	553 MB/s +19%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s
4K Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	127.9 MB/s +115%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s -5%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	51.3 MB/s -14%
BMAX B5 Pro G7H8	44.84 MB/s -25%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s -26%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s -31%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s -42%
BMAX B5 Pro G7H8	130.67 MB/s -53%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	103.5 MB/s -63%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	75.7 MB/s -73%
4K-64 Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2283 MB/s +82%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1258 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s -44%
BMAX B5 Pro G7H8	555.92 MB/s -56%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -74%
4K-64 Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2206 MB/s +13%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s -53%
BMAX B5 Pro G7H8	831.78 MB/s -57%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s -60%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	556 MB/s -71%
Access Time Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -73%
BMAX B5 Pro G7H8	0.058 ms * -18%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.056 ms * -14%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * -8%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.025 ms * +49%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * -389%
BMAX B5 Pro G7H8	0.156 ms * -123%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.154 ms * -120%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -96%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.033 ms * +53%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SEi12 Core i5-1235U: Ø3411 (1756.47-3635.06)

GPU-prestaties

De grafische prestaties zijn waar we ze verwachten ten opzichte van andere pc's met dezelfde geïntegreerde Iris Xe G7 80 EUs GPU. Merk op dat andere PC's met de Iris Xe G7 96 EUs tot 25 tot 40 procent sneller kunnen zijn indien geconfigureerd met dual-channel RAM in plaats van single-channel RAM.

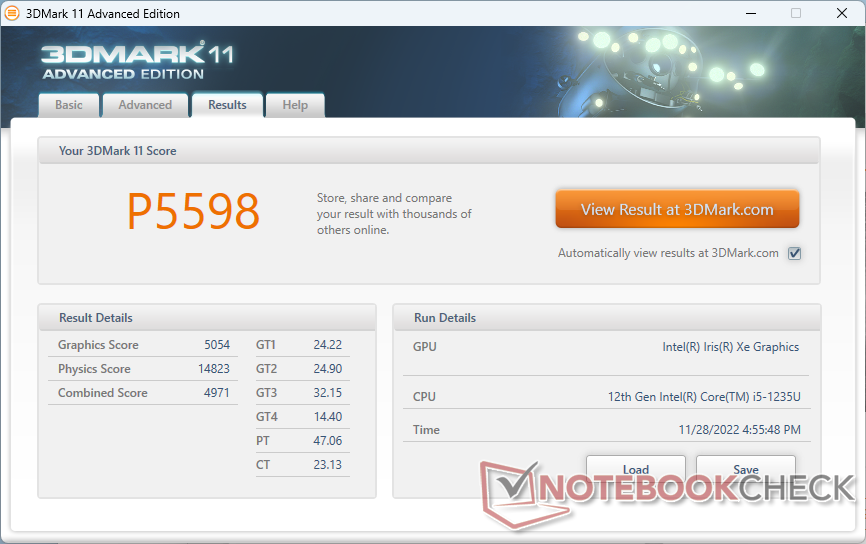

3DMark | 3DMark 11

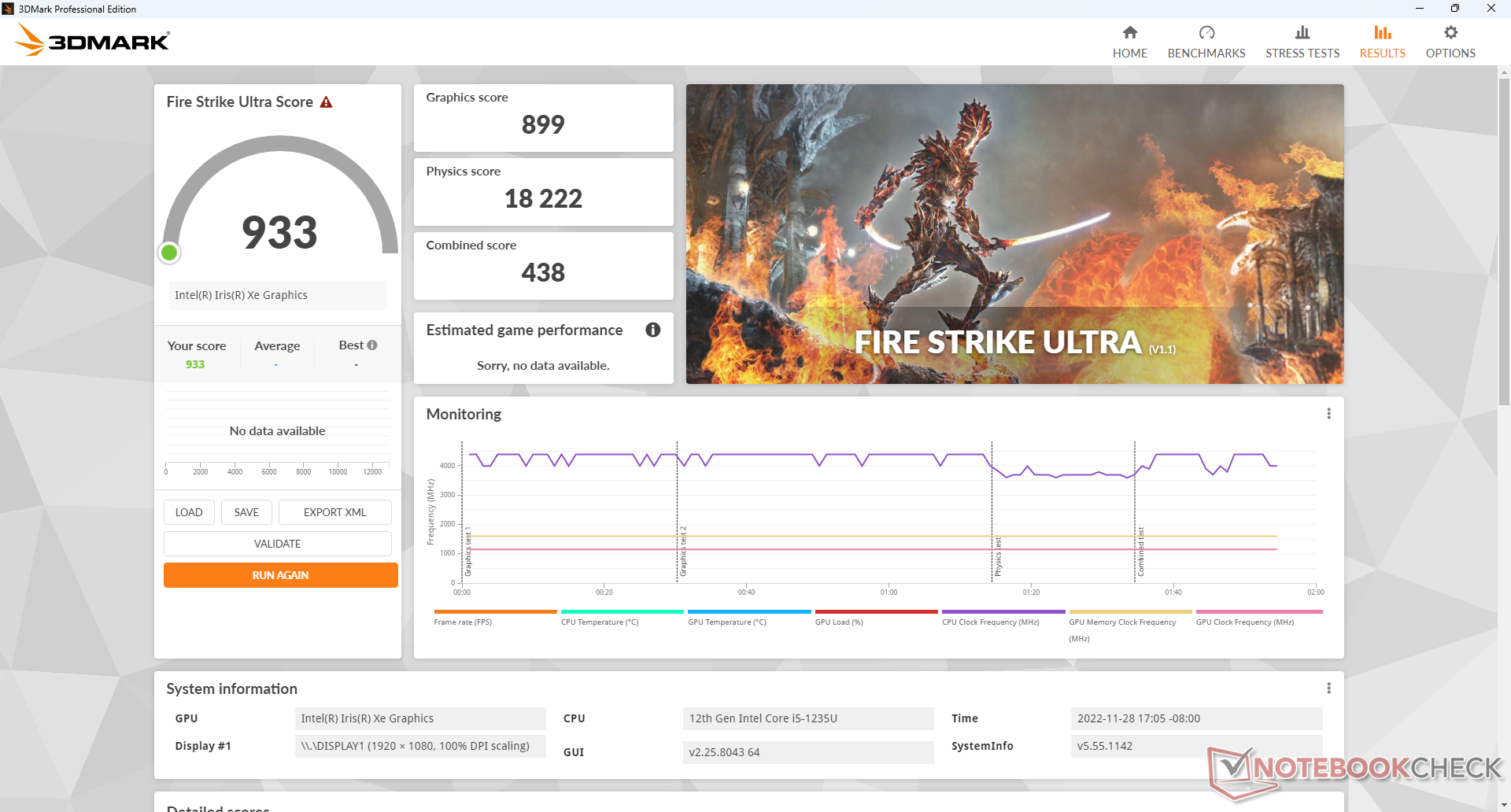

3DMark

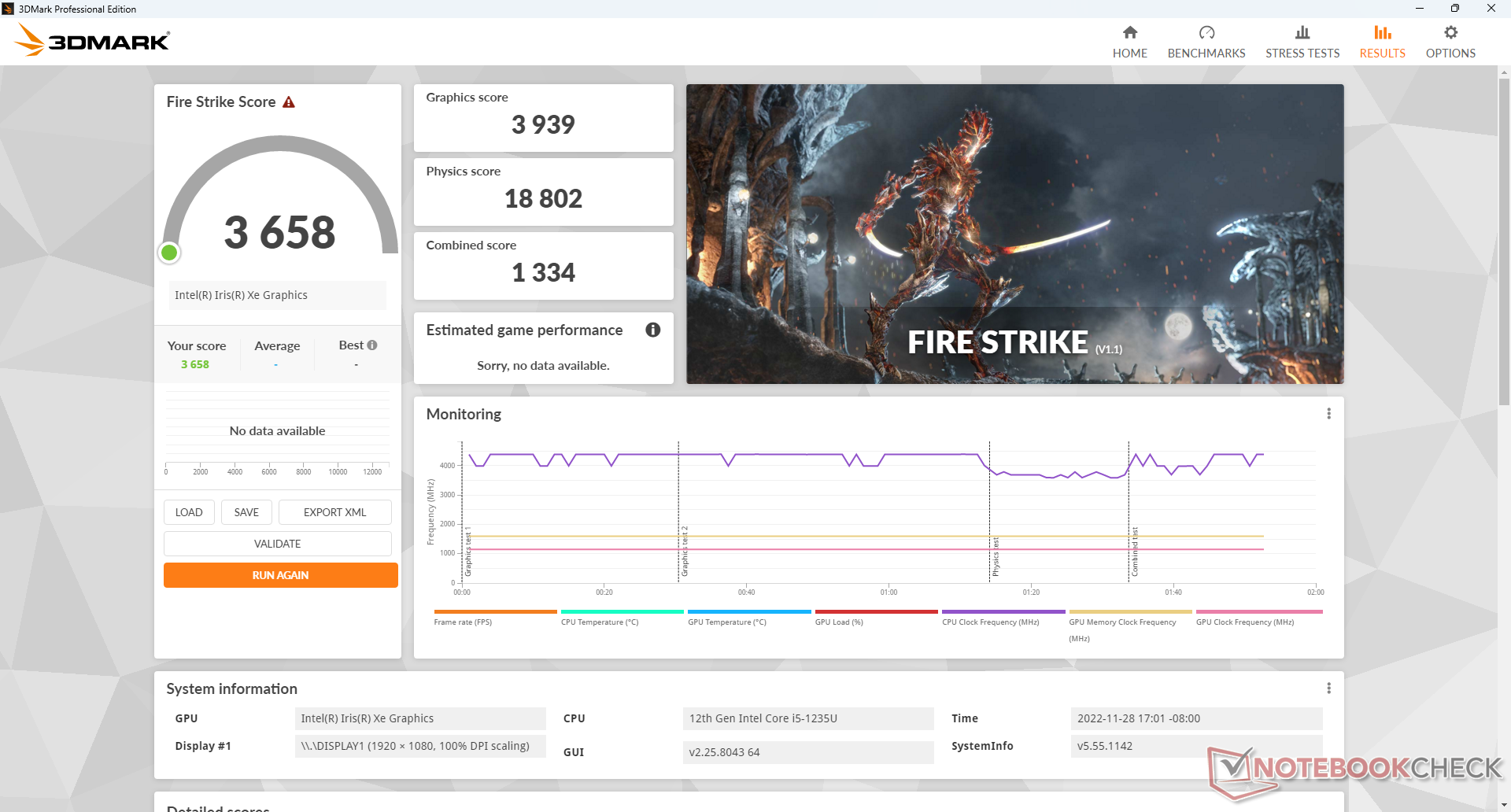

1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points +160%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +24%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points 0%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111)	3794 Points -4%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -5%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	1715 Points -56%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points -67%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points +154%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +42%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +8%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108)	1172 Points +2%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points +2%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	569 Points -50%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points -63%
2560x1440 Time Spy Score
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points +136%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1854 Points +41%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points +8%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (630 - 1731, n=108)	1317 Points 0%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1316 Points 0%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	636 Points -51%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	484 Points -63%

3DMark 11 - 1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +35%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +19%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points +19%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109)	5179 Points +2%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	2801 Points -45%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points -65%

3DMark 11 Performance		5598 punten

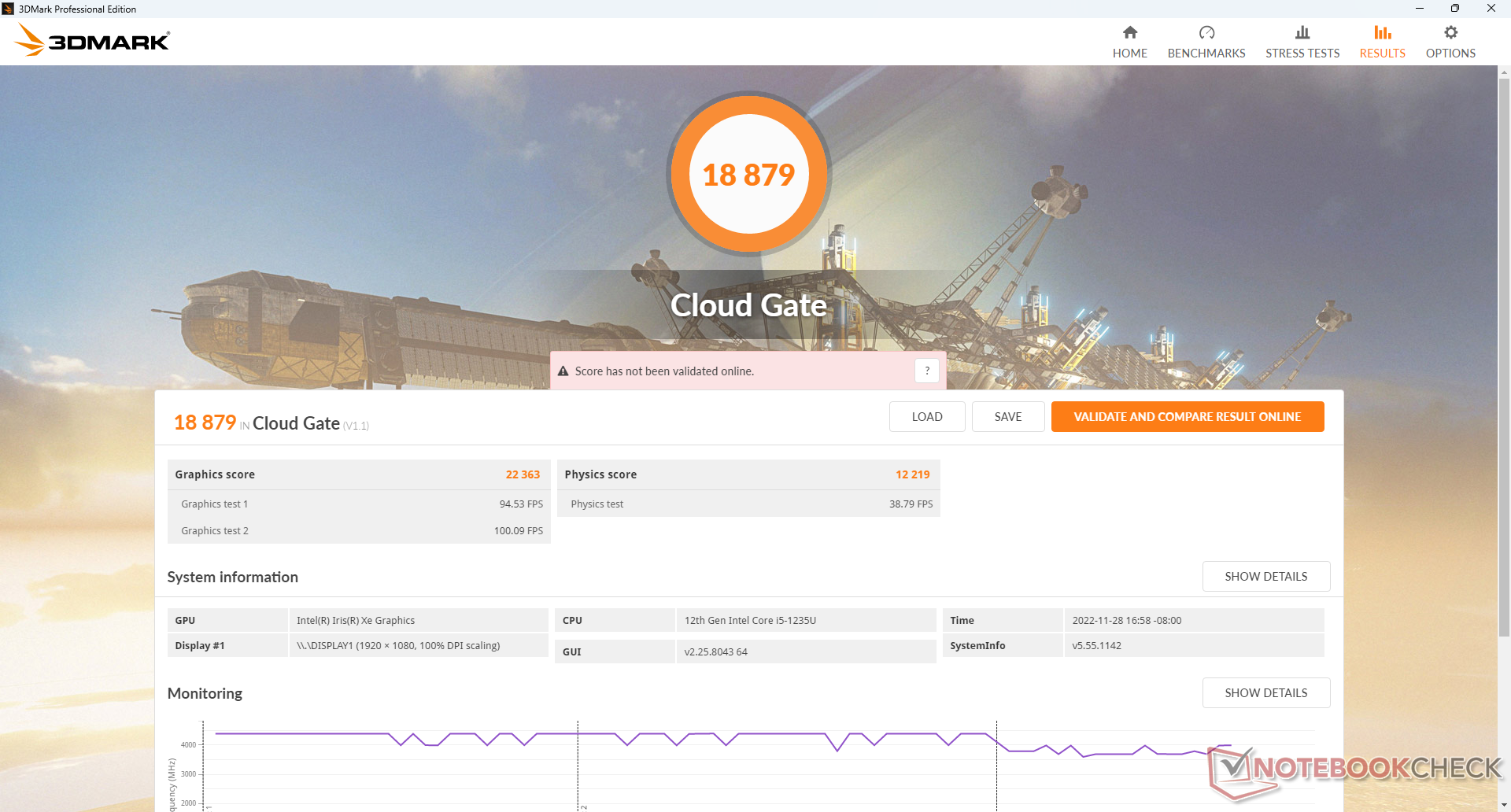

3DMark Cloud Gate Standard Score		18879 punten
3DMark Fire Strike Score		3658 punten

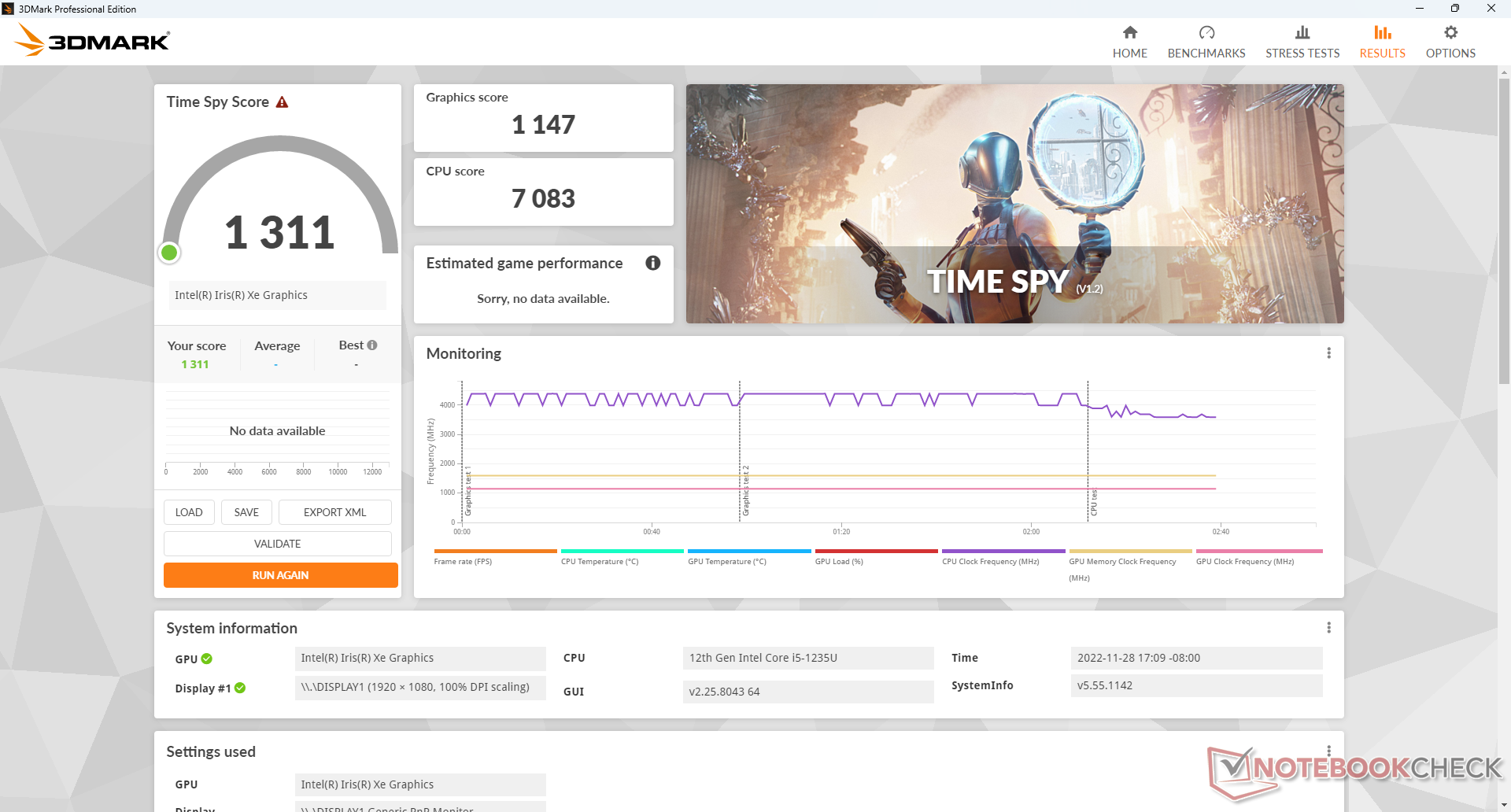

3DMark Time Spy Score		1311 punten
Help

... in vergelijking

Blender - v3.3 Classroom CPU
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1402 Seconds * -98%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1099 Seconds * -55%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (463 - 3047, n=50)	932 Seconds * -32%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	726 Seconds * -3%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds *
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * +1%

* ... kleiner is beter

Performance Rating - Percent
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	100 pt
Beelink SEi11 Pro ^-1! Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.9 pt
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.8 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	43.5 pt
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	39.5 pt
BMAX B5 Pro G7H8 ^-5! Intel Core i5-8260U, Intel UHD Graphics 620	5.9 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +181%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +17%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -16%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +432%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -23%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps +10%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +223%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +37%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps +27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -3%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +124%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +21%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -87%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +54%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps +26%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -2%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165.5 (148^min) fps +113%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	94.8 (40^min) fps +22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	70.3 (63^min) fps -10%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101)	65.4 fps -16%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	23.8 (20^min) fps -69%
1366x768 Medium Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	105.1 (100^min) fps +116%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	50.1 (54^min) fps +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.7 (40^min) fps -10%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103)	41.9 fps -14%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	13.5 (10^min) fps -72%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	59.7 (56^min) fps +130%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps +29%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.7 (29^min) fps +26%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (14^min, 15.4^P0.1, 17.2^P1) fps +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps -13%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (9.3 - 33.5, n=101)	21.6 fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.7 (18^min) fps -20%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	7.3 (2^min) fps -72%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +181%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.8 (14^min) fps +21%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (6.26 - 28, n=91)	11.2 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -16%

GTA V
1024x768 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (1.676^min, 100^P1) fps +40%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	113.9 (22.5^min, 66.7^P1) fps -3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	110 (19.4^min, 71.4^P1) fps -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps -10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps -13%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=81)	83.1 fps -29%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67.6 (16.5^min, 47.6^P1) fps -42%
1920x1080 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (4.25^min, 111^P1) fps +146%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	91.4 (16^min, 58.8^P1) fps +36%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	88.4 (8.61^min, 58.8^P1) fps +32%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	80.4 (22.6^min, 52.6^P1) fps +20%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.5 (8.83^min, 52.6^P1) fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (21.5 - 98.1, n=66)	61.9 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.7 (12.8^min, 27.8^P1) fps -39%
1366x768 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	158 (4.71^min, 100^P1) fps +60%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	100.9 (23.5^min, 62.5^P1) fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (13.8^min, 62.5^P1) fps 0%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps -4%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps -11%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84)	70.6 fps -28%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	52.5 (13.6^min, 37^P1) fps -47%
1920x1080 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	157 (3.27^min, 100^P1) fps +143%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	80.8 (23.8^min, 47.6^P1) fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 (15.8^min, 50^P1) fps +21%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (6.79^min, 50^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	71.3 (22.8^min, 45.5^P1) fps +10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (18.8 - 97.2, n=66)	55.9 fps -14%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35.3 (13.8^min, 23.8^P1) fps -45%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.2 (1.964^min, 62.5^P1) fps +372%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 (5.48^min, 21.7^P1) fps +72%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29.4 (12.5^min, 20.8^P1) fps +71%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	24.3 (8.65^min, 18.2^P1) fps +41%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	24 (8.72^min, 18.2^P1) fps +40%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (7.81 - 32, n=83)	18.3 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.6 (5.49^min, 8.93^P1) fps -27%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +432%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps +81%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	10.3 (4.39^min, 6.58^P1) fps +39%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (3.07 - 11.6, n=70)	7.86 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -23%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.8 fps +129%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.5 fps +33%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps +22%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	43.4 fps +22%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104)	31.6 fps -11%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps -15%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	16.6 fps -54%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.61 fps -84%
1920x1080 Standard Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	41.2 fps +113%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +30%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.9 fps +29%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	23.8 fps +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps -1%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (4.47 - 25.1, n=97)	17.4 fps -10%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.6 fps -19%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	8.8 fps -54%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +85%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.1 fps +34%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	16.6 fps +23%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (4.01 - 22, n=88)	13 fps -4%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	6.08 fps -55%

Strange Brigade
1280x720 lowest AF:1
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	210 (146^min, 184^P1) fps +219%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +36%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	89 (19.4^min, 28.4^P1) fps +35%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +33%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.3 (43.8^min, 72.3^P1) fps +25%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81)	67.4 fps +2%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.2 (14^min, 22.8^P1) fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps
1920x1080 medium AA:medium AF:4
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	85.3 (73.4^min, 74.4^P1) fps +222%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.8 (14.1^min, 22.7^P1) fps +54%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +45%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +44%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.3 (24^min, 29.6^P1) fps +26%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=83)	28.1 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.8 (5.4^min, 6.17^P1) fps -10%
1920x1080 high AA:high AF:8
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	68 (51.7^min, 52.9^P1) fps +218%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.4 (8.5^min, 17.9^P1) fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 11.4^P1) fps +42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps +39%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.1 (20.4^min, 22.5^P1) fps +31%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (11.4 - 32.3, n=80)	22.8 fps +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.1 (5^min, 5.19^P1) fps -6%
1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +223%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	26.1 (7^min, 9.02^P1) fps +49%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 (5^min, 6.62^P1) fps +40%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps +35%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (13.6 - 26.2, n=56)	19.8 fps +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -3%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	127 (103.6^min) fps +35%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	117.8 (92.7^min) fps +26%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	115.1 (96.2^min) fps +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps +16%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps +10%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	94.4 (75.6^min) fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (14.8 - 140.3, n=109)	91.3 fps -3%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.8 (48.8^min) fps -16%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	42.4 (30.8^min) fps -55%
1366x768 med (1/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	119 (95.8^min) fps +34%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	105.8 (88^min) fps +19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	92.2 (73.2^min) fps +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps -3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps -6%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (10.9 - 119.5, n=109)	67.8 fps -24%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61.8 (46.8^min) fps -30%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	34.6 (29.8^min) fps -61%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	8.6 (6.3^min) fps -90%
1920x1080 high (2/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	108 (87.1^min) fps +137%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps +50%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	68.1 (61.5^min) fps +50%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	67.4 (60.9^min) fps +48%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (10.4 - 70.9, n=109)	42.8 fps -6%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.7 (26.8^min) fps -17%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	25.3 (19.3^min) fps -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (4.2^min) fps -88%
1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +124%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	62.4 (55.5^min) fps +48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps +47%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	59.8 (52.4^min) fps +42%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +21%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps
Gemiddeld Intel Iris Xe Graphics G7 80EUs (7.8 - 66.1, n=110)	39.4 fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -17%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.7 (18.8^min) fps -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -87%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39 (25^min) fps +191%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	22.6 (14.7^min) fps +69%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (9.1 - 17.8, n=7)	14.2 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps
1920x1080 Medium Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	30 (21^min) fps +163%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	18.6 (12.1^min) fps +63%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (11.4 - 14.7, n=5)	12.7 fps +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps
1920x1080 High Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (16^min) fps +156%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.2 (9.8^min) fps +58%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (9 - 11.3, n=4)	10.1 fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps
1920x1080 Ultra Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (15^min) fps +211%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	11.2 (7.7^min) fps +51%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (7.4 - 9.71, n=4)	8.53 fps +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps

X-Plane 11.11
1280x720 low (fps_test=1)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	61.8 fps +28%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.3 fps -13%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps -15%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.4 fps -17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.9 fps -22%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=109)	36.4 fps -25%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.4 fps -54%
1920x1080 med (fps_test=2)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	52.8 fps +61%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	41.1 fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	34.9 fps +6%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 fps 0%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (6.45 - 40.5, n=110)	28.6 fps -13%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	15 fps -54%
1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +54%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	36.2 fps +23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps +3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -2%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (5.55 - 36.3, n=108)	25.8 fps -13%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	12.3 fps -58%

Witcher 3 FPS Chart

Beelink SEi12 Core i5-1235U: Ø75.7 (64-80)

	lage	gem.	hoge	ultra
GTA V (2015)	117.5	98.7	17.2	7.41
The Witcher 3 (2015)	77.7	48.7	26	12.2
Dota 2 Reborn (2015)	93.8	88.7	45.5	42.2
Final Fantasy XV Benchmark (2018)	35.7	19.3	13.5
X-Plane 11.11 (2018)	48.4	32.8	29.5
Strange Brigade (2018)	65.9	26.5	21.4	17.5
Cyberpunk 2077 1.6 (2022)	13.4	11.4	9	7.4

Emissies

Systeemgeluid

Zoals andere mini PC's van Beelink, is het geluid van de ventilator altijd aanwezig op de SEi12 met bijna 28 dB(A) tegen een stille achtergrond van 23 dB(A). Gelukkig wordt het systeem nooit storend luid, zelfs niet bij hogere belastingen. Het draaien van Witcher 3 of 3DMark 06 zou resulteren in vergelijkbare geluidsniveaus van de ventilator als de Intel NUC 11PAQ onder vergelijkbare omstandigheden. Het geluid van de ventilator kan af en toe oplopen tot 39 dB(A), zij het slechts voor korte periodes, alvorens terug te vallen naar het lage 30 dB(A) bereik. Krachtigere mini PC's zoals de Beelink SER serie zijn nog luider.

Geluidsprofiel ventilator (Wit: Achtergrond, Rood: Systeem idle, Blauw: 3DMark 06, Oranje: Witcher 3, Groen: Prime95 stress)

Geluidsniveau

Onbelast		27.8 / 27.8 / 27.8 dB (A)
Belasting		32 / 39.2 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Earthworks M23R, Arta (15 cm afstand) omgevingslawaai: 23.3 dB(A)

	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise		-4%	-14%	-4%	10%	-14%
uit / omgeving *	23.3	24.5 -5%	23.4 -0%	25.6 -10%	23 1%	28.7 -23%
Idle Minimum *	27.8	26.5 5%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Idle Average *	27.8	26.5 5%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Idle Maximum *	27.8	31.1 -12%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Load Average *	32	37.7 -18%	38.6 -21%	33.6 -5%	28.6 11%	36 -13%
Witcher 3 ultra *	34.1		39.2 -15%	33.6 1%	30.1 12%	42 -23%
Load Maximum *	39.2	37.5 4%	40.8 -4%	54.5 -39%	34 13%	49.4 -26%

* ... kleiner is beter

Temperatuur

Koele lucht komt binnen via de zijkanten en het bovenste gaas, terwijl warme lucht via de achterkant naar buiten komt, zoals blijkt uit de onderstaande temperatuurkaarten. Het warme punt aan de achterzijde kan bij veeleisende toepassingen wel 47 C bedragen. Het wordt afgeraden om voorwerpen bovenop de unit te plaatsen, anders wordt de luchtstroom verminderd.

De AC-adapter kan een temperatuur van 30 C bereiken wanneer gedurende langere tijd veeleisende belastingen worden gebruikt.

Stresstest

Bij belasting met Prime95 zal de CPU opvoeren tot 3,6 GHz met een processorvermogen van 47 W. Wanneer de kerntemperatuur slechts enkele seconden later 76 C bereikt, zullen de kloksnelheden en het opgenomen vermogen echter dalen tot respectievelijk 2,1 GHz en 27 W, om een koelere kerntemperatuur van 67 C te handhaven.

De kloksnelheid en temperatuur van de GPU zouden Witcher 3 stabiliseren zich op respectievelijk 1150 MHz en 68 C, vergeleken met 1300 MHz en 57 C op de duurdere Intel NUC11PAQi7.

	CPU Klok (GHz)	GPU Klok (MHz)	Gemiddelde CPU Temperatuur (°C)
Systeem Idle	--	--	32
Prime95 Stress	2.1	1150	67
Prime95 + FurMark Stress	1.9	1150	75
Witcher 3 Stress	~2.6	1150	68

Energiebeheer

Stroomverbruik

Het stroomverbruik is relatief hoog, wat de groter dan verwachte AC-adapter kan verklaren. Stationair draaien op de desktop verbruikt ongeveer 17 W, vergeleken met minder dan de helft daarvan bij andere mini PC's uit de U-serie, zoals de SER4 of Intel NUC11. Bij veeleisende belastingen, zoals games, ligt het verbruik gemiddeld rond de 50 W, vergeleken met iets minder dan 40 W op de NUC11.

Het stroomverbruik piekt naar 102 W gedurende ongeveer 20 seconden na het starten van Prime95 voordat het daalt en zich stabiliseert op 60 W vanwege de beperkte Turbo Boost

We meten een tijdelijke maximale stroomafname van 119 W van de 120 W AC-adapter wanneer zowel Prime95 als FurMark tegelijkertijd worden gebruikt

Stroomgebruik

Uit / Standby	0.88 / 1 Watt
Inactief	15.8 / 16.8 / 17 Watt
Belasting	54.4 / 119.1 Watt


Key: min: , med: , max: Metrahit Energy

	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SEi8 i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	BMAX B5 Pro G7H8 i5-8260U, UHD Graphics 620, , , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption		49%	59%	49%	49%	-38%
Idle Minimum *	15.8	7.5 53%	4.1 74%	5.6 65%	6 62%	15.5 2%
Idle Average *	16.8	7.6 55%	4.1 76%	5.6 67%	6.2 63%	16.2 4%
Idle Maximum *	17	9.2 46%	4.6 73%	6 65%	6.3 63%	16.5 3%
Load Average *	54.4	41.1 24%	35.6 35%	31.4 42%	42.8 21%	83.4 -53%
Witcher 3 ultra *	50.7		35.6 30%	39 23%	35 31%	121.7 -140%
Load Maximum *	119.1	41.4 65%	39.9 66%	80.5 32%	55.8 53%	173.5 -46%

* ... kleiner is beter

Power Consumption Witcher 3 / Stresstest

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø53.1 (41.1-54.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59 (57.8-59.6)

Power Consumption external Monitor

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø58.6 (57.2-59.1)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø52.4 (49.2-53.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.2 (31.6-53.6)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.1 (41.1-54.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Pro

+ ondersteunt tot 2x SSD's en 2x SODIMM

+ goede CPU-prestaties

+ eenvoudige onderhoudbaarheid

+ betaalbare

Contra

- geen DisplayPort-over-USB-C of Thunderbolt

- hoger energieverbruik dan verwacht

- geen Core i7 opties

- lijvige voeding

Verdict - Lage prijs zonder afbreuk te doen aan de prestaties

In review: Beelink SEi12. Test unit geleverd door Beelink

De SEi12 biedt vergelijkbare en vaak betere prestaties dan een Core U-aangedreven Intel NUC11, terwijl hij veel goedkoper is. De NUC11PAH met Core i5-1135G7 CPU, 16 GB RAM, en 256 GB SSD, bijvoorbeeld, is momenteel verkrijgbaar voor $ 550, terwijl onze SEi 12 met het dubbele aan opslagruimte slechts $ 400 kost. Het model is niet afhankelijk van verschrikkelijk trage Celeron of Atom oplossingen om aantrekkelijke prijzen te bereiken en dit blijft een belangrijk verkoopargument voor veel mini PC's van Beelink.

Het gebrek aan Thunderbolt-ondersteuning is teleurstellend, maar dit zal waarschijnlijk alleen gevolgen hebben voor liefhebbers die hoge resolutie monitoren in serie willen schakelen of eGPU's willen aansluiten. Voor wat het waard is, Intel begint terug te vechten met de nieuwste NUC12 serie die nu nog snellere Core P CPU's biedt. Als je tevreden bent met de prestaties van een moderne Ultrabook, dan zal de Core i5-1235U in de SEi12 nog steeds meer dan genoeg zijn en zeker veel sneller dan de meeste mini PC's in dezelfde prijsklasse.

Prijs en beschikbaarheid

De Beelink SEi12 is momenteel te koop voor $400 USD op Amazon van de oorspronkelijke prijs van 480 dollar. Als alternatief kunnen gebruikers rechtstreeks bij de fabrikant kopen voor 460 dollar.

Gelinkte Artikelen

Beelink SEi12 Core i5-1235U (SEi Serie)

Testrapport

•

Beelink SEi11 mini PC test: Go...

Testrapport

•

Beelink SEi8 review: Ongebruik...

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5250 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 470341 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Beelink SEi12 mini PC review: Outperforming the Intel NUC 11

Allen Ngo, 2022-12-10 (Update: 2022-12-10)
