AMD Radeon HD 8650G

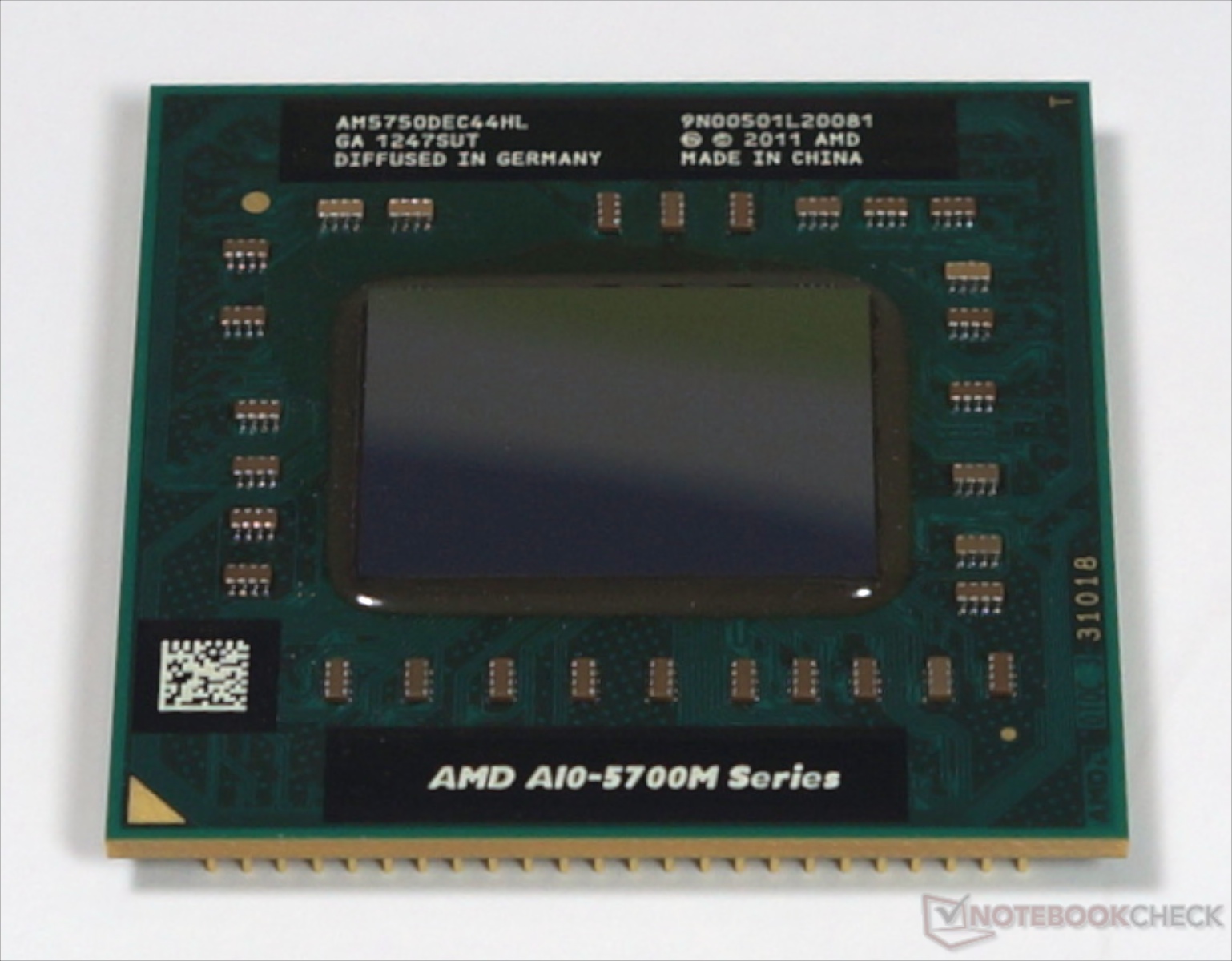

De AMD Radeon HD 8650G is een processor grafische kaart in de AMD Richland APU's (A10-5750M). Hij beschikt over 384 shader cores (VLIW4 architectuur) en heeft een kloksnelheid van 533 - 720 MHz (Turbo). De 8650G heeft geen dedicated grafisch geheugen, maar deelt werkgeheugen met de CPU cores.
De geïntegreerde video decoder (waarschijnlijk UVD3) ondersteunt volledige decoding van Multi-View Codec (MVC), MPEG-4 Part 2 (DivX, xVid), MPEG-4 AVC/H.264 en Adobe Flash HD video's.
Volgens AMD presteert de grafische kaart ongeveer 20% beter dan de HD 7660G (3DMark 11: P1400). Daarmee plaatst de HD 8650G zich net boven de dedicated HD 7670M of Nvidia GeForce GT 630M. Zonder snel dual-channel geheugen nemen de prestaties echter drastisch af.
De shaders van de chip kunnen ook worden ingezet voor het uitvoeren van algemene berekeningen.
De APU is gemaakt op 32nm formaat en heeft een TDP van 35 Watt. Hiermee is de chip geschikt voor notebooks met een formaat van 13 tot 14 inch of groter.
Radeon HD 8000G Serie
| |||||||||||||||||||||||||
Codenaam | Richland | ||||||||||||||||||||||||
Architectuur | Terascale 3 | ||||||||||||||||||||||||
Pipelines | 384 - verenigd | ||||||||||||||||||||||||
Core-snelheid | 533 - 720 (Boost) MHz | ||||||||||||||||||||||||
Gedeeld geheugen | ja | ||||||||||||||||||||||||
API | DirectX 11, Shader 5.0, OpenGL 4.2 | ||||||||||||||||||||||||
technologie | 32 nm | ||||||||||||||||||||||||
Laptop Grootte | gemiddeld formaat | ||||||||||||||||||||||||
Aangekondigde datum | 01.05.2013 |
|
Benchmarks
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 71794 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 45270 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 2932 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 4180 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 4416 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 5414 |
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 6453 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 6532 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 758 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 834 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 846 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 827 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 905 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 915 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 42390 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 55619 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 67658 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 1148 |
AMD Richland Reference Design | A10-5757M | Radeon HD 8650G | 4 GB | 1400 |
MSI GX70 3BE 8650g ![]() | A10-5757M | Radeon HD 8650G | 8 GB | 1434 |
HP ProBook 455 G1 F0X70EA | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 1525 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 1535 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 1549 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Lenovo G505s-20255 | A10-5750M | Radeon HD 8650G 720 / 800 MHz | 16 GB | 1122 |
MSI GX70 3BE 8650g ![]() | A10-5757M | Radeon HD 8650G | 8 GB | 1355 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 1433 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 1443 |
HP ProBook 455 G1 F0X70EA | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 1453 |
3DM Vant. Perf. total +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 4462 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 4916 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 3961 |
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 4376 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 22299 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 12469 |
Model | CPU | GPU | RAM | waarde | |
---|---|---|---|---|---|
3DMark 06 - Standard 1280x1024 | |||||
HP Pavilion 17-e054sg (3DMark 06 - Standard 1280x1024) | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 5699 | |
Pumori Test Platform (A10-5750M) (3DMark 06 - Standard 1280x1024) | A10-5750M | Radeon HD 8650G | 4 GB | 7766 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 10.9 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 6.2 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 10.7 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 5411 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 23.98 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 31.26 |
Cinebench R15 OpenGL 64 Bit +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 28.34 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 33 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 33.6 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 98 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 98 |
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 98 |
GFXBench T-Rex HD Offscreen C24Z16 +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 100 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 180 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Pumori Test Platform (A10-5750M) | A10-5750M | Radeon HD 8650G | 4 GB | 84 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
HP Pavilion 17-e054sg | A10-5750M | Radeon HD 8650G 720 MHz | 8 GB | 983 |

* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

League of Legends
2019
X-Plane 11.11
2018
Dirt 4
2017
Rocket League
2017
Prey
2017
For Honor
2017
Titanfall 2
2016
Farming Simulator 17
2016
Battlefield 1
2016
Civilization VI
2016
Doom
2016
The Division
2016
Far Cry Primal
2016
XCOM 2
2016
Rainbow Six Siege
2015
Just Cause 3
2015
World of Warships
2015
Metal Gear Solid V
2015
Dota 2 Reborn
2015
The Witcher 3
2015
Dirt Rally
2015AMD A10-5750M 2.5GHz
Radeon HD 8650G
min: 12.5 fps, max: 13.4 fps

GTA V
2015
Battlefield Hardline
2015
Evolve
2015
Far Cry 4
2014
F1 2014
2014
The Evil Within
2014
Ryse: Son of Rome
2014
Alien: Isolation
2014
Fifa 15
2014
Sims 4
2014
Risen 3: Titan Lords
2014
GRID: Autosport
2014
Watch Dogs
2014
Titanfall
2014
Thief
2014
X-Plane 10.25
2013
Call of Duty: Ghosts
2013
Battlefield 4
2013
F1 2013
2013
Fifa 14
2013
Total War: Rome II
2013
Saints Row IV
2013
Company of Heroes 2
2013
Metro: Last Light
2013
BioShock Infinite
2013
SimCity
2013
Tomb Raider
2013
Crysis 3
2013
Dead Space 3
2013
Far Cry 3
2012
Assassin´s Creed III
2012
Hitman: Absolution
2012
Dishonored
2012
F1 2012
2012
Borderlands 2
2012
Counter-Strike: GO
2012
Sleeping Dogs
2012
Diablo III
2012
Alan Wake
2012
Anno 2070
2011
Battlefield 3
2011
Batman: Arkham City
2011
Dirt 3
2011
Mafia 2
2010Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
