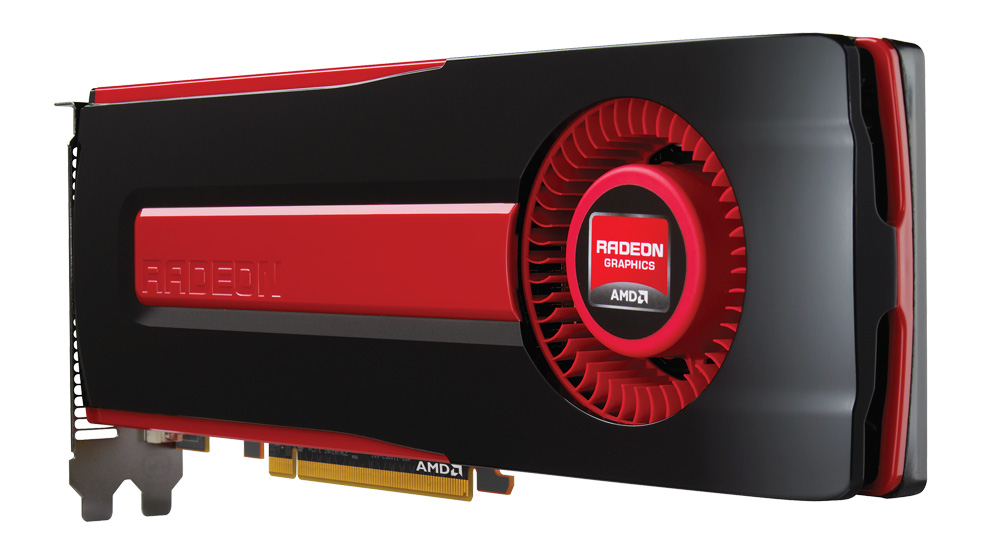

AMD Radeon HD 7970

De AMD Radeon HD 7970M Crossfire (ook wel de ATI Mobility HD 7970 X2 genoemd) is een combinatie van twee high-end grafische kaarten voor grote en zware laptops. Meestal rendered elke kaart een enkele frame. Hierdoor kan er micro stuttering optreden bij framerates rond de 30fps. Dit komt door een verschil in tijdspanne tussen de twee frames (bijvoorbeeld onregelmatige vertragingen tussen sequentiële frames).
De HF 7970M is gebaseerd op de desktop HD 7870 Pitcairn chip met 1280 1D shaders en 80 texture units. De GCN (Graphics Card Next) architectuur ondersteunt DirectX11 en OpenGL 4.2. Meer informatie over de functies van een enkele 7970M kun je op die pagina vinden.
De twee HD 7970M kaarten in Crossfire opstelling presteren duidelijk beter dan de GeForce GTX 580M SLI, beter bekend als de 675M SLI, en presteert bijna net zo goed als de GeForce GTX 680M SLI. Moderne en veeleisende games als Battlefield 3 zijn hierdoor goed speelbaar op de hoogste resolutie, details en antialiasing.
Het verbruik van de CF combinatie is weg hoog (2x 100 watt) en is daardoor alleen geschikt voor zeer grote desktop vervangende laptops.
Codenaam | Tahiti XT |
Architectuur | GCN |
Pipelines | 2048 - verenigd |
Core-snelheid | 925 MHz |
Geheugensnelheid | 5500 MHz |
Geheugenbusbreedte | 384 bit |
Geheugentype | GDDR5 |
Max. hoeveelheid geheugen | 3 GB |
Gedeeld geheugen | nee |
API | DirectX 11.1, Shader 5.1, OpenGL 4.2 |
Stroomverbruik | 250 Watt |
Aantal Transistoren | 4.3 Billion |
technologie | 28 nm |
Faciliteiten | Eyefinity, HD3D, CrossFire |
Aangekondigde datum | 22.12.2011 |
Link naar fabrikant | www.amd.com |
Benchmarks
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 14233 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 43795 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 5880 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 6862 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 234474 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 7323 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 7770 |
3DM Vant. Perf. total +
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 24757 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 29345 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 106667 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 29520 |
Model | CPU | GPU | RAM | waarde | |
---|---|---|---|---|---|
3DMark 06 - Standard 1280x1024 | |||||
Desktop-PC (HD 7970) (3DMark 06 - Standard 1280x1024) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 23807 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 77.8 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 101.7 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 7.9 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 7.9 |
Model | CPU | GPU | RAM | waarde |
---|---|---|---|---|
Desktop-PC (HD 7970) | 2400 | Radeon HD 7970 925 / 1375 MHz 3 GB | 8 GB | 68.5 |

* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

F1 2013
2013
Fifa 14
2013
Total War: Rome II
2013
Saints Row IV
2013
Company of Heroes 2
2013
Metro: Last Light
2013
BioShock Infinite
2013
SimCity
2013
Tomb Raider
2013
Crysis 3
2013
Dead Space 3
2013
Far Cry 3
2012
Assassin´s Creed III
2012
Hitman: Absolution
2012
Dishonored
2012
World of Tanks v8
2012
Fifa 13
2012
F1 2012
2012
Borderlands 2
2012
Guild Wars 2
2012
Counter-Strike: GO
2012
Darksiders II
2012
Sleeping Dogs
2012
The Secret World
2012
Max Payne 3
2012
Dirt Showdown
2012
Diablo III
2012
Risen 2: Dark Waters
2012
Mass Effect 3
2012
Alan Wake
2012
Anno 2070
2011
Battlefield 3
2011
Batman: Arkham City
2011
Fifa 12
2011
F1 2011
2011
Crysis 2
2011
StarCraft 2
2010
Metro 2033
2010lage | gem. | hoge | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
F1 2013 | 137 | 130 | 108 | |||
Fifa 14 | 441.9 | |||||
Total War: Rome II | 201.1 | 155.2 | 111.3 | 36 | ||
Saints Row IV | 90.1 | 77.4 | 68.4 | 58.2 | ||
The Bureau: XCOM Declassified | 121.8 | 121.4 | 69.9 | 44.2 | ||
Splinter Cell: Blacklist | 97.6 | 135.3 | 83 | 47.4 | ||
Dota 2 | 98.7 | |||||
Company of Heroes 2 | 31.9 | |||||
GRID 2 | 206.5 | 141.7 | 130.4 | 84.5 | ||
Metro: Last Light | 115.1 | 110 | 77.4 | 46.6 | ||
BioShock Infinite | 199.2 | 170.1 | 150.9 | 64.3 | ||
StarCraft II: Heart of the Swarm | 62.2 | |||||
SimCity | 136.2 | 100.6 | 77.2 | 57.8 | ||
Tomb Raider | 161 | 72.5 | ||||
Crysis 3 | 96.2 | 84.5 | 59.8 | 28.3 | ||
Dead Space 3 | 394.2 | 289.3 | 234.4 | 155.5 | ||
Far Cry 3 | 111.4 | 102.6 | 76.6 | 35.7 | ||
Assassin´s Creed III | 56.4 | 54.2 | 39.7 | |||
Hitman: Absolution | 65.2 | 61.8 | 56.2 | 43.9 | ||
Call of Duty: Black Ops 2 | 238.2 | 223.1 | 146.3 | 104.9 | ||
Need for Speed: Most Wanted | 60 | 59.9 | 57.9 | 55.6 | ||
Medal of Honor: Warfighter | 173.7 | 138.4 | 117.4 | 52.5 | ||
Dishonored | 128.1 | 128 | 128.4 | 127.8 | ||
World of Tanks v8 | 116.6 | 74.8 | 68.6 | 57.8 | ||
Fifa 13 | 455.9 | 366 | 362.1 | 359.9 | ||
F1 2012 | 120 | 106 | 95 | 81 | ||
Borderlands 2 | 131.6 | 119.5 | 112.7 | 93.5 | ||
Torchlight 2 | 96.5 | 82.9 | 80.5 | |||
Guild Wars 2 | 69 | 44.3 | 41.2 | |||
Counter-Strike: GO | 251.1 | 233.8 | 212.6 | 212.2 | ||
Darksiders II | 255.5 | 195.7 | ||||
Sleeping Dogs | 125.6 | 76.2 | 89.8 | 43 | ||
The Secret World | 75.7 | 66.2 | 65.9 | 36.7 | ||
Ghost Recon: Future Soldier | 62.4 | 62.4 | 56.4 | |||
Max Payne 3 | 74.9 | 72.9 | 69.7 | 67.8 | ||
Dirt Showdown | 87.3 | 73.1 | 69.2 | 61.2 | ||
Diablo III | 213 | 190.8 | 188.9 | 191.4 | ||
Risen 2: Dark Waters | 98.4 | 106.2 | 85 | 63.7 | ||
Mass Effect 3 | 60 | 59.8 | 59.7 | |||
Alan Wake | 127.7 | 103.3 | 68 | |||
Anno 2070 | 309.7 | 201.5 | 131 | 76.6 | ||
The Elder Scrolls V: Skyrim | 100.4 | 80.3 | 62.3 | |||
CoD: Modern Warfare 3 | 270.3 | 160.6 | 159.4 | 137.2 | ||
Battlefield 3 | 137.5 | 106.7 | 86.5 | 47.9 | ||
Batman: Arkham City | 159 | 146 | 120 | 91 | ||
Fifa 12 | 492.6 | 334.8 | 278.1 | 246.4 | ||
F1 2011 | 147 | 96 | 87 | 73 | ||
Deus Ex Human Revolution | 258 | 234.7 | 123 | |||
Crysis 2 | 101.4 | 101.2 | 100.7 | 83.6 | ||
StarCraft 2 | 320.5 | 117.8 | 117.2 | 108.6 | ||
Metro 2033 | 134.8 | 133.7 | 105.2 | 46.7 | ||
< 30 fps < 60 fps < 120 fps ≥ 120 fps | 17 25 | 2 22 19 | 6 22 15 | 1 20 20 10 | | |
Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
