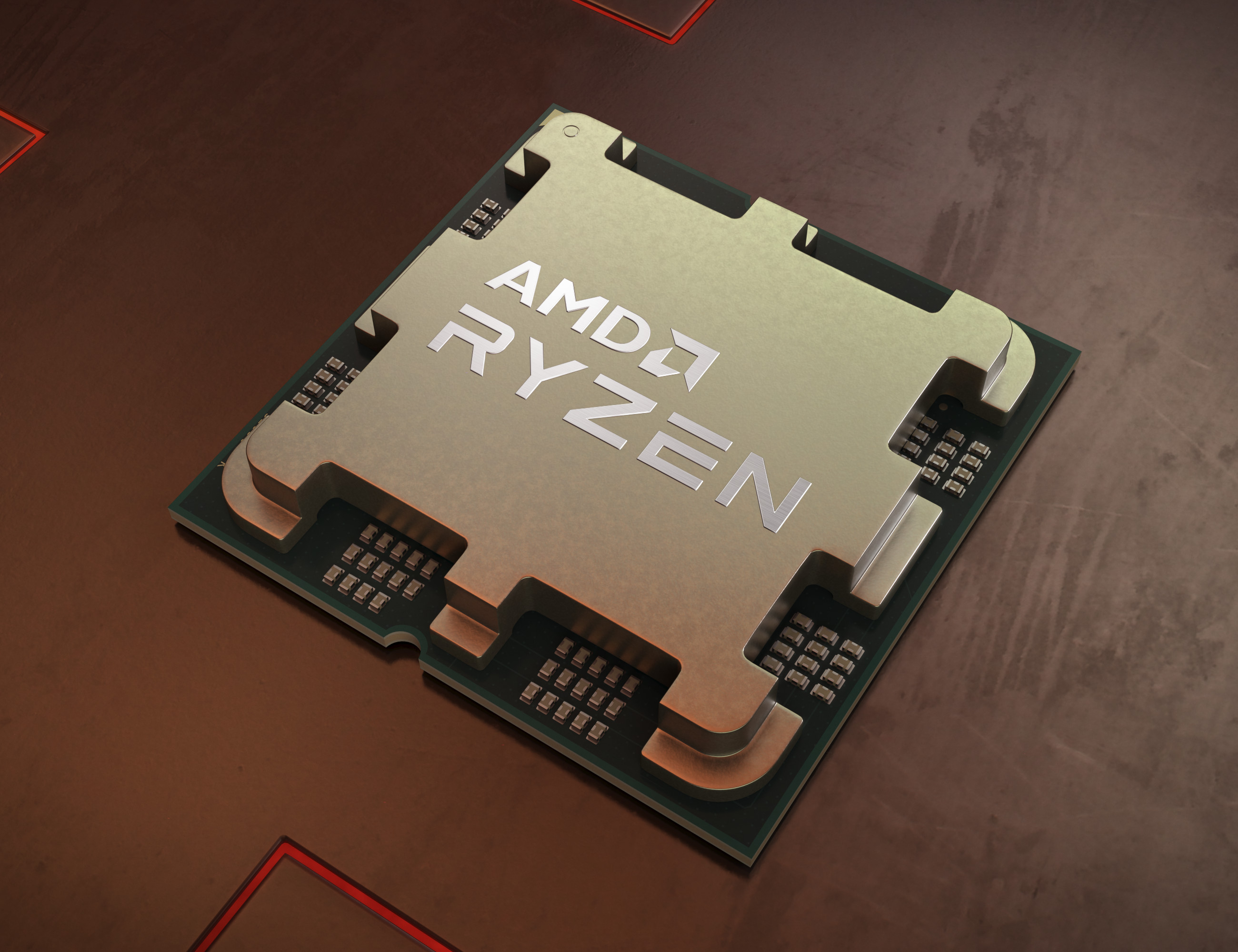

AMD Radeon Graphics (Ryzen 7000)

De AMD Radeon Graphics van de Ryzen 7000 desktop processoren is een geïntegreerde grafische kaart (iGPU) gebaseerd op de RDNA 2 architectuur. Zij biedt slechts 2 CU's (128 shader) en is vergelijkbaar met de Radeon 610M. De kloksnelheid in de meeste CPU's ligt tussen 400 en 2200 MHz. Door het lage aantal shaders zijn de gaming prestaties erg laag en alleen geschikt voor weinig veeleisende games. De GPU bevat ook een AMD Video Coding Engine (VCE) voor H.264, H.265 10/8bpc codering en AV1, VP9, H.265 en H.264 10/8bpc decodering.

AMD Radeon 600M Serie

Radeon 680M	768 @ 2.4 GHz
Radeon 660M	384 @ 1.9 GHz
Radeon Graphics (Ryzen 7000)	128 @ 2.2 GHz
Radeon 610M	128 @ 0.4 - 2.2 GHz

Codenaam

Raphael

Architectuur

RDNA 2

Pipelines

128 - verenigd

TMUs

ROPs

Raytracing Cores

Core-snelheid

2200 (Boost) MHz

Gedeeld geheugen

API

DirectX 12_2, OpenGL 4.6

Aantal Transistoren

3.4 Billion

Die Size

122 mm²

technologie

6 nm

Aangekondigde datum

26.09.2022

CPU in Radeon Graphics (Ryzen 7000)		GPU Base Speed	GPU Boost / Turbo
AMD Ryzen 9 7950X	16 x 4500 MHz, 170 W	400 MHz	2200 MHz
AMD Ryzen 9 7950X3D	16 x 4200 MHz, 120 W	400 MHz	2200 MHz
AMD Ryzen 9 7900X	12 x 4700 MHz, 170 W	? MHz	? MHz
» show 6 more
AMD Ryzen 9 7900	12 x 3700 MHz, 65 W	? MHz	2200 MHz
AMD Ryzen 7 7700X	8 x 4500 MHz, 170 W	400 MHz	2200 MHz
AMD Ryzen 7 7700	8 x 3800 MHz, 65 W	400 MHz	2200 MHz
AMD Ryzen 7 7800X3D	8 x 4200 MHz, 120 W	400 MHz	2200 MHz
AMD Ryzen 5 7600X	6 x 4700 MHz, 105 W	400 MHz	2200 MHz
AMD Ryzen 5 7600	6 x 3800 MHz, 65 W	400 MHz	2200 MHz
min. - max.		400 MHz	2200 MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy

1 pt (3%)

AMD Radeon HD 8180

0.06404 -94%

...

Intel UHD Graphics Xe 750 32EUs (Rocket Lake)

0.96 -7%

NVIDIA Quadro K4000M

0.971 -6%

AMD Radeon R8 M445DX

0.976 -5%

AMD Radeon RX Vega 6 (Ryzen 2000/3000)

0.992 -4%

NVIDIA GeForce GTX 760M

1.003 -3%

AMD Radeon RX Vega 10

1.003 -3%

Intel UHD Graphics Xe G4 48EUs

1.025 -1%

AMD FirePro M5100

1.028 0%

NVIDIA GeForce GTX 675M

1.03 0%

AMD Radeon Graphics (Ryzen 7000)

1.032

NVIDIA Quadro M520

1.034 0%

NVIDIA GeForce MX130

1.036 0%

NVIDIA GeForce 845M

1.043 1%

AMD Radeon RX Vega 8 (Ryzen 2000/3000)

1.052 2%

AMD Radeon R9 M370X

1.068 3%

NVIDIA Quadro M600M

1.073 4%

AMD Radeon RX Vega 5

1.077 4%

NVIDIA GeForce MX230

1.09 6%

NVIDIA GeForce GTX 765M

1.095 6%

...

NVIDIA GeForce RTX 4090

33.3 3127%

100%

3DMark - 3DMark Time Spy Score

min: 817 gem: 831 mediaan: 831 (2%) max: 845 Points

+ 2 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	817
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	845

3DMark - 3DMark Time Spy Graphics

min: 705 gem: 715 mediaan: 715 (2%) max: 725 Points

+ 2 Meer details - Verberg vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	705
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	725

Qualcomm Adreno 618

112 -84%

...

Intel Iris Graphics 550

558 -22%

Intel Iris Plus Graphics 655

570 -20%

NVIDIA GeForce 940MX

577 -19%

NVIDIA Quadro M520

614 -14%

NVIDIA Quadro M600M

631 -12%

Intel Iris Plus Graphics G4 (Ice Lake 48 EU)

639 -11%

NVIDIA GeForce MX130

650 -9%

Intel UHD Graphics Xe 32EUs (Tiger Lake-H)

670 -6%

AMD Radeon RX Vega 8 (Ryzen 2000/3000)

673 -6%

AMD Radeon Graphics (Ryzen 7000)

715

AMD Radeon RX Vega 10

724 1%

AMD Radeon RX Vega 5

733 3%

Intel Iris Plus Graphics G7 (Ice Lake 64 EU)

744 4%

Intel UHD Graphics 770

744 4%

NVIDIA GeForce MX230

758 6%

Intel UHD Graphics Xe G4 48EUs

763 7%

AMD Radeon RX 540

787 10%

AMD Radeon 540X

797 11%

Qualcomm Adreno 690

811 13%

...

NVIDIA GeForce RTX 4090

36259 4971%

100%

3DMark - 3DMark Ice Storm Unlimited Graphics

159603 Points (16%)

+ 2 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	159603
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	159603

3DMark - 3DMark Ice Storm Extreme Graphics

min: 59739 gem: 64109 mediaan: 66294 (8%) max: 66294 Points

+ 3 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	59739
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	66294
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	66294

3DMark - 3DMark Cloud Gate Score

min: 15883 gem: 16468 mediaan: 16760 (16%) max: 16760 Points

+ 3 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	15883
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	16760
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	16760

3DMark - 3DMark Cloud Gate Graphics

min: 14990 gem: 15161 mediaan: 15247 (4%) max: 15247 Points

+ 3 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	14990
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	15247
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	15247

3DMark - 3DMark Fire Strike Standard Score

min: 2183 gem: 2211 mediaan: 2211 (4%) max: 2239 Points

+ 2 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	2183
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	2239

3DMark - 3DMark Fire Strike Standard Graphics

min: 2287 gem: 2338 mediaan: 2337.5 (3%) max: 2388 Points

+ 2 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	2287
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	2388

3DMark - 3DMark Ice Storm Graphics

min: 90272 gem: 97292 mediaan: 100802 (11%) max: 100802 Points

+ 3 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	90272
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	100802
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	100802

3DMark - 3DMark Night Raid

10411 Points (10%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	10411

3DMark - 3DMark Night Raid Graphics Score

10021 Points (4%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	10021

3DMark 11 - 3DM11 Performance Score

min: 3466 gem: 3636 mediaan: 3466 (4%) max: 3977 Points

+ 3 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	3466
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	3466
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	3977

3DMark 11 - 3DM11 Performance GPU

min: 3026 gem: 3170 mediaan: 3026 (3%) max: 3458 Points

+ 3 Meer details - Verberg vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	3026
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	3026
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	3458

AMD Radeon HD 6250

171.8 -95%

...

Intel Iris Plus Graphics G4 (Ice Lake 48 EU)

2965 -6%

AMD FirePro M5100

2967 -6%

NVIDIA GeForce 845M

2973 -6%

Intel Iris Plus Graphics 645

2985 -6%

NVIDIA Quadro P500

3022 -5%

AMD Radeon HD 7770

3098 -2%

AMD Radeon RX Vega 6 (Ryzen 2000/3000)

3101 -2%

AMD FirePro W5130M

3106 -2%

NVIDIA GeForce GTX 580M

3131 -1%

AMD Radeon Graphics (Ryzen 7000)

3170

Intel UHD Graphics Xe 32EUs (Tiger Lake-H)

3180 0%

Intel Iris Pro Graphics 580

3220 2%

AMD Radeon HD 6990M

3238 2%

NVIDIA GeForce GTX 675M

3249 2%

AMD Radeon R9 M275

3261 3%

Intel UHD Graphics Xe G4 48EUs

3288 4%

NVIDIA GeForce 945M

3310 4%

NVIDIA GeForce GTX 460M SLI

3313 5%

AMD Radeon R9 M375

3314 5%

...

NVIDIA GeForce RTX 4090

104201 3187%

100%

3DMark Vantage
3DM Vant. Perf. total +

3DMark Vantage - 3DM Vant. Perf. total

min: 11455 gem: 11703 mediaan: 11703 (3%) max: 11951 Points

+ 2 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	11455
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	11951

3DM Vant. Perf. GPU no PhysX +

3DMark Vantage - 3DM Vant. Perf. GPU no PhysX

min: 8837 gem: 9054 mediaan: 9053.5 (5%) max: 9270 Points

+ 2 Meer details - Verberg vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	8837
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	9270

ATI Radeon HD 3200

62 -99%

...

NVIDIA GeForce 9800M GTX SLI

8492 -6%

AMD Radeon HD 8850M

8538 -6%

NVIDIA GeForce GTS 450

8551 -6%

NVIDIA GeForce GTX 470M

8589 -5%

AMD Radeon R7 M275DX

8607 -5%

NVIDIA GeForce GT 750M

8624 -5%

NVIDIA GeForce GTX 260M SLI

8764 -3%

NVIDIA Quadro K2100M

8930 -1%

AMD Radeon RX Vega 8 (Ryzen 2000/3000)

8994 -1%

AMD Radeon Graphics (Ryzen 7000)

9054

AMD FirePro M6000

9070 0%

Intel Iris Graphics 550

9089 0%

AMD Radeon R9 M265X

9135 1%

NVIDIA Quadro 4000M

9184 1%

Intel UHD Graphics Xe G4 48EUs

9484 5%

NVIDIA GeForce GTX 660M

9666 7%

AMD Radeon HD 6950M

9694 7%

ATI Mobility Radeon HD 4870 X2

9844 9%

NVIDIA GeForce GTX 570M

9902 9%

...

AMD Radeon RX 7900 XTX

170928 1788%

100%

3DMark 05 - 3DMark 05 - Standard

min: 36694 gem: 37469 mediaan: 37468.5 (41%) max: 38243 Points

+ 2 Meer details - Verberg vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	36694
AMD Radeon Graphics (Ryzen 7000)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	38243

Intel Graphics Media Accelerator (GMA) 500

133.4 -100%

...

NVIDIA GeForce RTX 2060 (Desktop)

34679 -7%

AMD Radeon RX Vega 56

34785 -7%

AMD Radeon RX Vega 64

35209 -6%

4x NVIDIA RTX A6000

35288 -6%

NVIDIA GeForce GTX 1650 (Desktop)

35596 -5%

Intel UHD Graphics 64EUs (Alder Lake 12th Gen)

35662 -5%

Intel Iris Xe Graphics G7 96EUs

36523 -3%

AMD Radeon 610M

36628 -2%

AMD Radeon HD 7970M Crossfire

36878 -2%

AMD Radeon Graphics (Ryzen 7000)

37469

AMD Radeon RX 580 (Desktop)

37491 0%

NVIDIA GeForce GTX 1080 Mobile

37669 1%

AMD Radeon RX Vega 7

38073 2%

AMD Radeon Pro W6800

38177 2%

NVIDIA GeForce RTX 2080 (Desktop)

38535 3%

NVIDIA GeForce GTX 1070 SLI (Desktop)

38635 3%

AMD Radeon RX Vega 8 (Ryzen 4000/5000)

38999 4%

Intel Iris Xe Graphics G7 80EUs

39066 4%

NVIDIA GeForce RTX 2080 Super (Desktop)

43011 15%

...

NVIDIA GeForce RTX 4080 Super

87172 133%

100%

3DMark 06 3DMark 06 - Standard 1280x1024 +

3DMark 06

min: 20707 gem: 21111 mediaan: 21110.5 (28%) max: 21514 Points

+ 2 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
3DMark 06 - Standard 1280x1024
Minisforum MS-A1 (3DMark 06 - Standard 1280x1024)	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	20707
AMD Radeon Graphics (Ryzen 7000) (3DMark 06 - Standard 1280x1024)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000) ? / 3000 MHz	32 GB	21514

Unigine Valley 1.0 - Unigine Valley 1.0 DX

9.9 fps (3%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	9.9

Cinebench R10 Cinebench R10 Shading (32bit) +

Cinebench R10 - Cinebench R10 Shading (32bit)

min: 6826 gem: 15239 mediaan: 17737.5 (13%) max: 18855 punten

+ 12 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Ryzen 5 7600X (Noctua NH-U9S)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	6826
AMD Ryzen 5 7600X (Noctua NH-D9L)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	6835
AMD Ryzen 5 7600X (Noctua NH-L9a-AM5)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	6837
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	17580
AMD Ryzen 5 7600X (Noctua NH-D15)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	17655
AMD Ryzen 5 7600X (360er-AiO)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	17730
AMD Ryzen 5 7600X (Wakü + MO-RA3 420 Pro)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	17745
AMD Ryzen 9 7900X (Wakü + MO-RA3 420 Pro)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	18046
AMD Ryzen 9 7900X (Noctua NH-U12A)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	18219
AMD Ryzen 9 7900X (360er-AiO)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	18251
AMD Ryzen 9 7900X (Noctua NH-D15)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	18292
AMD Ryzen 9 7900X (Noctua NH-D12L)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	18855

Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +

Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit

min: 198.52 gem: 203 mediaan: 205 (67%) max: 205.43 fps

+ 3 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Ryzen 5 7600X (Noctua NH-U9S)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	198.52
AMD Ryzen 5 7600X (Noctua NH-D9L)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	204.98
AMD Ryzen 5 7600X (Noctua NH-L9a-AM5)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	205.43

Cinebench R15
Cinebench R15 OpenGL 64 Bit +

Cinebench R15 - Cinebench R15 OpenGL 64 Bit

min: 97.22 gem: 158.8 mediaan: 101.4 (6%) max: 359.59 fps

+ 12 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	97.22
AMD Ryzen 9 7900X (360er-AiO)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	100
AMD Ryzen 9 7900X (Wakü + MO-RA3 420 Pro)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	100.53
AMD Ryzen 9 7900X (Noctua NH-U12A)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	100.53
AMD Ryzen 9 7900X (Noctua NH-D15)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	100.7
AMD Ryzen 5 7600X (360er-AiO)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	101.28
AMD Ryzen 5 7600X (Noctua NH-D15)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	101.42
AMD Ryzen 5 7600X (Wakü + MO-RA3 420 Pro)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	101.79
AMD Ryzen 9 7900X (Noctua NH-D12L)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	102.09
AMD Ryzen 5 7600X (Noctua NH-U9S)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	314.75
AMD Ryzen 5 7600X (Noctua NH-D9L)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	325.13
AMD Ryzen 5 7600X (Noctua NH-L9a-AM5)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	359.59

Cinebench R15 OpenGL Ref. Match 64 Bit +

Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit

min: 97.9 gem: 98.3 mediaan: 97.9 (98%) max: 99.6 %

+ 12 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
AMD Ryzen 9 7900X (360er-AiO)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 9 7900X (Wakü + MO-RA3 420 Pro)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 9 7900X (Noctua NH-U12A)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 9 7900X (Noctua NH-D15)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 9 7900X (Noctua NH-D12L)	R9 7900X 230 W / 170 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 5 7600X (360er-AiO)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 5 7600X (Wakü + MO-RA3 420 Pro)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 5 7600X (Noctua NH-D15)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	97.9
AMD Ryzen 5 7600X (Noctua NH-D9L)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	99.6
AMD Ryzen 5 7600X (Noctua NH-U9S)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	99.6
AMD Ryzen 5 7600X (Noctua NH-L9a-AM5)	R5 7600X 142 W / 105 W	Radeon Graphics (Ryzen 7000)	32 GB	99.6

Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official Medium Offscreen 1080

1992 fps (49%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000) bc7	32 GB	1992

Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official High Offscreen 2160

176.8 fps (40%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000) bc7	32 GB	176.8

Geekbench 6.3 - Geekbench 6.3 GPU OpenCL

6167 punten (2%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000) 6.2.1	32 GB	6167

Geekbench 6.3 - Geekbench 6.3 GPU Vulkan

8032 punten (2%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000) 6.2.1	32 GB	8032

LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU

257 Samples/s (1%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	257

LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU

583 Samples/s (1%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	583

ComputeMark v2.1 - ComputeMark v2.1 Result

1616 punten (2%)

+ 1 Meer details + Toon vergelijkingstabel

Model	CPU	GPU	RAM	waarde
Minisforum MS-A1	R9 7950X 65 W / 65 W	Radeon Graphics (Ryzen 7000)	32 GB	1616

- Benchmarkresultaten voor deze videokaart

- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie

Game Benchmarks

De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

F1 2021

2021

46.3 fps + Vergelijk

18.3 fps + Vergelijk

15 fps + Vergelijk

5.7 fps + Vergelijk

» Met alle geteste laptops speelbaar met lage instellingen.

F1 2020

2020

49.7 fps + Vergelijk

18.7 fps + Vergelijk

13.7 fps + Vergelijk

8.7 fps + Vergelijk

» Met alle geteste laptops speelbaar met lage instellingen.

Strange Brigade

2018

54 fps + Vergelijk

17.4 fps + Vergelijk

11.4 fps + Vergelijk

9 fps + Vergelijk

» Met alle geteste laptops speelbaar met lage instellingen.

X-Plane 11.11

2018

35.9 49.8 ~ 43 fps + Vergelijk

23 29.2 ~ 26 fps + Vergelijk

20.5 25.9 ~ 23 fps + Vergelijk

» Met alle geteste laptops speelbaar met lage instellingen.

Final Fantasy XV Benchmark

2018

19.3 26.1 ~ 23 fps + Vergelijk

12.2 19.3 ~ 16 fps + Vergelijk

5.7 8.9 ~ 7 fps + Vergelijk

» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.

Dota 2 Reborn

2015

157.8 219.5 ~ 189 fps + Vergelijk

61.8 89.9 ~ 76 fps + Vergelijk

25.7 38.8 ~ 32 fps + Vergelijk

23.6 35 ~ 29 fps + Vergelijk

» Met alle geteste laptops speelbaar met gem. instellingen.

	lage	gem.	hoge	ultra
F1 2021	46.3	18.3	15	5.66
F1 2020	49.7	18.7	13.7	8.67
Strange Brigade	54	17.4	11.4	9
X-Plane 11.11	43	26	23
Final Fantasy XV Benchmark	23	16	7
Dota 2 Reborn	189	76	32	29
< 30 fps < 60 fps < 120 fps ≥ 120 fps	1 4 1	5 1	5 1	4

Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List

v1.28

log 22. 04:15:17

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.027s ... 0.028s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.028s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.028s

#7 composed specs +0s ... 0.028s

#8 did output specs +0s ... 0.028s

#9 start showIntegratedCPUs +0s ... 0.028s

#10 getting avg benchmarks for device 11422 +0.029s ... 0.057s

#11 got single benchmarks 11422 +0.02s ... 0.077s

#12 got avg benchmarks for devices +0s ... 0.077s

#13 min, max, avg, median took s +0.698s ... 0.775s

#14 before gaming benchmark output +0s ... 0.775s

#15 Got 32 rows for game benchmarks. +0.005s ... 0.78s

#16 composed SQL query for gamebenchmarks +0s ... 0.78s

#17 got data and put it in $dataArray +0.005s ... 0.785s

#18 benchmarks composed for output. +0.245s ... 1.03s

#19 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 1.032s

#20 return log +0s ... 1.032s

Notebook-testrapporten met AMD Radeon Graphics (Ryzen 7000) grafische kaart

Noctua NH-U9S, NH-D9L en NH-La9-AM5 review: Drie krachtige luchtkoelers voor zuinige CPU's

Noctua biedt een breed portfolio aan high-performance luchtkoelers en wordt al jaren gezien als een topmerk als het gaat om het onderwerp luchtkoeling. In deze ...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"

Noctua NH-U9S, NH-D9L en NH-La9-AM5 review: Drie krachtige luchtkoelers voor zuinige CPU's

Noctua NH-D12L in review: Krachtige premium CPU koeler voor alle gangbare sockets

Noctua staat bekend om zijn hoogwaardige koelers en bestrijkt met zijn assortiment alle gangbare platformen. Met de Noctua NH-D12L hebben we weer een koeler in ...
AMD Ryzen 9 7900X | AMD Radeon Graphics (Ryzen 7000) | 32.00"

Noctua NH-D15 en NH-U12A Review: Twee krachtige luchtkoelers voor alle gangbare CPU sockets

Noctua biedt een breed scala aan krachtige luchtkoelers die in staat zijn om de huidige oogst van vlaggenschip CPU's in toom te houden. In deze korte review lee...
AMD Ryzen 9 7900X | AMD Radeon Graphics (Ryzen 7000) | 32.00"

AMD Ryzen 9 7900X (Wakü + MO-RA3 420 Pro): AMD Ryzen 9 7900X, 32.00"
Testrapport » Noctua NH-D15 en NH-U12A Review: Twee krachtige luchtkoelers voor alle gangbare CPU sockets

Testrapport » Noctua NH-D15 en NH-U12A Review: Twee krachtige luchtkoelers voor alle gangbare CPU sockets

Please share our article, every link counts!

Klasse 1

NVIDIA GeForce RTX 5090 * Desktop

NVIDIA GeForce RTX 5080 * Desktop

NVIDIA GeForce RTX 4090 Desktop

Radeon RX 7900 XTX Desktop

NVIDIA GeForce RTX 5070 Ti * Desktop

GeForce RTX 5090 Laptop *

NVIDIA GeForce RTX 4080 Super Desktop

NVIDIA GeForce RTX 4080 Desktop

NVIDIA GeForce RTX 3090 Ti Desktop

NVIDIA GeForce RTX 5070 * Desktop

NVIDIA GeForce RTX 4070 Ti SUPER Desktop

Radeon RX 7900 XT Desktop

GeForce RTX 5080 Laptop *

NVIDIA GeForce RTX 4070 Ti Desktop

Radeon RX 7900 GRE Desktop

Radeon RX 6950 XT Desktop

NVIDIA GeForce RTX 5060 Ti * Desktop

NVIDIA GeForce RTX 4090 Laptop GPU

NVIDIA RTX 5000 Ada Generation Laptop GPU

NVIDIA GeForce RTX 3090 Desktop

NVIDIA GeForce RTX 3080 Ti Desktop

Radeon RX 7800 XT Desktop

NVIDIA GeForce RTX 4070 SUPER Desktop

NVIDIA RTX A6000 Desktop

Radeon RX 7900M

Radeon RX 6900 XT Desktop

NVIDIA GeForce RTX 4080 Laptop GPU

NVIDIA GeForce RTX 5060 * Desktop

NVIDIA RTX 4000 Ada Generation Laptop GPU

NVIDIA GeForce RTX 3080 12 GB Desktop

RTX 6000 Ada Generation Desktop

GeForce RTX 5070 Ti Laptop *

NVIDIA GeForce RTX 3080 Desktop

NVIDIA GeForce RTX 4070 Desktop

NVIDIA RTX 3500 Ada Generation Laptop GPU

Radeon Pro W6800 Desktop

Radeon RX 6800 XT Desktop

Radeon RX 6800 Desktop

Radeon RX 7700 XT Desktop

NVIDIA Titan RTX Desktop

GeForce RTX 5070 Laptop *

GeForce RTX 3070 Ti Desktop

NVIDIA GeForce RTX 4060 Ti 16G Desktop

NVIDIA GeForce RTX 4060 Ti 8G Desktop

GeForce RTX 3080 Ti Laptop GPU

M4 40-core GPU *

NVIDIA GeForce RTX 4070 Laptop GPU

NVIDIA RTX 3000 Ada Generation Laptop GPU

RTX A5500 Laptop GPU

NVIDIA GeForce RTX 3070 Desktop

Radeon RX 6750 XT Desktop

GeForce RTX 2080 Ti (Desktop) Desktop

Radeon RX 6700 XT Desktop

GeForce RTX 3080 Laptop GPU

NVIDIA GeForce RTX 3060 Ti Desktop

Arc B580

Arc A770

NVIDIA GeForce RTX 4060 Desktop

Radeon RX 7600 Desktop

Radeon RX 6850M XT

GeForce RTX 3070 Ti Laptop GPU

RTX A4500 Laptop GPU

RTX A5000 Laptop GPU

NVIDIA GeForce RTX 4060 Laptop GPU

NVIDIA RTX 2000 Ada Generation Laptop GPU

GeForce RTX 2080 Super (Desktop) Desktop

Quadro RTX 6000 (Laptop)

Radeon RX 6800M

Radeon RX 6650 XT Desktop

Radeon RX 6600 XT Desktop

GeForce RTX 2080 (Desktop) Desktop

GeForce RTX 2080 Super Mobile

GeForce RTX 3070 Laptop GPU

RTX A4000 Laptop GPU *

Klasse 2

Radeon RX 6800S

GeForce RTX 5060 Laptop *

Radeon RX 7600M XT *

Arc A750

NVIDIA GeForce RTX 3060 Desktop

Radeon RX 7700S *

M3 Max 40-Core GPU *

M2 Max 38-Core GPU *

GeForce RTX 2080 Mobile

Radeon RX 6700M

GeForce GTX 1080 Ti Desktop

Titan X Pascal Desktop

GeForce RTX 2070 Super (Desktop) Desktop

M3 Max 30-Core GPU *

Quadro RTX 5000 (Laptop)

Radeon VII Desktop

Radeon RX 5700 XT (Desktop) Desktop

GeForce RTX 2070 (Desktop) Desktop

Radeon RX 7600M *

M4 32-core GPU *

M2 Max 30-Core GPU *

GeForce RTX 3060 Laptop GPU

M1 Max 32-Core GPU *

Radeon RX 7600S

GeForce RTX 2070 Super Mobile

GeForce GTX 1080 (Desktop) Desktop

GeForce RTX 2080 Super Max-Q

RTX A3000 Laptop GPU

M1 Max 24-Core GPU *

Arc A580

GeForce RTX 2060 Super (Desktop) Desktop

A770M *

Radeon RX 6600 Desktop

Radeon RX 6650M XT *

M3 Pro 18-Core GPU *

M2 Pro 19-Core GPU *

Radeon RX 5700 (Desktop) Desktop

Radeon RX 6650M

Radeon RX 6600M

Radeon RX 6700S

GeForce RTX 2070 Mobile

Quadro RTX 5000 Max-Q

GeForce RTX 2080 Max-Q

GeForce RTX 2060 (Desktop) Desktop

M4 20-core GPU Desktop

Radeon RX 5700M *

RX Vega 64 Desktop

GeForce GTX 1080 Mobile

Quadro RTX 4000 (Laptop)

M3 Pro 14-Core GPU *

M2 Pro 16-Core GPU *

M1 Pro 16-Core GPU *

Radeon PRO W6600M *

GeForce RTX 2070 Super Max-Q

Quadro RTX 4000 Max-Q *

GeForce GTX 1070 Ti (Desktop) Desktop

M1 Pro 14-Core GPU *

GeForce RTX 2070 Max-Q *

RX Vega 56 Desktop

Radeon RX 6600S *

Quadro P5200

Quadro RTX 3000 (Laptop) *

GeForce RTX 5050 Laptop *

GeForce RTX 2060 Mobile

NVIDIA GeForce RTX 3050 Desktop

GeForce GTX 1070 (Desktop) Desktop

Radeon RX 5600 XT (Desktop) Desktop

Quadro RTX 3000 Max-Q *

GeForce GTX 1080 Max-Q

Pro Vega 56 Desktop

GeForce GTX 1070 Mobile

GeForce RTX 2060 Max-Q *

Quadro P4200

GeForce GTX 1660 Ti (Desktop) Desktop

GeForce GTX 1660 Super (Desktop) Desktop

RTX A2000

Radeon RX 6500 XT Desktop

Radeon RX 5500 XT (Desktop) Desktop

NVIDIA GeForce RTX 4050 Laptop GPU

Nvidia RTX 1000 Ada Generation Laptop GPU

RTX A2000 Laptop GPU

A730M *

Radeon Pro 5600M *

Radeon RX 5600M

Quadro P5000

M4 16-core GPU * Desktop

GeForce GTX 1660 Ti Mobile

GeForce RTX 3050 Ti Laptop GPU

GeForce RTX 3050 6GB Laptop GPU

A570M *

RTX A1000 Laptop GPU

GeForce GTX 980 Ti Desktop

GeForce GTX 1660 (Desktop) Desktop

GeForce GTX 1070 Max-Q

A550M *

GeForce GTX 1650 Super (Desktop) Desktop

Quadro P5000 Max-Q *

Radeon 890M *

Radeon R9 Fury Desktop

Radeon R9 Nano Desktop

GeForce GTX 980 Desktop

GeForce RTX 3050 A Laptop GPU

GeForce RTX 3050 4GB Laptop GPU

Nvidia RTX 500 Ada Generation Laptop GPU

A530M *

GeForce GTX 1660 Ti Max-Q

Radeon RX 590 Desktop

Radeon RX 580 Desktop

GeForce GTX 980 (Laptop)

Quadro M5500

Radeon R9 390X Desktop

GeForce GTX 1060 (Desktop) Desktop

Radeon RX 570 Desktop

Quadro P4000

Quadro T2000 (Laptop) *

Radeon RX 480 Desktop

GeForce GTX 1060 Mobile

M4 10-Core GPU *

GeForce GTX 1650 Ti Mobile

A370M *

Radeon RX 5500M

Radeon Pro 5500M *

Quadro P4000 Max-Q

Quadro P3200

Radeon RX 580X (Laptop) *

Radeon RX 580 (Laptop)

Radeon RX 6450M *

Arc 8-Core *

GeForce RTX 2050 Mobile

Arc 140V *

GeForce MX570 *

Radeon RX 6300M *

GeForce GTX 1650 (Desktop) Desktop

Arc 130V *

GeForce GTX 1650 Mobile

Arc A380

Radeon Pro 5300M

Radeon RX 5300M

Quadro P3000

GeForce GTX 970 Desktop

GeForce GTX 1060 Max-Q

Quadro P3000 Max-Q *

GeForce GTX 1650 Ti Max-Q *

Quadro T2000 Max-Q *

Quadro T1000 (Laptop) *

Radeon Pro WX 7100 *

Arc 7-Core *

Radeon RX 470 (Desktop) Desktop

Radeon RX 570X (Laptop) *

Klasse 3

M4 8-Core GPU *

Radeon RX 570 (Laptop) *

Radeon RX 470 (Laptop) *

GeForce GTX 1650 Max-Q *

T1000

T1200 Laptop GPU *

Quadro T1000 Max-Q *

A310 *

A350M *

Vega M GH

Adreno X1-85 4.6 TFLOPS *

Radeon 780M *

M3 10-Core GPU *

Radeon R9 380 Desktop

GeForce GTX 960 Desktop

GeForce MX550

GeForce GTX 1050 Ti Mobile

GeForce GTX 1050 Ti (Desktop) Desktop

Radeon 680M

Quadro P2000

Quadro P2000 Max-Q

Quadro M4000M

GeForce GTX 970M

T500 Laptop GPU *

GeForce MX450 *

Radeon R9 M395X

GeForce GTX 1050 Ti Max-Q *

Radeon Pro Vega 16

Vega M GL / 870

WX Vega M GL

Radeon R9 M485X

Quadro M3000M

GeForce GTX 1050 (Desktop) Desktop

GeForce GTX 1050 Mobile

FirePro W7170M

Radeon R9 M395

Radeon R7 370 Desktop

GeForce GTX 1050 Max-Q *

M3 8-Core GPU *

M2 10-Core GPU *

GeForce GTX 950 Desktop

T600

Radeon 760M *

Adreno X1-85 3.8 TFLOPS *

Radeon Radeon Steam Deck 8CU

Radeon 660M

Radeon RX 460 (Desktop) Desktop

Radeon Pro WX 4150 *

GeForce GTX 965M

Radeon RX 560X (Laptop)

Radeon RX 560 (Laptop)

Quadro M2200

Radeon RX 460 (Laptop)

Quadro P1000

Radeon R9 M390

Xe MAX

Radeon Pro 560X

Radeon Pro 560

Radeon Pro 460

Radeon Pro WX 4130 *

Quadro P620 *

Radeon RX 550X (Laptop)

Radeon RX 550 (Laptop)

Radeon RX 640

Radeon Pro WX 3200 *

Radeon Pro 555X

Radeon Pro 555

Radeon Pro 455

GeForce GT 1030 (Desktop) Desktop

Quadro P600

GeForce GT 710 Desktop

Quadro M2000M

Radeon RX 540X *

Radeon Pro WX 2100 *

Radeon RX 540 *

Radeon Pro WX 3100 *

A18 Pro GPU *

GeForce GTX 950M

Radeon Pro 450

Adreno X1-45 2.1 TFLOPS *

Radeon 630

Radeon 540X *

Radeon R9 M470X *

Radeon R9 M385X

Quadro P520

Quadro M1000M

Quadro M620 *

Vega 11 *

GeForce 945M

Quadro P500 *

UHD Graphics 64EUs

Iris Plus Graphics G7 (Ice Lake 64 EU) *

Vega 10 *

Iris Pro Graphics P580

Iris Pro Graphics 580

Adreno X1-45 1.7 TFLOPS *

Radeon R9 M470 *

FirePro W5170M *

Radeon R9 M370X

Vega 9

FirePro W5130M

UHD Graphics Xe G4 48EUs *

UHD Graphics 32EUs

UHD Graphics Xe 32EUs (Tiger Lake-H) *

UHD Graphics 770 Desktop

UHD Graphics 750

UHD Graphics Xe 750 32EUs * Desktop

Radeon 740M *

UHD Graphics 730

GeForce MX230

M2 8-Core GPU *

M1 8-Core GPU *

Vega 8 *

M1 7-Core GPU *

Vega 7

Radeon R7 M465

FirePro W4100 Desktop

Iris Pro Graphics 6200

GeForce MX130

GeForce 940MX

Quadro M520

A18 GPU *

Vega 8

GeForce 940M

Iris Plus Graphics G4 (Ice Lake 48 EU)

GeForce 930MX

A12Z Bionic GPU *

A12X Bionic GPU *

A17 Pro GPU *

Quadro M600M

FirePro W4190M

Adreno 750 *

Radeon R9 M375

Xclipse 940 *

Adreno 740 *

Immortalis-G925 MC12 *

Immortalis-G720 MP12 *

Immortalis-G715 MP11 *

A16 GPU 5-Core *

Iris Plus Graphics 655

Radeon R7 M445

A15 GPU 5-Core *

Mali-G615 MP6 *

A15 GPU 4-Core *

A14 Bionic GPU *

Xclipse 920 *

Adreno 660 *

Mali-G78 MP24 *

Mali-G710 MP7 *

Mali-G78 MP22 *

Iris Plus Graphics 650

GeForce 930M

Iris Graphics 550

Radeon 530

Radeon 625

Vega 6 *

Iris Plus Graphics 645

A13 Bionic GPU *

GeForce MX110 *

Iris Plus Graphics 640

GeForce 920MX

Iris Graphics 540

A12 Bionic GPU *

Adreno 650 *

Mali-G78 MP20 *

Mali-G78 MP14 *

A11 Bionic GPU *

A10X Fusion GPU *

UHD Graphics 24EUs (Alder Lake-N) *

Radeon R7 (Bristol Ridge) *

Radeon R7 M460 *

A9X / PowerVR GT7xxx

Radeon R7 M360

Radeon 620

Radeon R7 M340

Radeon 610

Radeon Graphics (Ryzen 7000)

Radeon 610M *

Vega 6 *

Vega 5 *

UHD Graphics G1 (Ice Lake 32 EU)

UHD Graphics 630 Desktop

UHD Graphics P630 Desktop

UHD Graphics Xe 16EUs (Tiger Lake-H) *

HD Graphics 630 Desktop

HD Graphics P630 Desktop

HD Graphics 530

Tegra X1 Maxwell GPU

Radeon R5 (Bristol Ridge)

UHD Graphics 620

HD Graphics 620

Adreno 690 *

Adreno 685 *

Adreno 680 *

FirePro W2100 Desktop

Radeon R5 M330

Radeon R5 M430

Vega 3 *

GeForce 910M

HD Graphics 520

Iris Graphics 6100

Klasse 4

Radeon R5 M320 *

Radeon R5 M315 *

Radeon R5 M420 *

Vega 2 *

Radeon R5 (Stoney Ridge)

A10 Fusion GPU

HD Graphics 6000

Mali-G77 MP11 *

Xclipse 530

Mali-G76 MP16 *

Mali-G610 MP4 *

Mali-G610 MP3 *

Adreno 710 *

Maleoon 910 *

Mali-G76 MP12 *

Mali-G76 MP10 *

Mali-G68 MP5 *

Mali-G57 MP6 *

Mali-G57 MP5 *

Adreno 540 *

Mali-G72 MP18 *

Mali-G71 MP20 *

UHD Graphics (Jasper Lake 32 EU) *

UHD Graphics (Elkhart Lake 32 EU) Desktop

Mali-G72 MP12 *

Mali-G71 MP8

UHD Graphics 617

UHD Graphics 615

UHD Graphics (Jasper Lake 24 EU) *

HD Graphics 615

PowerVR GM9446

Adreno 530

PowerVR GXA6850

GeForce ULP K1 (Tegra K1 Kepler GPU)

A9 / PowerVR GT7600

Mali-T880 MP12

Mali-G76 MP4 *

HD Graphics 515

UHD Graphics 610

HD Graphics 610

HD Graphics 510

UHD Graphics (Elkhart Lake 16 EU) Desktop

UHD Graphics (Jasper Lake 16 EU)

UHD Graphics 605

HD Graphics 505

Mali-T760 MP8

Mali-G71 MP2 *

Radeon R4 (Stoney Ridge)

Adreno 430

Radeon R2 (Stoney Ridge)

Mali-G72 MP3 *

VideoCore VII *

Mali-G52 MP6 *

UHD Graphics 600

Mali-T760 MP6

Mali-T880 MP2

HD Graphics 405 (Braswell)

HD Graphics (Braswell)

HD Graphics 400 (Braswell)

PowerVR GX6450

Adreno 420

Adreno 620 *

IMG BXM-8-256

Mali-G57 MP4 *

Mali-G57 MP3 *

Klasse 5

Adreno 619L *

Adreno 616 *

Mali-G51 MP4 *

HD Graphics (Cherry Trail)

Adreno 612 *

Adreno 512 *

PowerVR GX6250

Mali-T628 MP6

Mali-T760 MP4

SGX554MP4

Mali-T628 MP4

Adreno 509 *

Adreno 508 *

Adreno 506 *

GE8322 / IMG8322 *

Adreno 505 *

Adreno 504 *

Mali-T860 MP2

Mali-T830 MP3

Mali-T604 MP4

PowerVR G6200

Adreno 405 *

Mali-T830 MP2

Klasse 6

Mali-T624

Mali-T760 MP2

PowerVR GE8100 *

Mali-T720 MP4

Mali-450 MP4

Mali-T830 MP1

SGX543MP3 *

SGX543MP2 *

SGX545

SGX544MP2 *

Mali-T720 MP2

SGX544 *

Adreno 308

Adreno 306

Adreno 305

Adreno 304

Mali-T720

GC7000UL

Adreno 302

Adreno 225 *

GC4000 *

Mali-400 MP4 *

VideoCore-IV *

Adreno 220 *

Vivante GC1000+ Dual-Core

Mali-400 MP2 *

Mali-400 MP *

SGX540 *

Adreno 205 *

Adreno 203 *

GC800 *

SGX535

SGX531

SGX530

Adreno 200 *

Mali-200 *

* Benaderende positie van de videokaart

Top 10 Testrapporten

» Top 10 Multimedia Notebooks
» Top 10 Gaming-Notebooks
» Top 10 Budget Gaming Laptops
» Top 10 Lichtgewicht Gaming-Notebooks
» Top 10 Premium Office/Business-Notebooks
» Top 10 Budget Office/Business-Notebooks
» Top 10 Workstation-Laptops
» Top 10 Subnotebooks
» Top 10 Ultrabooks
» Top 10 Notebooks tot €300
» Top 10 Notebooks tot €500
» Top 10 Notebooks tot € 1.000De beste notebookbeeldschermen zoals getest door Notebookcheck
» De beste notebookbeeldschermen
» Top Windows Alternatieven voor de MacBook Pro 13
» Top Windows Alternatieven voor de MacBook Pro 15
» Top Windows alternatieven voor de MacBook 12 en Air
» Top 10 best verkopende notebooks op Amazon
» Top 10 Convertible Notebooks
» Top 10 Tablets
» Top 10 Tablets tot € 250
» Top 10 Smartphones
» Top 10 Phablets (>90cm²)
» Top 10 Camera Smartphones
» Top 10 Smartphones tot €500
» Top 10 best verkopende smartphones op Amazon

> Overzichten en testrapporten over laptops en mobieltjes > FAQ / Techniek > Vergelijking van Video Kaarten > AMD Radeon Graphics (Ryzen 7000)

Klaus Hinum (Update: 2022-12-31)
